2003 SSANGYONG MUSSO Service Manual

LIGHTING SYSTEM 9B-5
TURN SIGNAL LAMP AND HAZARD LAMP
3.0BG

9B-6 LIGHTING SYSTEM
BACK-UP LAMP AND STOP LAMP

LIGHTING SYSTEM 9B-7
FRONT AND REAR FOG LAMP

9B-8 LIGHTING SYSTEM

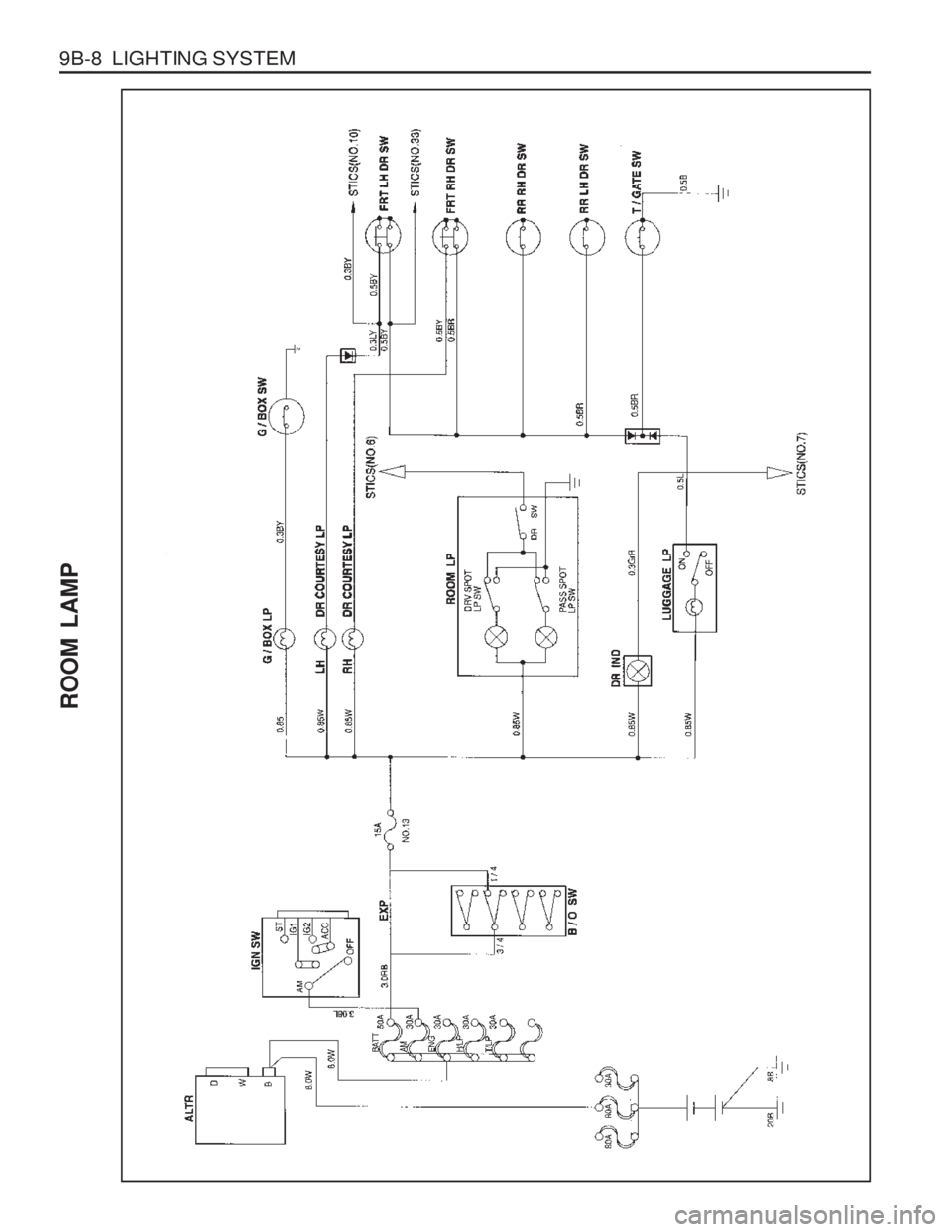

ROOM LAMP

LIGHTING SYSTEM 9B-9

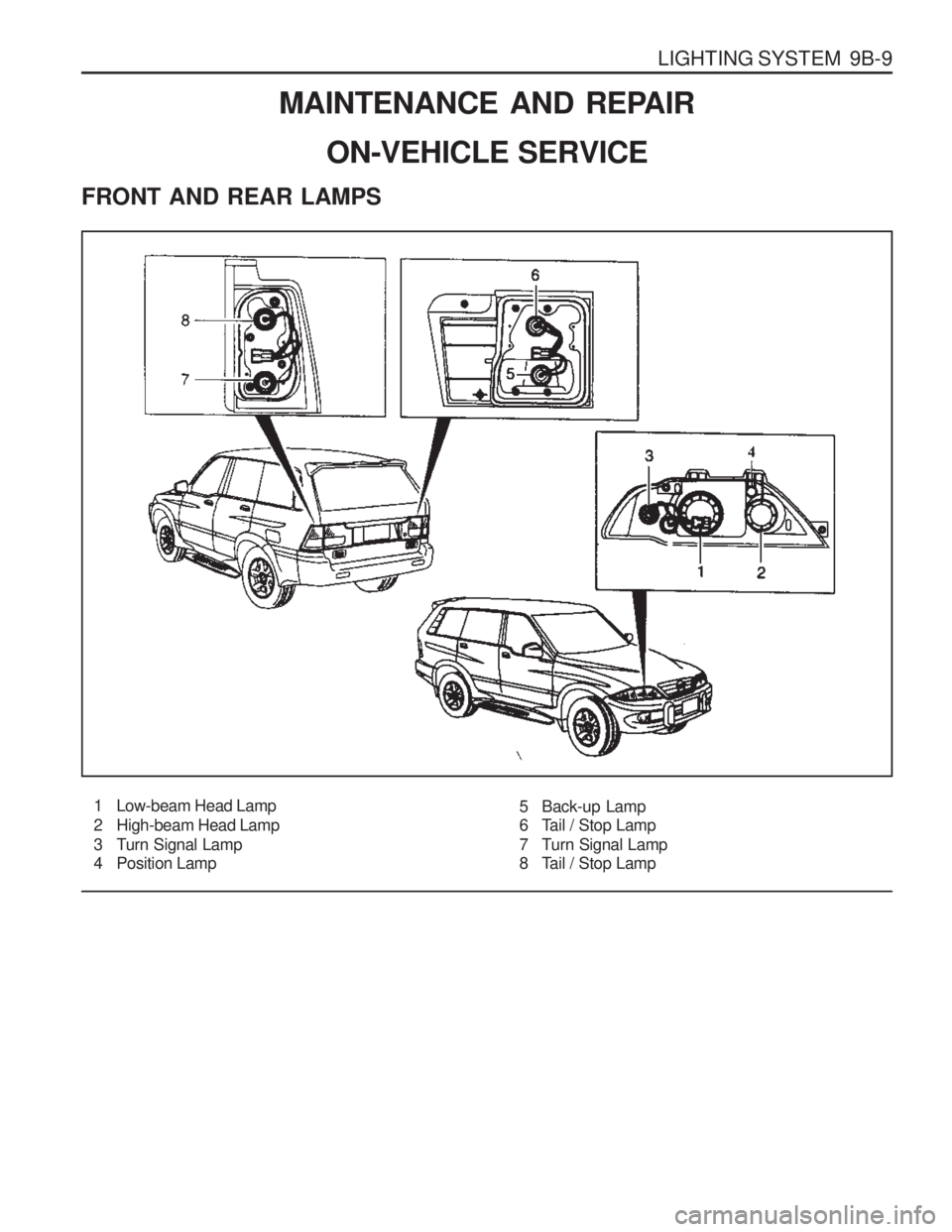

FRONT AND REAR LAMPS
1 Low-beam Head Lamp
2 High-beam Head Lamp
3 Turn Signal Lamp
4 Position Lamp5 Back-up Lamp
6 Tail / Stop Lamp
7 Turn Signal Lamp
8 Tail / Stop Lamp
MAINTENANCE AND REPAIR
ON-VEHICLE SERVICE

9B-10 LIGHTING SYSTEM Head Lamp Focusing When using the beam setting device
1. The head lamp focus should be adjusted by using a properbeam setting device.
2. Adjust the head lamp focus by using Up/Down, Left/Right adjusting screws.
When using the screen
1. Put the vehicle on the leveling surface.
2. One person is needed to seat on the driver's seat without other loads(CVW) and check the tire pressure if it is in the specification.
3. The distance between the headlamp and the screen is 25m.
4. Draw the vertical line (crossing the center of each headlamp) on the screen.
5. Start the engine.
6. Check if the cut-off line of the headlamp on the screen is in the specification.
1 ) Left/right direction
- The degree of the cross point at the cut-off line of theheadlamp and the vertical line should be 15.
2 ) Up/down direction - The distance between the cut-off line of the headlampand the horizontal line should be 25cm.
7. Adjust the focus if the cut-off line of the headlamp is out of
the specification by using up/down, left/right adjusting screws. A : Up/down direction adjusting screwB : Left/right direction adjusting secrw

LIGHTING SYSTEM 9B-11
Head Lamp Removal & Installation Procedure
1. Unscrew upper 2(10mm) bolts and lower 1(10mm) bolt ofhead lamp.
2. Disconnect connector and remove the headlamp.
3. Installation should follow the removal procedure in the reverse order.
Bulb Replacement
1. Turn the dust cap of the head lamp to the left and removeit.
2. If it is high/low head lamp, loosen the screw and pull out the return spring and replace the bulb.NoticeFor correct installation, check the original position of the return spring and remove.
High/low-beam head lamp replacement High-beam head lamp replacement
3. If it is high-beam head lamp, pull out the return spring
and replace the bulb. Notice Refern to lamp specifications.

9B-12 LIGHTING SYSTEM
Tail/stop and turn signal lamp
Tail/stop Lamp and backup lamp

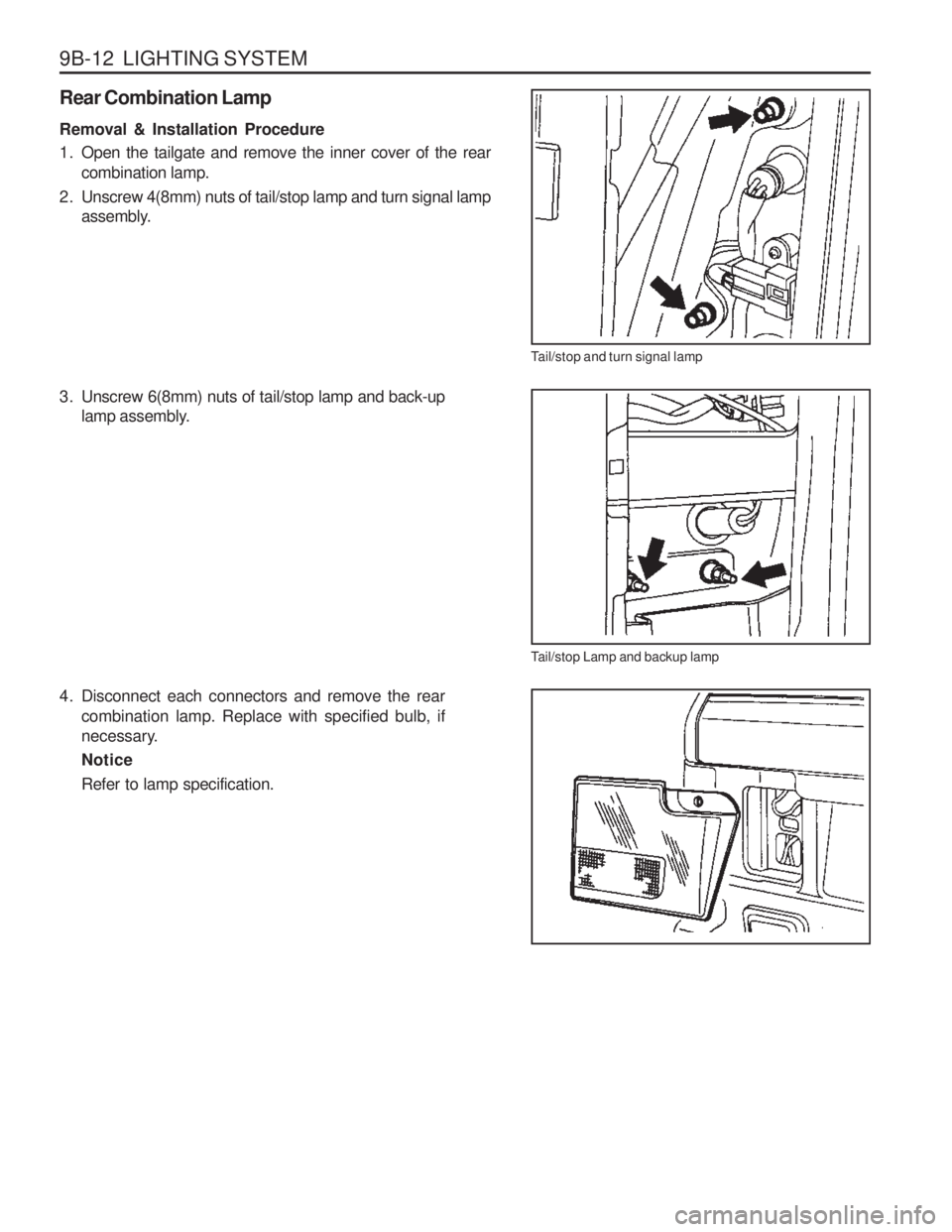

Rear Combination Lamp Removal & Installation Procedure
1. Open the tailgate and remove the inner cover of the rear
combination lamp.
2. Unscrew 4(8mm) nuts of tail/stop lamp and turn signal lamp assembly.
3. Unscrew 6(8mm) nuts of tail/stop lamp and back-up lamp assembly.
4. Disconnect each connectors and remove the rear combination lamp. Replace with specified bulb, if
necessary. NoticeRefer to lamp specification.
