2003 SSANGYONG MUSSO Service Manual

BODY WIRING SYSTEM 9A-15
DRIVER'S DOOR
1 Main Wiring Connector
2 Main Wiring Connector
3 Main Wiring Connector
4 Main Wiring Connector
5 Speaker
6 Door Lock Actuator
7 Outside Mirror Motor
8 Tweeter Speaker Wiring Connector
9 Power Window Motor
10 Power Window Switch
11 Door Courtesy Lamp
PASSENGER'S DOOR
1 Main Wiring Connector
2 Main Wiring Connector
3 Floor Wiring Connector
4 Speaker
5 Door Lock Actuator
6 Outside Mirror Motor
7 Tweeter Speaker Wiring Connector
8 Power Window Motor
9 Power Window Switch
10 Door Courtesy Lamp

9A-16 BODY WIRING SYSTEM REAR LEFT DOOR
REAR RIGHT DOOR
1 Floor Wiring Connector
2 Door Lock Actuator
3 Power Window Motor
4 Power Window Switch
1 Floor Wiring Connector
2 Door Lock Actuator
3 Power Window Motor
4 Power Window Switch

BODY WIRING SYSTEM 9A-17
TAIL GATE1 Floor Wiring Connector
2 Floor Wiring Connector
3 Floor Wiring Connector
4 LH Rear Combination Lamp
5 LH Rear Fog Lamp
6 Joint Connector (Ground)
7 Rear Wiper Motor
8 LH License Lamp 9 Tail Gate Switch
10 Door Lock Actuator
11 High Mounted Stop Lamp
12 RH License Lamp
13 RH Rear Combination Lamp
14 RH Rear Fog Lamp
15 Rear Heated

9A-18 BODY WIRING SYSTEM
SEMI AUTOMATIC AIR CONDITIONER1 Main Connector
2 Air Conditioner Relay 2
3 LO Relay
4 ML Relay
5 MH Relay
6 HI Relay
7 Intake Actuator
8 Blower Motor
9 Resistor
10 Diode 11 Amplifier
1 2 Amplifier 13 Temp Actuator
14 Blower Relay
15 Water Temperature Sensor
16 Air Conditioner Switch
17 Fan Switch (Auto)
18 PTC
19 Control
20 Mode Switch
21 In Car Sensor
22 Sun Sensor
23 Mode Actuator

BODY WIRING SYSTEM 9A-19
FULL AUTOMATIC AIR CONDITIONER1 Main Connector
2 Intake Actuator
3 Blower Relay
4 HI Relay
5 Power TR
6 Water Temperature Sensor
7 Temp Actuator 8 Blower Relay
9 Control (A)
10 Control (B) 11 Sun Sensor
12 Mode Actuator
13 In Car Sensor

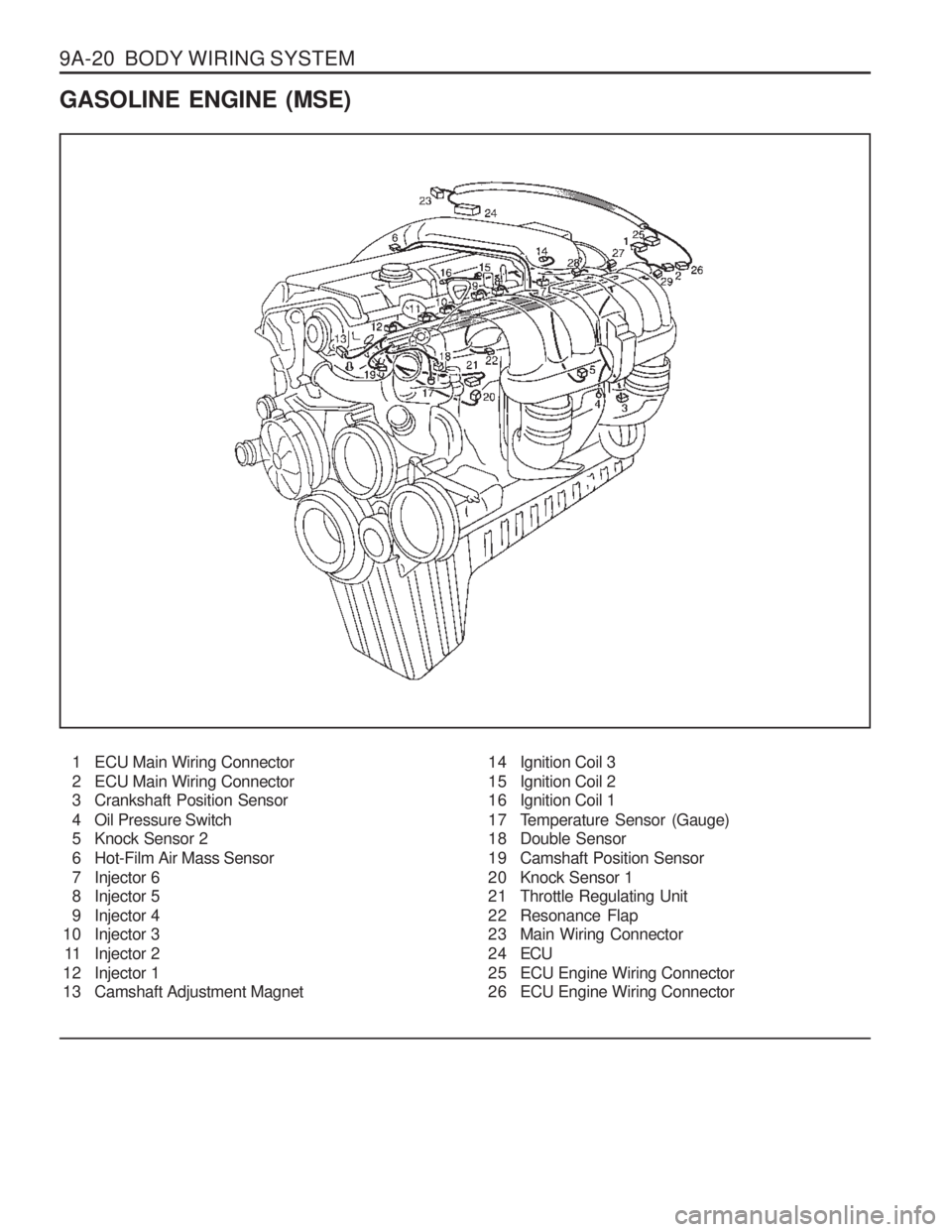

9A-20 BODY WIRING SYSTEM
GASOLINE ENGINE (MSE)1 ECU Main Wiring Connector
2 ECU Main Wiring Connector
3 Crankshaft Position Sensor
4 Oil Pressure Switch
5 Knock Sensor 2
6 Hot-Film Air Mass Sensor
7 Injector 6
8 Injector 5
9 Injector 4
10 Injector 3
11 Injector 2
12 Injector 1
13 Camshaft Adjustment Magnet 14 Ignition Coil 3
15 Ignition Coil 2
16 Ignition Coil 1
17 Temperature Sensor (Gauge)
18 Double Sensor
19 Camshaft Position Sensor
20 Knock Sensor 1
21 Throttle Regulating Unit
22 Resonance Flap
23 Main Wiring Connector
2 4 ECU
25 ECU Engine Wiring Connector
26 ECU Engine Wiring Connector

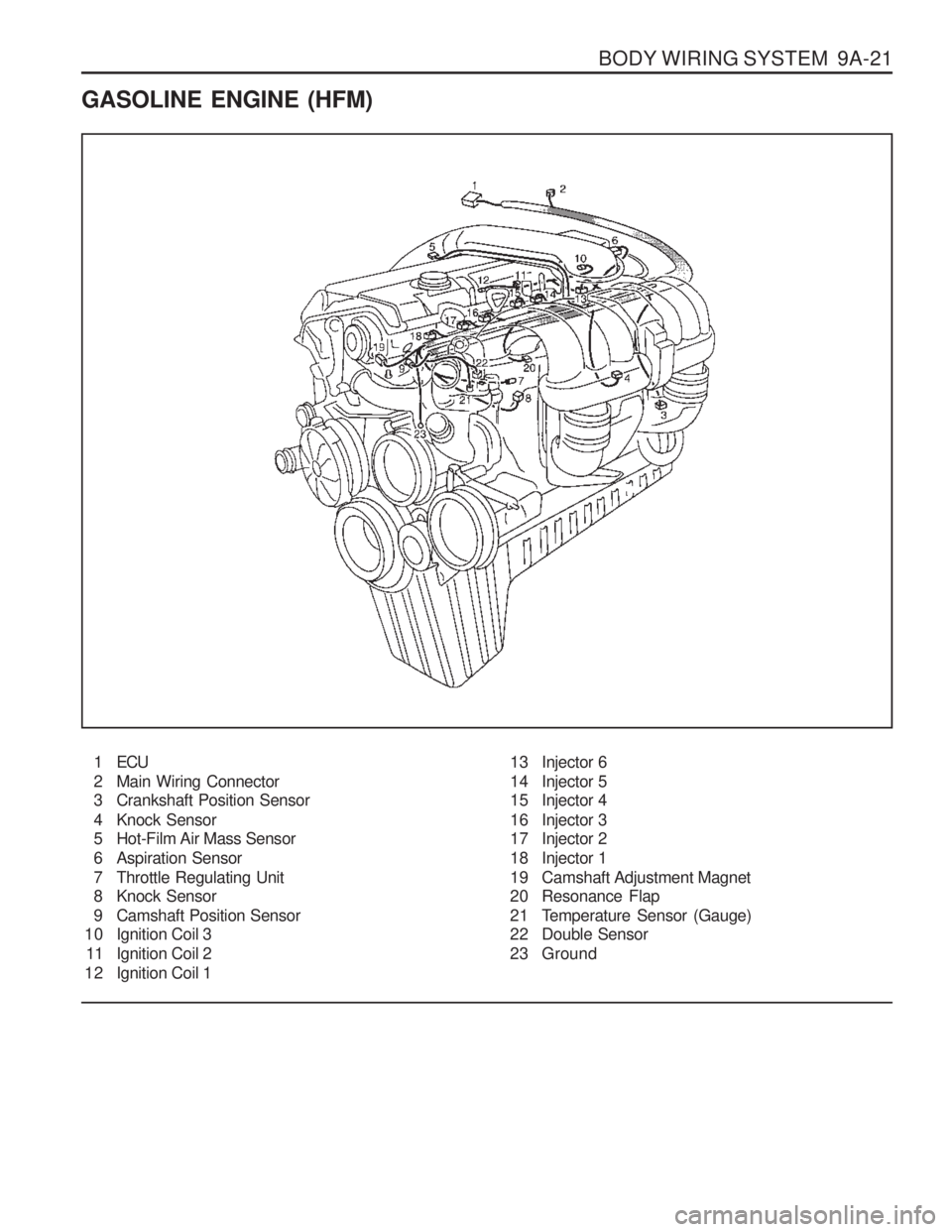

BODY WIRING SYSTEM 9A-21
GASOLINE ENGINE (HFM)1 ECU
2 Main Wiring Connector
3 Crankshaft Position Sensor
4 Knock Sensor
5 Hot-Film Air Mass Sensor
6 Aspiration Sensor
7 Throttle Regulating Unit
8 Knock Sensor
9 Camshaft Position Sensor
10 Ignition Coil 3
11 Ignition Coil 2
12 Ignition Coil 1 13 Injector 6
14 Injector 5
15 Injector 4
16 Injector 3
17 Injector 2
18 Injector 1
19 Camshaft Adjustment Magnet
20 Resonance Flap
21 Temperature Sensor (Gauge)
22 Double Sensor
23 Ground

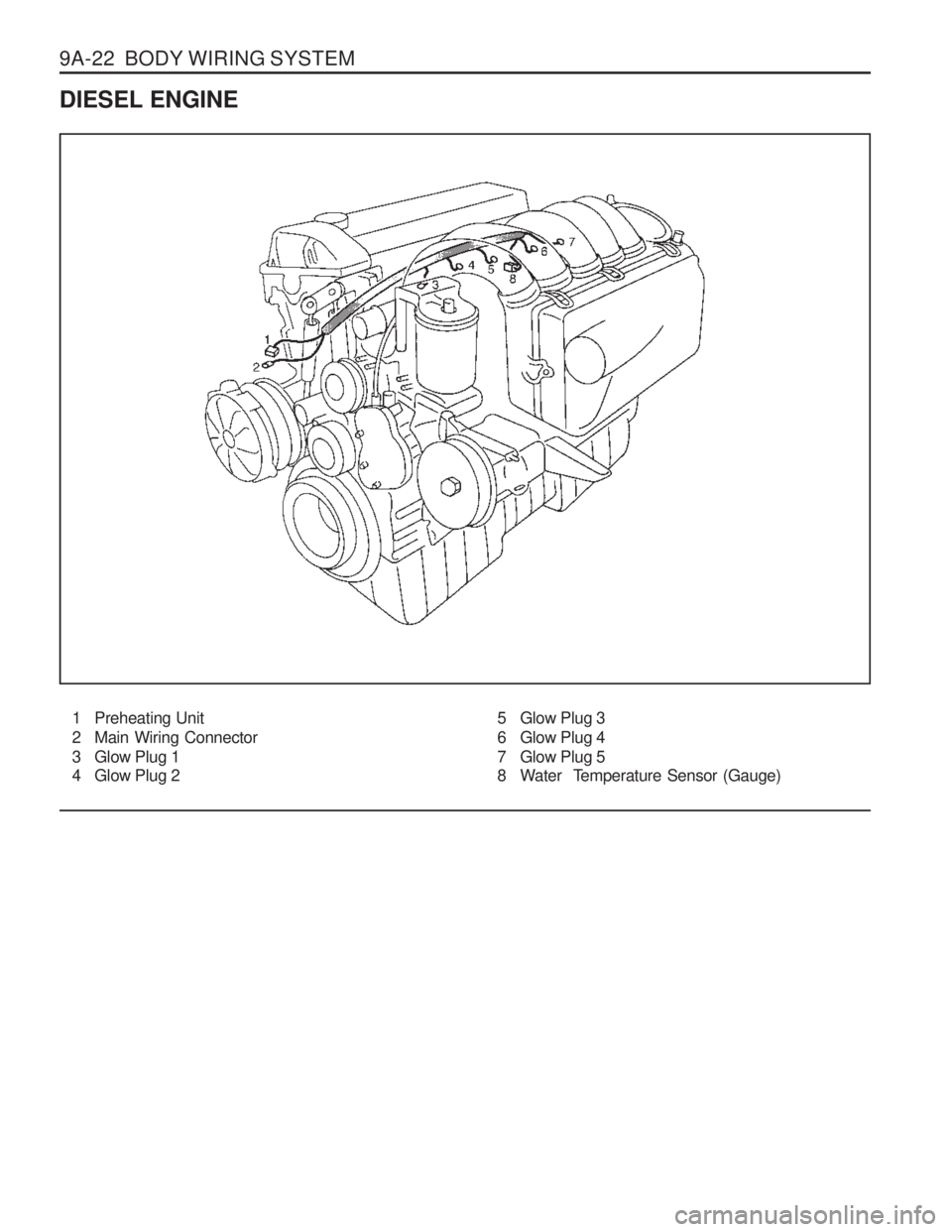

9A-22 BODY WIRING SYSTEM
DIESEL ENGINE1 Preheating Unit
2 Main Wiring Connector
3 Glow Plug 1
4 Glow Plug 2 5 Glow Plug 3
6 Glow Plug 4
7 Glow Plug 5
8 Water Temperature Sensor (Gauge)
