2003 SSANGYONG MUSSO Service Manual

9H-8 SEATS

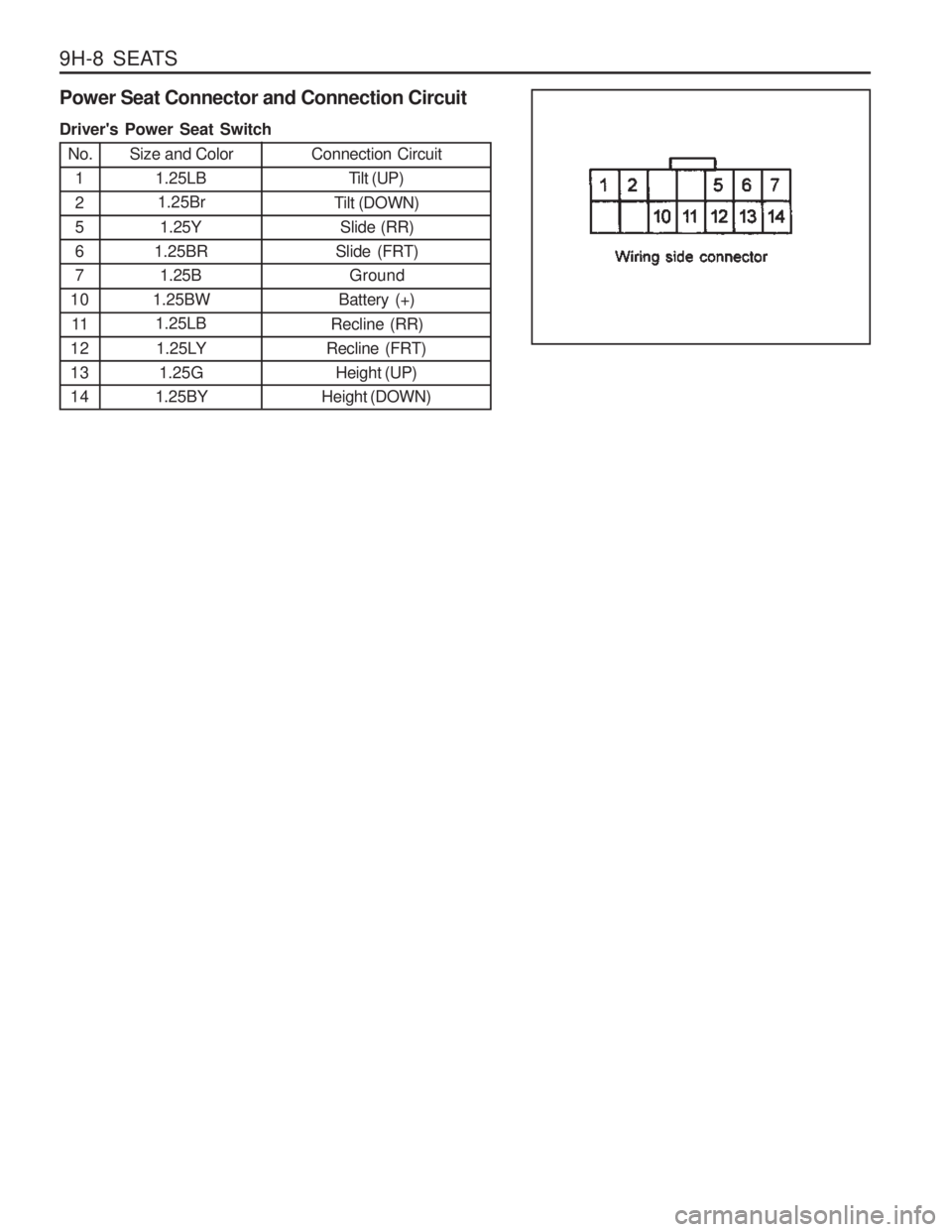

Power Seat Connector and Connection Circuit Driver's Power Seat Switch
Size and Color1.25LB
1.25Br
1.25Y
1.25BR 1.25B
1.25BW
1.25LB
1.25LY 1.25G
1.25BY Connection Circuit
Tilt (UP)
Tilt (DOWN) Slide (RR)
Slide (FRT) Ground
Battery (+)
Recline (RR)
Recline (FRT)
Height (UP)
Height (DOWN)
No.
1 2 567
10
11
121314

SEATS 9H-9

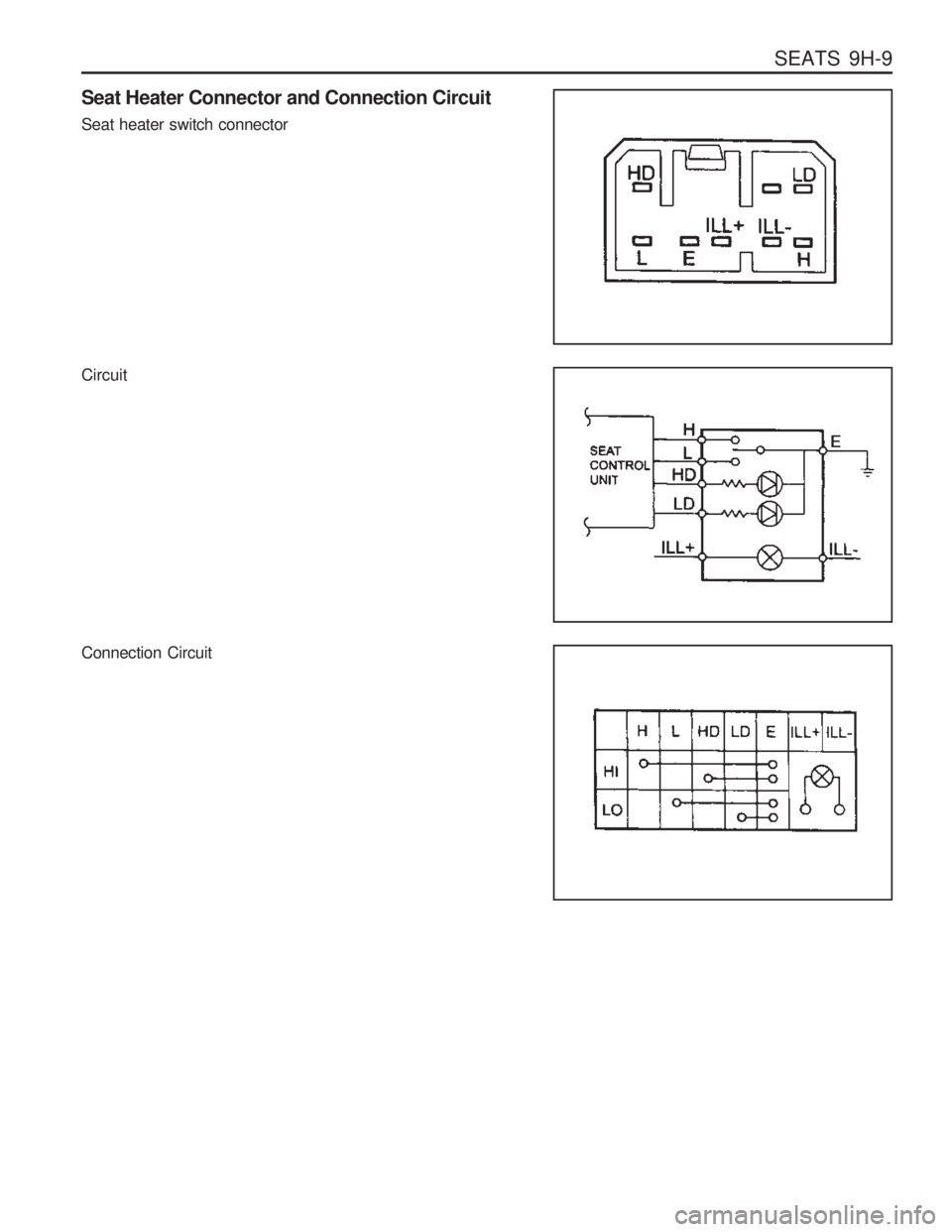

Seat Heater Connector and Connection Circuit Seat heater switch connector
Circuit Connection Circuit

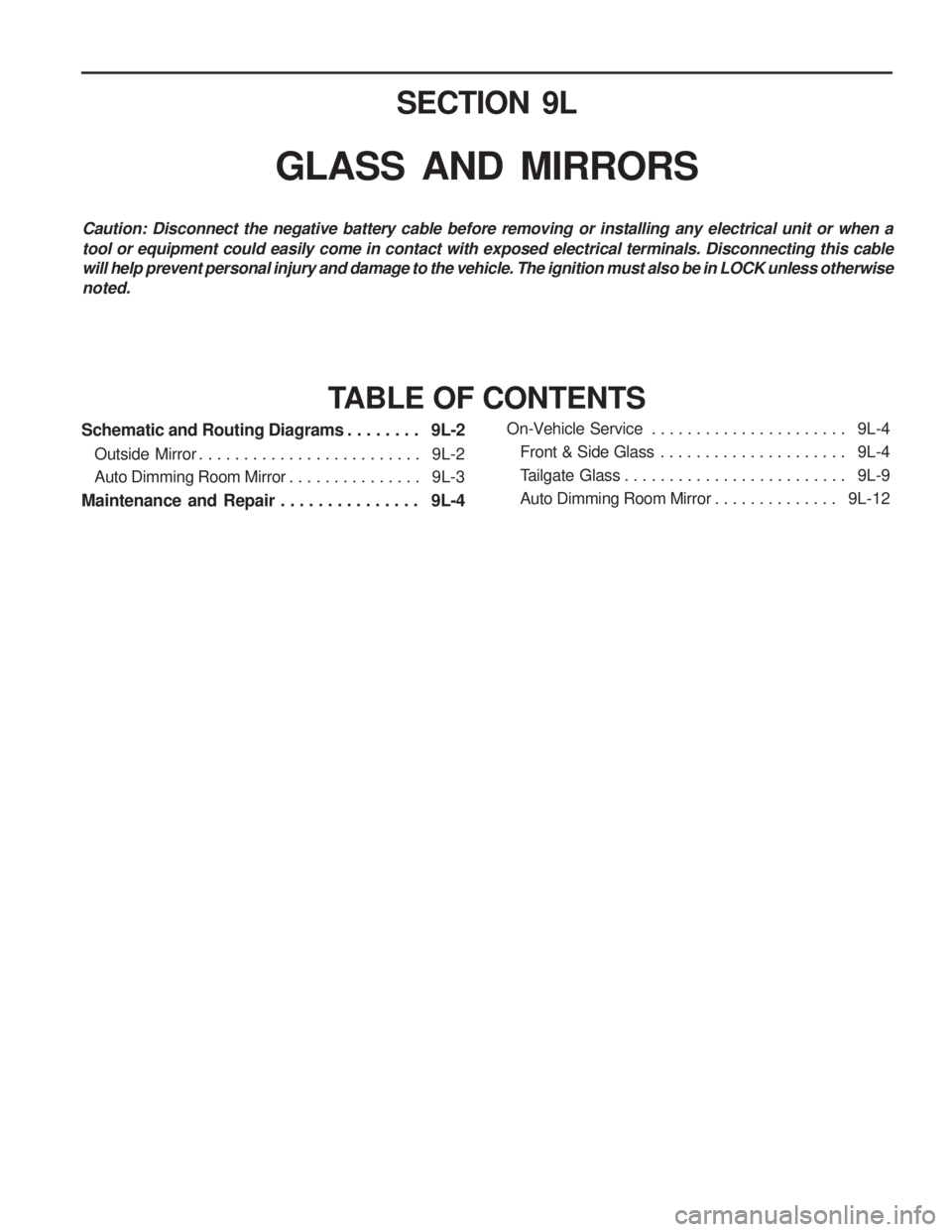

SECTION 9L
GLASS AND MIRRORS
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9L-2 Outside Mirror . . . . . . . . . . . . . . . . . . . . . . . . . 9L-2
Auto Dimming Room Mirror . . . . . . . . . . . . . . . 9L-3
Maintenance and Repair . . . . . . . . . . . . . . . 9L-4 On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . .
9L-4
Front & Side Glass . . . . . . . . . . . . . . . . . . . . . 9L-4
Tailgate Glass . . . . . . . . . . . . . . . . . . . . . . . . . 9L-9
Auto Dimming Room Mirror . . . . . . . . . . . . . . 9L-12

9L-2 GLASS AND MIRRORS

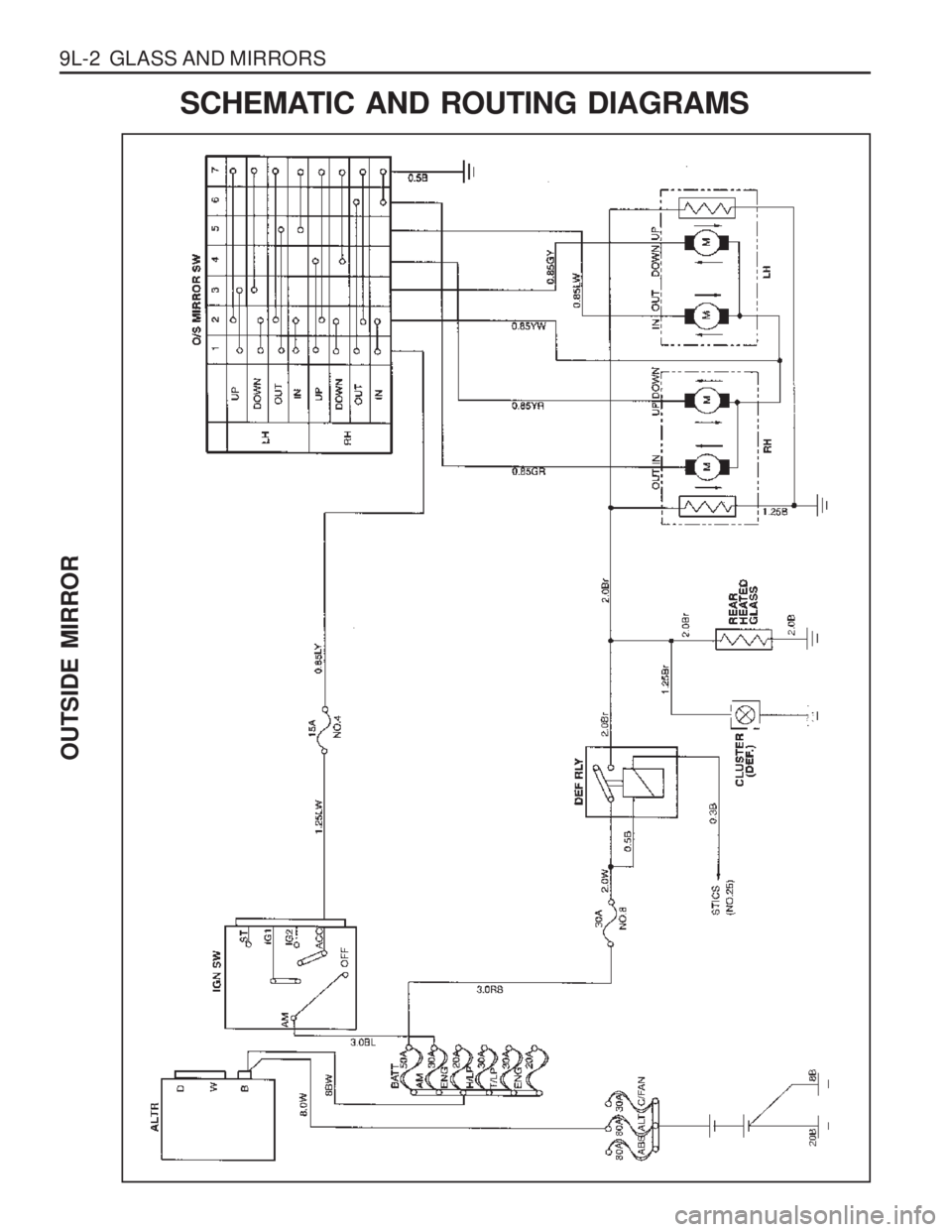

OUTSIDE MIRROR
SCHEMATIC AND ROUTING DIAGRAMS

GLASS AND MIRRORS 9L-3

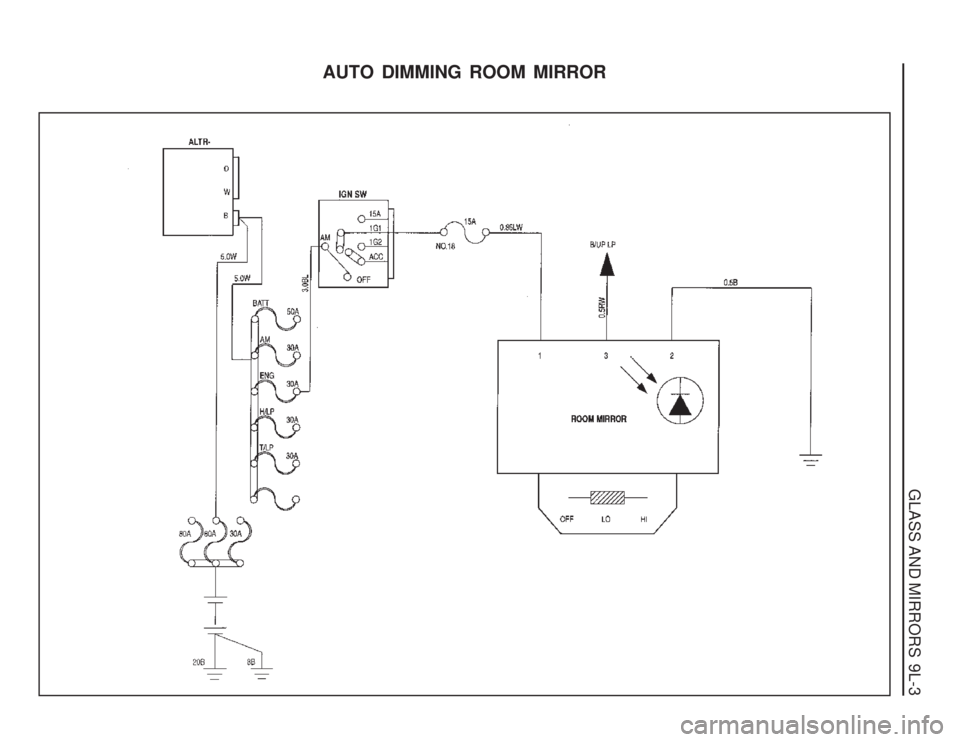

AUTO DIMMING ROOM MIRROR

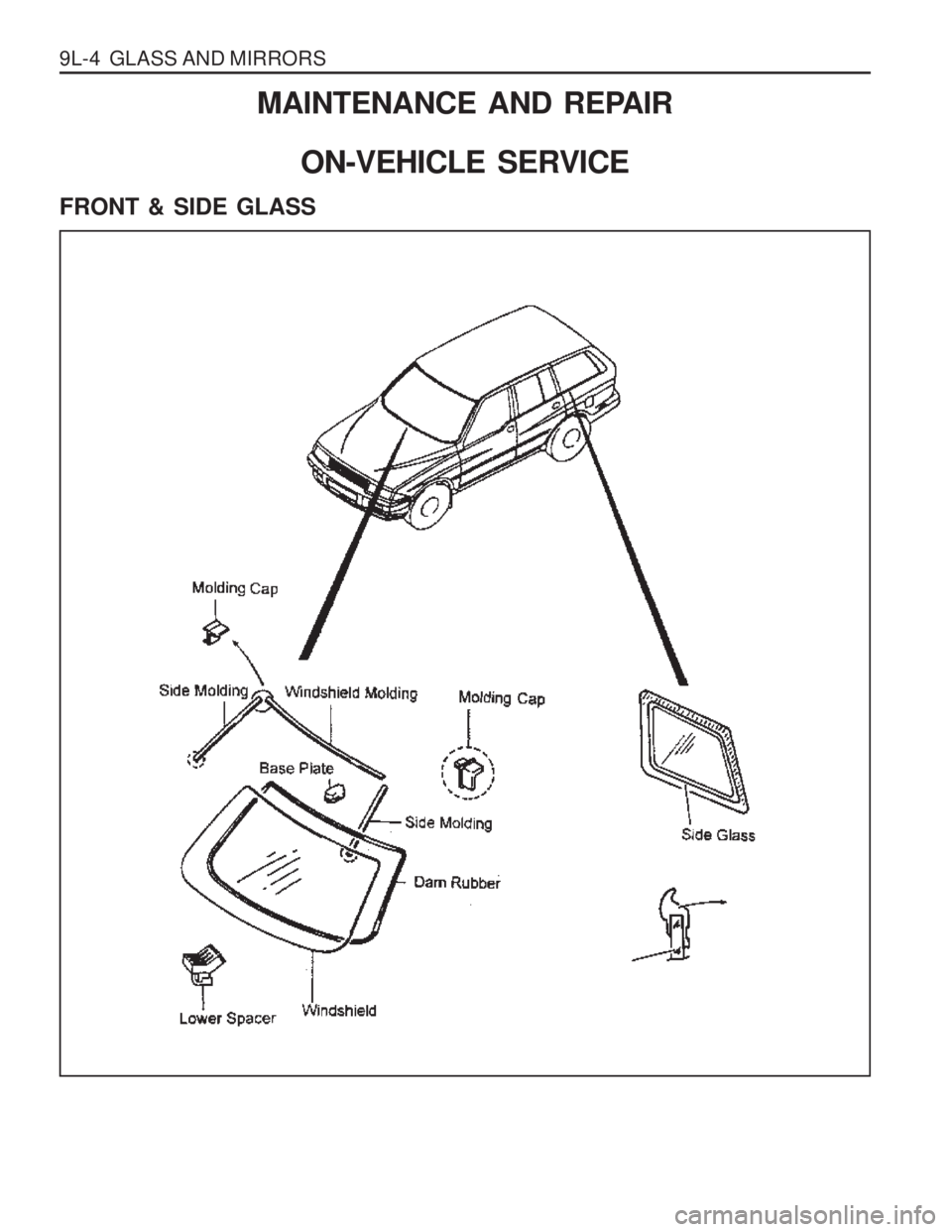

9L-4 GLASS AND MIRRORSMAINTENANCE AND REPAIR
ON-VEHICLE SERVICE
FRONT & SIDE GLASS

GLASS AND MIRRORS 9L-5

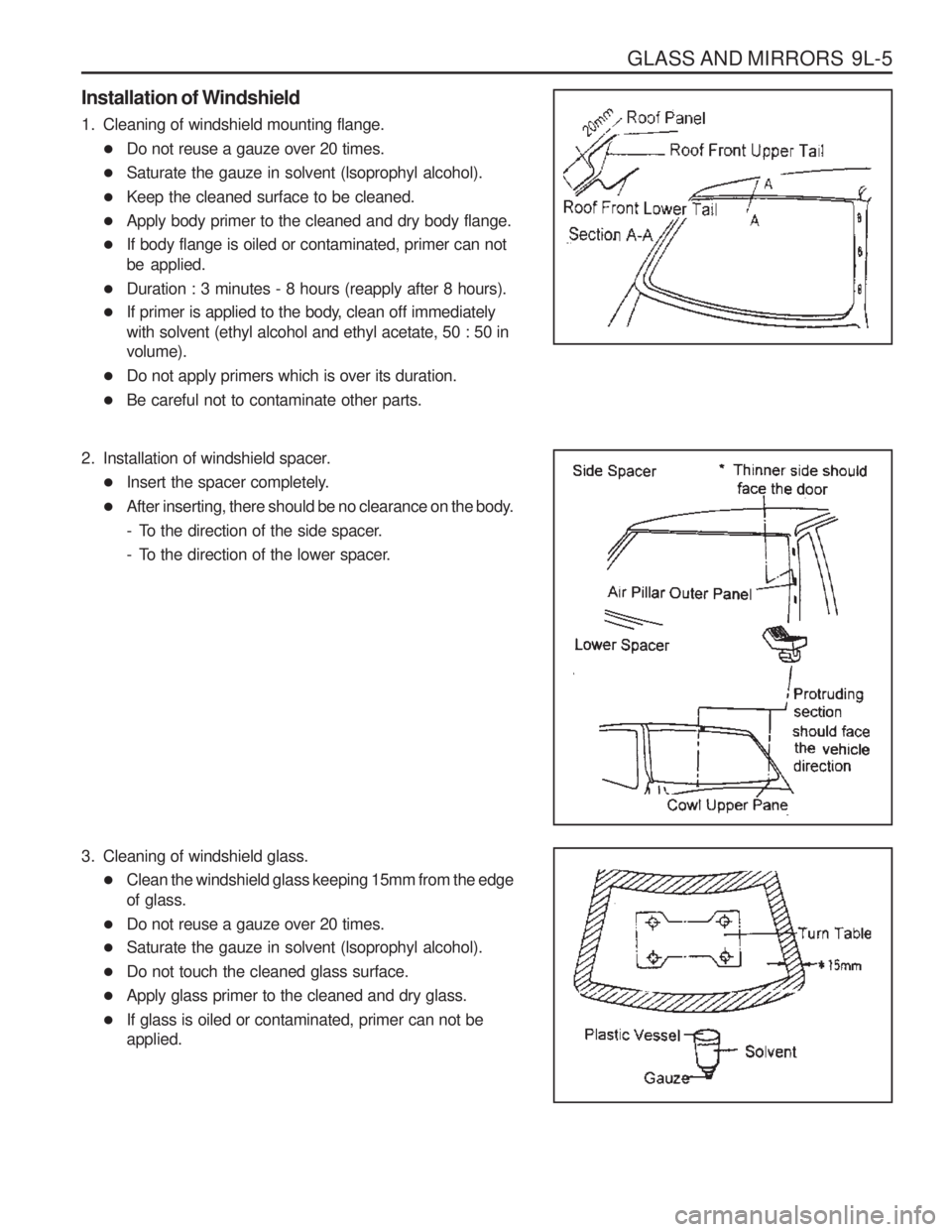

Installation of Windshield
1. Cleaning of windshield mounting flange. Do not reuse a gauze over 20 times.
Saturate the gauze in solvent (lsoprophyl alcohol).
Keep the cleaned surface to be cleaned.
Apply body primer to the cleaned and dry body flange.
If body flange is oiled or contaminated, primer can not be applied.
Duration : 3 minutes - 8 hours (reapply after 8 hours).
If primer is applied to the body, clean off immediatelywith solvent (ethyl alcohol and ethyl acetate, 50 : 50 in volume).
Do not apply primers which is over its duration.
Be careful not to contaminate other parts.
2. Installation of windshield spacer.
Insert the spacer completely.
After inserting, there should be no clearance on the body.
- To the direction of the side spacer.
- To the direction of the lower spacer.
3. Cleaning of windshield glass. Clean the windshield glass keeping 15mm from the edge of glass.
Do not reuse a gauze over 20 times.
Saturate the gauze in solvent (lsoprophyl alcohol).
Do not touch the cleaned glass surface.
Apply glass primer to the cleaned and dry glass.
If glass is oiled or contaminated, primer can not be applied.

9L-6 GLASS AND MIRRORS

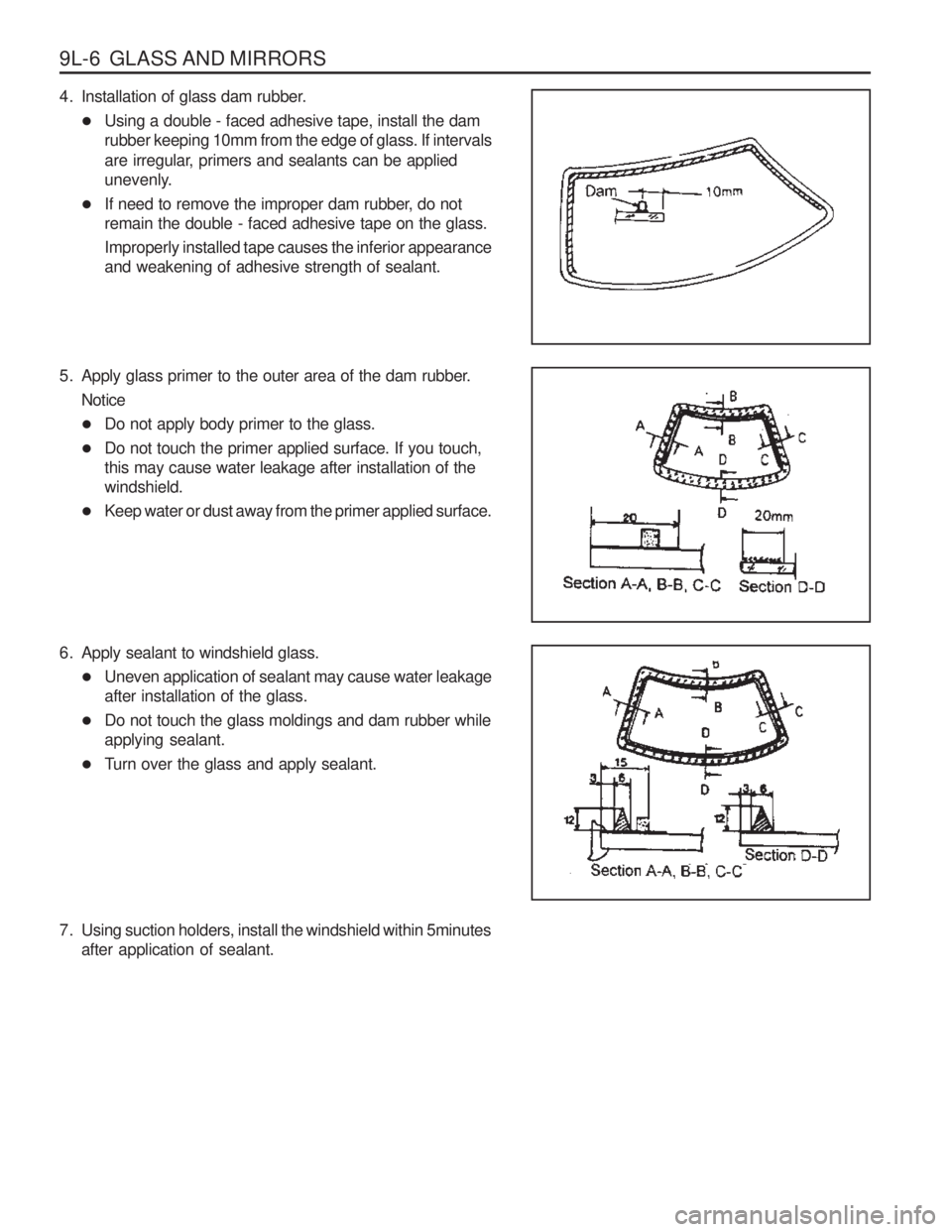

4. Installation of glass dam rubber. Using a double - faced adhesive tape, install the dam rubber keeping 10mm from the edge of glass. If intervals
are irregular, primers and sealants can be applied
unevenly.
If need to remove the improper dam rubber, do notremain the double - faced adhesive tape on the glass. Improperly installed tape causes the inferior appearance and weakening of adhesive strength of sealant.
5. Apply glass primer to the outer area of the dam rubber.
Notice
Do not apply body primer to the glass.
Do not touch the primer applied surface. If you touch, this may cause water leakage after installation of thewindshield.
Keep water or dust away from the primer applied surface.
6. Apply sealant to windshield glass. Uneven application of sealant may cause water leakageafter installation of the glass.
Do not touch the glass moldings and dam rubber whileapplying sealant.
Turn over the glass and apply sealant.
7. Using suction holders, install the windshield within 5minutes after application of sealant.
