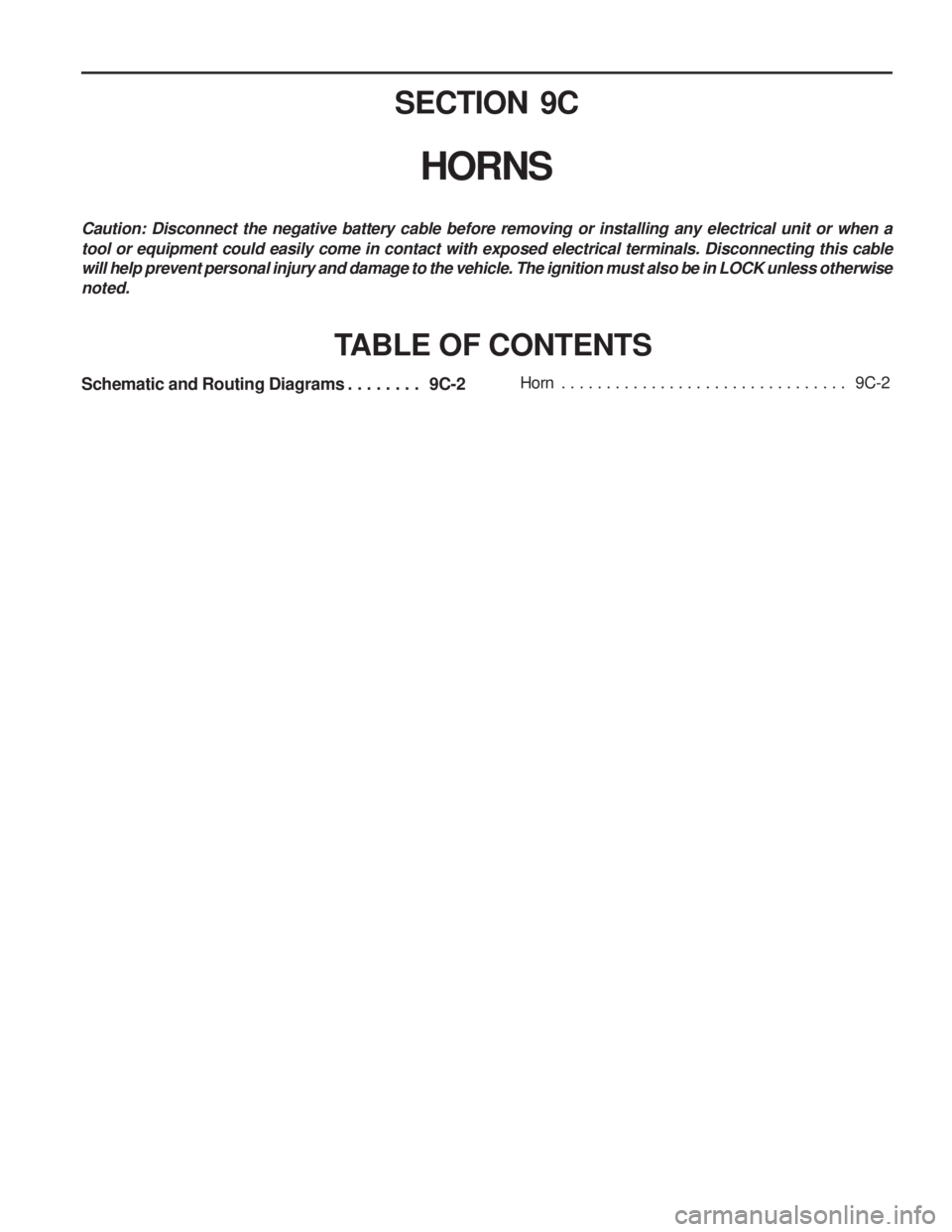

SECTION 9C
HORNS
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9C-2 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9C-2
Page 1242 of 1574
9C-2 HORN
HORN

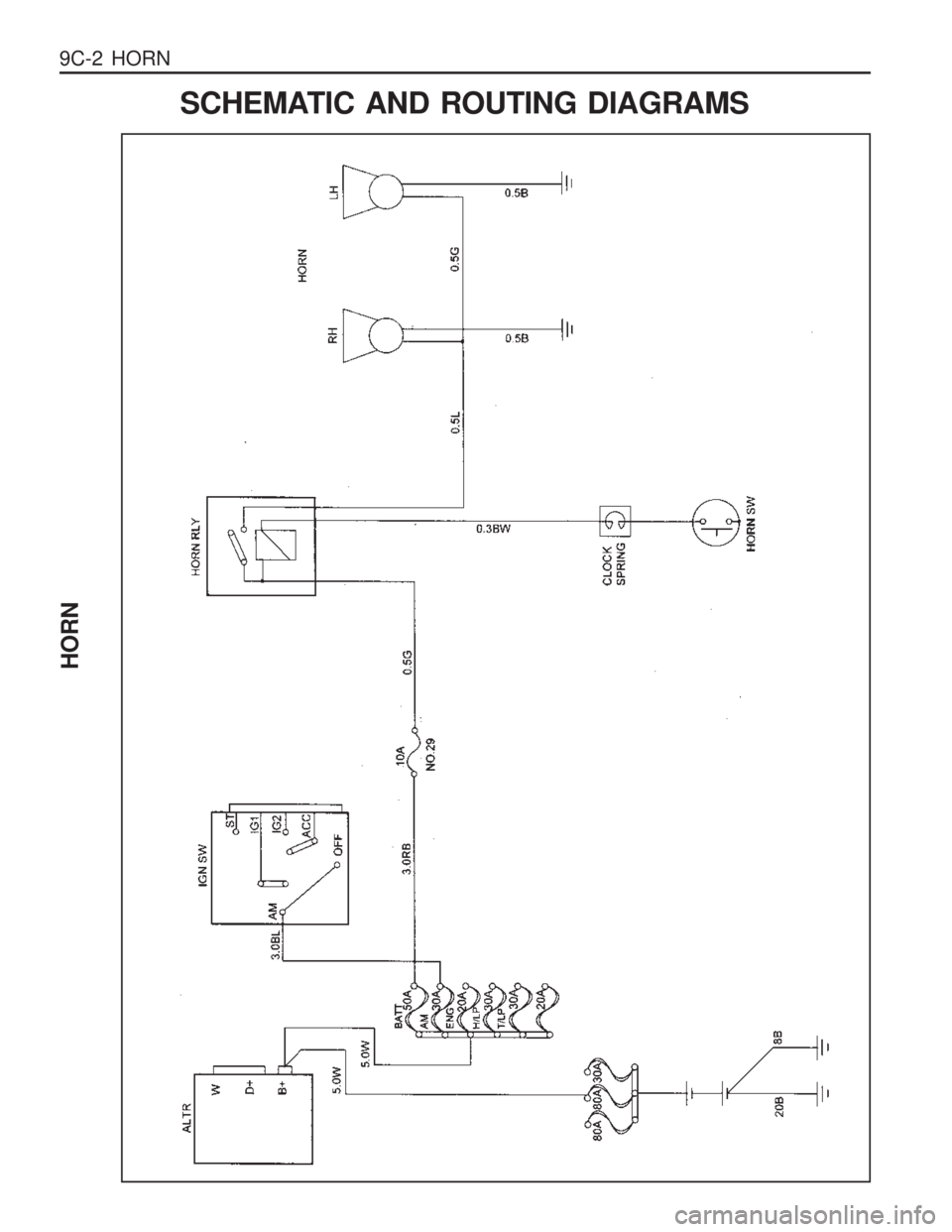

SCHEMATIC AND ROUTING DIAGRAMS
Page 1243 of 1574

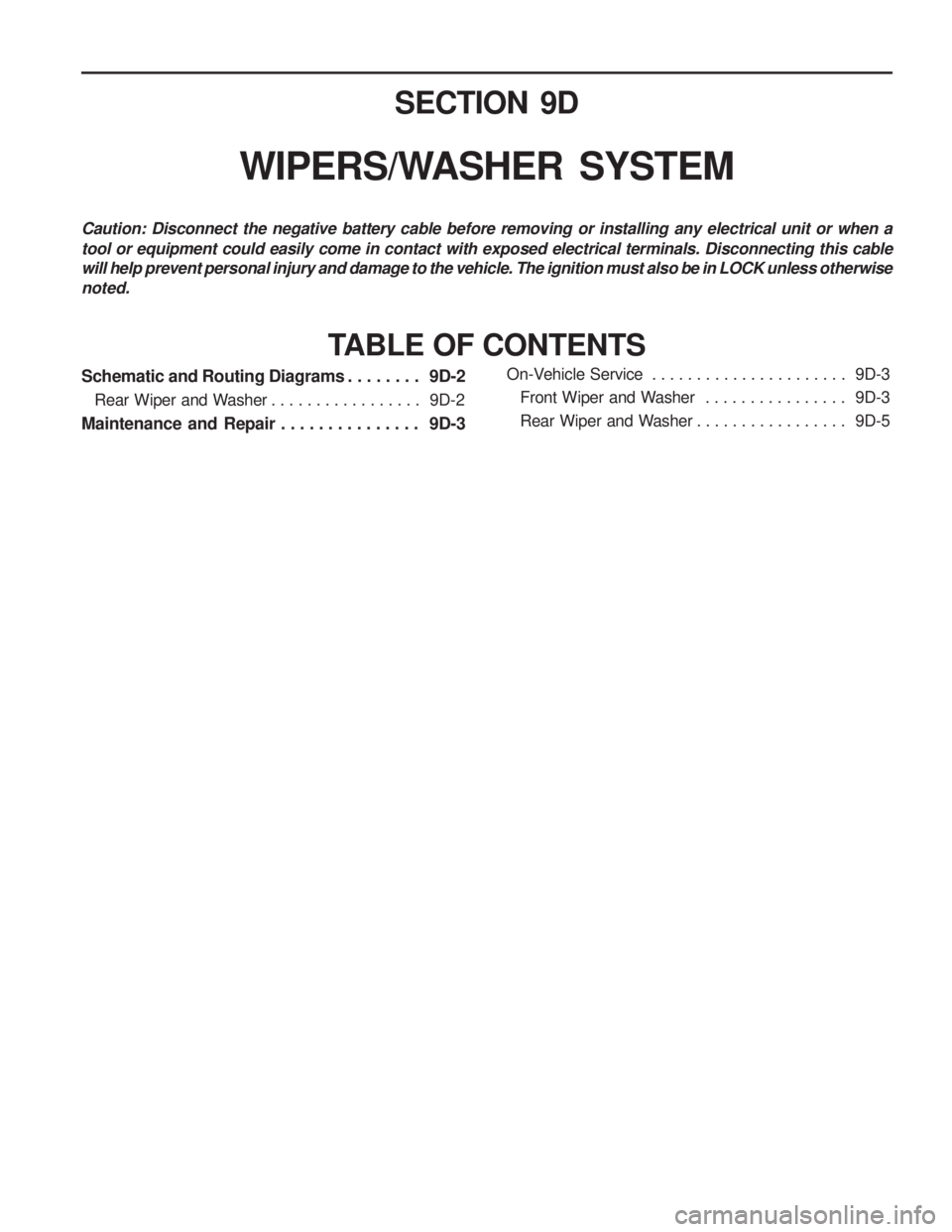

SECTION 9D
WIPERS/WASHER SYSTEM
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9D-2 Rear Wiper and Washer . . . . . . . . . . . . . . . . . 9D-2
Maintenance and Repair . . . . . . . . . . . . . . . 9D-3 On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . . 9D-3
Front Wiper and Washer . . . . . . . . . . . . . . . . 9D-3
Rear Wiper and Washer . . . . . . . . . . . . . . . . . 9D-5
Page 1244 of 1574

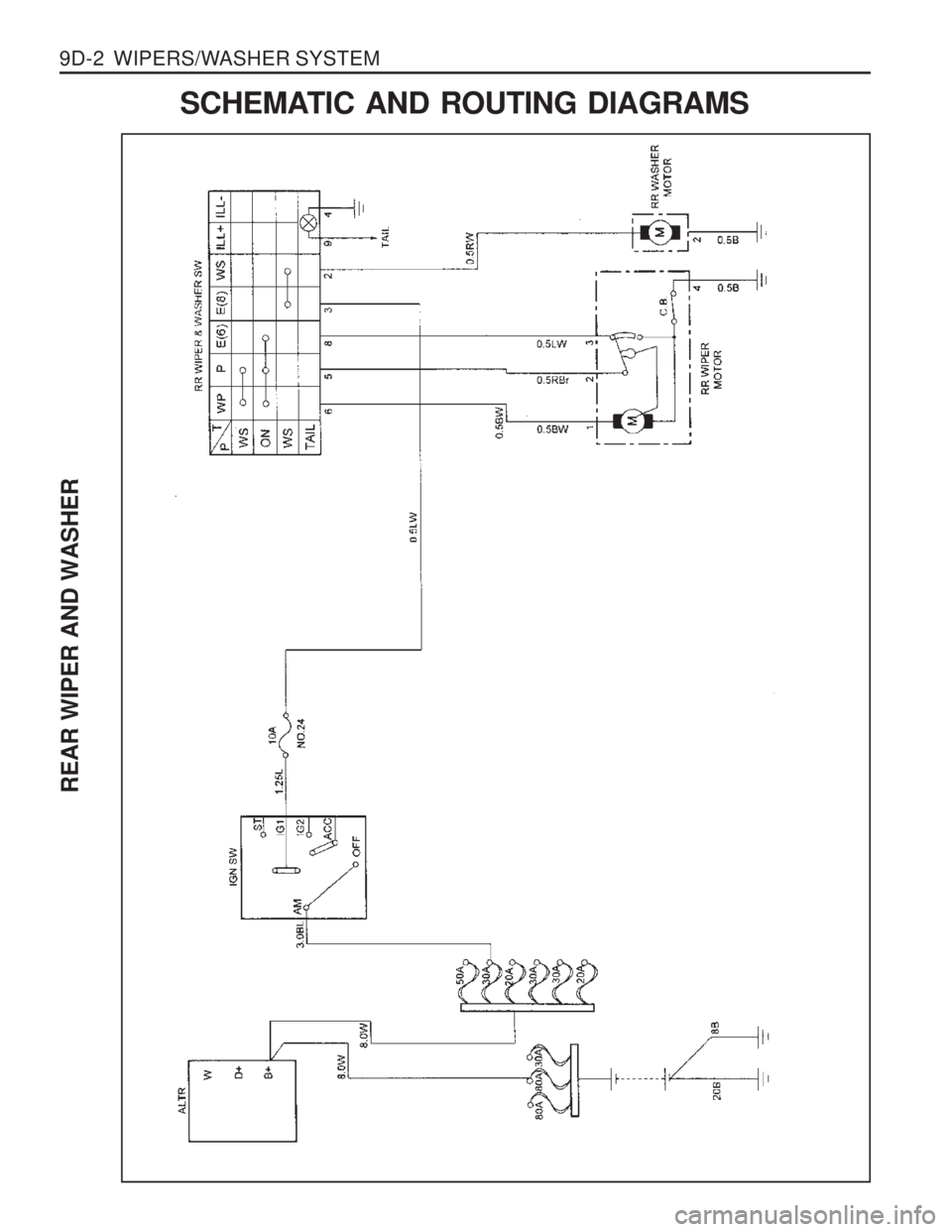

9D-2 WIPERS/WASHER SYSTEMSCHEMATIC AND ROUTING DIAGRAMS
REAR WIPER AND WASHER
Page 1245 of 1574
WIPERS/WASHER SYATEM 9D-3

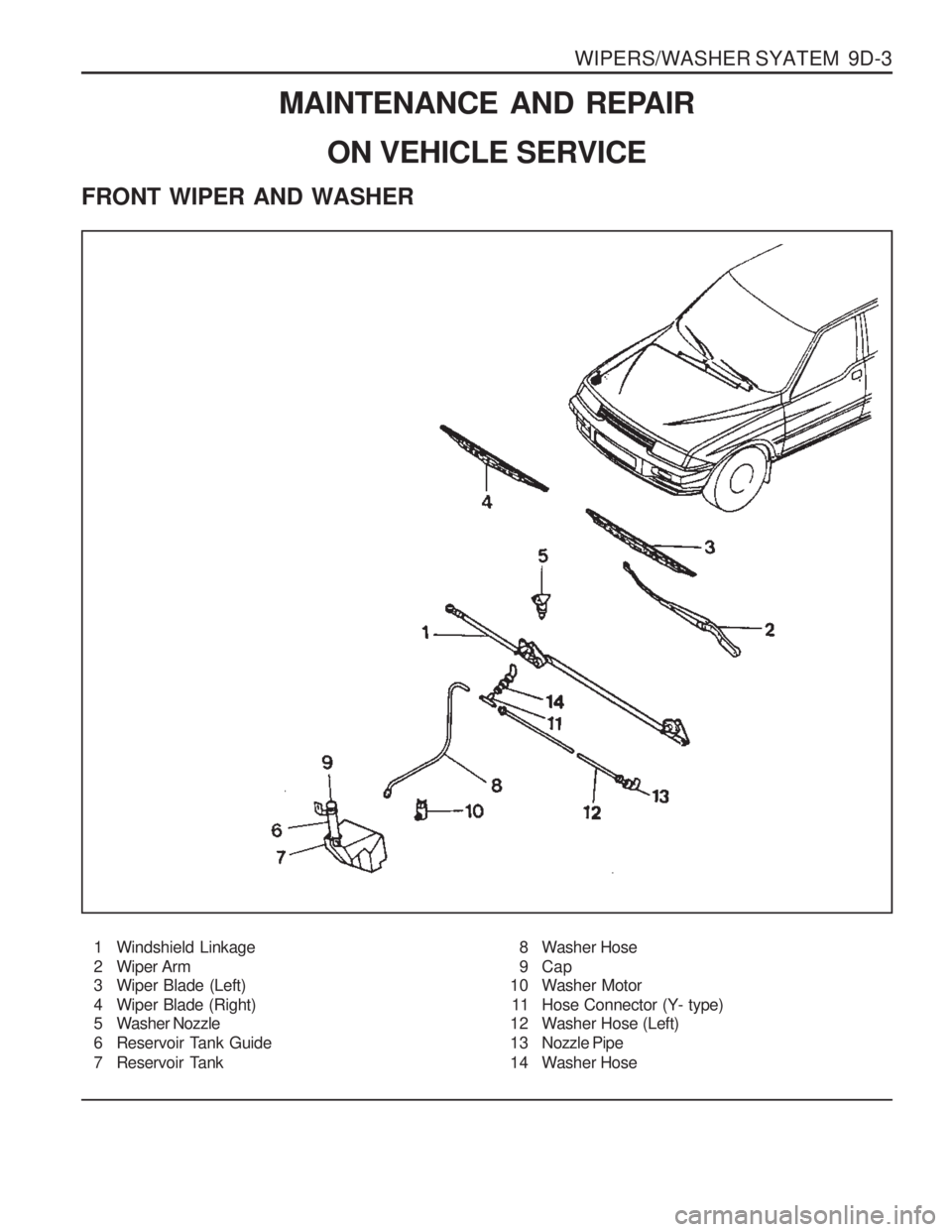

FRONT WIPER AND WASHER
1 Windshield Linkage
2 Wiper Arm
3 Wiper Blade (Left)
4 Wiper Blade (Right)
5 Washer Nozzle
6 Reservoir Tank Guide
7 Reservoir Tank8 Washer Hose
9 Cap
10 Washer Motor
11 Hose Connector (Y- type)
12 Washer Hose (Left)
1 3 Nozzle Pipe
14 Washer Hose
MAINTENANCE AND REPAIR
ON VEHICLE SERVICE
Page 1246 of 1574
9D-4 WIPERS/WASHER SYSTEM
Removal & Installation Procedure
1. Remove the wiper arm and blade.
2. Remove the linkage connected to the wiper motor.
3. Disconnect the connector from the wiper motor.
4. Unscrew the locking bolts from wiper motor.
5. Installation is reverse order of removal

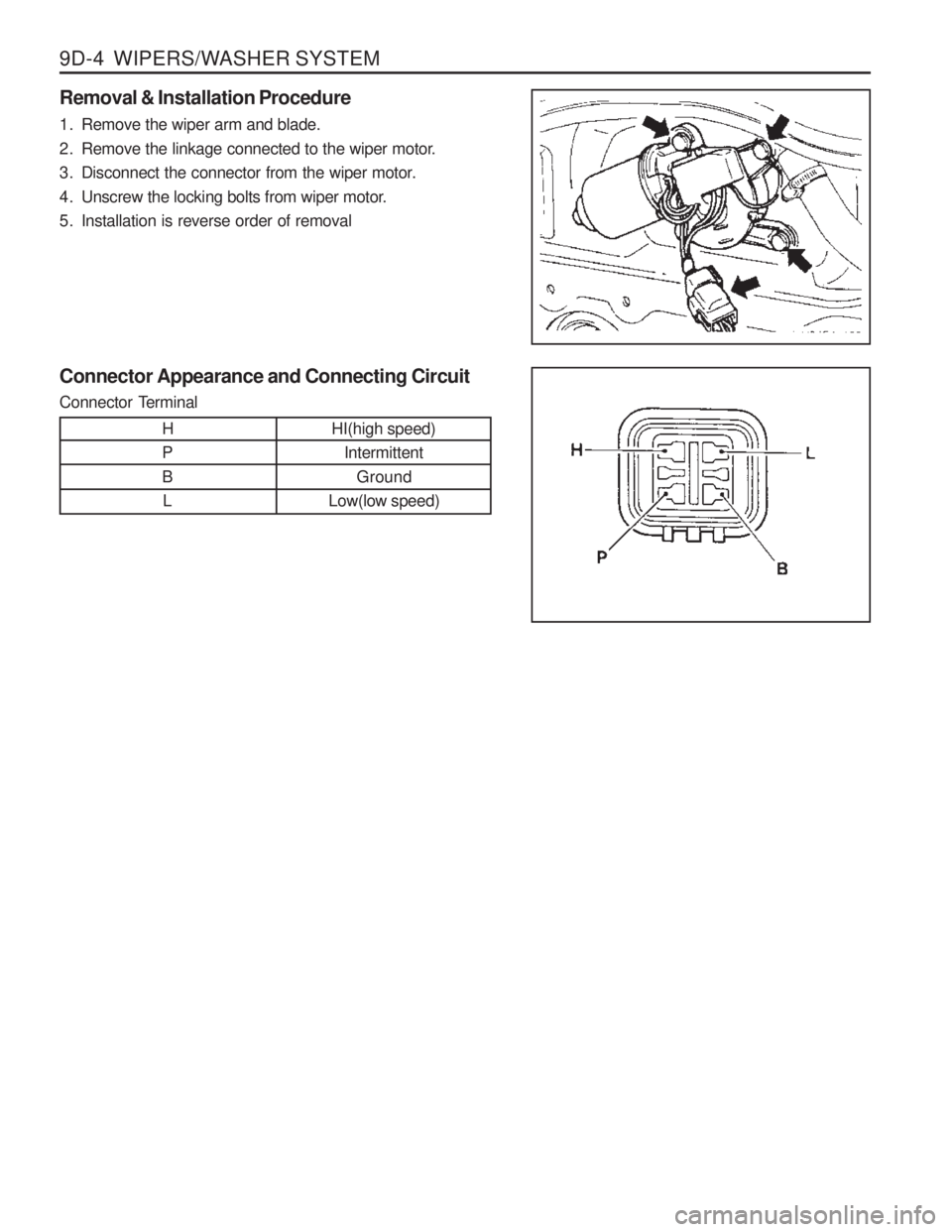

Connector Appearance and Connecting Circuit
Connector Terminal
H PBL HI(high speed)
IntermittentGround
Low(low speed)
Page 1247 of 1574
WIPERS/WASHER SYSTEM 9D-5

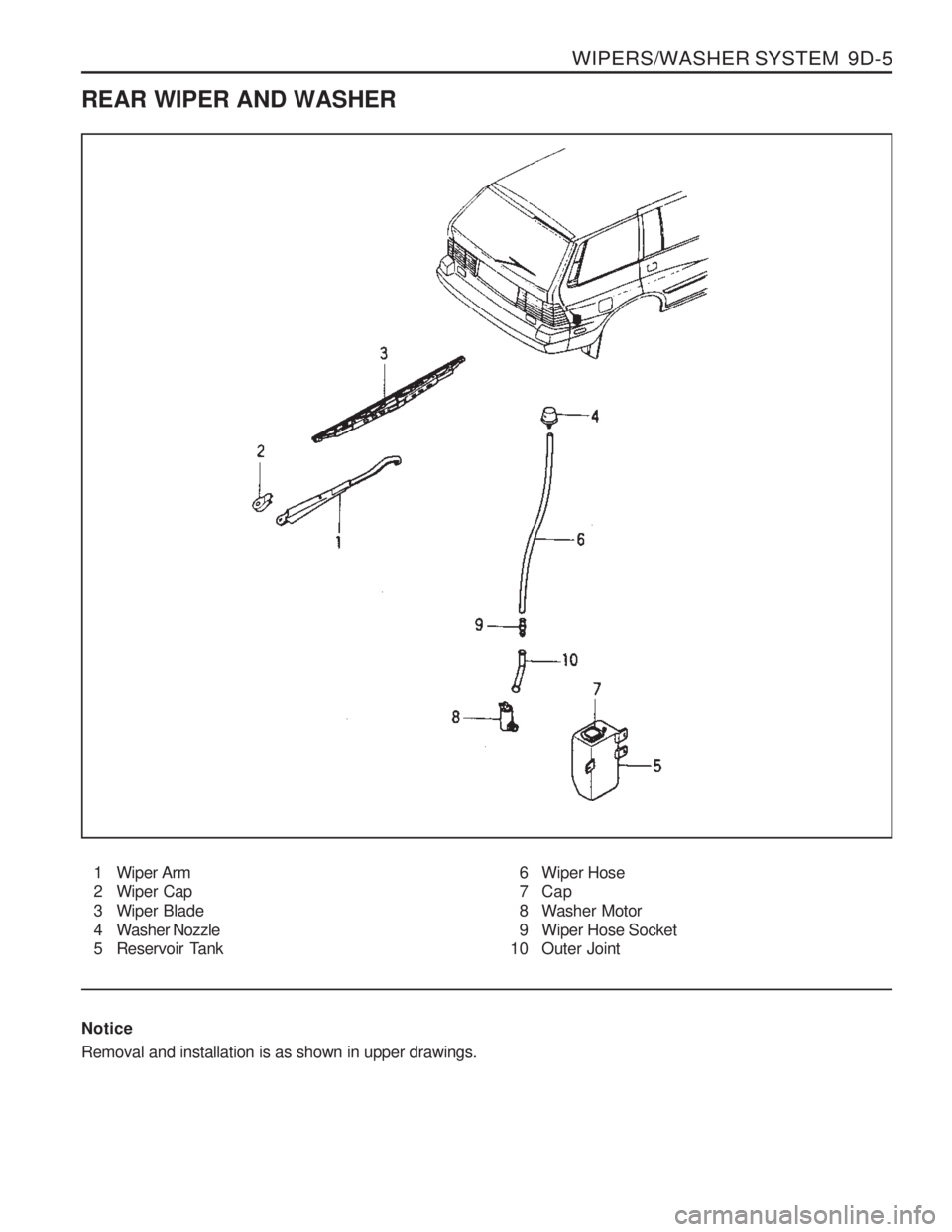

REAR WIPER AND WASHER
1 Wiper Arm
2 Wiper Cap
3 Wiper Blade
4 Washer Nozzle
5 Reservoir Tank6 Wiper Hose
7 Cap
8 Washer Motor
9 Wiper Hose Socket
10 Outer Joint
Notice Removal and installation is as shown in upper drawings.
Page 1248 of 1574
9D-6 WIPERS/WASHER SYSTEM

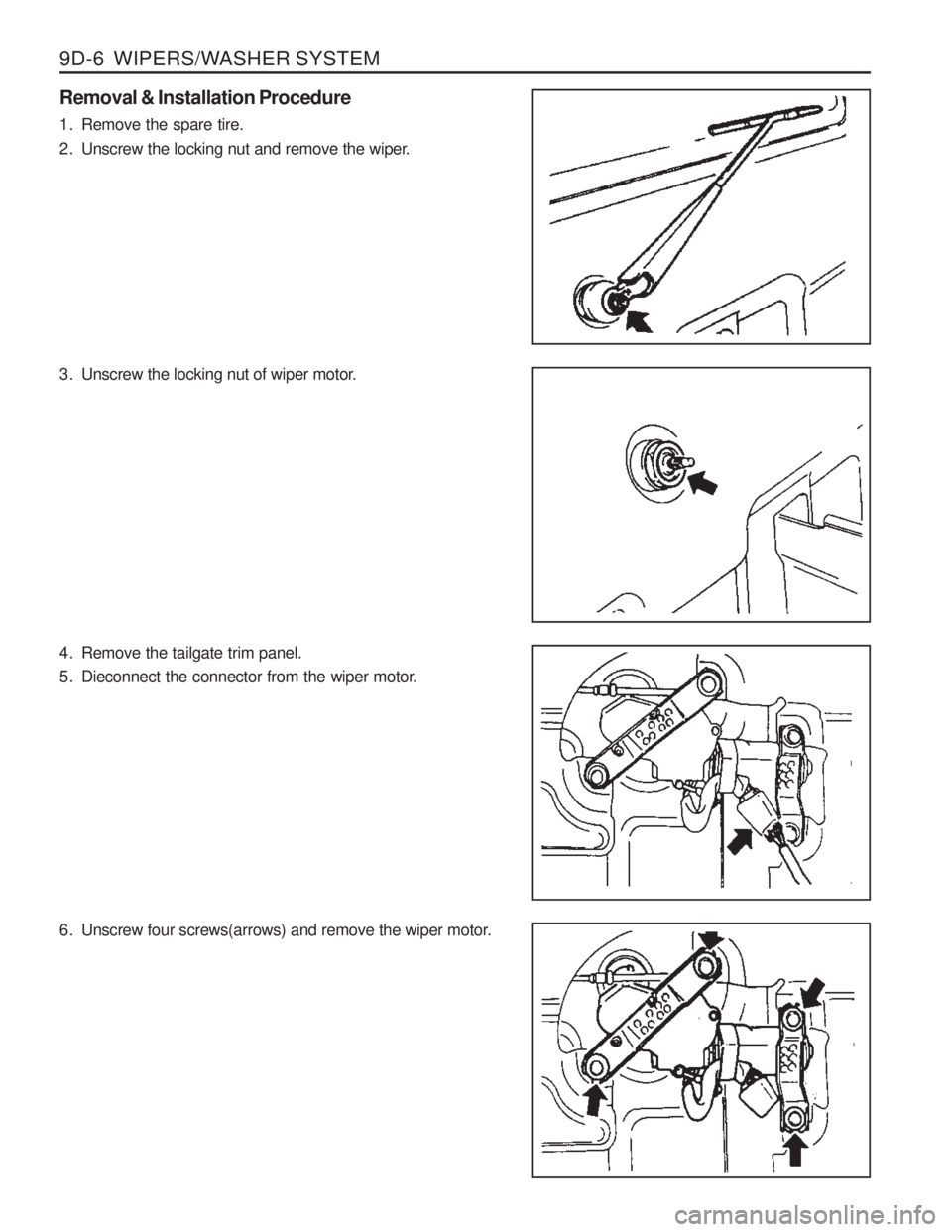

Removal & Installation Procedure
1. Remove the spare tire.
2. Unscrew the locking nut and remove the wiper.
3. Unscrew the locking nut of wiper motor.
4. Remove the tailgate trim panel.
5. Dieconnect the connector from the wiper motor.
6. Unscrew four screws(arrows) and remove the wiper motor.
