2003 SSANGYONG MUSSO Service Manual

OM600 ENGINE CONTROLS 1F3-39
Digital Tester, RIV Method
(Connection Diagram for Testers Without Adapter)
1 Fuel Injection Pump
2 Rl Sensor
3 Digital Tester4 TDC Pulse Sender Unit
5 Battery

1F3-40 OM600 ENGINE CONTROLSStart of Delivery (RIV) Idle Speed
(Connection Diagram for Testers With Adapter)
1 Fuel Injection Pump
2 Rl Sensor
3 Digital Tester
4 TDC Pulse Sender Unit
5 Battery
6 Rl Pulse Generator
Service Data
ATDC 14° - 16 °
OM661LA : 720 - 820 rpm, OM662LA : 750 - 850 rpm

OM600 ENGINE CONTROLS 1F3-41
With Pulse Generator
Tools Required 617 589 09 21 00 Rl Sensor
617 589 10 21 00 Timing Tester667 589 00 21 00 TDC Pulse Generator
Commercial Tools
Item
Digital Tester
Without Pulse Generator Tools
Bosch, MOT 001.03
Hartmann & Braun, EOMT3 Bosch, ETD 019.00Sun, DIT 9000
ALV, Diesel - Tester 875
Test Procedure
1. Remove the screw plug (7) and seal (8) collect oil in a suitable vessel.
2. Install the Rl sensor into the governor housing of injection pump (1).
Rl Sensor 617 589 10 21 00
3. Connect the digital tester and TDC pulse sender unit according to connection diagram.
4. Run the engine at idle speed and check the Rl value on the digital tester Notice
If out of standard, adjust the start of delivery.
5. Stop the engine.
6. Remove the Rl sensor, digital tester and TDC pulse sender unit.
7. Replace the seal and tighten the plug.
8. Check engine oil level and adjust if necessary.
Rl value A TDC 14° - 16 °
Tightening Torque 30 Nm

1F3-42 OM600 ENGINE CONTROLS
After Testing Preceding Work : Start of delivery test Position Sensor (RIV method)
1 Adjusting Screw
2 Bolt ............................................................ 23Nm
3 Fuel Injection Pump 4 Bolt
............................................................ 23Nm
5 Scale .......... Rl start of delivery = 14 ° - 16 ° ATDC

OM600 ENGINE CONTROLS 1F3-43
Tools Required 617 589 08 21 00 Position Sensor Adjustment Procedure
1. Position the No. 1 cylinder at ATDC 15°
Notice Do not rotate the engine in opposite direction of engine rotation.
2. Remove the bolt (2) at the supporting bracket.
3. Remove the bolt (4).
4. Turn the adjusting screw (1) until both lamps ‘A’ + ‘ B ’ on
the position sensor light up. Notice If the adjustment range is not adequate, remove the injection pump and reinstall.
Position Sensor 617 589 08 21 00
5. After adjusting, retighten all the bolt to the specified torque.
To the right
To the left Start of delivery retarded
Start of delivery advanced

1F3-44 OM600 ENGINE CONTROLS
Tools Required 617 589 09 21 00 Rl Sensor
617 589 10 21 00 Timing Tester667 589 00 21 00 TDC Pulse Generator
Commercial Tools
Item
Digital Tester With Pulse Generator
Without Pulse Generator Tools
Bosch, MOT 001.03
Hartmann & Braun, EOMT3 Bosch, ETD 019.00
Sun, DIT 9000
ALV, Diesel - Tester 875
Digital tester (RIV Method)
1 Bolt
............................................................ 23Nm
2 Adjusting Screw ....... To the right : start of delivery retarded
To the left : start of delivery advanced 3 Bolt
............................................................ 23Nm
Service Data
Start of Delivery (RIV) Ldling Speed
ATDC 14 ° - 16 °
OM661LA : 720 - 820 rpm, OM662LA : 750 - 850 rpm

OM600 ENGINE CONTROLS 1F3-45

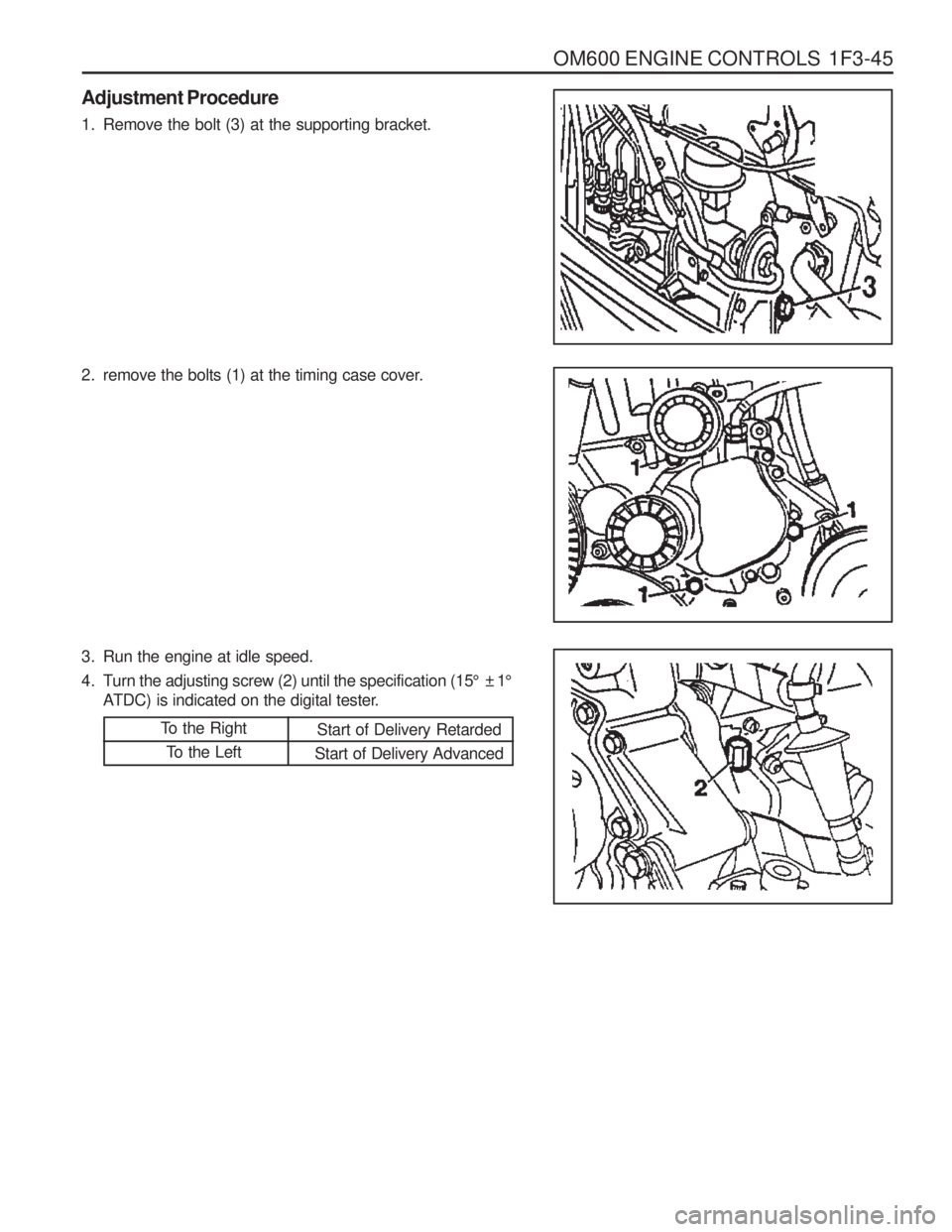

Adjustment Procedure
1. Remove the bolt (3) at the supporting bracket.
2. remove the bolts (1) at the timing case cover.
3. Run the engine at idle speed.
4. Turn the adjusting screw (2) until the specification (15° ± 1 °
ATDC) is indicated on the digital tester.
To the Right
To the Left Start of Delivery Retarded
Start of Delivery Advanced

1F3-46 OM600 ENGINE CONTROLS
Tools Required 000 589 77 03 00 Box Wrench Insert 601 589 00 08 00 Flange 601 589 05 21 00 Locking Screw601 589 05 14 00 Assembly CageRemoval
FUEL INJECTION PUMP
Preceding Work : Removal of vacuum pump
Removal of air cleaner housing Removal of intake manifold
18 Chain Tensioner ......................................... 80Nm
19 Seal ....................................................... Replace
20 Bolt(Left-Hand Thread) ..............................46Nm
21 Washer
22 Bolt ............................................................ 23Nm
23 Seal ....................................................... Replace 24 Oil Pan
25 Fuel Injection Pump
26 Seal
....................................................... Replace
27 Screw Plug ................................................. 30Nm
28 Square Nut
