WIPERS/WASHER SYSTEM 9D-7

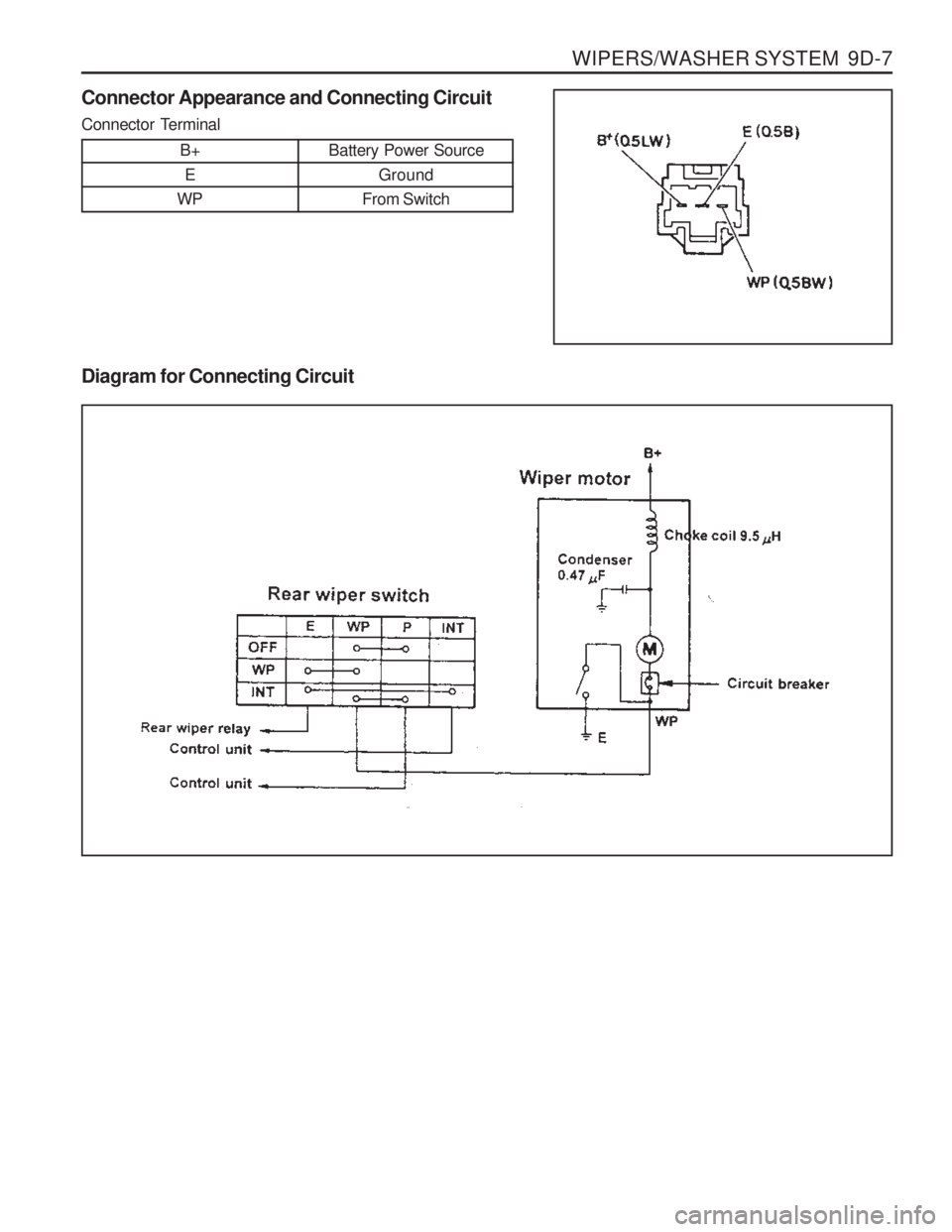

Connector Appearance and Connecting Circuit
Connector Terminal
B+E
WP Battery Power Source
Ground
From Switch
Diagram for Connecting Circuit

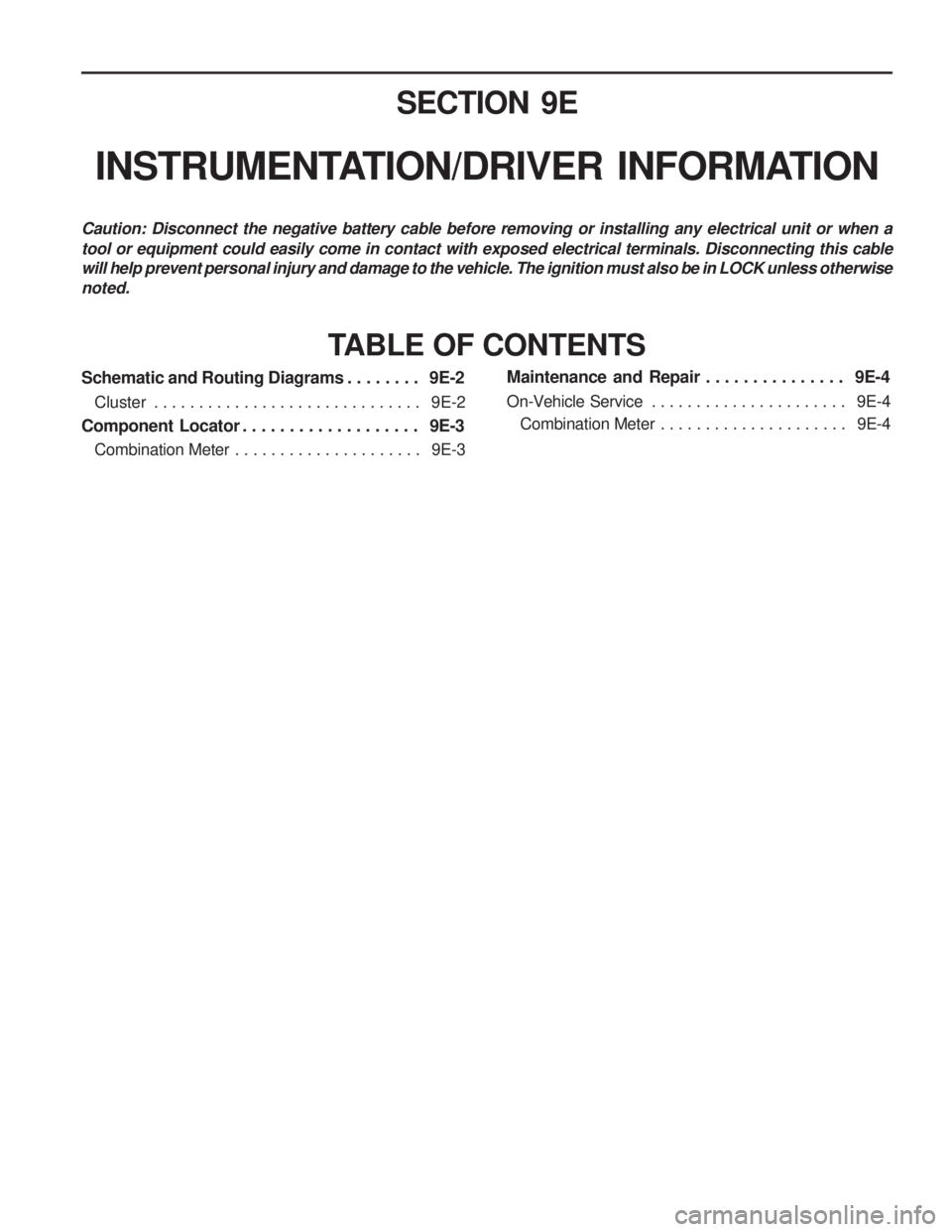

SECTION 9E
INSTRUMENTATION/DRIVER INFORMATION
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9E-2 Cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9E-2
Component Locator . . . . . . . . . . . . . . . . . . . 9E-3 Combination Meter . . . . . . . . . . . . . . . . . . . . . 9E-3 Maintenance and Repair . . . . . . . . . . . . . . . 9E-4
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . .
9E-4
Combination Meter . . . . . . . . . . . . . . . . . . . . . 9E-4

9E-2 INSTRUMENTATION/DRIVER INFORMATION
CLUSTER

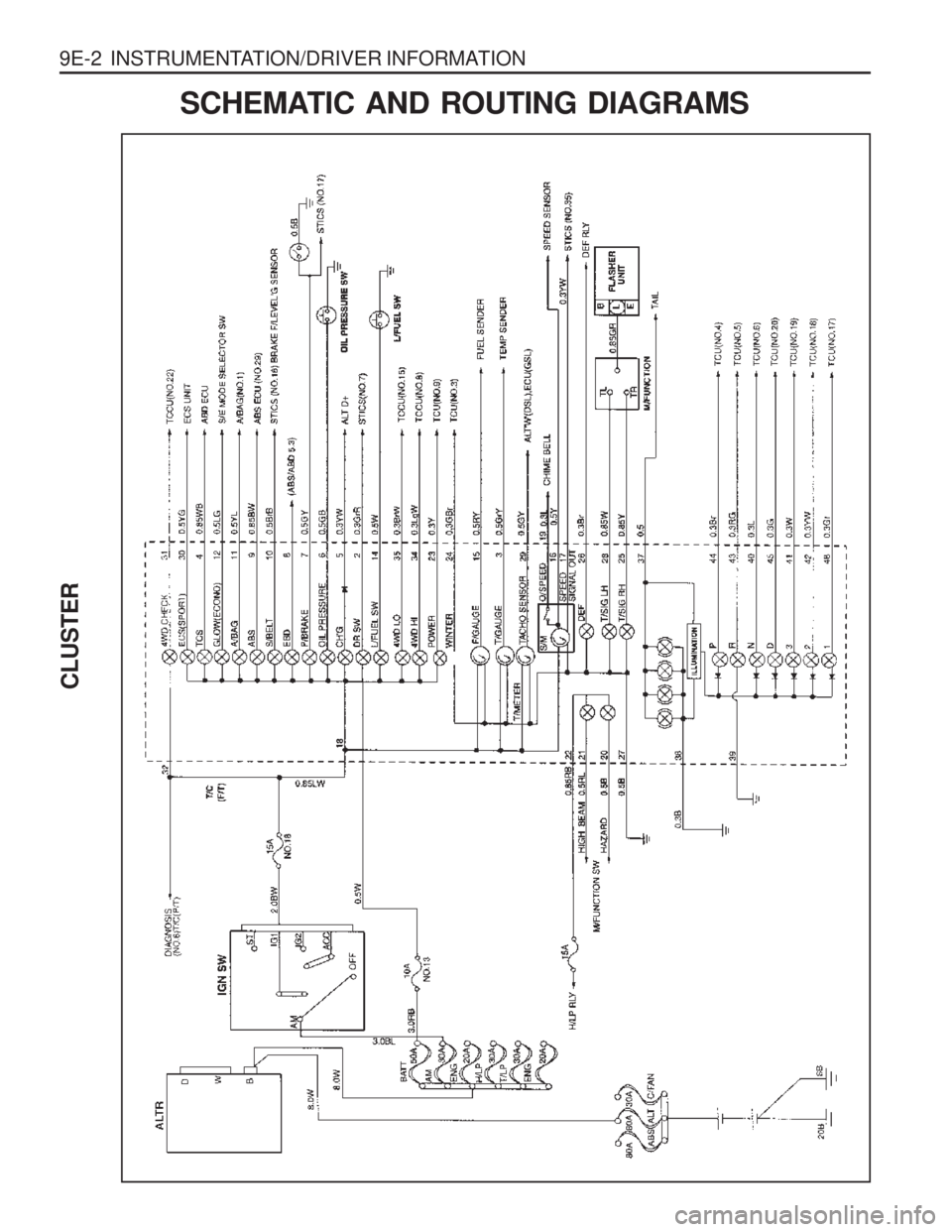

SCHEMATIC AND ROUTING DIAGRAMS

INSTRUMENTATION/DRIVER INFORMATION 9E-3
COMBINATION METER
COMPONENT LOCATOR
1. Speedometer
2. Odometer
3. Trip odometer
4. Tachometer
5. Coolant temperature gauge
6. Fuel gauge
7. Low fuel level warning light
8. Turn signal indicator (left)
9. Turn signal indicator (right)
10. Outside rearview mirror & tailgate heating switch
11. Reset button
12. Auto shift indicator*
13. Door open warning light
14. TCS indicator (equipped with ABD)*
21. ABS warning light* 22. EBD warning light*
23. ECS / SPORT warning light*
24. 4 - wheel warning light*
25. 4 - wheel high indicator
26. 4 - wheel low indicator
27. WINTER indicator
28. POWER indicator
29. High beam indicator
15. Alternator warning light
16. Engine oil pressure warning light
17. Brake system warning light
18. Glow indicator light (For Diesel engine)
19. Airbag warning light*
20. Seat belt reminder

9E-4 INSTRUMENTATION/DRIVER INFORMATION

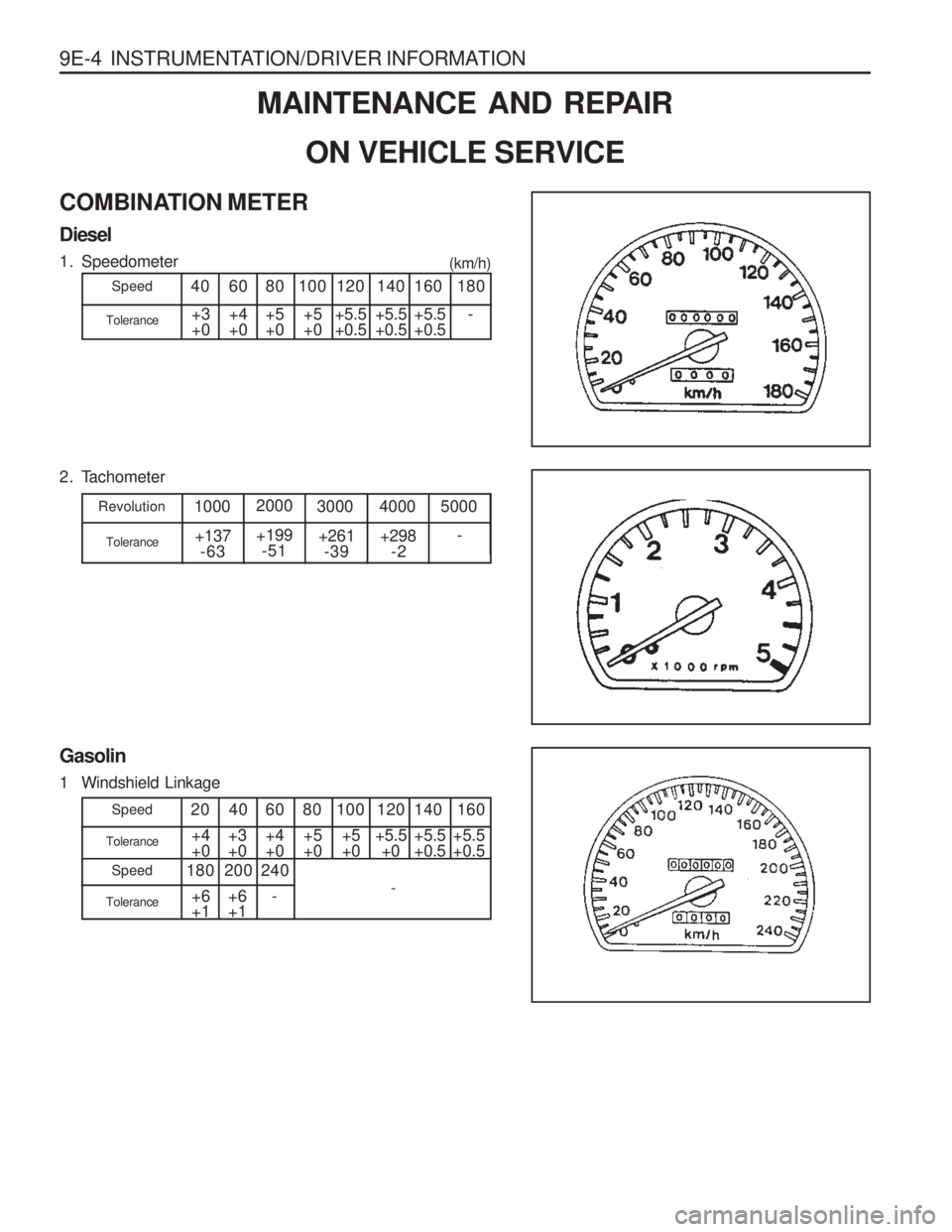

COMBINATION METER Diesel
1. Speedometer(km/h)
2. Tachometer
Revolution Tolerance1000+137 -63 2000
3000
+261 -39 4000
+298 -2 5000
-
+199
-51
Gasolin
1 Windshield Linkage
Speed
Tolerance40 +3 +0 60 80
+5+0100
+5+0 140
+5.5+0.5 160 +5.5 +0.5 180
-
+4+0120
+5.5 +0.5
Speed
Tolerance20 +4 +0 40 60
+4+0 80
+5+0 120
+5.5 +0 140 +5.5 +0.5 160
+5.5+0.5
+3+0100
+5 +0
Speed
Tolerance180 +6 +1 200 240
-
+6+1
-
MAINTENANCE AND REPAIR
ON VEHICLE SERVICE

INSTRUMENTATION/DRIVER INFORMATION 9E-5

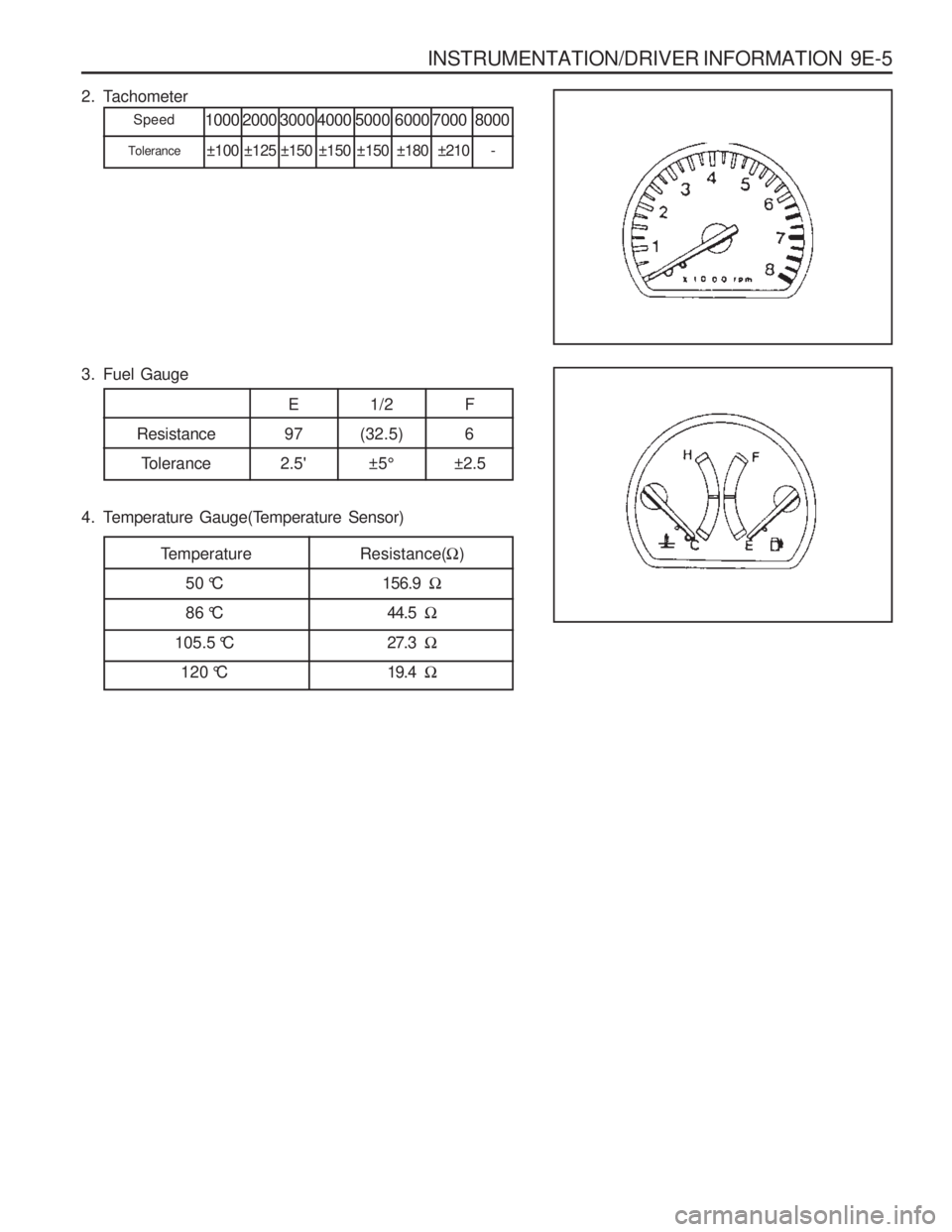

3. Fuel Gauge
ResistanceTolerance E
97
2.5' 1/2
(32.5) ±5° F 6
±2.5
Temperature 50 °C
86 °C
105.5 °C 120 °C Resistance(
)
156.9
44.5
27.3
19.4
4. Temperature Gauge(Temperature Sensor)
Speed
Tolerance1000 ±100 2000 3000
±1504000
±150 6000
±180 7000
±210 8000
-
±1255000
±150
2. Tachometer

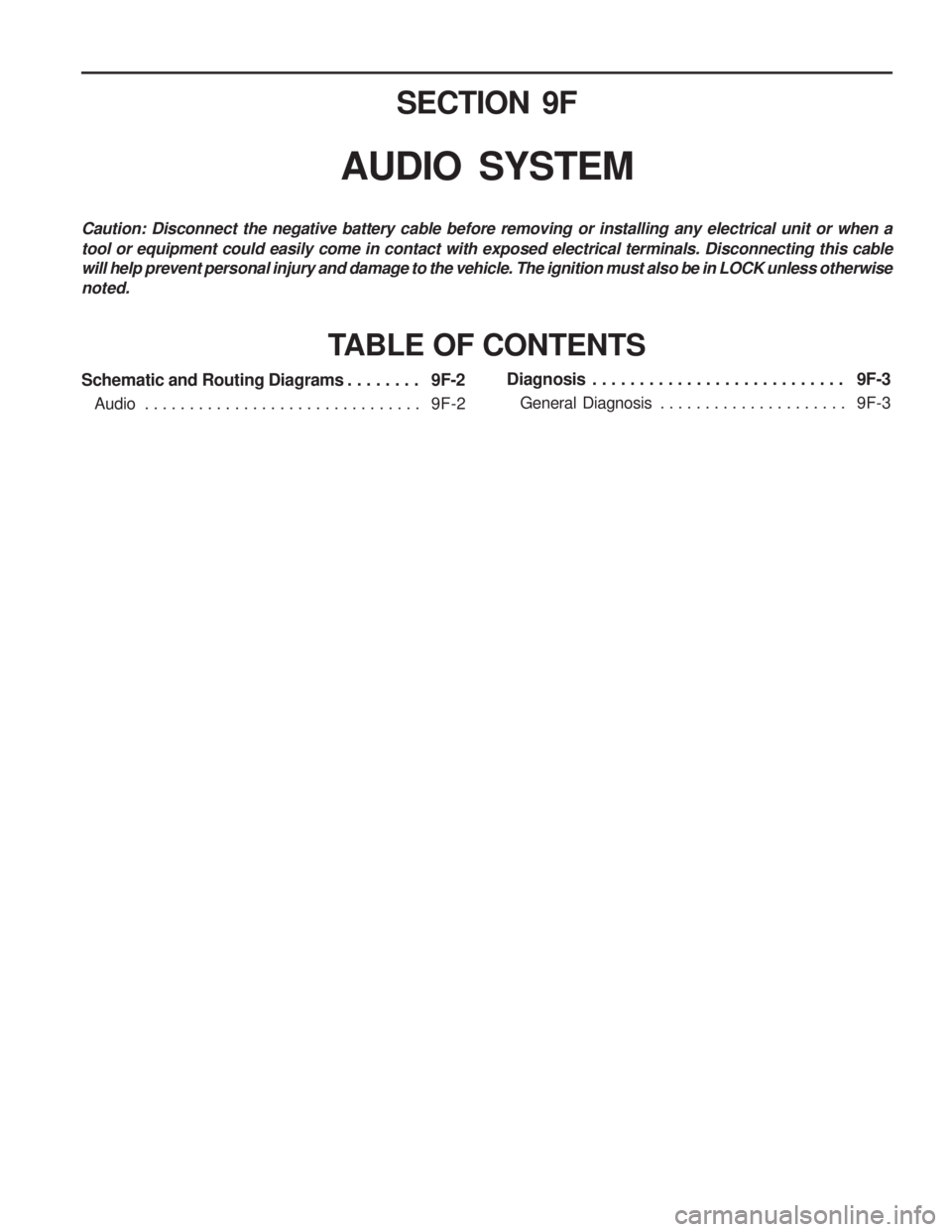

SECTION 9F
AUDIO SYSTEM
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.TABLE OF CONTENTS
Schematic and Routing Diagrams . . . . . . . . 9F-2 Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9F-2Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . 9F-3
General Diagnosis . . . . . . . . . . . . . . . . . . . . . 9F-3

9F-2 AUDIO SYSTEM
AUDIO

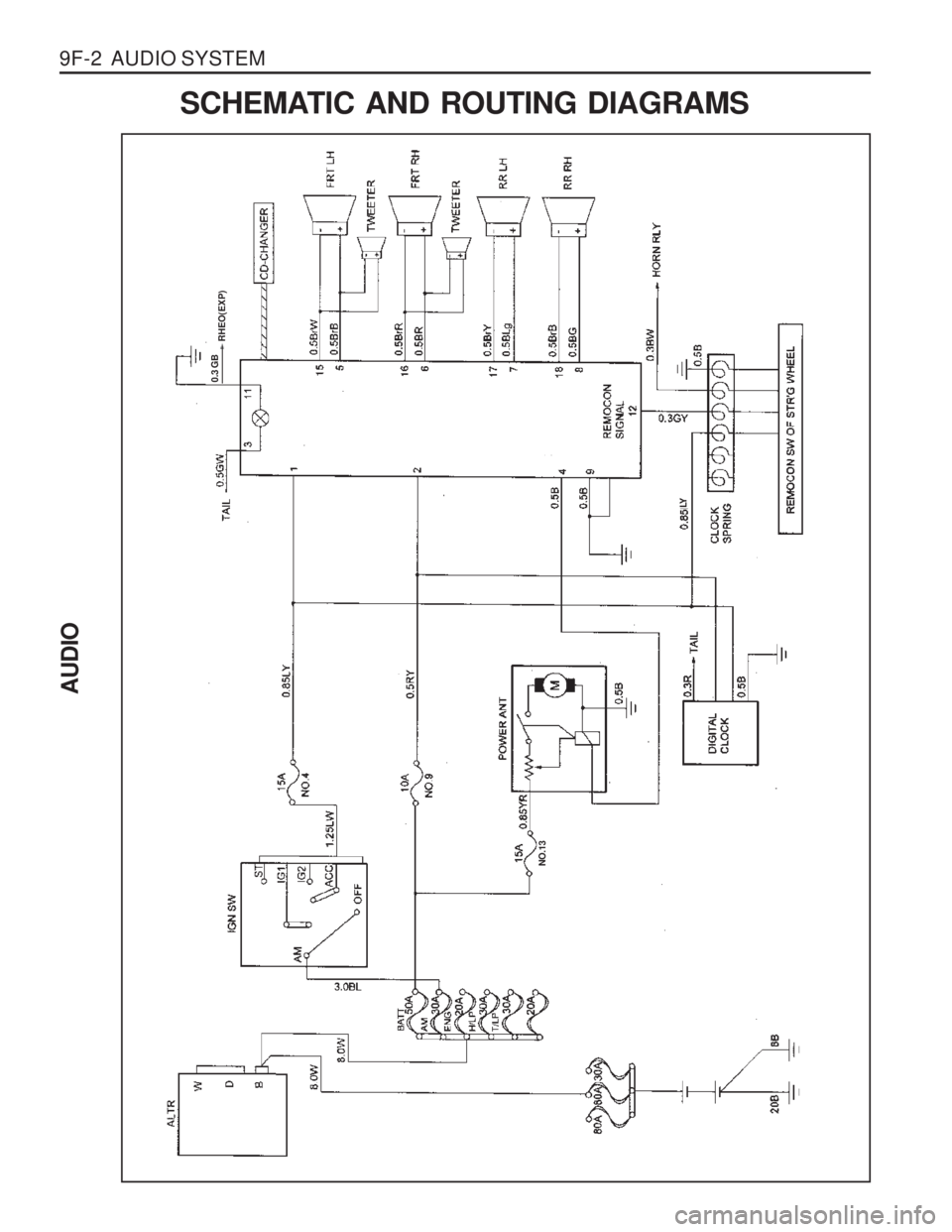

SCHEMATIC AND ROUTING DIAGRAMS
0.3 GBRHEO(EXP)
LY
NO.13
