FRAME AND UNDERBODY 9N-3

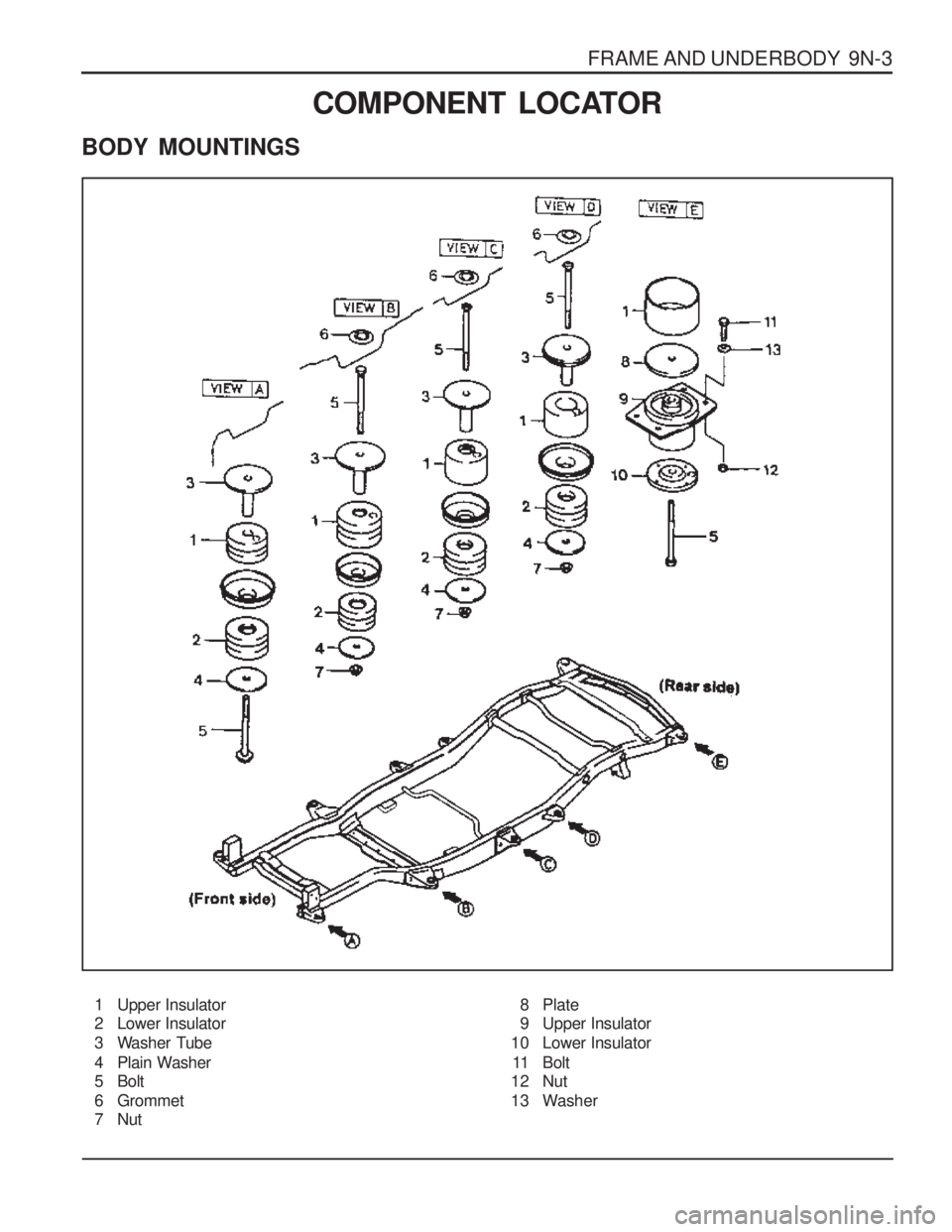

COMPONENT LOCATOR
BODY MOUNTINGS
1 Upper Insulator
2 Lower Insulator
3 Washer Tube
4 Plain Washer
5 Bolt
6 Grommet
7 Nut 8 Plate
9 Upper Insulator
10 Lower Insulator
11 Bolt
12 Nut
13 Washer

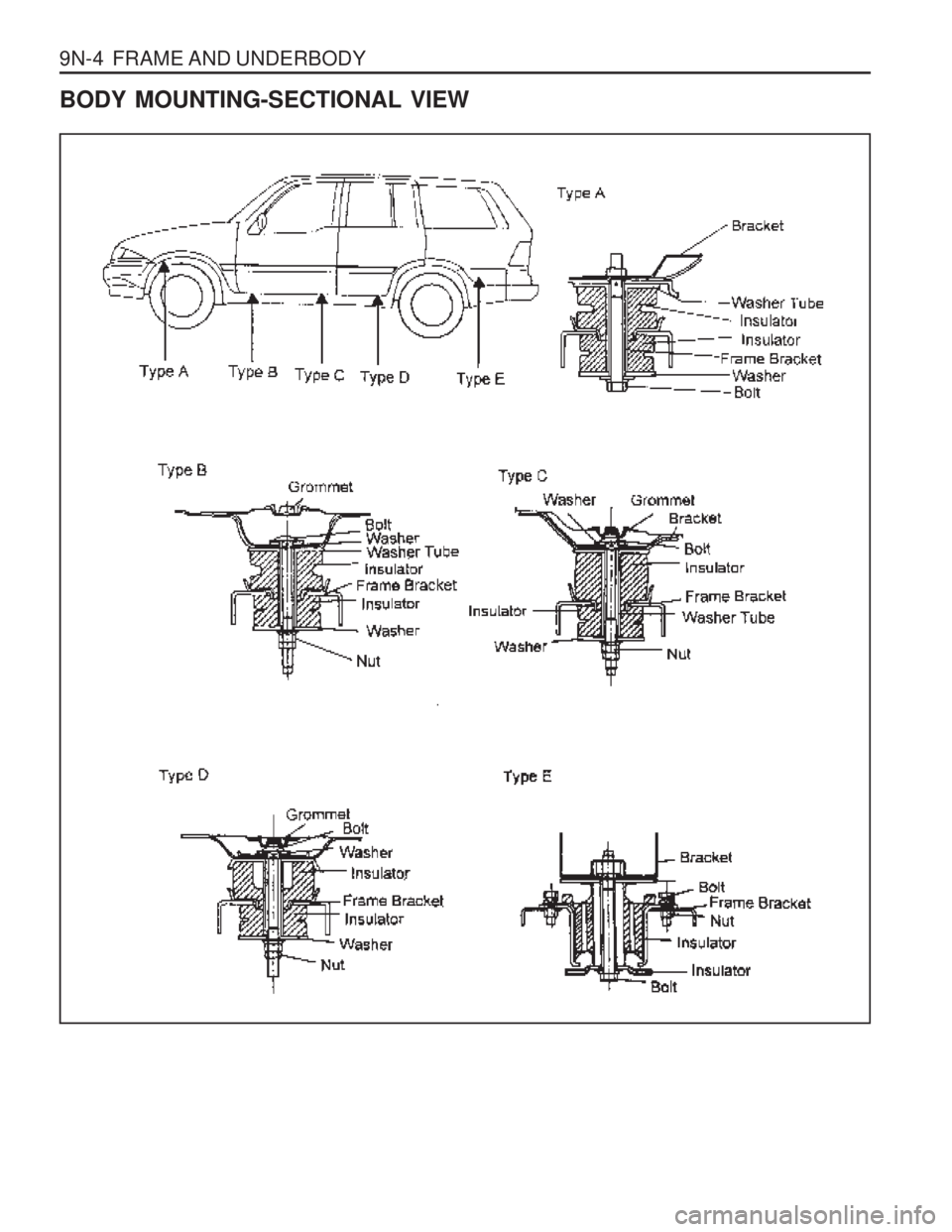

9N-4 FRAME AND UNDERBODY BODY MOUNTING-SECTIONAL VIEW

FRAME AND UNDERBODY 9N-5
1 Mounting Bolt....................................... 28-47 Nm
SKID PLATE .2 Skid Plate
Removal & Installation Procedure
1. Remove 6 mounting bolts and carefully remove the skid
plate. Installation Notice
2. Installation should follow the removal procedure in the reverse order.
Tightening Torque 28 - 47 Nm

SECTION 9O
BUMPERS AND FASCIAS
TABLE OF CONTENTS
Maintenance and Repair . . . . . . . . . . . . . . . 9O-2
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . . 9O-2Front Bumper . . . . . . . . . . . . . . . . . . . . . . . . .
9O-2
Rear Bumper . . . . . . . . . . . . . . . . . . . . . . . . . 9O-4

9O-2 BUMPERS AND FASCIASMAINTENANCE AND REPAIR
ON-VEHICLE SERVICE

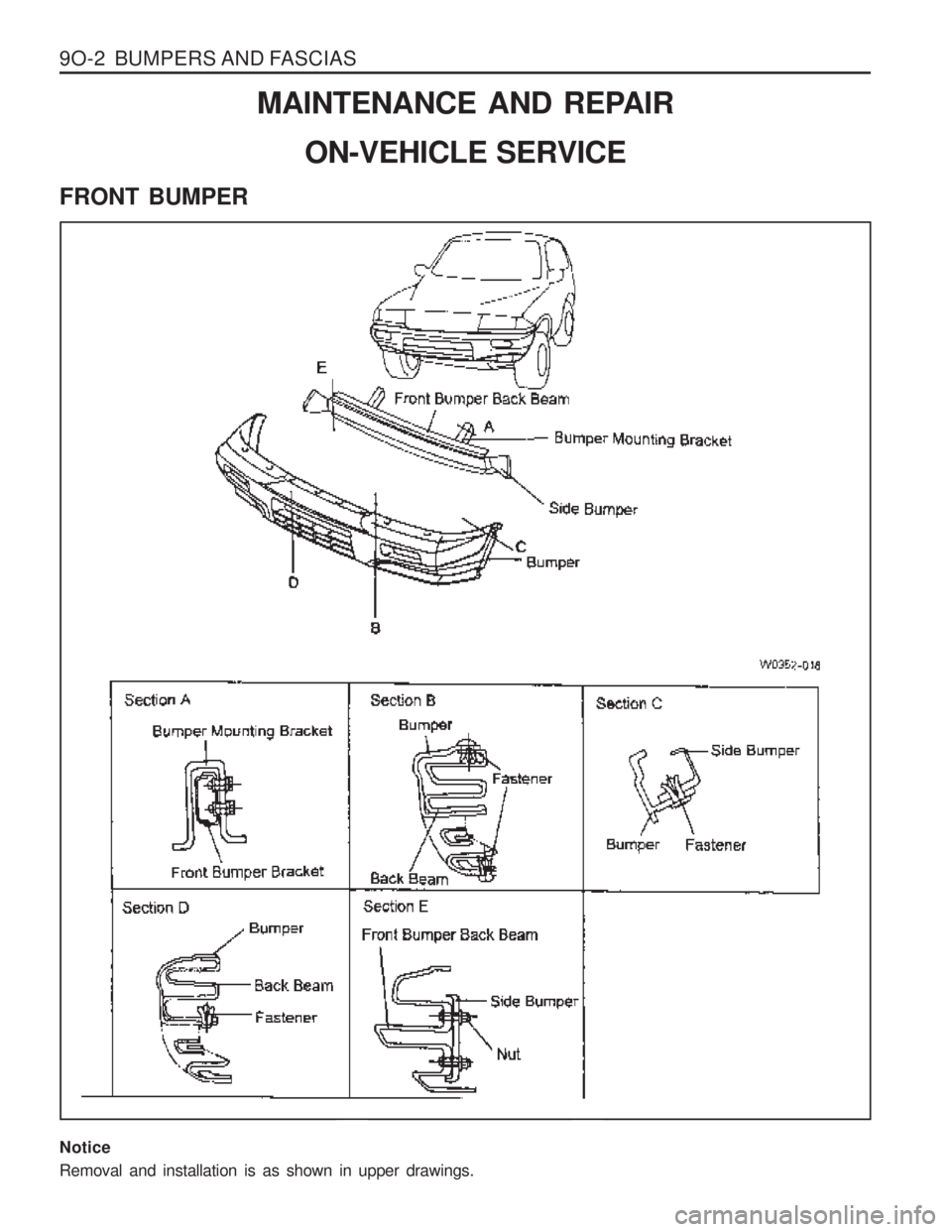

FRONT BUMPER
Notice Removal and installation is as shown in upper drawings.

BUMPERS AND FASCIAS 9O-3
Mounting Inspection
1. Clearance between the upper bumper and radiator grille.
2. Clearance between the upper bumper and headlampmoding.
Clearance 12 ± 1.0 mm
Clearance 9 mm
2. Clearance between the bumper and wheel arch.
Clearance10 mm

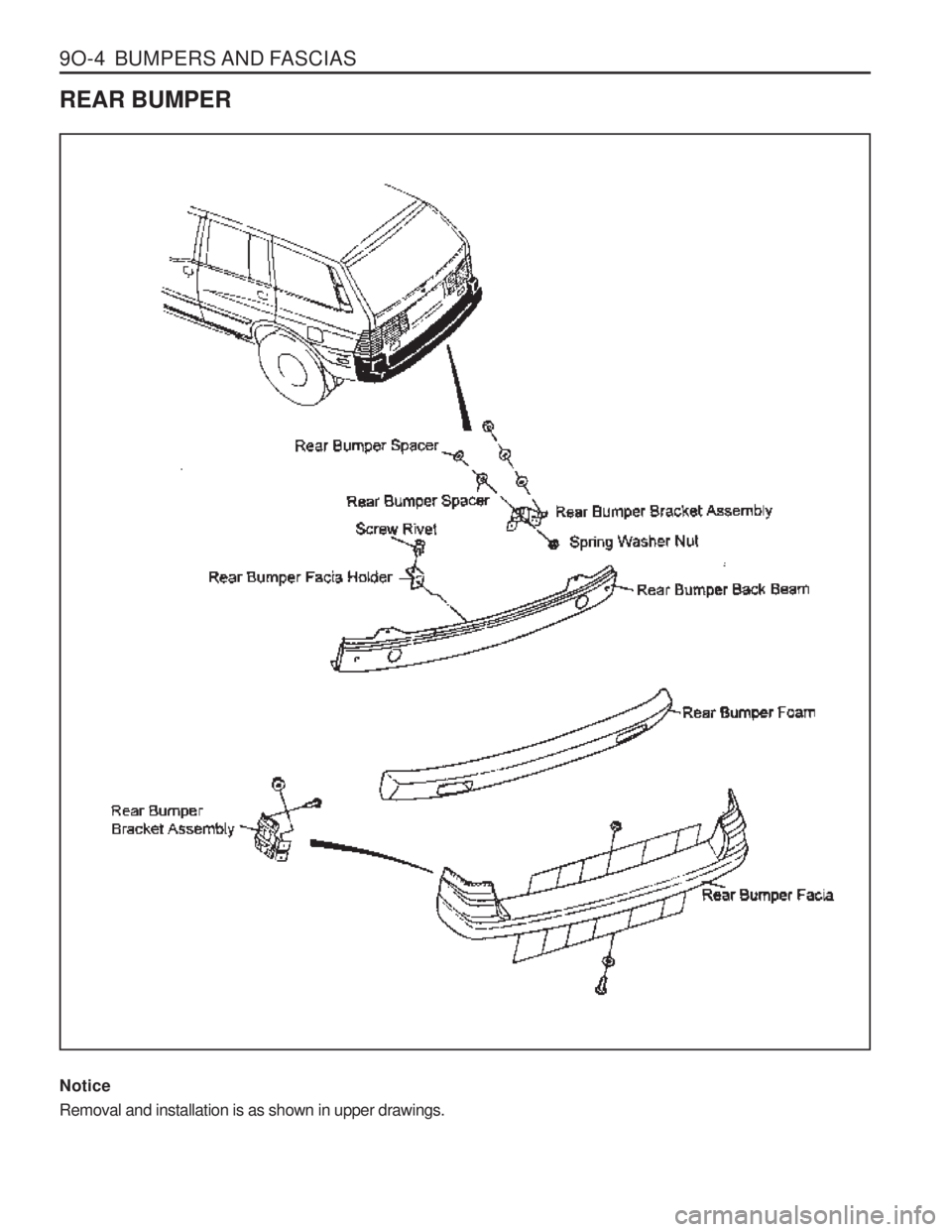

9O-4 BUMPERS AND FASCIAS REAR BUMPER
Notice Removal and installation is as shown in upper drawings.

BUMPERS AND FASCIAS 9O-5

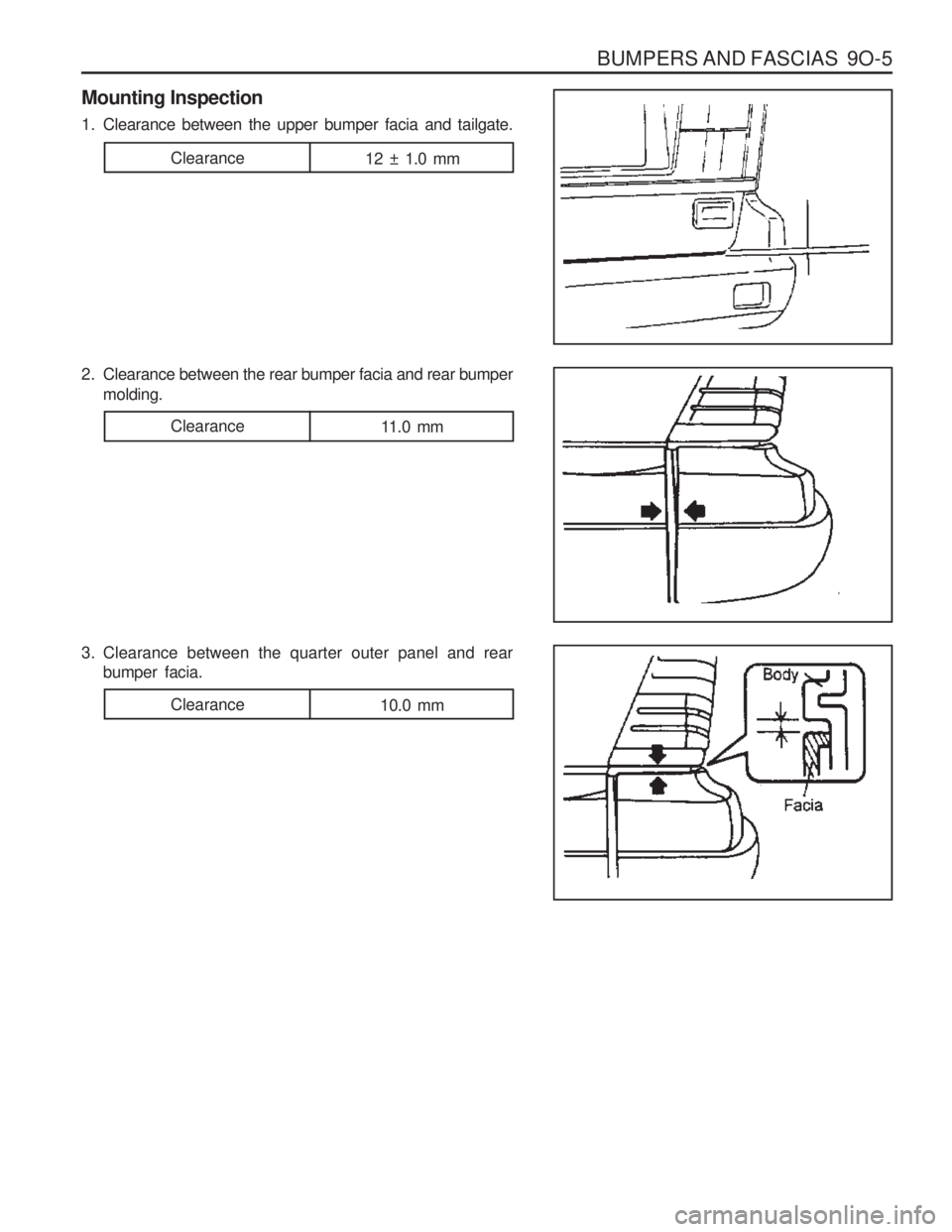

Mounting Inspection
1. Clearance between the upper bumper facia and tailgate.
2. Clearance between the rear bumper facia and rear bumpermolding.
Clearance 12 ± 1.0 mm
Clearance 11.0 mm
3. Clearance between the quarter outer panel and rear
bumper facia.
Clearance 10.0 mm
