GENERAL INFORMATION 0B-7
MAINTENANCE AND REPAIR
MAINTENANCE AND LUBRICATION
Fuel Filter Replacement
Replace the engine fuel filter every.
Gasoline Engine : 60,000km (36,000 miles)
Diesel Engine : 45,000km (24,000 miles)
Spark Plug Replacement Replace spark plugs with same type.
Type : BOSCH : F8DC4
BERU : 14F-8DU4
Champion : C11YCC
Gap : 0.8 ± 0.1 mm
Spark Plug Wire Replacement Clean wires and inspect them for burns, cracks or other damage. Check the wire boot fit at the Distributor and at the spark plugs. Replace the wires as needed. Brake System Service Check the disc brake pads or the drum brake linings.
Check the pad and the lining thickness carefully. Tire and Wheel Inspection and Rotation
Check the tires for abnormal wear or damage. To equalize wear and obtain maximum tire life, rotate the tires. If irregular or premature wear exists, check the wheel alignment and check for damaged wheels. Whilethe tires and wheels are removed, inspect the brakes.
NORMAL VEHICLE USE The maintenance instructions contained in the maintenance schedule are based on the assumption that the vehicle will be used for the following reasons:

To carry passengers and cargo within the limitation
of the tire inflation prassure. Refer to “Tire and Wheel” in section 2E.
To be driven on reasonable road surfaces and withinlegal operating limits.
EXPLANATION OF SCHEDULED MAINTENANCE SERVICES The services listed in the maintenance schedule are
further explained below. When the following maintenance services are performed, make sure all the parts are replaced and all the necessary repairs are done before driving the vehicle. Always use the proper fluid and lubricants. Engine Oil and Oil Filter Change Always use above the API SH grade or recommended engine oil. Engine Oil Viscosity Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operation. Lower viscosity engine oils can provide better fuel economy and cold
weather performance; however, higher temperatureweather conditions require higher viscosity engine oils for satisfactory lubrication. Using oils of any viscosity other than those viscosities recommended could result in engine damage. Cooling System Service Drain, flush and refill the system with new coolant. Refer to “Recommended Fluids And Lubricants” in this section. Air Cleaner Element Replacement
Clean the air cleaner element every.
Gasoline Engine : 15,000km (10,000 miles)
Diesel Engine : 10,000km (6,000 miles)
Replace the air cleaner element every .
Gasoline Engine : 60,000km (36,000 miles)
Diesel Engine : 30,000km (18,000 miles)
Replace the air cleaner more often under dusty conditions.
Tire Rotation (Left - Hand Drive Type)

GENERAL INFORMATION 0B-9
Chassis and Body
Months
MAINTENANCE ITEM MAINTENANCE INTERVAL
Kilometers or time in months, whichever comes first
120
105
90
75
60
45
30
15
1
96
84
72
60
48
36
24
12
-
x1,000 km
Exhaust pipes & mountings Brake/Clutch fluid
(3)(4)
Parking brake/Brake pads F & R (5)Brake line & connections (including booster)
Manual transmission oil (3) Clutch & brake pedal free play
Front & Rear Differential Fluid (3)I
R
IIIII- --II
-
I IIIIII I
I
R I II I I IIII
R I
R IIIII I II
R
II
R I
R IIIIII II
R I IIII
Automatic transmission fluid (MB W4A040) (6) Automatic transmission fluid (BTRA M74)Chassis & underbody bolts & nuts tight/secure Tire condition & inflation pressure
Wheel alignment (7) Steering wheel & linkage
Power steering fluid & lines* (3)Drive shaft boots Seat belts, buckles & anchors Lubricate locks, hinges & bonnet latchIIII I I IIII I III I I IIII I IIII
R
III I IIII IIII I IIIIIIIII I III I
R R
III I IIII IIII I IIII
Transfer case fluidRII
I
Inspect & ADJUST when abnormal condition is noted
I
I II I IIII
Chart Symbols :
I - Inspect these items and their related parts. If necessary, correct, clean, replenish, adjust or replace.R - Replace or change.
(3) Refer to “Recommended fluids and lubricants”.
(4) Change the brake / clutch fluid every 15,000 km if the vehicle is mainly driven under severe conditions:- Driving in hilly or mountainous terrain, or
- Towing a trailer frequently
(5) More frequent maintenance is required if under severe condition : short distance driving, extensive idling, frequent low - speed operation in stop-and-go traffic or driving in dusty condition.
(6) Change automatic transaxle fluid and filter every 75,000 km if the vehicle is mainly driven under severe conditions. - In heavy city traffic where the outside temperature regularly reaches 32°C (90°F) or higher, or- In hilly or mountainous terrain, or- When doing frequent trailer towing, or- Uses such as found in taxi, police or delivery service.
(7) If necessary, rotate and balance wheels.

GENERAL INFORMATION 0B-11
Chassis and Body
Months -
MAINTENANCE ITEMMAINTENANCE INTERVAL
Kilometers or time in months, whichever comes first
100
90
80
70
60
50
40
30
20
10
1
60
54
48
42
36
30
24
18
12
6
x1,000 km
Exhaust pipes & mountings
Brake/clutch fluid (3) (4)
Parking brake/Brake pads (F & R) (5) Brake line & connections (including booster)
Manual transmission fluid (3)Clutch & brake pedal free play
F & R Differential fluid (3)
I I I IIIIIIIIIIIII I
R
IIIII IIIIIII IIII
R I
R I
R
IIIII IIIIIIIIIIIIII I
R
IIIII IIII
R I
R
Automatic transmission fluid (BTRA M74) (6) Chassis & underbody bolts & nuts tight/secure Tire condition & inflation pressure
Wheel alignment (7) Steering wheel & linkage
Power steering fluid & lines* (3) Drive shaft boots Seat belts, buckles & anchors Lubricate locks, hinges & bonnet latchI II I IIII III I IIII IIII I III I
I II I IIII III I IIIIIII I IIII III II II III I IIIIIII I IIII
Transfer case fluid (3)
RI R
I
I
I
I I I II IIII I IIII
Inspect & ADJUST when abnormal condition is noted
II I
Chart Symbols :
I - Inspect these items and their related parts. If necessary, correct, clean, replenish, adjust or replace.R - Replace or change.
(3) Refer to “Recommended fluids and lubricants”.
(4) Change the brake / clutch fluid more regularly if the vehicle is mainly driven under severe conditions :- Driving in hilly or mountainous terrain, or
- Towing a trailer frequently
(5) More frequent maintenance is required if under severe condition : short distance driving, extensive idling, frequent low - speed operation in stop-and-go traffic or driving in dusty condition.
(6) Change automatic transmission fluid every 70,000 km if the vehicle is mainly driven under severe conditions. - In heavy city traffic where the outside temperature regularly reaches 32°C (90°F) or higher, or- In hilly or mountainous terrain, or- When doing frequent trailer towing, or- Uses such as found in taxi, police or delivery service.
(7) If necessary, rotate and balance wheels.

GENERAL INFORMATION 0B-13
Weather-Strip Lubrication Apply a thin film silicone grease using a clean cloth. EACH TIME THE OIL IS CHANGED Brake System Inspection This inspection should be done when the wheels are removed for rotation. Inspect the lines and the hoses for proper hookup, binding, leaks, cracks, chafing, etc.
Inspect the disc brake pads for wear. Inspect the rotors for surface condition. Inspect other brake parts, theparking brake, etc., at the same time. Inspect the brakes more often if habit or conditions result in frequent braking. Steering, Suspension and Front Drive Axle Boot And Seal Inspection Inspect the front and rear suspension and the steering system for damaged, loose or missing parts, signs of wear or lack of lubrication. Inspect the power steering line and the hoses for proper hookup, binding, leaks, cracks, chafing, etc. Clean and inspect the drive axle boot and seals for damage, tears or leakage. Replace
the seals if necessary. Exhaust System Inspection Inspect the complete system (including the catalytic converter if equipped). Inspect the body near the exhaustsystem. Look for broken, damaged, missing, or out-of- position parts as well as open seams, holes, loose connections, or other conditions which could cause heat buildup in the floor pan or could let exhaust fumes seep into the trunk or passenger compartment. Throttle Linkage Inspection Inspect the throttle linkage for interference or binding, damaged, or missing parts. Lubricate all linkage joints and throttle cable joints, the intermediate throttle shaft
bearing, the return spring at throttle valve assembly, and the accelerator pedal sliding face with suitable grease. Check the throttle cable for free movements. Engine Drive Belts Inspect all belts for cracks, fraying, wear and proper tension. Adjust or replace the belts as needed. Hood Latch Operation When opening the hood, note the operation of the secondary latch. It should keep the hood from opening all the way when the primary latch is released. The hood
must close firmly. AT LEAST ANNUALLY Lap and Shoulder Belts Condition and Operation Inspect the belt system including: the webbing, the
buckles, the latch plates, the retractor, the guide loops and the anchors. Movable Head Restraint Operation On vehicles with movable head restraints, the restraints must stay in the desired position. Spare Tire and Jack Storage Be alert to rattles in the rear of the vehicle. The spare tire, all the jacking equipment, and the tools must besecurely stowed at all times. Oil the jack ratchet or the screw mechanism after each use. Key Lock Service
Lubricate the key lock cylinder. Body Lubrication Service Lubricate all the body door hinges including the hood,
the fuel door, the rear compartment hinges and the latches, the glove box and the console doors, and anyfolding seat hardware. Underbody Flushing Flushing the underbody will remove any corrosive materials used for ice and snow removal and dust control.
At least every spring clean the underbody. First, loosen the sediment packed in closed areas of the vehicle. Then
flush the underbody with plain water. Engine Cooling System Inspect the coolant and freeze protection fluid. If the fluid
is dirty or rusty, drain, flush and refill the engine cooling system with new coolant. Keep the coolant at the propermixture in order to ensure proper freeze protection, corrosion protection and engine operating temperature. Inspect the hoses. Replace the cracked, swollen, or
deteriorated hoses. Tighten the clamps. Clean the outside of the radiator and the air conditioning
condenser. Wash the filler cap and the neck. Pressure test the cooling system and the cap in order to help ensure proper operation.

3C-2 PROPELLER SHAFT
1 Flange Yoke
2 Cross and Bearing Assembly (with Snap Ring)
3 Cross and Bearing Assembly (with Snap Ring)
4 Slip Yoke Assembly
5 Grease Nipple
6 Dust Cap
7 Oil Seal
8 Split Washer
9 Slip Tube Shaft
10 Tube
Notice Only the length of shaft is different and the components of front/rear shaft are the same.(The deadener is inserted to the inside of tube of rear shaft, both ends) COMPONENT LOCATOR
M/T & A/T (PART-TIME T/C)
1. Gasolin : E32 - Fromt Propeller Shaft
2. Diesel/Gasolin : E23,20 - Fromt Propeller Shaft
: A/T + Full - Time T/C
3. Gasolin - Rear Propeller Shaft
Diesel - Fromt & Rear Propeller Shaft
: M/T & A/T + FPart - Time T/C
11 Tube Yoke
12 Flange Yoke
13 Diesel : Cross and Bearing Assembly (with Snap Ring)
Gasoline : CV Joint (DOJ)
14 Diesel : Double Cardan
Gasoline : Stub Shaft
15 Tube
16 Cross and Bearing Assembly (with Snap Ring)
17 Center Couping Yoke
18 Boots Band

FRONT DISC BRAKES 4D-5
4. Measure rotor disc thickness.
UNIT REPAIR FRONT DISC BRAKE Inspection Procedure
1. Clean all components and visually check the followings. Check the cylinder and piston for wear, rust or damage.
Check the caliper body and guide pin for wear, damage
or crank.
Check the pads for uneven wear or oiliness.
Check the boots for damage or tear.
2. Measure caliper housing inner diameter.
Item
With PBR
With MANDO Wear Limit

61.4 mm
61.0 mm
Standard
10 mm Wear Limit
2.0 mm
Standard
60.4 mm
60.0 mm
3. Measure pad thickness. Notice Always change the all pads on one wheel at a time.
5. Check the rotor disc for score or runout.
Standard 24 mm Wear Limit
22 mm

4E-4 REAR DISC BRAKES
Standard10.4 mm Wear Limit
9.3 mm
UNIT REPAIR REAR DISC BRAKE Inspection Procedure
1. Clean all components and visually check the followings. Check the cylinder and piston for wear, rust or damage.
Check the caliper body and guide pin for wear, damage
or crank.
Check the pads for uneven wear or oiliness.
Check the boots for damage or tear.
Standard
40.5 mm
38.2 mm Wear Limit
41.5 mm
39.2 mm
2. Measure caliper housing inner diameter.
3. Measure pad thickness.
Standard
9.5 mm Wear Limit
2.0 mm
Notice Always change the all pads on one wheel at a time.
4. Measure rotor disc thickness.
5. Check the rotor disc for score or runout.
Item
With PBR
With MANDO

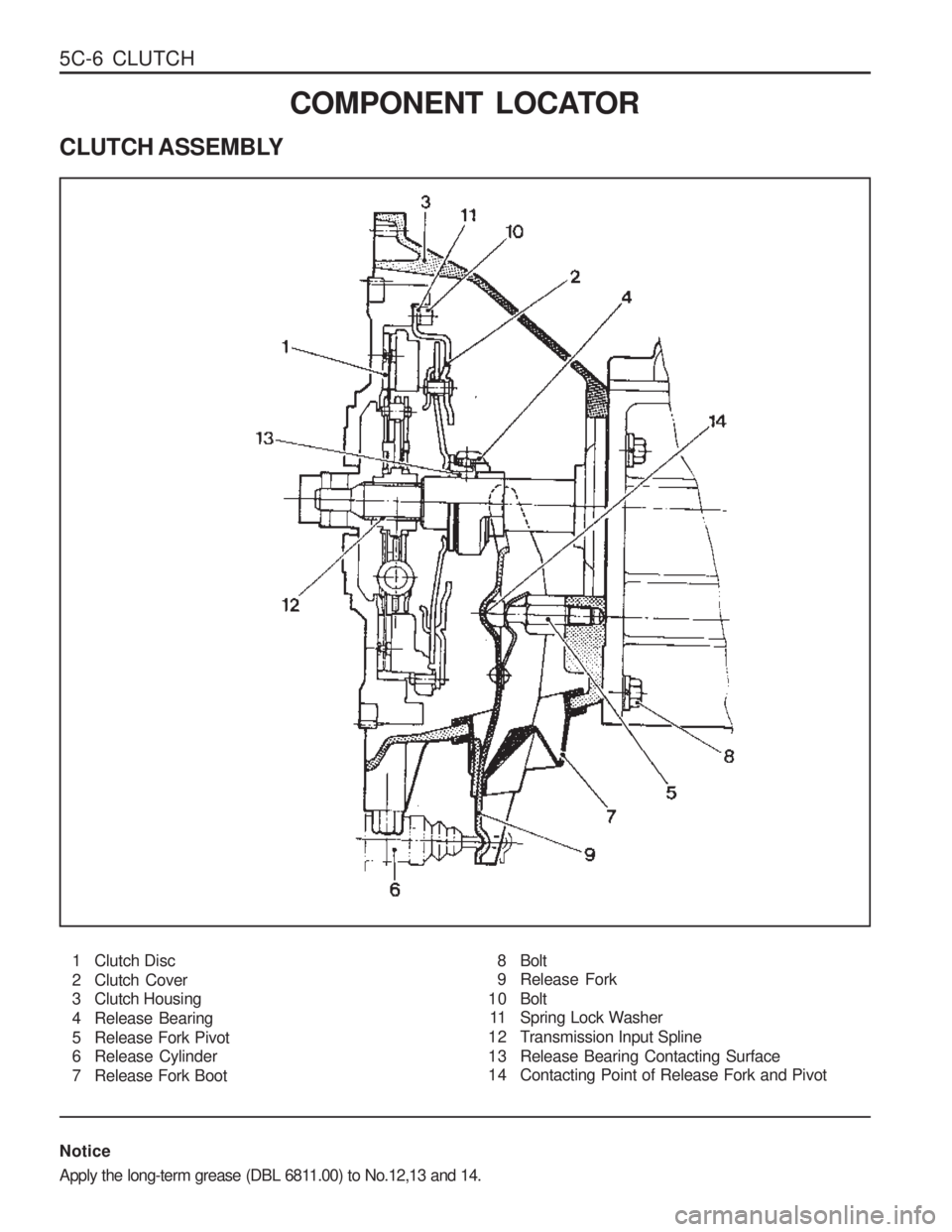

5C-6 CLUTCH
COMPONENT LOCATOR
CLUTCH ASSEMBLY
1 Clutch Disc
2 Clutch Cover
3 Clutch Housing
4 Release Bearing
5 Release Fork Pivot
6 Release Cylinder
7 Release Fork Boot 8 Bolt
9 Release Fork
10 Bolt 11 Spring Lock Washer
12 Transmission Input Spline
13 Release Bearing Contacting Surface
14 Contacting Point of Release Fork and Pivot
Notice
Apply the long-term grease (DBL 6811.00) to No.12,13 and 14.
