2002 NISSAN TERRANO Service Repair Manual

LHD MODELS
YEL091D
EXTERIOR LAMP
Wiring Diagram Ð TURN Ð (Cont'd)
EL-57

RHD MODELS
YEL092D
EXTERIOR LAMP
Wiring Diagram Ð TURN Ð (Cont'd)
EL-58

YEL093D
EXTERIOR LAMP
Wiring Diagram Ð TURN Ð (Cont'd)
EL-59

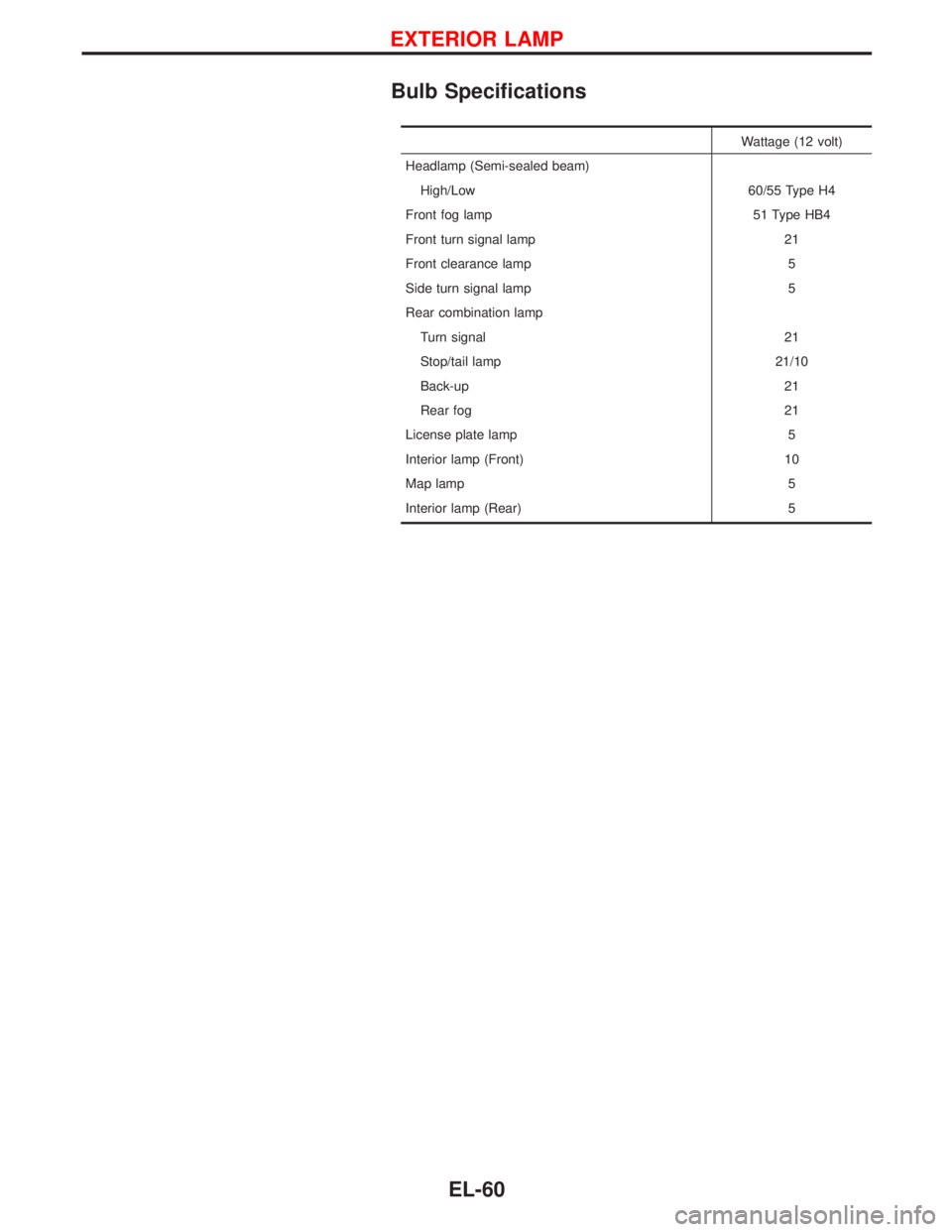

Bulb Specifications
Wattage (12 volt)
Headlamp (Semi-sealed beam)
High/Low 60/55 Type H4
Front fog lamp 51 Type HB4
Front turn signal lamp 21
Front clearance lamp 5
Side turn signal lamp 5
Rear combination lamp
Turn signal 21
Stop/tail lamp 21/10
Back-up 21
Rear fog 21
License plate lamp 5
Interior lamp (Front) 10
Map lamp 5
Interior lamp (Rear) 5
EXTERIOR LAMP
EL-60

Schematic
YEL080D
INTERIOR LAMP
EL-61

Wiring Diagram Ð ILL Ð
YEL081D
INTERIOR LAMP
EL-62

YEL082D
INTERIOR LAMP
Wiring Diagram Ð ILL Ð (Cont'd)
EL-63

LHD MODELS
YEL083D
INTERIOR LAMP
Wiring Diagram Ð ILL Ð (Cont'd)
EL-64
