TROUBLE DIAGNOSES
Wiring Diagram (Cont'd)
HA-48

RHD ZD30DDTi ENGINE MODELS
YHA398
TROUBLE DIAGNOSES
Wiring Diagram (Cont'd)
HA-49

YHA399
TROUBLE DIAGNOSES
Wiring Diagram (Cont'd)
HA-50

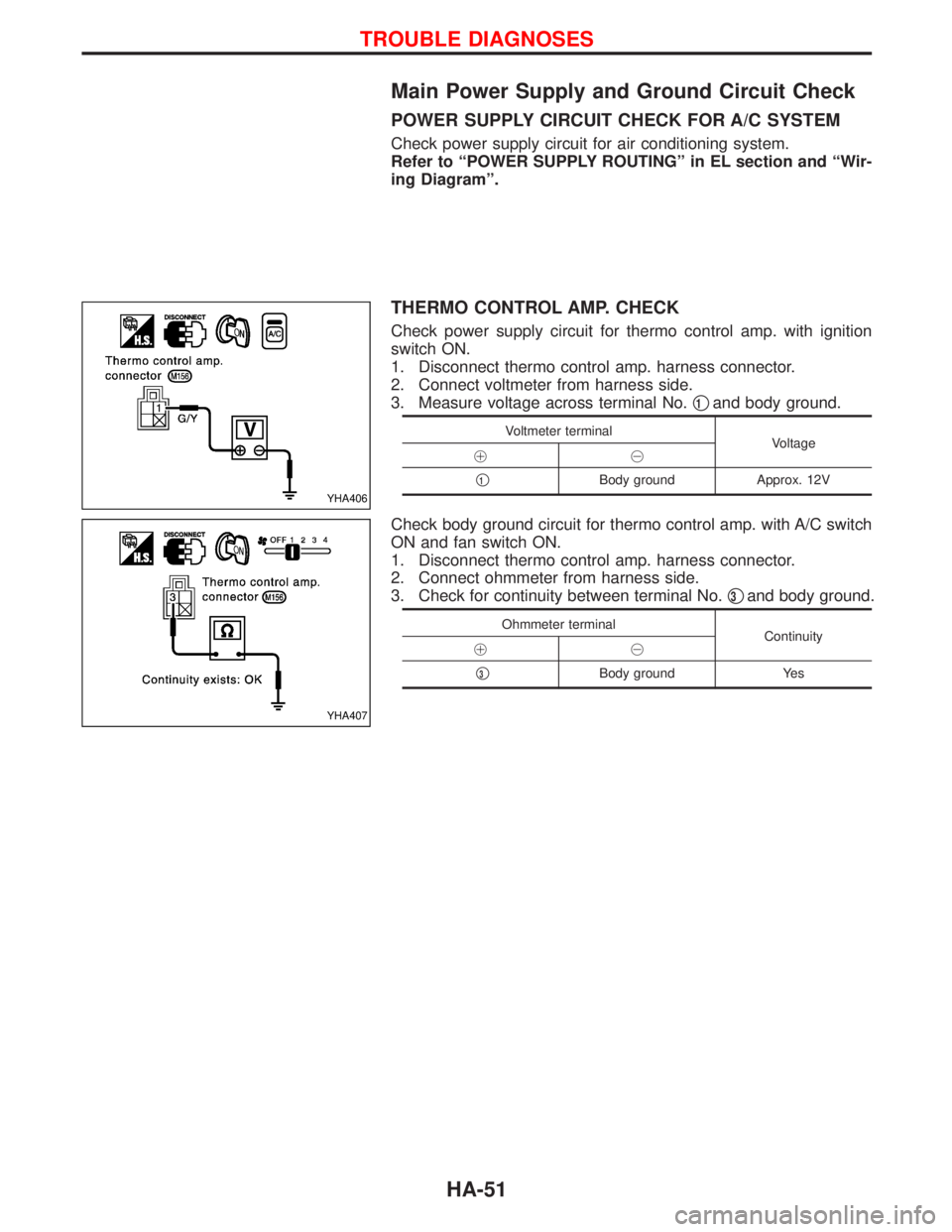

Main Power Supply and Ground Circuit Check
POWER SUPPLY CIRCUIT CHECK FOR A/C SYSTEM
Check power supply circuit for air conditioning system.
Refer to ªPOWER SUPPLY ROUTINGº in EL section and ªWir-
ing Diagramº.
THERMO CONTROL AMP. CHECK
Check power supply circuit for thermo control amp. with ignition
switch ON.
1. Disconnect thermo control amp. harness connector.
2. Connect voltmeter from harness side.
3. Measure voltage across terminal No.q
1and body ground.
Voltmeter terminal
Voltage
!@
q
1Body ground Approx. 12V
Check body ground circuit for thermo control amp. with A/C switch
ON and fan switch ON.
1. Disconnect thermo control amp. harness connector.
2. Connect ohmmeter from harness side.
3. Check for continuity between terminal No.q
3and body ground.
Ohmmeter terminal
Continuity
!@
q
3Body ground Yes
YHA406
YHA407
TROUBLE DIAGNOSES
HA-51

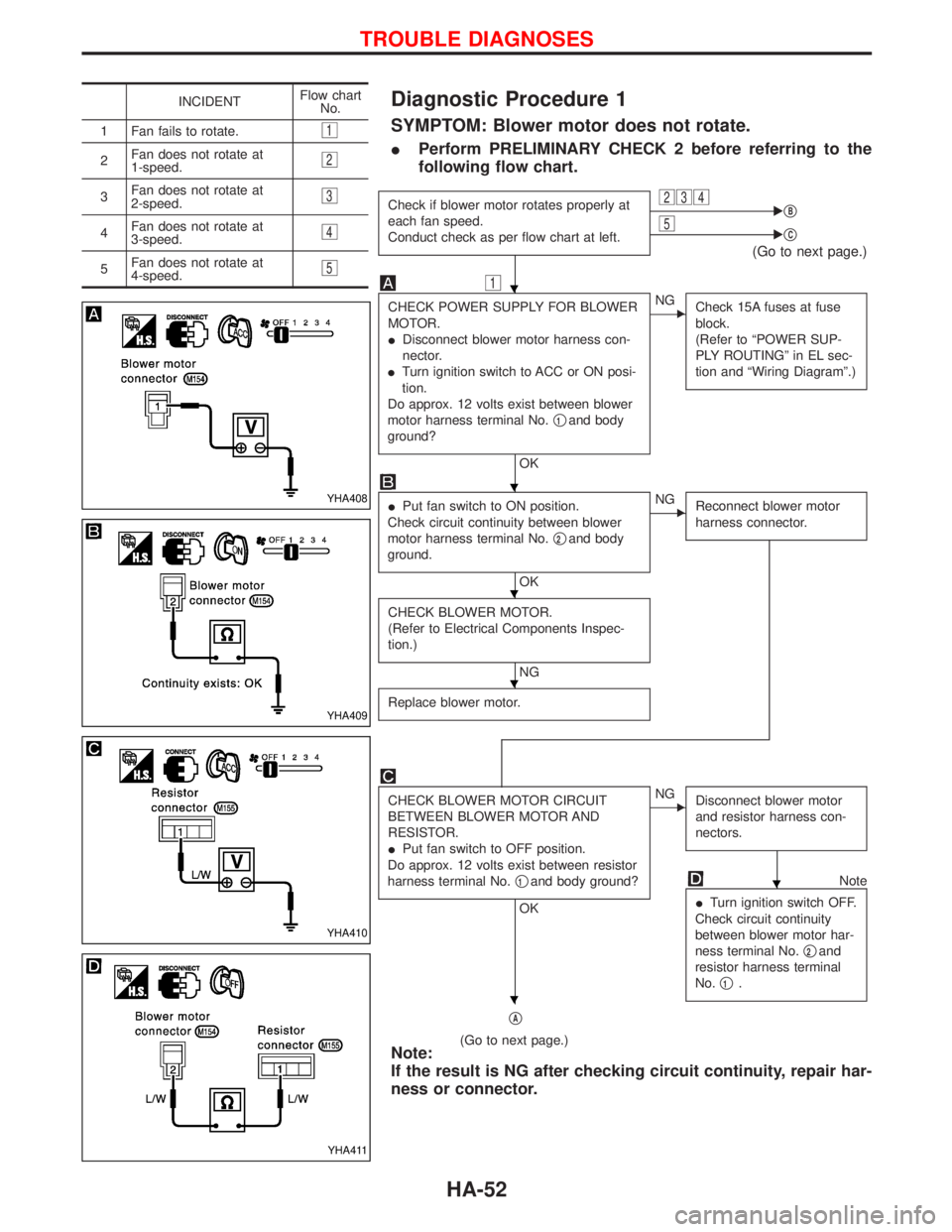

Diagnostic Procedure 1
SYMPTOM: Blower motor does not rotate.
IPerform PRELIMINARY CHECK 2 before referring to the
following flow chart.
Check if blower motor rotates properly at
each fan speed.
Conduct check as per flow chart at left.234EqB5EqC
(Go to next page.)
1
CHECK POWER SUPPLY FOR BLOWER
MOTOR.
IDisconnect blower motor harness con-
nector.
ITurn ignition switch to ACC or ON posi-
tion.
Do approx. 12 volts exist between blower
motor harness terminal No.q
1and body
ground?
OK
ENG
Check 15A fuses at fuse
block.
(Refer to ªPOWER SUP-
PLY ROUTINGº in EL sec-
tion and ªWiring Diagramº.)
IPut fan switch to ON position.
Check circuit continuity between blower
motor harness terminal No.q
2and body
ground.
OK
ENG
Reconnect blower motor
harness connector.
CHECK BLOWER MOTOR.
(Refer to Electrical Components Inspec-
tion.)
NG
Replace blower motor.
CHECK BLOWER MOTOR CIRCUIT
BETWEEN BLOWER MOTOR AND
RESISTOR.
IPut fan switch to OFF position.
Do approx. 12 volts exist between resistor
harness terminal No.q
1and body ground?
OK
ENG
Disconnect blower motor
and resistor harness con-
nectors.
Note
ITurn ignition switch OFF.
Check circuit continuity
between blower motor har-
ness terminal No.q
2and
resistor harness terminal
No.q
1.
qA
(Go to next page.)Note:
If the result is NG after checking circuit continuity, repair har-
ness or connector.
INCIDENTFlow chart
No.
1 Fan fails to rotate.
1
2Fan does not rotate at
1-speed.2
3Fan does not rotate at
2-speed.3
4Fan does not rotate at
3-speed.4
5Fan does not rotate at
4-speed.5
YHA408
YHA409
YHA410
YHA411
H
H
H
H
H
H
TROUBLE DIAGNOSES
HA-52

qA
1
qB
234
qC
5
H
CHECK RESISTOR AFTER DISCONNECT-
ING IT.
(Refer to Electrical Components Inspection.)
OK
H
NG
Replace resistor.
Reconnect resistor harness connector.
1234
CHECK FAN SWITCH CIRCUIT.
Do approx. 12 volts exist between each fan switch har-
ness terminal and body ground?
NG
H
OK
2
3
4
5
Note
Check circuit continuity between
fan switch and resistor.
CHECK FAN SWITCH AFTER DISCON-
NECTING IT.
(Refer to Electrical Components Inspection.)
OK
ENG
Replace fan switch.
Note
Check circuit continuity between fan switch
harness terminal No.q
1and body ground.
OK
Replace blower motor.
Note:
If the result is NG after checking circuit continuity, repair har-
ness or connector.
Flow
chart
No.Terminal No. Voltage
!@
q2
Body
groundApprox.
12Vq3
q4
q5
YHA412
YHA413
YHA414
H
H
H
H
H
H
H
TROUBLE DIAGNOSES

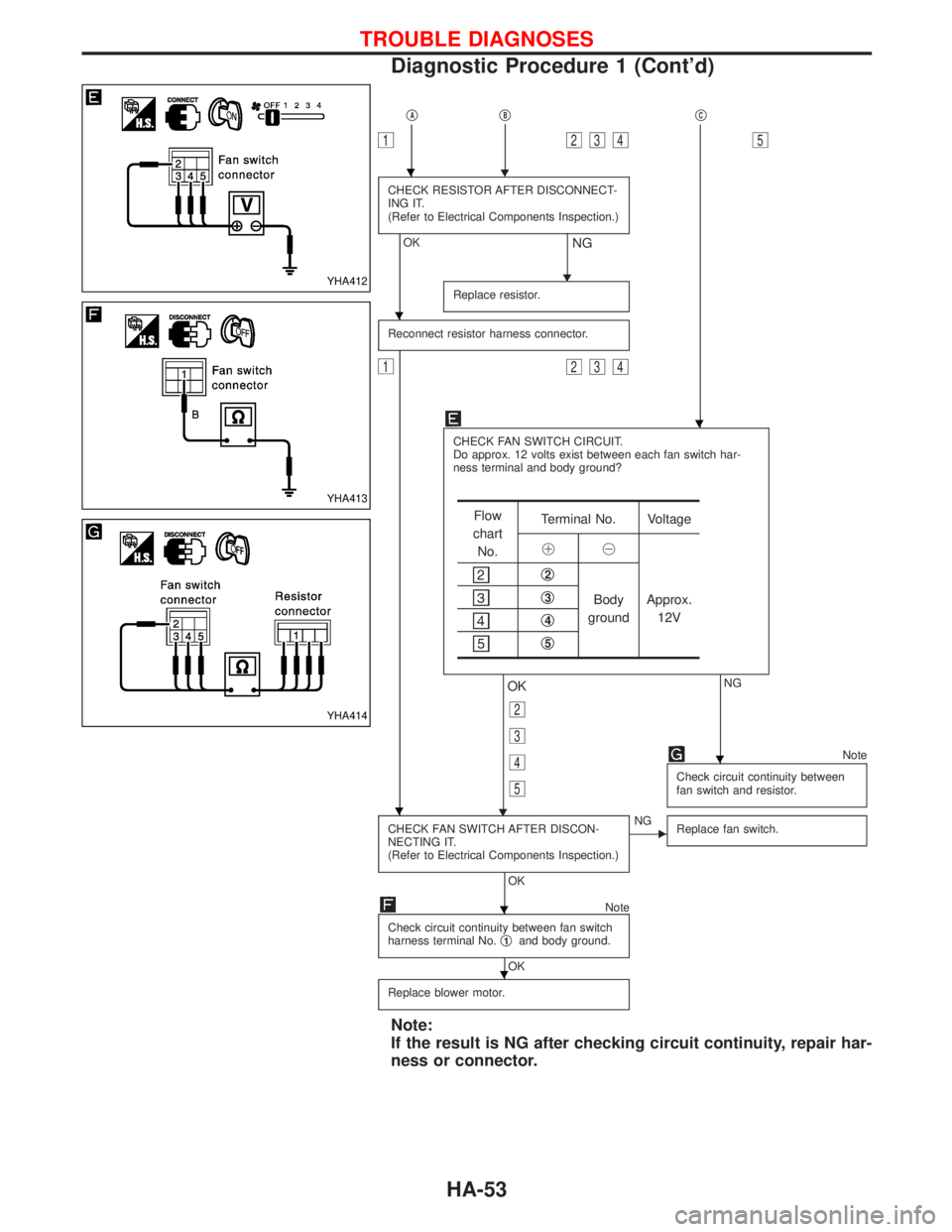

Diagnostic Procedure 1 (Cont'd)
HA-53

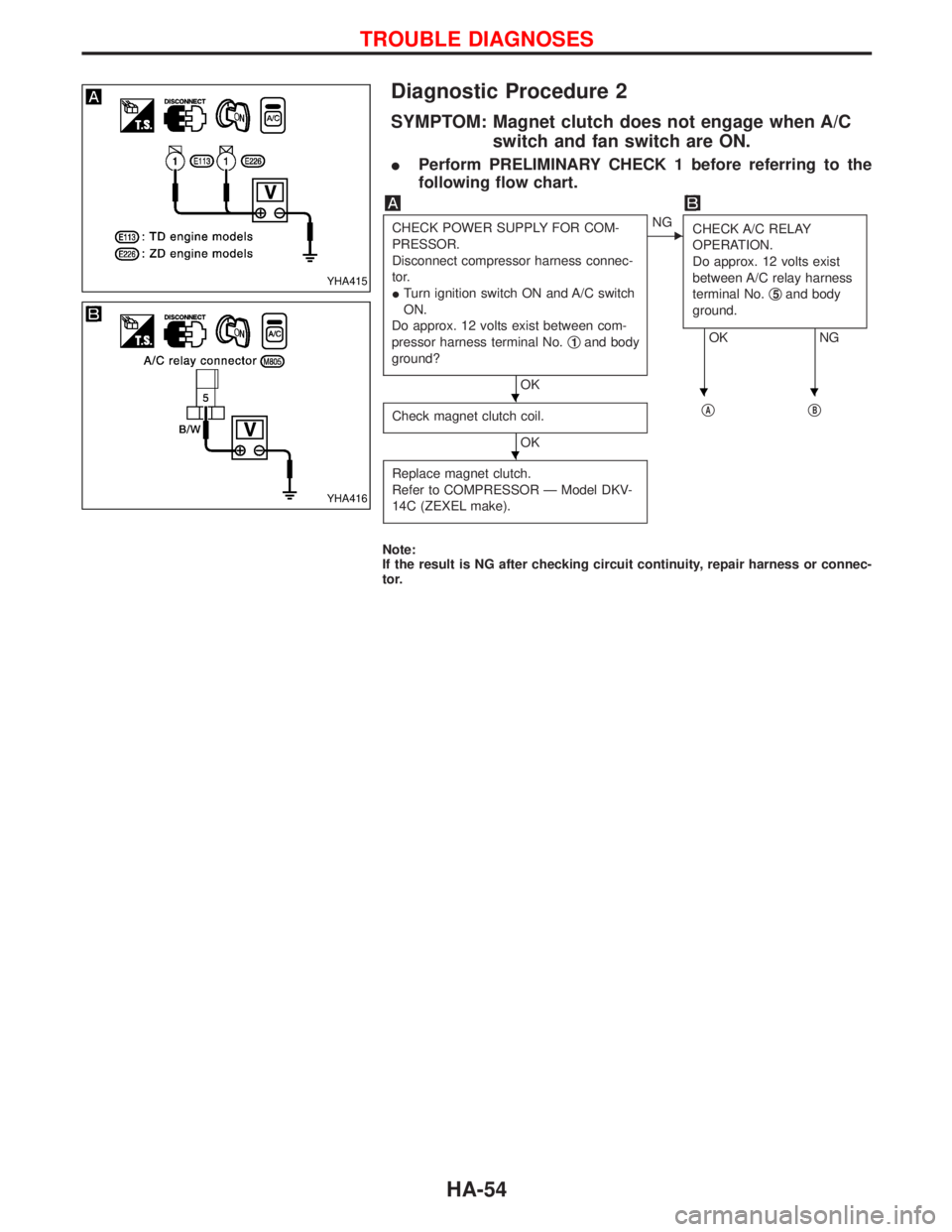

Diagnostic Procedure 2
SYMPTOM: Magnet clutch does not engage when A/C
switch and fan switch are ON.
IPerform PRELIMINARY CHECK 1 before referring to the
following flow chart.
CHECK POWER SUPPLY FOR COM-
PRESSOR.
Disconnect compressor harness connec-
tor.
ITurn ignition switch ON and A/C switch
ON.
Do approx. 12 volts exist between com-
pressor harness terminal No.q
1and body
ground?
OK
ENG
CHECK A/C RELAY
OPERATION.
Do approx. 12 volts exist
between A/C relay harness
terminal No.q
5and body
ground.
OK NG
Check magnet clutch coil.
OKq
AqB
Replace magnet clutch.
Refer to COMPRESSOR Ð Model DKV-
14C (ZEXEL make).
Note:
If the result is NG after checking circuit continuity, repair harness or connec-
tor.
YHA415
YHA416
HHH
H
TROUBLE DIAGNOSES
HA-54

qAqB
ITurn ignition switch OFF.
Disconnect A/C relay harness connec-
tor.CHECK POWER SUPPLY
FOR A/C RELAY.
Disconnect A/C relay.
Do approx. 12 volts exist
between A/C relay harness
connector terminal No.q
3and
body ground?
NG OK
Note
Check circuit continuity between A/C
relay harness connector terminal No.
q
5and compressor harness connector
terminal No.q
1.
If NG, check harness connectors.
H
CHECK POWER SUPPLY
CIRCUIT AND 10A FUSE AT
FUSE BLOCK.
(Refer to ªPOWER SUPPLY
ROUTINGº in EL section and
Wiring Diagram.)
ITurn ignition switch ON.
CHECK POWER SUPPLY FOR A/C
RELAY (Coil side).
Do approx. 12 volts exist between A/C
relay harness connector terminal No.
q
2and body ground?
H
ENG
CHECK POWER SUPPLY
FOR A/C CONTROL PANEL.
Disconnect A/C control panel
harness connector.
Do approx. 12 volts exist
between A/C control panel
harness connector terminal
No.q
1and body ground?
NG
OKFqC
(Go to next page.)
CHECK POWER SUPPLY
CIRCUIT AND 10A FUSE AT
FUSE BLOCK.
(Refer to ªPOWER SUPPLY
ROUTINGº in EL section and
Wiring Diagram.)
Note:
If the result is NG after checking circuit continuity, repair harness or connec-
tor.
YHA417
YHA418
YHA419
YHA420
HH
H
H
H
H
TROUBLE DIAGNOSES

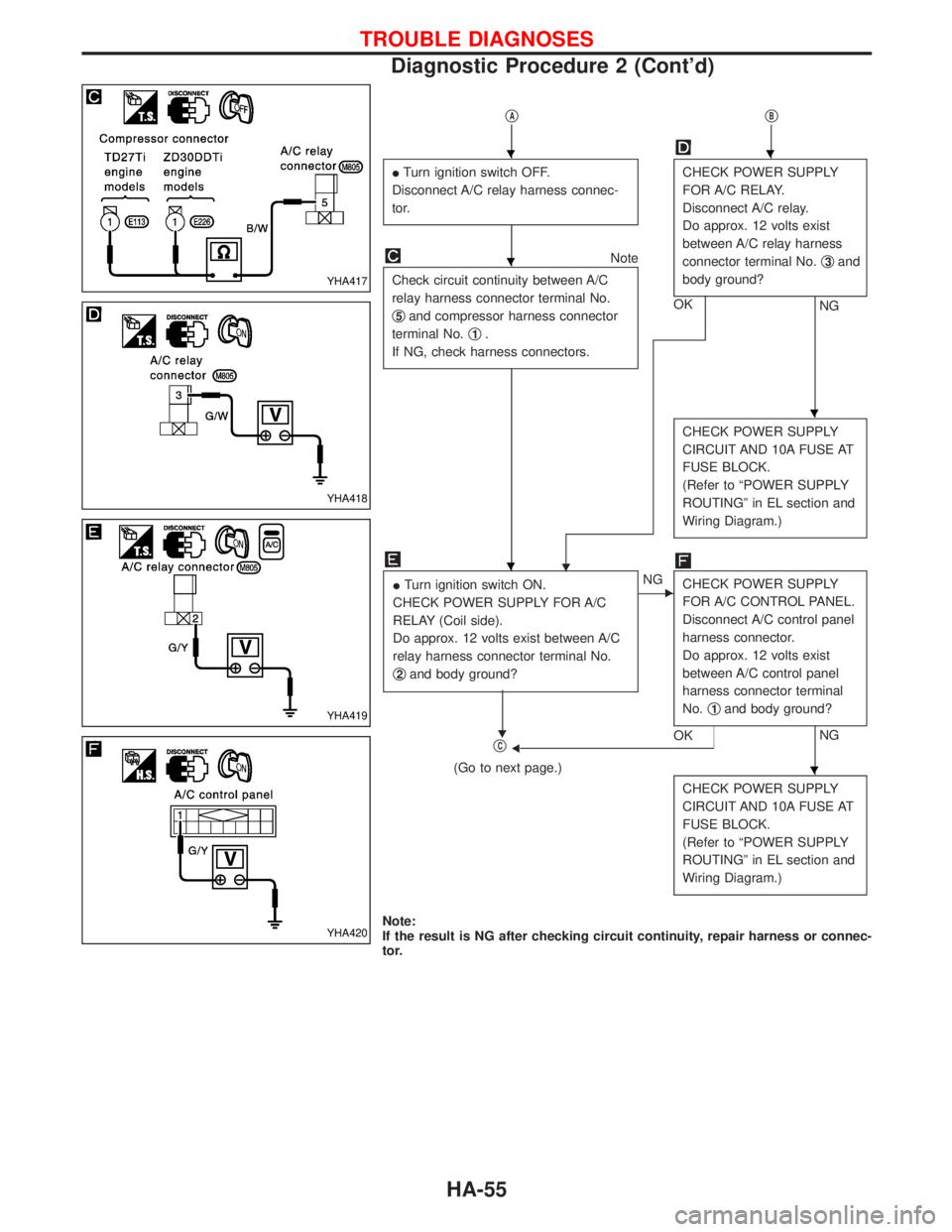

Diagnostic Procedure 2 (Cont'd)
HA-55
