2002 NISSAN TERRANO Service Repair Manual

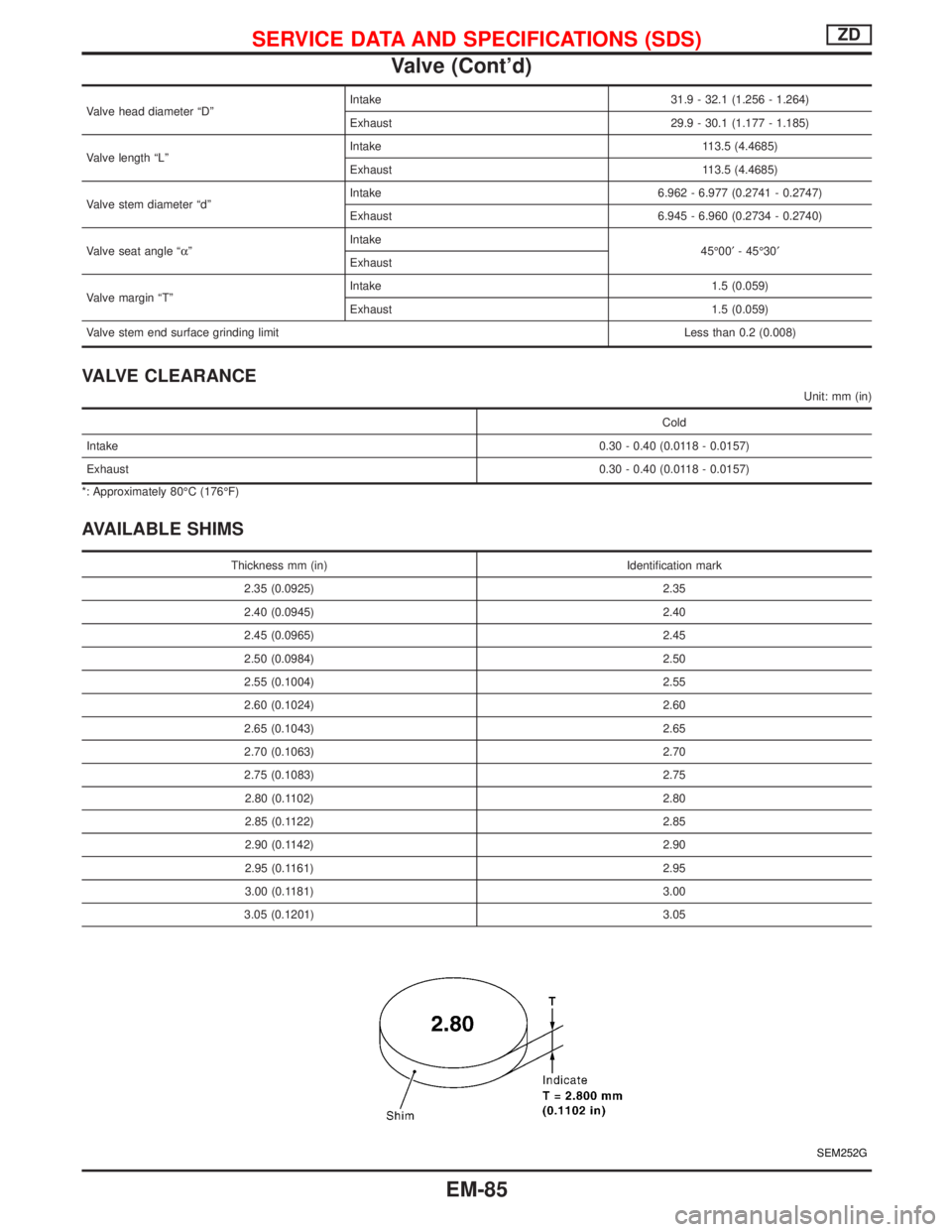

Valve head diameter ªDºIntake 31.9 - 32.1 (1.256 - 1.264)
Exhaust 29.9 - 30.1 (1.177 - 1.185)
Valve length ªLºIntake 113.5 (4.4685)
Exhaust 113.5 (4.4685)
Valve stem diameter ªdºIntake 6.962 - 6.977 (0.2741 - 0.2747)
Exhaust 6.945 - 6.960 (0.2734 - 0.2740)
Valve seat angle ªaºIntake
45É00¢- 45É30¢
Exhaust
Valve margin ªTºIntake 1.5 (0.059)
Exhaust 1.5 (0.059)
Valve stem end surface grinding limitLess than 0.2 (0.008)
VALVE CLEARANCE
Unit: mm (in)
Cold
Intake0.30 - 0.40 (0.0118 - 0.0157)
Exhaust0.30 - 0.40 (0.0118 - 0.0157)
*: Approximately 80ÉC (176ÉF)
AVAILABLE SHIMS
Thickness mm (in) Identification mark
2.35 (0.0925) 2.35
2.40 (0.0945) 2.40
2.45 (0.0965) 2.45
2.50 (0.0984) 2.50
2.55 (0.1004) 2.55
2.60 (0.1024) 2.60
2.65 (0.1043) 2.65
2.70 (0.1063) 2.70
2.75 (0.1083) 2.75
2.80 (0.1102) 2.80
2.85 (0.1122) 2.85
2.90 (0.1142) 2.90
2.95 (0.1161) 2.95
3.00 (0.1181) 3.00
3.05 (0.1201) 3.05
SEM252G
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
Valve (Cont'd)
EM-85

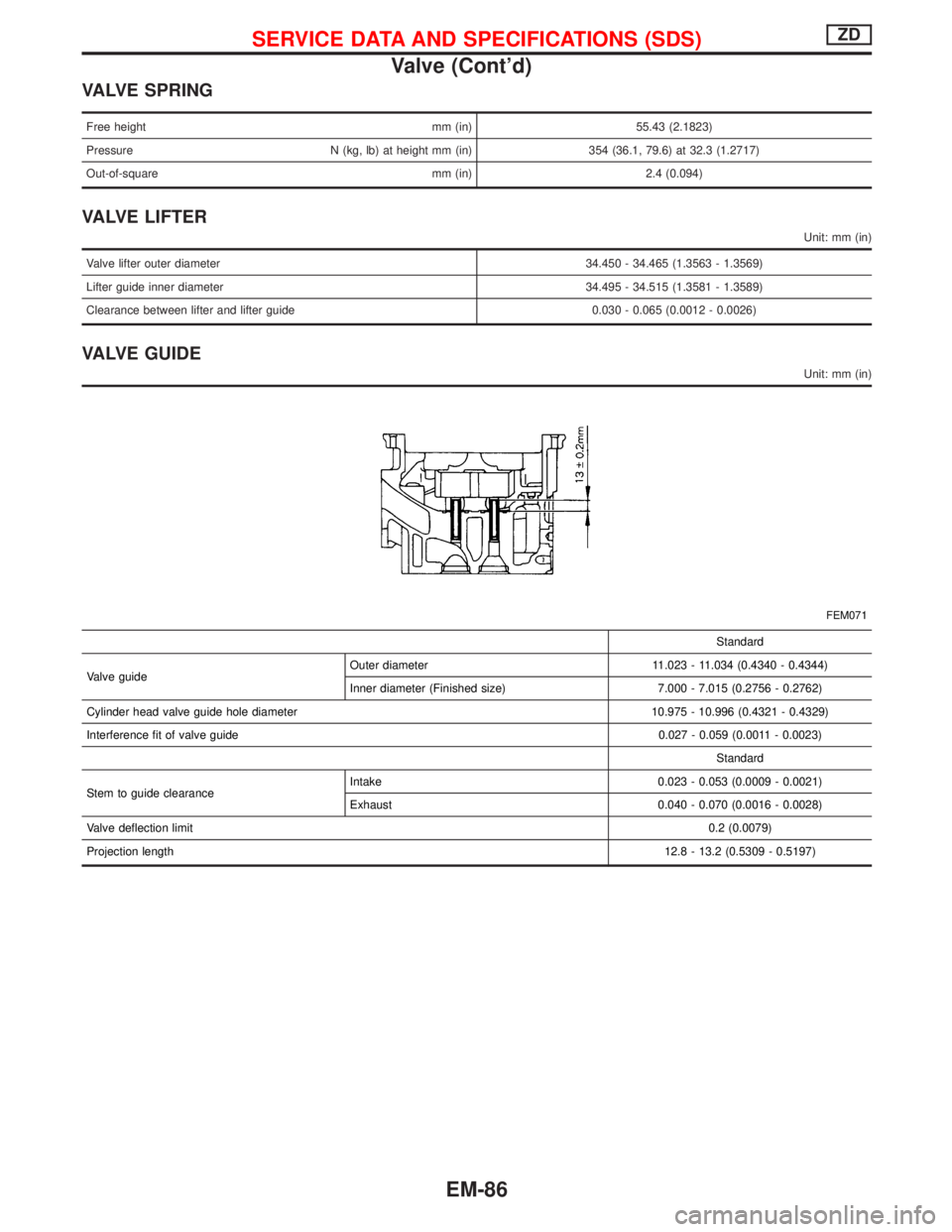

VALVE SPRING
Free height mm (in) 55.43 (2.1823)
Pressure N (kg, lb) at height mm (in) 354 (36.1, 79.6) at 32.3 (1.2717)
Out-of-square mm (in) 2.4 (0.094)
VALVE LIFTER
Unit: mm (in)
Valve lifter outer diameter 34.450 - 34.465 (1.3563 - 1.3569)
Lifter guide inner diameter 34.495 - 34.515 (1.3581 - 1.3589)
Clearance between lifter and lifter guide 0.030 - 0.065 (0.0012 - 0.0026)
VALVE GUIDE
Unit: mm (in)
FEM071
Standard
Valve guideOuter diameter 11.023 - 11.034 (0.4340 - 0.4344)
Inner diameter (Finished size) 7.000 - 7.015 (0.2756 - 0.2762)
Cylinder head valve guide hole diameter 10.975 - 10.996 (0.4321 - 0.4329)
Interference fit of valve guide0.027 - 0.059 (0.0011 - 0.0023)
Standard
Stem to guide clearanceIntake 0.023 - 0.053 (0.0009 - 0.0021)
Exhaust 0.040 - 0.070 (0.0016 - 0.0028)
Valve deflection limit0.2 (0.0079)
Projection length12.8 - 13.2 (0.5309 - 0.5197)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
Valve (Cont'd)
EM-86

Valve Seat
Unit: mm (in)
SEM374G
SEM373G
SEM375G
Standard Service
Cylinder head seat recess diameter
(D)Intake 33.000 - 33.015 (1.2992 - 1.2998) 33.500 - 33.515 (1.3189 - 1.3195)
Exhaust 31.495 - 31.510 (1.2400 - 1.2405) 31.995 - 32.010 (1.2596 - 1.2602)
Valve seat interference fitIntake 0.050 - 0.078 (0.0020 - 0.0031)
Exhaust 0.040 - 0.066 (0.0016 - 0.0026)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
EM-87

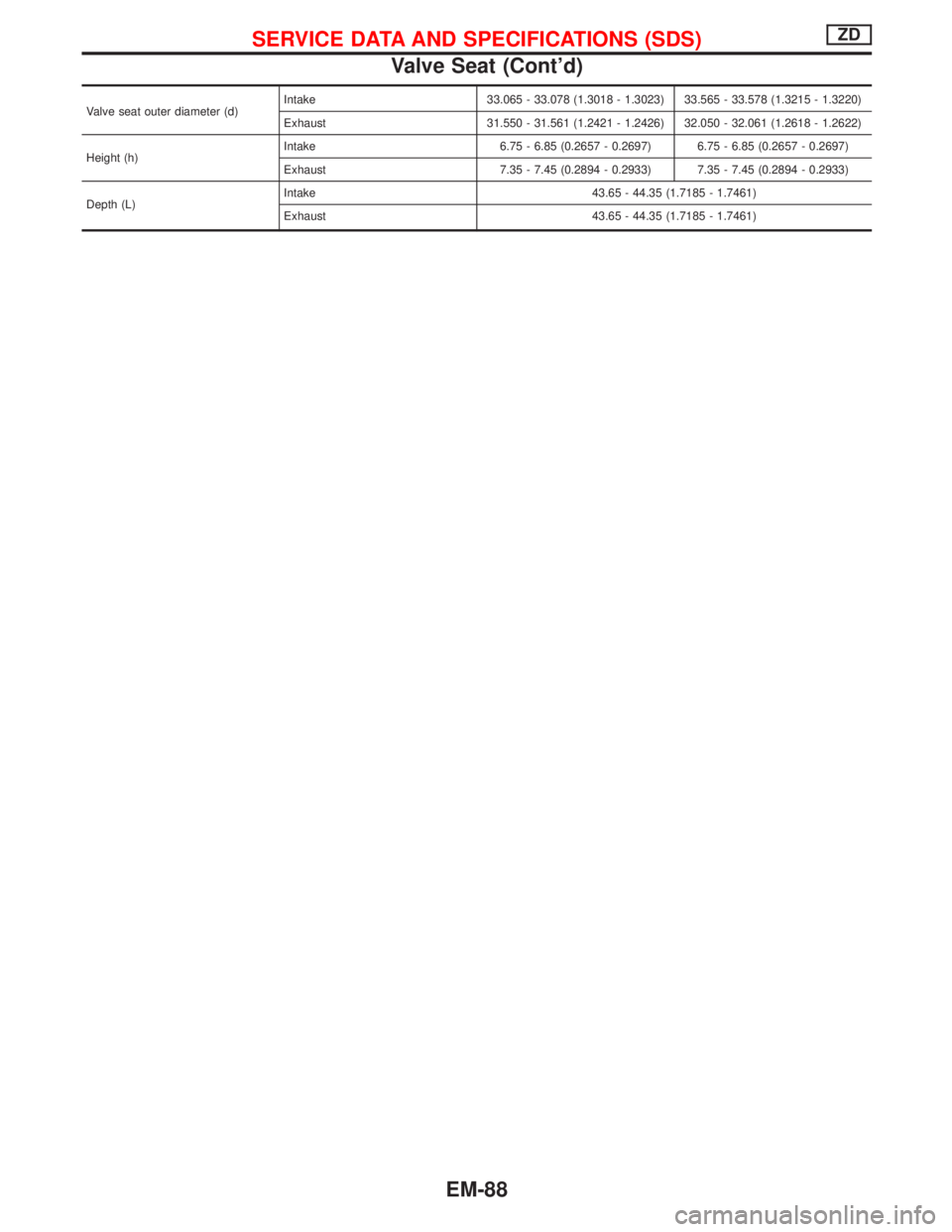

Valve seat outer diameter (d)Intake 33.065 - 33.078 (1.3018 - 1.3023) 33.565 - 33.578 (1.3215 - 1.3220)
Exhaust 31.550 - 31.561 (1.2421 - 1.2426) 32.050 - 32.061 (1.2618 - 1.2622)
Height (h)Intake 6.75 - 6.85 (0.2657 - 0.2697) 6.75 - 6.85 (0.2657 - 0.2697)
Exhaust 7.35 - 7.45 (0.2894 - 0.2933) 7.35 - 7.45 (0.2894 - 0.2933)
Depth (L)Intake 43.65 - 44.35 (1.7185 - 1.7461)
Exhaust 43.65 - 44.35 (1.7185 - 1.7461)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
Valve Seat (Cont'd)
EM-88

Camshaft and Camshaft Bearing
Unit: mm (in)
Standard Limit
Camshaft journal to bearing clearance 0.045 - 0.090 (0.0018 - 0.0035) 0.09 (0.0035)
Inner diameter of camshaft bearing 30.000 - 30.021 (1.1811 - 1.1819) Ð
Outer diameter of camshaft journal 29.931 - 29.955 (1.1784 - 1.1793) Ð
Camshaft runout [TIR*] Ð 0.02 (0.0008)
Camshaft sprocket runout [TIR*] Less than 0.15 (0.0059) Ð
Camshaft end play 0.065 - 0.169 (0.0026 - 0.0067) 0.2 (0.008)
*: Total indicator reading
EM671
Cam height ªAºIntake 40.468 - 40.508 (1.5932 - 1.5948)
Exhaust 40.830 - 40.870 (1.6075 - 1.6091)
Wear limit of cam height0.15 (0.0059)
Valve timing
SEM372G
Unit: degree
abcde
234 220 10 34 50
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
EM-89

Cylinder Block
Unit: mm (in)
SEM370G
Surface flatnessStandardLess than 0.03 (0.0012)
Limit0.10 (0.0039)
Cylinder bore Inner diameterStandardGrade No. 1 96.000 - 96.010 (3.7795 - 3.7799)
Grade No. 2 96.010 - 96.020 (3.7799 - 3.7803)
Grade No. 3 96.020 - 96.030 (3.7803 - 3.7807)
Wear limit 0.20 (0.0079)
Out-of-round (X þ Y)Less than 0.02 (0.0008)
Taper (AþBþC)Less than 0.02 (0.0008)
Main journal inner diameter (Without bearing) 74.981 - 75.000 (2.9520 - 2.9528)
Difference in inner diam-
eter between cylindersLimitLess than 0.05 (0.0020)
Piston, Piston Ring and Piston Pin
AVAILABLE PISTON
Unit: mm (in)
SEM369G
Piston skirt diameter ªAº StandardGrade No. 1 95.950 - 95.960 (3.7776 - 3.7779)
Grade No. 2 95.960 - 95.970 (3.7779 - 3.7783)
Grade No. 3 95.970 - 95.980 (3.7783 - 3.7787)
ªaº dimension10 (0.39)
Piston pin hole diameter32.997 - 33.005 (1.2991 - 1.2994)
Piston clearance to cylinder block0.040 - 0.060 (0.0016 - 0.0024)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
EM-90

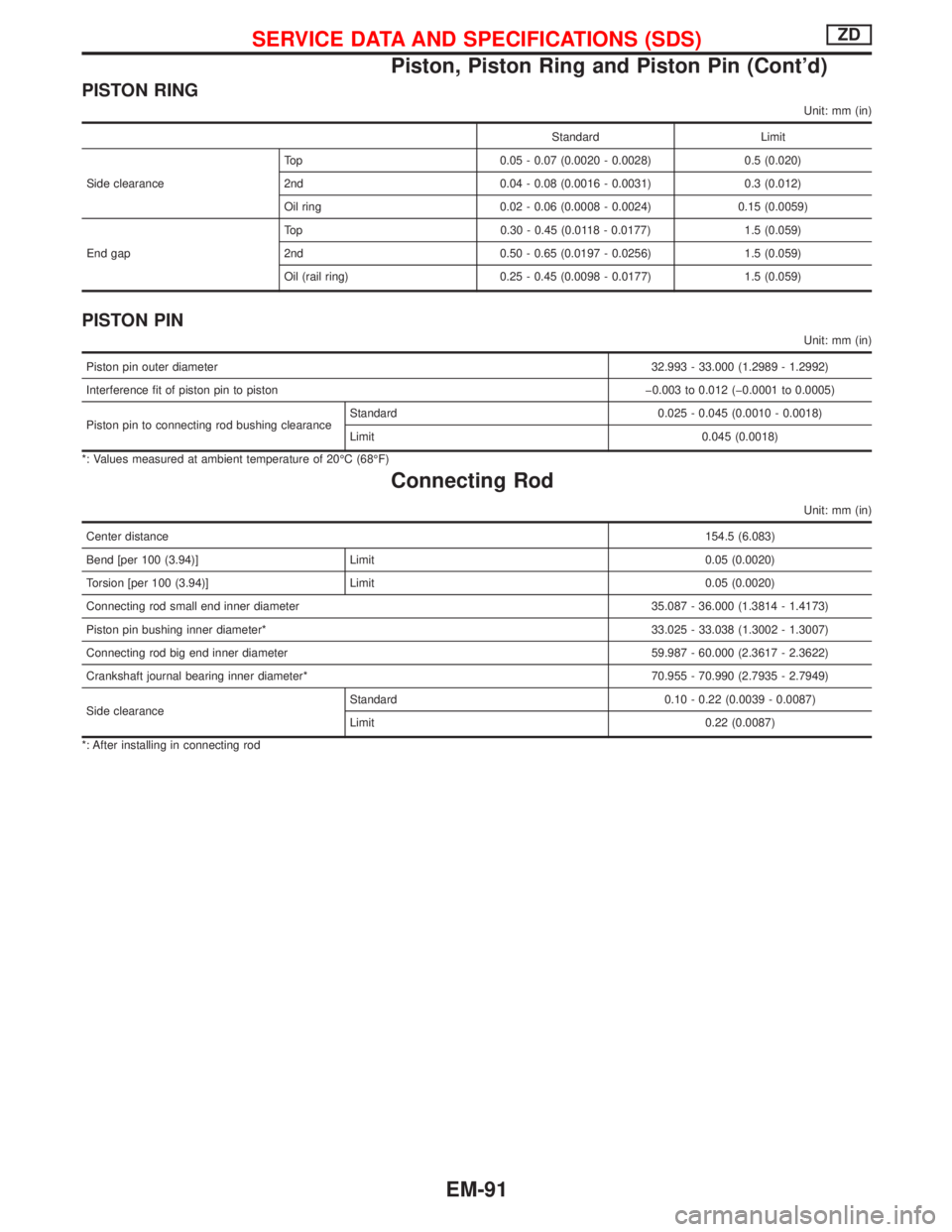

PISTON RING
Unit: mm (in)
Standard Limit
Side clearanceTop 0.05 - 0.07 (0.0020 - 0.0028) 0.5 (0.020)
2nd 0.04 - 0.08 (0.0016 - 0.0031) 0.3 (0.012)
Oil ring 0.02 - 0.06 (0.0008 - 0.0024) 0.15 (0.0059)
End gapTop 0.30 - 0.45 (0.0118 - 0.0177) 1.5 (0.059)
2nd 0.50 - 0.65 (0.0197 - 0.0256) 1.5 (0.059)
Oil (rail ring) 0.25 - 0.45 (0.0098 - 0.0177) 1.5 (0.059)
PISTON PIN
Unit: mm (in)
Piston pin outer diameter32.993 - 33.000 (1.2989 - 1.2992)
Interference fit of piston pin to piston þ0.003 to 0.012 (þ0.0001 to 0.0005)
Piston pin to connecting rod bushing clearanceStandard 0.025 - 0.045 (0.0010 - 0.0018)
Limit 0.045 (0.0018)
*: Values measured at ambient temperature of 20ÉC (68ÉF)
Connecting Rod
Unit: mm (in)
Center distance154.5 (6.083)
Bend [per 100 (3.94)] Limit 0.05 (0.0020)
Torsion [per 100 (3.94)] Limit 0.05 (0.0020)
Connecting rod small end inner diameter 35.087 - 36.000 (1.3814 - 1.4173)
Piston pin bushing inner diameter*33.025 - 33.038 (1.3002 - 1.3007)
Connecting rod big end inner diameter 59.987 - 60.000 (2.3617 - 2.3622)
Crankshaft journal bearing inner diameter* 70.955 - 70.990 (2.7935 - 2.7949)
Side clearanceStandard 0.10 - 0.22 (0.0039 - 0.0087)
Limit 0.22 (0.0087)
*: After installing in connecting rod
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
Piston, Piston Ring and Piston Pin (Cont'd)
EM-91

Crankshaft
Unit: mm (in)
Main journal dia. ªDmº70.907 - 70.920 (2.7916 - 2.7921)
Pin journal dia. ªDpº Grade No. 0 56.913 - 56.926 (2.2407 - 2.2412)
Center distance ªrº50.95 - 51.05 (2.0059 - 2.0098)
Out-of-round (X þ Y) Standard Less than 0.01 (0.0004)
Taper (A þ B) Standard Less than 0.01 (0.0004)
Runout [TIR*]Standard Less than 0.01 (0.0004)
Limit Less than 0.03 (0.0012)
Free end playStandard 0.055 - 0.140 (0.0022 - 0.0055)
Limit 0.25 (0.0098)
SEM645EM715
*: Total indicator reading
Available Main Bearing
UNDERSIZE
FEM127
Size Thickness ªTº mm (in) Width ªWº mm (in) Main journal diameter ªDmº
Standard 2.005 - 2.013 (0.0789 - 0.0793)
25.74 - 26.00 (1.0134 - 1.0236)Grind so that bearing clearance is
the specified value. US 025 2.130 - 2.138 (0.0839 - 0.0842)
US 050 2.255 - 2.263 (0.0888 - 0.0891)
US 075 2.380 - 2.388 (0.0937 - 0.0940)
US 100 2.505 - 2.513 (0.0986 - 0.0989)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
EM-92
