2002 NISSAN TERRANO Service Repair Manual

Component Parts Location
YEL298D
POWER DOOR LOCK Ð SUPER LOCK Ð
EL-145

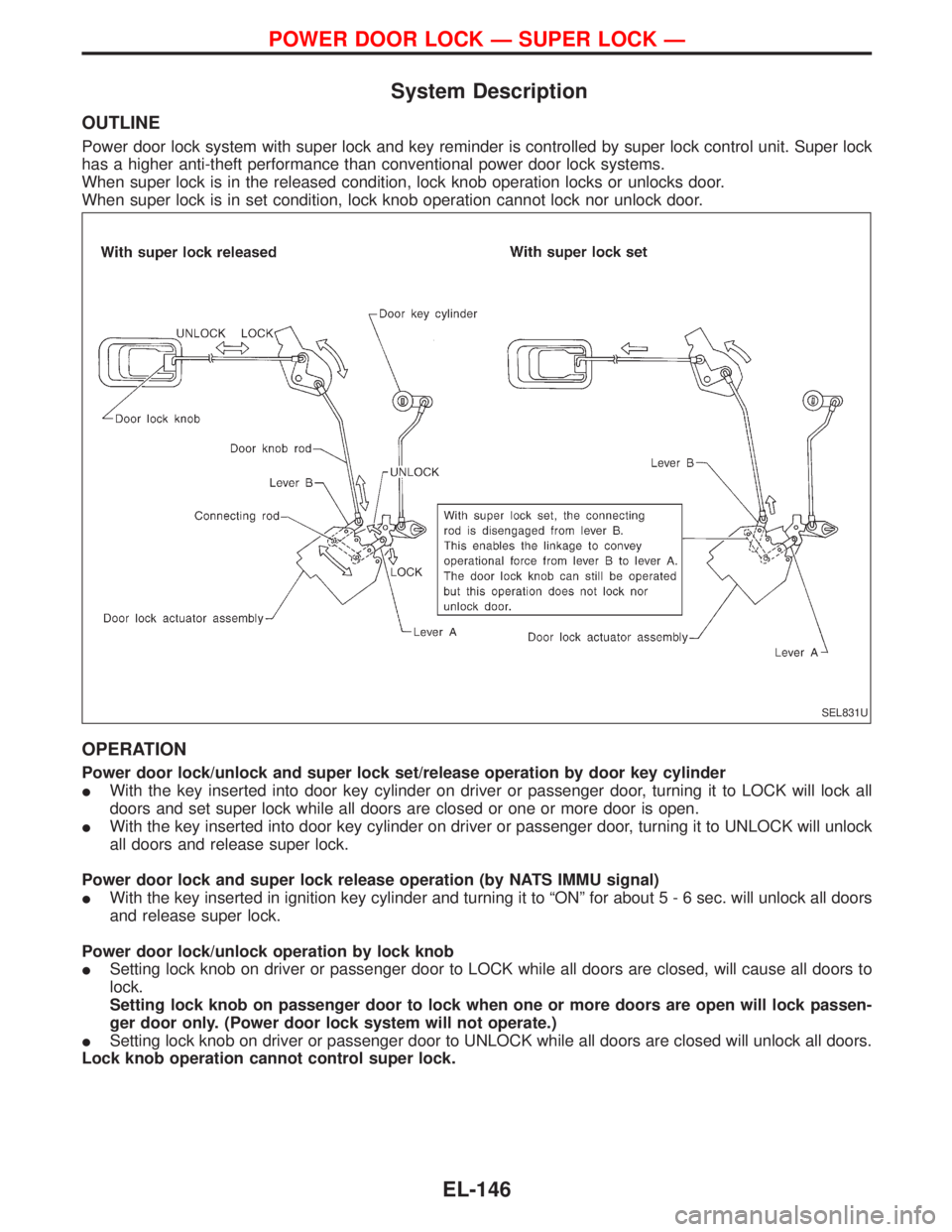

System Description
OUTLINE
Power door lock system with super lock and key reminder is controlled by super lock control unit. Super lock
has a higher anti-theft performance than conventional power door lock systems.
When super lock is in the released condition, lock knob operation locks or unlocks door.
When super lock is in set condition, lock knob operation cannot lock nor unlock door.
OPERATION
Power door lock/unlock and super lock set/release operation by door key cylinder
IWith the key inserted into door key cylinder on driver or passenger door, turning it to LOCK will lock all
doors and set super lock while all doors are closed or one or more door is open.
IWith the key inserted into door key cylinder on driver or passenger door, turning it to UNLOCK will unlock
all doors and release super lock.
Power door lock and super lock release operation (by NATS IMMU signal)
IWith the key inserted in ignition key cylinder and turning it to ªONº for about5-6sec. will unlock all doors
and release super lock.
Power door lock/unlock operation by lock knob
ISetting lock knob on driver or passenger door to LOCK while all doors are closed, will cause all doors to
lock.
Setting lock knob on passenger door to lock when one or more doors are open will lock passen-
ger door only. (Power door lock system will not operate.)
ISetting lock knob on driver or passenger door to UNLOCK while all doors are closed will unlock all doors.
Lock knob operation cannot control super lock.
SEL831U
POWER DOOR LOCK Ð SUPER LOCK Ð
EL-146

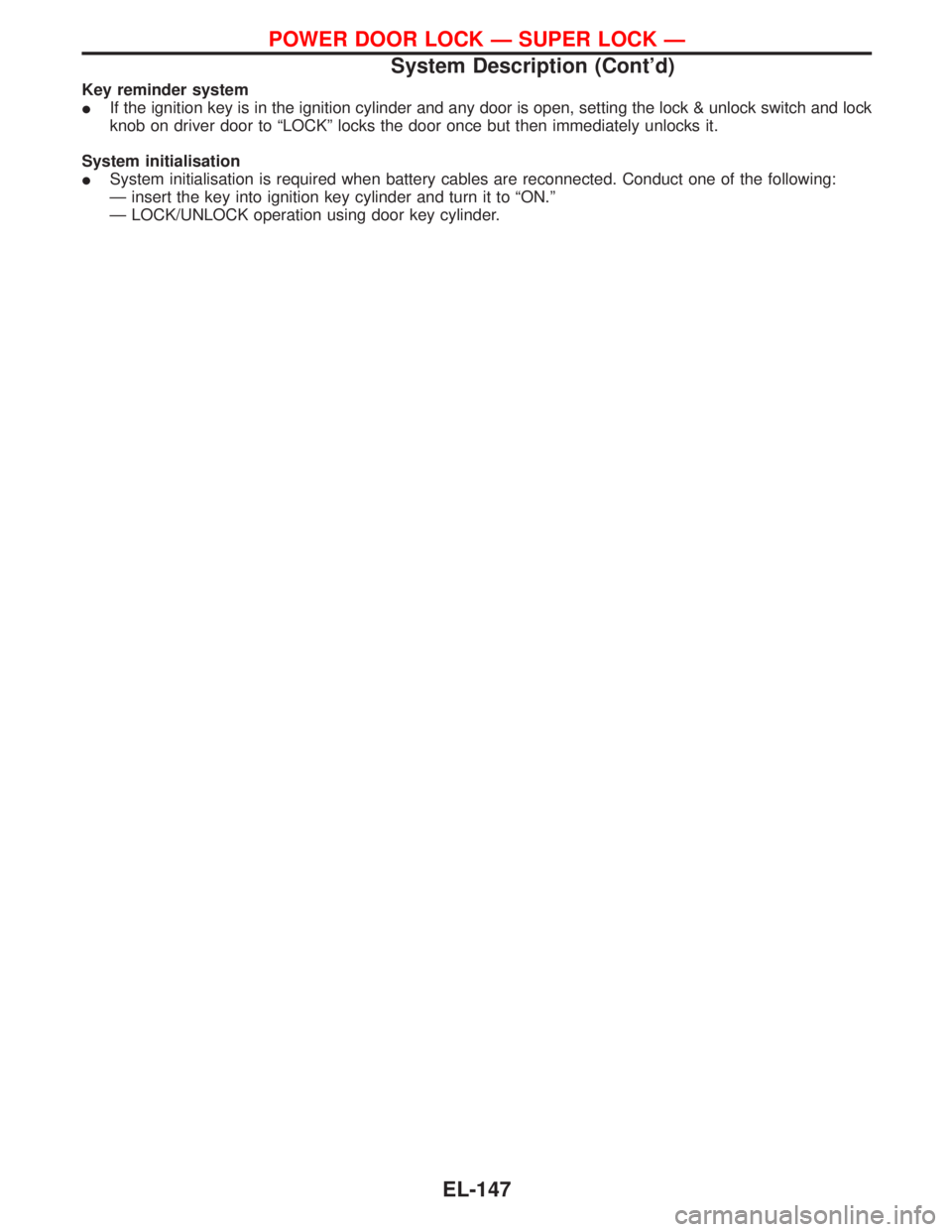

Key reminder system
IIf the ignition key is in the ignition cylinder and any door is open, setting the lock & unlock switch and lock
knob on driver door to ªLOCKº locks the door once but then immediately unlocks it.
System initialisation
ISystem initialisation is required when battery cables are reconnected. Conduct one of the following:
Ð insert the key into ignition key cylinder and turn it to ªON.º
Ð LOCK/UNLOCK operation using door key cylinder.
POWER DOOR LOCK Ð SUPER LOCK Ð
System Description (Cont'd)
EL-147

Schematic
YEL149D
POWER DOOR LOCK Ð SUPER LOCK Ð
EL-148

YEL150D
POWER DOOR LOCK Ð SUPER LOCK Ð
Schematic (Cont'd)
EL-149

Wiring Diagram Ð S/LOCK Ð
YEL151D
POWER DOOR LOCK Ð SUPER LOCK Ð
EL-150

YEL152D
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Cont'd)
EL-151

YEL153D
POWER DOOR LOCK Ð SUPER LOCK Ð
Wiring Diagram Ð S/LOCK Ð (Cont'd)
EL-152
