Page 2073 of 2438

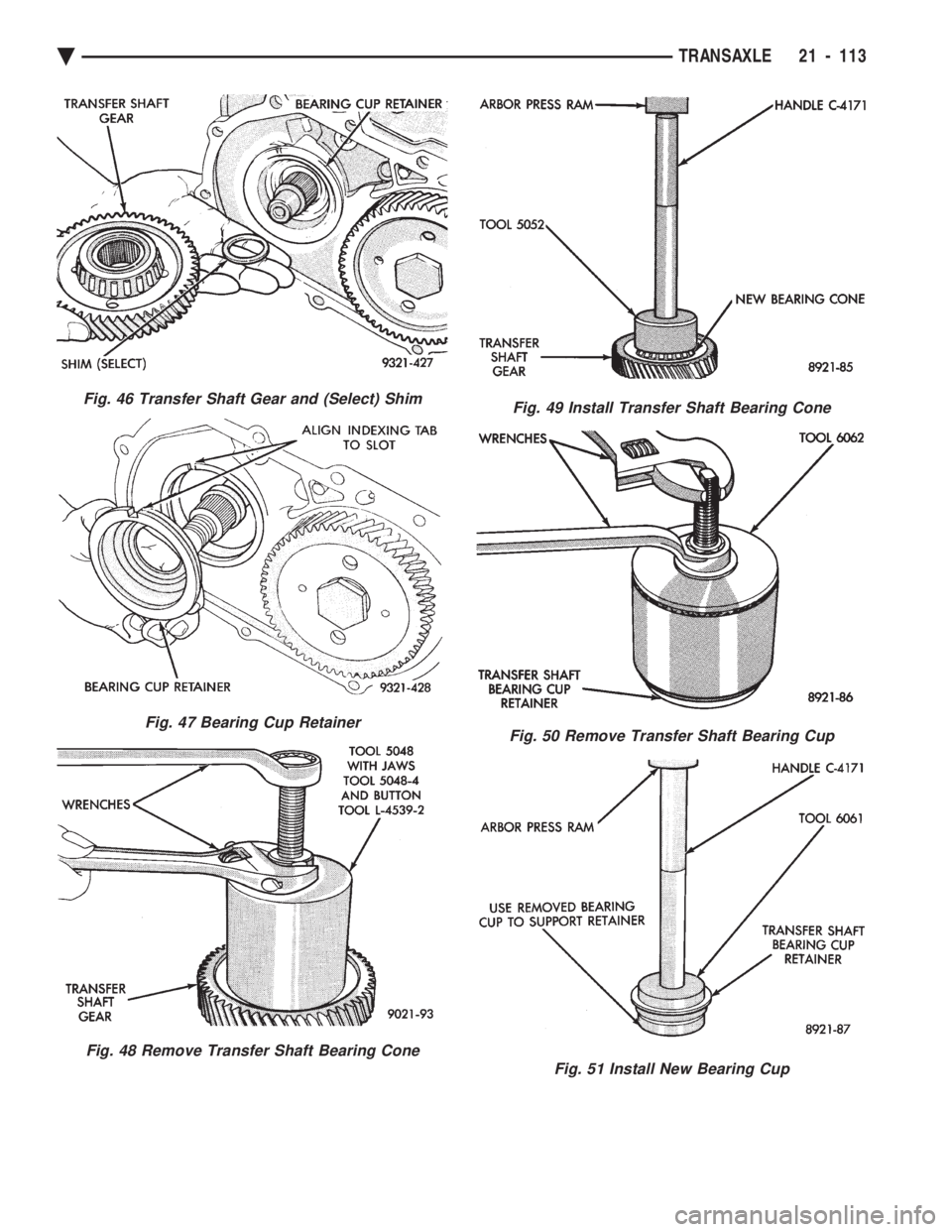

CHEVROLET DYNASTY 1993 Service Manual Fig. 46 Transfer Shaft Gear and (Select) Shim Fig. 47 Bearing Cup Retainer Fig. 48 Remove Transfer Shaft Bearing Cone Fig. 49 Install Transfer Shaft Bearing Cone Fig. 50 Remove Transfer Shaft Bearing

Page 2074 of 2438

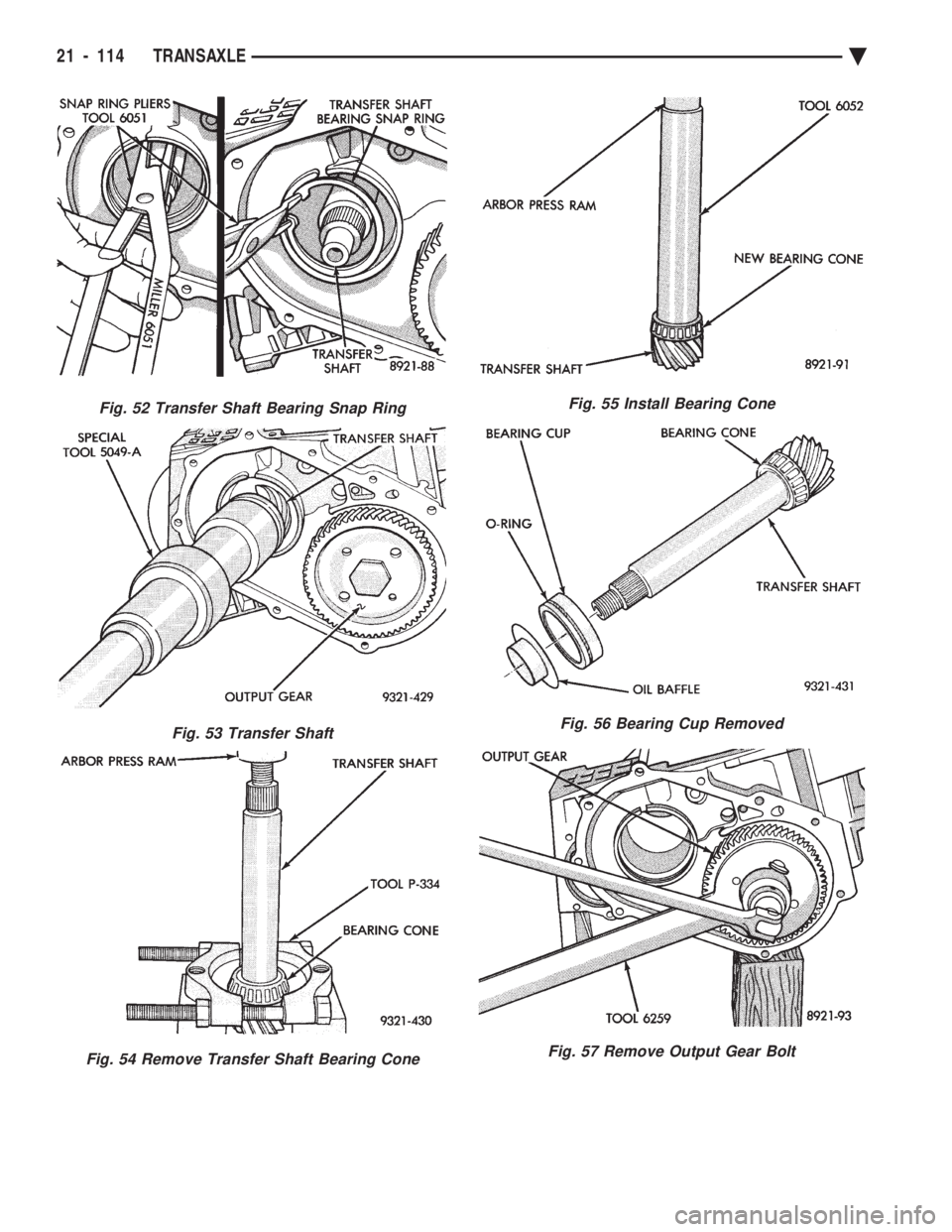

CHEVROLET DYNASTY 1993 Service Manual Fig. 52 Transfer Shaft Bearing Snap Ring Fig. 53 Transfer Shaft Fig. 54 Remove Transfer Shaft Bearing Cone Fig. 55 Install Bearing Cone Fig. 56 Bearing Cup Removed Fig. 57 Remove Output Gear Bolt 21 -

Page 2075 of 2438

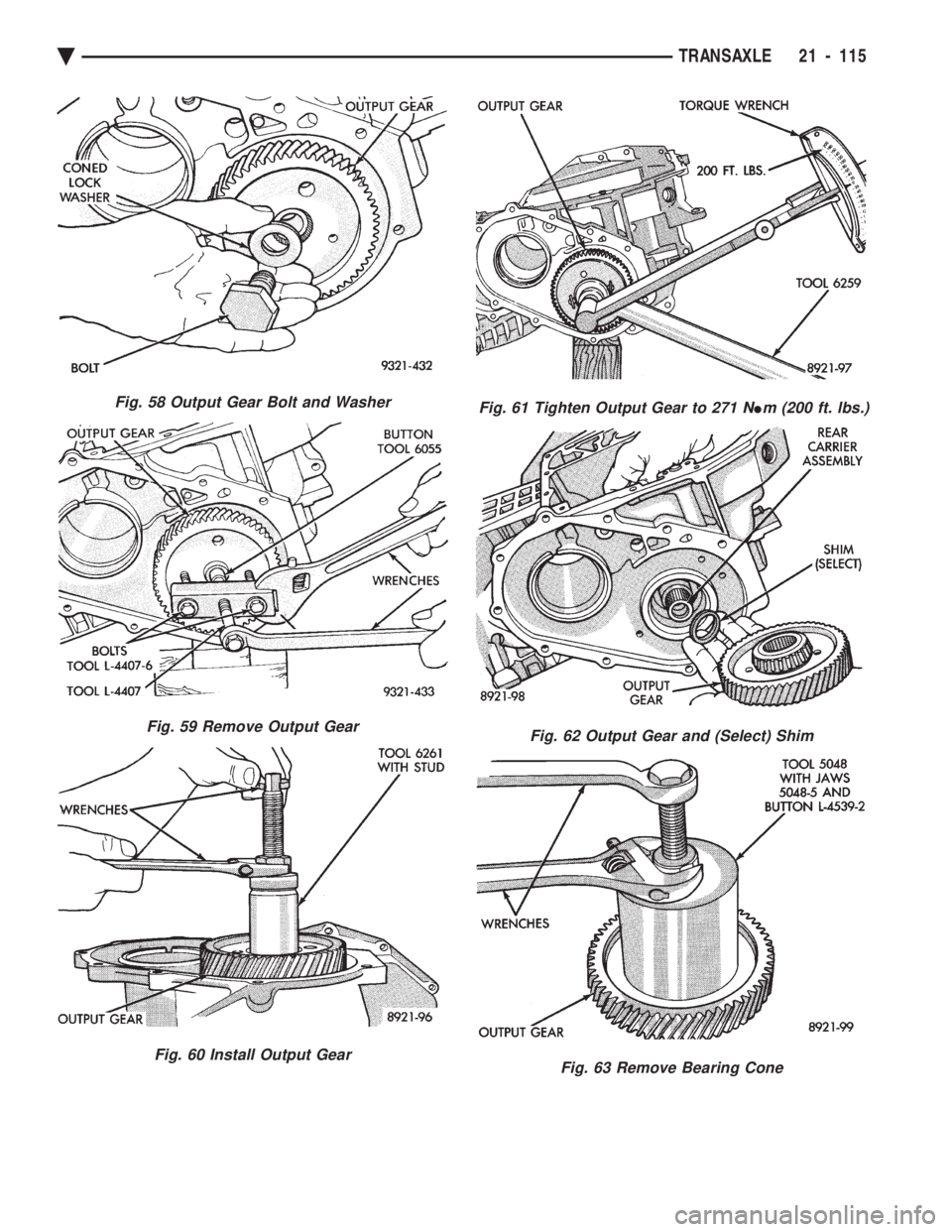

CHEVROLET DYNASTY 1993 Service Manual Fig. 58 Output Gear Bolt and Washer Fig. 59 Remove Output Gear Fig. 60 Install Output Gear Fig. 61 Tighten Output Gear to 271 NIm (200 ft. lbs.) Fig. 62 Output Gear and (Select) Shim Fig. 63 Remove Be

Page 2076 of 2438

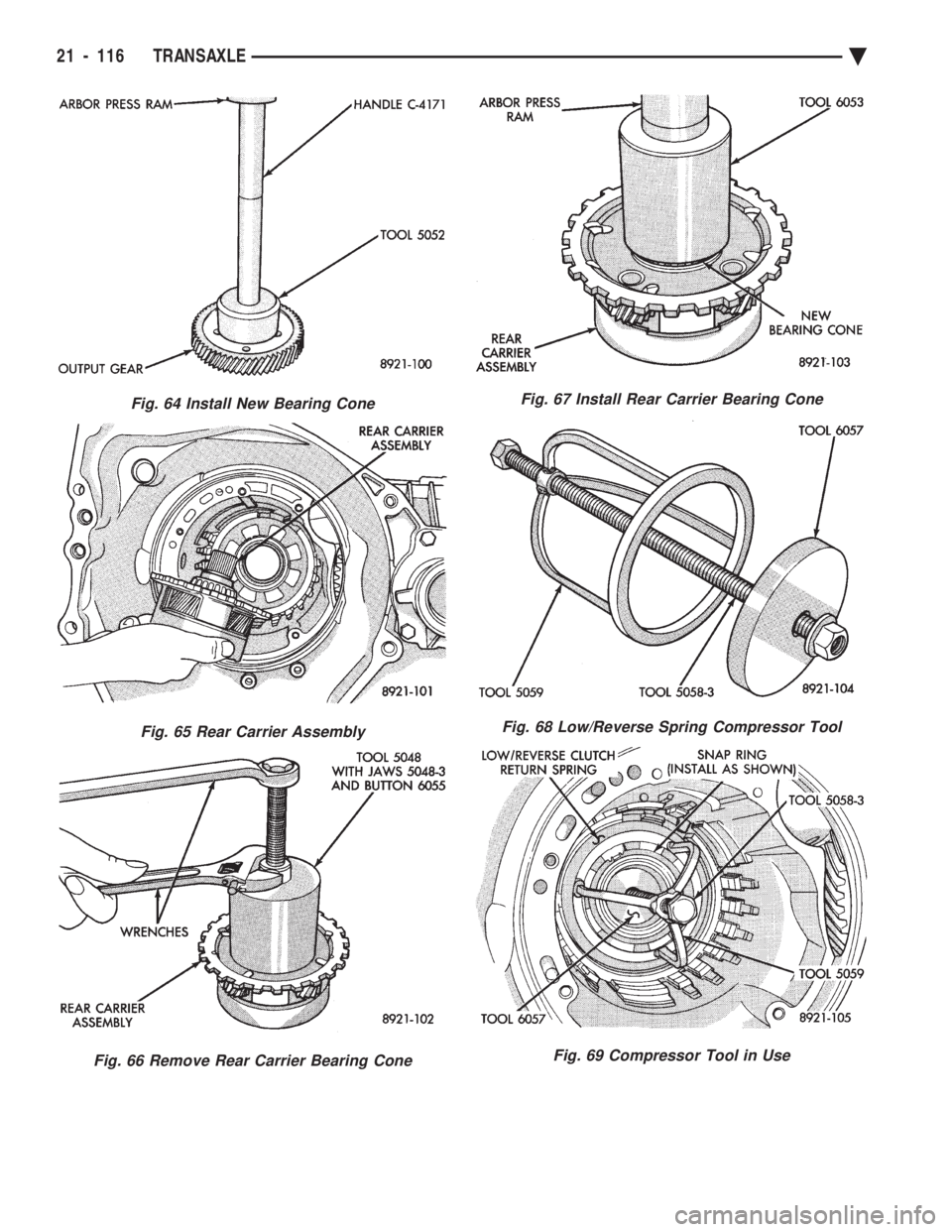

CHEVROLET DYNASTY 1993 Service Manual Fig. 64 Install New Bearing Cone Fig. 65 Rear Carrier Assembly Fig. 66 Remove Rear Carrier Bearing Cone Fig. 67 Install Rear Carrier Bearing Cone Fig. 68 Low/Reverse Spring Compressor Tool Fig. 69 Com

Page 2077 of 2438

CHEVROLET DYNASTY 1993 Service Manual CAUTION: When installing, be sure guide bracket and split sleeve touch the rear of the transaxle case. Fig. 70 Remove or Install Snap Ring Fig. 71 Low/Reverse Piston Return Spring Fig. 72 Drive Out A

Page 2078 of 2438

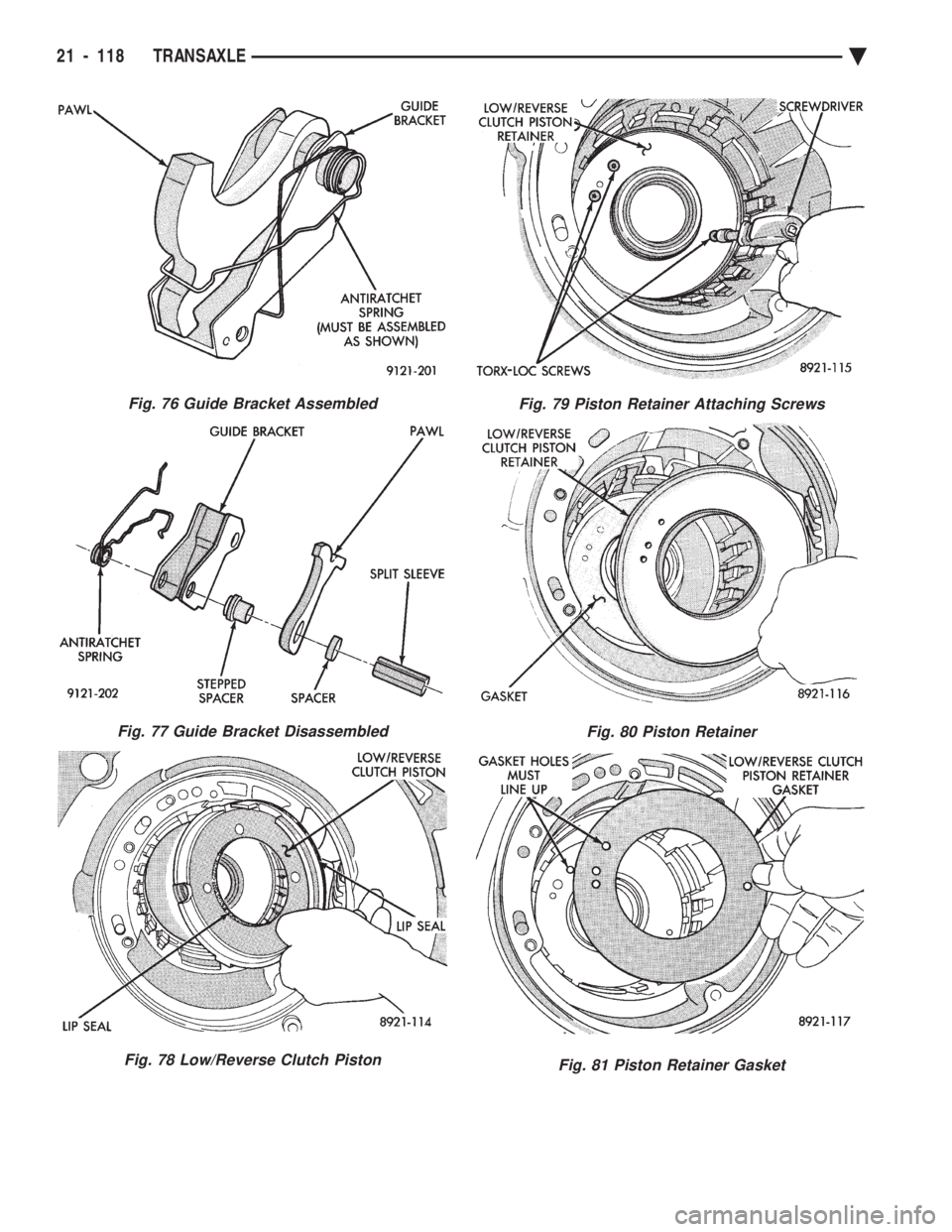

CHEVROLET DYNASTY 1993 Service Manual Fig. 76 Guide Bracket Assembled Fig. 77 Guide Bracket Disassembled Fig. 78 Low/Reverse Clutch Piston Fig. 79 Piston Retainer Attaching Screws Fig. 80 Piston Retainer Fig. 81 Piston Retainer Gasket 21

Page 2079 of 2438

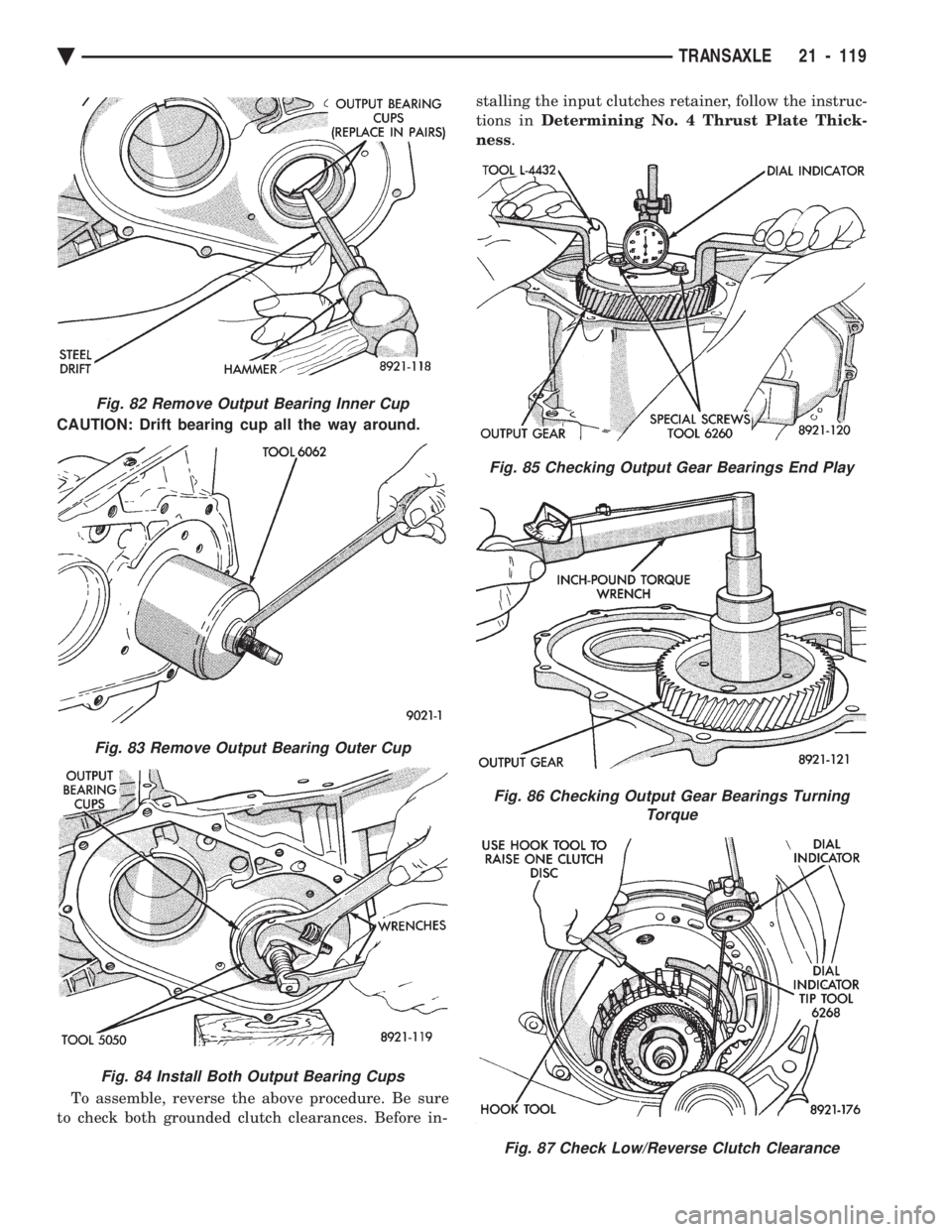

CHEVROLET DYNASTY 1993 Service Manual CAUTION: Drift bearing cup all the way around. To assemble, reverse the above procedure. Be sure to check both grounded clutch clearances. Before in- stalling the input clutches retainer, follow the

Page 2080 of 2438

CHEVROLET DYNASTY 1993 Service Manual Press down clutch pack with finger and zero dial indicator. Low/Reverse clutch pack clearance is 1.04 to 1.65mm (.042 to .065 inch). Select the proper low/reverse reaction plate to achieve specific
