Page 777 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 12 Instrument Panel Wiring (Connections) AA Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 27

Page 778 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 13 Instrument Panel Wiring (I.P. to Main Harness Hook-Up) AA Body 8W - 28 WIRING AND COMPONENT IDENTIFICATION Ä

Page 779 of 2438

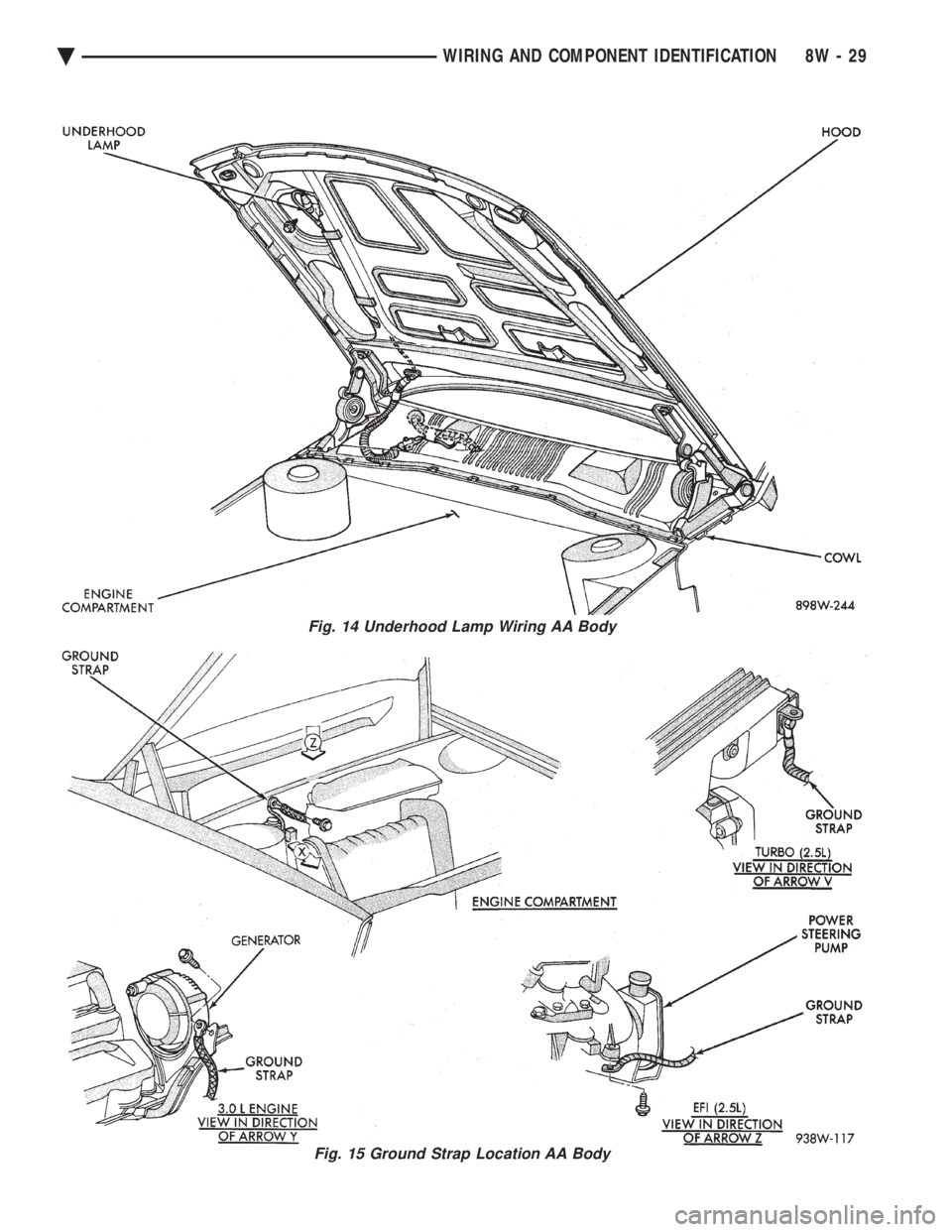

CHEVROLET DYNASTY 1993 Service Manual Fig. 14 Underhood Lamp Wiring AA Body Fig. 15 Ground Strap Location AA Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 29

Page 780 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 16 Engine Compartment Wiring AA Body 8W - 30 WIRING AND COMPONENT IDENTIFICATION Ä

Page 781 of 2438

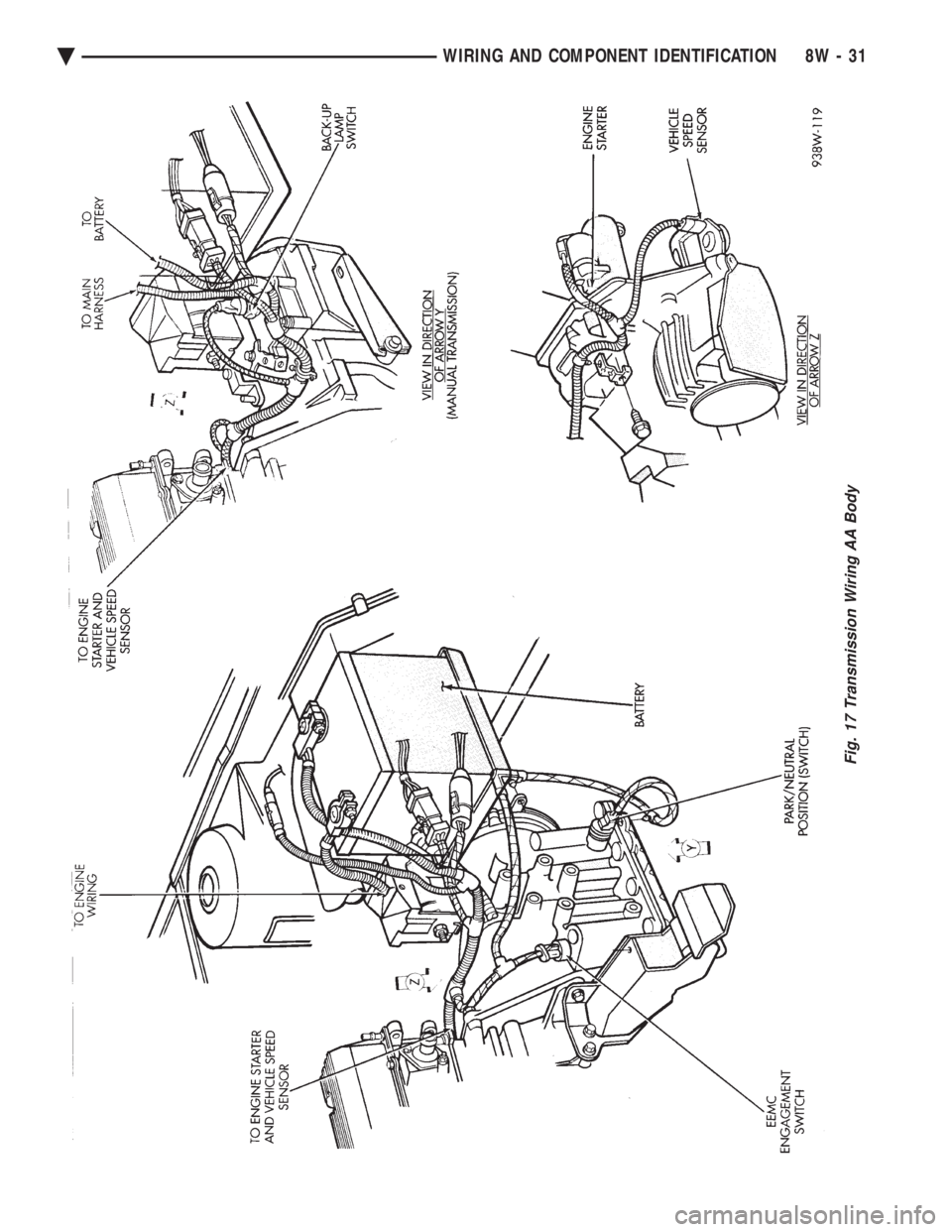

CHEVROLET DYNASTY 1993 Service Manual Fig. 17 Transmission Wiring AA Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 31

Page 782 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 18 Transmission Wiring 41TE AA Body 8W - 32 WIRING AND COMPONENT IDENTIFICATION Ä

Page 783 of 2438

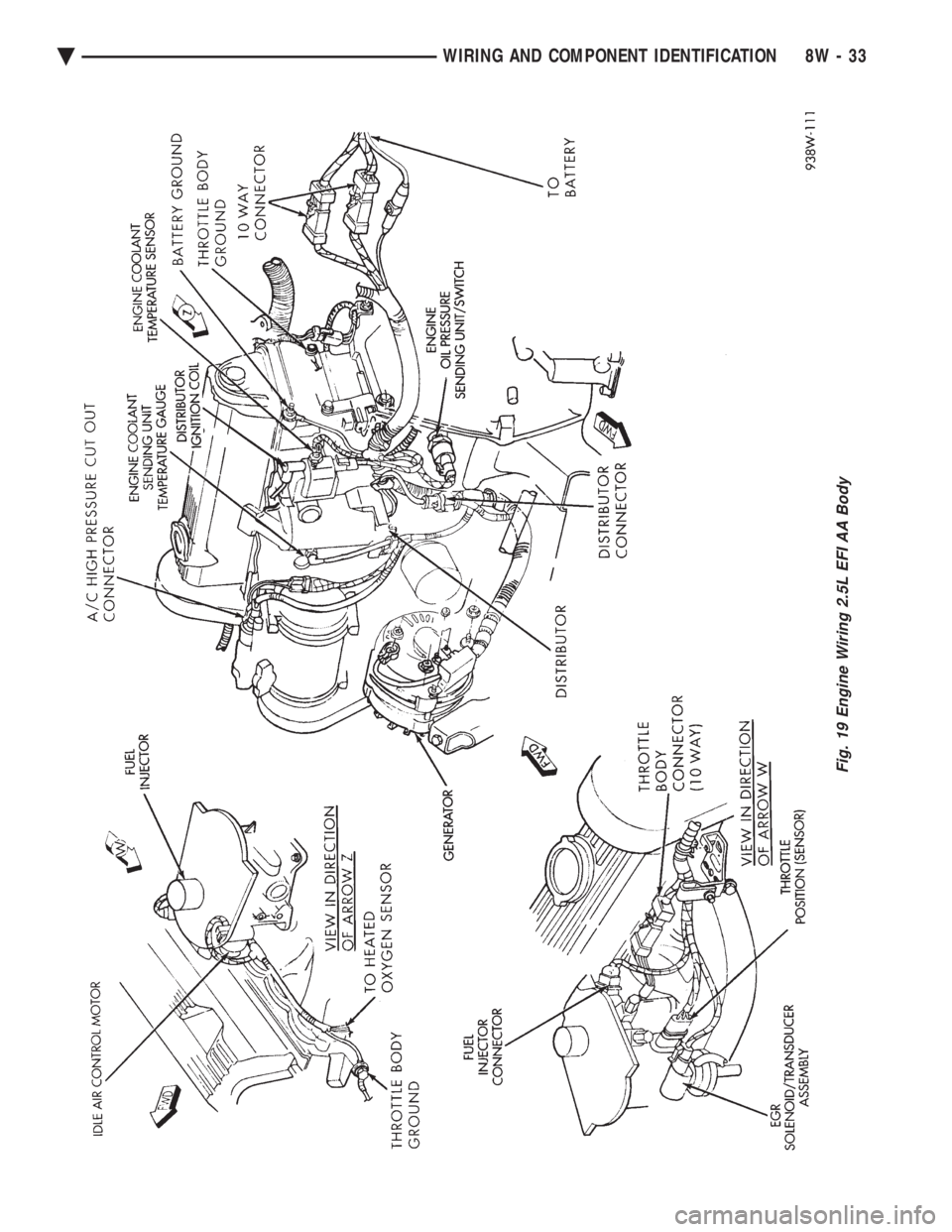

CHEVROLET DYNASTY 1993 Service Manual Fig. 19 Engine Wiring 2.5L EFI AA Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 33

Page 784 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 20 Engine Wiring 2.5L Flex Fuel AA Body 8W - 34 WIRING AND COMPONENT IDENTIFICATION Ä
