CHEVROLET DYNASTY 1993 Service Manual Fig. 1 Rear End Splices AA-Body Ä SPLICE LOCATIONS 8W - 131

Page 882 of 2438

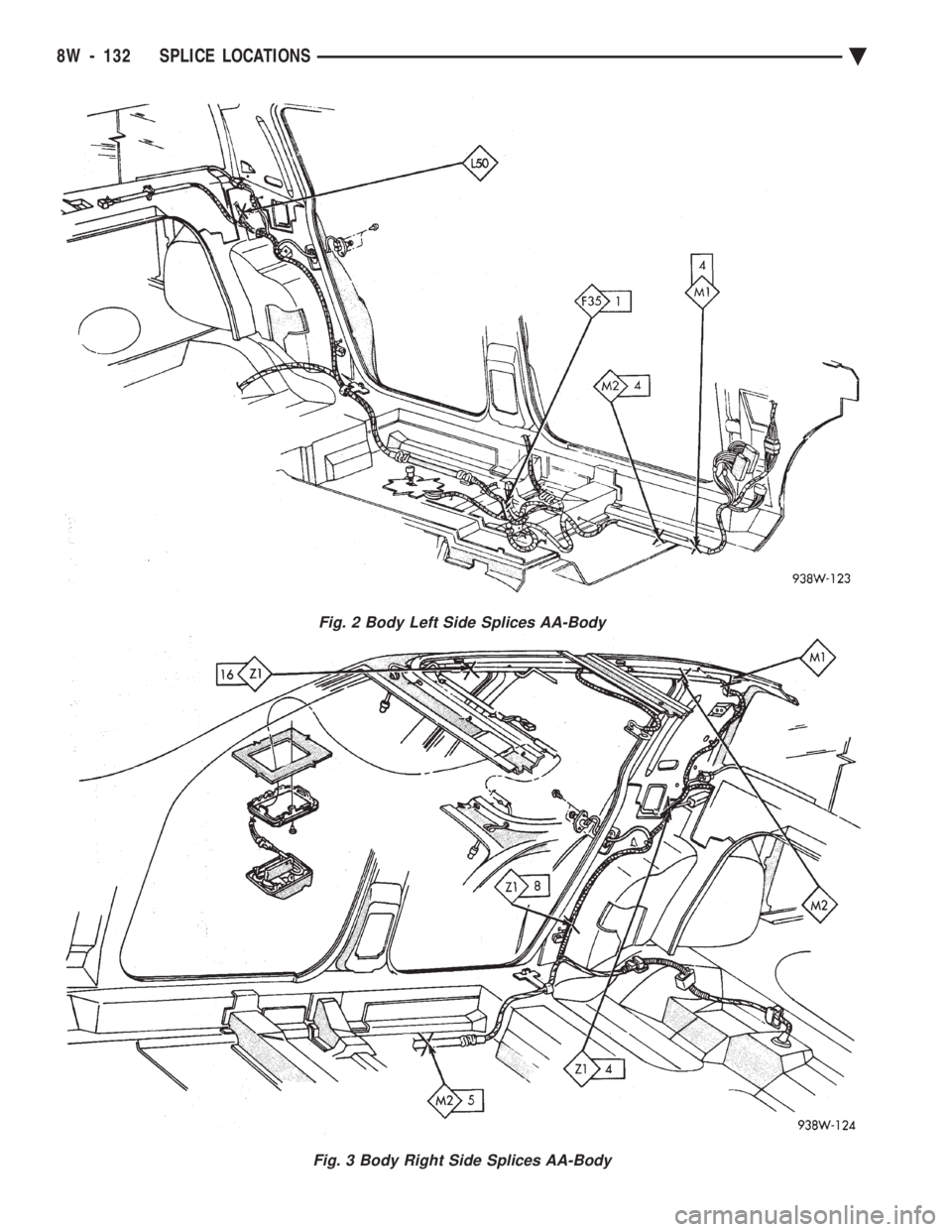

CHEVROLET DYNASTY 1993 Service Manual Fig. 2 Body Left Side Splices AA-Body Fig. 3 Body Right Side Splices AA-Body 8W - 132 SPLICE LOCATIONS Ä

Page 883 of 2438

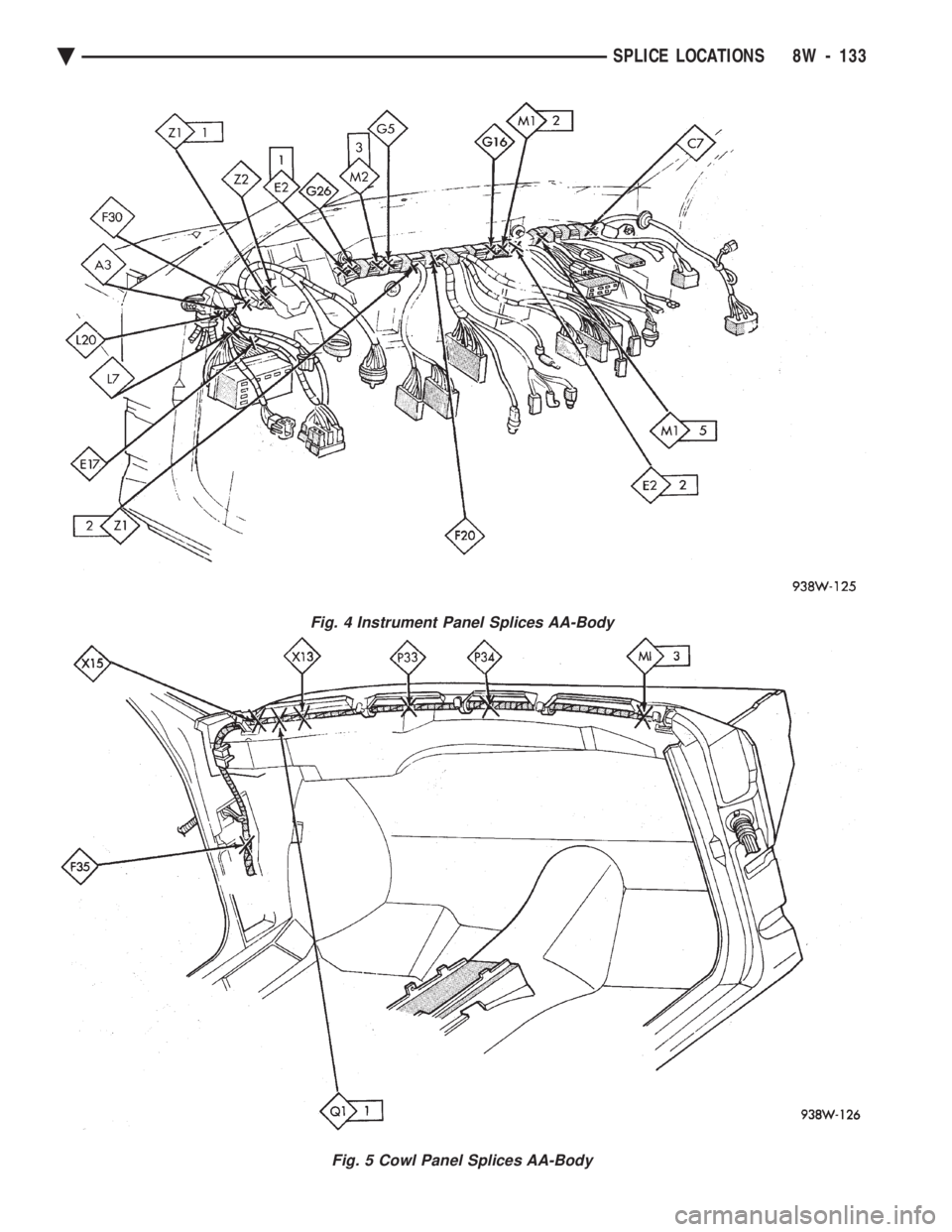

CHEVROLET DYNASTY 1993 Service Manual Fig. 4 Instrument Panel Splices AA-Body Fig. 5 Cowl Panel Splices AA-Body Ä SPLICE LOCATIONS 8W - 133

Page 884 of 2438

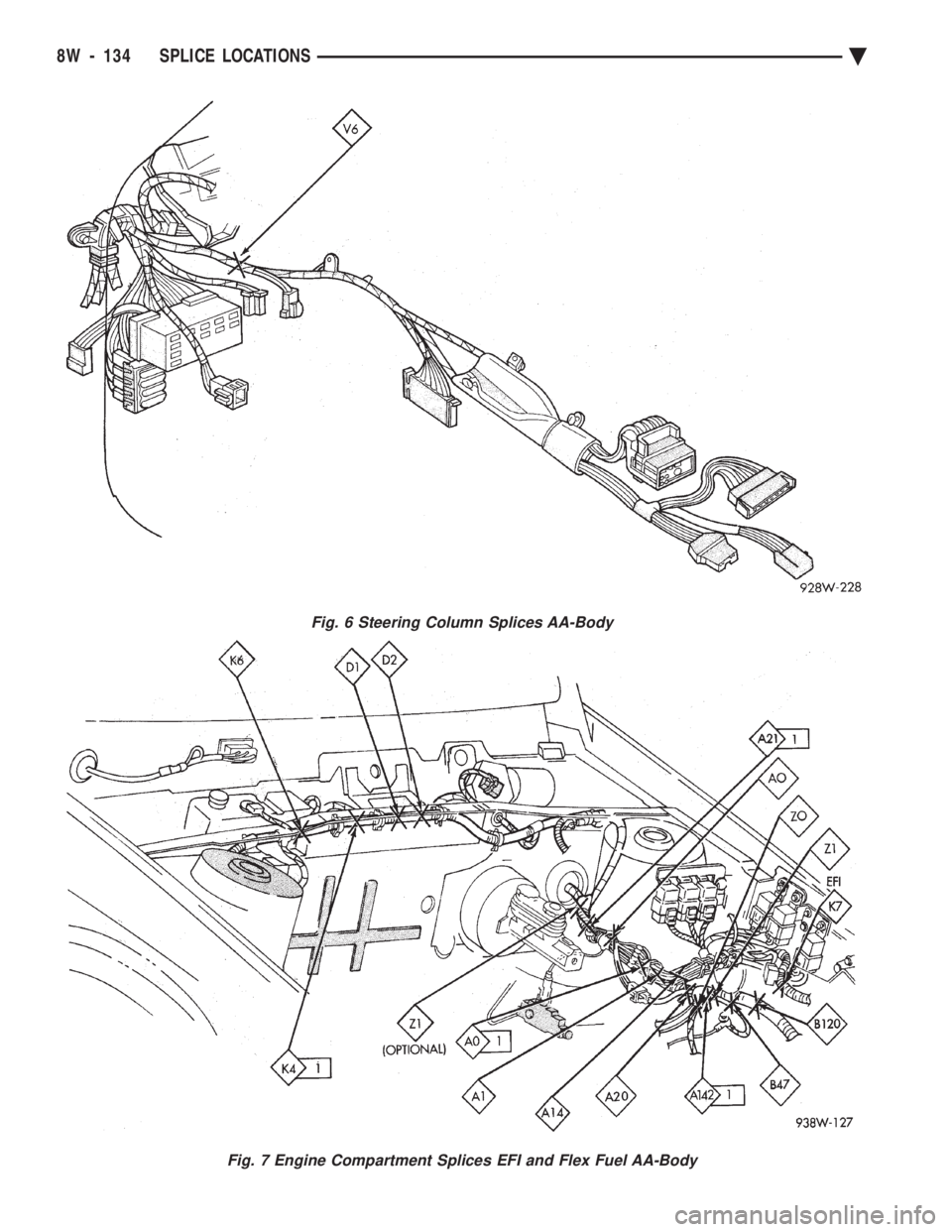

CHEVROLET DYNASTY 1993 Service Manual Fig. 6 Steering Column Splices AA-Body Fig. 7 Engine Compartment Splices EFI and Flex Fuel AA-Body 8W - 134 SPLICE LOCATIONS Ä

Page 885 of 2438

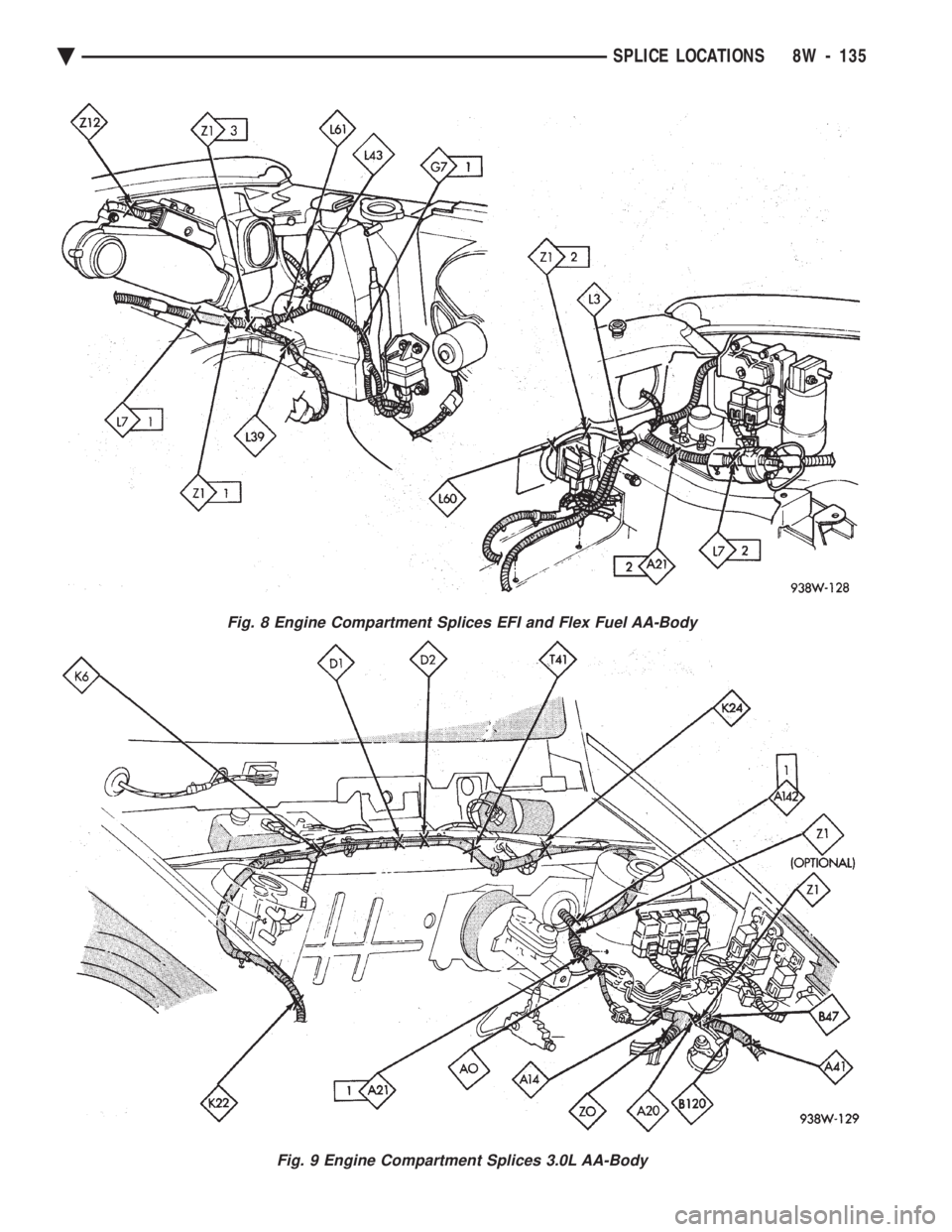

CHEVROLET DYNASTY 1993 Service Manual Fig. 8 Engine Compartment Splices EFI and Flex Fuel AA-Body Fig. 9 Engine Compartment Splices 3.0L AA-Body Ä SPLICE LOCATIONS 8W - 135

Page 886 of 2438

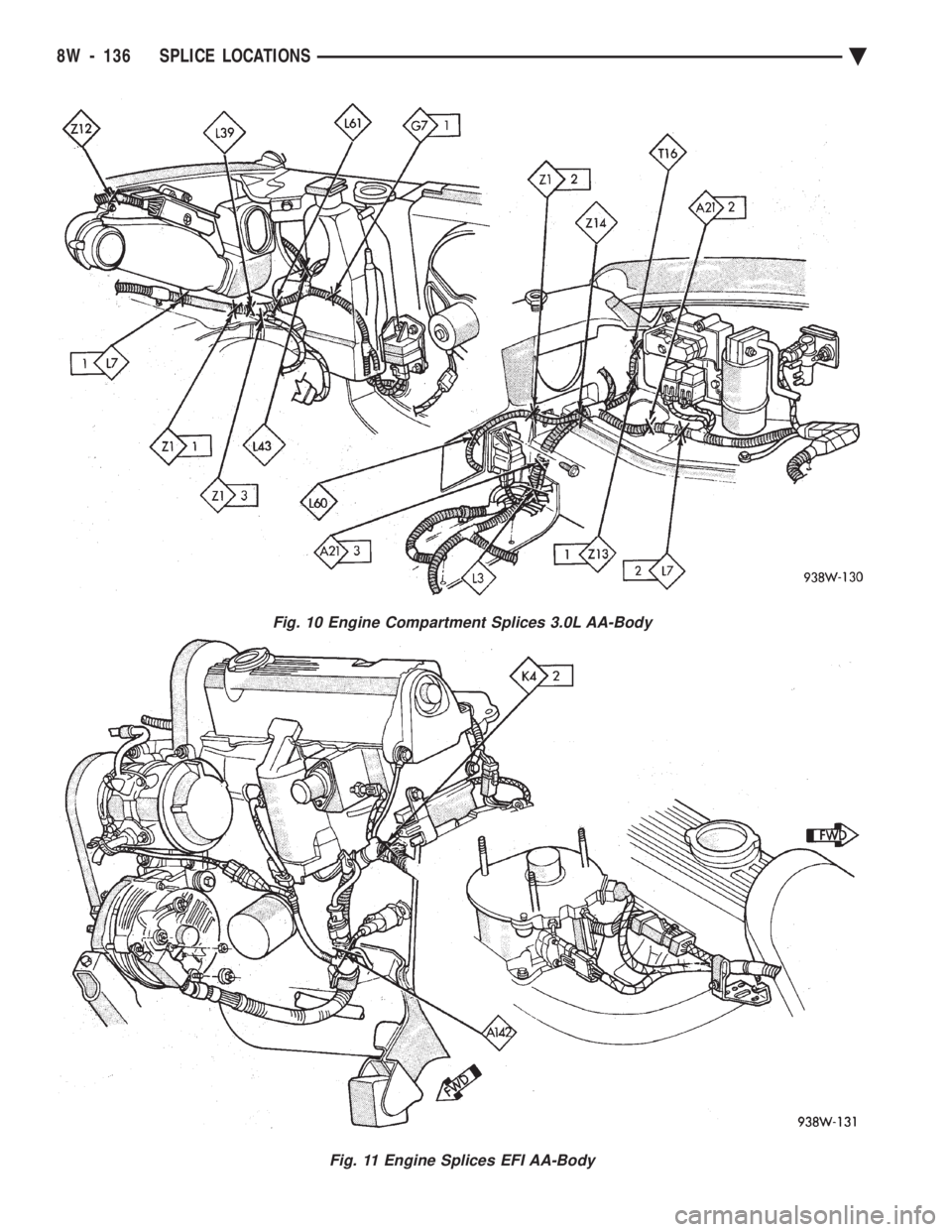

CHEVROLET DYNASTY 1993 Service Manual Fig. 10 Engine Compartment Splices 3.0L AA-Body Fig. 11 Engine Splices EFI AA-Body 8W - 136 SPLICE LOCATIONS Ä

Page 887 of 2438

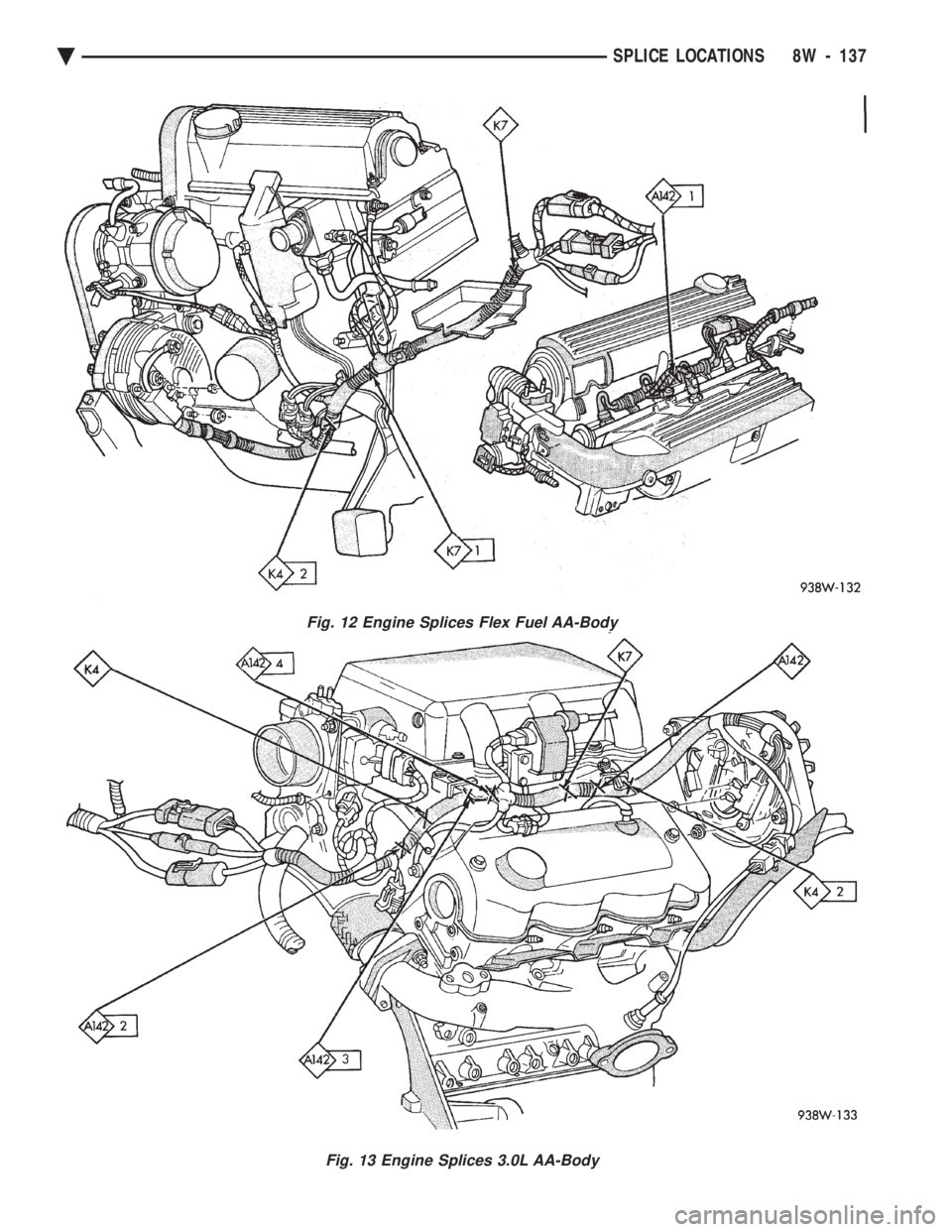

CHEVROLET DYNASTY 1993 Service Manual Fig. 12 Engine Splices Flex Fuel AA-Body Fig. 13 Engine Splices 3.0L AA-Body Ä SPLICE LOCATIONS 8W - 137

Page 888 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 14 Engine Splices 3.0L AA-Body 8W - 138 SPLICE LOCATIONS Ä
