1993 CHEVROLET DYNASTY Service Manual

Page 2009 of 2438

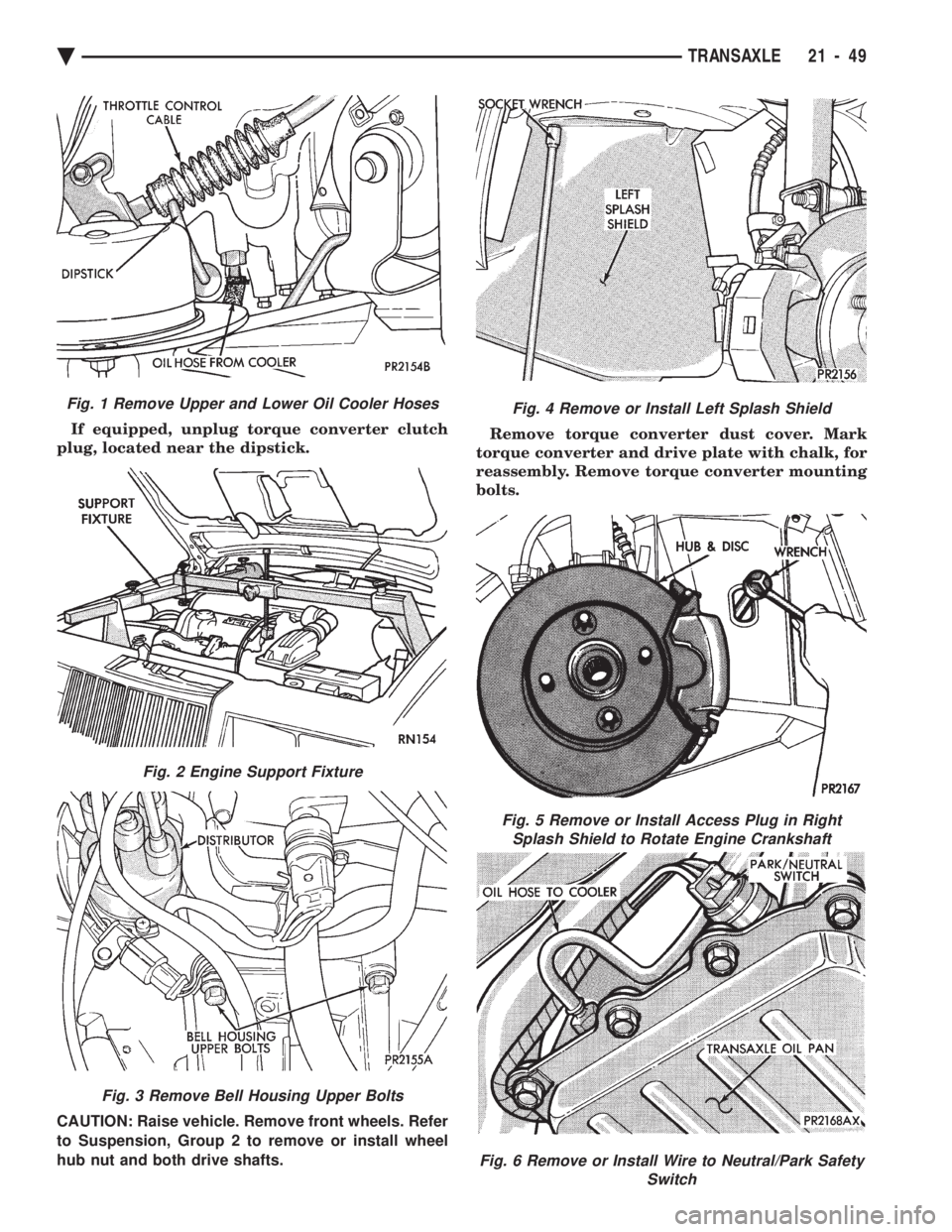

CHEVROLET DYNASTY 1993  Service Manual If equipped, unplug torque converter clutch
plug, located near the dipstick.
CAUTION: Raise vehicle. Remove front wheels. Refer
to Suspension, Group 2 to remove or install wheel
hub nut and both dr

Page 2010 of 2438

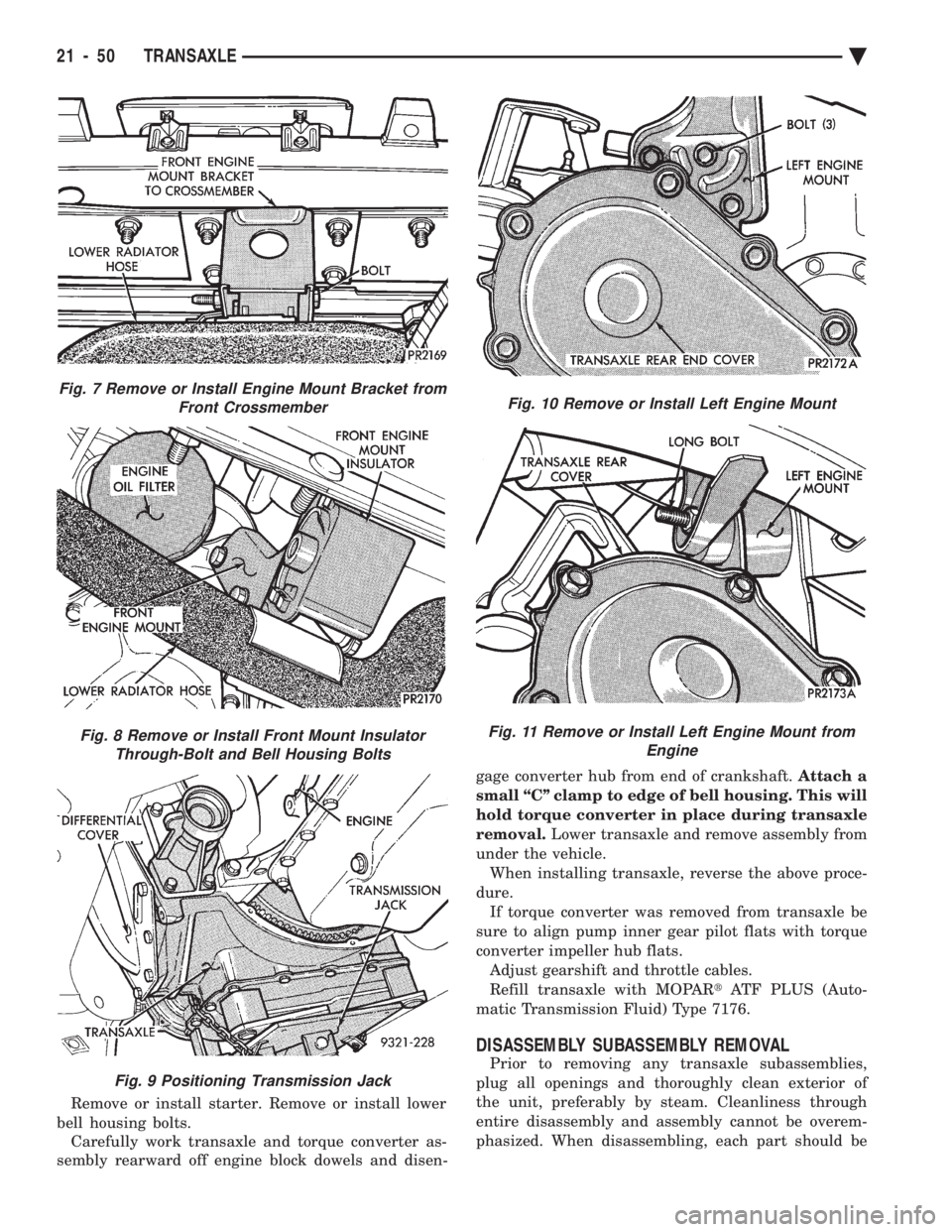

CHEVROLET DYNASTY 1993  Service Manual Remove or install starter. Remove or install lower
bell housing bolts.  Carefully work transaxle and torque converter as-
sembly rearward off engine block dowels and disen-  gage converter hub from e

Page 2011 of 2438

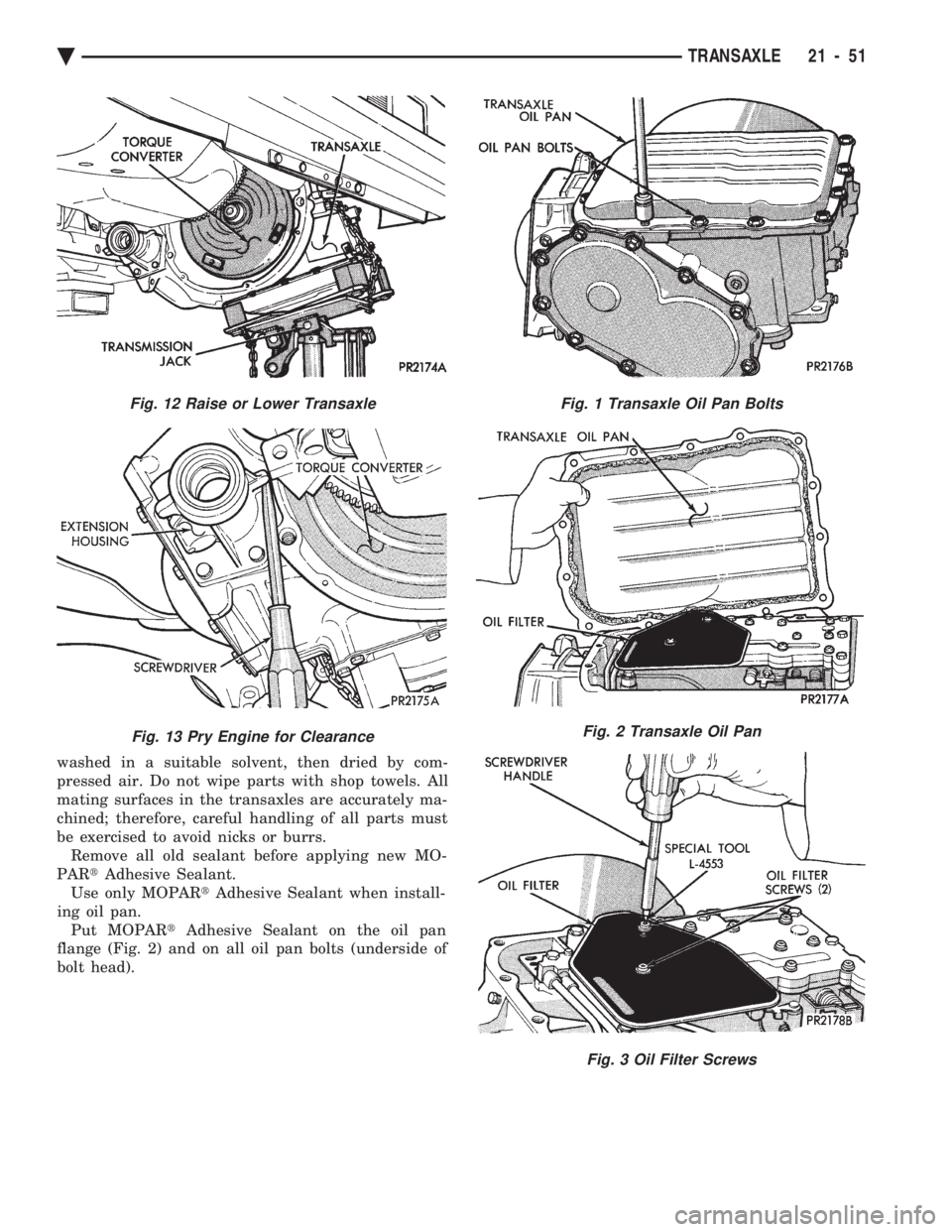

CHEVROLET DYNASTY 1993  Service Manual washed in a suitable solvent, then dried by com-
pressed air. Do not wipe parts with shop towels. All
mating surfaces in the transaxles are accurately ma-
chined; therefore, careful handling of all p

Page 2012 of 2438

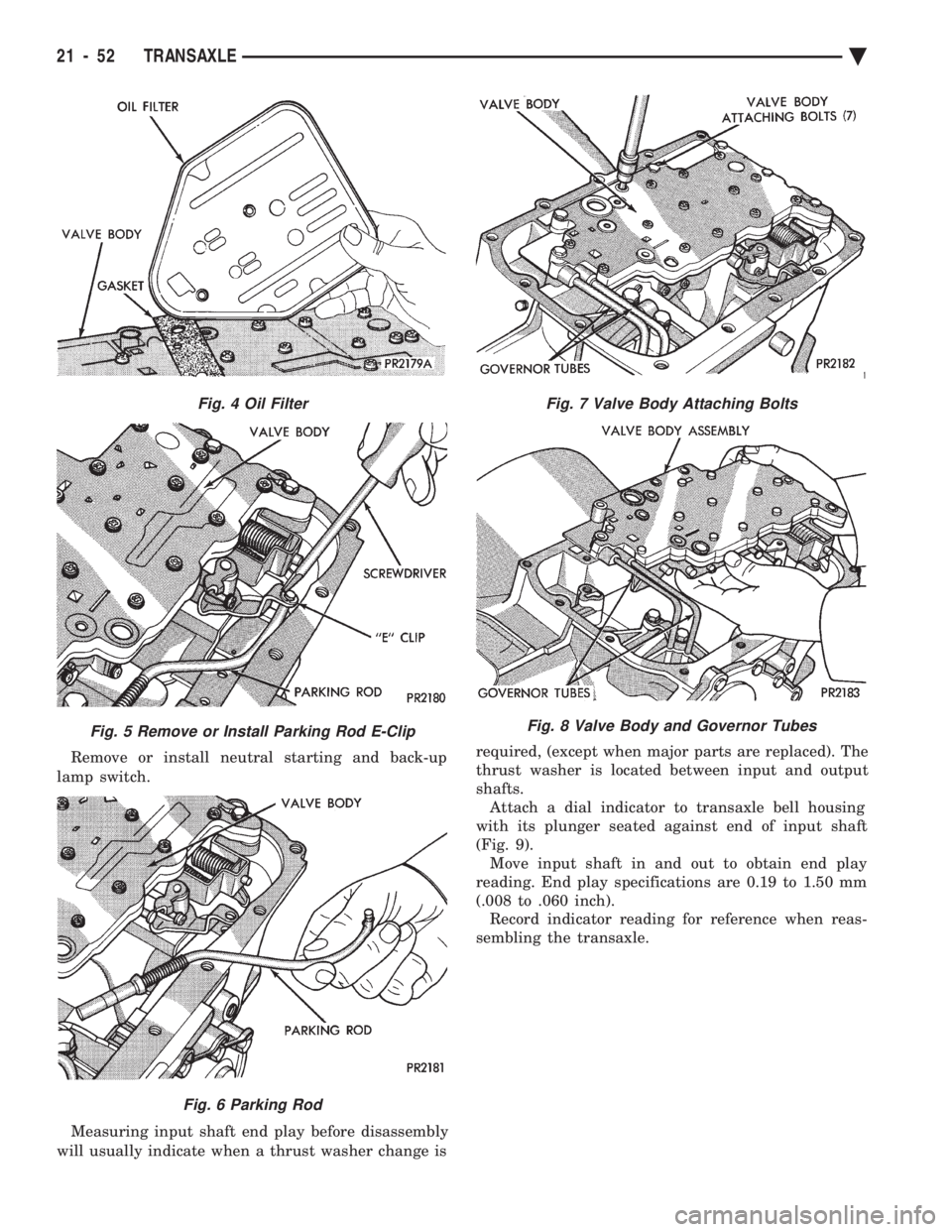

CHEVROLET DYNASTY 1993  Service Manual Remove or install neutral starting and back-up
lamp switch.
Measuring input shaft end play before disassembly
will usually indicate when a thrust washer change is  required, (except when major part

Page 2013 of 2438

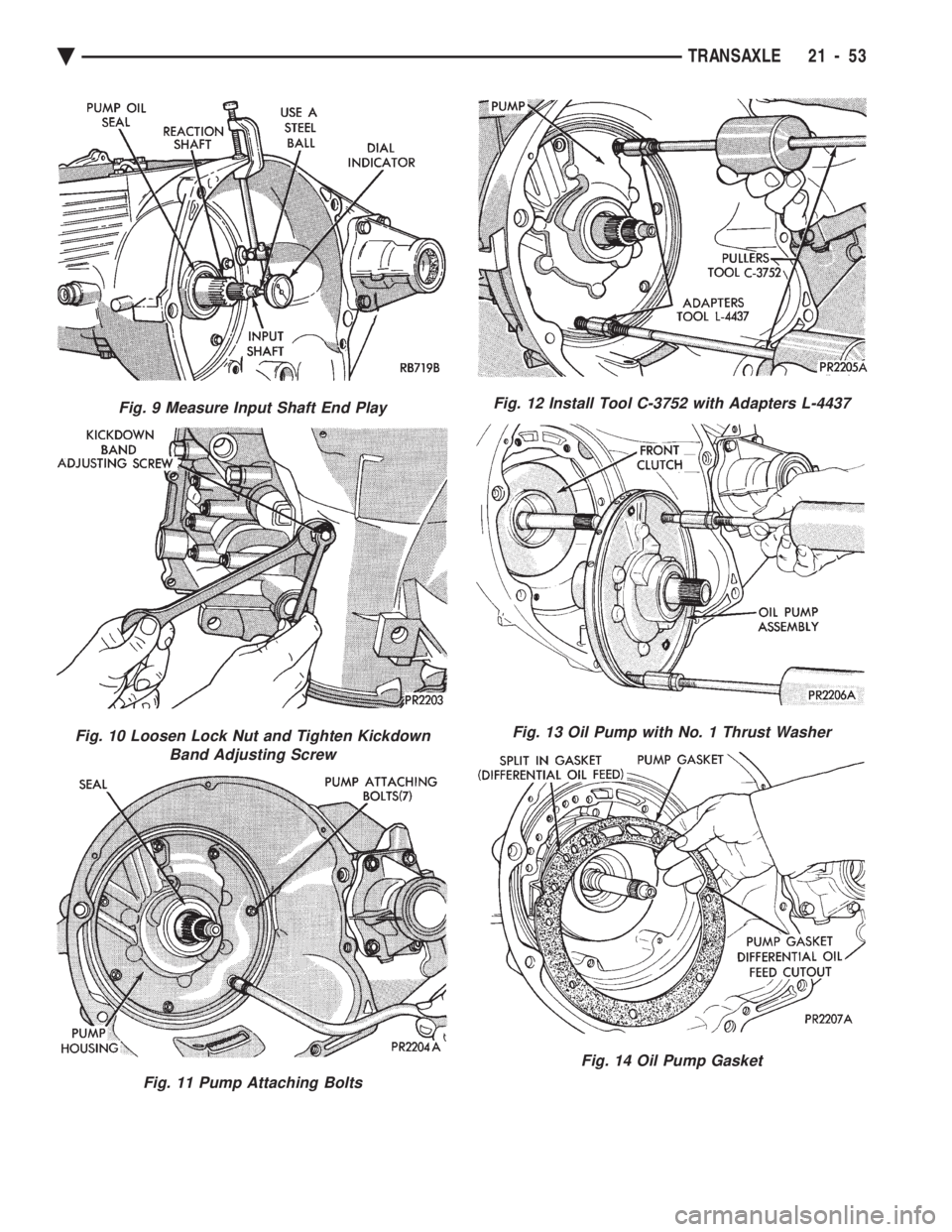

CHEVROLET DYNASTY 1993  Service Manual Fig. 9 Measure Input Shaft End Play
Fig. 10 Loosen Lock Nut and Tighten Kickdown Band Adjusting Screw
Fig. 11 Pump Attaching Bolts
Fig. 12 Install Tool C-3752 with Adapters L-4437
Fig. 13 Oil Pump wit

Page 2014 of 2438

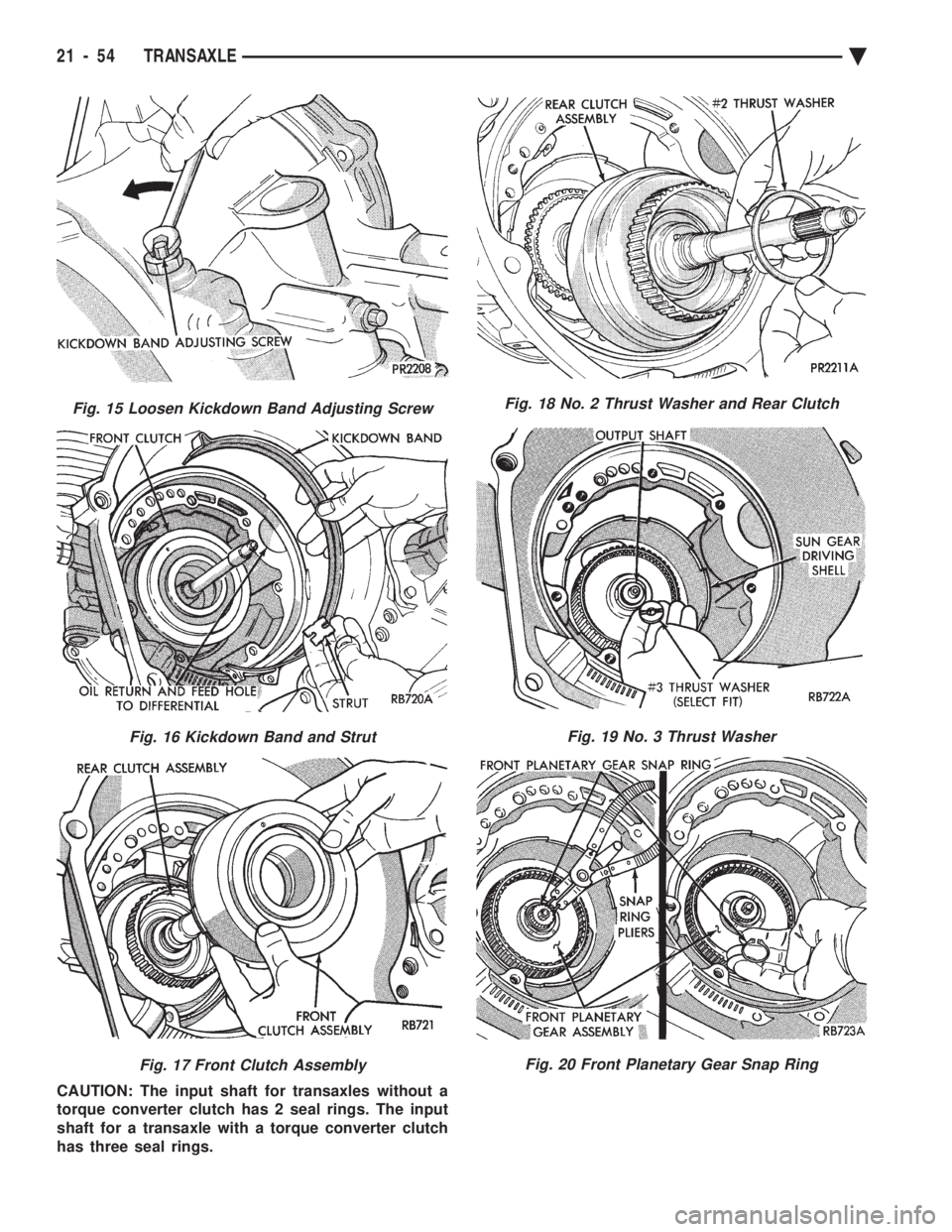

CHEVROLET DYNASTY 1993  Service Manual CAUTION: The input shaft for transaxles without a
torque converter clutch has 2 seal rings. The input
shaft for a transaxle with a torque converter clutch
has three seal rings.
Fig. 15 Loosen Kickdow

Page 2015 of 2438

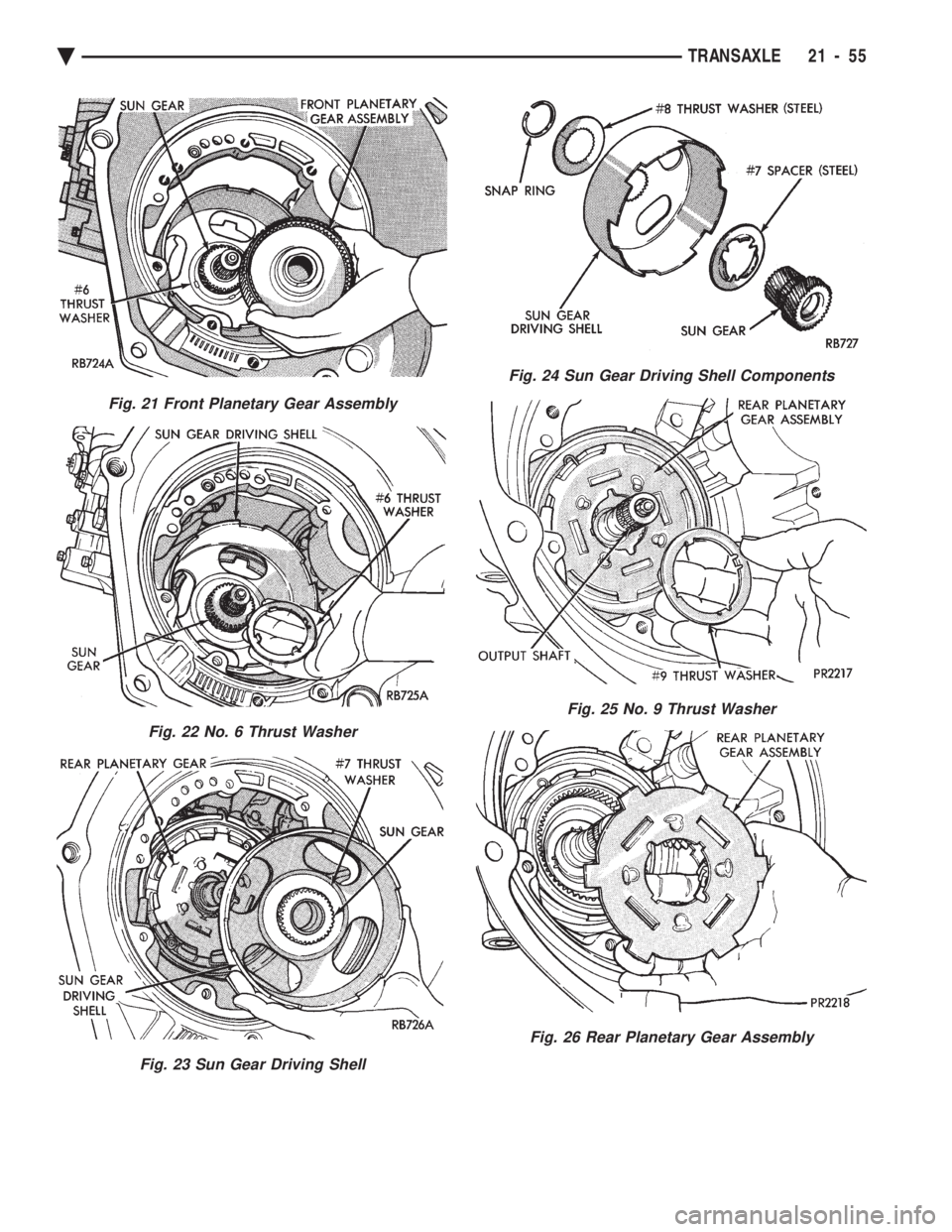

CHEVROLET DYNASTY 1993  Service Manual Fig. 21 Front Planetary Gear Assembly
Fig. 22 No. 6 Thrust Washer
Fig. 23 Sun Gear Driving Shell
Fig. 24 Sun Gear Driving Shell Components
Fig. 25 No. 9 Thrust Washer
Fig. 26 Rear Planetary Gear Assem

Page 2016 of 2438

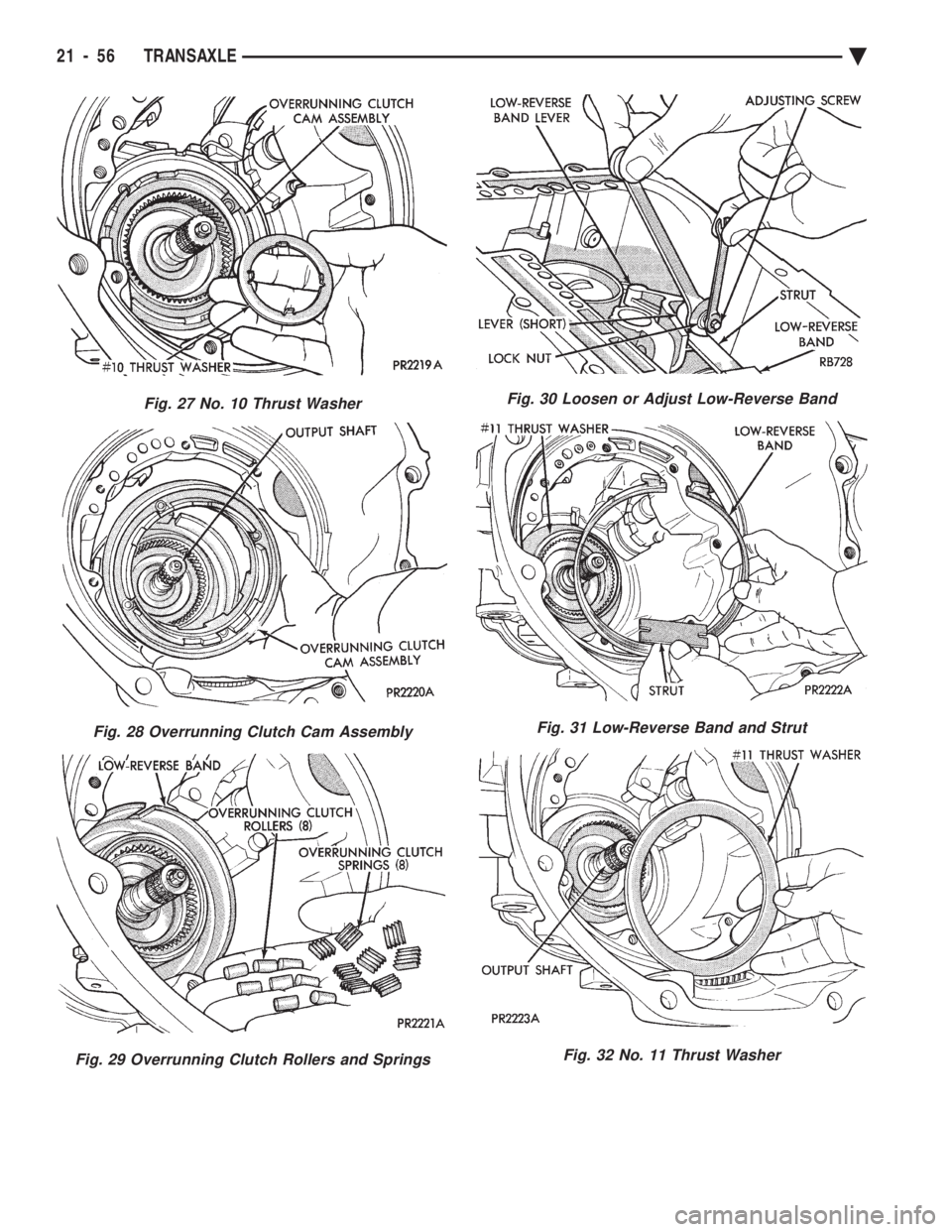

CHEVROLET DYNASTY 1993  Service Manual Fig. 27 No. 10 Thrust Washer
Fig. 28 Overrunning Clutch Cam Assembly
Fig. 29 Overrunning Clutch Rollers and Springs
Fig. 30 Loosen or Adjust Low-Reverse Band
Fig. 31 Low-Reverse Band and Strut
Fig. 32
