Page 2025 of 2438

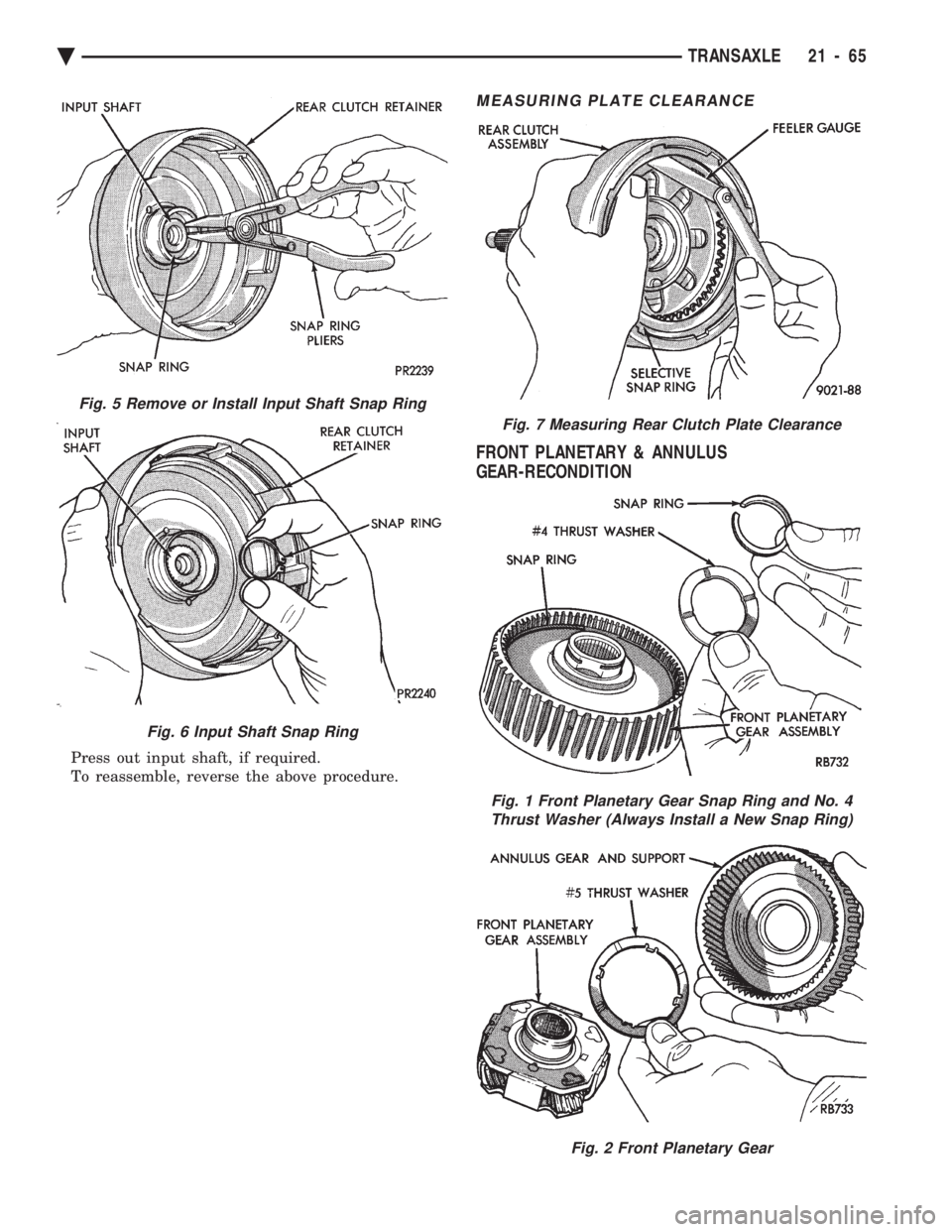

CHEVROLET DYNASTY 1993 Service Manual Press out input shaft, if required. To reassemble, reverse the above procedure. MEASURING PLATE CLEARANCE FRONT PLANETARY & ANNULUS GEAR-RECONDITION Fig. 5 Remove or Install Input Shaft Snap Ring Fi

Page 2026 of 2438

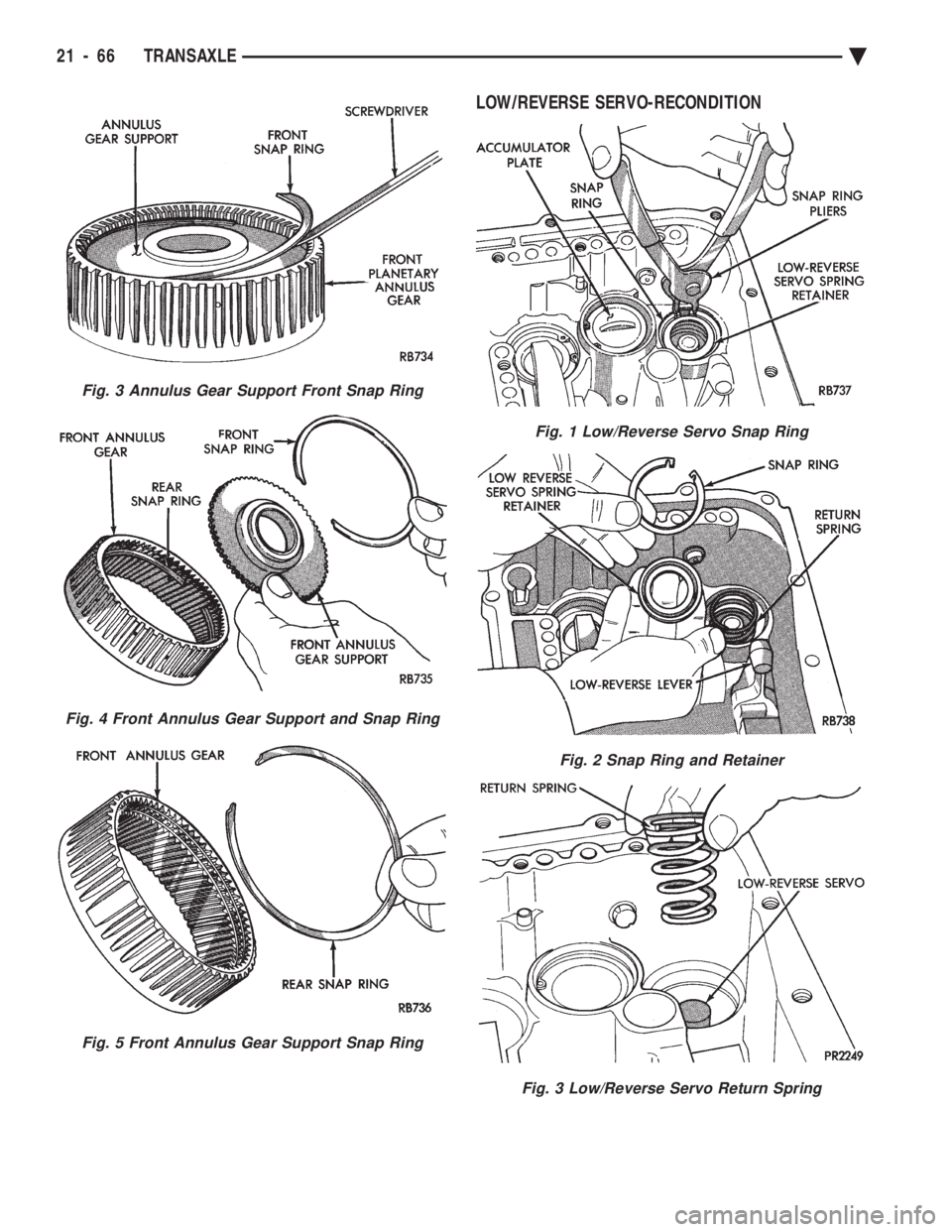

CHEVROLET DYNASTY 1993 Service Manual LOW/REVERSE SERVO-RECONDITION Fig. 3 Annulus Gear Support Front Snap Ring Fig. 4 Front Annulus Gear Support and Snap Ring Fig. 5 Front Annulus Gear Support Snap Ring Fig. 1 Low/Reverse Servo Snap Ring

Page 2027 of 2438

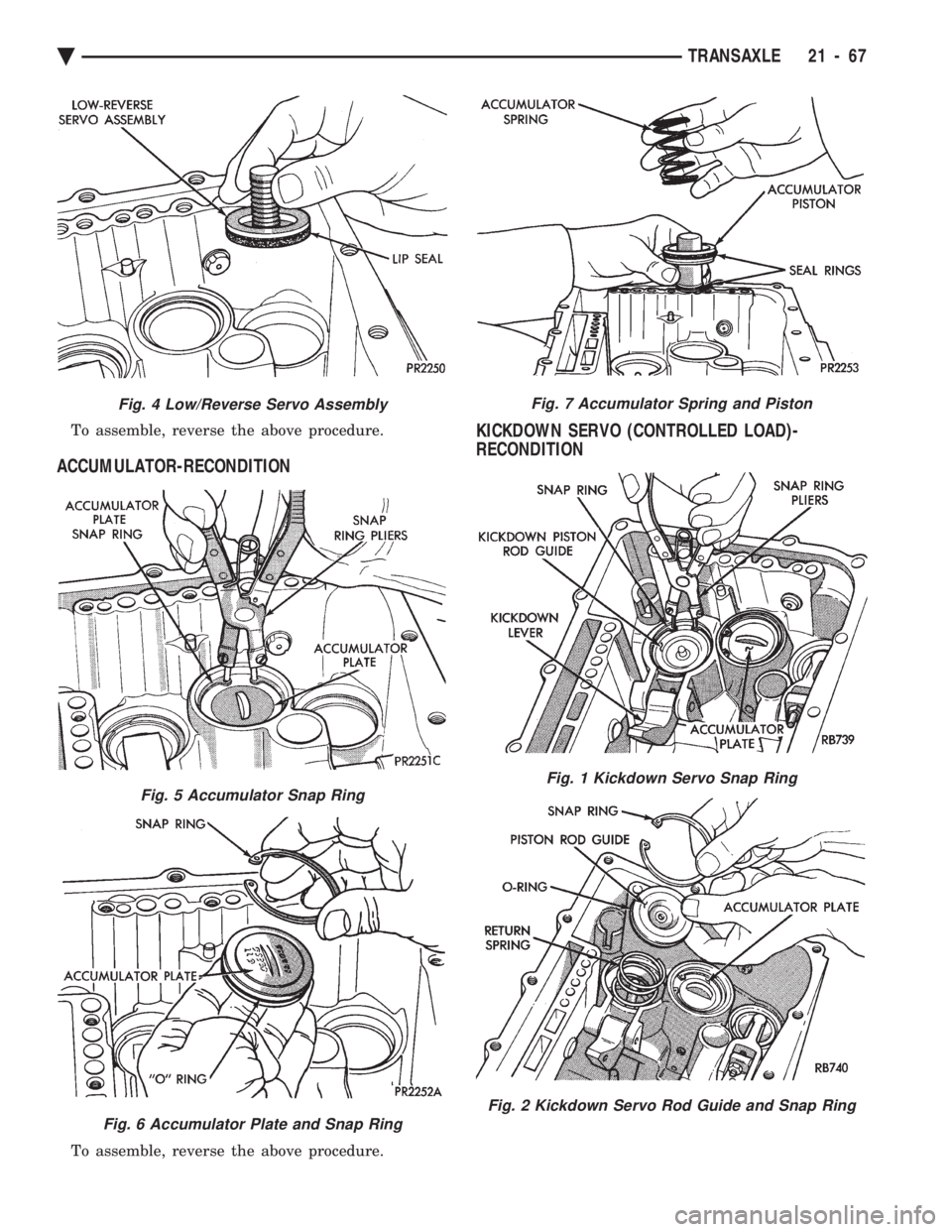

CHEVROLET DYNASTY 1993 Service Manual To assemble, reverse the above procedure. ACCUMULATOR-RECONDITION To assemble, reverse the above procedure. KICKDOWN SERVO (CONTROLLED LOAD)- RECONDITION Fig. 4 Low/Reverse Servo Assembly Fig. 5 Accu

Page 2028 of 2438

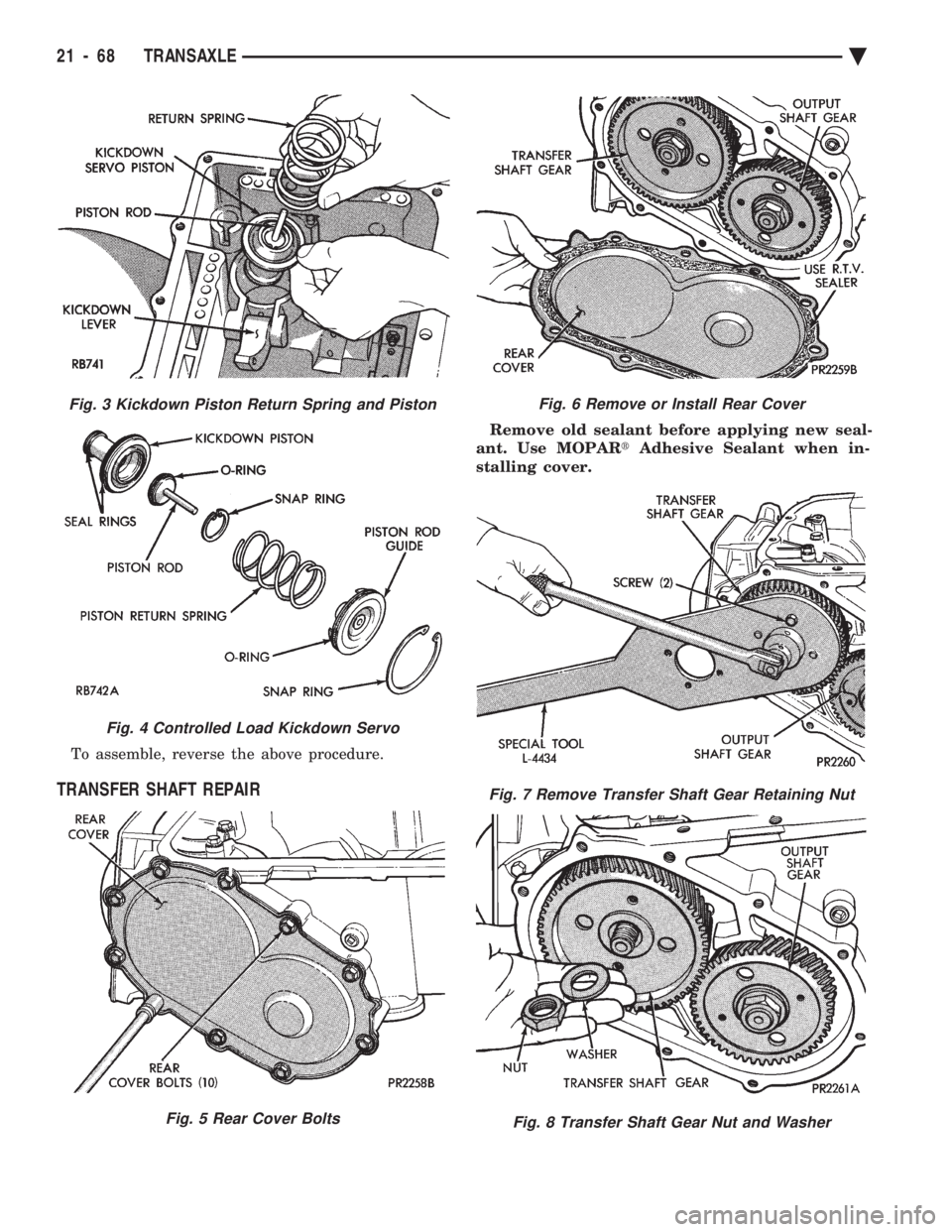

CHEVROLET DYNASTY 1993 Service Manual To assemble, reverse the above procedure. TRANSFER SHAFT REPAIR Remove old sealant before applying new seal- ant. Use MOPAR tAdhesive Sealant when in- stalling cover. Fig. 3 Kickdown Piston Return

Page 2029 of 2438

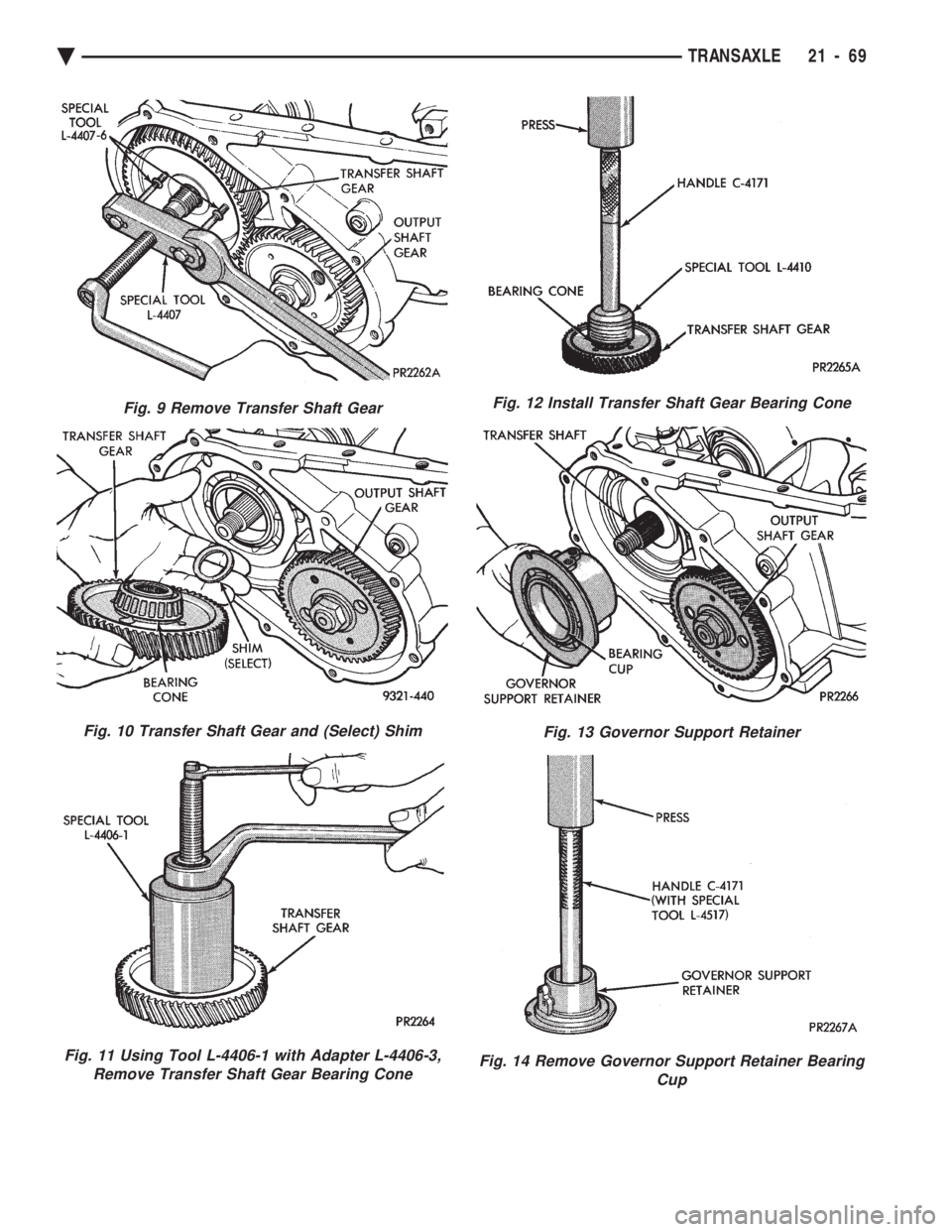

CHEVROLET DYNASTY 1993 Service Manual Fig. 9 Remove Transfer Shaft Gear Fig. 10 Transfer Shaft Gear and (Select) Shim Fig. 11 Using Tool L-4406-1 with Adapter L-4406-3, Remove Transfer Shaft Gear Bearing Cone Fig. 12 Install Transfer Shaf

Page 2030 of 2438

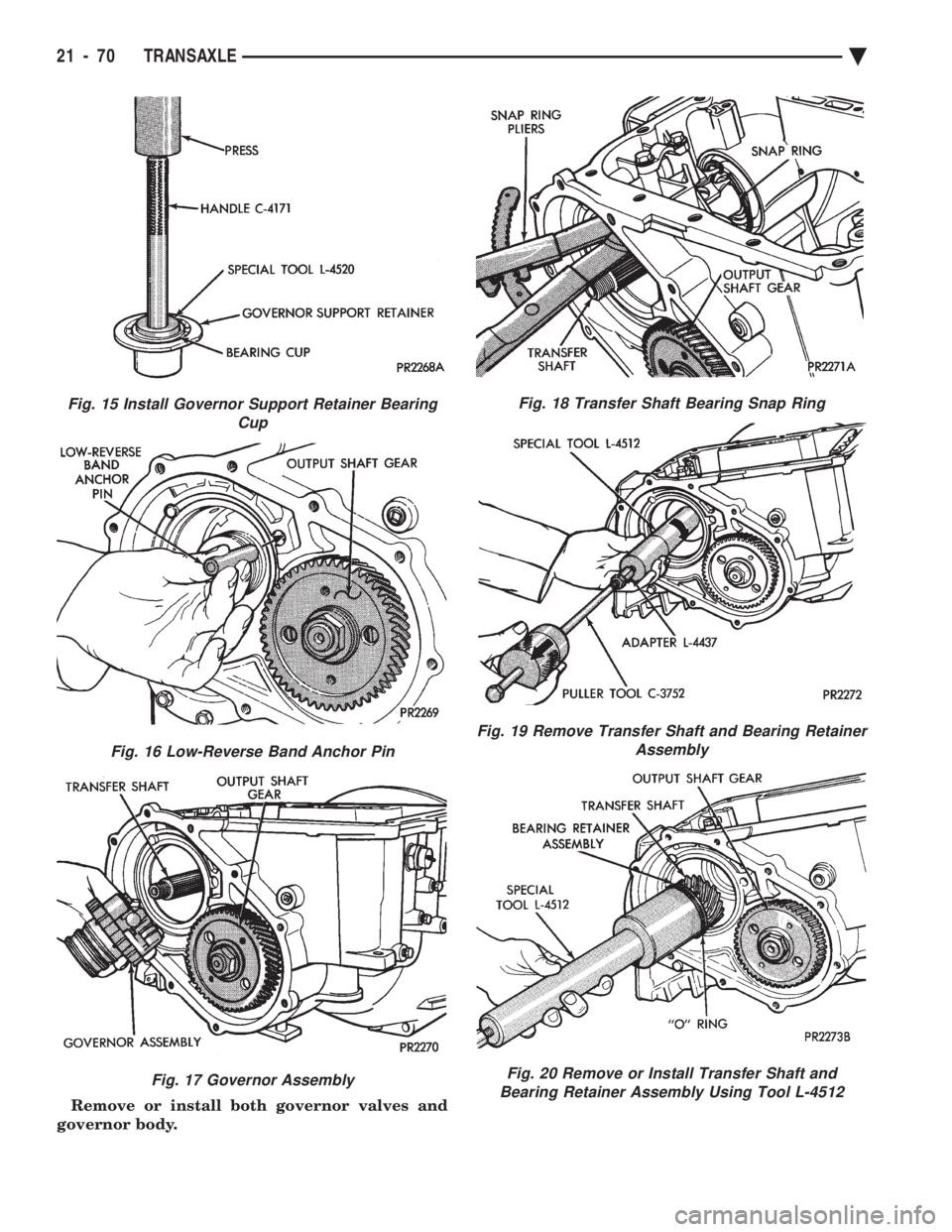

CHEVROLET DYNASTY 1993 Service Manual Remove or install both governor valves and governor body. Fig. 18 Transfer Shaft Bearing Snap Ring Fig. 19 Remove Transfer Shaft and Bearing Retainer Assembly Fig. 20 Remove or Install Transfer Shaft

Page 2031 of 2438

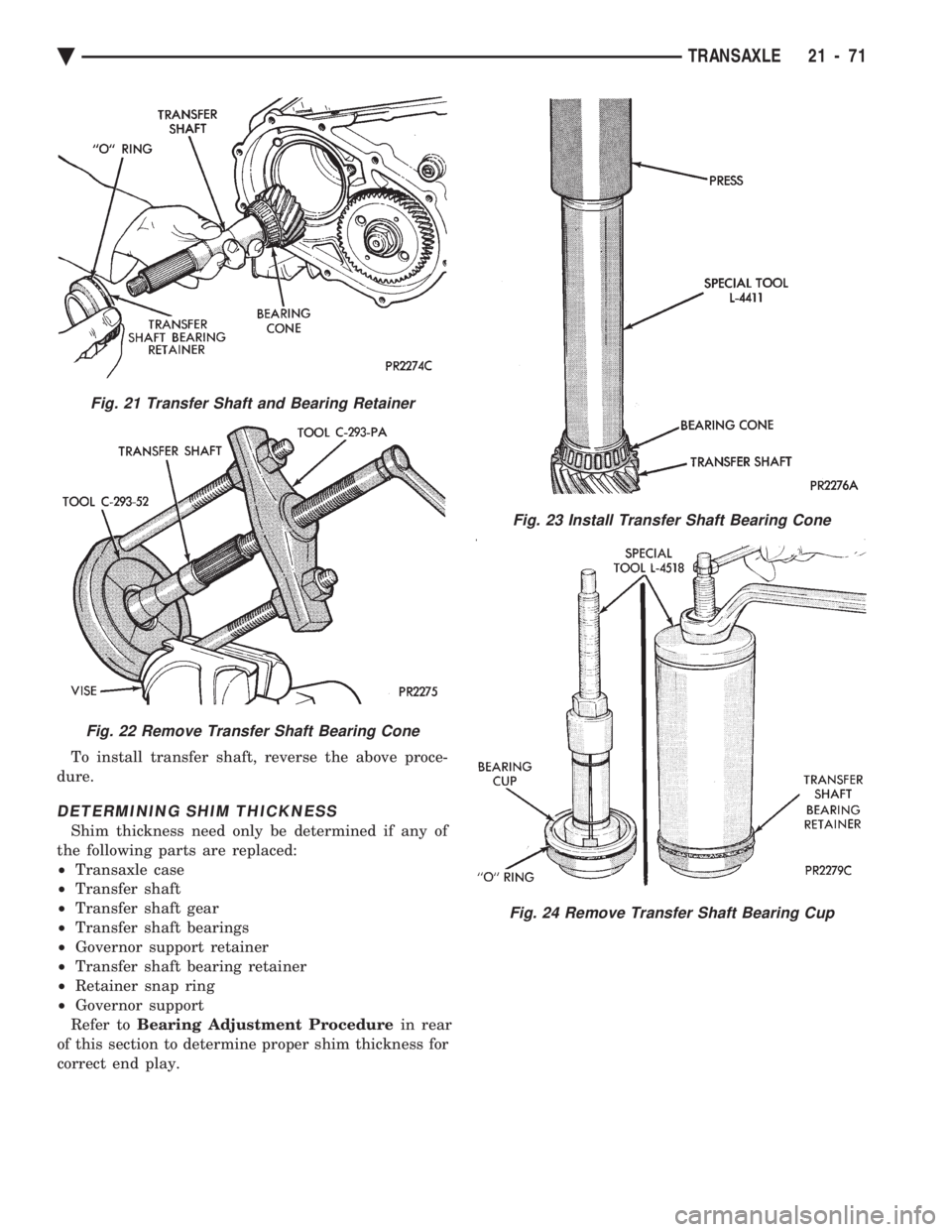

CHEVROLET DYNASTY 1993 Service Manual To install transfer shaft, reverse the above proce- dure. DETERMINING SHIM THICKNESS Shim thickness need only be determined if any of the following parts are replaced: ² Transaxle case ² Transfe

Page 2032 of 2438

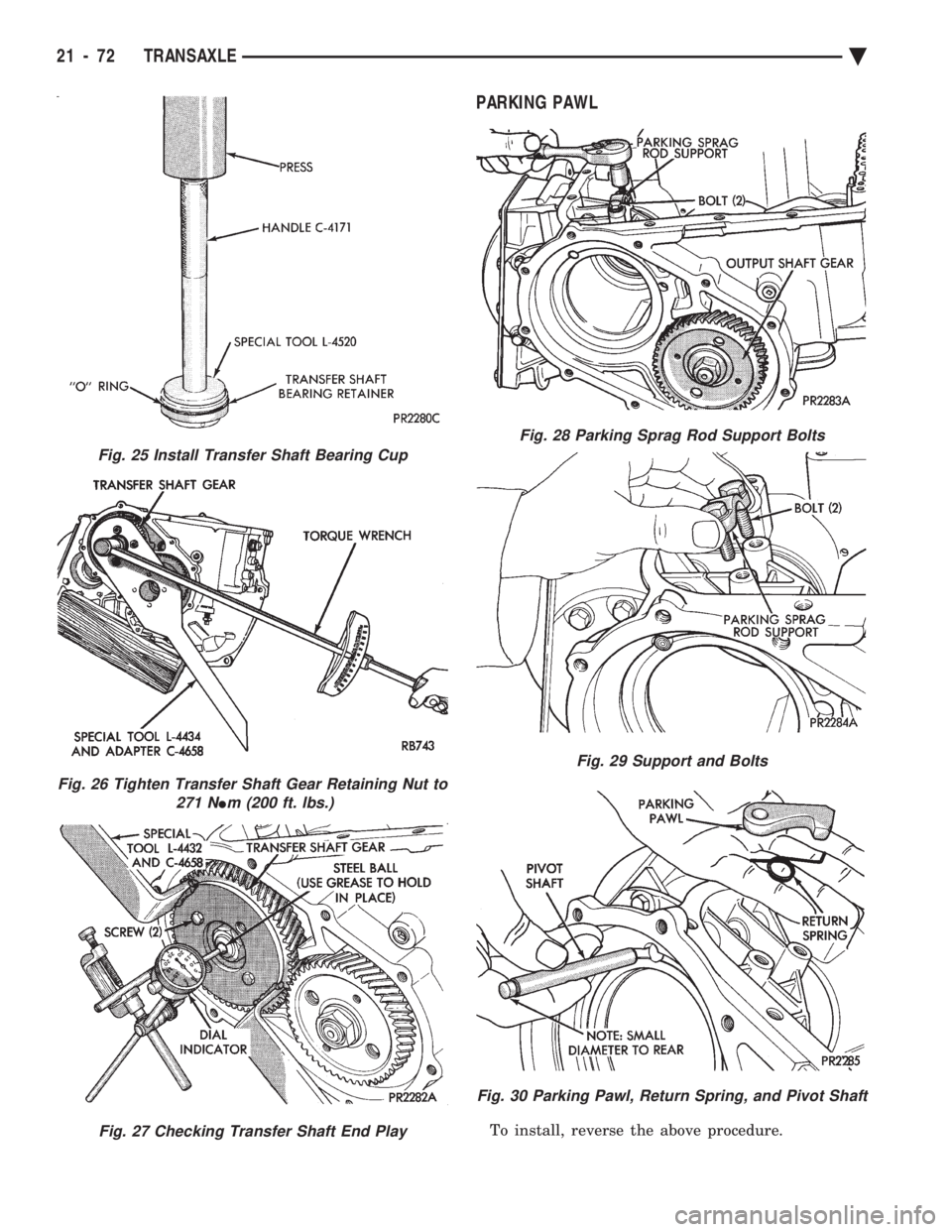

CHEVROLET DYNASTY 1993 Service Manual PARKING PAWL To install, reverse the above procedure. Fig. 25 Install Transfer Shaft Bearing Cup Fig. 26 Tighten Transfer Shaft Gear Retaining Nut to 271 N Im (200 ft. lbs.) Fig. 27 Checking Transfer
