CHEVROLET DYNASTY 1993 Service Manual Fig. 9 Body Right Side Wiring AC Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 43

Page 794 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 10 Door Wiring (Body) AC Body 8W - 44 WIRING AND COMPONENT IDENTIFICATION Ä

Page 795 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 11 Door Wiring (Front) AC Body Fig. 12 Door Wiring (Rear) AC Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 45

Page 796 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 13 Instrument Panel Wiring (Routing) AC Body 8W - 46 WIRING AND COMPONENT IDENTIFICATION Ä

Page 797 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 14 Instrument Panel Wiring (Connections) AC Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 47

Page 798 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 15 Instrument Panel Wiring (I.P to Body Connections) AC Body 8W - 48 WIRING AND COMPONENT IDENTIFICATION Ä

Page 799 of 2438

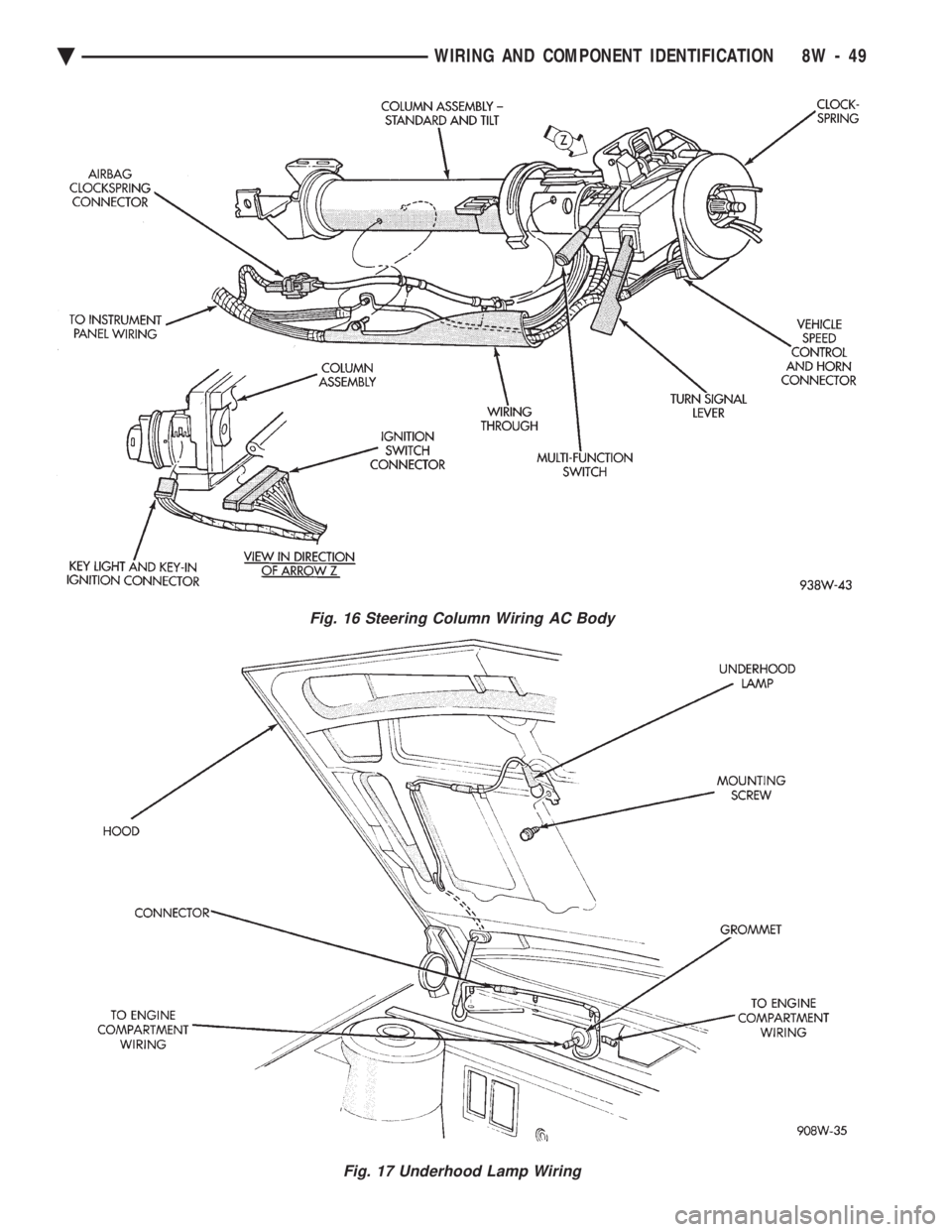

CHEVROLET DYNASTY 1993 Service Manual Fig. 16 Steering Column Wiring AC Body Fig. 17 Underhood Lamp Wiring Ä WIRING AND COMPONENT IDENTIFICATION 8W - 49

Page 800 of 2438

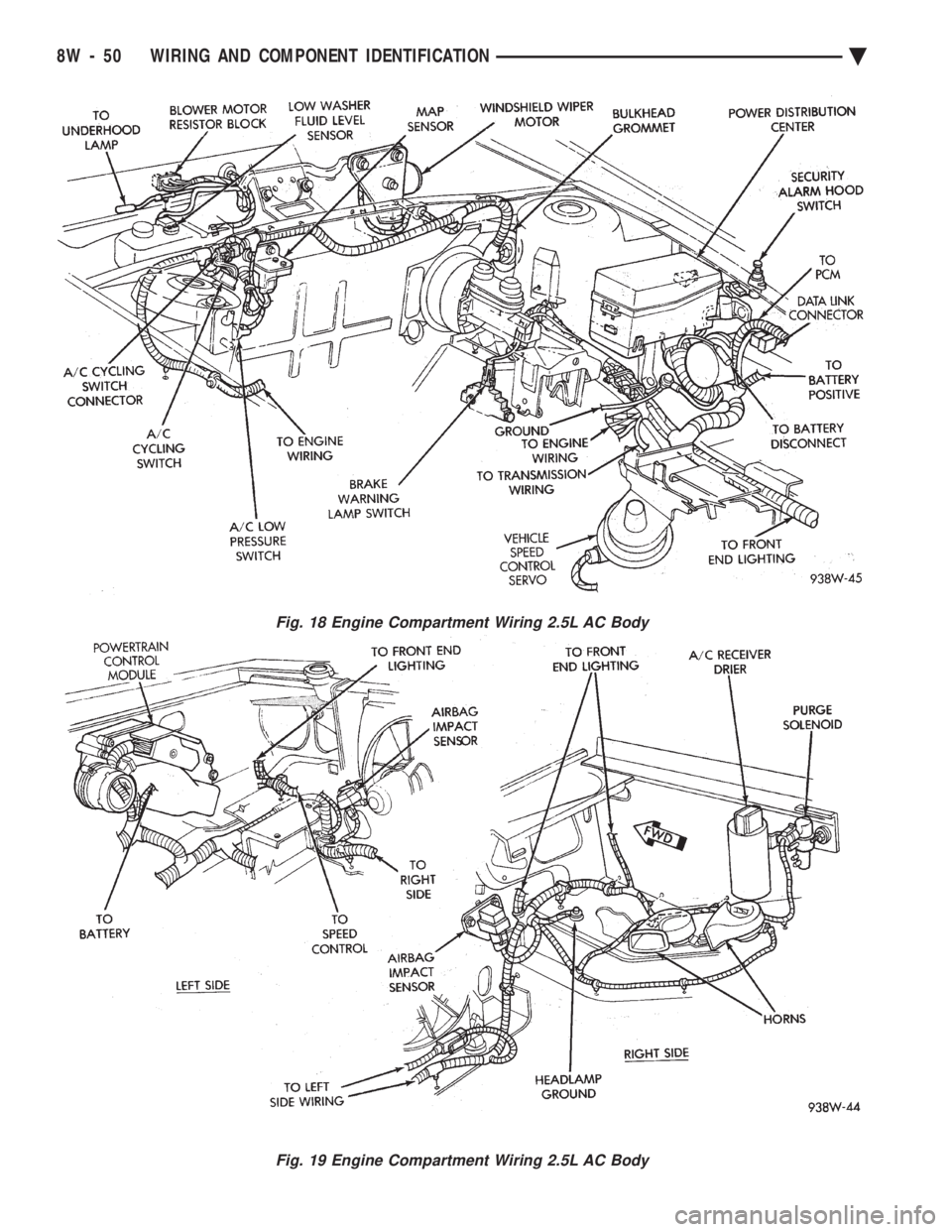

CHEVROLET DYNASTY 1993 Service Manual Fig. 18 Engine Compartment Wiring 2.5L AC Body Fig. 19 Engine Compartment Wiring 2.5L AC Body 8W - 50 WIRING AND COMPONENT IDENTIFICATION Ä
