Page 825 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 20 Engine Wiring 3.0L AG Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 75

Page 826 of 2438

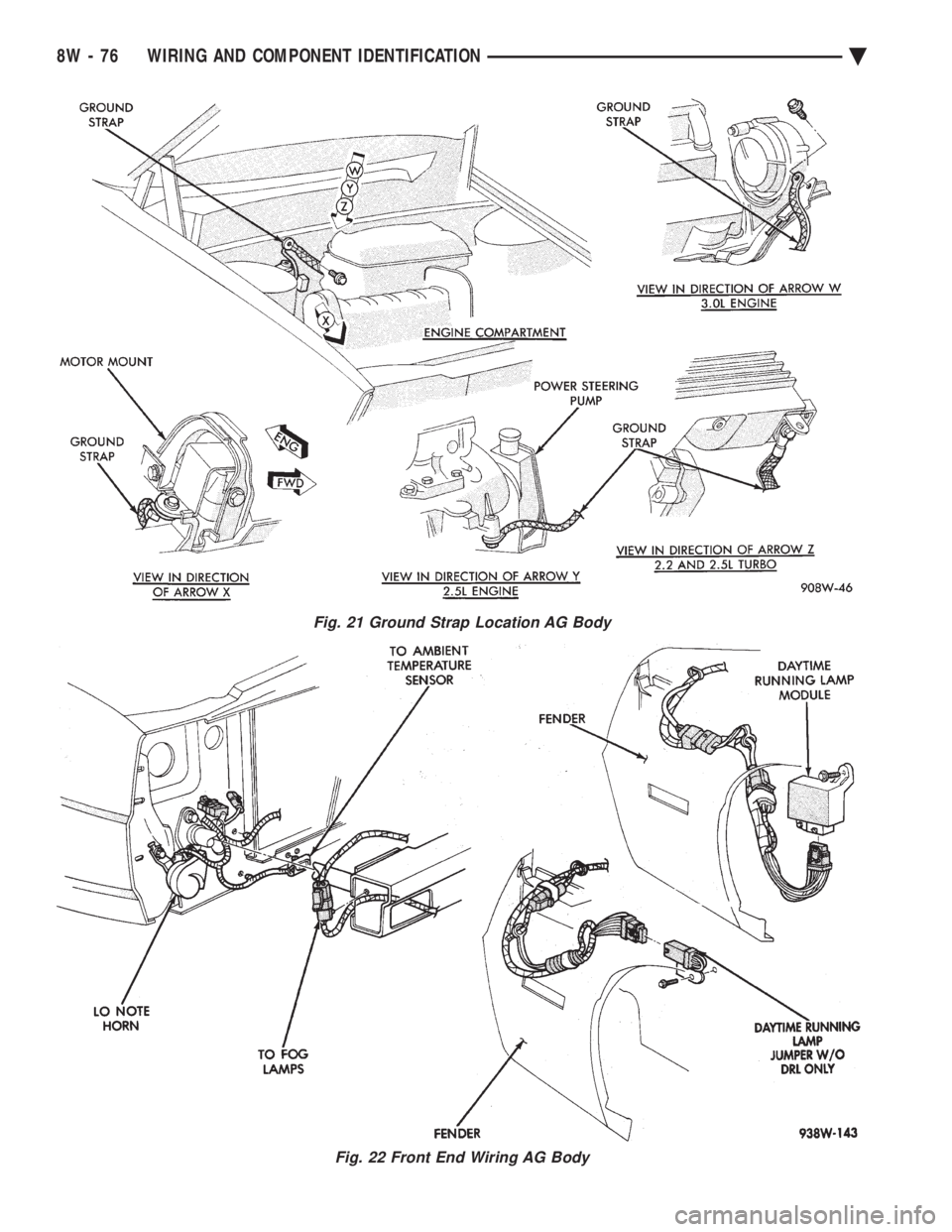

CHEVROLET DYNASTY 1993 Service Manual Fig. 21 Ground Strap Location AG Body Fig. 22 Front End Wiring AG Body 8W - 76 WIRING AND COMPONENT IDENTIFICATION Ä

Page 827 of 2438

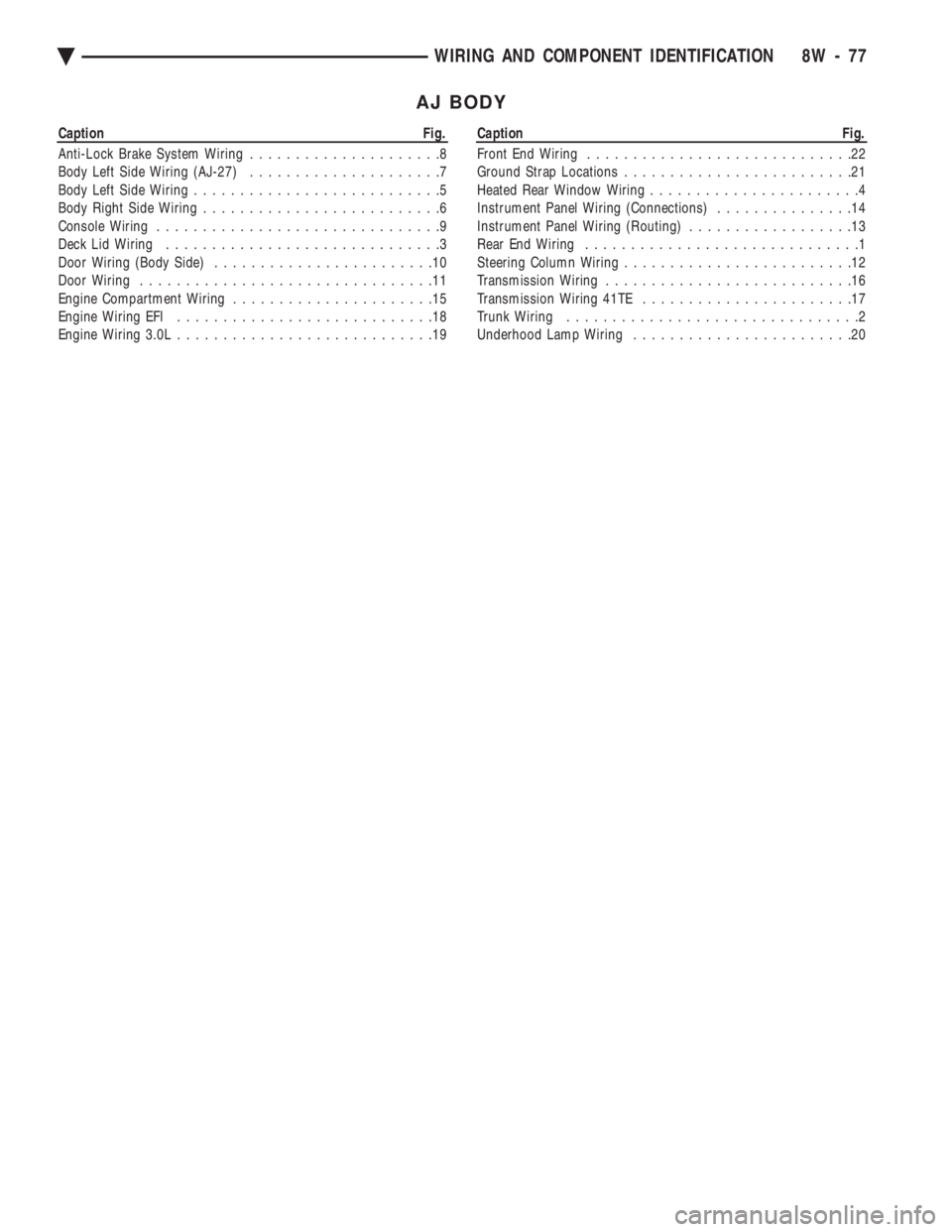

CHEVROLET DYNASTY 1993 Service Manual AJ BODY Caption Fig. Anti-Lock Brake System Wiring .....................8 Body Left Side Wiring (AJ-27) .....................7 Body Left Side Wiring ...........................5 Body Right Side

Page 828 of 2438

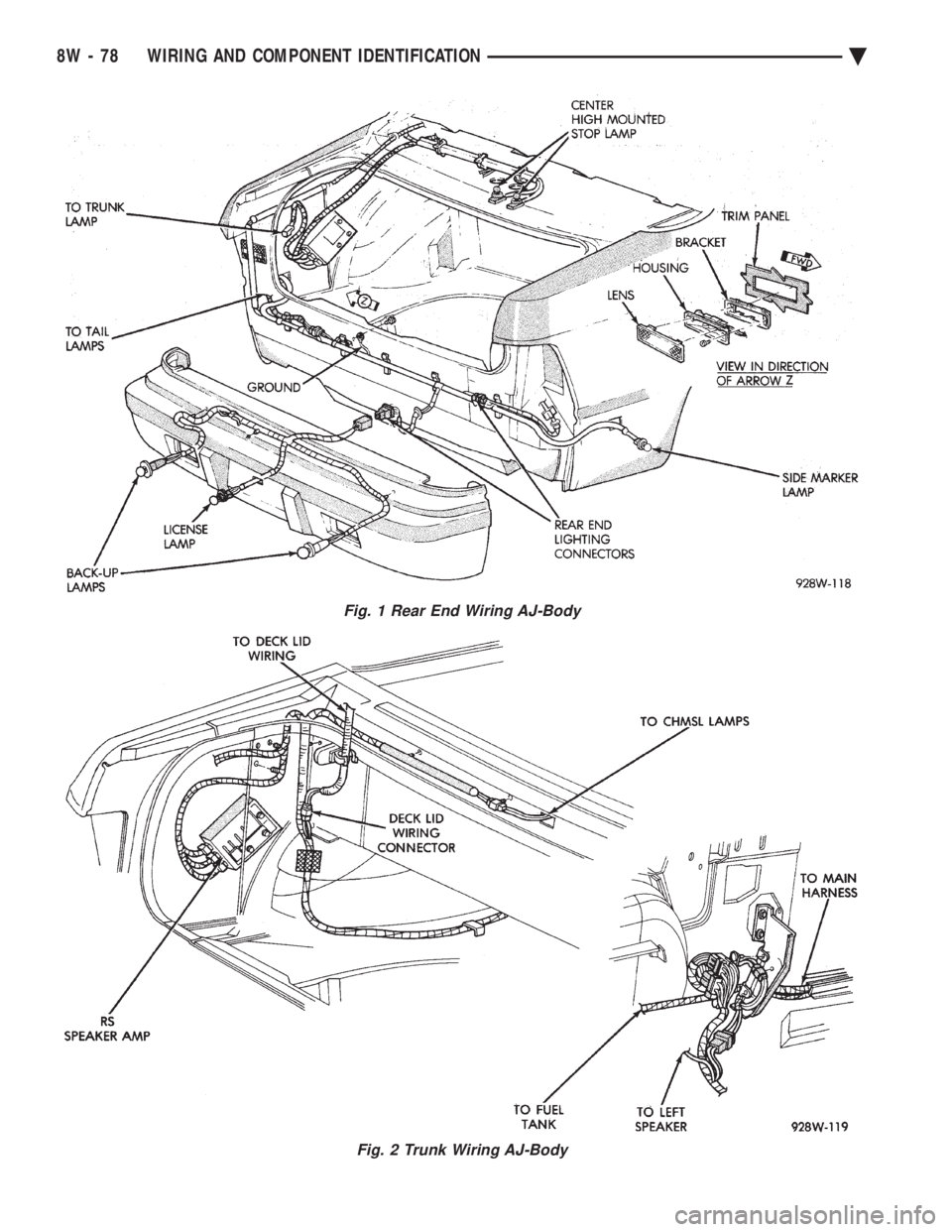

CHEVROLET DYNASTY 1993 Service Manual Fig. 1 Rear End Wiring AJ-Body Fig. 2 Trunk Wiring AJ-Body 8W - 78 WIRING AND COMPONENT IDENTIFICATION Ä

Page 829 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 3 Deck Lid Wiring AJ-Body Fig. 4 Heated Rear Window Wiring AJ-Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 79

Page 830 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 5 Body Left Side Wiring AJ-Body Fig. 6 Body Right Side Wiring AJ-Body 8W - 80 WIRING AND COMPONENT IDENTIFICATION Ä

Page 831 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 7 Body Left Side Wiring (AJ-27) Ä WIRING AND COMPONENT IDENTIFICATION 8W - 81

Page 832 of 2438

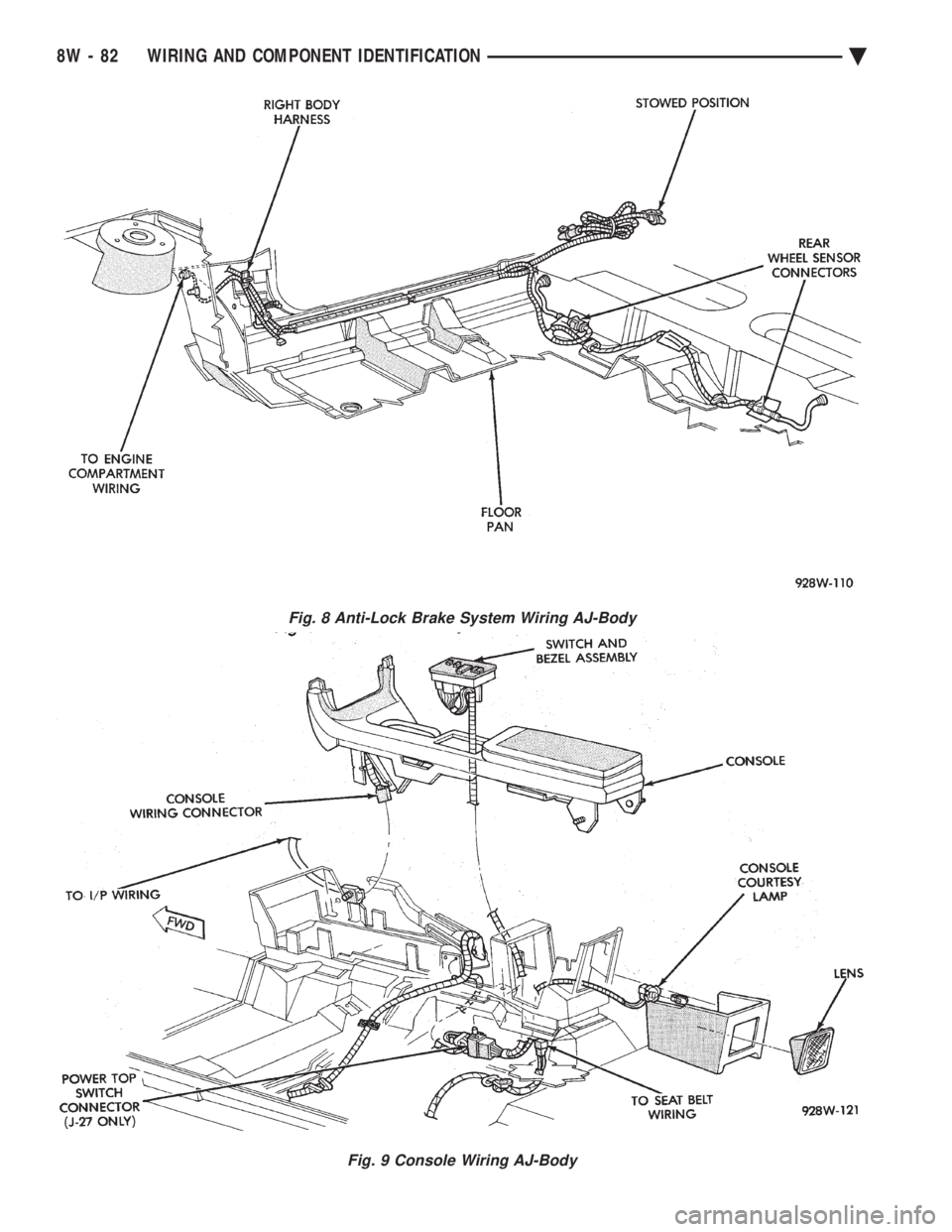

CHEVROLET DYNASTY 1993 Service Manual Fig. 8 Anti-Lock Brake System Wiring AJ-Body Fig. 9 Console Wiring AJ-Body 8W - 82 WIRING AND COMPONENT IDENTIFICATION Ä
