Page 913 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 3 Body Splices (Right Side) AJ-Body
Fig. 4 Door Splices
Ä SPLICE LOCATIONS 8W - 163

Page 914 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 5 Cowl Panel Splices AJ-Body
Fig. 6 Cowl Panel Splices (Left Side) AJ-Body
8W - 164 SPLICE LOCATIONS Ä

Page 915 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 7 Cowl Panel Splices (Right Side) AJ-Body
Fig. 8 Instrument Panel Splices AJ-Body
Ä SPLICE LOCATIONS 8W - 165

Page 916 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 9 Engine Compartment Splices AJ-Body
Fig. 10 Engine Compartment Splices AJ-Body
8W - 166 SPLICE LOCATIONS Ä

Page 917 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 11 Engine Compartment Splices AJ-Body
Ä SPLICE LOCATIONS 8W - 167

Page 918 of 2438

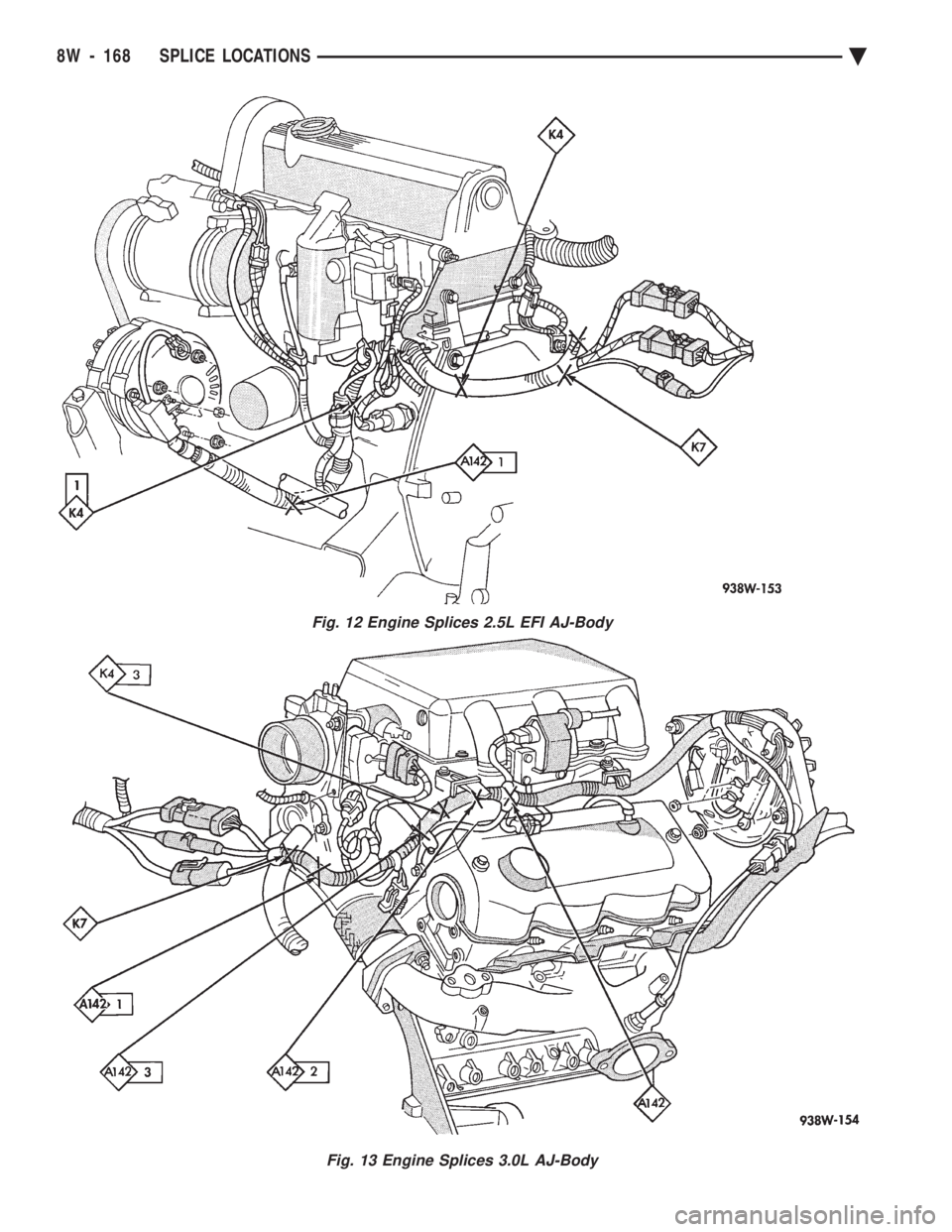

CHEVROLET DYNASTY 1993 Service Manual Fig. 12 Engine Splices 2.5L EFI AJ-Body
Fig. 13 Engine Splices 3.0L AJ-Body
8W - 168 SPLICE LOCATIONS Ä

Page 919 of 2438

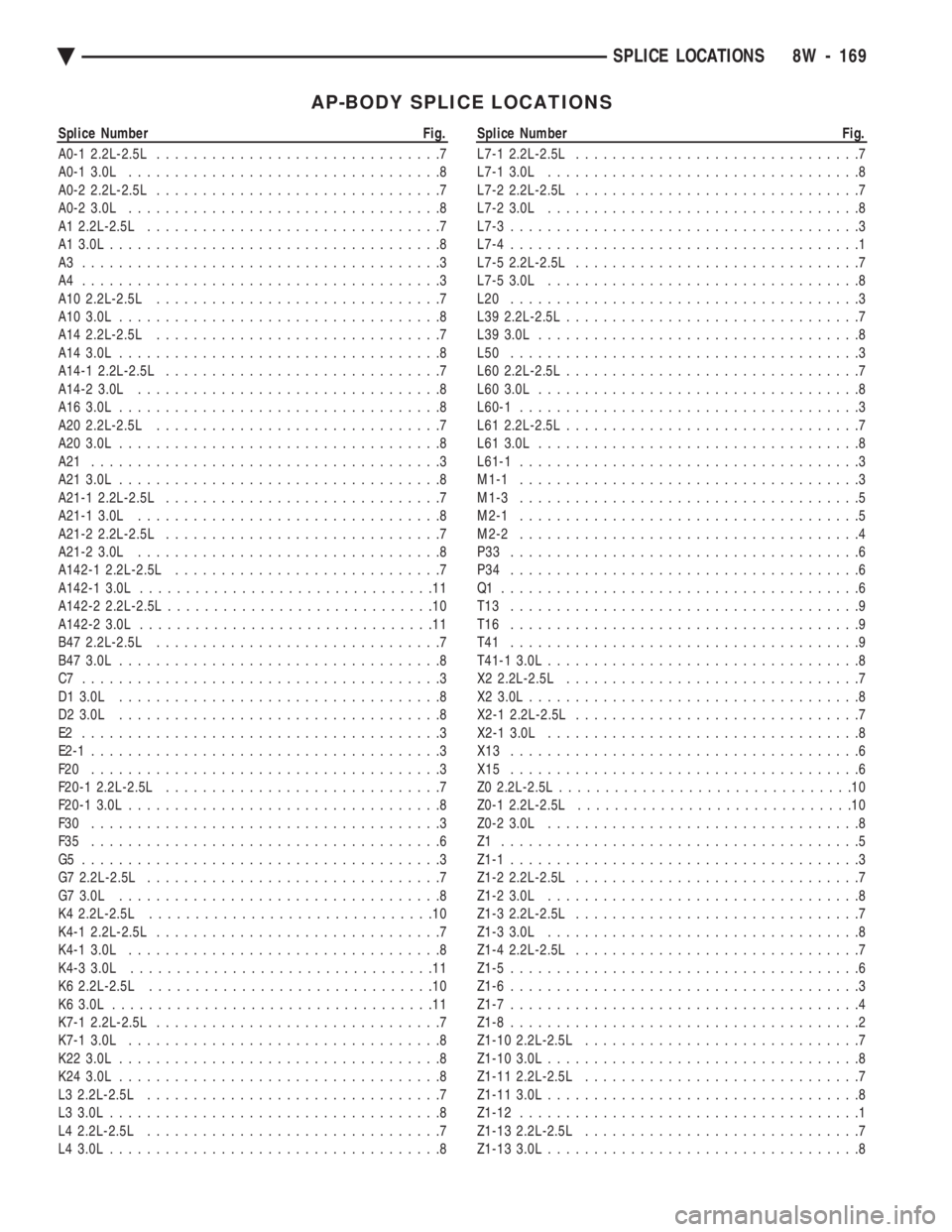

CHEVROLET DYNASTY 1993 Service Manual AP-BODY SPLICE LOCATIONS
Splice Number Fig.
A0-1 2.2L-2.5L ...............................7
A0-1 3.0L ..................................8
A0-2 2.2L-2.5L ...............................7
A0-2 3.

AP-BODY SPLICE LOCATIONS
Splice Number Fig.
A0-1 2.2L-2.5L ...............................7
A0-1 3.0L ..................................8
A0-2 2.2L-2.5L ...............................7
A0-2 3.0L ..................................8
A1 2.2L-2.5L ................................7
A1 3.0L ....................................8
A3 .......................................3
A4 .......................................3
A10 2.2L-2.5L ...............................7
A10 3.0L ...................................8
A14 2.2L-2.5L ...............................7
A14 3.0L ...................................8
A14-1 2.2L-2.5L ..............................7
A14-2 3.0L .................................8
A16 3.0L ...................................8
A20 2.2L-2.5L ...............................7
A20 3.0L ...................................8
A21 ......................................3
A21 3.0L ...................................8
A21-1 2.2L-2.5L ..............................7
A21-1 3.0L .................................8
A21-2 2.2L-2.5L ..............................7
A21-2 3.0L .................................8
A142-1 2.2L-2.5L .............................7
A142-1 3.0L ................................11
A142-2 2.2L-2.5L .............................10
A142-2 3.0L ................................11
B47 2.2L-2.5L ...............................7
B47 3.0L ...................................8
C7 .......................................3
D1 3.0L ...................................8
D2 3.0L ...................................8
E2 .......................................3
E2-1 ......................................3
F20 ......................................3
F20-1 2.2L-2.5L ..............................7
F20-1 3.0L ..................................8
F30 ......................................3
F35 ......................................6
G5 .......................................3
G7 2.2L-2.5L ................................7
G7 3.0L ...................................8
K4 2.2L-2.5L ...............................10
K4-1 2.2L-2.5L ...............................7
K4-1 3.0L ..................................8
K4-3 3.0L .................................11
K6 2.2L-2.5L ...............................10
K6 3.0L ...................................11
K7-1 2.2L-2.5L ...............................7
K7-1 3.0L ..................................8
K22 3.0L ...................................8
K24 3.0L ...................................8
L3 2.2L-2.5L ................................7
L3 3.0L ....................................8
L4 2.2L-2.5L ................................7
L4 3.0L ....................................8Splice Number Fig.
L7-1 2.2L-2.5L ...............................7
L7-1 3.0L ..................................8
L7-2 2.2L-2.5L ...............................7
L7-2 3.0L ..................................8
L7-3 ......................................3
L7-4 ......................................1
L7-5 2.2L-2.5L ...............................7
L7-5 3.0L ..................................8
L20 ......................................3
L39 2.2L-2.5L ................................7
L39 3.0L ...................................8
L50 ......................................3
L60 2.2L-2.5L ................................7
L60 3.0L ...................................8
L60-1 .....................................3
L61 2.2L-2.5L ................................7
L61 3.0L ...................................8
L61-1 .....................................3
M1-1 .....................................3
M1-3 .....................................5
M2-1 .....................................5
M2-2 .....................................4
P33 ......................................6
P34 ......................................6
Q1 .......................................6
T13 ......................................9
T16 ......................................9
T41 ......................................9
T41-1 3.0L ..................................8
X2 2.2L-2.5L ................................7
X2 3.0L ....................................8
X2-1 2.2L-2.5L ...............................7
X2-1 3.0L ..................................8
X13 ......................................6
X15 ......................................6
Z0 2.2L-2.5L ................................10
Z0-1 2.2L-2.5L ..............................10
Z0-2 3.0L ..................................8
Z1 .......................................5
Z1-1 ......................................3
Z1-2 2.2L-2.5L ...............................7
Z1-2 3.0L ..................................8
Z1-3 2.2L-2.5L ...............................7
Z1-3 3.0L ..................................8
Z1-4 2.2L-2.5L ...............................7
Z1-5 ......................................6
Z1-6 ......................................3
Z1-7 ......................................4
Z1-8 ......................................2
Z1-10 2.2L-2.5L ..............................7
Z1-10 3.0L ..................................8
Z1-11 2.2L-2.5L ..............................7
Z1-11 3.0L ..................................8
Z1-12 .....................................1
Z1-13 2.2L-2.5L ..............................7
Z1-13 3.0L ..................................8
Ä SPLICE LOCATIONS 8W - 169

Page 920 of 2438

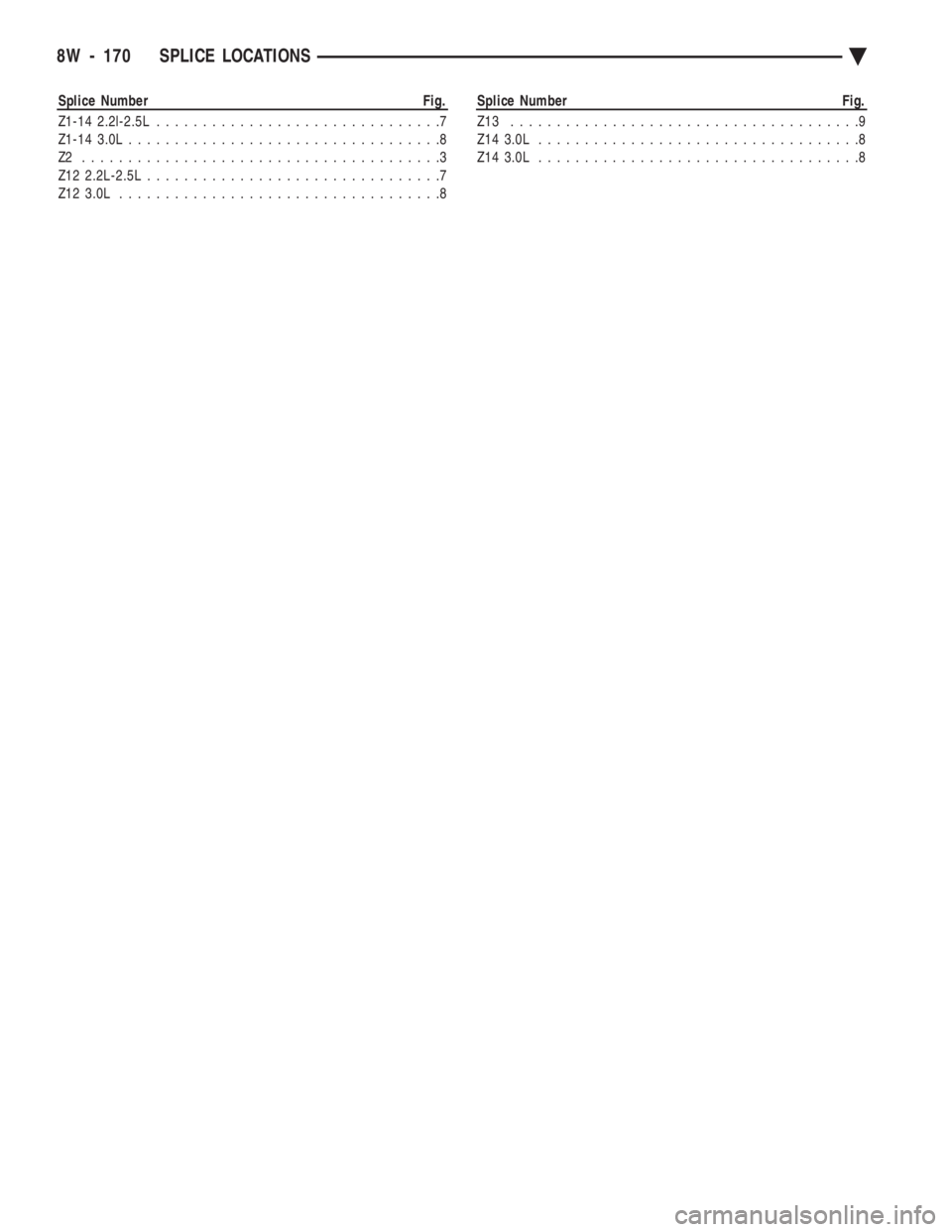

CHEVROLET DYNASTY 1993 Service Manual Splice Number Fig.
Z1-14 2.2l-2.5L ...............................7
Z1-14 3.0L ..................................8
Z2 .......................................3
Z12 2.2L-2.5L .....................
