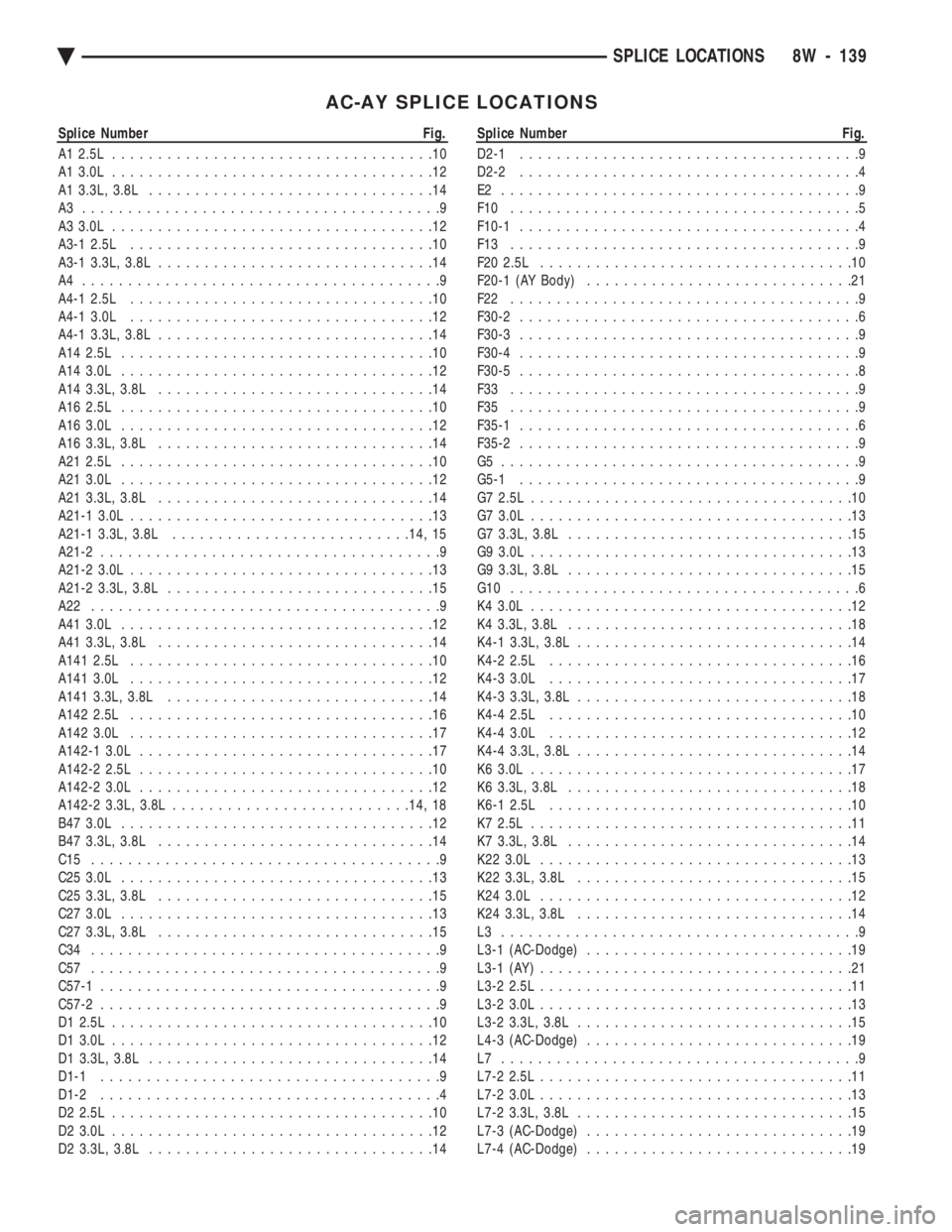

CHEVROLET DYNASTY 1993 Service Manual AC-AY SPLICE LOCATIONS
Splice Number Fig.
A1 2.5L ...................................10
A1 3.0L ...................................12
A1 3.3L, 3.8L ...............................14
A3 ........

AC-AY SPLICE LOCATIONS
Splice Number Fig.
A1 2.5L ...................................10
A1 3.0L ...................................12
A1 3.3L, 3.8L ...............................14
A3 .......................................9
A3 3.0L ...................................12
A3-1 2.5L .................................10
A3-1 3.3L, 3.8L ..............................14
A4 .......................................9
A4-1 2.5L .................................10
A4-1 3.0L .................................12
A4-1 3.3L, 3.8L ..............................14
A14 2.5L ..................................10
A14 3.0L ..................................12
A14 3.3L, 3.8L ..............................14
A16 2.5L ..................................10
A16 3.0L ..................................12
A16 3.3L, 3.8L ..............................14
A21 2.5L ..................................10
A21 3.0L ..................................12
A21 3.3L, 3.8L ..............................14
A21-1 3.0L .................................13
A21-1 3.3L, 3.8L ......................... .14, 15
A21-2 .....................................9
A21-2 3.0L .................................13
A21-2 3.3L, 3.8L .............................15
A22 ......................................9
A41 3.0L ..................................12
A41 3.3L, 3.8L ..............................14
A141 2.5L .................................10
A141 3.0L .................................12
A141 3.3L, 3.8L .............................14
A142 2.5L .................................16
A142 3.0L .................................17
A142-1 3.0L ................................17
A142-2 2.5L ................................10
A142-2 3.0L ................................12
A142-2 3.3L, 3.8L ......................... .14, 18
B47 3.0L ..................................12
B47 3.3L, 3.8L ..............................14
C15 ......................................9
C25 3.0L ..................................13
C25 3.3L, 3.8L ..............................15
C27 3.0L ..................................13
C27 3.3L, 3.8L ..............................15
C34 ......................................9
C57 ......................................9
C57-1 .....................................9
C57-2 .....................................9
D1 2.5L ...................................10
D1 3.0L ...................................12
D1 3.3L, 3.8L ...............................14
D1-1 .....................................9
D1-2 .....................................4
D2 2.5L ...................................10
D2 3.0L ...................................12
D2 3.3L, 3.8L ...............................14Splice Number Fig.
D2-1 .....................................9
D2-2 .....................................4
E2 .......................................9
F10 ......................................5
F10-1 .....................................4
F13 ......................................9
F20 2.5L ..................................10
F20-1 (AY Body) .............................21
F22 ......................................9
F30-2 .....................................6
F30-3 .....................................9
F30-4 .....................................9
F30-5 .....................................8
F33 ......................................9
F35 ......................................9
F35-1 .....................................6
F35-2 .....................................9
G5 .......................................9
G5-1 .....................................9
G7 2.5L ...................................10
G7 3.0L ...................................13
G7 3.3L, 3.8L ...............................15
G9 3.0L ...................................13
G9 3.3L, 3.8L ...............................15
G10 ......................................6
K4 3.0L ...................................12
K4 3.3L, 3.8L ...............................18
K4-1 3.3L, 3.8L ..............................14
K4-2 2.5L .................................16
K4-3 3.0L .................................17
K4-3 3.3L, 3.8L ..............................18
K4-4 2.5L .................................10
K4-4 3.0L .................................12
K4-4 3.3L, 3.8L ..............................14
K6 3.0L ...................................17
K6 3.3L, 3.8L ...............................18
K6-1 2.5L .................................10
K7 2.5L ...................................11
K7 3.3L, 3.8L ...............................14
K22 3.0L ..................................13
K22 3.3L, 3.8L ..............................15
K24 3.0L ..................................12
K24 3.3L, 3.8L ..............................14
L3 .......................................9
L3-1 (AC-Dodge) .............................19
L3-1 (AY) ..................................21
L3-2 2.5L ..................................11
L3-2 3.0L ..................................13
L3-2 3.3L, 3.8L ..............................15
L4-3 (AC-Dodge) .............................19
L7 .......................................9
L7-2 2.5L ..................................11
L7-2 3.0L ..................................13
L7-2 3.3L, 3.8L ..............................15
L7-3 (AC-Dodge) .............................19
L7-4 (AC-Dodge) .............................19
Ä SPLICE LOCATIONS 8W - 139

Page 890 of 2438

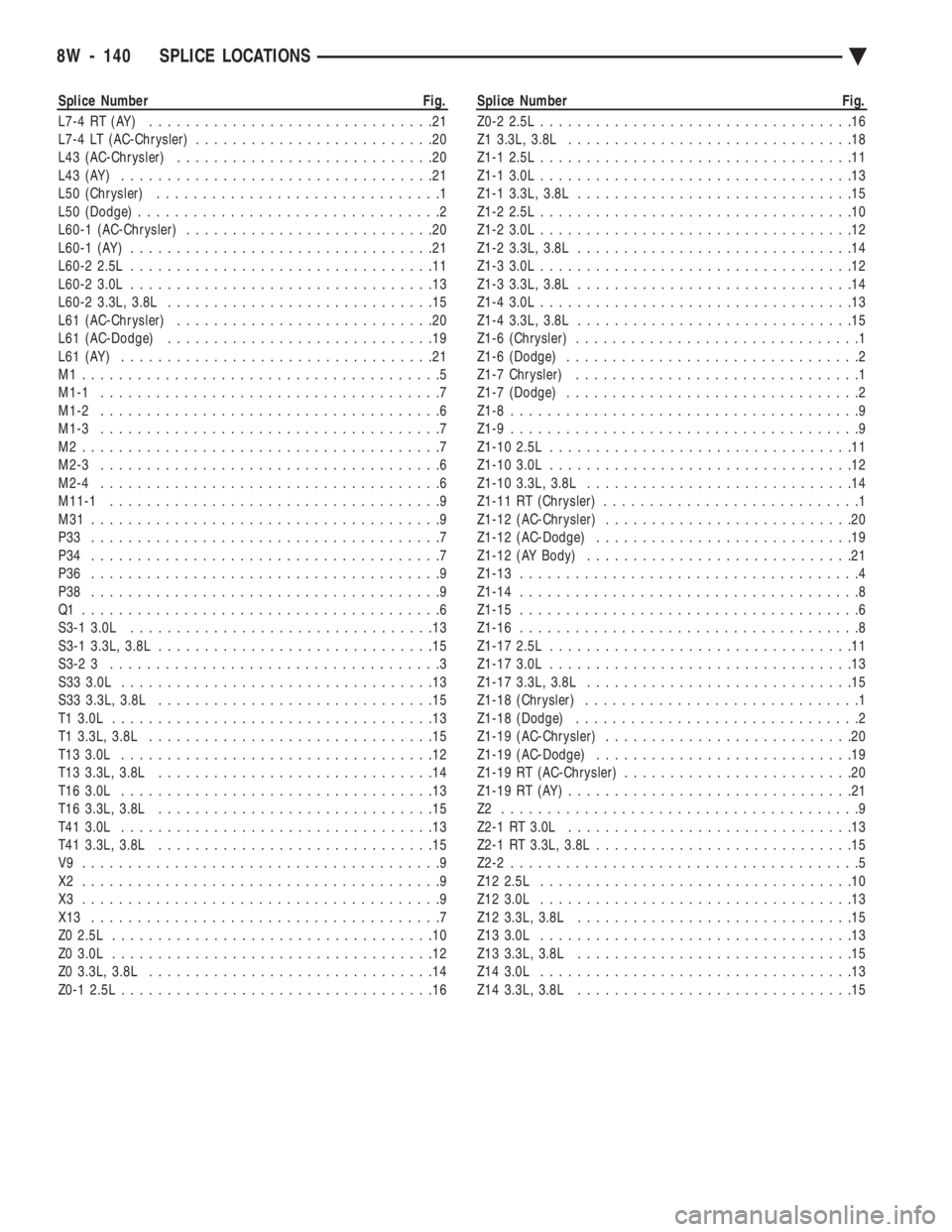

CHEVROLET DYNASTY 1993 Service Manual Splice Number Fig.
L7-4 RT (AY) ...............................21
L7-4 LT (AC-Chrysler) ..........................20
L43 (AC-Chrysler) ............................20
L43(AY) ...................

Splice Number Fig.
L7-4 RT (AY) ...............................21
L7-4 LT (AC-Chrysler) ..........................20
L43 (AC-Chrysler) ............................20
L43(AY) ..................................21
L50 (Chrysler) ...............................1
L50 (Dodge) .................................2
L60-1 (AC-Chrysler) ...........................20
L60-1 (AY) .................................21
L60-2 2.5L .................................11
L60-2 3.0L .................................13
L60-2 3.3L, 3.8L .............................15
L61 (AC-Chrysler) ............................20
L61 (AC-Dodge) .............................19
L61(AY) ..................................21
M1.......................................5
M1-1 .....................................7
M1-2 .....................................6
M1-3 .....................................7
M2.......................................7
M2-3 .....................................6
M2-4 .....................................6
M11-1 ....................................9
M31 ......................................9
P33 ......................................7
P34 ......................................7
P36 ......................................9
P38 ......................................9
Q1 .......................................6
S3-1 3.0L .................................13
S3-1 3.3L, 3.8L ..............................15
S3-2 3 ....................................3
S33 3.0L ..................................13
S33 3.3L, 3.8L ..............................15
T1 3.0L ...................................13
T1 3.3L, 3.8L ...............................15
T13 3.0L ..................................12
T13 3.3L, 3.8L ..............................14
T16 3.0L ..................................13
T16 3.3L, 3.8L ..............................15
T41 3.0L ..................................13
T41 3.3L, 3.8L ..............................15
V9 .......................................9
X2 .......................................9
X3 .......................................9
X13 ......................................7
Z0 2.5L ...................................10
Z0 3.0L ...................................12
Z0 3.3L, 3.8L ...............................14
Z0-1 2.5L ..................................16Splice Number Fig.
Z0-2 2.5L ..................................16
Z1 3.3L, 3.8L ...............................18
Z1-1 2.5L ..................................11
Z1-1 3.0L ..................................13
Z1-1 3.3L, 3.8L ..............................15
Z1-2 2.5L ..................................10
Z1-2 3.0L ..................................12
Z1-2 3.3L, 3.8L ..............................14
Z1-3 3.0L ..................................12
Z1-3 3.3L, 3.8L ..............................14
Z1-4 3.0L ..................................13
Z1-4 3.3L, 3.8L ..............................15
Z1-6 (Chrysler) ...............................1
Z1-6 (Dodge) ................................2
Z1-7 Chrysler) ...............................1
Z1-7 (Dodge) ................................2
Z1-8 ......................................9
Z1-9 ......................................9
Z1-10 2.5L .................................11
Z1-10 3.0L .................................12
Z1-10 3.3L, 3.8L .............................14
Z1-11 RT (Chrysler) ............................1
Z1-12 (AC-Chrysler) ...........................20
Z1-12 (AC-Dodge) ............................19
Z1-12 (AY Body) .............................21
Z1-13 .....................................4
Z1-14 .....................................8
Z1-15 .....................................6
Z1-16 .....................................8
Z1-17 2.5L .................................11
Z1-17 3.0L .................................13
Z1-17 3.3L, 3.8L .............................15
Z1-18 (Chrysler) ..............................1
Z1-18 (Dodge) ...............................2
Z1-19 (AC-Chrysler) ...........................20
Z1-19 (AC-Dodge) ............................19
Z1-19 RT (AC-Chrysler) .........................20
Z1-19 RT (AY) ...............................21
Z2 .......................................9
Z2-1 RT 3.0L ...............................13
Z2-1 RT 3.3L, 3.8L ............................15
Z2-2 ......................................5
Z12 2.5L ..................................10
Z12 3.0L ..................................13
Z12 3.3L, 3.8L ..............................15
Z13 3.0L ..................................13
Z13 3.3L, 3.8L ..............................15
Z14 3.0L ..................................13
Z14 3.3L, 3.8L ..............................15
8W - 140 SPLICE LOCATIONS Ä

Page 891 of 2438

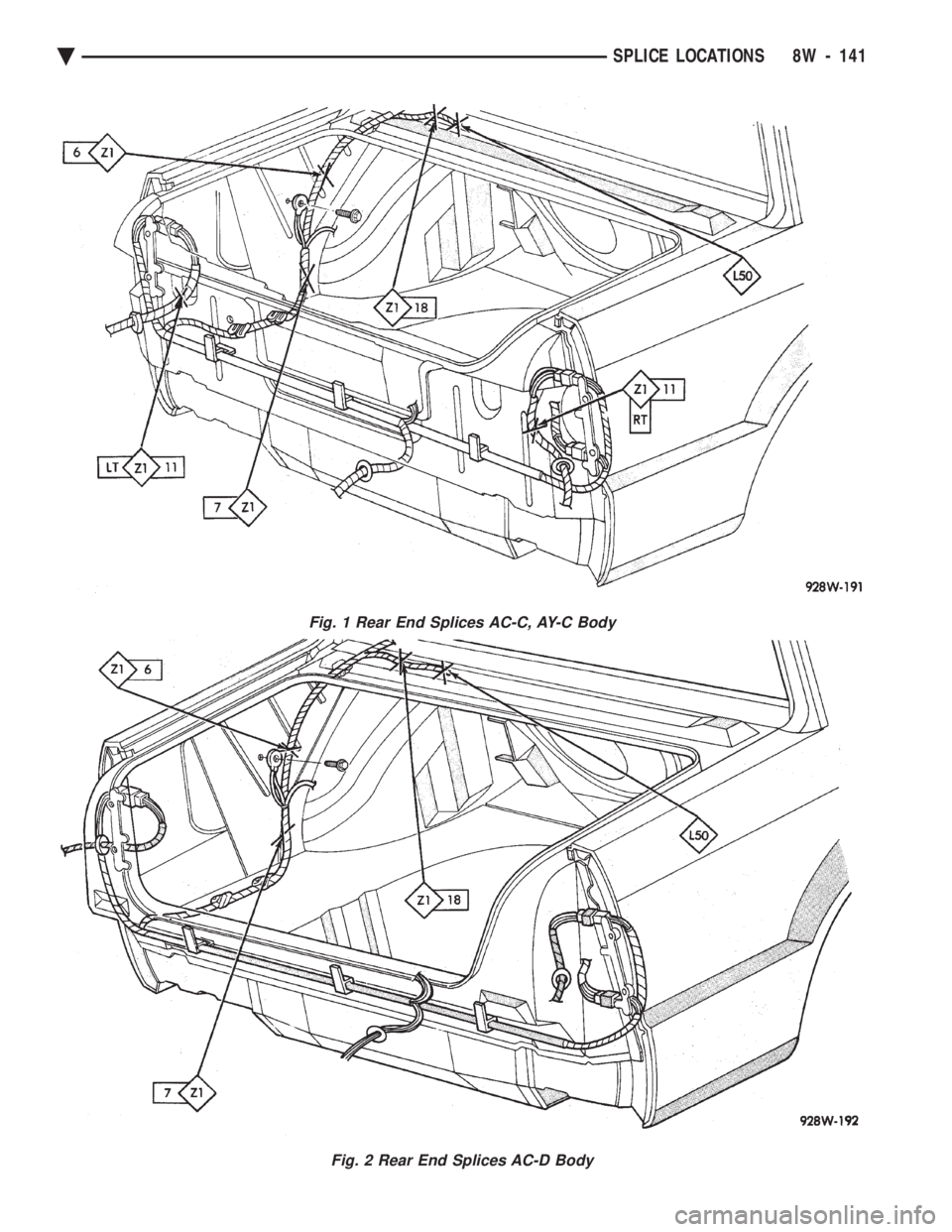

CHEVROLET DYNASTY 1993 Service Manual Fig. 1 Rear End Splices AC-C, AY-C Body
Fig. 2 Rear End Splices AC-D Body
Ä SPLICE LOCATIONS 8W - 141

Page 892 of 2438

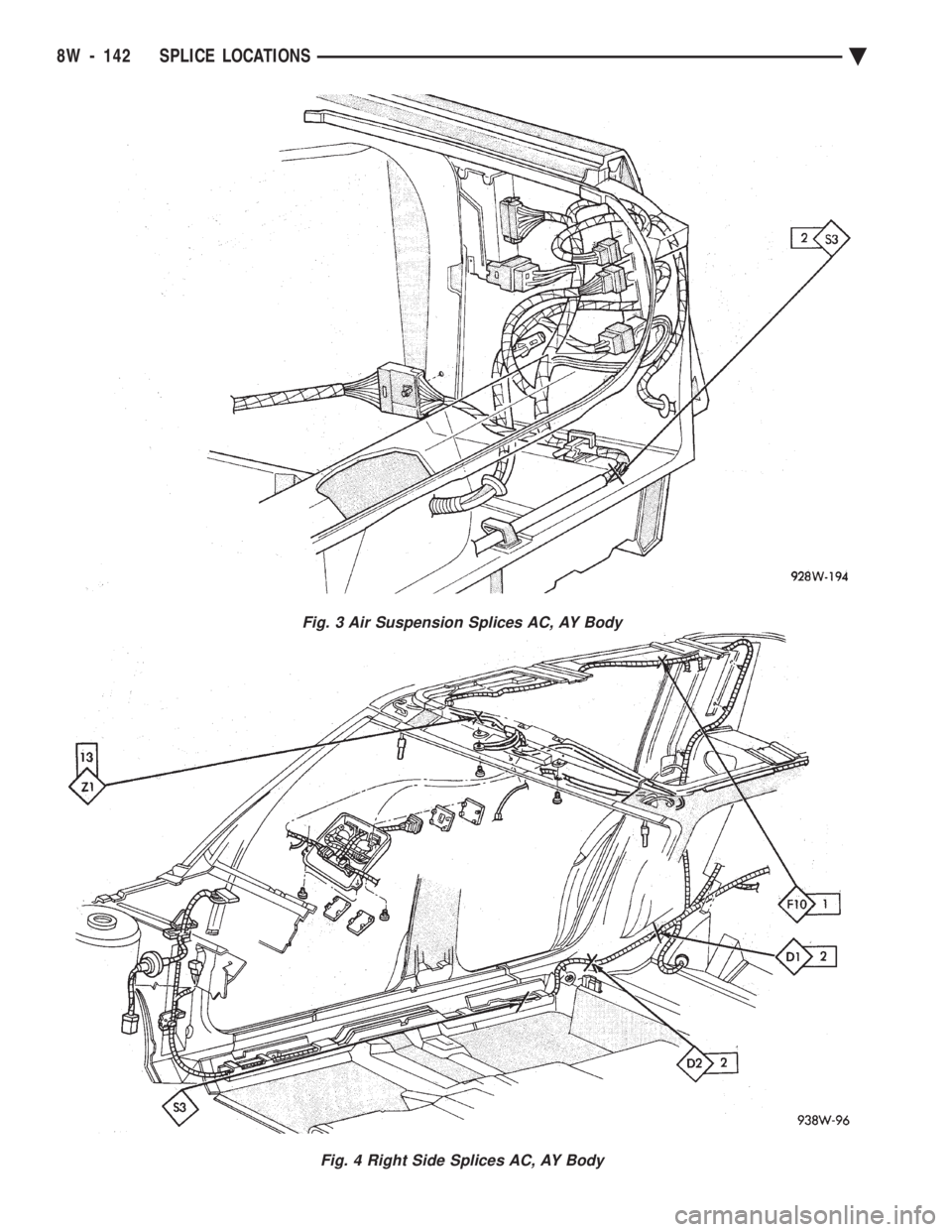

CHEVROLET DYNASTY 1993 Service Manual Fig. 3 Air Suspension Splices AC, AY Body
Fig. 4 Right Side Splices AC, AY Body
8W - 142 SPLICE LOCATIONS Ä

Page 893 of 2438

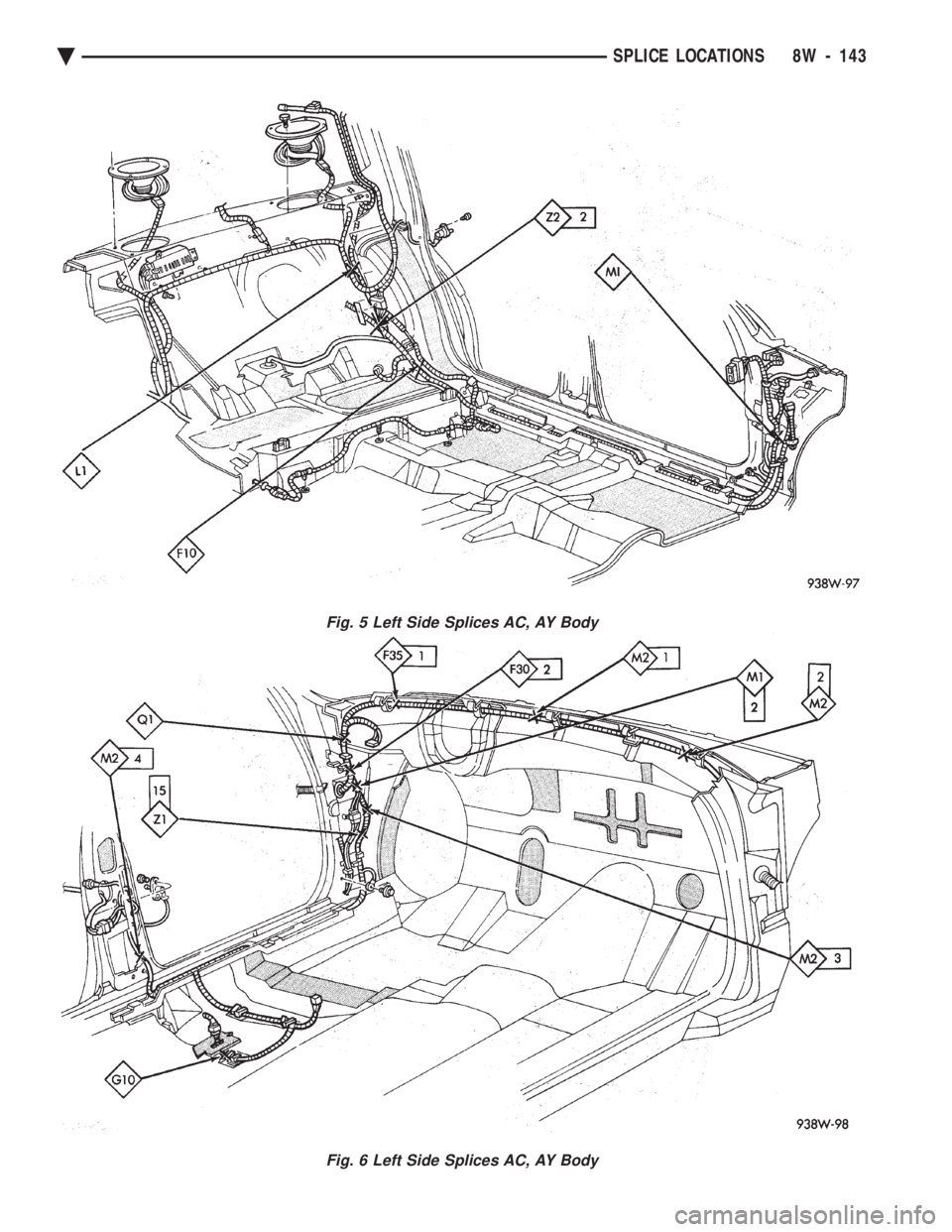

CHEVROLET DYNASTY 1993 Service Manual Fig. 5 Left Side Splices AC, AY Body
Fig. 6 Left Side Splices AC, AY Body
Ä SPLICE LOCATIONS 8W - 143

Page 894 of 2438

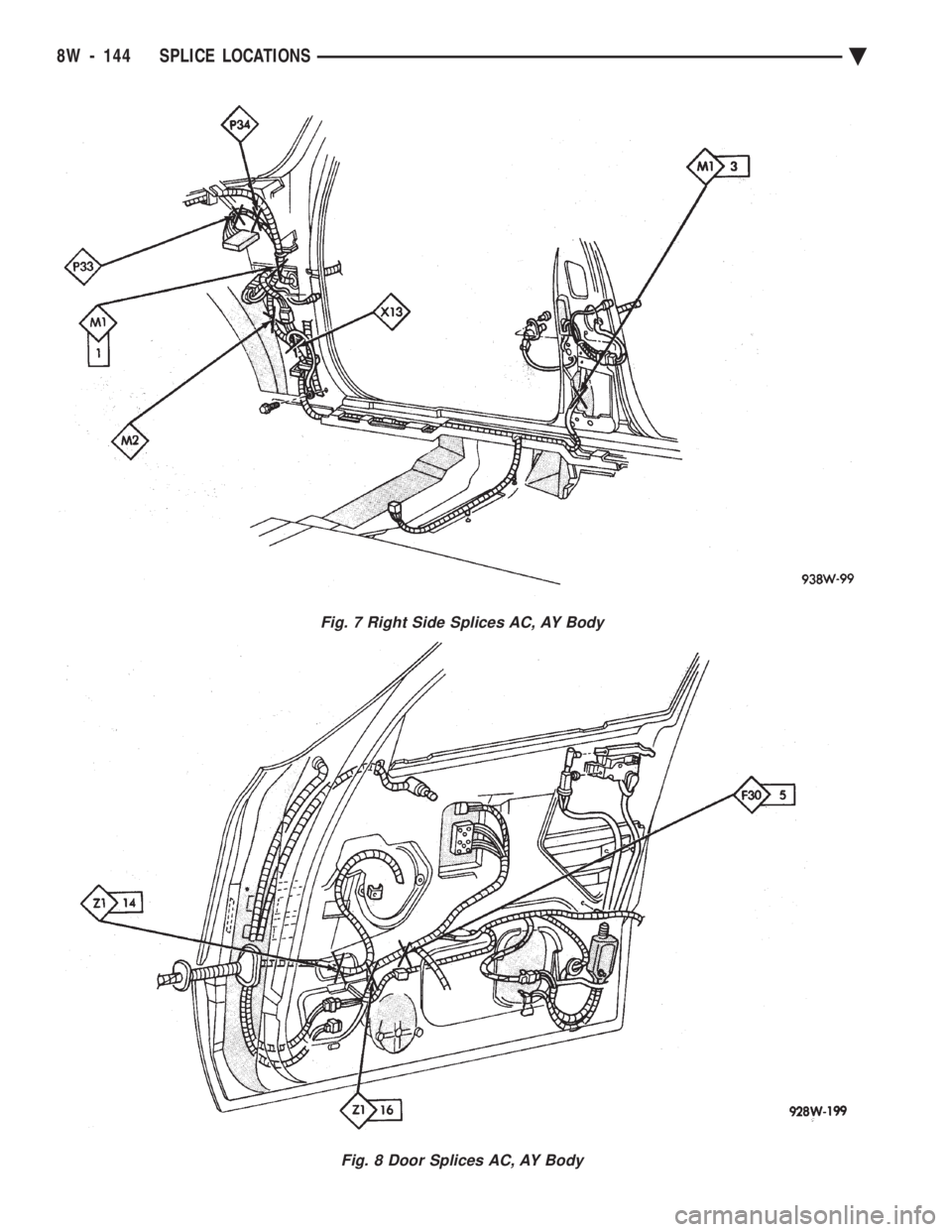

CHEVROLET DYNASTY 1993 Service Manual Fig. 7 Right Side Splices AC, AY Body
Fig. 8 Door Splices AC, AY Body
8W - 144 SPLICE LOCATIONS Ä

Page 895 of 2438

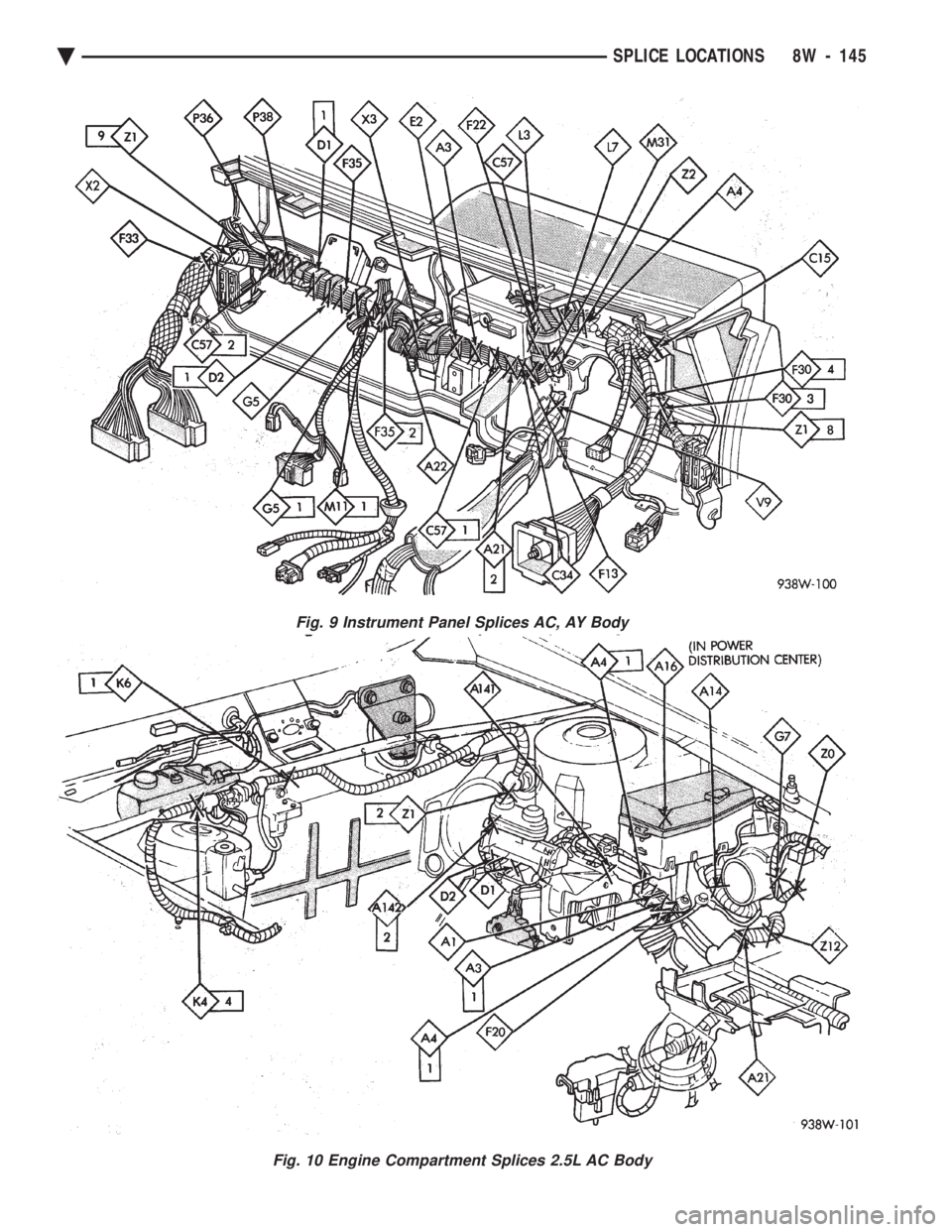

CHEVROLET DYNASTY 1993 Service Manual Fig. 9 Instrument Panel Splices AC, AY Body
Fig. 10 Engine Compartment Splices 2.5L AC Body
Ä SPLICE LOCATIONS 8W - 145

Page 896 of 2438

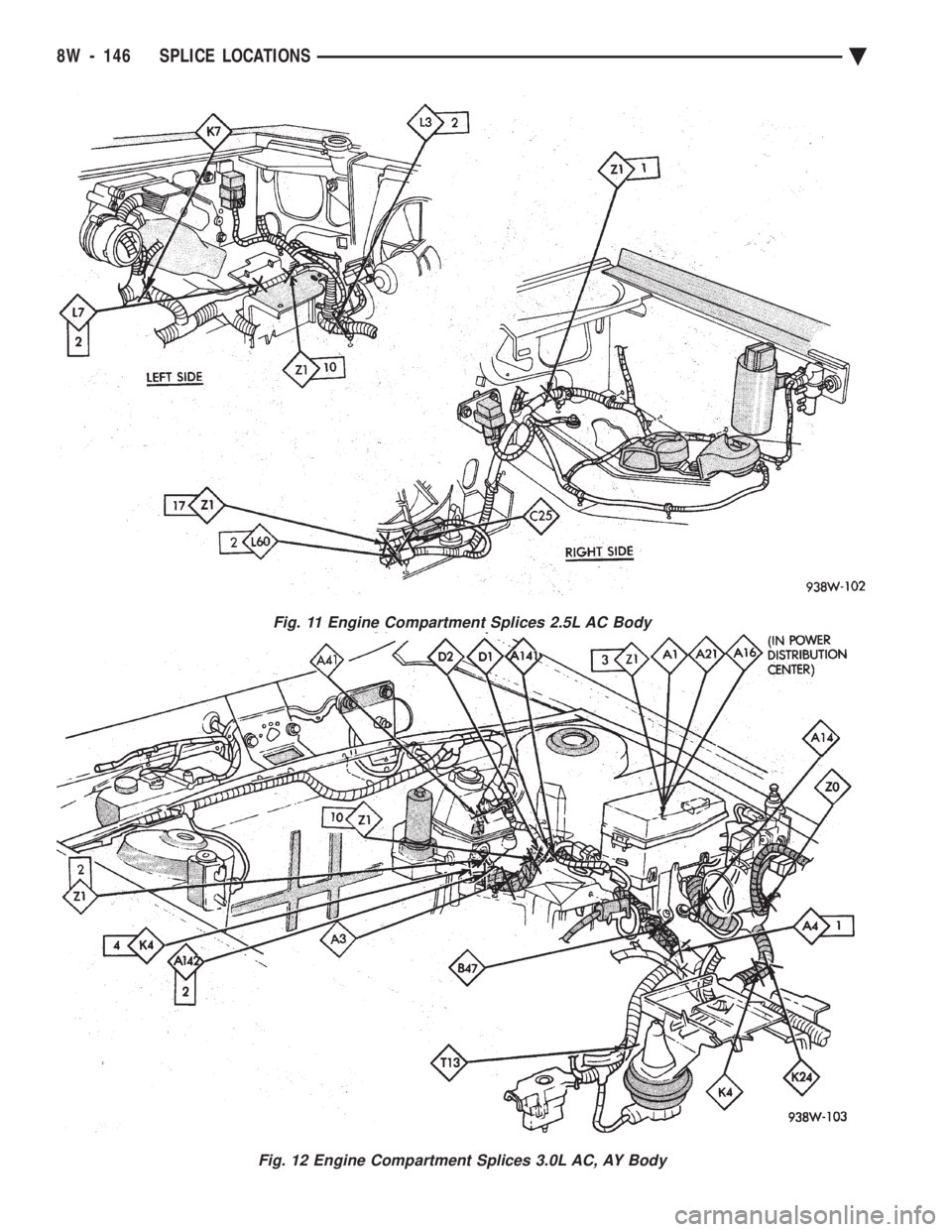

CHEVROLET DYNASTY 1993 Service Manual Fig. 11 Engine Compartment Splices 2.5L AC Body
Fig. 12 Engine Compartment Splices 3.0L AC, AY Body
8W - 146 SPLICE LOCATIONS Ä

Load next 8 pages

Page: < prev 1-10 ... 857-864 865-872 873-880 881-888 889-896 897-904 905-912 913-920 921-928 ... 2440 next >

automatic transmission service interval compression ratio steering wheel adjustment radio controls maintenance reset
