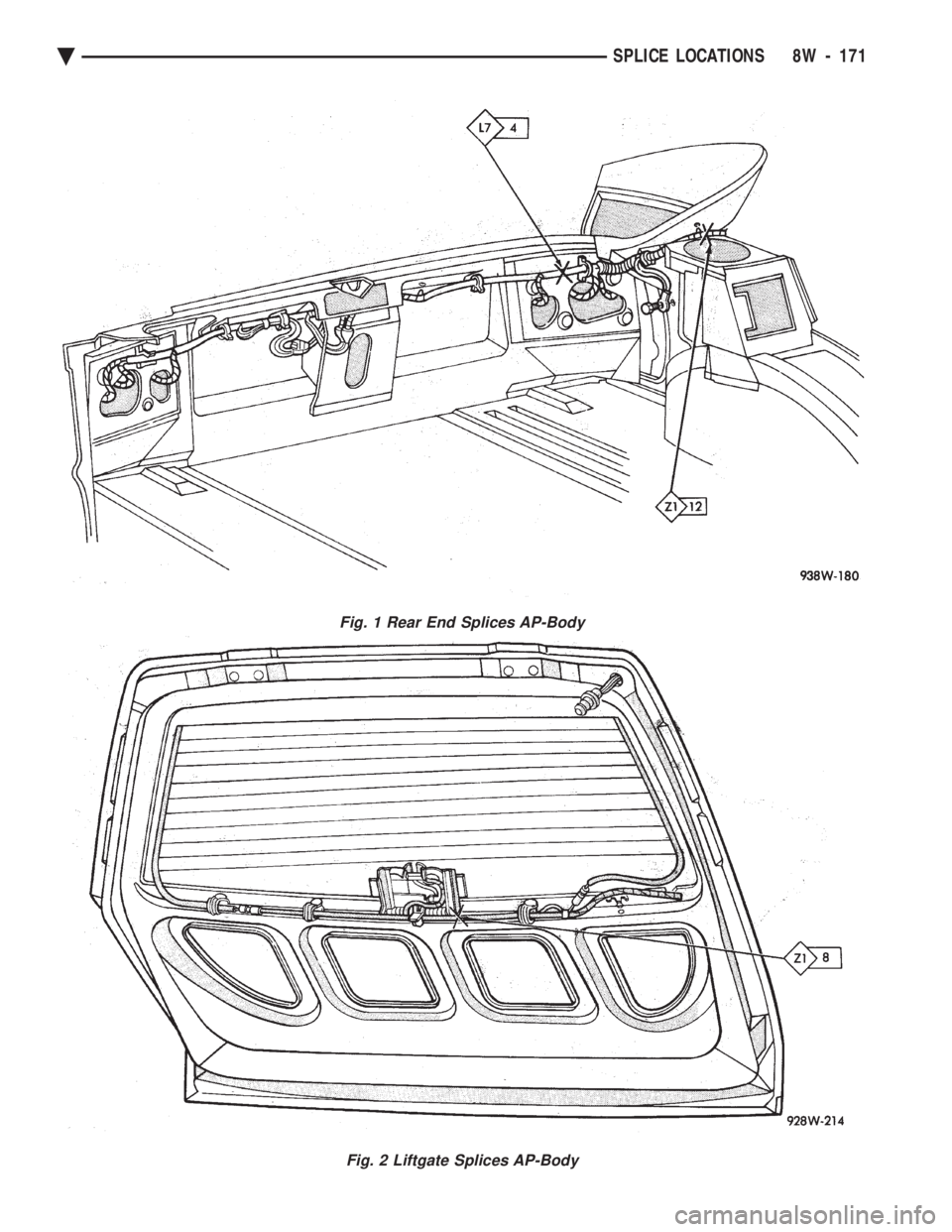

CHEVROLET DYNASTY 1993 Service Manual Fig. 1 Rear End Splices AP-Body Fig. 2 Liftgate Splices AP-Body Ä SPLICE LOCATIONS 8W - 171

Page 922 of 2438

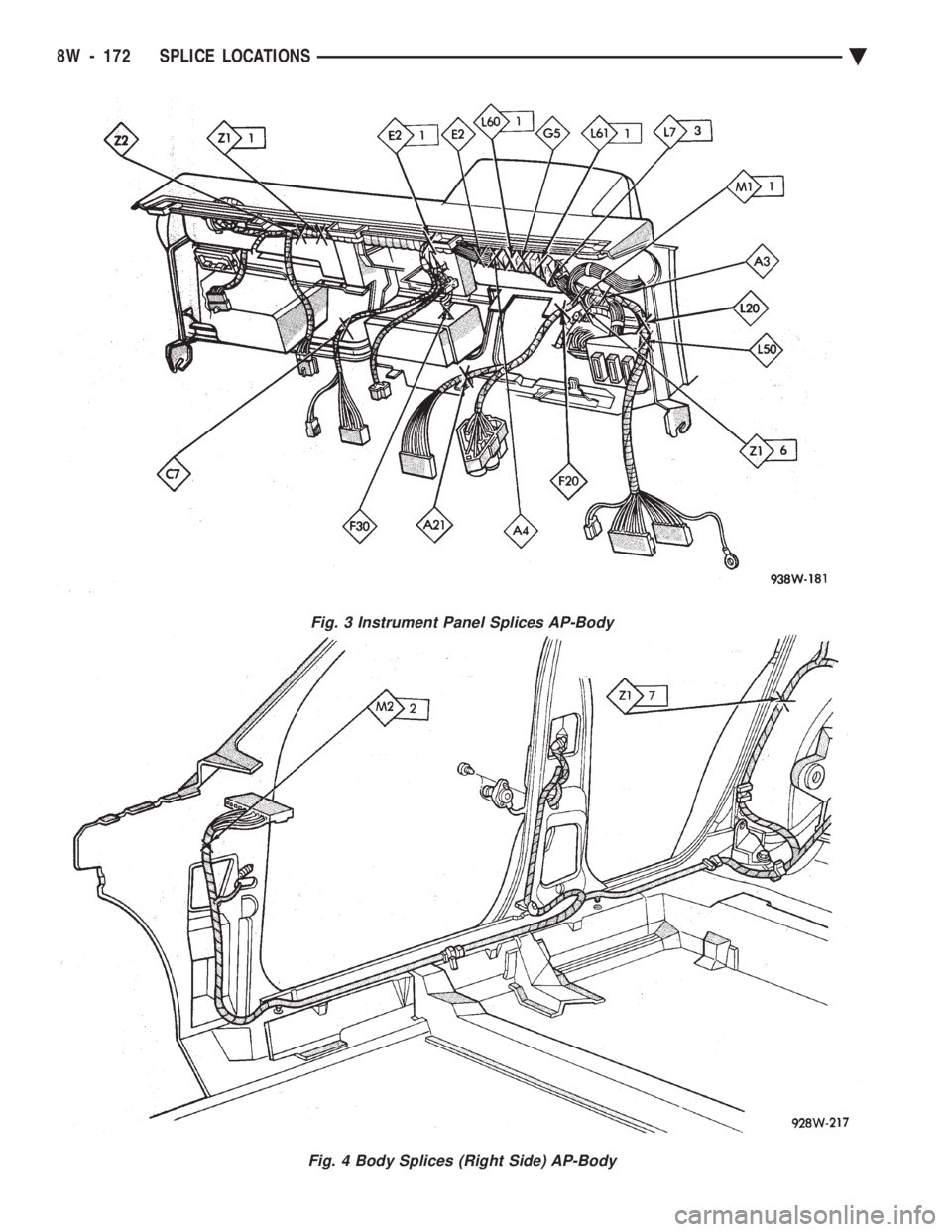

CHEVROLET DYNASTY 1993 Service Manual Fig. 3 Instrument Panel Splices AP-Body Fig. 4 Body Splices (Right Side) AP-Body 8W - 172 SPLICE LOCATIONS Ä

Page 923 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 5 Body Splices (Left Side) AP-Body Ä SPLICE LOCATIONS 8W - 173

Page 924 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 6 Cowl Panel Splices AP-Body 8W - 174 SPLICE LOCATIONS Ä

Page 925 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 7 Engine Compartment Splices 2.2L-2.5L AP-Body Ä SPLICE LOCATIONS 8W - 175

Page 926 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 8 Engine Compartment Splices 3.0L AP-Body 8W - 176 SPLICE LOCATIONS Ä

Page 927 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 9 Transmission Splices 41TE AP-Body Ä SPLICE LOCATIONS 8W - 177

Page 928 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 10 Engine Splices 2.2L-2.5L AP-Body 8W - 178 SPLICE LOCATIONS Ä
