Page 857 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 19 Engine Wiring 3.0L AP-Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 107

Page 858 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 20 Transmission Wiring AP-Body 8W - 108 WIRING AND COMPONENT IDENTIFICATION Ä

Page 859 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 21 Transmission Wiring 41TE AP-Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 109

Page 860 of 2438

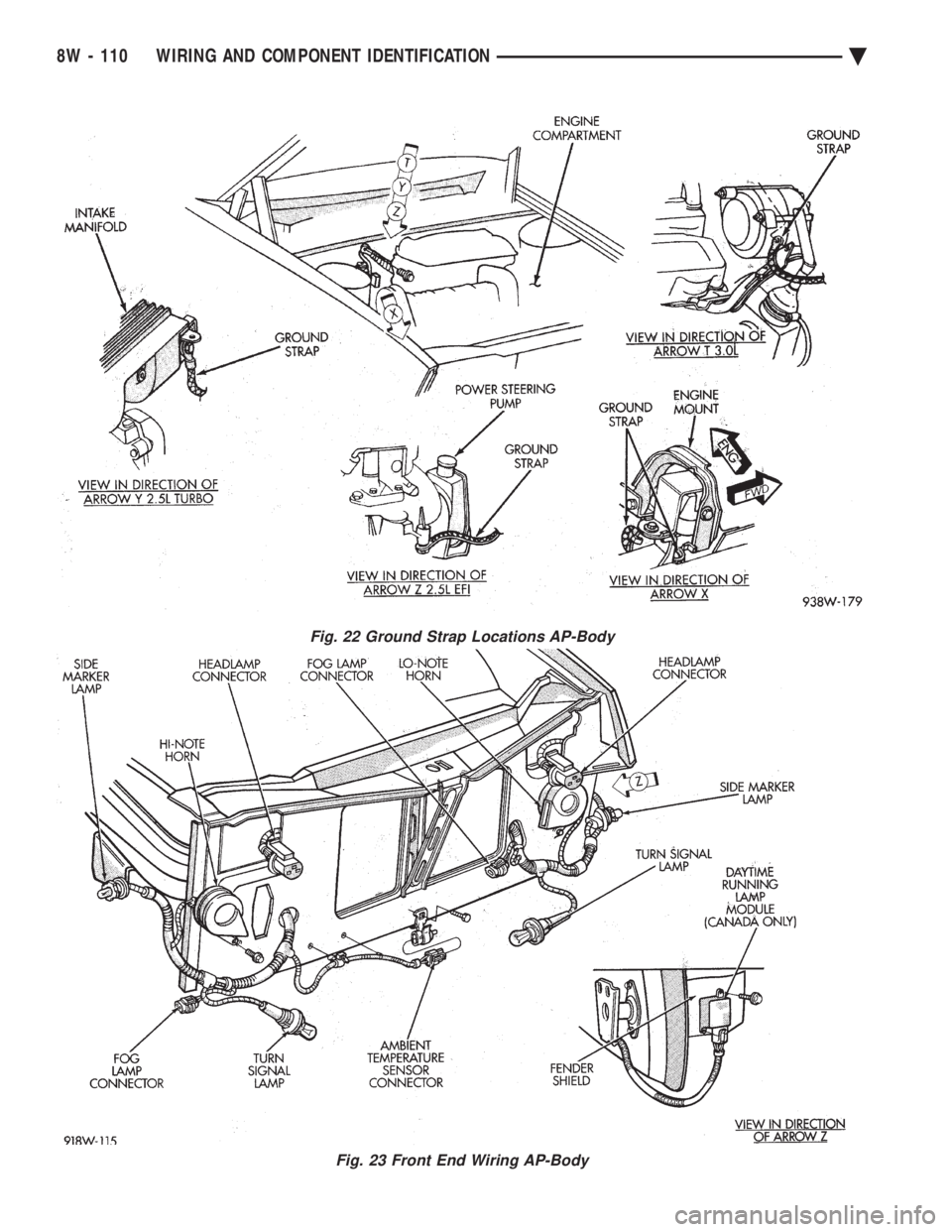

CHEVROLET DYNASTY 1993 Service Manual Fig. 22 Ground Strap Locations AP-Body Fig. 23 Front End Wiring AP-Body 8W - 110 WIRING AND COMPONENT IDENTIFICATION Ä

Page 861 of 2438

CHEVROLET DYNASTY 1993 Service Manual AY BODY-C Caption Fig. Air Suspension Wiring ..........................3 Body Left Side Wiring ...........................8 Body Right Side Wiring ..........................9 Cellular Phone Wir

Page 862 of 2438

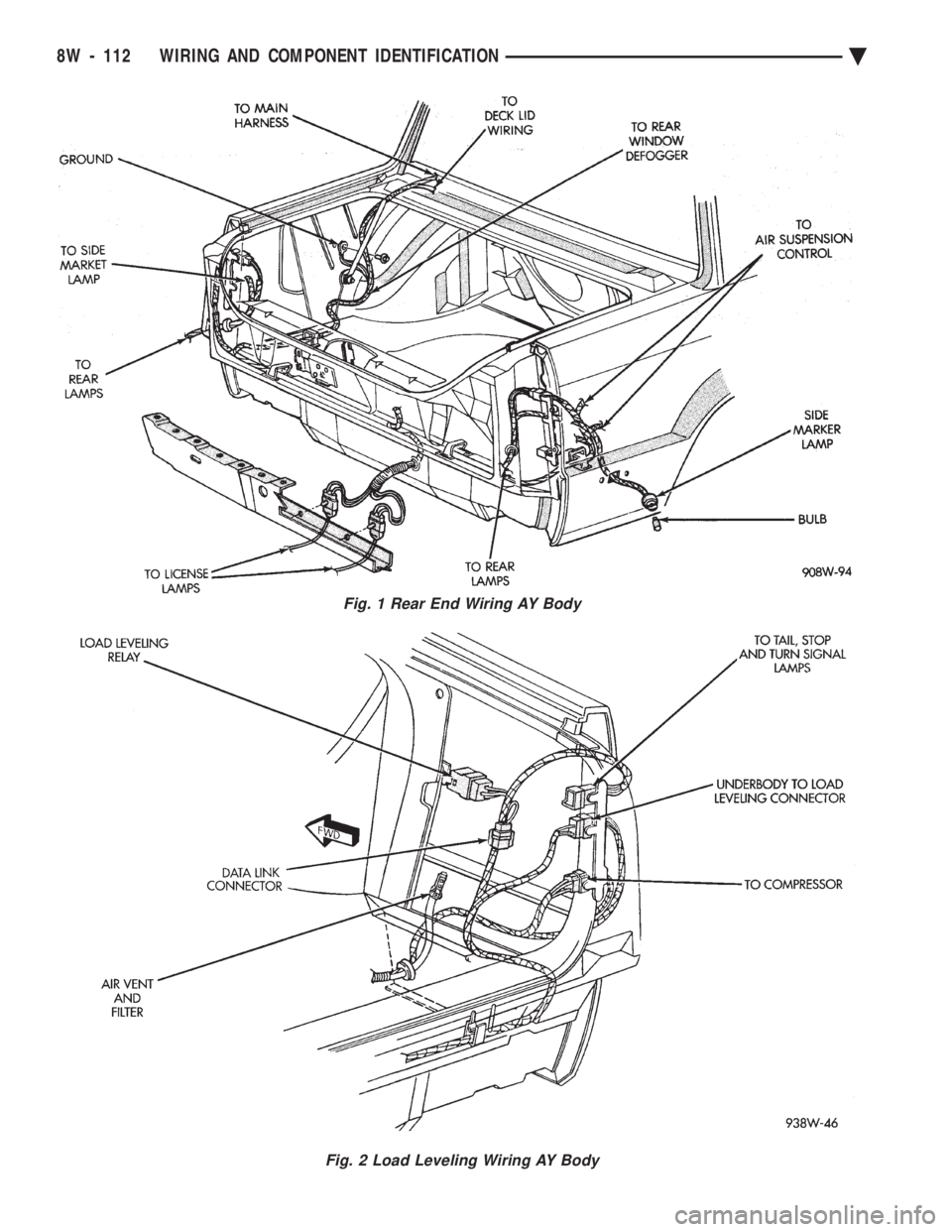

CHEVROLET DYNASTY 1993 Service Manual Fig. 1 Rear End Wiring AY Body Fig. 2 Load Leveling Wiring AY Body 8W - 112 WIRING AND COMPONENT IDENTIFICATION Ä

Page 863 of 2438

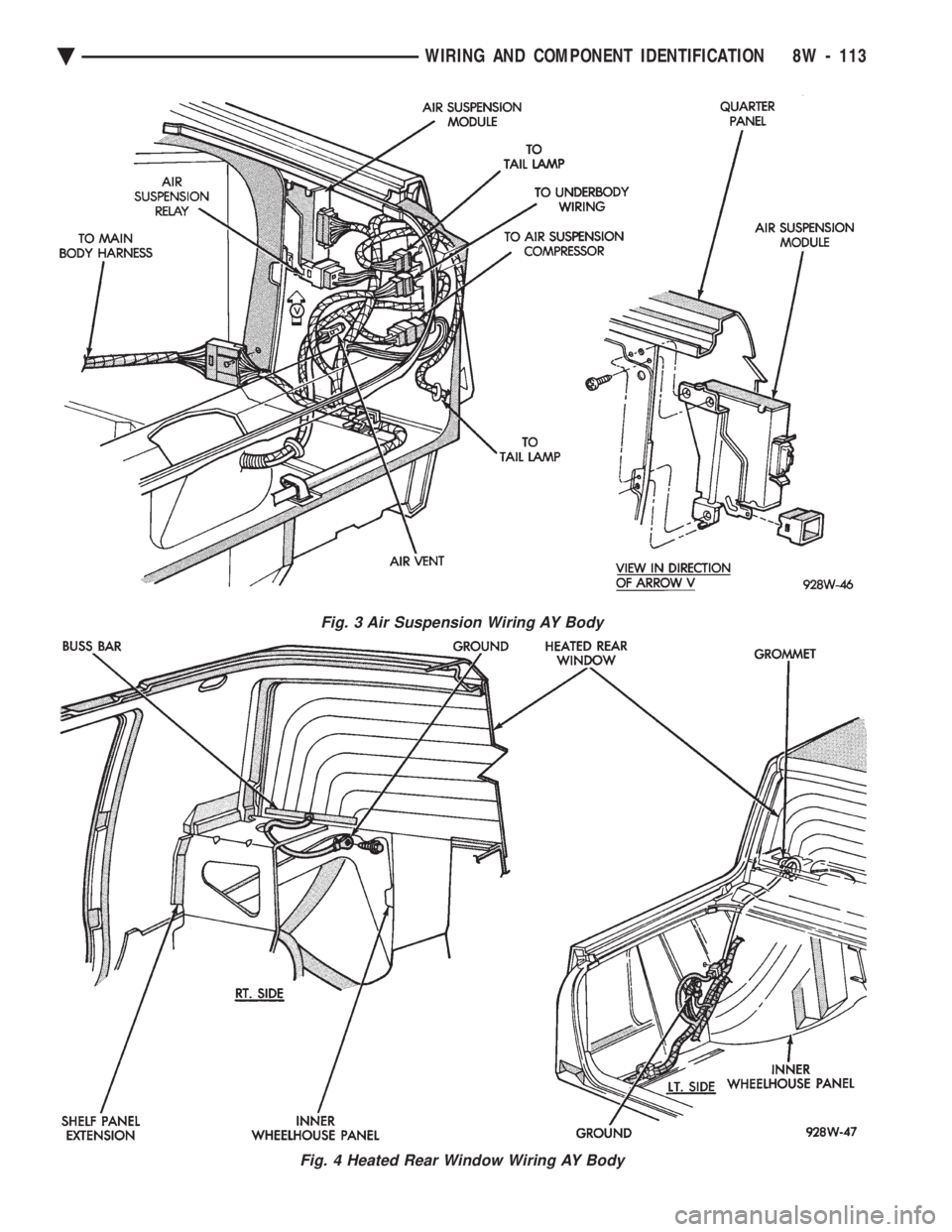

CHEVROLET DYNASTY 1993 Service Manual Fig. 4 Heated Rear Window Wiring AY Body Fig. 3 Air Suspension Wiring AY Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 113

Page 864 of 2438

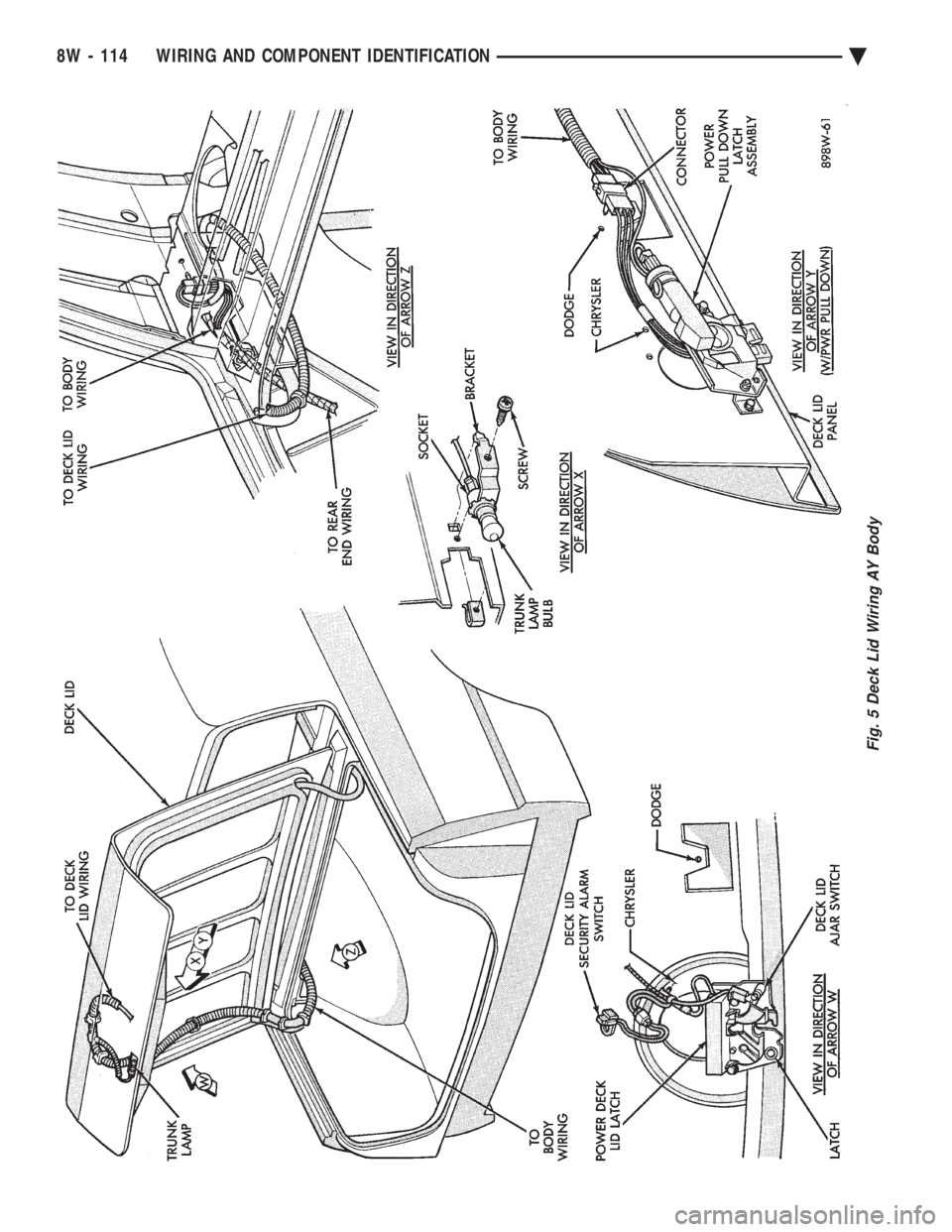

CHEVROLET DYNASTY 1993 Service Manual Fig. 5 Deck Lid Wiring AY Body 8W - 114 WIRING AND COMPONENT IDENTIFICATION Ä
