POWER MIRRORS
CONTENTS
page page
AUTOMATIC DAY/NIGHT INSIDE MIRROR .... 7
AUTOMATIC DAY/NIGHT INSIDE MIRROR WITH ULTRALIGHT HEADLAMP CONTROL ....... 7
GENERAL INFORMATION .................. 1
HEATED MIRROR ........................ 2
INSIDE MIRROR/READING LAMPS BULB/LENS REPLACEMENT ........................ 6
INSIDE MIRROR/READING LAMPS REPLACEMENT ........................ 6
MIRROR ASSEMBLY REPLACEMENTÐAA BODY.5
MIRROR ASSEMBLY REPLACEMENTÐ AC AND AY BODIES .................... 5
MIRROR ASSEMBLY REPLACEMENTÐAG BODY.5
MIRROR ASSEMBLY REPLACEMENTÐAJ BODY.5
MIRROR ASSEMBLY REPLACEMENTÐAP BODY.5
MIRROR MOTOR TEST PROCEDURE ........ 2
MIRROR SWITCH REPLACEMENTÐAA BODY . 3
MIRROR SWITCH REPLACEMENTÐAC AND AY BODIES .............................. 4
MIRROR SWITCH REPLACEMENTÐAG AND AJ BODIES .............................. 3
MIRROR SWITCH REPLACEMENTÐAP BODY . 4
MIRROR SWITCH TEST PROCEDURE ....... 2
TEST PROCEDURES ...................... 2

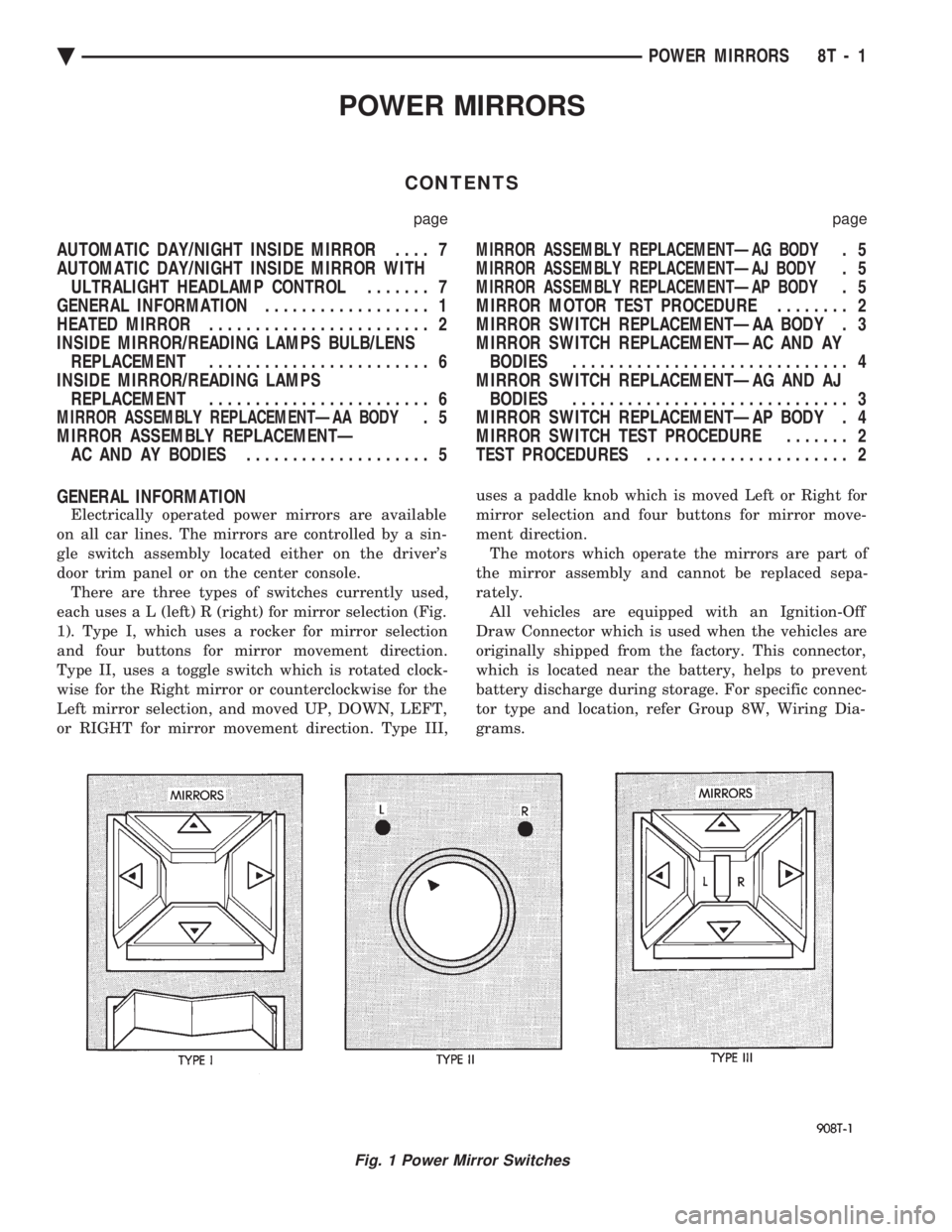

GENERAL INFORMATION
Electrically operated power mirrors are available
on all car lines. The mirrors are controlled by a sin-
gle switch assembly located either on the driver's
door trim panel or on the center console. There are three types of switches currently used,
each use s a L (left) R (right) for mirror selection (Fig.
1). Type I, which uses a rocker for mirror selection
and four buttons for mirror movement direction.
Type II, uses a toggle switch which is rotated clock-
wise for the Right mirror or counterclockwise for the
Left mirror selection, and moved UP, DOWN, LEFT,
or RIGHT for mirror movement direction. Type III, uses a paddle knob which is moved Left or Right for
mirror selection and four buttons for mirror move-
ment direction.
The motors which operate the mirrors are part of
the mirror assembly and cannot be replaced sepa-
rately. All vehicles are equipped with an Ignition-Off
Draw Connector which is used when the vehicles are
originally shipped from the factory. This connector,
which is located near the battery, helps to prevent
battery discharge during storage. For specific connec-
tor type and location, refer Group 8W, Wiring Dia-
grams.
Fig. 1 Power Mirror Switches
Ä POWER MIRRORS 8T - 1
Page 738 of 2438

This connector is included in the power mirror cir-
cuity except, for AC and AY body and should be
checked if the mirrors are inoperative.

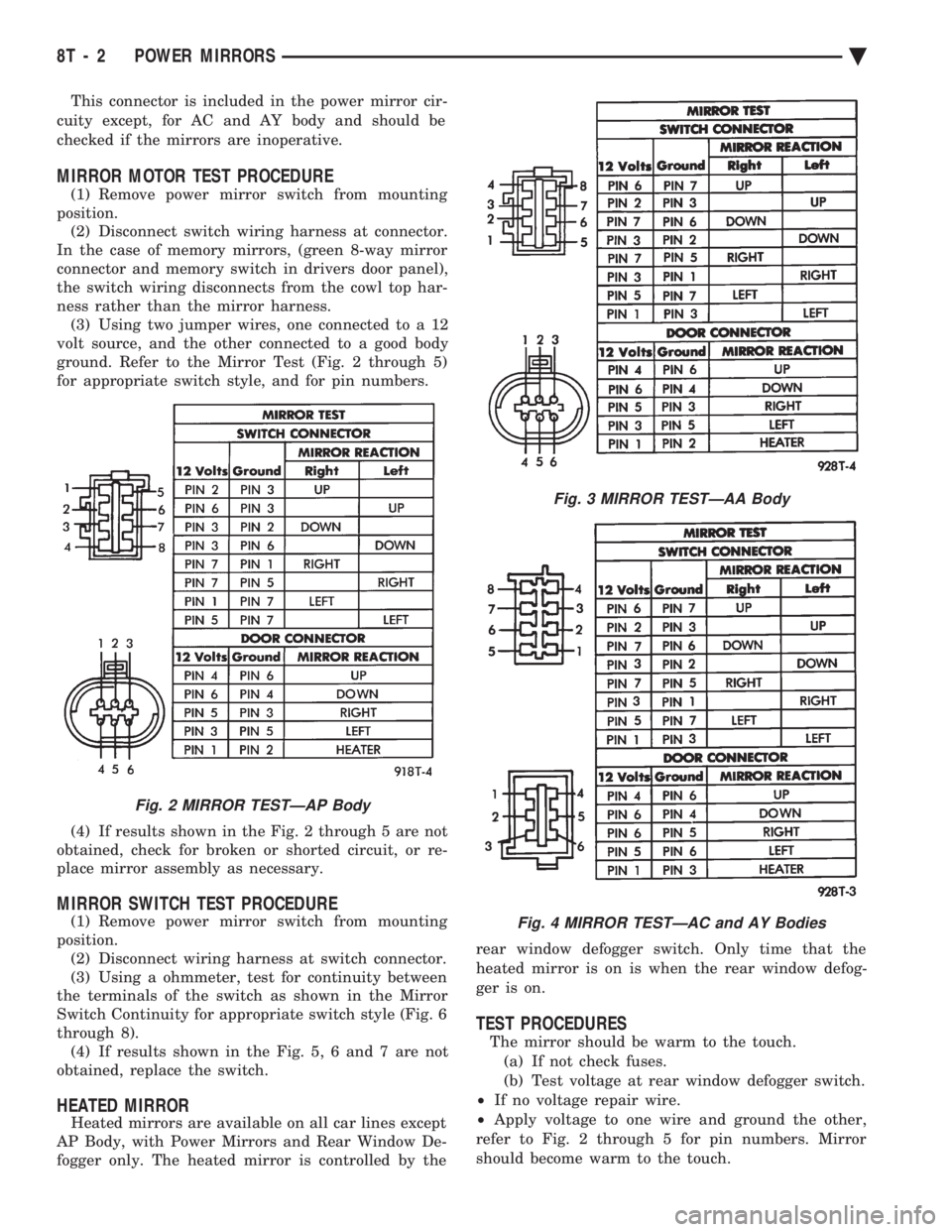

MIRROR MOTOR TEST PROCEDURE
(1) Remove power mirror switch from mounting
position. (2) Disconnect switch wiring harness at connector.
In the case of memory mirrors, (green 8-way mirror
connector and memory switch in drivers door panel),
the switch wiring disconnects from the cowl top har-
ness rather than the mirror harness. (3) Using two jumper wires, one connected to a 12
volt source, and the other connected to a good body
ground. Refer to the Mirror Test (Fig. 2 through 5)
for appropriate switch style, and for pin numbers.
(4) If results shown in the Fig. 2 through 5 are not
obtained, check for broken or shorted circuit, or re-
place mirror assembly as necessary.
MIRROR SWITCH TEST PROCEDURE
(1) Remove power mirror switch from mounting
position. (2) Disconnect wiring harness at switch connector.
(3) Using a ohmmeter, test for continuity between
the terminals of the switch as shown in the Mirror
Switch Continuity for appropriate switch style (Fig. 6
through 8). (4) If results shown in the Fig. 5, 6 and 7 are not
obtained, replace the switch.
HEATED MIRROR
Heated mirrors are available on all car lines except
AP Body, with Power Mirrors and Rear Window De-
fogger only. The heated mirror is controlled by the rear window defogger switch. Only time that the
heated mirror is on is when the rear window defog-
ger is on.
TEST PROCEDURES
The mirror should be warm to the touch. (a) If not check fuses.
(b) Test voltage at rear window defogger switch.
² If no voltage repair wire.
² Apply voltage to one wire and ground the other,
refer to Fig. 2 through 5 for pin numbers. Mirror
should become warm to the touch.
Fig. 2 MIRROR TESTÐAP Body
Fig. 3 MIRROR TESTÐAA Body
Fig. 4 MIRROR TESTÐAC and AY Bodies
8T - 2 POWER MIRRORS Ä
Page 739 of 2438
² If not remove mirror glass and test the wires for
continuity. If no continuity repair wires.
² If wires are OK, replace mirror glass.
² To test defogger switch refer to Group 8N, Rear
Window Defogger, Control Switch/Timer Relay Mod-
ule Test.

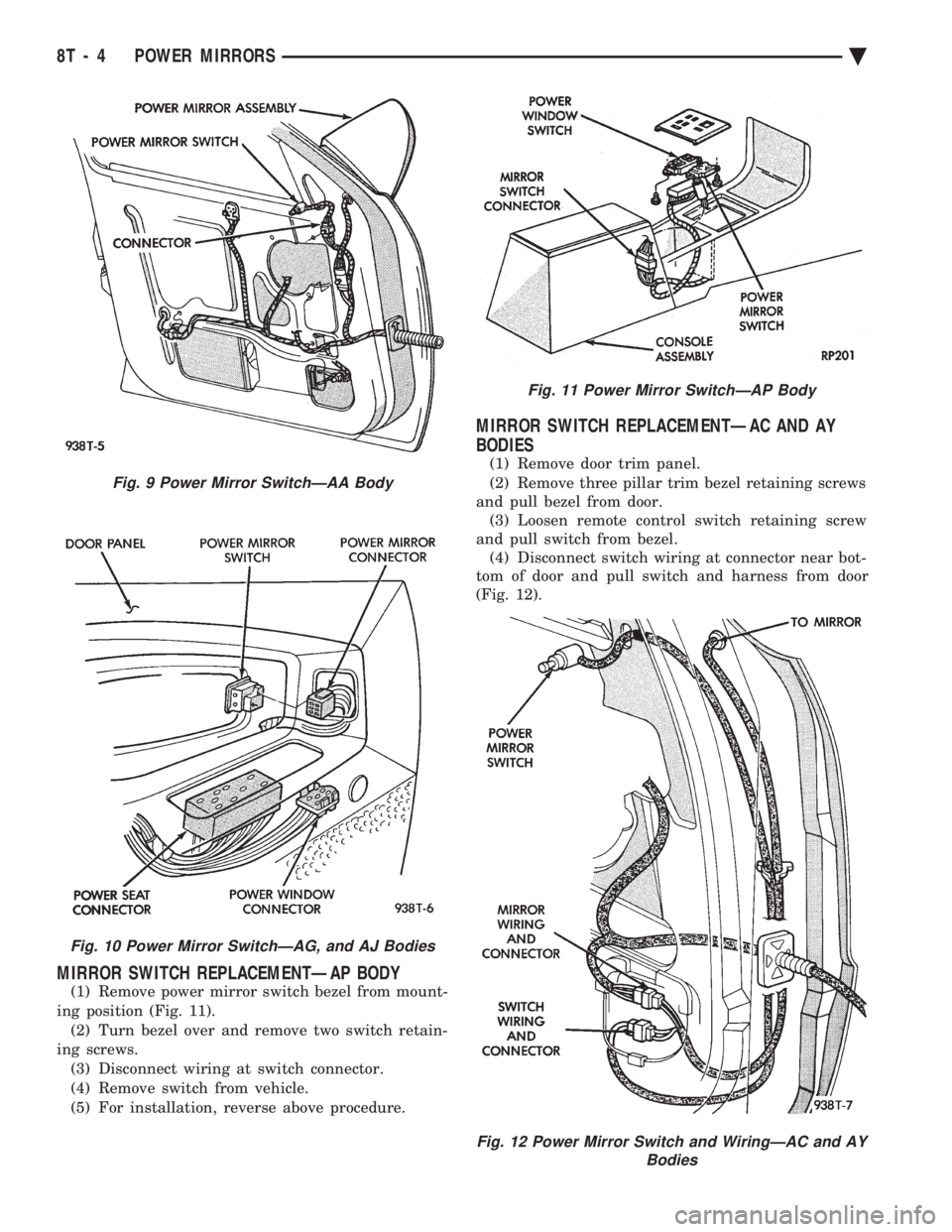

MIRROR SWITCH REPLACEMENTÐAA BODY
(1) Remove door trim panel.
(2) Remove set screw from pillar trim bezel.
(3) Remove pillar trim bezel retaining screws. (4) Disconnect switch wiring (Fig. 9).
(5) Remove switch from switch bezel.
(6) For installation, reverse above procedure.
MIRROR SWITCH REPLACEMENTÐAG AND AJ
BODIES
(1) Carefully pry switch from switch bezel (Fig.
10). (2) Remove switch wiring connector.
(3) For installation, reverse above procedure.
Fig. 5 MIRROR TESTÐAG and AJ Bodies
Fig. 6 Type I Mirror Switch Test
Fig. 7 Type II Mirror Switch Test
Fig. 8 Type III Mirror Switch Test
Ä POWER MIRRORS 8T - 3
Page 740 of 2438
MIRROR SWITCH REPLACEMENTÐAP BODY
(1) Remove power mirror switch bezel from mount-
ing position (Fig. 11). (2) Turn bezel over and remove two switch retain-
ing screws. (3) Disconnect wiring at switch connector.
(4) Remove switch from vehicle.
(5) For installation, reverse above procedure.
MIRROR SWITCH REPLACEMENTÐAC AND AY
BODIES
(1) Remove door trim panel.
(2) Remove three pillar trim bezel retaining screws
and pull bezel from door. (3) Loosen remote control switch retaining screw
and pull switch from bezel. (4) Disconnect switch wiring at connector near bot-
tom of door and pull switch and harness from door
(Fig. 12).
Fig. 9 Power Mirror SwitchÐAA Body
Fig. 10 Power Mirror SwitchÐAG, and AJ Bodies
Fig. 11 Power Mirror SwitchÐAP Body
Fig. 12 Power Mirror Switch and WiringÐAC and AY Bodies
8T - 4 POWER MIRRORS Ä
Page 741 of 2438

(5) For installation, reverse above procedure.

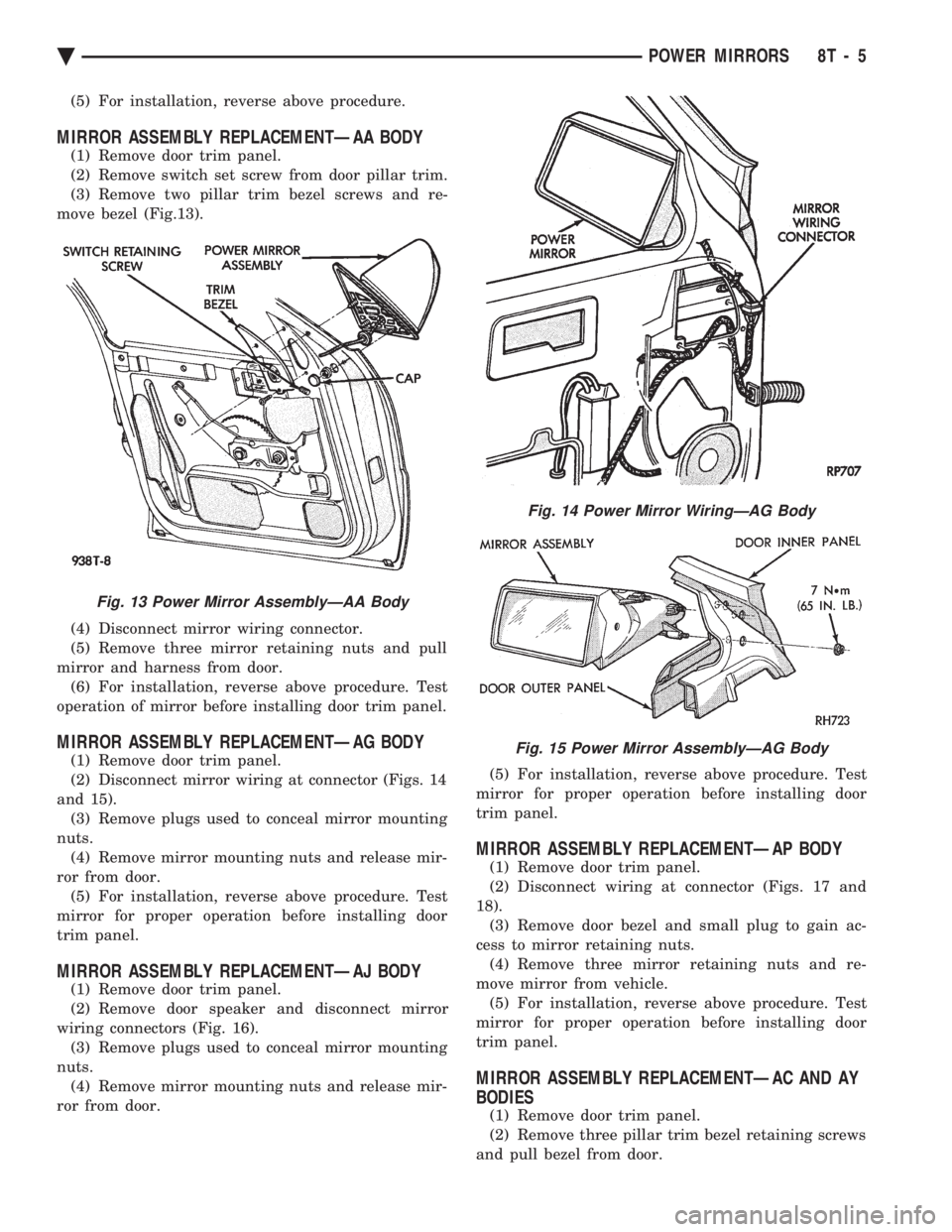

MIRROR ASSEMBLY REPLACEMENTÐAA BODY
(1) Remove door trim panel.
(2) Remove switch set screw from door pillar trim.
(3) Remove two pillar trim bezel screws and re-
move bezel (Fig.13).
(4) Disconnect mirror wiring connector.
(5) Remove three mirror retaining nuts and pull
mirror and harness from door. (6) For installation, reverse above procedure. Test
operation of mirror before installing door trim panel.
MIRROR ASSEMBLY REPLACEMENTÐAG BODY
(1) Remove door trim panel.
(2) Disconnect mirror wiring at connector (Figs. 14
and 15). (3) Remove plugs used to conceal mirror mounting
nuts. (4) Remove mirror mounting nuts and release mir-
ror from door. (5) For installation, reverse above procedure. Test
mirror for proper operation before installing door
trim panel.
MIRROR ASSEMBLY REPLACEMENTÐAJ BODY
(1) Remove door trim panel.
(2) Remove door speaker and disconnect mirror
wiring connectors (Fig. 16). (3) Remove plugs used to conceal mirror mounting
nuts. (4) Remove mirror mounting nuts and release mir-
ror from door. (5) For installation, reverse above procedure. Test
mirror for proper operation before installing door
trim panel.
MIRROR ASSEMBLY REPLACEMENTÐAP BODY
(1) Remove door trim panel.
(2) Disconnect wiring at connector (Figs. 17 and
18). (3) Remove door bezel and small plug to gain ac-
cess to mirror retaining nuts. (4) Remove three mirror retaining nuts and re-
move mirror from vehicle. (5) For installation, reverse above procedure. Test
mirror for proper operation before installing door
trim panel.

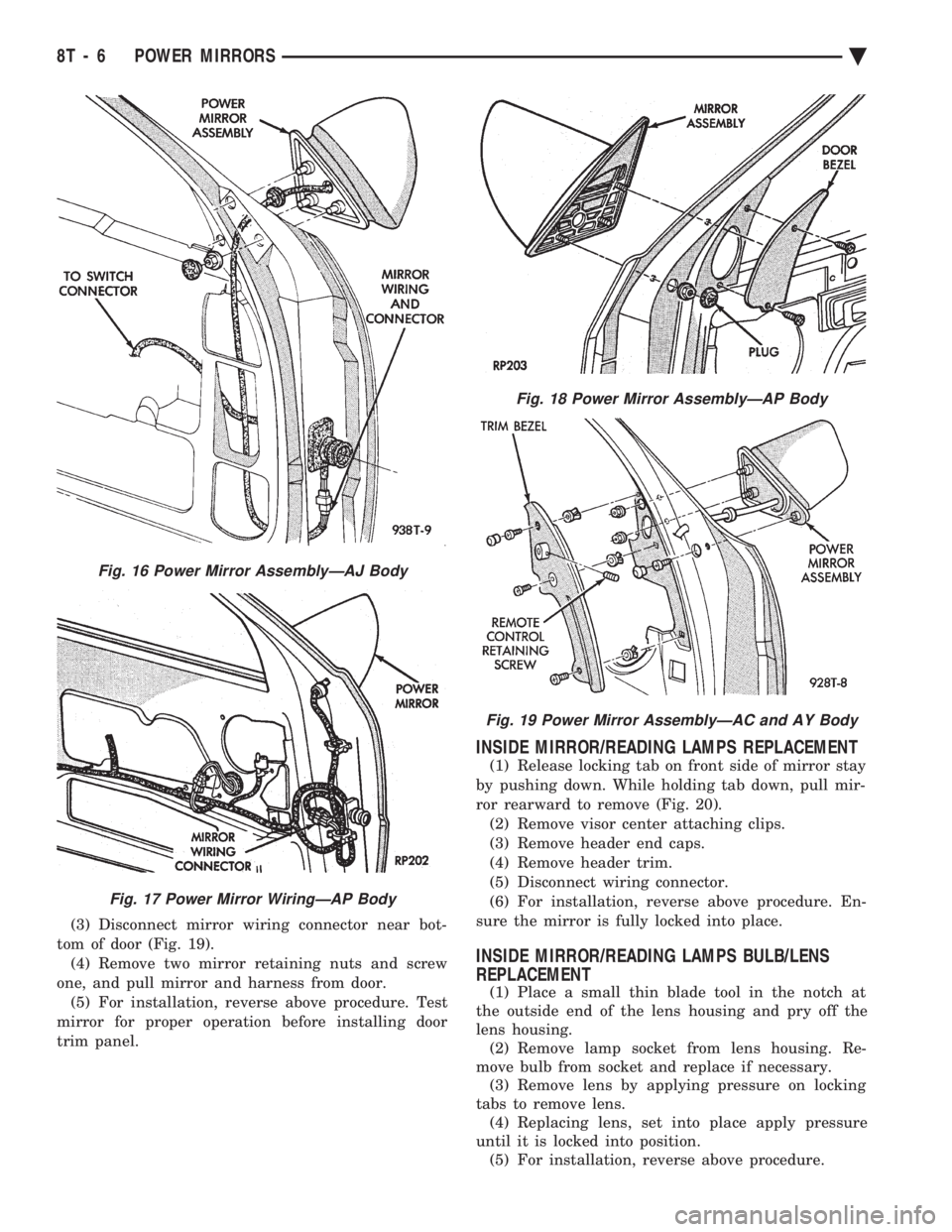

MIRROR ASSEMBLY REPLACEMENTÐAC AND AY
BODIES
(1) Remove door trim panel.
(2) Remove three pillar trim bezel retaining screws
and pull bezel from door.
Fig. 13 Power Mirror AssemblyÐAA Body
Fig. 14 Power Mirror WiringÐAG Body
Fig. 15 Power Mirror AssemblyÐAG Body
Ä POWER MIRRORS 8T - 5
Page 742 of 2438

(3) Disconnect mirror wiring connector near bot-
tom of door (Fig. 19). (4) Remove two mirror retaining nuts and screw
one, and pull mirror and harness from door. (5) For installation, reverse above procedure. Test
mirror for proper operation before installing door
trim panel.
INSIDE MIRROR/READING LAMPS REPLACEMENT
(1) Release locking tab on front side of mirror stay
by pushing down. While holding tab down, pull mir-
ror rearward to remove (Fig. 20). (2) Remove visor center attaching clips.
(3) Remove header end caps.
(4) Remove header trim.
(5) Disconnect wiring connector.
(6) For installation, reverse above procedure. En-
sure the mirror is fully locked into place.
INSIDE MIRROR/READING LAMPS BULB/LENS
REPLACEMENT
(1) Place a small thin blade tool in the notch at
the outside end of the lens housing and pry off the
lens housing. (2) Remove lamp socket from lens housing. Re-
move bulb from socket and replace if necessary. (3) Remove lens by applying pressure on locking
tabs to remove lens. (4) Replacing lens, set into place apply pressure
until it is locked into position. (5) For installation, reverse above procedure.
Fig. 16 Power Mirror AssemblyÐAJ Body
Fig. 17 Power Mirror WiringÐAP Body
Fig. 18 Power Mirror AssemblyÐAP Body
Fig. 19 Power Mirror AssemblyÐAC and AY Body
8T - 6 POWER MIRRORS Ä
Page 743 of 2438

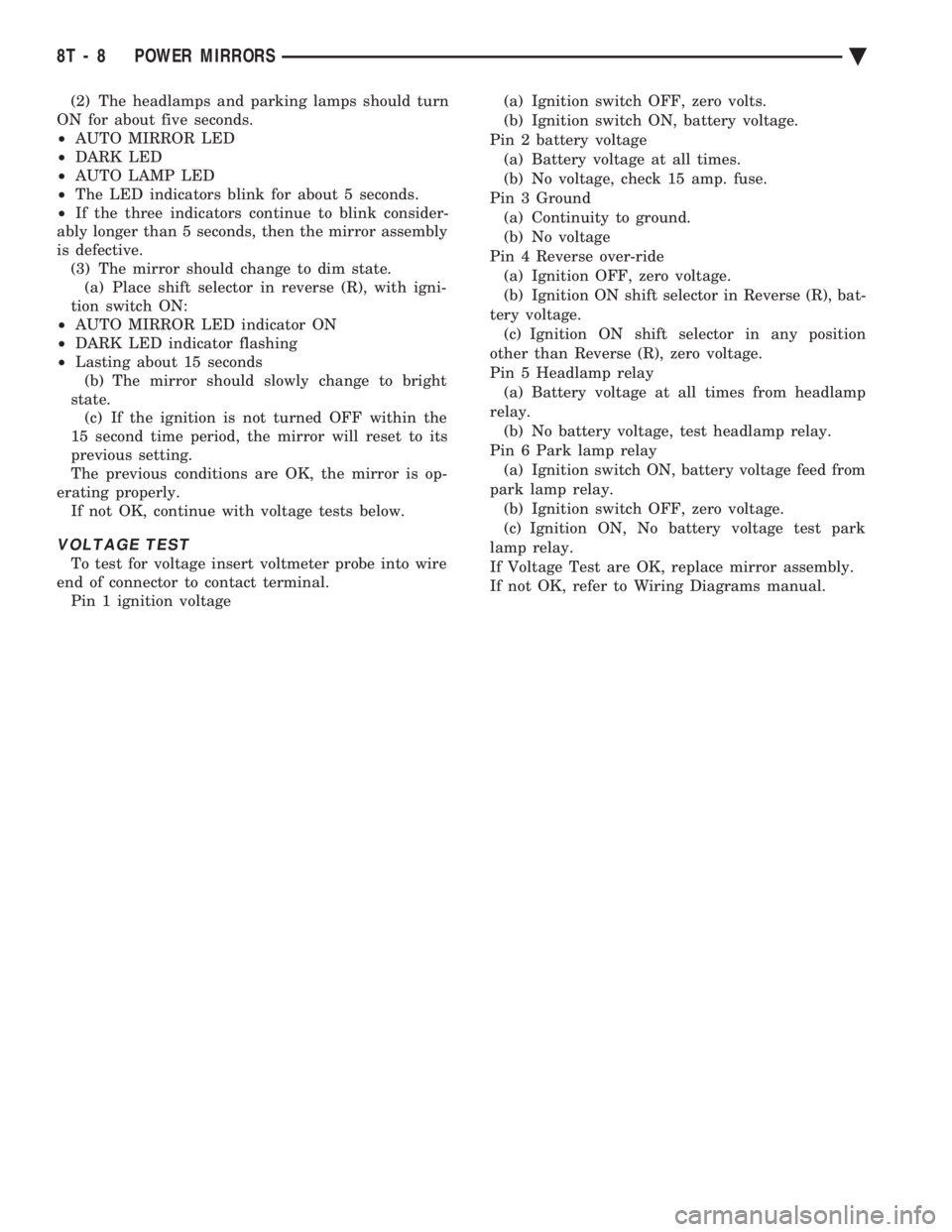

AUTOMATIC DAY/NIGHT INSIDE MIRROR
Operational test:
² Turn ignition switch to the ON position with the
vehicle in park (Fig. 21).
² Place mirror switch in the high position.
² Cover the forward facing sensor with dark cloth to
keep out any ambient light.
² Shine a light into the rear facing sensor, watch to
see if the mirror darkens. With the mirror darkened, place the vehicle in re-
verse, the mirror should return to its normal condi-
tion. If the above conditions are met the mirror is oper-
ating properly.
² If not test voltage.
Test three way connector harness. Refer to Fig. 21. (1) Pin 1 Ignition Switch in run position, should
have battery voltage. (2) Pin 2 Should have continuity to Ground.
(3) Pin 3 When the transmission is in reverse,
should have battery voltage. (4) If test is OK replace Mirror.
(5) If not refer, to Wiring Diagrams manual to test
the circuits.
AUTOMATIC DAY/NIGHT INSIDE MIRROR WITH
ULTRALIGHT HEADLAMP CONTROL
CAUTION:When JUMP STARTING the vehicle, be-
fore cranking engine turn ignition ON and turn OFF
the Automatic Headlamp Control.
The mirror automatically reduces the amount of
headlamp glare from rear approaching traffic and
provides automatic headlamp control (Fig. 22).
SELF DIAGNOSTIC MODEÐOPERATIONAL TEST:
(1) Place shift selector in park (P) or Neutral (N)
position. With ignition OFF, press and hold AUTO
MIRROR and AUTO LAMP (headlamp) buttons, turn
ignition switch ON. When LED indicators start
flashing, release buttons. (a) The button LED indicators should flash for
about five seconds.
² AUTO MIRROR
² DARK
² AUTO LAMP
(b) If they continue to flash much longer than
five seconds, the mirror assembly is defective.
Fig. 20 Header Mirror/Reading Lamps
Fig. 21 Automatic Day / Night Mirror
Fig. 22 Automatic Day / Night Mirror with Ultralight Headlamp Control
Ä POWER MIRRORS 8T - 7
Page 744 of 2438

(2) The headlamps and parking lamps should turn
ON for about five seconds.
² AUTO MIRROR LED
² DARK LED
² AUTO LAMP LED
² The LED indicators blink for about 5 seconds.
² If the three indicators continue to blink consider-
ably longer than 5 seconds, then the mirror assembly
is defective. (3) The mirror should change to dim state.(a) Place shift selector in reverse (R), with igni-
tion switch ON:
² AUTO MIRROR LED indicator ON
² DARK LED indicator flashing
² Lasting about 15 seconds
(b) The mirror should slowly change to bright
state. (c) If the ignition is not turned OFF within the
15 second time period, the mirror will reset to its
previous setting.
The previous conditions are OK, the mirror is op-
erating properly. If not OK, continue with voltage tests below.
VOLTAGE TEST
To test for voltage insert voltmeter probe into wire
end of connector to contact terminal. Pin 1 ignition voltage (a) Ignition switch OFF, zero volts.
(b) Ignition switch ON, battery voltage.
Pin 2 battery voltage (a) Battery voltage at all times.
(b) No voltage, check 15 amp. fuse.
Pin 3 Ground (a) Continuity to ground.
(b) No voltage
Pin 4 Reverse over-ride (a) Ignition OFF, zero voltage.
(b) Ignition ON shift selector in Reverse (R), bat-
tery voltage. (c) Ignition ON shift selector in any position
other than Reverse (R), zero voltage.
Pin 5 Headlamp relay (a) Battery voltage at all times from headlamp
relay. (b) No battery voltage, test headlamp relay.
Pin 6 Park lamp relay (a) Ignition switch ON, battery voltage feed from
park lamp relay. (b) Ignition switch OFF, zero voltage.
(c) Ignition ON, No battery voltage test park
lamp relay.
If Voltage Test are OK, replace mirror assembly.
If not OK, refer to Wiring Diagrams manual.
8T - 8 POWER MIRRORS Ä
