CHEVROLET DYNASTY 1993 Service Manual Fig. 21 Engine Wiring 3.0L AA Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 35

Page 786 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 22 Front End Wiring AA Body 8W - 36 WIRING AND COMPONENT IDENTIFICATION Ä

Page 787 of 2438

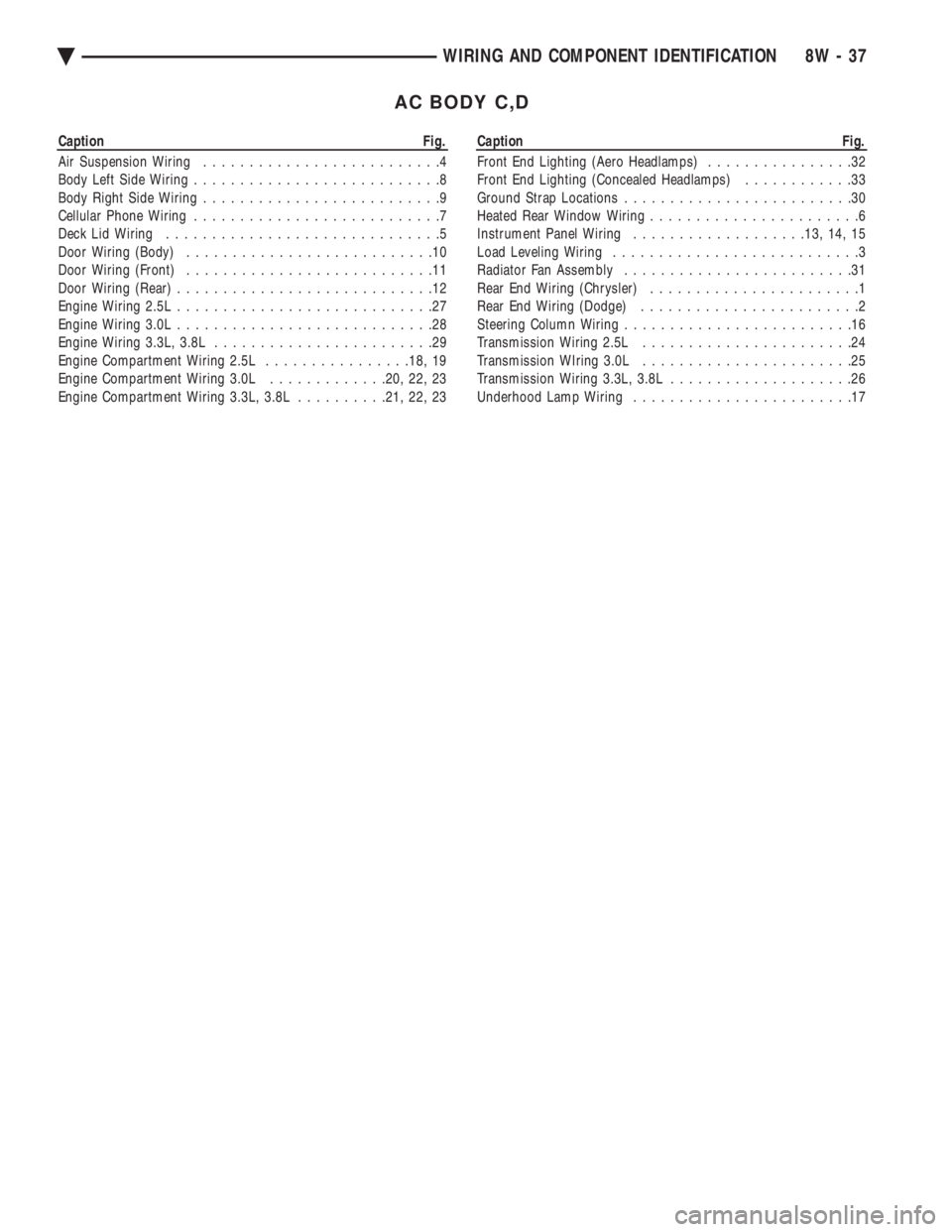

CHEVROLET DYNASTY 1993 Service Manual AC BODY C,D Caption Fig. Air Suspension Wiring ..........................4 Body Left Side Wiring ...........................8 Body Right Side Wiring ..........................9 Cellular Phone W

Page 788 of 2438

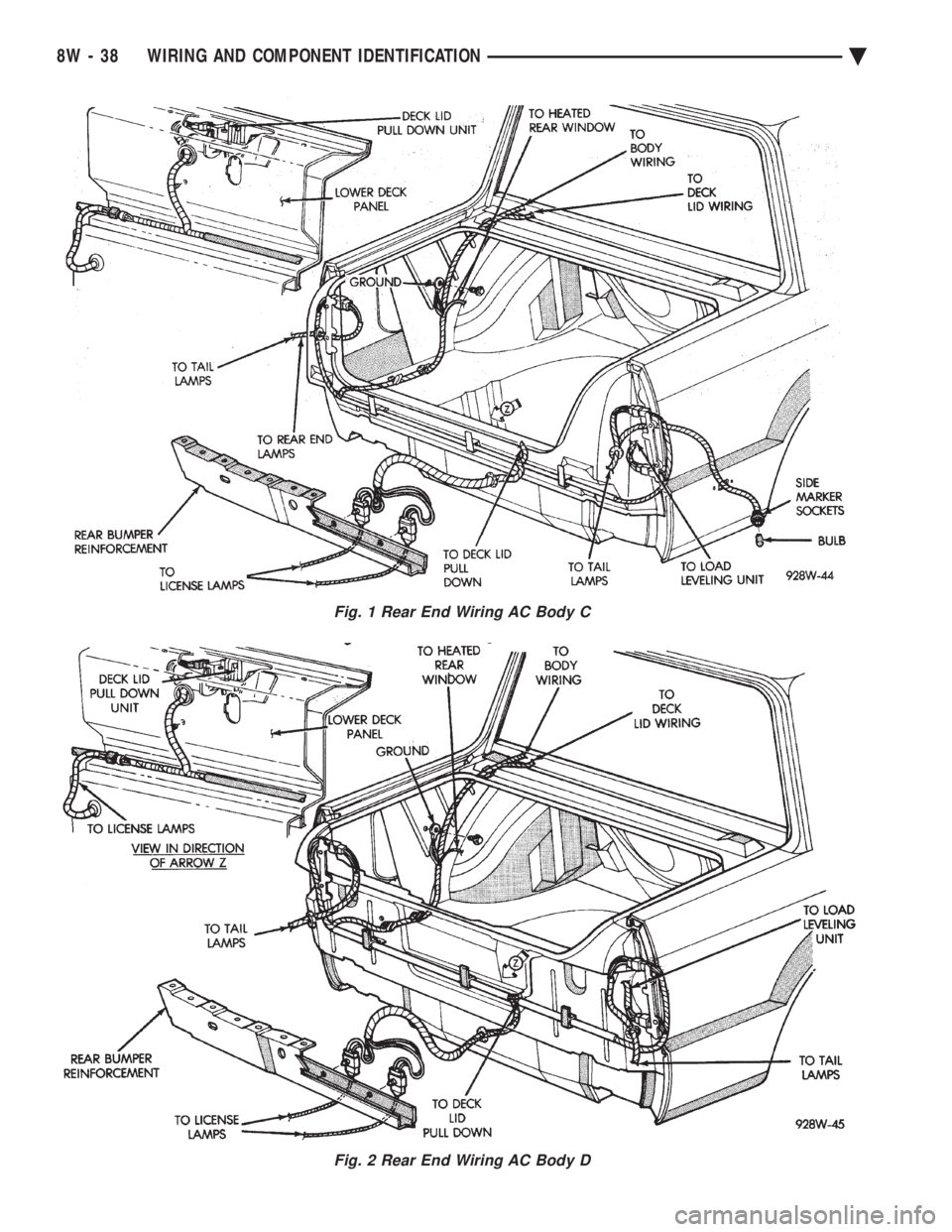

CHEVROLET DYNASTY 1993 Service Manual Fig. 1 Rear End Wiring AC Body C Fig. 2 Rear End Wiring AC Body D 8W - 38 WIRING AND COMPONENT IDENTIFICATION Ä

Page 789 of 2438

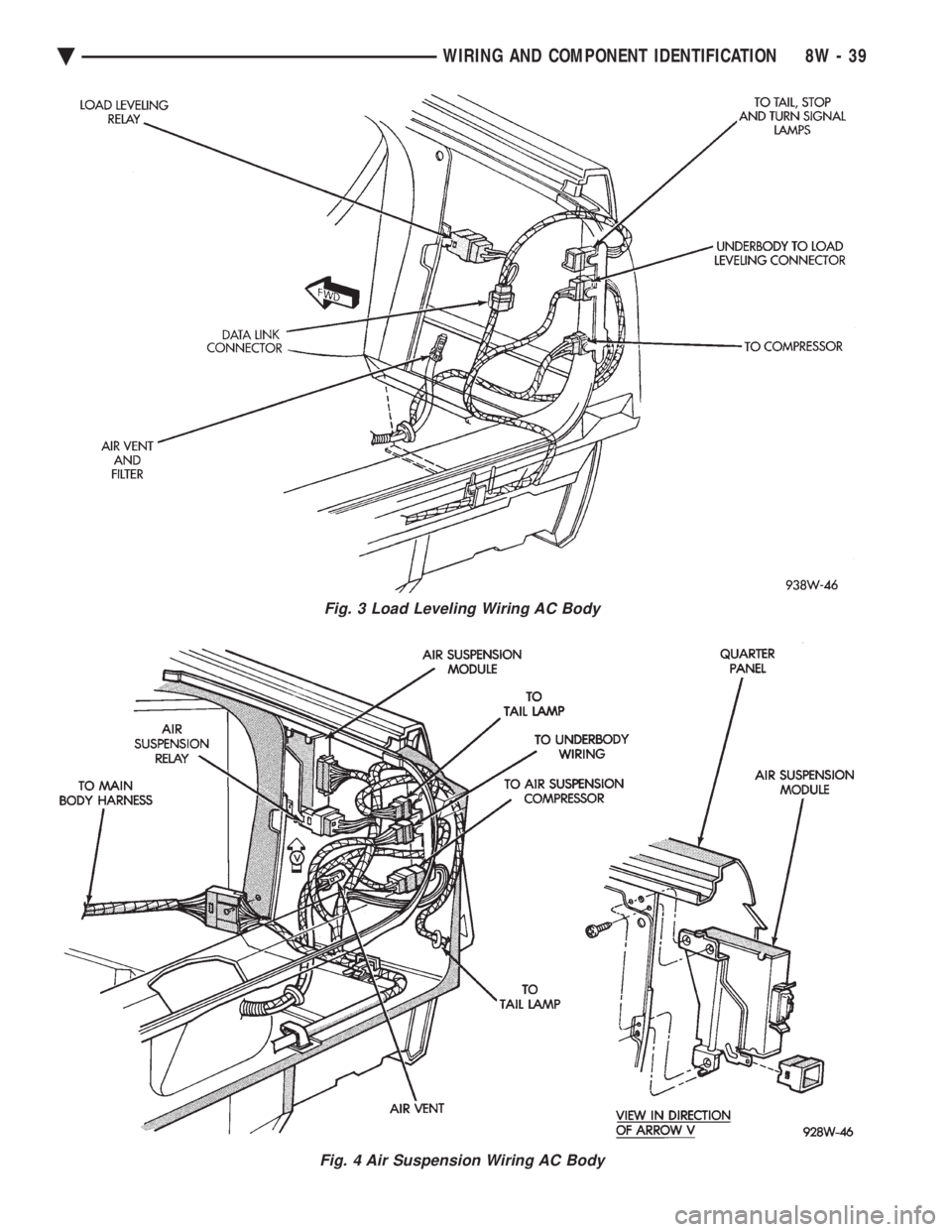

CHEVROLET DYNASTY 1993 Service Manual Fig. 3 Load Leveling Wiring AC Body Fig. 4 Air Suspension Wiring AC Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 39

Page 790 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 5 Deck Lid Wiring AC Body 8W - 40 WIRING AND COMPONENT IDENTIFICATION Ä

Page 791 of 2438

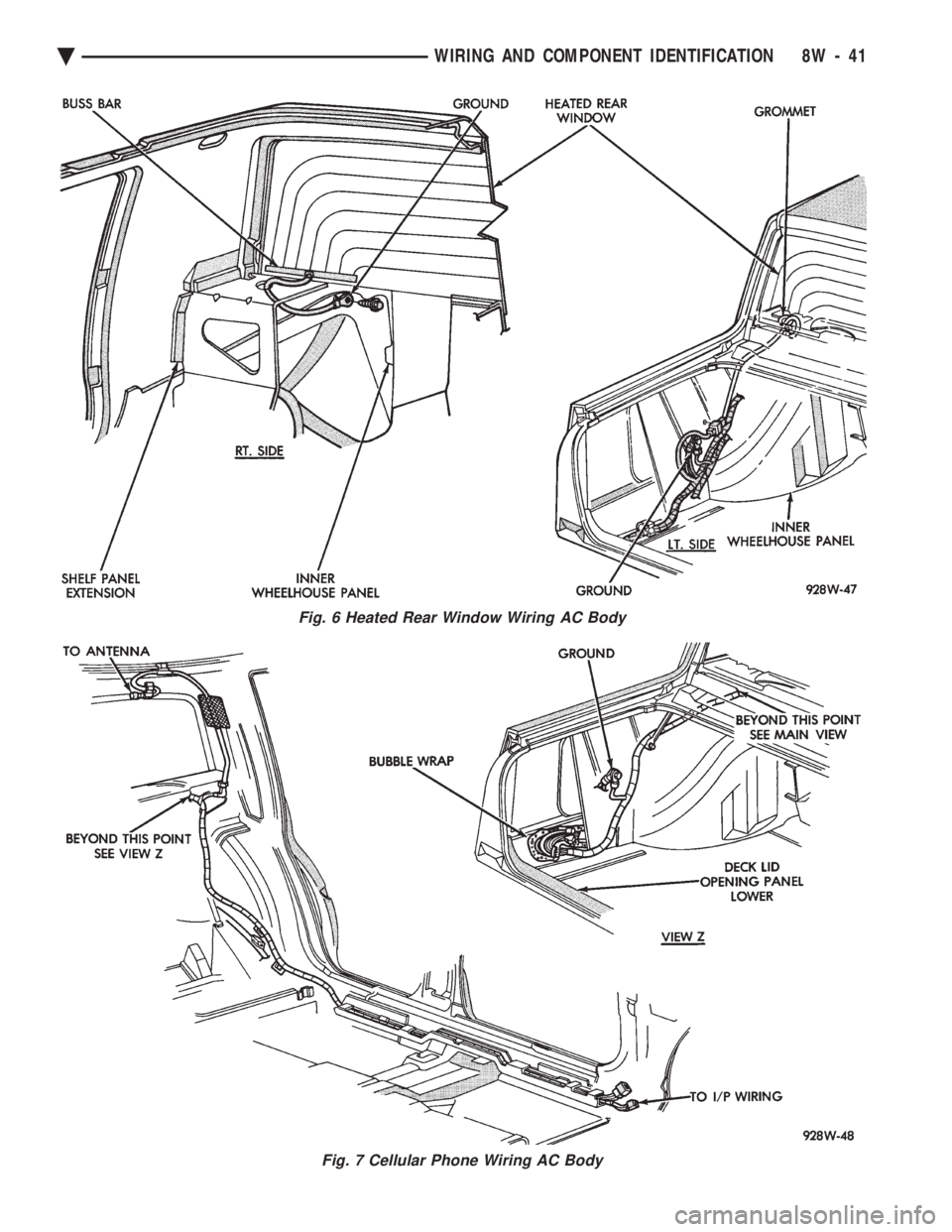

CHEVROLET DYNASTY 1993 Service Manual Fig. 6 Heated Rear Window Wiring AC Body Fig. 7 Cellular Phone Wiring AC Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 41

Page 792 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 8 Body Left Side Wiring AC Body 8W - 42 WIRING AND COMPONENT IDENTIFICATION Ä
