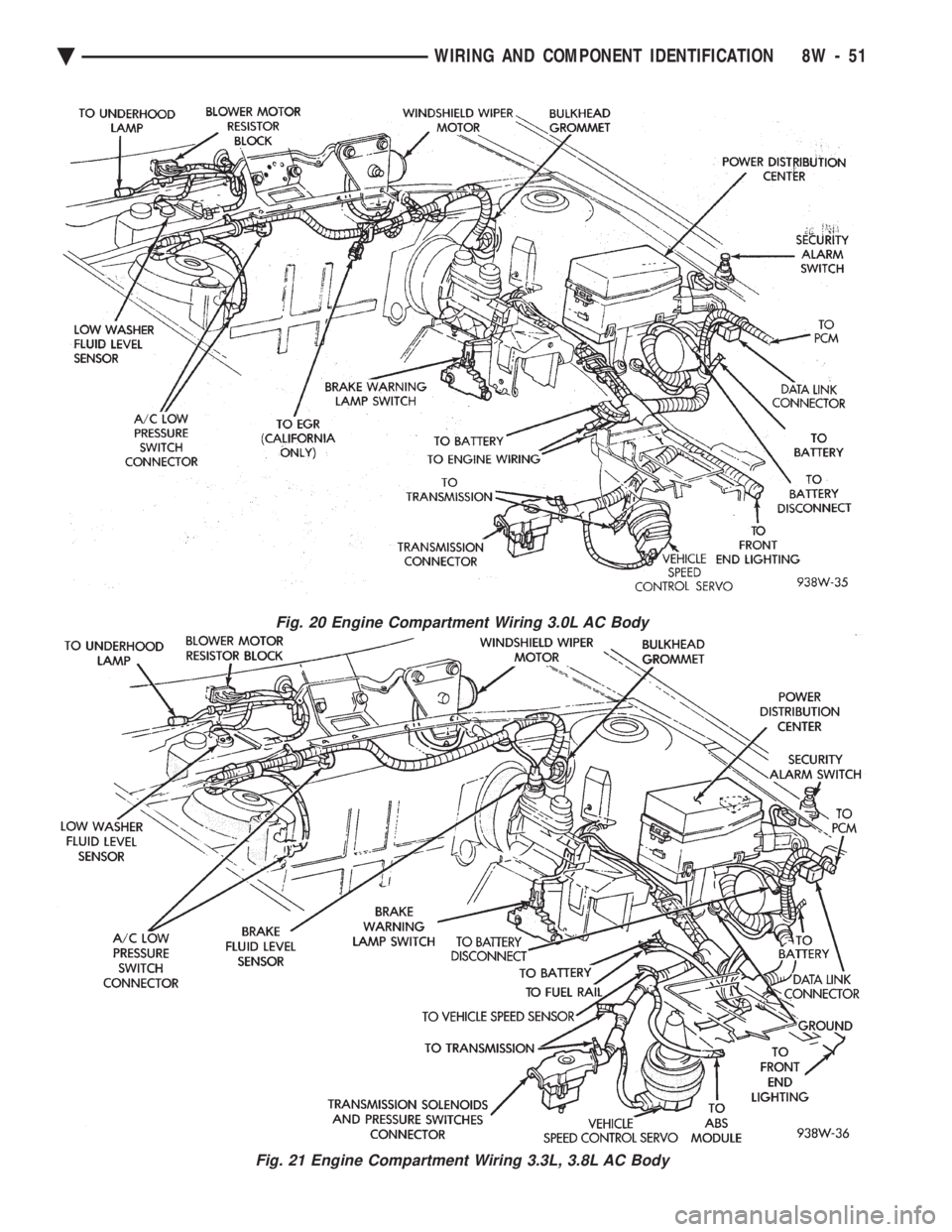

CHEVROLET DYNASTY 1993 Service Manual Fig. 20 Engine Compartment Wiring 3.0L AC Body Fig. 21 Engine Compartment Wiring 3.3L, 3.8L AC Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 51

Page 802 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 22 Engine Compartment Wiring 3.0L and 3.3L, 3.8L AC Body Fig. 23 Engine Compartment Wiring 3.0L and 3.3L, 3.8L AC Body 8W - 52 WIRING AND COMPONENT IDENTIFICATION Ä

Page 803 of 2438

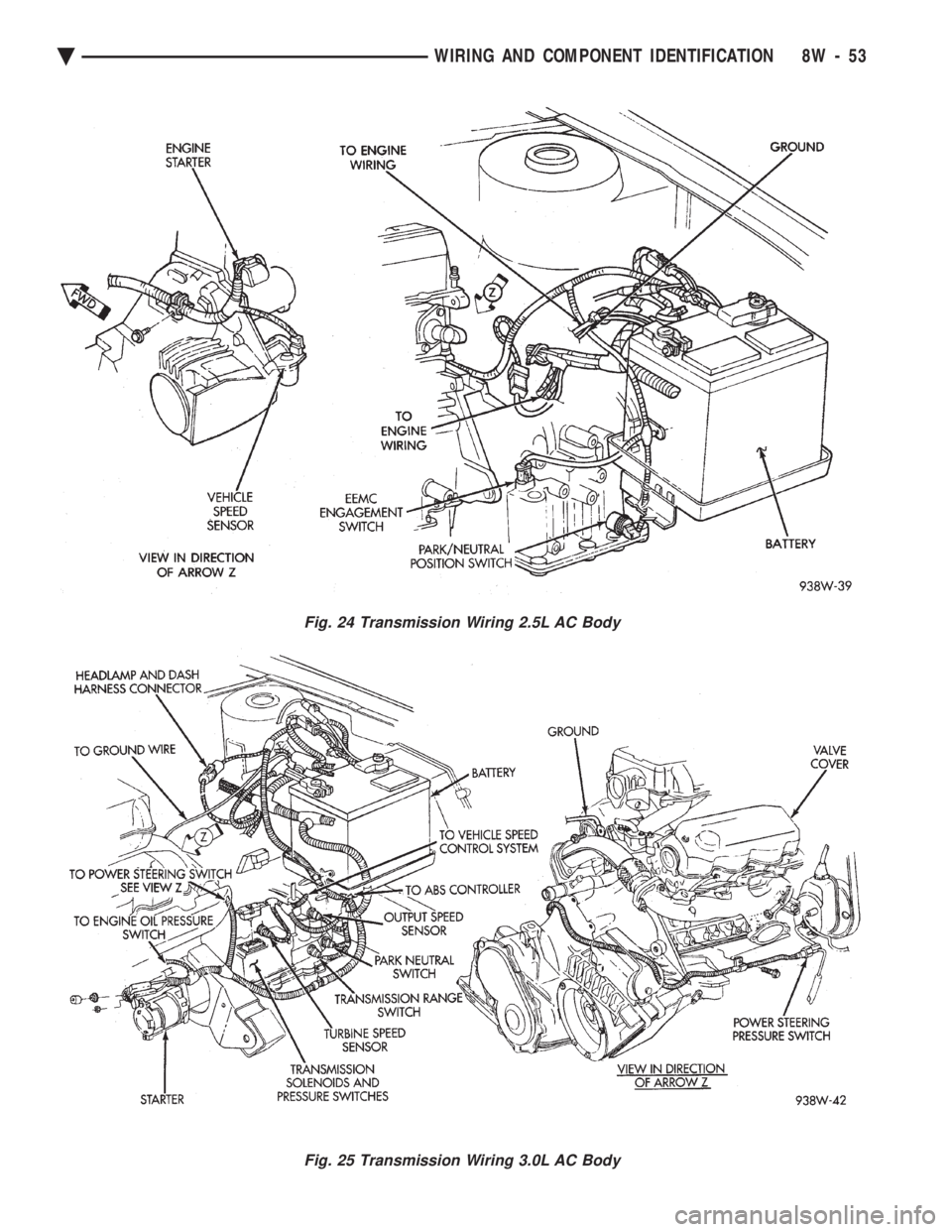

CHEVROLET DYNASTY 1993 Service Manual Fig. 24 Transmission Wiring 2.5L AC Body Fig. 25 Transmission Wiring 3.0L AC Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 53

Page 804 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 26 Transmission Wiring 3.3L, 3.8L AC Body 8W - 54 WIRING AND COMPONENT IDENTIFICATION Ä

Page 805 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 27 Engine Wiring 2.5L Ä WIRING AND COMPONENT IDENTIFICATION 8W - 55

Page 806 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 28 Engine Wiring 3.0L AC Body 8W - 56 WIRING AND COMPONENT IDENTIFICATION Ä

Page 807 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 29 Engine Wiring 3.3L, 3.8L AC Body Ä WIRING AND COMPONENT IDENTIFICATION 8W - 57

Page 808 of 2438

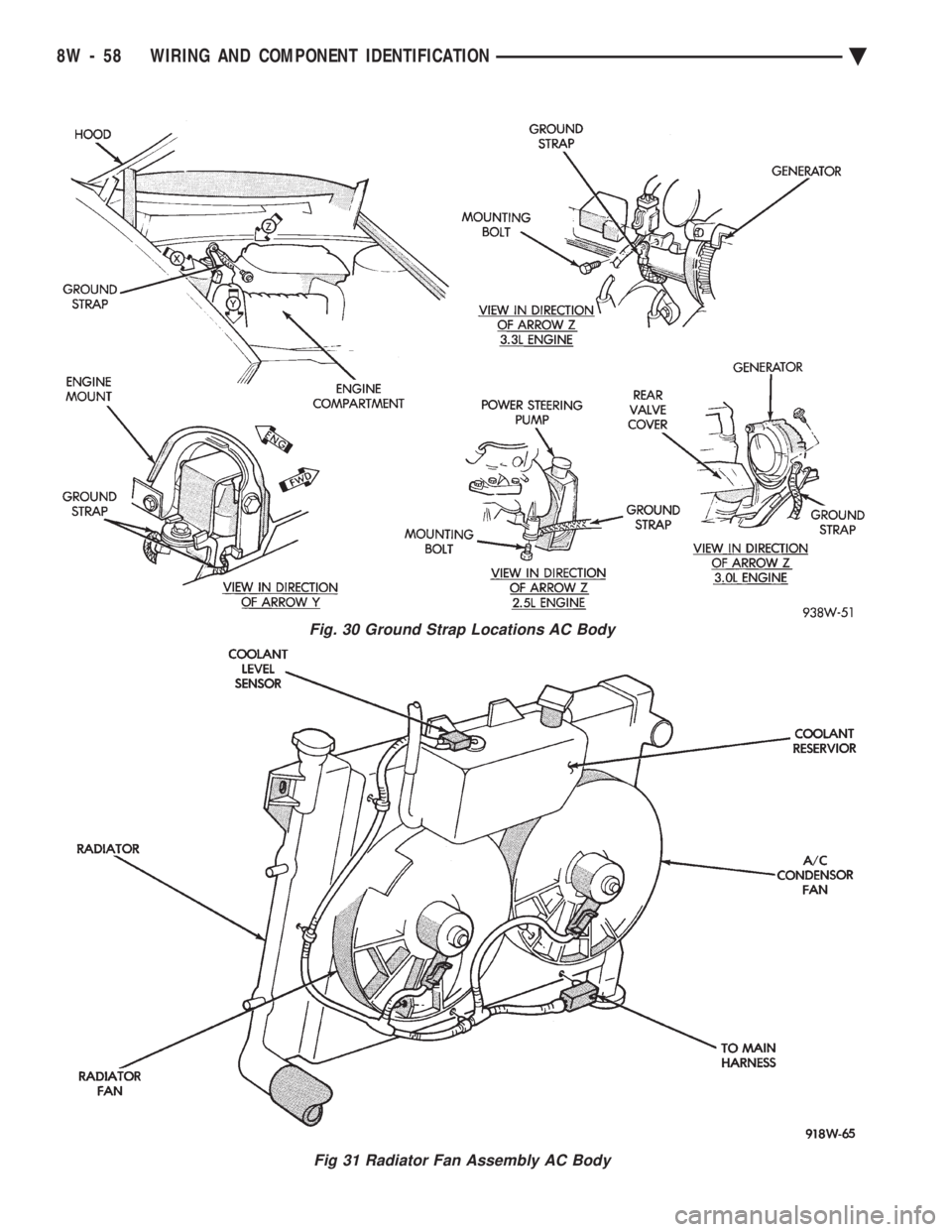

CHEVROLET DYNASTY 1993 Service Manual Fig. 30 Ground Strap Locations AC Body Fig 31 Radiator Fan Assembly AC Body 8W - 58 WIRING AND COMPONENT IDENTIFICATION Ä
