Page 577 of 2438
INFINITYÐAC-AJ-AY BODIES
Ä AUDIO SYSTEM 8F - 11
Page 578 of 2438
INFINITYÐAC-AJ-AY BODIES CONTINUED
8F - 12 AUDIO SYSTEM Ä
Page 579 of 2438
INFINITYÐAC-AJ-AY BODIES CONTINUED
Ä AUDIO SYSTEM 8F - 13
Page 580 of 2438
INFINITYÐAC-AJ-AY BODIES CONTINUED
8F - 14 AUDIO SYSTEM Ä
Page 581 of 2438
INFINITYÐAC-AJ-AY BODIES CONTINUED
Ä AUDIO SYSTEM 8F - 15
Page 582 of 2438
INFINITYÐAC-AJ-AY BODIES CONTINUED
8F - 16 AUDIO SYSTEM Ä
Page 583 of 2438

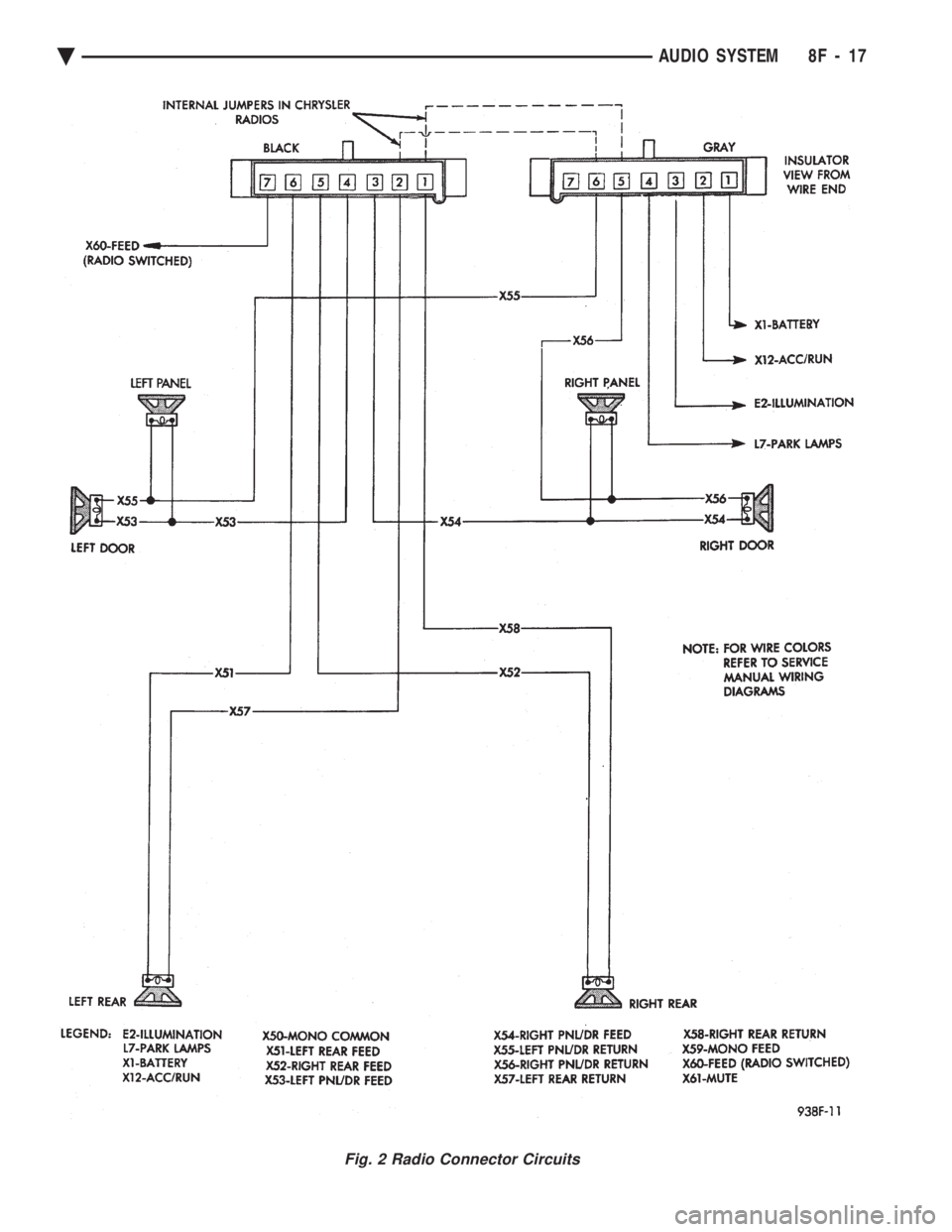

Fig. 2 Radio Connector Circuits
Ä AUDIO SYSTEM 8F - 17

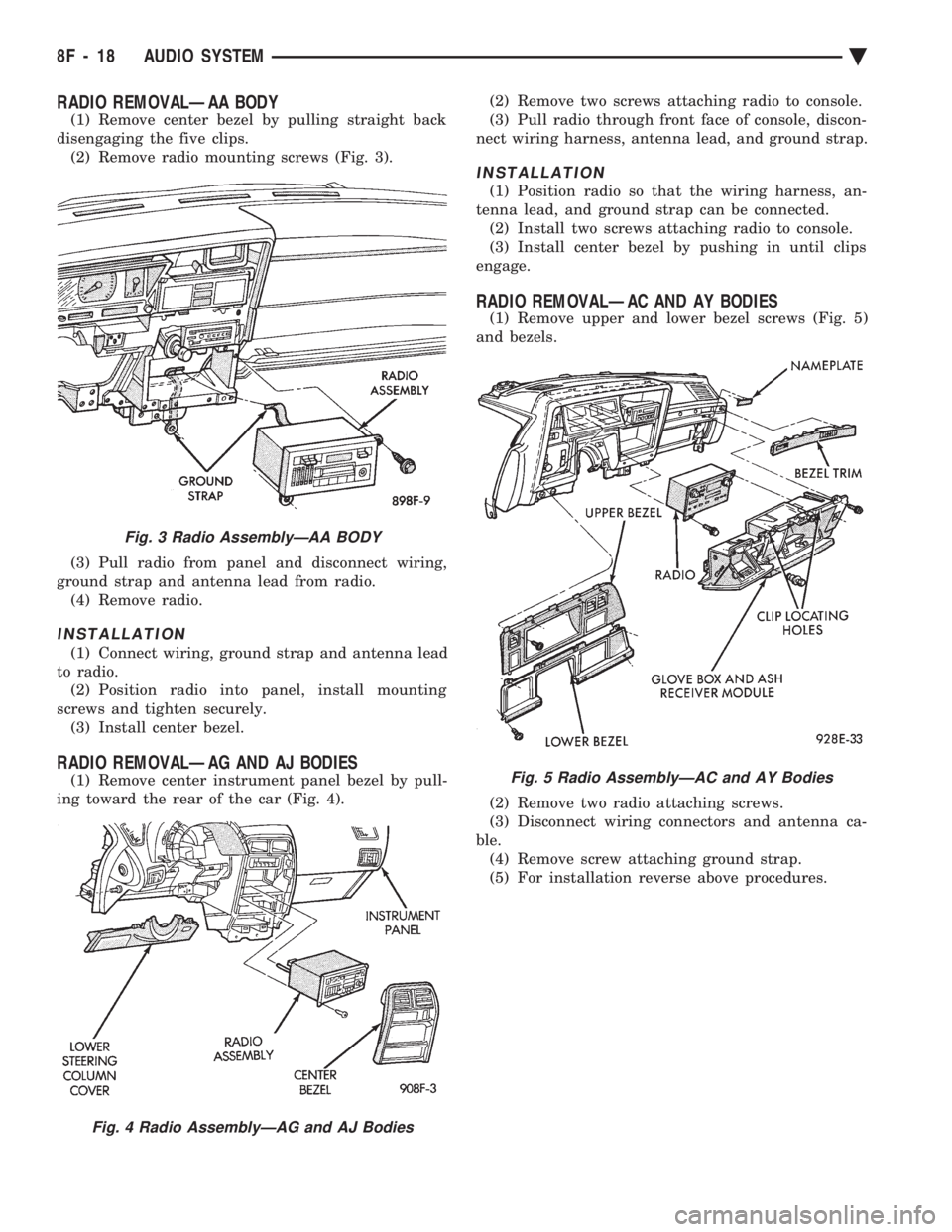

Page 584 of 2438

RADIO REMOVALÐAA BODY
(1) Remove center bezel by pulling straight back
disengaging the five clips. (2) Remove radio mounting screws (Fig. 3).
(3) Pull radio from panel and disconnect wiring,
ground strap and antenna lead from radio. (4) Remove radio.
INSTALLATION
(1) Connect wiring, ground strap and antenna lead
to radio. (2) Position radio into panel, install mounting
screws and tighten securely. (3) Install center bezel.
RADIO REMOVALÐAG AND AJ BODIES
(1) Remove center instrument panel bezel by pull-
ing toward the rear of the car (Fig. 4). (2) Remove two screws attaching radio to console.
(3) Pull radio through front face of console, discon-
nect wiring harness, antenna lead, and ground strap.
INSTALLATION
(1) Position radio so that the wiring harness, an-
tenna lead, and ground strap can be connected. (2) Install two screws attaching radio to console.
(3) Install center bezel by pushing in until clips
engage.
RADIO REMOVALÐAC AND AY BODIES
(1) Remove upper and lower bezel screws (Fig. 5)
and bezels.
(2) Remove two radio attaching screws.
(3) Disconnect wiring connectors and antenna ca-
ble. (4) Remove screw attaching ground strap.
(5) For installation reverse above procedures.
Fig. 3 Radio AssemblyÐAA BODY
Fig. 4 Radio AssemblyÐAG and AJ Bodies
Fig. 5 Radio AssemblyÐAC and AY Bodies
8F - 18 AUDIO SYSTEM Ä
