Page 873 of 2438

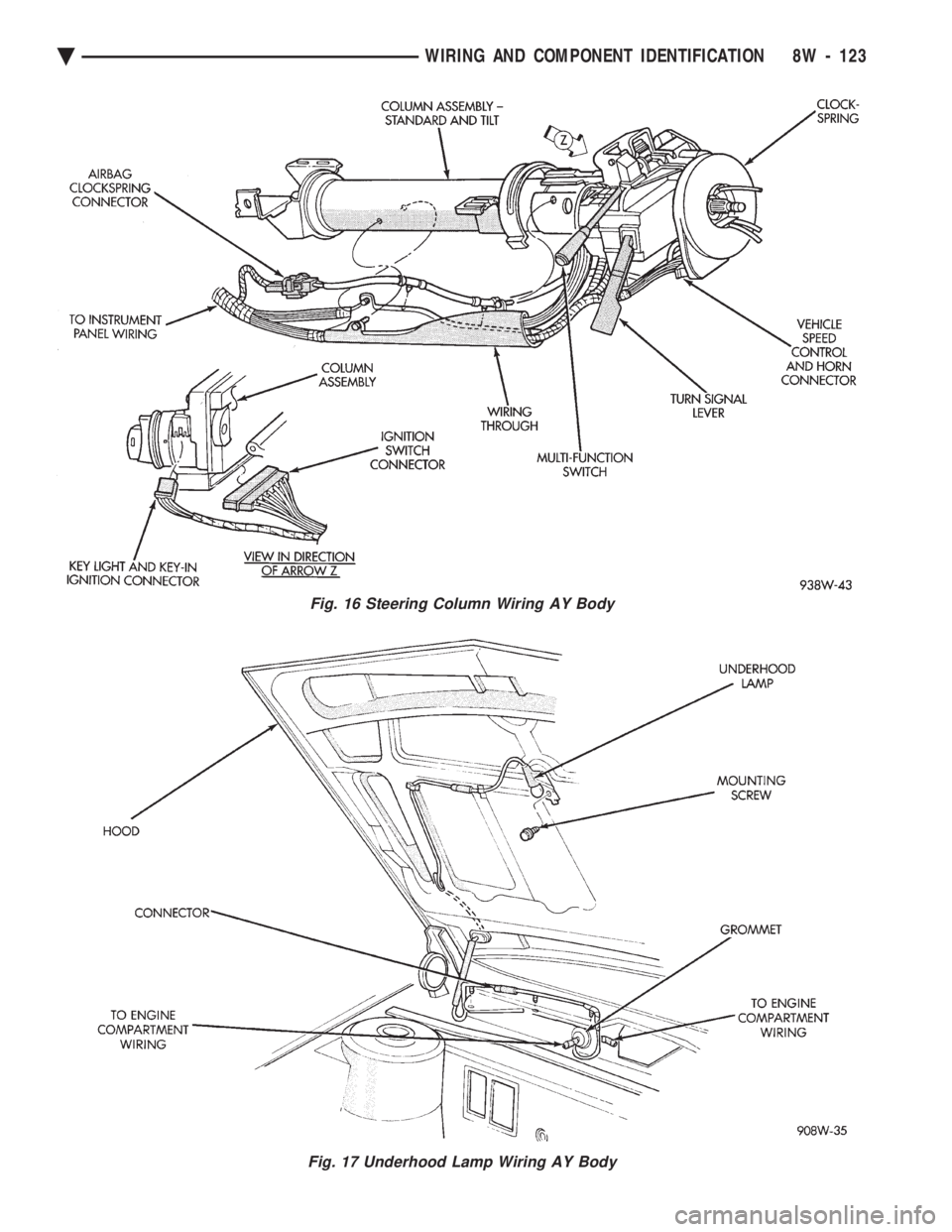

CHEVROLET DYNASTY 1993 Service Manual Fig. 16 Steering Column Wiring AY Body
Fig. 17 Underhood Lamp Wiring AY Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 123

Page 874 of 2438

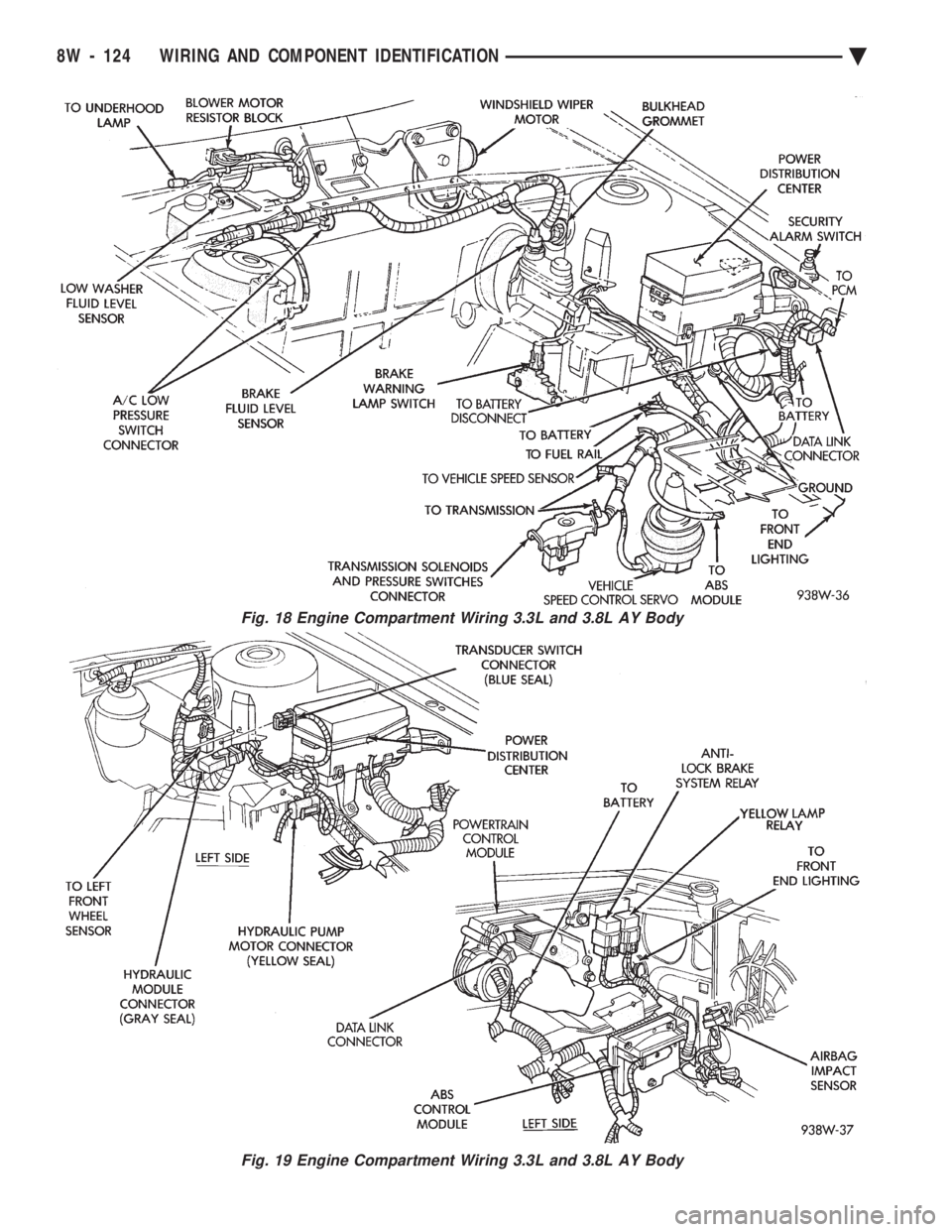

CHEVROLET DYNASTY 1993 Service Manual Fig. 18 Engine Compartment Wiring 3.3L and 3.8L AY Body
Fig. 19 Engine Compartment Wiring 3.3L and 3.8L AY Body
8W - 124 WIRING AND COMPONENT IDENTIFICATION Ä

Page 875 of 2438

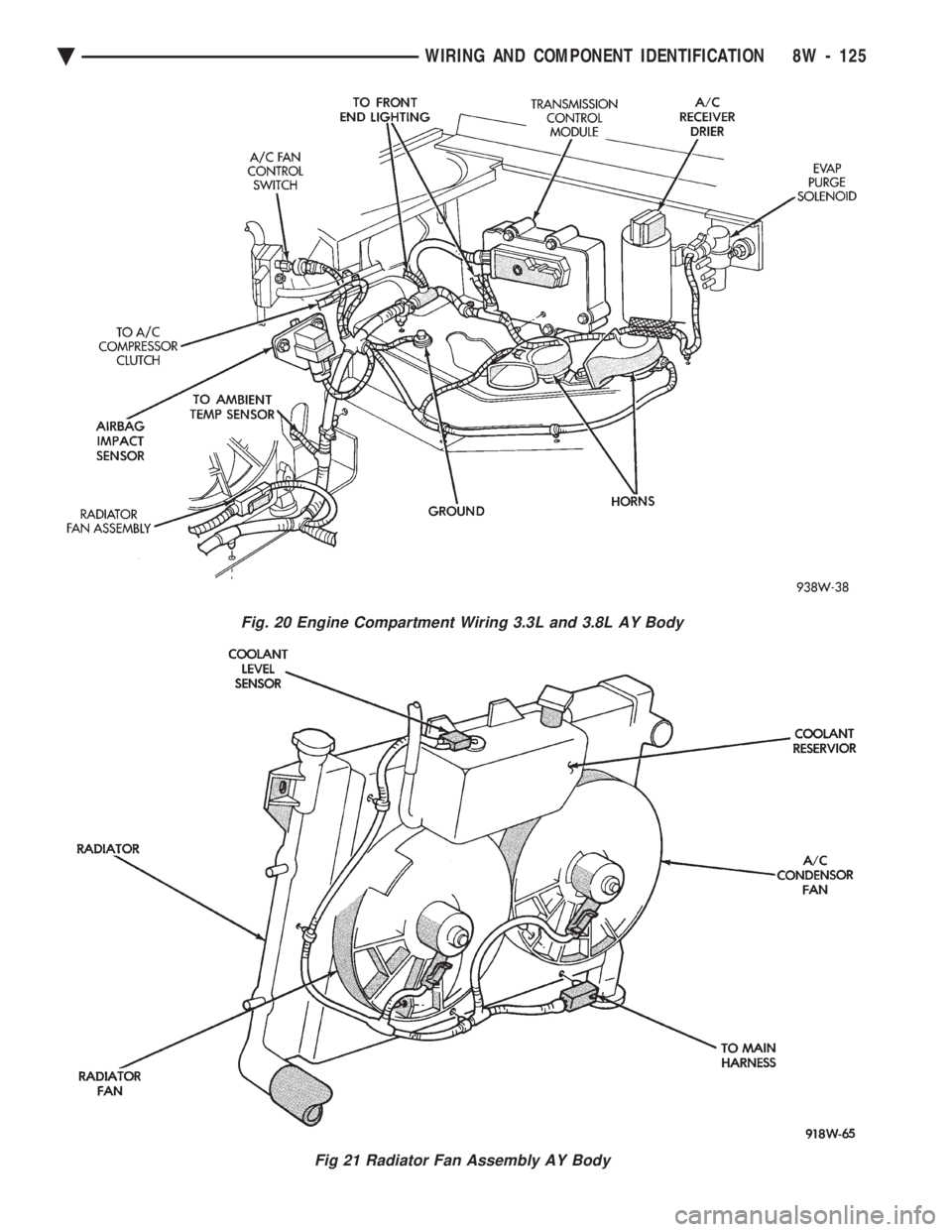

CHEVROLET DYNASTY 1993 Service Manual Fig. 20 Engine Compartment Wiring 3.3L and 3.8L AY Body
Fig 21 Radiator Fan Assembly AY Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 125

Page 876 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 22 Transmission Wiring 3.3L and 3.8L AY Body
8W - 126 WIRING AND COMPONENT IDENTIFICATION Ä

Page 877 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 23 Engine Wiring 3.3L and 3.8L AY Body
Ä WIRING AND COMPONENT IDENTIFICATION 8W - 127

Page 878 of 2438

CHEVROLET DYNASTY 1993 Service Manual Fig. 24 Front End Lighting AY Body
8W - 128 WIRING AND COMPONENT IDENTIFICATION Ä

Page 879 of 2438

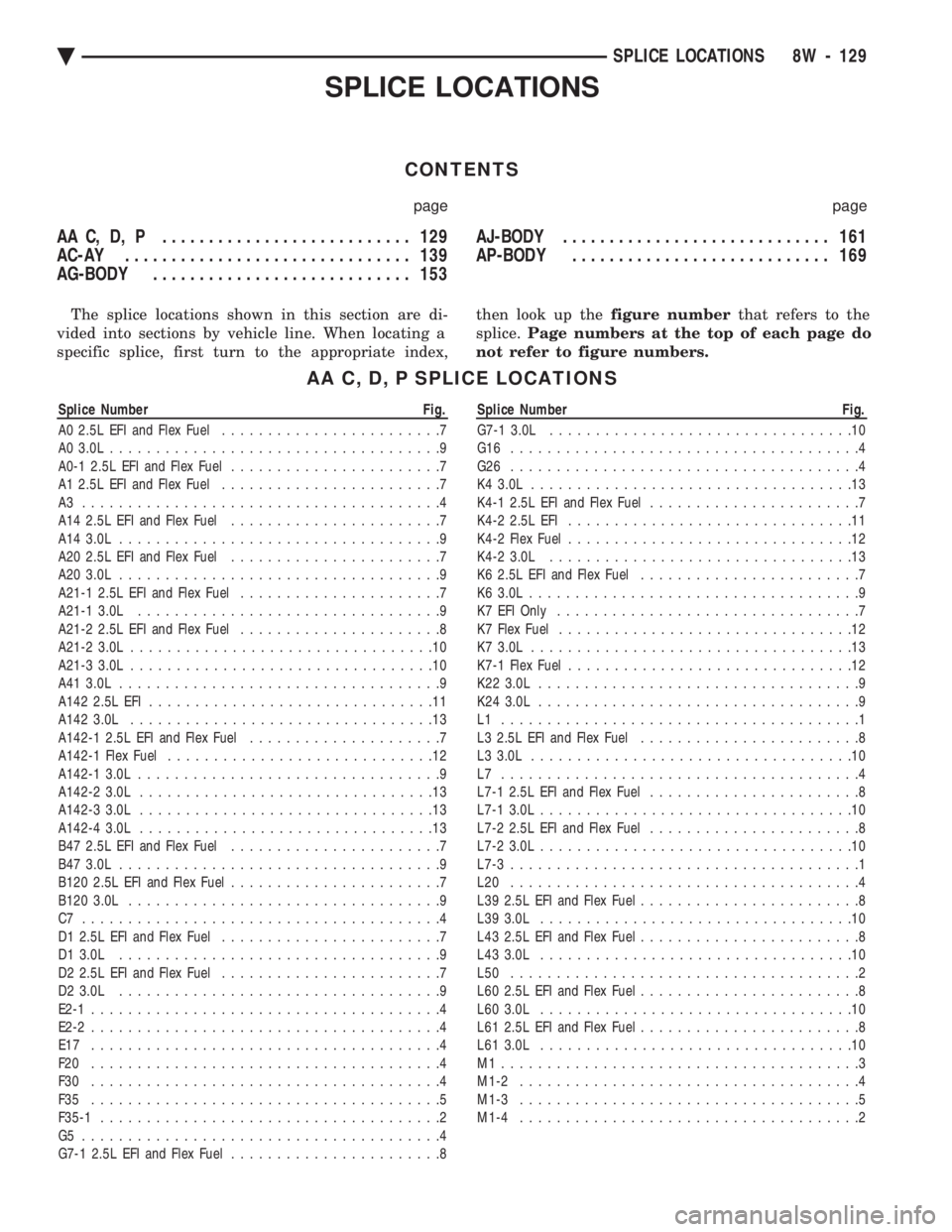

CHEVROLET DYNASTY 1993 Service Manual SPLICE LOCATIONS
CONTENTS
page page
AA C, D, P ........................... 129
AC-AY ............................... 139
AG-BODY ............................ 153 AJ-BODY
.........................

SPLICE LOCATIONS
CONTENTS
page page
AA C, D, P ........................... 129
AC-AY ............................... 139
AG-BODY ............................ 153 AJ-BODY
............................. 161
AP-BODY ............................ 169
The splice locations shown in this section are di-
vided into sections by vehicle line. When locating a
specific splice, first turn to the appropriate index, then look up the
figure numberthat refers to the
splice. Page numbers at the top of each page do
not refer to figure numbers.
AA C, D, P SPLICE LOCATIONS
Splice Number Fig.
A0 2.5L EFI and Flex Fuel ........................7
A0 3.0L ....................................9
A0-1 2.5L EFI and Flex Fuel .......................7
A1 2.5L EFI and Flex Fuel ........................7
A3 .......................................4
A14 2.5L EFI and Flex Fuel .......................7
A14 3.0L ...................................9
A20 2.5L EFI and Flex Fuel .......................7
A20 3.0L ...................................9
A21-1 2.5L EFI and Flex Fuel ......................7
A21-1 3.0L .................................9
A21-2 2.5L EFI and Flex Fuel ......................8
A21-2 3.0L .................................10
A21-3 3.0L .................................10
A41 3.0L ...................................9
A142 2.5L EFI ...............................11
A142 3.0L .................................13
A142-1 2.5L EFI and Flex Fuel .....................7
A142-1 Flex Fuel .............................12
A142-1 3.0L .................................9
A142-2 3.0L ................................13
A142-3 3.0L ................................13
A142-4 3.0L ................................13
B47 2.5L EFI and Flex Fuel .......................7
B47 3.0L ...................................9
B120 2.5L EFI and Flex Fuel .......................7
B120 3.0L ..................................9
C7 .......................................4
D1 2.5L EFI and Flex Fuel ........................7
D1 3.0L ...................................9
D2 2.5L EFI and Flex Fuel ........................7
D2 3.0L ...................................9
E2-1 ......................................4
E2-2 ......................................4
E17 ......................................4
F20 ......................................4
F30 ......................................4
F35 ......................................5
F35-1 .....................................2
G5 .......................................4
G7-1 2.5L EFI and Flex Fuel .......................8Splice Number Fig.
G7-1 3.0L .................................10
G16 ......................................4
G26 ......................................4
K4 3.0L ...................................13
K4-1 2.5L EFI and Flex Fuel .......................7
K4-2 2.5L EFI ...............................11
K4-2 Flex Fuel ...............................12
K4-2 3.0L .................................13
K6 2.5L EFI and Flex Fuel ........................7
K6 3.0L ....................................9
K7 EFI Only .................................7
K7 Flex Fuel ................................12
K7 3.0L ...................................13
K7-1 Flex Fuel ...............................12
K22 3.0L ...................................9
K24 3.0L ...................................9
L1 .......................................1
L3 2.5L EFI and Flex Fuel ........................8
L3 3.0L ...................................10
L7 .......................................4
L7-1 2.5L EFI and Flex Fuel .......................8
L7-1 3.0L ..................................10
L7-2 2.5L EFI and Flex Fuel .......................8
L7-2 3.0L ..................................10
L7-3 ......................................1
L20 ......................................4
L39 2.5L EFI and Flex Fuel ........................8
L39 3.0L ..................................10
L43 2.5L EFI and Flex Fuel ........................8
L43 3.0L ..................................10
L50 ......................................2
L60 2.5L EFI and Flex Fuel ........................8
L60 3.0L ..................................10
L61 2.5L EFI and Flex Fuel ........................8
L61 3.0L ..................................10
M1.......................................3
M1-2 .....................................4
M1-3 .....................................5
M1-4 .....................................2
Ä SPLICE LOCATIONS 8W - 129

Page 880 of 2438

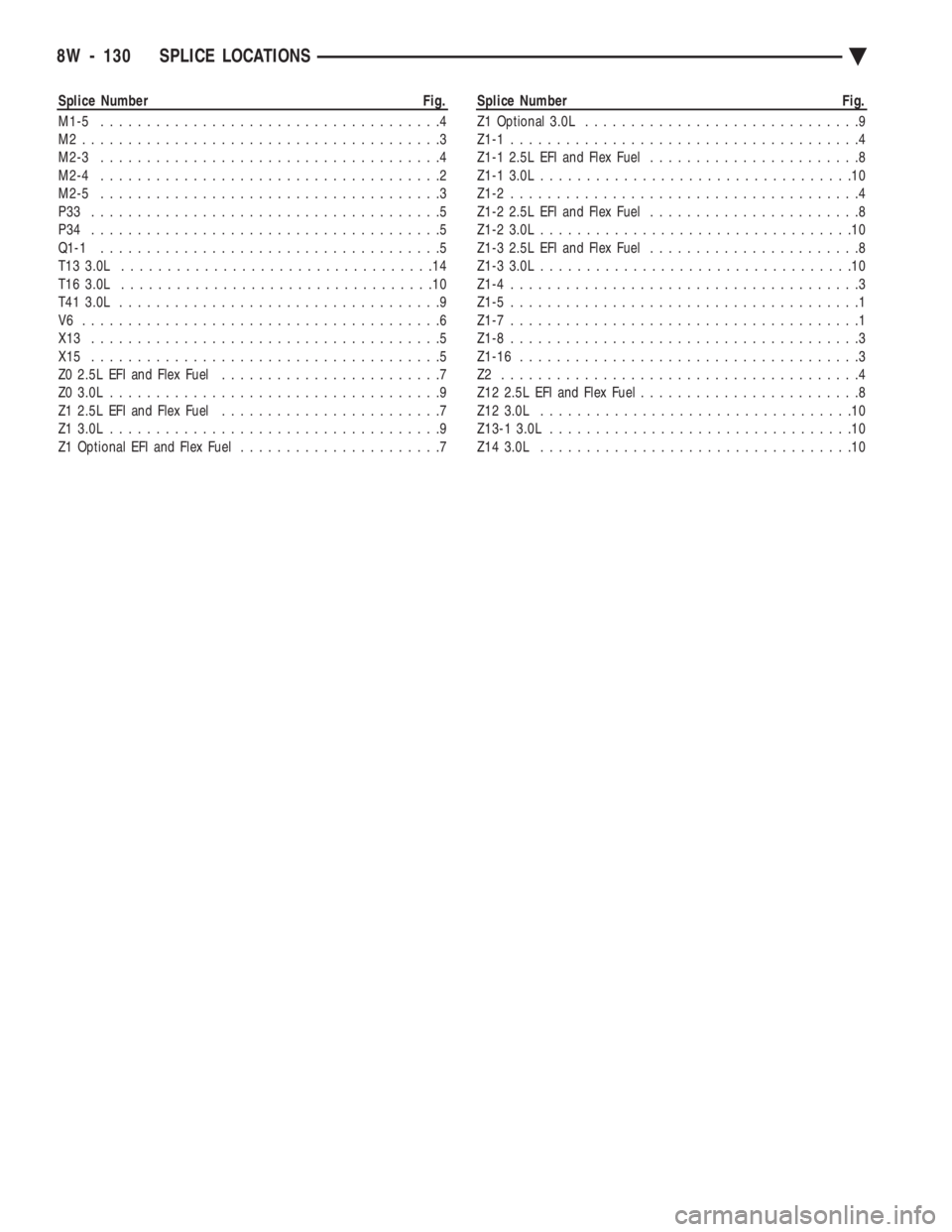

CHEVROLET DYNASTY 1993 Service Manual Splice Number Fig.
M1-5 .....................................4
M2.......................................3
M2-3 .....................................4
M2-4 .....................................2
