2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

NOTE

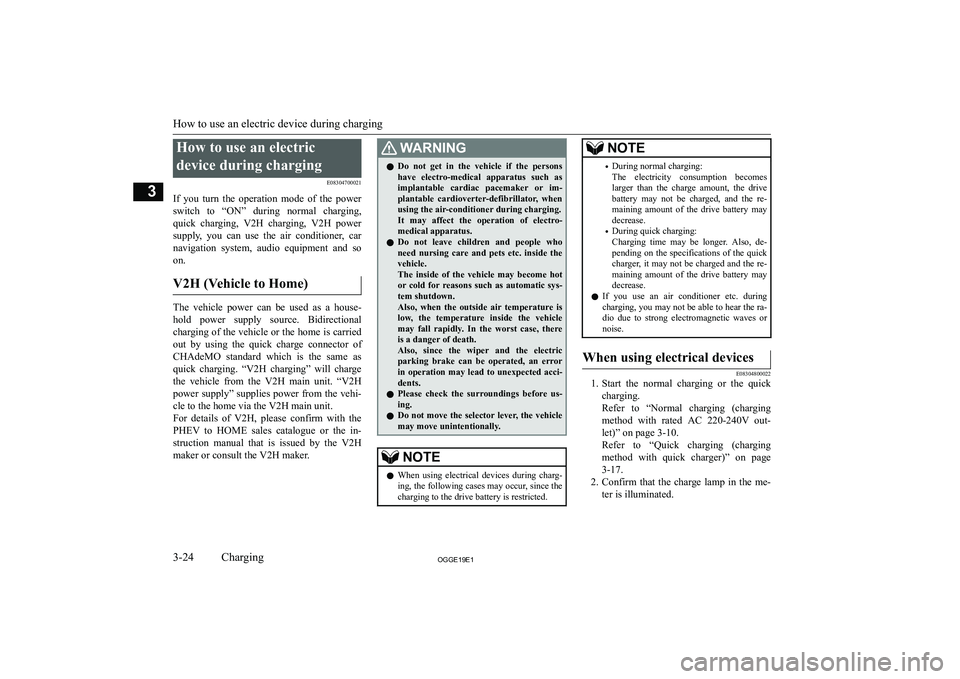

How to use an electric
device during charging E08304700021
If you turn the operation mode of the power switch to “ON” during normal charging,quick charging, V2H charging, V2H power
supply, you can use the air conditioner, car
navigation system, audio equipment and so on.
V2H (Vehicle to Home)
The vehicle power can be used as a house-
hold power supply source. Bidirectional charging of the vehicle or the home is carried
out by using the quick charge connector of CHAdeMO standard which is the same as
quick charging. “V2H charging” will charge the vehicle from the V2H main unit. “V2H
power supply” supplies power from the vehi-
cle to the home via the V2H main unit.
For details of V2H, please confirm with the
PHEV to HOME sales catalogue or the in-
struction manual that is issued by the V2H maker or consult the V2H maker.
:ARN,NGz Do not get in the vehicle if the persons
have electro-medical apparatus such as implantable cardiac pacemaker or im-plantable cardioverter-defibrillator, when
using the air-conditioner during charging.
It may affect the operation of electro- medical apparatus.
z Do not leave children and people who
need nursing care and pets etc. inside thevehicle.
The inside of the vehicle may become hot
or cold for reasons such as automatic sys- tem shutdown.
Also, when the outside air temperature is low, the temperature inside the vehicle
may fall rapidly. In the worst case, there is a danger of death.
Also, since the wiper and the electric
parking brake can be operated, an error
in operation may lead to unexpected acci-
dents.
z Please check the surroundings before us-
ing.
z Do not move the selector lever, the vehicle
may move unintentionally.NOTEz When using electrical devices during charg-
ing, the following cases may occur, since thecharging to the drive battery is restricted.NOTE

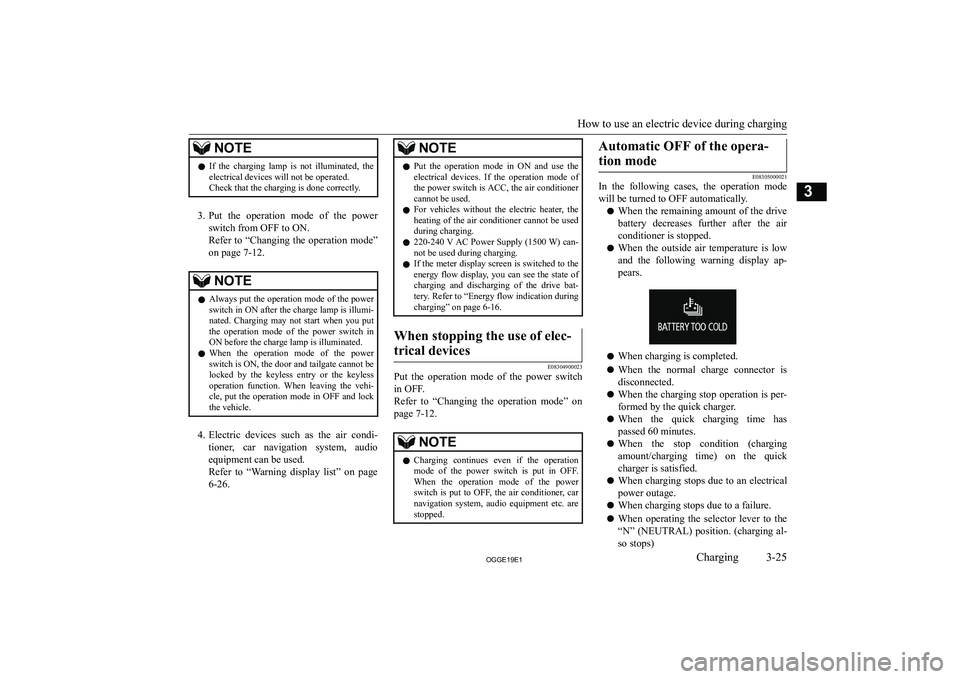

NOTEzIf the charging lamp is not illuminated, the
electrical devices will not be operated.
Check that the charging is done correctly.
3. Put the operation mode of the power
switch from OFF to ON.
Refer to “Changing the operation mode” on page 7-12.
NOTEz Always put the operation mode of the power
switch in ON after the charge lamp is illumi-
nated. Charging may not start when you put the operation mode of the power switch in
ON before the charge lamp is illuminated.
z When the operation mode of the power
switch is ON, the door and tailgate cannot belocked by the keyless entry or the keyless
operation function. When leaving the vehi-
cle, put the operation mode in OFF and lock the vehicle.
4. Electric devices such as the air condi-
tioner, car navigation system, audio equipment can be used.
Refer to “Warning display list” on page 6-26.
NOTEz Put the operation mode in ON and use the
electrical devices. If the operation mode ofthe power switch is ACC, the air conditioner
cannot be used.
z For vehicles without the electric heater, the
heating of the air conditioner cannot be used
during charging.
z 220-240 V AC Power Supply (1500 W) can-
not be used during charging.
z If the meter display screen is switched to the
energy flow display, you can see the state of
charging and discharging of the drive bat- tery. Refer to “Energy flow indication during charging” on page 6-16.When stopping the use of elec-
trical devices
E08304900023
Put the operation mode of the power switch in OFF.
Refer to “Changing the operation mode” on page 7-12.
NOTEz Charging continues even if the operation
mode of the power switch is put in OFF. When the operation mode of the power
switch is put to OFF, the air conditioner, car
navigation system, audio equipment etc. are
stopped.Automatic OFF of the opera-
tion mode
E08305000021
In the following cases, the operation mode
will be turned to OFF automatically.
z When the remaining amount of the drive
battery decreases further after the air
conditioner is stopped.
z When the outside air temperature is low
and the following warning display ap-
pears.
z When charging is completed.
z When the normal charge connector is
disconnected.
z When the charging stop operation is per-
formed by the quick charger.
z When the quick charging time has
passed 60 minutes.
z When the stop condition (charging
amount/charging time) on the quick charger is satisfied.
z When charging stops due to an electrical
power outage.
z When charging stops due to a failure.
z When operating the selector lever to the
“N” (NEUTRAL) position. (charging al-
so stops)
How to use an electric device during charging
3-252**((Charging3

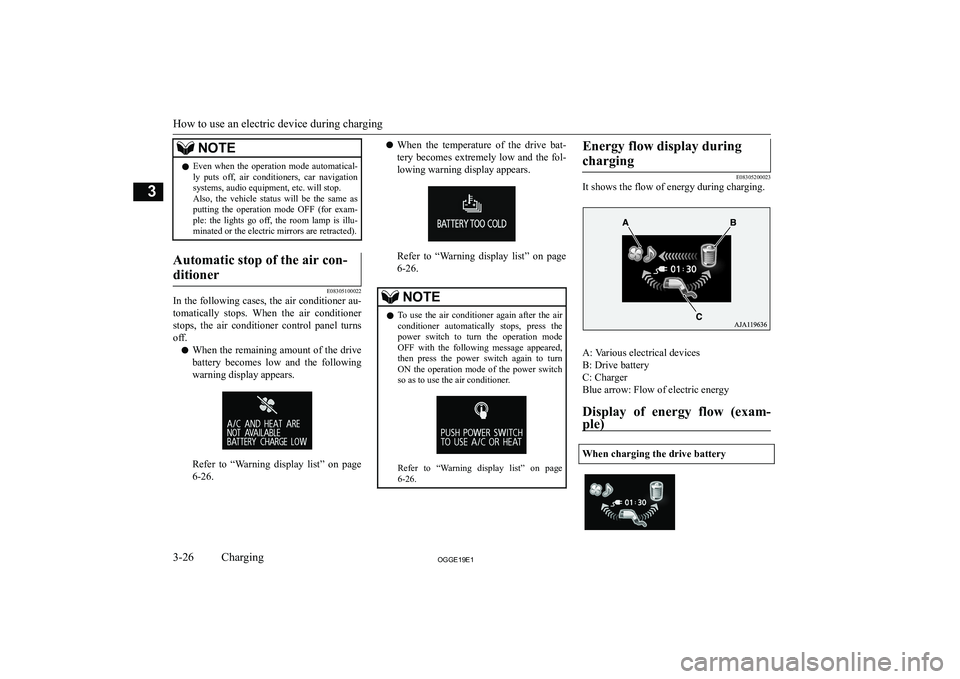

NOTEzEven when the operation mode automatical-
ly puts off, air conditioners, car navigation systems, audio equipment, etc. will stop.
Also, the vehicle status will be the same as putting the operation mode OFF (for exam-
ple: the lights go off, the room lamp is illu- minated or the electric mirrors are retracted).Automatic stop of the air con-
ditioner
E08305100022
In the following cases, the air conditioner au- tomatically stops. When the air conditioner stops, the air conditioner control panel turns
off.
z When the remaining amount of the drive
battery becomes low and the following
warning display appears.
Refer to “Warning display list” on page 6-26.
z When the temperature of the drive bat-
tery becomes extremely low and the fol-
lowing warning display appears.
Refer to “Warning display list” on page 6-26.
NOTEz To use the air conditioner again after the air
conditioner automatically stops, press the
power switch to turn the operation mode
OFF with the following message appeared, then press the power switch again to turn ON the operation mode of the power switch
so as to use the air conditioner.
Refer to “Warning display list” on page 6-26.
Energy flow display during
charging
E08305200023
It shows the flow of energy during charging.
A: Various electrical devices
B: Drive battery
C: Charger
Blue arrow: Flow of electric energy
Display of energy flow (exam-
ple)
When charging the drive battery
How to use an electric device during charging
3-262**((Charging3

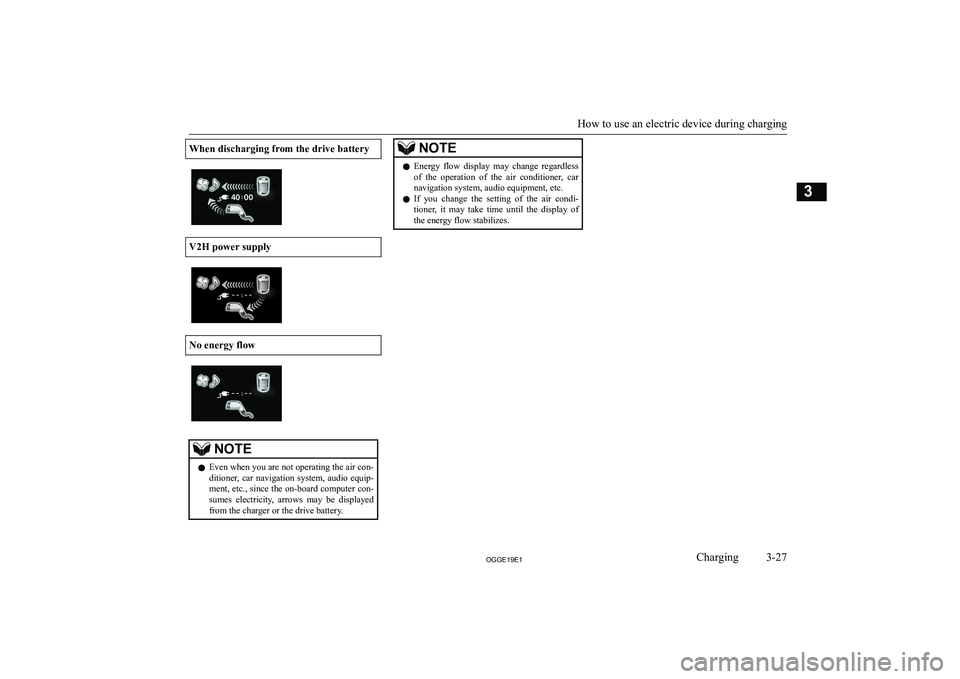

When discharging from the drive battery
V2H power supply
No energy flow
NOTEzEven when you are not operating the air con-
ditioner, car navigation system, audio equip- ment, etc., since the on-board computer con-
sumes electricity, arrows may be displayed from the charger or the drive battery.NOTEz Energy flow display may change regardless
of the operation of the air conditioner, car
navigation system, audio equipment, etc.
z If you change the setting of the air condi-
tioner, it may take time until the display of
the energy flow stabilizes.
How to use an electric device during charging
3-272**((Charging3

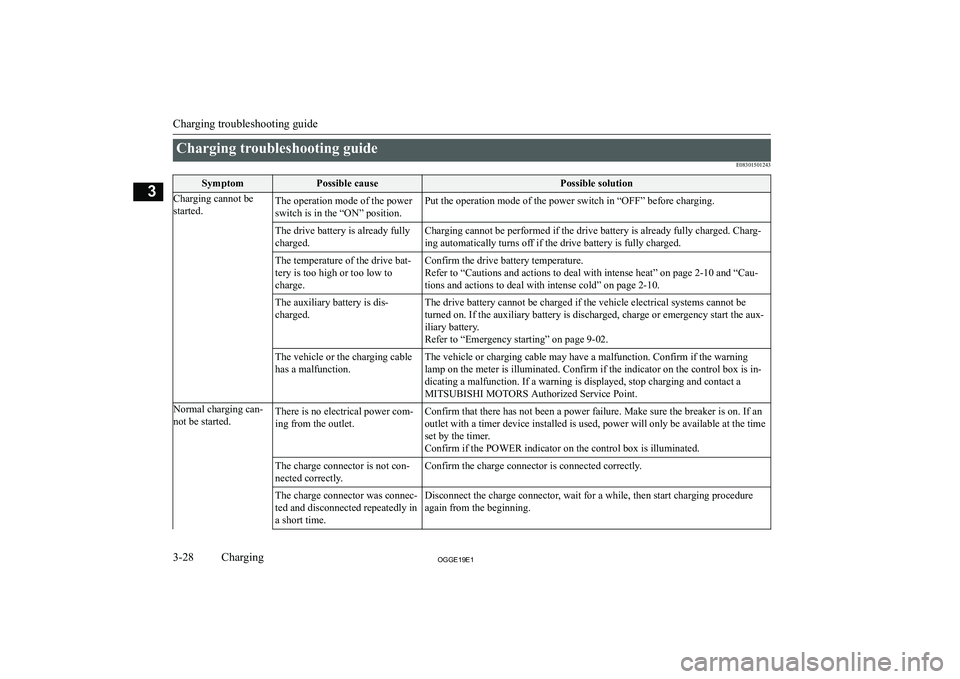

Charging troubleshooting guideE08301501243SymptomPossible causePossible solutionCharging cannot be
started.The operation mode of the power
switch is in the “ON” position.Put the operation mode of the power switch in “OFF” before charging.The drive battery is already fully
charged.Charging cannot be performed if the drive battery is already fully charged. Charg- ing automatically turns off if the drive battery is fully charged.The temperature of the drive bat-
tery is too high or too low to
charge.Confirm the drive battery temperature.
Refer to “Cautions and actions to deal with intense heat” on page 2-10 and “Cau-
tions and actions to deal with intense cold” on page 2-10.The auxiliary battery is dis-
charged.The drive battery cannot be charged if the vehicle electrical systems cannot be
turned on. If the auxiliary battery is discharged, charge or emergency start the aux-
iliary battery.
Refer to “Emergency starting” on page 9-02.The vehicle or the charging cable
has a malfunction.The vehicle or charging cable may have a malfunction. Confirm if the warning
lamp on the meter is illuminated. Confirm if the indicator on the control box is in-
dicating a malfunction. If a warning is displayed, stop charging and contact a
MITSUBISHI MOTORS Authorized Service Point.Normal charging can-
not be started.There is no electrical power com-
ing from the outlet.Confirm that there has not been a power failure. Make sure the breaker is on. If an outlet with a timer device installed is used, power will only be available at the time set by the timer.
Confirm if the POWER indicator on the control box is illuminated.The charge connector is not con-
nected correctly.Confirm the charge connector is connected correctly.The charge connector was connec-
ted and disconnected repeatedly in
a short time.Disconnect the charge connector, wait for a while, then start charging procedure again from the beginning.
Charging troubleshooting guide
3-282**((Charging3

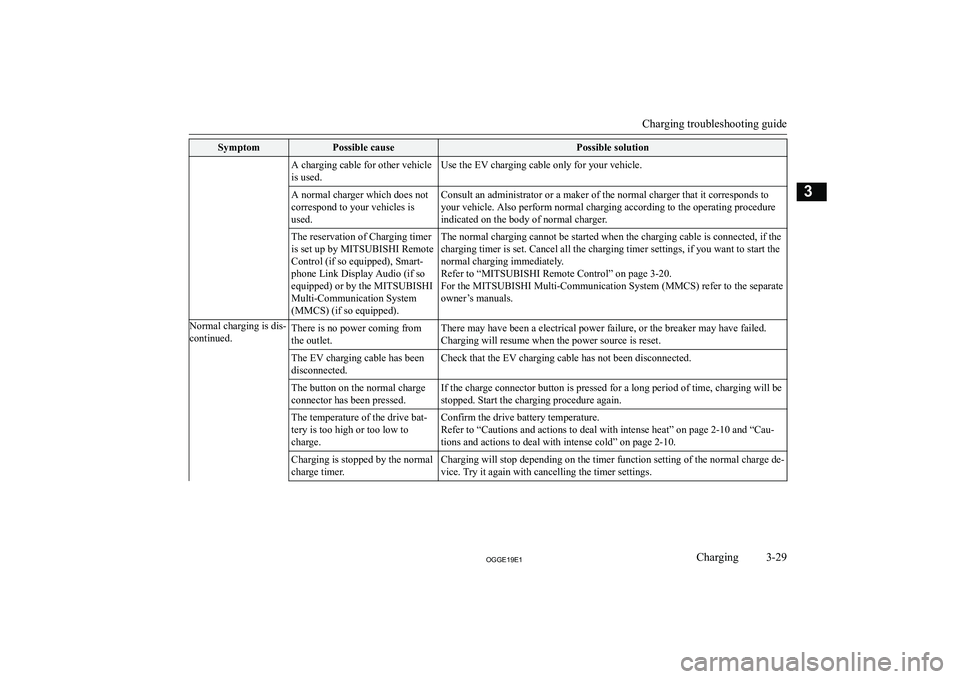

SymptomPossible causePossible solutionA charging cable for other vehicle
is used.Use the EV charging cable only for your vehicle.A normal charger which does not
correspond to your vehicles is
used.Consult an administrator or a maker of the normal charger that it corresponds to
your vehicle. Also perform normal charging according to the operating procedure indicated on the body of normal charger.The reservation of Charging timer
is set up by MITSUBISHI Remote
Control (if so equipped), Smart-
phone Link Display Audio (if so
equipped) or by the MITSUBISHI
Multi-Communication System
(MMCS) (if so equipped).The normal charging cannot be started when the charging cable is connected, if the charging timer is set. Cancel all the charging timer settings, if you want to start the normal charging immediately.
Refer to “MITSUBISHI Remote Control” on page 3-20.
For the MITSUBISHI Multi-Communication System (MMCS) refer to the separate
owner’s manuals.Normal charging is dis-
continued.There is no power coming from
the outlet.There may have been a electrical power failure, or the breaker may have failed. Charging will resume when the power source is reset.The EV charging cable has been
disconnected.Check that the EV charging cable has not been disconnected.The button on the normal charge
connector has been pressed.If the charge connector button is pressed for a long period of time, charging will be
stopped. Start the charging procedure again.The temperature of the drive bat-
tery is too high or too low to
charge.Confirm the drive battery temperature.
Refer to “Cautions and actions to deal with intense heat” on page 2-10 and “Cau-
tions and actions to deal with intense cold” on page 2-10.Charging is stopped by the normal
charge timer.Charging will stop depending on the timer function setting of the normal charge de- vice. Try it again with cancelling the timer settings.
Charging troubleshooting guide
3-292**((Charging3

SymptomPossible causePossible solutionThe Charging timer was set up by
the MITSUBISHI Remote Control
(if so equipped), Smartphone Link
Display Audio (if so equipped) or
the MITSUBISHI Multi-Commu-
nication System (MMCS) (if so
equipped) after starting of normal
charging.Cancel all the charging timer settings. Charging is automatically restarted if you cancel the charging timer.
Refer to “MITSUBISHI Remote Control” on page 3-20.
For the MITSUBISHI Multi-Communication System (MMCS) refer to the separate
owner’s manuals.Quick charging cannot
be started.The charge connector is not con- nected correctly and/or not locked.Check that the charge connector is connected correctly and that it is locked.The self-diagnostic function of the
quick charge device returns a neg-
ative result.There is a possibility that the vehicle has a malfunction. Stop charging and contact
a MITSUBISHI MOTORS Authorized Service Point.The power switch of the quick
charger is off.Check the power switch of the quick charger.
Consult an administrator or a maker of the quick charger.Quick charge is discon-
tinued.Charging is stopped by the quick
charge timer.Charging will stop depending on the timer function setting of the quick charge de- vice. If you need to charge the drive battery more, start the charging procedure again.Charging stops at 80 % capacity.Charging is designed to stop when the drive battery capacity reaches 80 %. If you
need to charge the drive battery more than 80 %, start the charging procedure again.The power supply for the quick
charger is off.Check whether the power supply for the quick charger is off.
Consult an administrator or a maker of the quick charger.
Charging troubleshooting guide
3-302**((Charging3
