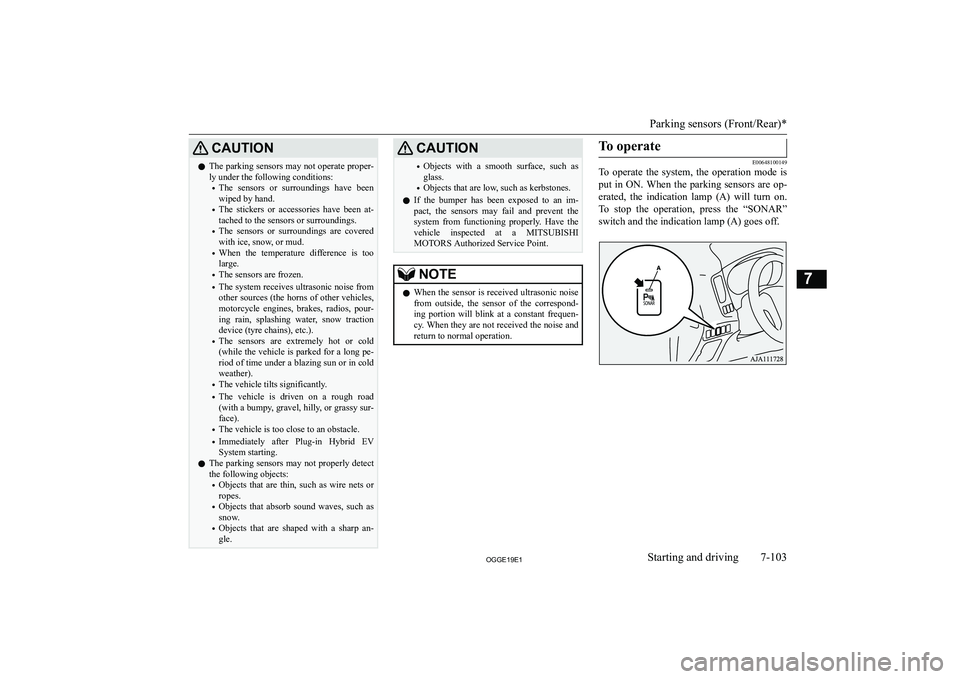

CAUT,ONzThe parking sensors may not operate proper-
ly under the following conditions:

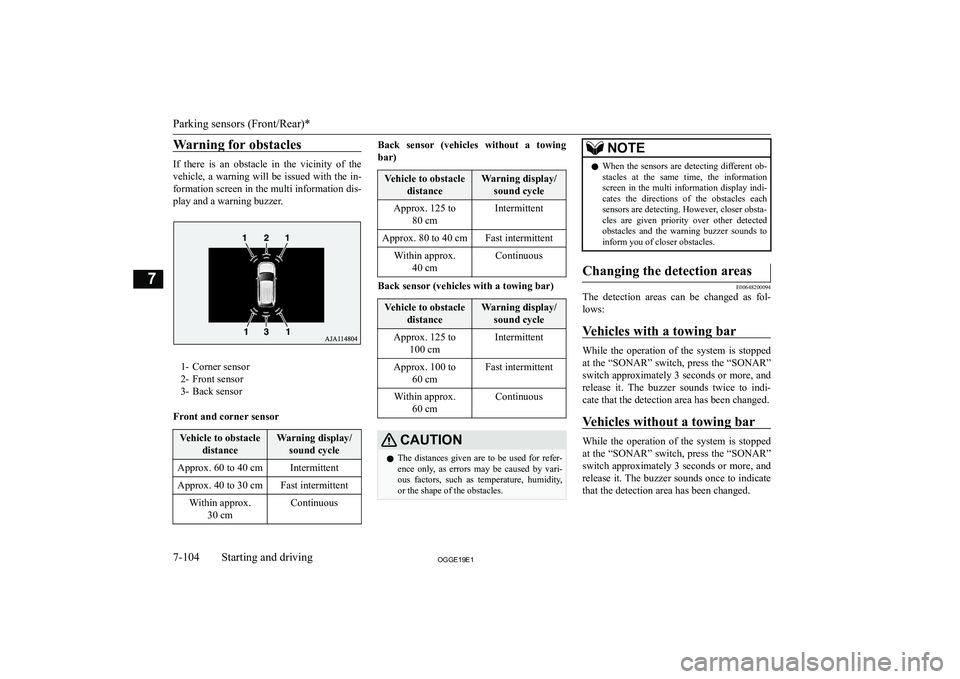

Warning for obstacles
If there is an obstacle in the vicinity of thevehicle, a warning will be issued with the in-
formation screen in the multi information dis-
play and a warning buzzer.
1- Corner sensor
2- Front sensor
3- Back sensor
Front and corner sensor
Vehicle to obstacle distanceWarning display/sound cycleApprox. 60 to 40 cmIntermittentApprox. 40 to 30 cmFast intermittentWithin approx. 30 cmContinuousBack sensor (vehicles without a towing
bar)Vehicle to obstacle distanceWarning display/sound cycleApprox. 125 to 80 cmIntermittentApprox. 80 to 40 cmFast intermittentWithin approx.40 cmContinuous
Back sensor (vehicles with a towing bar)
Vehicle to obstacle distanceWarning display/sound cycleApprox. 125 to 100 cmIntermittentApprox. 100 to 60 cmFast intermittentWithin approx.60 cmContinuousCAUT,ONzThe distances given are to be used for refer-
ence only, as errors may be caused by vari- ous factors, such as temperature, humidity,
or the shape of the obstacles.NOTEz When the sensors are detecting different ob-
stacles at the same time, the informationscreen in the multi information display indi-
cates the directions of the obstacles each sensors are detecting. However, closer obsta-
cles are given priority over other detected
obstacles and the warning buzzer sounds to
inform you of closer obstacles.Changing the detection areas
E00648200094
The detection areas can be changed as fol-
lows:
Vehicles with a towing bar
While the operation of the system is stopped at the “SONAR” switch, press the “SONAR”
switch approximately 3 seconds or more, and
release it. The buzzer sounds twice to indi- cate that the detection area has been changed.
Vehicles without a towing bar
While the operation of the system is stopped
at the “SONAR” switch, press the “SONAR”
switch approximately 3 seconds or more, and release it. The buzzer sounds once to indicate
that the detection area has been changed.
Parking sensors (Front/Rear)*
7-1042**((Starting and driving7

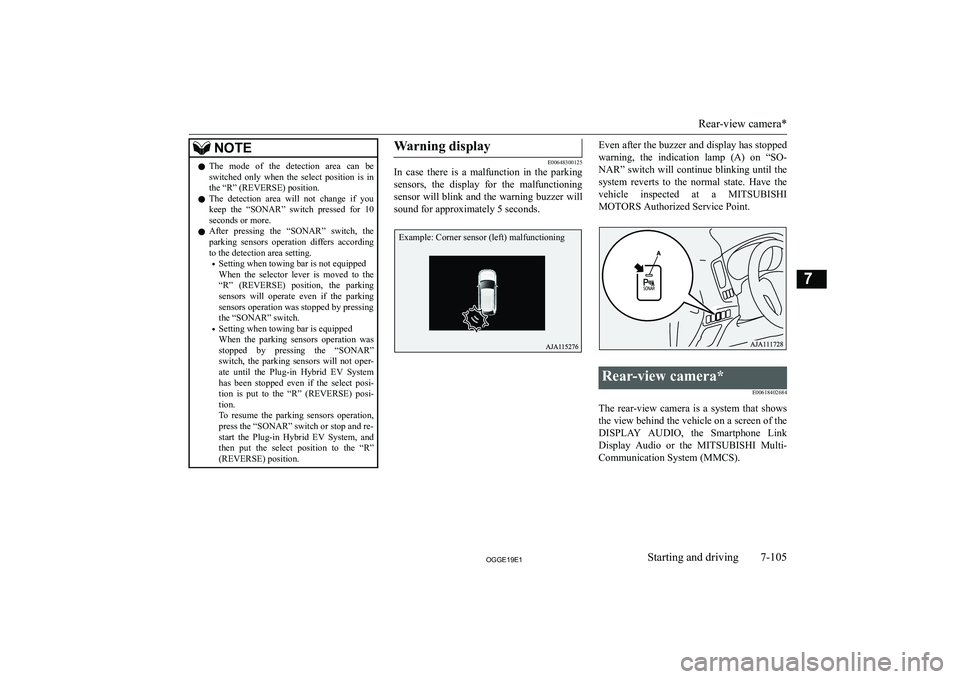

NOTEzThe mode of the detection area can be
switched only when the select position is in
the “R” (REVERSE) position.
z The detection area will not change if you
keep the “SONAR” switch pressed for 10 seconds or more.
z After pressing the “SONAR” switch, the
parking sensors operation differs according
to the detection area setting.

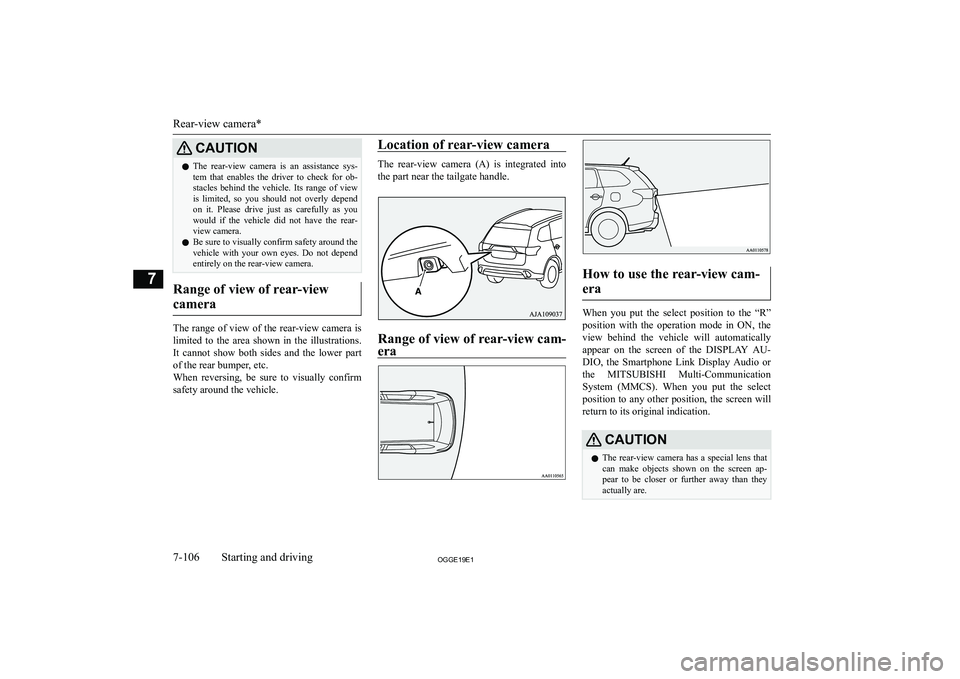

CAUT,ONzThe rear-view camera is an assistance sys-
tem that enables the driver to check for ob- stacles behind the vehicle. Its range of view
is limited, so you should not overly depend on it. Please drive just as carefully as you
would if the vehicle did not have the rear-
view camera.
z Be sure to visually confirm safety around the
vehicle with your own eyes. Do not depend entirely on the rear-view camera.
Range of view of rear-view
camera
The range of view of the rear-view camera is limited to the area shown in the illustrations.
It cannot show both sides and the lower part of the rear bumper, etc.
When reversing, be sure to visually confirm safety around the vehicle.
Location of rear-view camera
The rear-view camera (A) is integrated into
the part near the tailgate handle.
Range of view of rear-view cam- era
How to use the rear-view cam-
era
When you put the select position to the “R” position with the operation mode in ON, the
view behind the vehicle will automatically appear on the screen of the DISPLAY AU-
DIO, the Smartphone Link Display Audio or
the MITSUBISHI Multi-Communication
System (MMCS). When you put the select
position to any other position, the screen will
return to its original indication.
CAUT,ONz The rear-view camera has a special lens that
can make objects shown on the screen ap- pear to be closer or further away than they
actually are.
Rear-view camera*
7-1062**((Starting and driving7

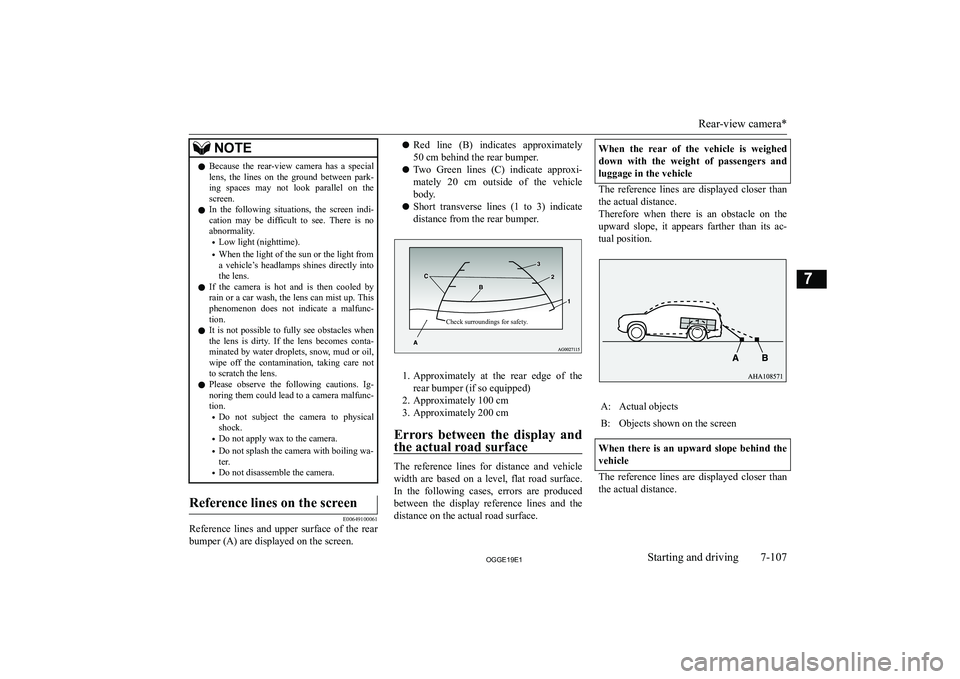

NOTEzBecause the rear-view camera has a special
lens, the lines on the ground between park-
ing spaces may not look parallel on the screen.
z In the following situations, the screen indi-
cation may be difficult to see. There is no abnormality.

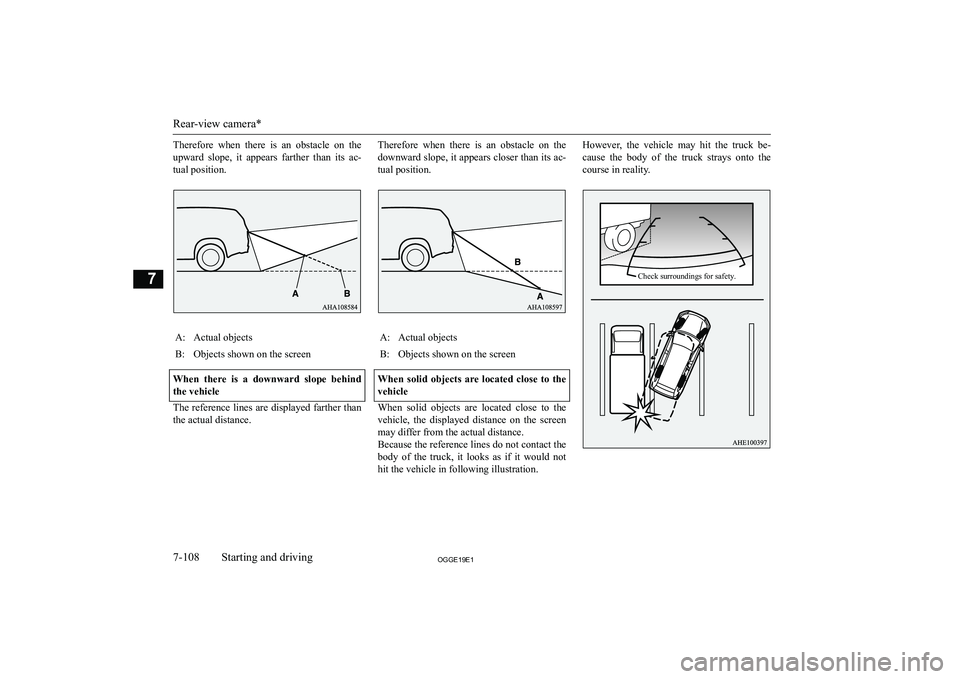

Therefore when there is an obstacle on the
upward slope, it appears farther than its ac-
tual position.A:Actual objectsB:Objects shown on the screen
When there is a downward slope behind the vehicle
The reference lines are displayed farther than
the actual distance.
Therefore when there is an obstacle on the
downward slope, it appears closer than its ac-
tual position.A:Actual objectsB:Objects shown on the screen
When solid objects are located close to the
vehicle
When solid objects are located close to the vehicle, the displayed distance on the screen
may differ from the actual distance. Because the reference lines do not contact the body of the truck, it looks as if it would not
hit the vehicle in following illustration.
However, the vehicle may hit the truck be-
cause the body of the truck strays onto the course in reality.
Rear-view camera*
7-1082**((Starting and driving7 Check surroundings for safety.

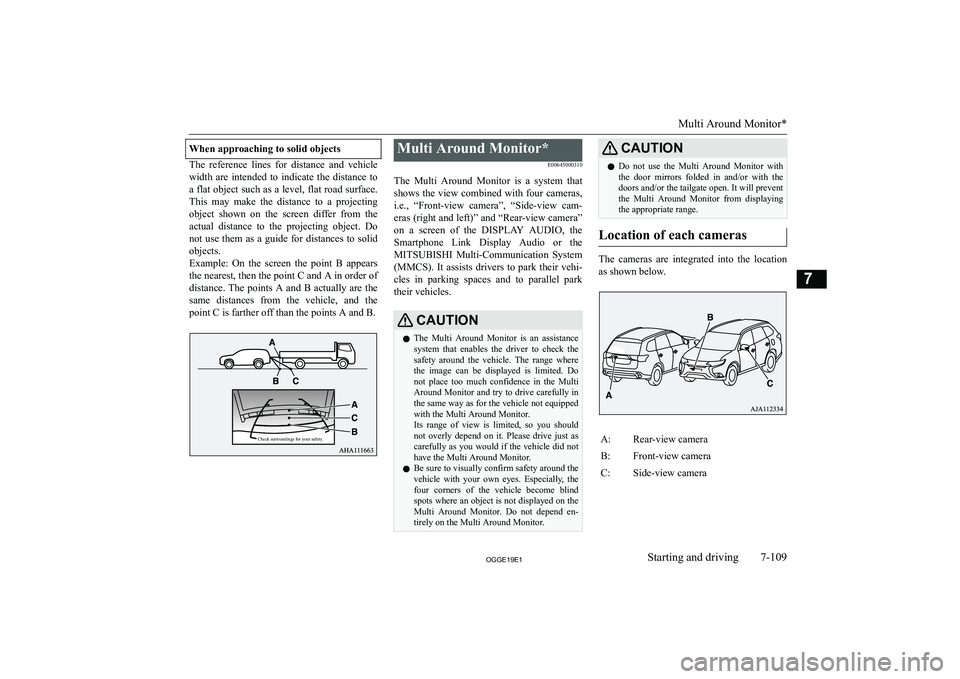

When approaching to solid objects
The reference lines for distance and vehicle
width are intended to indicate the distance to a flat object such as a level, flat road surface. This may make the distance to a projecting
object shown on the screen differ from the
actual distance to the projecting object. Do not use them as a guide for distances to solid
objects.
Example: On the screen the point B appears the nearest, then the point C and A in order of
distance. The points A and B actually are the
same distances from the vehicle, and the point C is farther off than the points A and B.
Multi Around Monitor*
E00645000310
The Multi Around Monitor is a system that shows the view combined with four cameras,i.e., “Front-view camera”, “Side-view cam- eras (right and left)” and “Rear-view camera”
on a screen of the DISPLAY AUDIO, the Smartphone Link Display Audio or the
MITSUBISHI Multi-Communication System
(MMCS). It assists drivers to park their vehi- cles in parking spaces and to parallel parktheir vehicles.CAUT,ONz The Multi Around Monitor is an assistance
system that enables the driver to check the
safety around the vehicle. The range where the image can be displayed is limited. Do
not place too much confidence in the Multi
Around Monitor and try to drive carefully in the same way as for the vehicle not equipped
with the Multi Around Monitor.
Its range of view is limited, so you should not overly depend on it. Please drive just as
carefully as you would if the vehicle did not have the Multi Around Monitor.
z Be sure to visually confirm safety around the
vehicle with your own eyes. Especially, the four corners of the vehicle become blind spots where an object is not displayed on the
Multi Around Monitor. Do not depend en-
tirely on the Multi Around Monitor.CAUT,ONz Do not use the Multi Around Monitor with
the door mirrors folded in and/or with the doors and/or the tailgate open. It will prevent
the Multi Around Monitor from displaying
the appropriate range.
Location of each cameras
The cameras are integrated into the location
as shown below.
A:Rear-view cameraB:Front-view cameraC:Side-view camera
Multi Around Monitor*
7-1092**((Starting and driving7Check surroundings for your safety.

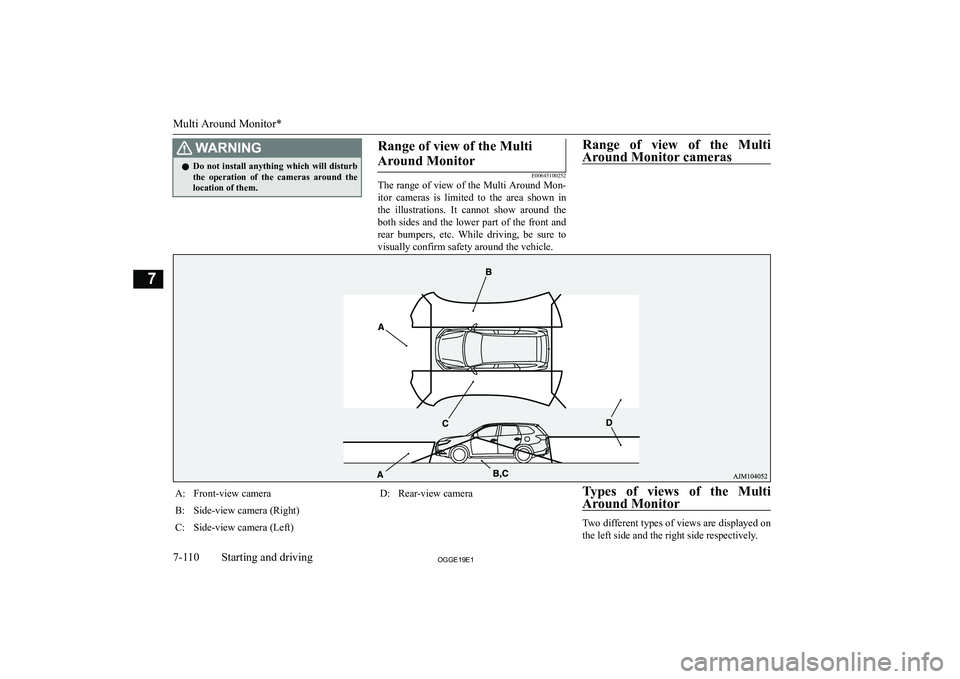

:ARN,NGzDo not install anything which will disturb
the operation of the cameras around thelocation of them.Range of view of the Multi
Around Monitor
E00645100252
The range of view of the Multi Around Mon-
itor cameras is limited to the area shown in the illustrations. It cannot show around the
both sides and the lower part of the front and rear bumpers, etc. While driving, be sure to
visually confirm safety around the vehicle.
Range of view of the Multi
Around Monitor camerasA:Front-view cameraB:Side-view camera (Right)C:Side-view camera (Left)D:Rear-view cameraTypes of views of the Multi
Around Monitor
Two different types of views are displayed on the left side and the right side respectively.Multi Around Monitor*
7-1102**((Starting and driving7
