2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

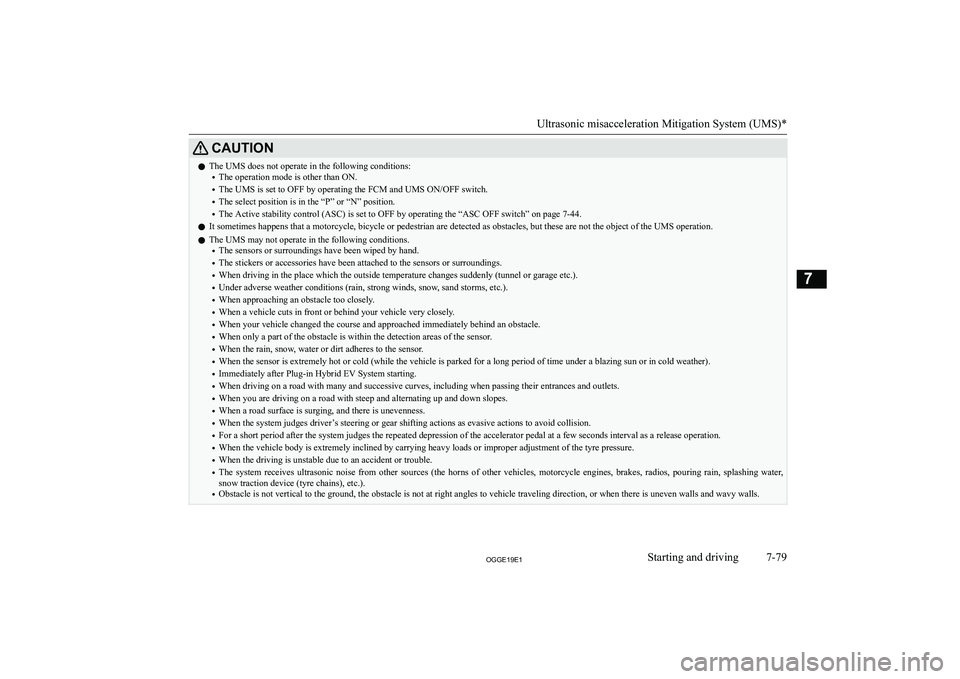

CAUT,ONzThe UMS does not operate in the following conditions:

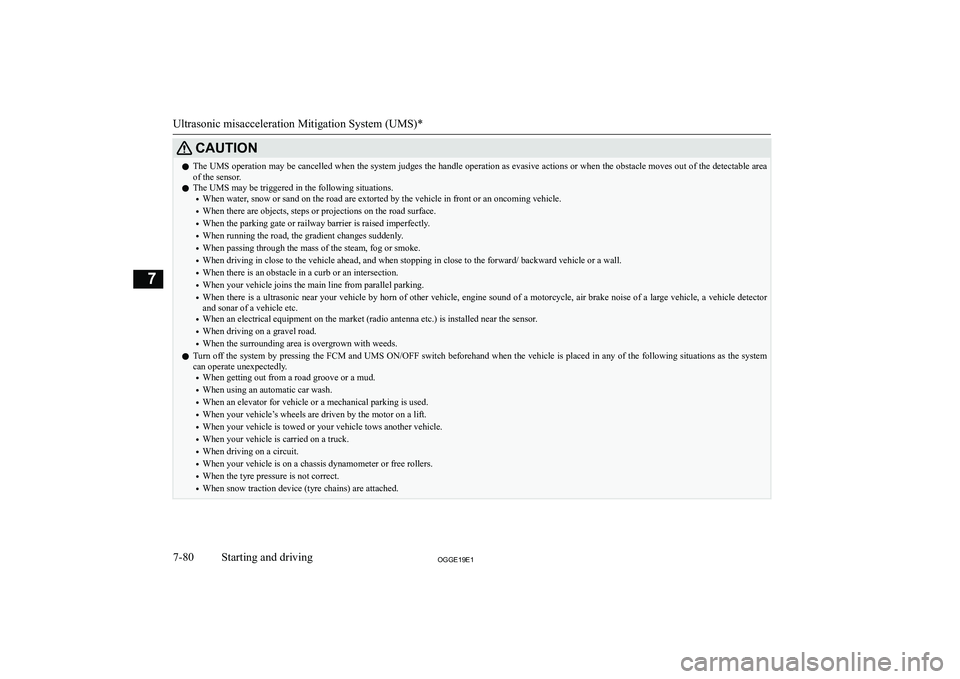

CAUT,ONzThe UMS operation may be cancelled when the system judges the handle operation as evasive actions or when the obstacle moves out of the detectable area
of the sensor.
z The UMS may be triggered in the following situations.

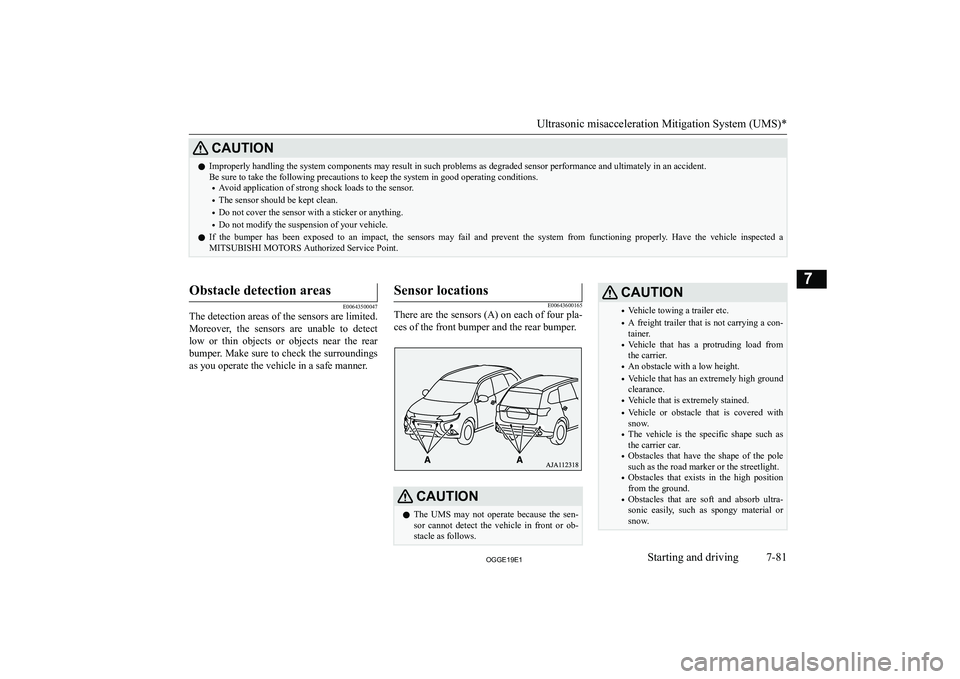

CAUT,ONzImproperly handling the system components may result in such problems as degraded sensor performance and ultimately in an accident.
Be sure to take the following precautions to keep the system in good operating conditions.

CAUT,ON

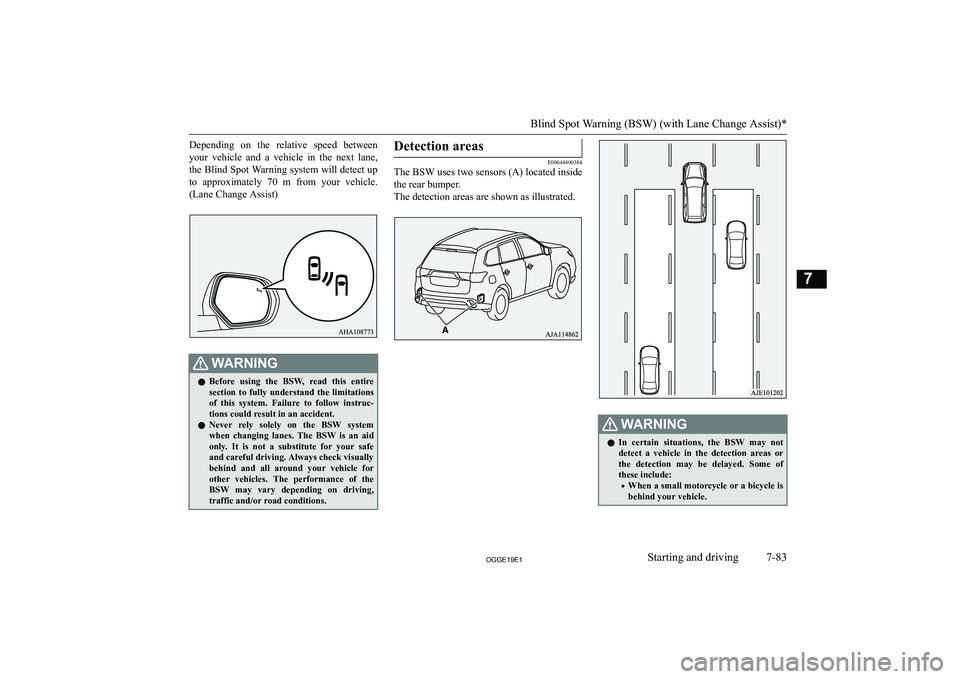

Depending on the relative speed between
your vehicle and a vehicle in the next lane,
the Blind Spot Warning system will detect up to approximately 70 m from your vehicle.(Lane Change Assist):ARN,NGz Before using the BSW, read this entire
section to fully understand the limitationsof this system. Failure to follow instruc- tions could result in an accident.
z Never rely solely on the BSW system
when changing lanes. The BSW is an aid
only. It is not a substitute for your safe and careful driving. Always check visually
behind and all around your vehicle for other vehicles. The performance of theBSW may vary depending on driving,
traffic and/or road conditions.Detection areas
E00644400388
The BSW uses two sensors (A) located inside
the rear bumper.
The detection areas are shown as illustrated.

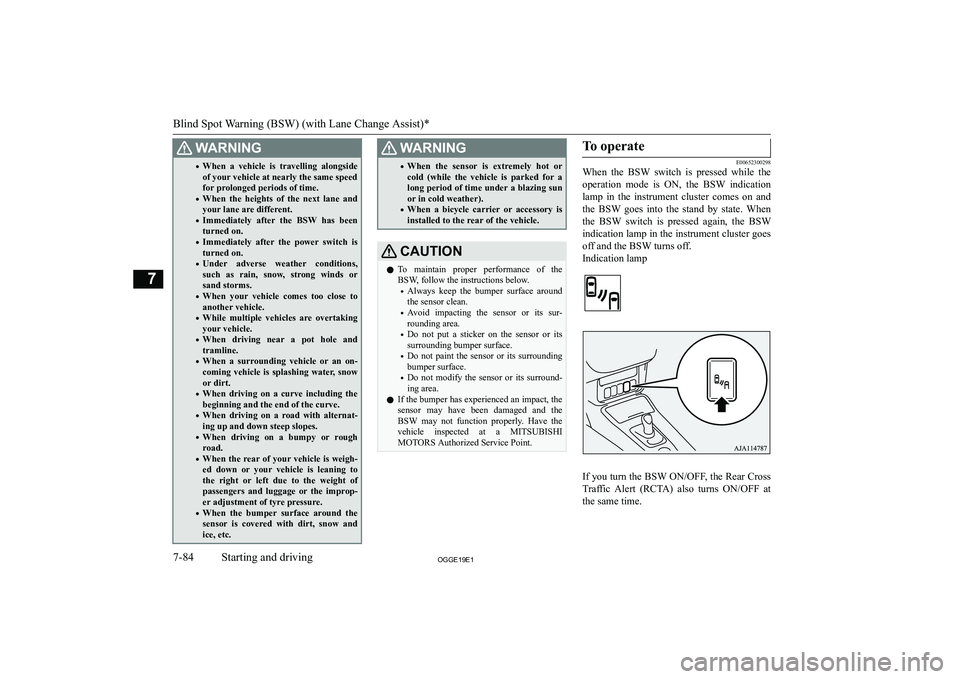

:ARN,NGz In certain situations, the BSW may not
detect a vehicle in the detection areas or
the detection may be delayed. Some of these include:

:ARN,NG

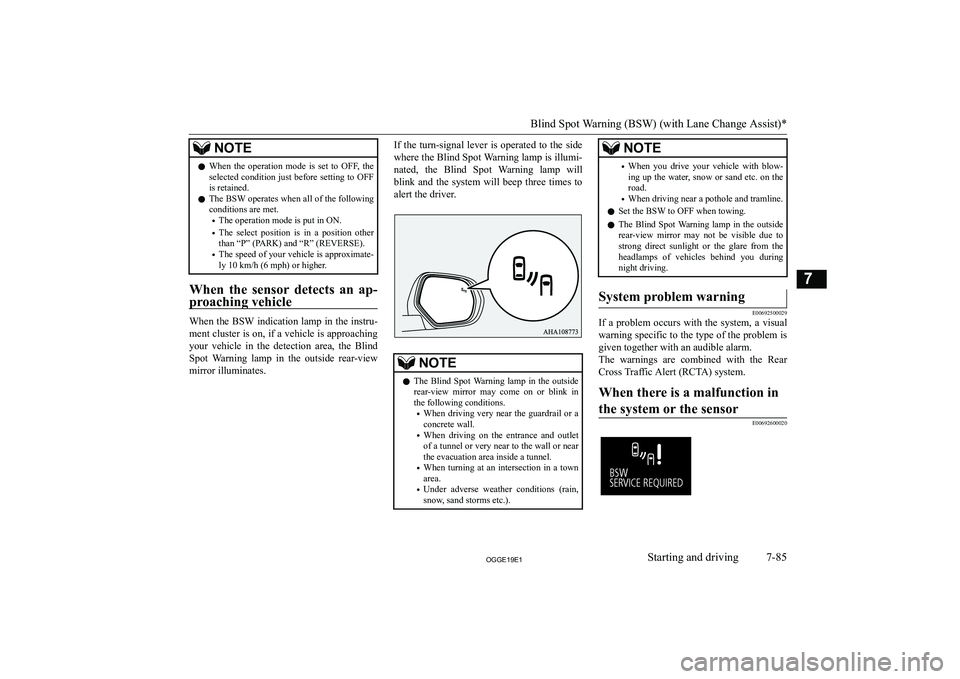

NOTEzWhen the operation mode is set to OFF, the
selected condition just before setting to OFFis retained.
z The BSW operates when all of the following
conditions are met.

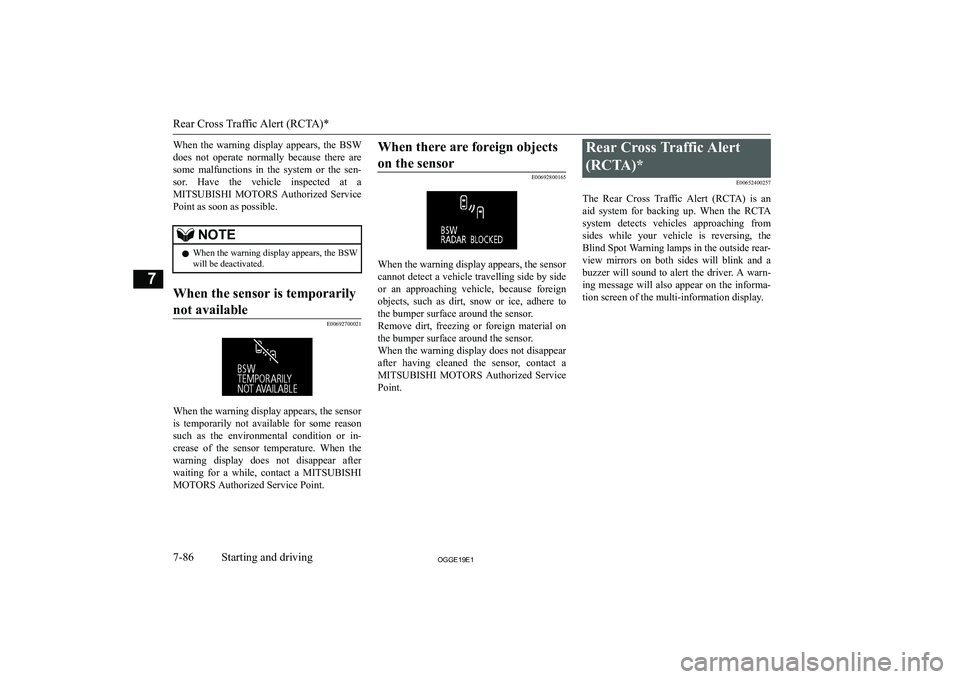

When the warning display appears, the BSWdoes not operate normally because there are
some malfunctions in the system or the sen- sor. Have the vehicle inspected at aMITSUBISHI MOTORS Authorized Service
Point as soon as possible.NOTEz When the warning display appears, the BSW
will be deactivated.When the sensor is temporarily
not available
E00692700021
When the warning display appears, the sensor
is temporarily not available for some reason such as the environmental condition or in-
crease of the sensor temperature. When the warning display does not disappear after waiting for a while, contact a MITSUBISHI
MOTORS Authorized Service Point.
When there are foreign objects
on the sensor
E00692800165
When the warning display appears, the sensor
cannot detect a vehicle travelling side by side or an approaching vehicle, because foreignobjects, such as dirt, snow or ice, adhere to the bumper surface around the sensor.Remove dirt, freezing or foreign material on
the bumper surface around the sensor. When the warning display does not disappear after having cleaned the sensor, contact a
MITSUBISHI MOTORS Authorized Service
Point.
Rear Cross Traffic Alert
(RCTA)* E00652400257
The Rear Cross Traffic Alert (RCTA) is an aid system for backing up. When the RCTAsystem detects vehicles approaching from
sides while your vehicle is reversing, the
Blind Spot Warning lamps in the outside rear-
view mirrors on both sides will blink and a buzzer will sound to alert the driver. A warn-
ing message will also appear on the informa-
tion screen of the multi-information display.
Rear Cross Traffic Alert (RCTA)*
7-862**((Starting and driving7
