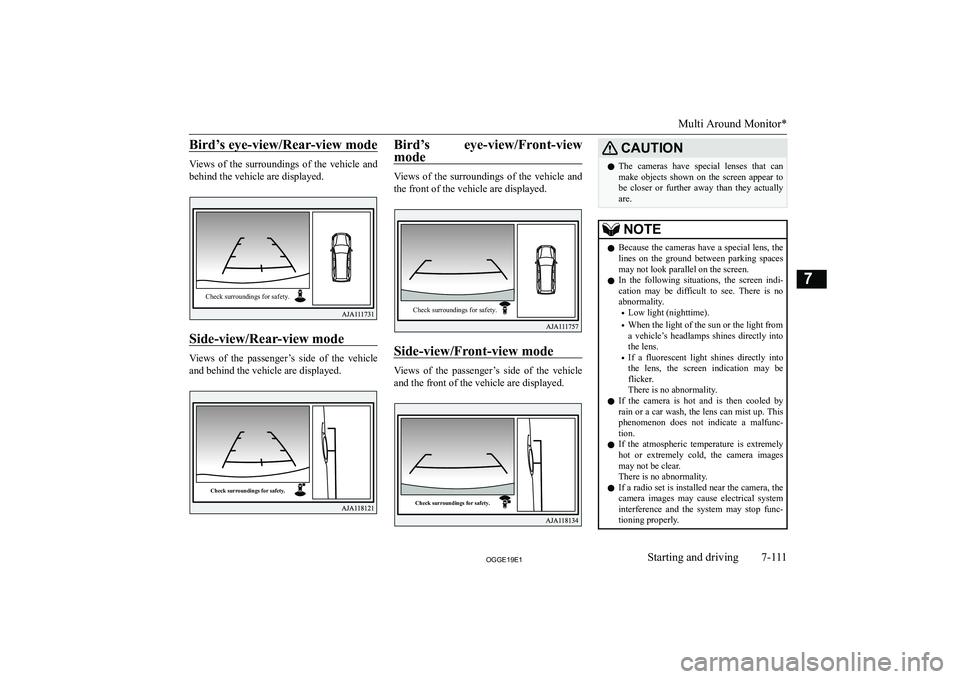

Bird’s eye-view/Rear-view mode
Views of the surroundings of the vehicle and
behind the vehicle are displayed.
Side-view/Rear-view mode
Views of the passenger’s side of the vehicle and behind the vehicle are displayed.
Bird’s eye-view/Front-view
mode
Views of the surroundings of the vehicle and
the front of the vehicle are displayed.
Side-view/Front-view mode
Views of the passenger’s side of the vehicle and the front of the vehicle are displayed.
CAUT,ONz The cameras have special lenses that can
make objects shown on the screen appear to be closer or further away than they actually
are.NOTEz Because the cameras have a special lens, the
lines on the ground between parking spaces
may not look parallel on the screen.
z In the following situations, the screen indi-
cation may be difficult to see. There is no
abnormality.

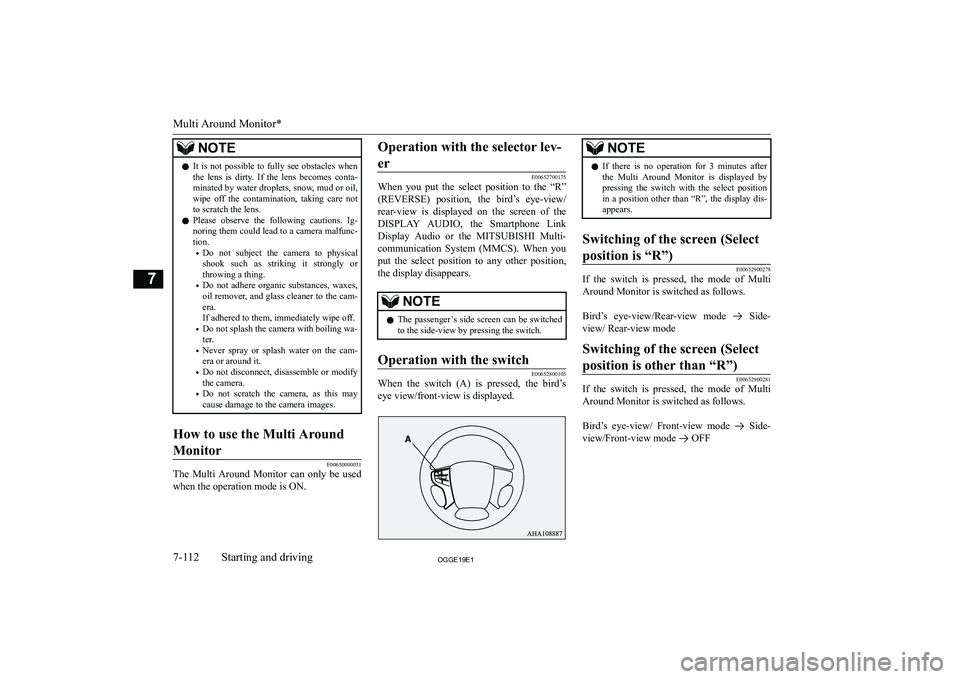

NOTEzIt is not possible to fully see obstacles when
the lens is dirty. If the lens becomes conta-minated by water droplets, snow, mud or oil,
wipe off the contamination, taking care not
to scratch the lens.
z Please observe the following cautions. Ig-
noring them could lead to a camera malfunc- tion.

NOTEzWhen you put the select position to the “R”
(REVERSE) position with the front-viewdisplayed on the driver’s side screen, the
driver’s side screen switches to the rear-view
mode. When you put the select position to any other position, the driver’s side screen
switches to the front-view mode.
z When the switch is pressed at the vehicle
speed of approximately 10 km/h (6 mph) or
higher, only the side-view can be displayed on the passenger’s side screen.
z The front-view will not be displayed when
the vehicle speed exceeds approximately
10 km/h (6 mph).
z The display of the view may be delayed dur-
ing switching of the screen.How to read the screen
E00645400079

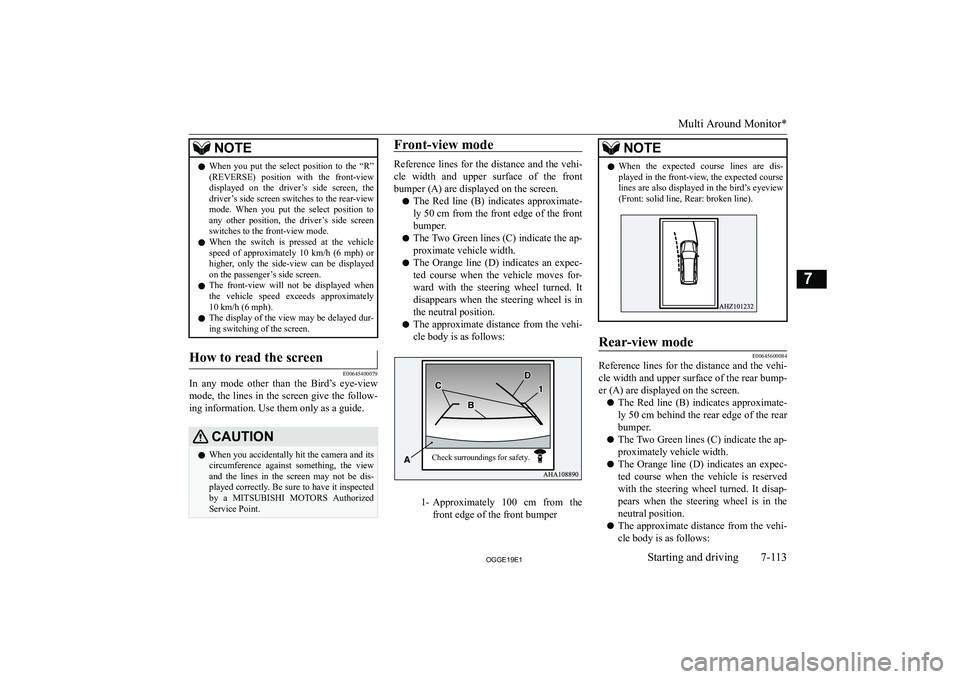

In any mode other than the Bird’s eye-view
mode, the lines in the screen give the follow- ing information. Use them only as a guide.
CAUT,ONz When you accidentally hit the camera and its
circumference against something, the view and the lines in the screen may not be dis-
played correctly. Be sure to have it inspected by a MITSUBISHI MOTORS Authorized
Service Point.Front-view mode
Reference lines for the distance and the vehi-
cle width and upper surface of the front
bumper (A) are displayed on the screen.
z The Red line (B) indicates approximate-
ly 50 cm from the front edge of the front
bumper.
z The Two Green lines (C) indicate the ap-
proximate vehicle width.
z The Orange line (D) indicates an expec-
ted course when the vehicle moves for-
ward with the steering wheel turned. It
disappears when the steering wheel is in the neutral position.
z The approximate distance from the vehi-
cle body is as follows:
1- Approximately 100 cm from the
front edge of the front bumper
NOTEz When the expected course lines are dis-
played in the front-view, the expected course lines are also displayed in the bird’s eyeview(Front: solid line, Rear: broken line).Rear-view mode
E00645600084
Reference lines for the distance and the vehi-
cle width and upper surface of the rear bump-
er (A) are displayed on the screen.
z The Red line (B) indicates approximate-
ly 50 cm behind the rear edge of the rear
bumper.
z The Two Green lines (C) indicate the ap-
proximately vehicle width.
z The Orange line (D) indicates an expec-
ted course when the vehicle is reserved
with the steering wheel turned. It disap-
pears when the steering wheel is in the
neutral position.
z The approximate distance from the vehi-
cle body is as follows:
Multi Around Monitor*
7-1132**((Starting and driving7 Check surroundings for safety.

1-Approximately 100 cm from the rear
edge of the rear bumper
2- Approximately 200 cm from the rear
edge of the rear bumper
CAUT,ONz Due to the number of people in the vehicle,
the fuel quantity, the weight and positioning of luggage, and/or the condition of the roadsurface, the lines in the view from the rear-
view camera may not be accurately posi- tioned relative to the actual road.
Use the reference lines only as a guideline,
and always do a safety check of your behind and surroundings directly while driving.NOTEz When the expected course lines are dis-
played in the rear-view, the expected course lines are also displayed in the bird’s eye-view (Front: broken line, Rear: solid line).Errors between the display and
the actual road surface
E00645900045

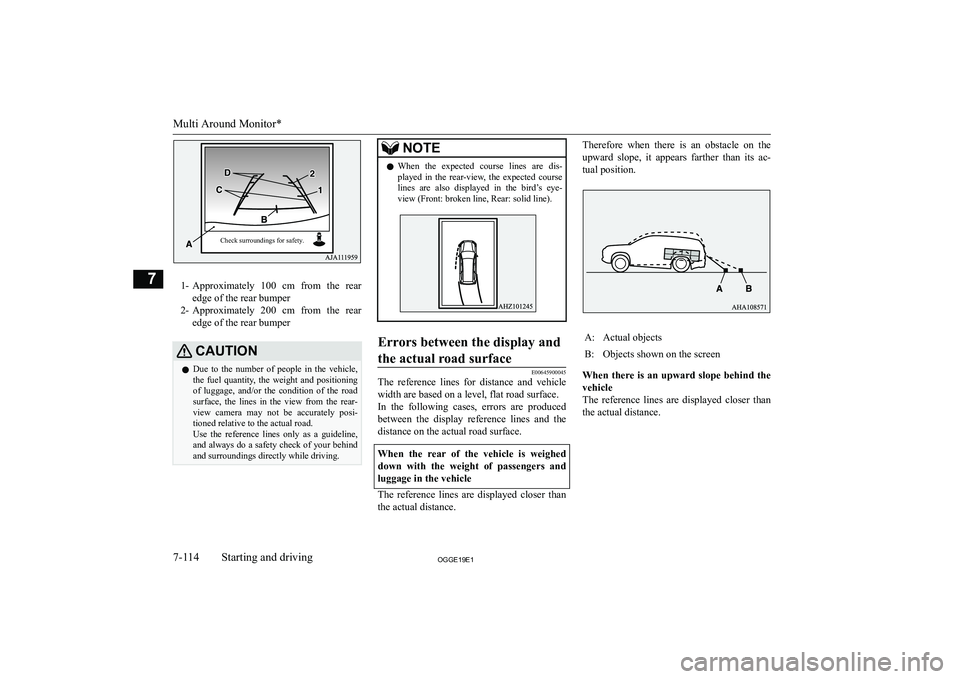

The reference lines for distance and vehicle
width are based on a level, flat road surface.
In the following cases, errors are produced between the display reference lines and the distance on the actual road surface.
When the rear of the vehicle is weighed
down with the weight of passengers and luggage in the vehicle
The reference lines are displayed closer than
the actual distance.
Therefore when there is an obstacle on the
upward slope, it appears farther than its ac- tual position.A:Actual objectsB:Objects shown on the screen
When there is an upward slope behind thevehicle
The reference lines are displayed closer than the actual distance.
Multi Around Monitor*
7-1142**((Starting and driving7Check surroundings for safety.

Therefore when there is an obstacle on the
upward slope, it appears farther than its ac-
tual position.A:Actual objectsB:Objects shown on the screen
When there is a downward slope behind the vehicle
The reference lines are displayed farther than
the actual distance.
Therefore when there is an obstacle on the
downward slope, it appears closer than its ac-
tual position.A:Actual objectsB:Objects shown on the screen

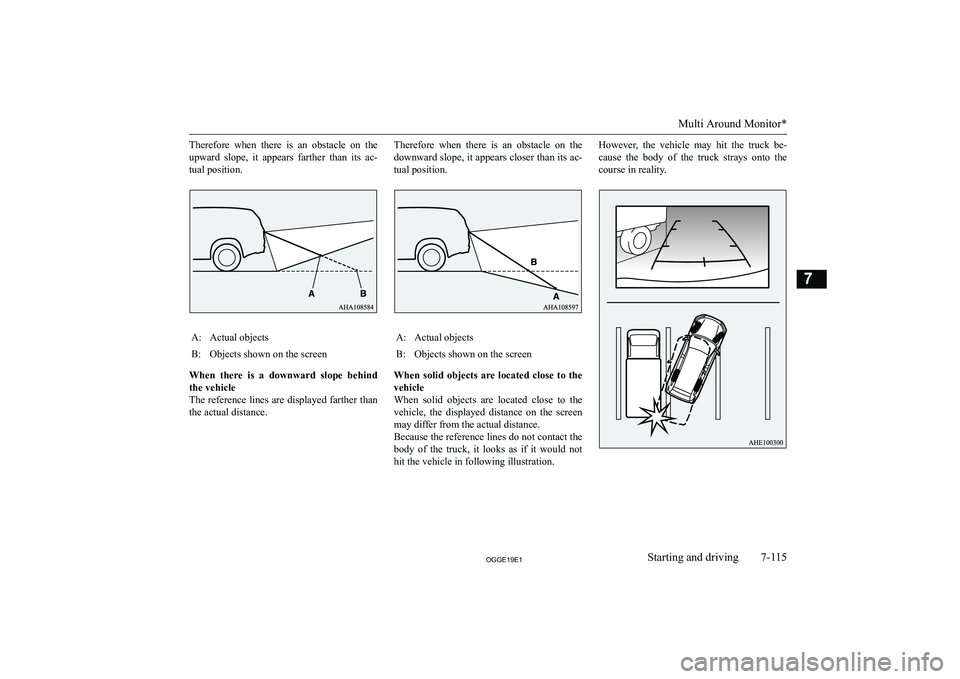

When solid objects are located close to the
vehicle
When solid objects are located close to the vehicle, the displayed distance on the screen
may differ from the actual distance.
Because the reference lines do not contact the body of the truck, it looks as if it would not
hit the vehicle in following illustration.
However, the vehicle may hit the truck be-
cause the body of the truck strays onto the course in reality.
Multi Around Monitor*
7-1152**((Starting and driving7

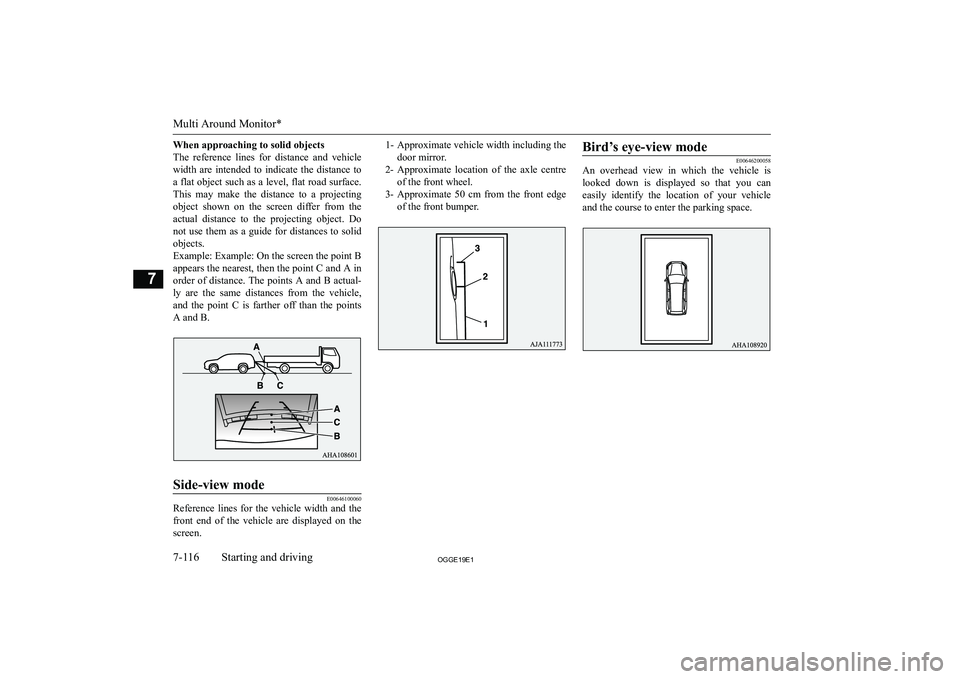

When approaching to solid objects
The reference lines for distance and vehicle
width are intended to indicate the distance to a flat object such as a level, flat road surface. This may make the distance to a projecting
object shown on the screen differ from the
actual distance to the projecting object. Do not use them as a guide for distances to solid
objects.
Example: Example: On the screen the point B appears the nearest, then the point C and A in
order of distance. The points A and B actual-
ly are the same distances from the vehicle,
and the point C is farther off than the points
A and B.Side-view mode
E00646100060
Reference lines for the vehicle width and the front end of the vehicle are displayed on thescreen.
1- Approximate vehicle width including the
door mirror.
2- Approximate location of the axle centre
of the front wheel.
3- Approximate 50 cm from the front edge
of the front bumper.Bird’s eye-view mode
E00646200058
An overhead view in which the vehicle is
looked down is displayed so that you can
easily identify the location of your vehicle
and the course to enter the parking space.
Multi Around Monitor*
7-1162**((Starting and driving7

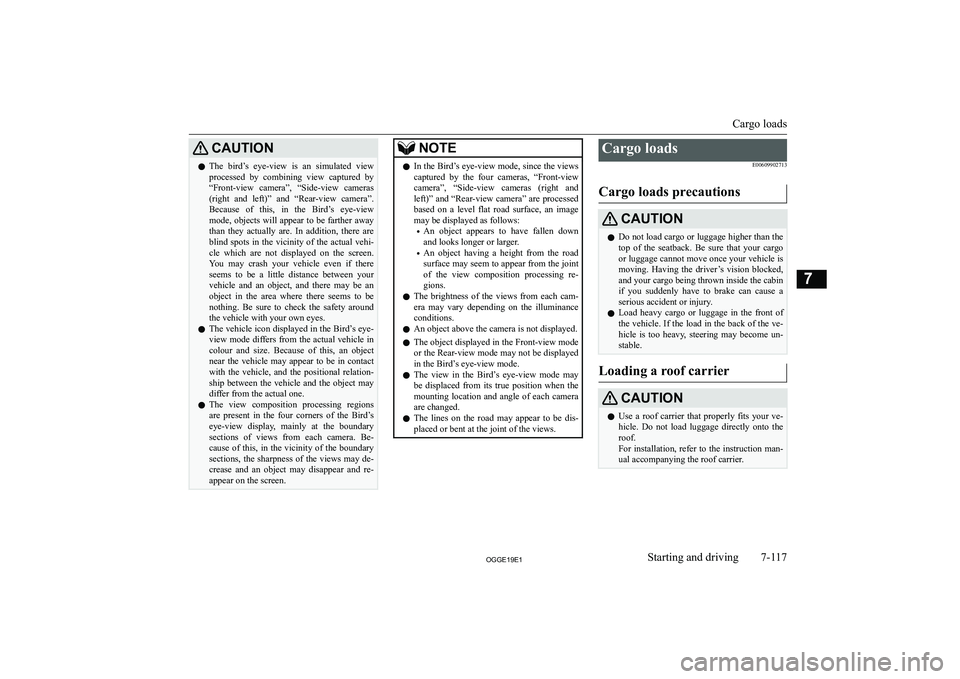

CAUT,ONzThe bird’s eye-view is an simulated view
processed by combining view captured by “Front-view camera”, “Side-view cameras
(right and left)” and “Rear-view camera”. Because of this, in the Bird’s eye-view
mode, objects will appear to be farther away
than they actually are. In addition, there are blind spots in the vicinity of the actual vehi-
cle which are not displayed on the screen. You may crash your vehicle even if thereseems to be a little distance between your
vehicle and an object, and there may be an
object in the area where there seems to be nothing. Be sure to check the safety around
the vehicle with your own eyes.
z The vehicle icon displayed in the Bird’s eye-
view mode differs from the actual vehicle in
colour and size. Because of this, an object near the vehicle may appear to be in contact
with the vehicle, and the positional relation- ship between the vehicle and the object may
differ from the actual one.
z The view composition processing regions
are present in the four corners of the Bird’s
eye-view display, mainly at the boundary sections of views from each camera. Be-
cause of this, in the vicinity of the boundary sections, the sharpness of the views may de-crease and an object may disappear and re-
appear on the screen.NOTEz In the Bird’s eye-view mode, since the views
captured by the four cameras, “Front-view
camera”, “Side-view cameras (right and
left)” and “Rear-view camera” are processed based on a level flat road surface, an image
may be displayed as follows:

NOTEzWe recommend you to use a
MITSUBISHI
MOTORS GENUINE roof carrier, since the
brackets to be used have a special shape. For
details, we recommend you to consult a MITSUBISHI MOTORS Authorized Serv-
ice Point.

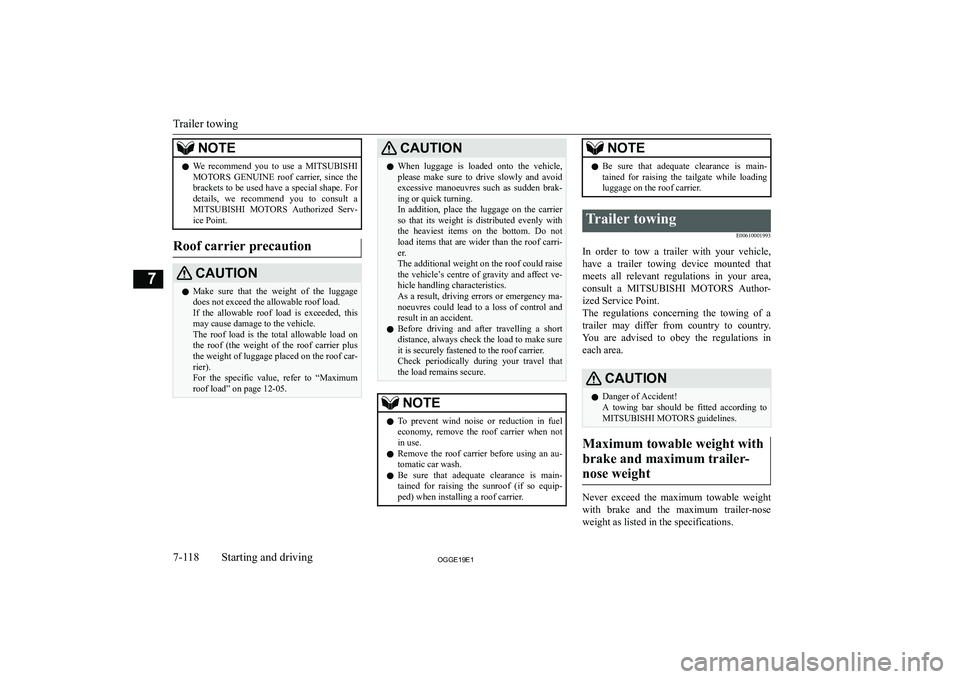

Roof carrier precaution
CAUT,ONz Make sure that the weight of the luggage
does not exceed the allowable roof load.
If the allowable roof load is exceeded, this may cause damage to the vehicle.
The roof load is the total allowable load on
the roof (the weight of the roof carrier plus
the weight of luggage placed on the roof car- rier).
For the specific value, refer to “Maximum
roof load” on page 12-05.CAUT,ONz When luggage is loaded onto the vehicle,
please make sure to drive slowly and avoid
excessive manoeuvres such as sudden brak- ing or quick turning.
In addition, place the luggage on the carrier
so that its weight is distributed evenly with the heaviest items on the bottom. Do not load items that are wider than the roof carri-
er.
The additional weight on the roof could raise
the vehicle’s centre of gravity and affect ve- hicle handling characteristics.
As a result, driving errors or emergency ma-
noeuvres could lead to a loss of control and result in an accident.
z Before driving and after travelling a short
distance, always check the load to make sure it is securely fastened to the roof carrier.
Check periodically during your travel that
the load remains secure.NOTEz To prevent wind noise or reduction in fuel
economy, remove the roof carrier when not
in use.
z Remove the roof carrier before using an au-
tomatic car wash.
z Be sure that adequate clearance is main-
tained for raising the sunroof (if so equip- ped) when installing a roof carrier.NOTEz Be sure that adequate clearance is main-
tained for raising the tailgate while loading
luggage on the roof carrier.Trailer towing
E00610001993
In order to tow a trailer with your vehicle,
have a trailer towing device mounted that meets all relevant regulations in your area,
consult a MITSUBISHI MOTORS Author-
ized Service Point.
The regulations concerning the towing of a
trailer may differ from country to country. You are advised to obey the regulations in
each area.
CAUT,ONz Danger of Accident!
A towing bar should be fitted according to MITSUBISHI MOTORS guidelines.
Maximum towable weight with
brake and maximum trailer- nose weight
Never exceed the maximum towable weight
with brake and the maximum trailer-nose weight as listed in the specifications.
Trailer towing
7-1182**((Starting and driving7
