CAUT,ONzLong use of the heated steering wheel when
the ready indicator is not illuminated may run down the auxiliary battery.Horn switch
E00508001735

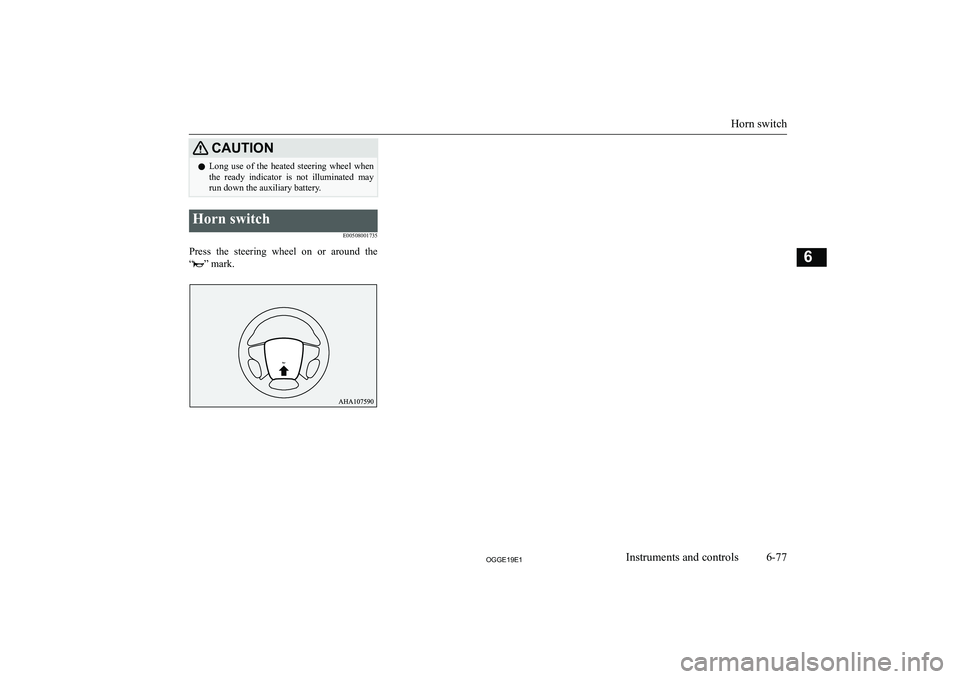

Press the steering wheel on or around the
“
” mark.
Horn switch
6-772**((Instruments and controls6

2**((

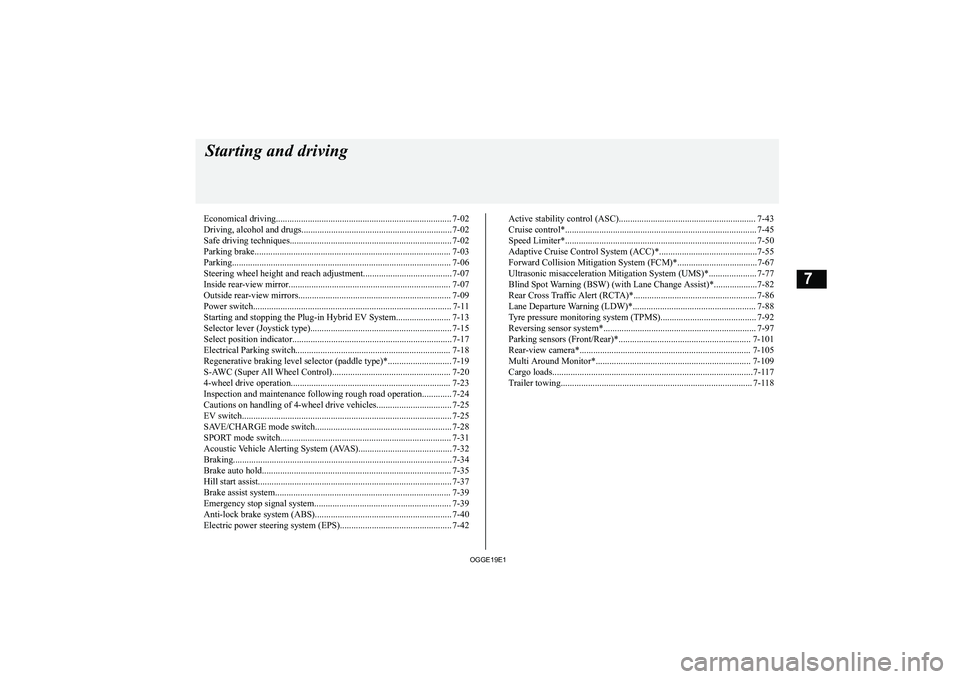

Economical driving............................................................................. 7-02
Driving, alcohol and drugs.................................................................. 7-02
Safe driving techniques....................................................................... 7-02
Parking brake...................................................................................... 7-03 Parking................................................................................................ 7-06
Steering wheel height and reach adjustment....................................... 7-07
Inside rear-view mirror....................................................................... 7-07
Outside rear-view mirrors................................................................... 7-09
Power switch....................................................................................... 7-11
Starting and stopping the Plug-in Hybrid EV System........................ 7-13
Selector lever (Joystick type).............................................................. 7-15 Select position indicator...................................................................... 7-17
Electrical Parking switch.................................................................... 7-18
Regenerative braking level selector (paddle type)*............................ 7-19
S-AWC (Super All Wheel Control).................................................... 7-20
4-wheel drive operation...................................................................... 7-23
Inspection and maintenance following rough road operation............. 7-24
Cautions on handling of 4-wheel drive vehicles................................. 7-25
EV switch............................................................................................ 7-25
SAVE/CHARGE mode switch............................................................ 7-28 SPORT mode switch........................................................................... 7-31
Acoustic Vehicle Alerting System (AVAS)......................................... 7-32 Braking................................................................................................ 7-34
Brake auto hold................................................................................... 7-35
Hill start assist..................................................................................... 7-37
Brake assist system............................................................................. 7-39
Emergency stop signal system............................................................ 7-39 Anti-lock brake system (ABS)............................................................ 7-40
Electric power steering system (EPS)................................................. 7-42Active stability control (ASC)............................................................ 7-43
Cruise control*.................................................................................... 7-45
Speed Limiter*.................................................................................... 7-50
Adaptive Cruise Control System (ACC)*...........................................7-55 Forward Collision Mitigation System (FCM)*...................................7-67Ultrasonic misacceleration Mitigation System (UMS)*..................... 7-77Blind Spot Warning (BSW) (with Lane Change Assist)*...................7-82
Rear Cross Traffic Alert (RCTA)*...................................................... 7-86 Lane Departure Warning (LDW)*...................................................... 7-88Tyre pressure monitoring system (TPMS).......................................... 7-92Reversing sensor system*................................................................... 7-97Parking sensors (Front/Rear)*.......................................................... 7-101
Rear-view camera*........................................................................... 7-105
Multi Around Monitor*.................................................................... 7-109
Cargo loads........................................................................................7-117 Trailer towing.................................................................................... 7-1186tartinganddriving
2**((7

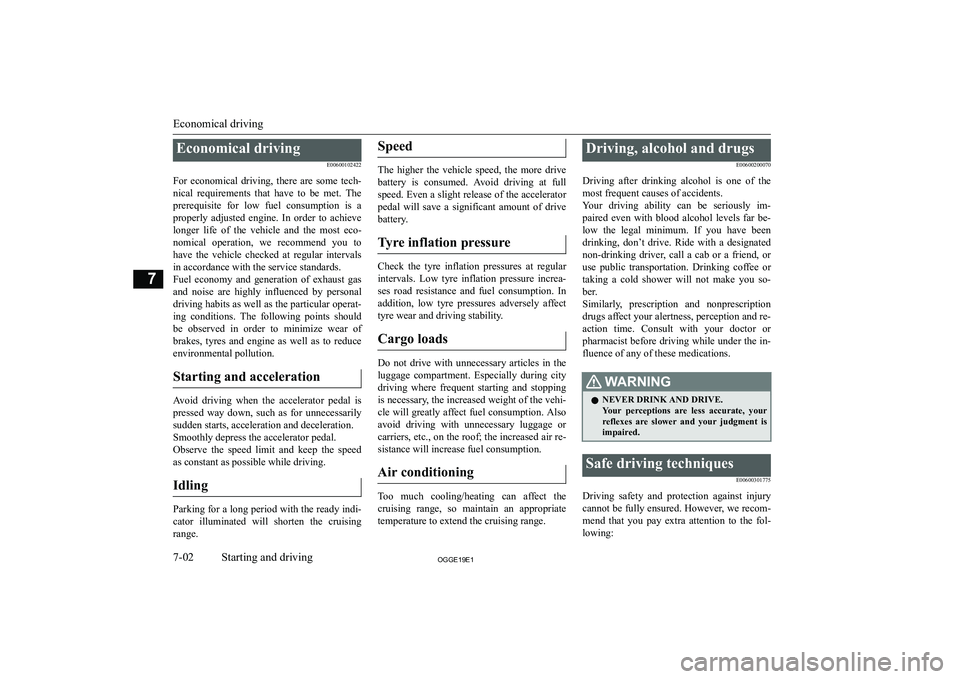

Economical drivingE00600102422
For economical driving, there are some tech- nical requirements that have to be met. Theprerequisite for low fuel consumption is a
properly adjusted engine. In order to achieve longer life of the vehicle and the most eco- nomical operation, we recommend you tohave the vehicle checked at regular intervals in accordance with the service standards.
Fuel economy and generation of exhaust gas
and noise are highly influenced by personal
driving habits as well as the particular operat- ing conditions. The following points shouldbe observed in order to minimize wear of
brakes, tyres and engine as well as to reduce
environmental pollution.
Starting and acceleration
Avoid driving when the accelerator pedal ispressed way down, such as for unnecessarilysudden starts, acceleration and deceleration.
Smoothly depress the accelerator pedal.
Observe the speed limit and keep the speed
as constant as possible while driving.
Idling
Parking for a long period with the ready indi- cator illuminated will shorten the cruising
range.
Speed
The higher the vehicle speed, the more drive
battery is consumed. Avoid driving at full speed. Even a slight release of the accelerator
pedal will save a significant amount of drive
battery.
Tyre inflation pressure
Check the tyre inflation pressures at regularintervals. Low tyre inflation pressure increa-ses road resistance and fuel consumption. In addition, low tyre pressures adversely affect
tyre wear and driving stability.
Cargo loads
Do not drive with unnecessary articles in the
luggage compartment. Especially during city
driving where frequent starting and stopping is necessary, the increased weight of the vehi-
cle will greatly affect fuel consumption. Also
avoid driving with unnecessary luggage or carriers, etc., on the roof; the increased air re- sistance will increase fuel consumption.
Air conditioning
Too much cooling/heating can affect the cruising range, so maintain an appropriatetemperature to extend the cruising range.
Driving, alcohol and drugs
E00600200070
Driving after drinking alcohol is one of the
most frequent causes of accidents.
Your driving ability can be seriously im- paired even with blood alcohol levels far be-
low the legal minimum. If you have been drinking, don’t drive. Ride with a designated
non-drinking driver, call a cab or a friend, or
use public transportation. Drinking coffee or taking a cold shower will not make you so-ber.
Similarly, prescription and nonprescription
drugs affect your alertness, perception and re-
action time. Consult with your doctor or
pharmacist before driving while under the in- fluence of any of these medications.:ARN,NGz NEVER DRINK AND DRIVE.
Your perceptions are less accurate, your
reflexes are slower and your judgment is impaired.Safe driving techniques
E00600301775
Driving safety and protection against injury
cannot be fully ensured. However, we recom- mend that you pay extra attention to the fol-
lowing:
Economical driving
7-022**((Starting and driving7

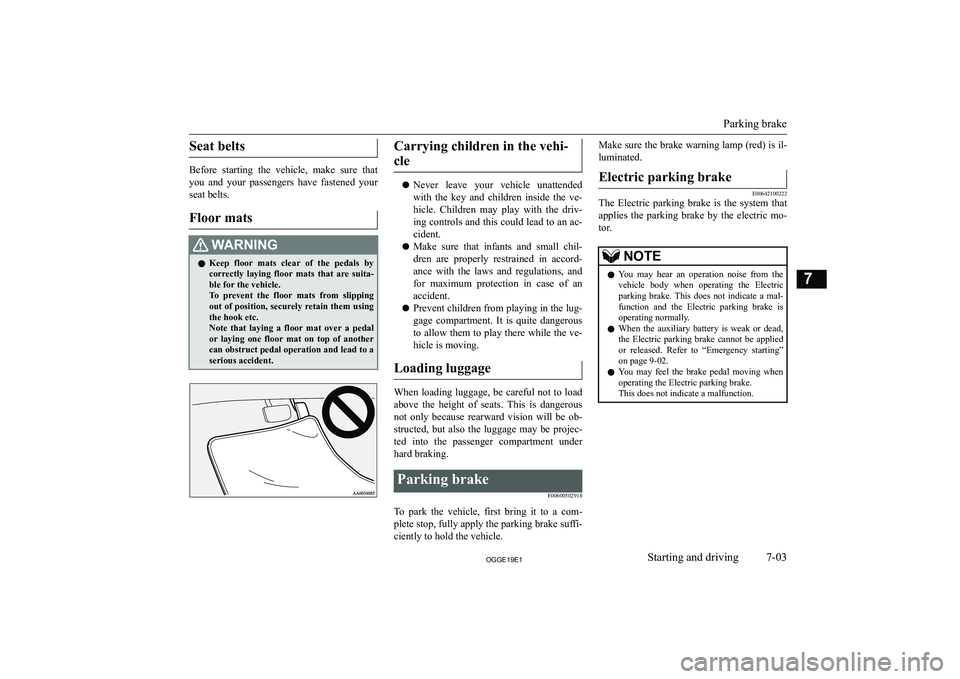

Seat belts
Before starting the vehicle, make sure that
you and your passengers have fastened your seat belts.
Floor mats
:ARN,NGz Keep floor mats clear of the pedals by
correctly laying floor mats that are suita-
ble for the vehicle.
To prevent the floor mats from slipping out of position, securely retain them using the hook etc.
Note that laying a floor mat over a pedal
or laying one floor mat on top of another can obstruct pedal operation and lead to a
serious accident.Carrying children in the vehi-
cle
z Never leave your vehicle unattended
with the key and children inside the ve-hicle. Children may play with the driv-
ing controls and this could lead to an ac- cident.
z Make sure that infants and small chil-
dren are properly restrained in accord-
ance with the laws and regulations, and
for maximum protection in case of an accident.
z Prevent children from playing in the lug-
gage compartment. It is quite dangerous
to allow them to play there while the ve- hicle is moving.
Loading luggage
When loading luggage, be careful not to load above the height of seats. This is dangerous
not only because rearward vision will be ob- structed, but also the luggage may be projec-ted into the passenger compartment underhard braking.
Parking brake
E00600502918
To park the vehicle, first bring it to a com-plete stop, fully apply the parking brake suffi-
ciently to hold the vehicle.
Make sure the brake warning lamp (red) is il-
luminated.Electric parking brake
E00642100222
The Electric parking brake is the system that
applies the parking brake by the electric mo- tor.
NOTEz You may hear an operation noise from the
vehicle body when operating the Electric
parking brake. This does not indicate a mal-
function and the Electric parking brake is operating normally.
z When the auxiliary battery is weak or dead,
the Electric parking brake cannot be applied
or released. Refer to “Emergency starting” on page 9-02.
z You may feel the brake pedal moving when
operating the Electric parking brake.
This does not indicate a malfunction.
Parking brake
7-032**((Starting and driving7

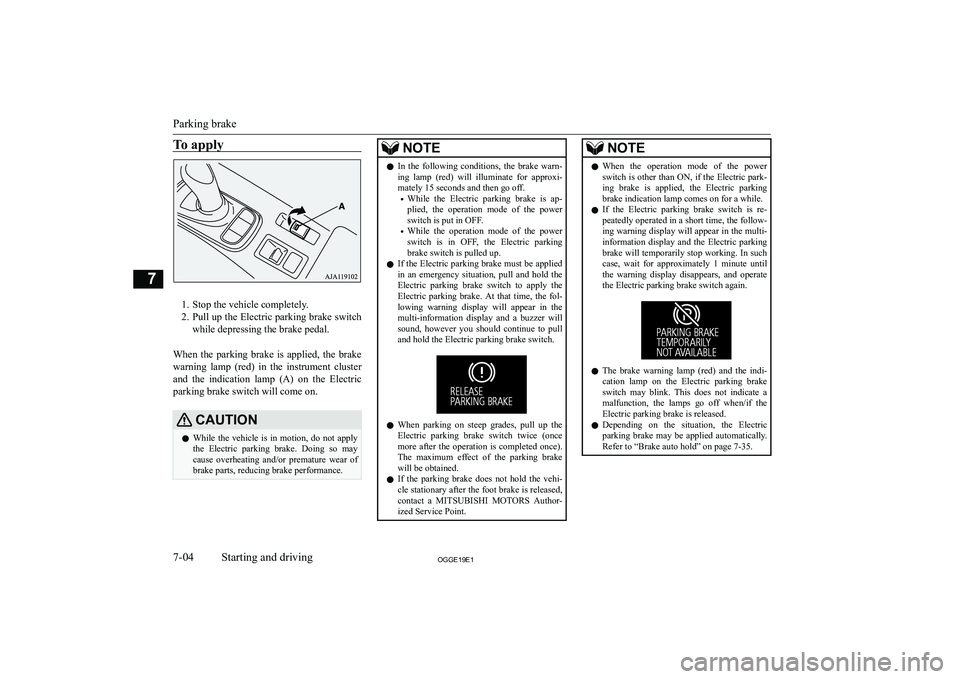

To apply
1. Stop the vehicle completely.
2. Pull up the Electric parking brake switch
while depressing the brake pedal.
When the parking brake is applied, the brake warning lamp (red) in the instrument clusterand the indication lamp (A) on the Electric
parking brake switch will come on.
CAUT,ONz While the vehicle is in motion, do not apply
the Electric parking brake. Doing so may cause overheating and/or premature wear of brake parts, reducing brake performance.NOTEz In the following conditions, the brake warn-
ing lamp (red) will illuminate for approxi-
mately 15 seconds and then go off.

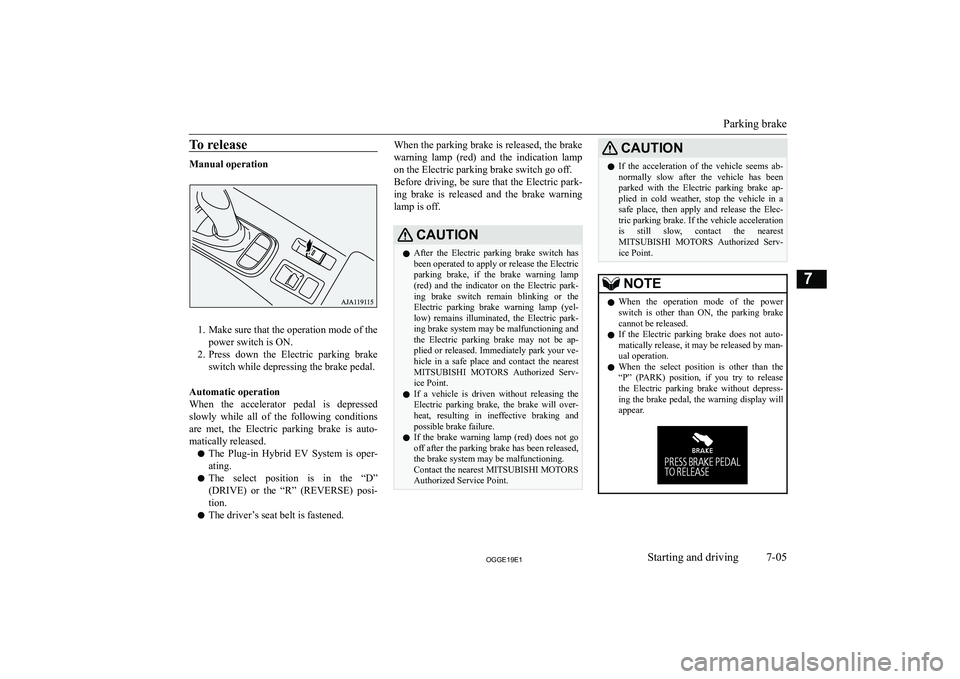

To release
Manual operation
1. Make sure that the operation mode of thepower switch is ON.
2. Press down the Electric parking brake
switch while depressing the brake pedal.
Automatic operation
When the accelerator pedal is depressed
slowly while all of the following conditions are met, the Electric parking brake is auto-
matically released.
z The Plug-in Hybrid EV System is oper-
ating.
z The select position is in the “D”
(DRIVE) or the “R” (REVERSE) posi-
tion.
z The driver’s seat belt is fastened.
When the parking brake is released, the brake
warning lamp (red) and the indication lamp on the Electric parking brake switch go off.
Before driving, be sure that the Electric park-
ing brake is released and the brake warning lamp is off.CAUT,ONz After the Electric parking brake switch has
been operated to apply or release the Electric
parking brake, if the brake warning lamp
(red) and the indicator on the Electric park- ing brake switch remain blinking or the
Electric parking brake warning lamp (yel- low) remains illuminated, the Electric park-ing brake system may be malfunctioning and
the Electric parking brake may not be ap-
plied or released. Immediately park your ve- hicle in a safe place and contact the nearest
MITSUBISHI MOTORS Authorized Serv-
ice Point.
z If a vehicle is driven without releasing the
Electric parking brake, the brake will over-
heat, resulting in ineffective braking and
possible brake failure.
z If the brake warning lamp (red) does not go
off after the parking brake has been released, the brake system may be malfunctioning.
Contact the nearest MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz If the acceleration of the vehicle seems ab-
normally slow after the vehicle has been parked with the Electric parking brake ap-
plied in cold weather, stop the vehicle in a
safe place, then apply and release the Elec- tric parking brake. If the vehicle acceleration is still slow, contact the nearest
MITSUBISHI MOTORS Authorized Serv-
ice Point.NOTEz When the operation mode of the power
switch is other than ON, the parking brake
cannot be released.
z If the Electric parking brake does not auto-
matically release, it may be released by man-ual operation.
z When the select position is other than the
“P” (PARK) position, if you try to release
the Electric parking brake without depress- ing the brake pedal, the warning display will
appear.
Parking brake
7-052**((Starting and driving7

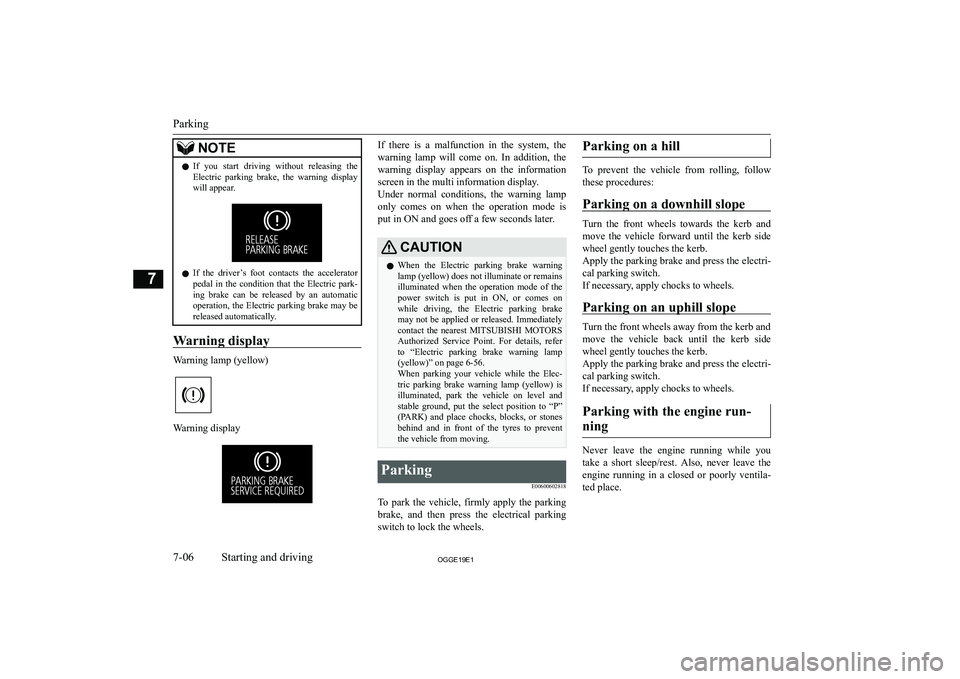

NOTEzIf you start driving without releasing the
Electric parking brake, the warning display
will appear.
z If the driver’s foot contacts the accelerator
pedal in the condition that the Electric park-
ing brake can be released by an automatic
operation, the Electric parking brake may be released automatically.
Warning display
Warning lamp (yellow)
Warning display
If there is a malfunction in the system, the
warning lamp will come on. In addition, thewarning display appears on the information
screen in the multi information display.
Under normal conditions, the warning lamp
only comes on when the operation mode is put in ON and goes off a few seconds later.CAUT,ONz When the Electric parking brake warning
lamp (yellow) does not illuminate or remains
illuminated when the operation mode of the
power switch is put in ON, or comes on
while driving, the Electric parking brake may not be applied or released. Immediatelycontact the nearest MITSUBISHI MOTORS
Authorized Service Point. For details, refer
to “Electric parking brake warning lamp (yellow)” on page 6-56.
When parking your vehicle while the Elec-
tric parking brake warning lamp (yellow) is illuminated, park the vehicle on level and stable ground, put the select position to “P”
(PARK) and place chocks, blocks, or stones behind and in front of the tyres to prevent
the vehicle from moving.Parking
E00600602818
To park the vehicle, firmly apply the parkingbrake, and then press the electrical parkingswitch to lock the wheels.
Parking on a hill
To prevent the vehicle from rolling, follow
these procedures:
Parking on a downhill slope
Turn the front wheels towards the kerb and
move the vehicle forward until the kerb side wheel gently touches the kerb.
Apply the parking brake and press the electri-
cal parking switch.
If necessary, apply chocks to wheels.
Parking on an uphill slope
Turn the front wheels away from the kerb and
move the vehicle back until the kerb side wheel gently touches the kerb.
Apply the parking brake and press the electri-
cal parking switch.
If necessary, apply chocks to wheels.
Parking with the engine run-ning
Never leave the engine running while you
take a short sleep/rest. Also, never leave the engine running in a closed or poorly ventila-
ted place.
Parking
7-062**((Starting and driving7
