2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

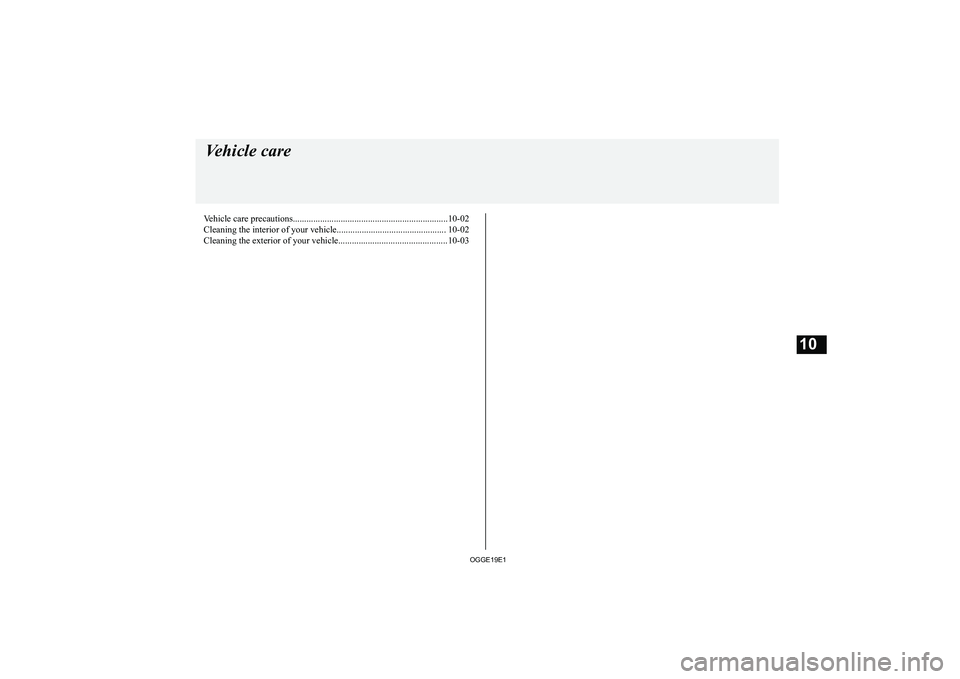

Vehicle care precautions....................................................................10-02
Cleaning the interior of your vehicle................................................ 10-02 Cleaning the exterior of your vehicle................................................10-039ehiclecare
2**((10

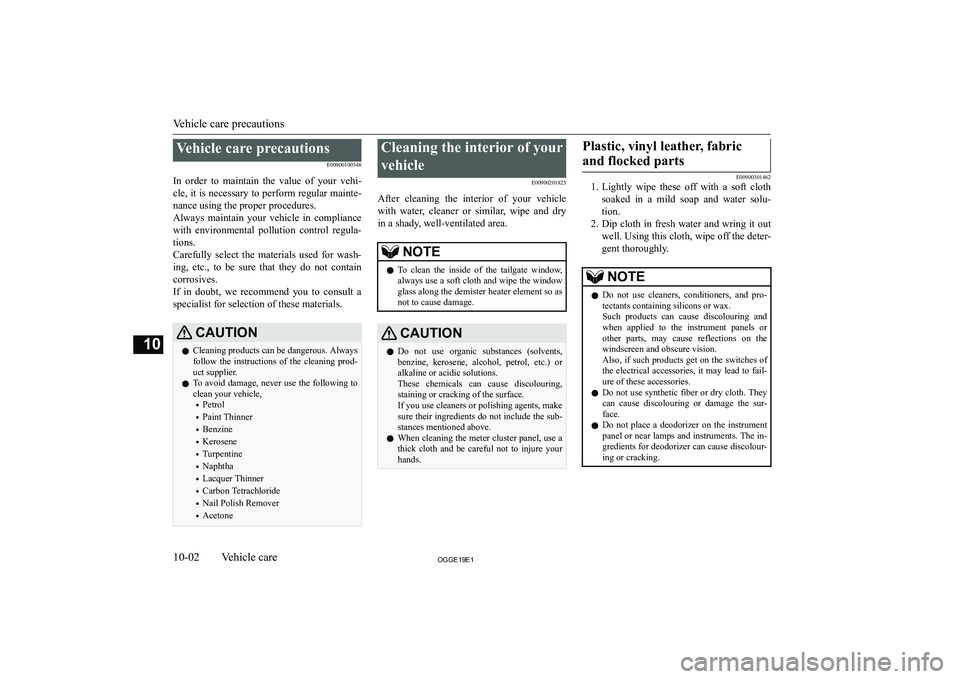

Vehicle care precautionsE00900100548
In order to maintain the value of your vehi- cle, it is necessary to perform regular mainte- nance using the proper procedures.
Always maintain your vehicle in compliance
with environmental pollution control regula- tions.
Carefully select the materials used for wash- ing, etc., to be sure that they do not contain
corrosives.
If in doubt, we recommend you to consult a specialist for selection of these materials.CAUT,ONz Cleaning products can be dangerous. Always
follow the instructions of the cleaning prod- uct supplier.
z To avoid damage, never use the following to
clean your vehicle,

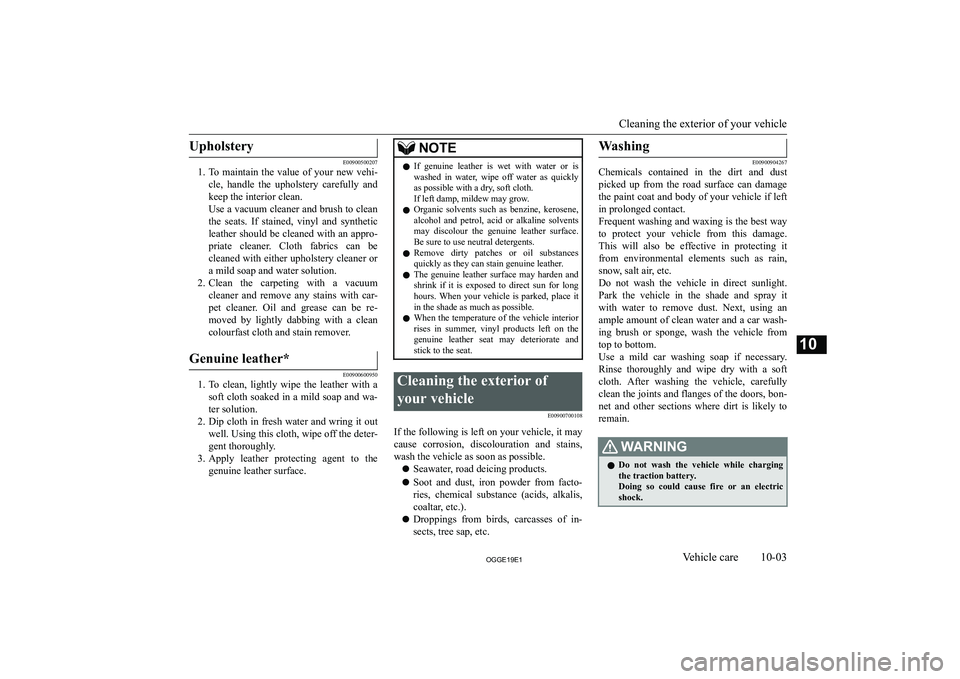

Upholstery
E00900500207
1. To maintain the value of your new vehi-
cle, handle the upholstery carefully and keep the interior clean.
Use a vacuum cleaner and brush to clean
the seats. If stained, vinyl and synthetic leather should be cleaned with an appro- priate cleaner. Cloth fabrics can be
cleaned with either upholstery cleaner or
a mild soap and water solution.
2. Clean the carpeting with a vacuum
cleaner and remove any stains with car-pet cleaner. Oil and grease can be re- moved by lightly dabbing with a clean
colourfast cloth and stain remover.
Genuine leather*
E00900600950
1. To clean, lightly wipe the leather with a
soft cloth soaked in a mild soap and wa- ter solution.
2. Dip cloth in fresh water and wring it out
well. Using this cloth, wipe off the deter-
gent thoroughly.
3. Apply leather protecting agent to the
genuine leather surface.
NOTEz If genuine leather is wet with water or is
washed in water, wipe off water as quickly
as possible with a dry, soft cloth.
If left damp, mildew may grow.
z Organic solvents such as benzine, kerosene,
alcohol and petrol, acid or alkaline solvents
may discolour the genuine leather surface. Be sure to use neutral detergents.
z Remove dirty patches or oil substances
quickly as they can stain genuine leather.
z The genuine leather surface may harden and
shrink if it is exposed to direct sun for long hours. When your vehicle is parked, place itin the shade as much as possible.
z When the temperature of the vehicle interior
rises in summer, vinyl products left on the
genuine leather seat may deteriorate and stick to the seat.Cleaning the exterior of
your vehicle E00900700108
If the following is left on your vehicle, it maycause corrosion, discolouration and stains, wash the vehicle as soon as possible.
z Seawater, road deicing products.
z Soot and dust, iron powder from facto-
ries, chemical substance (acids, alkalis, coaltar, etc.).
z Droppings from birds, carcasses of in-
sects, tree sap, etc.
Washing
E00900904267
Chemicals contained in the dirt and dust
picked up from the road surface can damagethe paint coat and body of your vehicle if left
in prolonged contact.
Frequent washing and waxing is the best way
to protect your vehicle from this damage. This will also be effective in protecting it
from environmental elements such as rain, snow, salt air, etc.
Do not wash the vehicle in direct sunlight.
Park the vehicle in the shade and spray it with water to remove dust. Next, using an
ample amount of clean water and a car wash- ing brush or sponge, wash the vehicle from
top to bottom.
Use a mild car washing soap if necessary. Rinse thoroughly and wipe dry with a soft
cloth. After washing the vehicle, carefully clean the joints and flanges of the doors, bon-
net and other sections where dirt is likely to remain.
:ARN,NGz Do not wash the vehicle while charging
the traction battery.
Doing so could cause fire or an electric shock.
Cleaning the exterior of your vehicle
10-032**((Vehicle care10

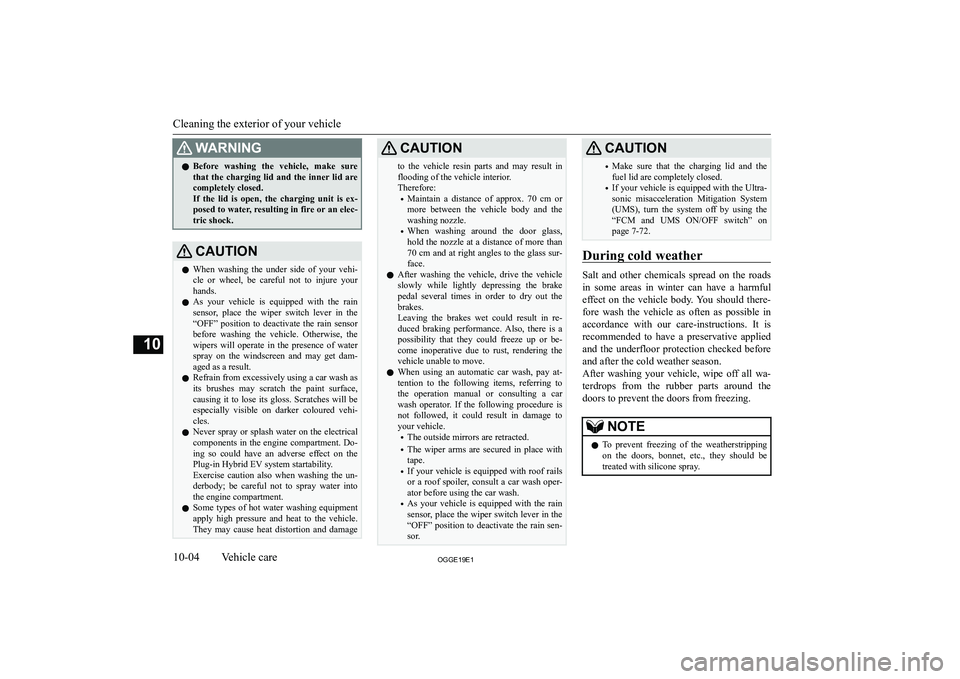

:ARN,NGzBefore washing the vehicle, make sure
that the charging lid and the inner lid are
completely closed.
If the lid is open, the charging unit is ex- posed to water, resulting in fire or an elec-
tric shock.CAUT,ONz When washing the under side of your vehi-
cle or wheel, be careful not to injure your hands.
z As your vehicle is equipped with the rain
sensor, place the wiper switch lever in the
“OFF” position to deactivate the rain sensor before washing the vehicle. Otherwise, the wipers will operate in the presence of water
spray on the windscreen and may get dam- aged as a result.
z Refrain from excessively using a car wash as
its brushes may scratch the paint surface,
causing it to lose its gloss. Scratches will be
especially visible on darker coloured vehi-
cles.
z Never spray or splash water on the electrical
components in the engine compartment. Do- ing so could have an adverse effect on the
Plug-in Hybrid EV system startability.
Exercise caution also when washing the un- derbody; be careful not to spray water intothe engine compartment.
z Some types of hot water washing equipment
apply high pressure and heat to the vehicle. They may cause heat distortion and damageCAUT,ONto the vehicle resin parts and may result in flooding of the vehicle interior.
Therefore:

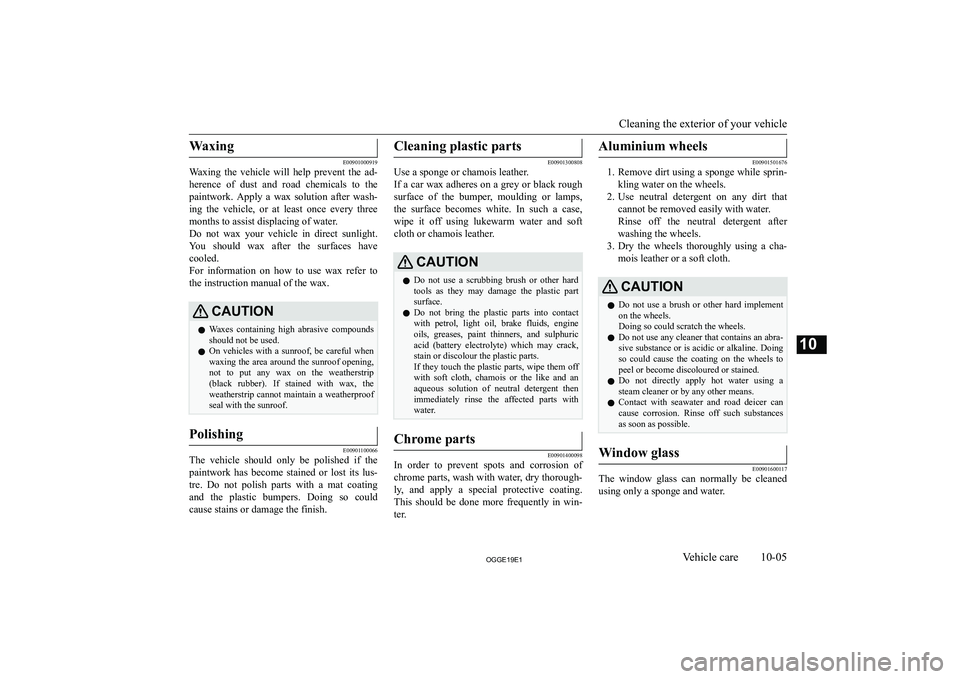

Waxing
E00901000919
Waxing the vehicle will help prevent the ad-
herence of dust and road chemicals to the paintwork. Apply a wax solution after wash- ing the vehicle, or at least once every three
months to assist displacing of water.
Do not wax your vehicle in direct sunlight.
You should wax after the surfaces have
cooled.
For information on how to use wax refer to the instruction manual of the wax.
CAUT,ONz Waxes containing high abrasive compounds
should not be used.
z On vehicles with a sunroof, be careful when
waxing the area around the sunroof opening,
not to put any wax on the weatherstrip (black rubber). If stained with wax, the
weatherstrip cannot maintain a weatherproof seal with the sunroof.Polishing
E00901100066
The vehicle should only be polished if the
paintwork has become stained or lost its lus- tre. Do not polish parts with a mat coating
and the plastic bumpers. Doing so could cause stains or damage the finish.
Cleaning plastic parts
E00901300808
Use a sponge or chamois leather.
If a car wax adheres on a grey or black rough surface of the bumper, moulding or lamps, the surface becomes white. In such a case,
wipe it off using lukewarm water and soft cloth or chamois leather.
CAUT,ONz Do not use a scrubbing brush or other hard
tools as they may damage the plastic part
surface.
z Do not bring the plastic parts into contact
with petrol, light oil, brake fluids, engine
oils, greases, paint thinners, and sulphuric acid (battery electrolyte) which may crack,
stain or discolour the plastic parts.
If they touch the plastic parts, wipe them off with soft cloth, chamois or the like and anaqueous solution of neutral detergent then immediately rinse the affected parts withwater.Chrome parts
E00901400098
In order to prevent spots and corrosion of
chrome parts, wash with water, dry thorough-
ly, and apply a special protective coating.
This should be done more frequently in win- ter.
Aluminium wheels
E00901501676
1. Remove dirt using a sponge while sprin-
kling water on the wheels.
2. Use neutral detergent on any dirt that
cannot be removed easily with water.
Rinse off the neutral detergent after washing the wheels.
3. Dry the wheels thoroughly using a cha-
mois leather or a soft cloth.
CAUT,ONz Do not use a brush or other hard implement
on the wheels.
Doing so could scratch the wheels.
z Do not use any cleaner that contains an abra-
sive substance or is acidic or alkaline. Doing
so could cause the coating on the wheels to peel or become discoloured or stained.
z Do not directly apply hot water using a
steam cleaner or by any other means.
z Contact with seawater and road deicer can
cause corrosion. Rinse off such substances as soon as possible.Window glass
E00901600117
The window glass can normally be cleaned
using only a sponge and water.
Cleaning the exterior of your vehicle
10-052**((Vehicle care10

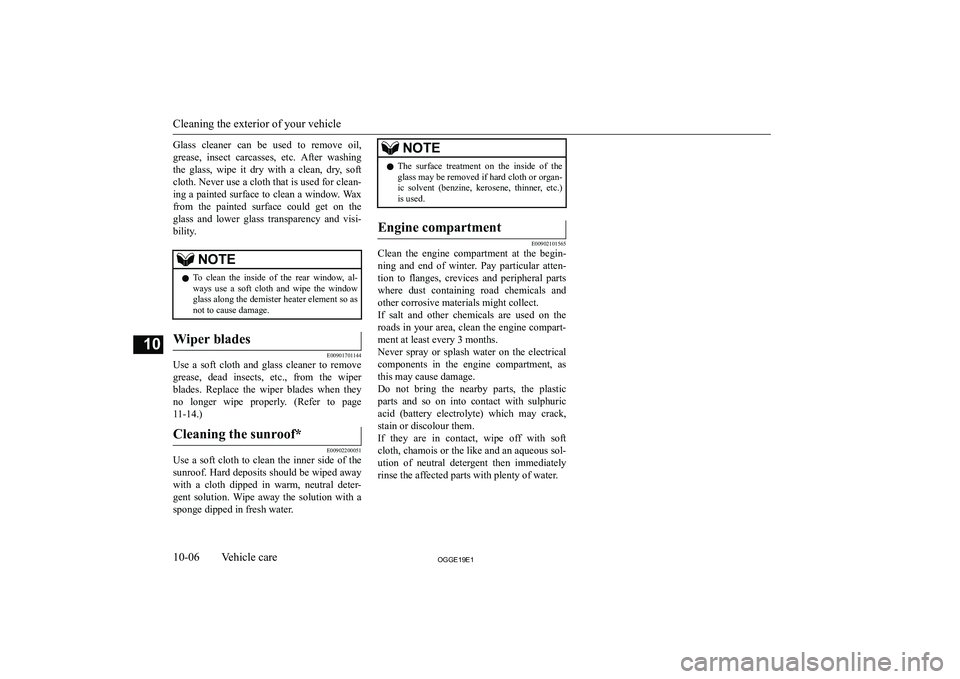

Glass cleaner can be used to remove oil,
grease, insect carcasses, etc. After washing the glass, wipe it dry with a clean, dry, soft cloth. Never use a cloth that is used for clean-
ing a painted surface to clean a window. Wax from the painted surface could get on the glass and lower glass transparency and visi-
bility.NOTEz To clean the inside of the rear window, al-
ways use a soft cloth and wipe the window
glass along the demister heater element so as
not to cause damage.Wiper blades
E00901701144
Use a soft cloth and glass cleaner to remove
grease, dead insects, etc., from the wiper
blades. Replace the wiper blades when they
no longer wipe properly. (Refer to page 11-14.)
Cleaning the sunroof*
E00902200051
Use a soft cloth to clean the inner side of thesunroof. Hard deposits should be wiped away with a cloth dipped in warm, neutral deter- gent solution. Wipe away the solution with asponge dipped in fresh water.
NOTEz The surface treatment on the inside of the
glass may be removed if hard cloth or organ-
ic solvent (benzine, kerosene, thinner, etc.)
is used.Engine compartment
E00902101565
Clean the engine compartment at the begin-
ning and end of winter. Pay particular atten- tion to flanges, crevices and peripheral partswhere dust containing road chemicals and
other corrosive materials might collect.
If salt and other chemicals are used on the roads in your area, clean the engine compart- ment at least every 3 months.
Never spray or splash water on the electrical
components in the engine compartment, as
this may cause damage.
Do not bring the nearby parts, the plastic parts and so on into contact with sulphuric
acid (battery electrolyte) which may crack,
stain or discolour them.
If they are in contact, wipe off with soft cloth, chamois or the like and an aqueous sol-
ution of neutral detergent then immediately rinse the affected parts with plenty of water.
Cleaning the exterior of your vehicle
10-062**((Vehicle care10

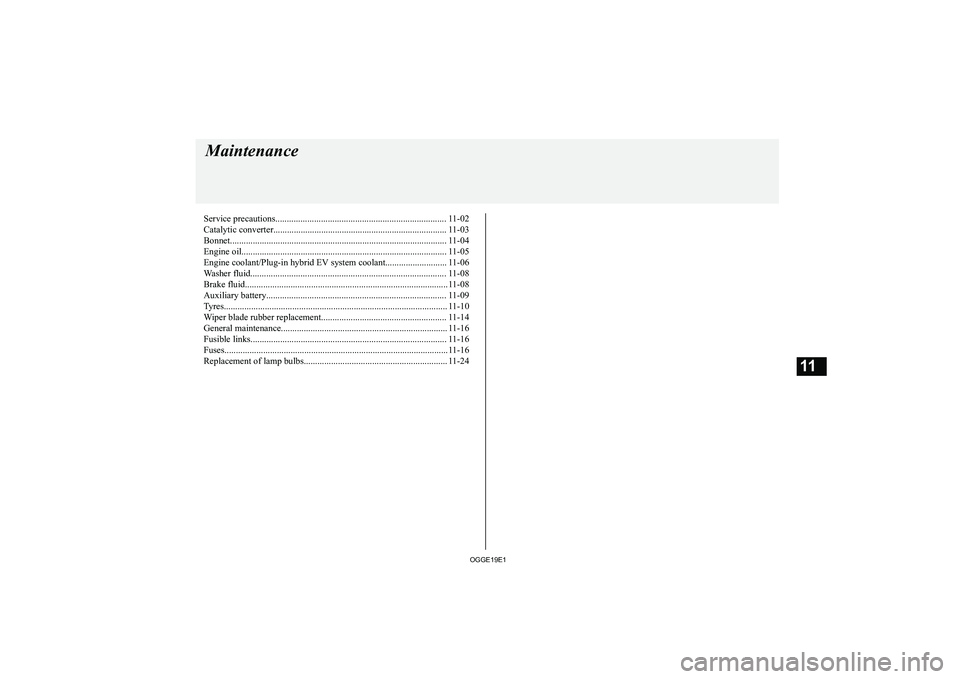

Service precautions........................................................................... 11-02
Catalytic converter............................................................................ 11-03
Bonnet............................................................................................... 11-04
Engine oil.......................................................................................... 11-05 Engine coolant/Plug-in hybrid EV system coolant........................... 11-06
Washer fluid...................................................................................... 11-08
Brake fluid.........................................................................................11-08
Auxiliary battery............................................................................... 11-09
Tyres.................................................................................................. 11-10 Wiper blade rubber replacement....................................................... 11-14General maintenance......................................................................... 11-16
Fusible links...................................................................................... 11-16
Fuses..................................................................................................11-16
Replacement of lamp bulbs............................................................... 11-24Maintenance
2**((11

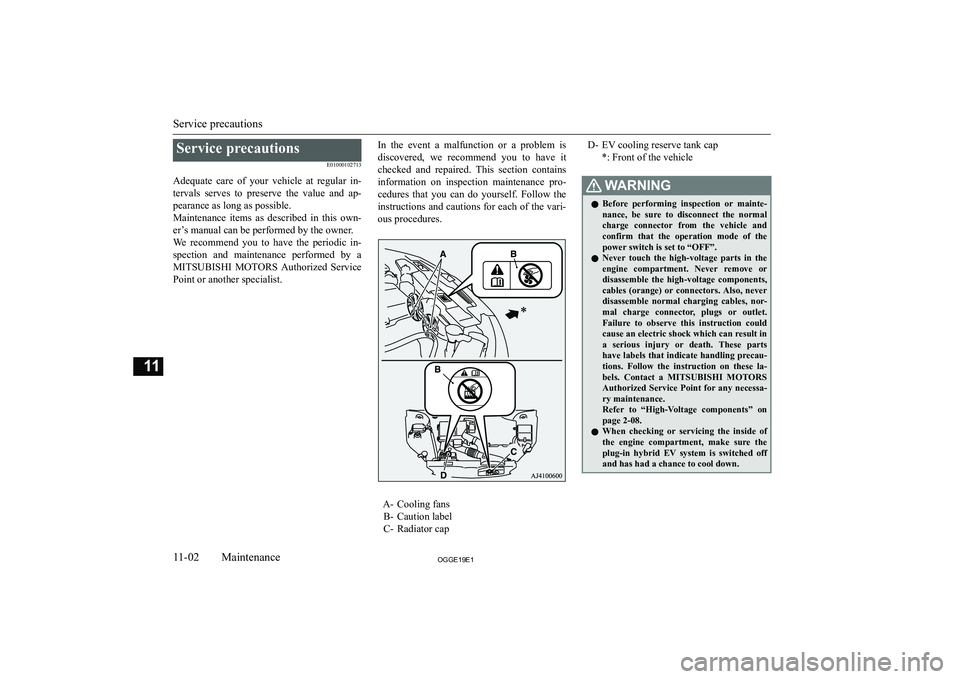

Service precautionsE01000102713
Adequate care of your vehicle at regular in- tervals serves to preserve the value and ap-
pearance as long as possible.
Maintenance items as described in this own-
er’s manual can be performed by the owner. We recommend you to have the periodic in- spection and maintenance performed by aMITSUBISHI MOTORS Authorized Service
Point or another specialist.In the event a malfunction or a problem is discovered, we recommend you to have it
checked and repaired. This section contains information on inspection maintenance pro- cedures that you can do yourself. Follow the
instructions and cautions for each of the vari-
ous procedures.
A- Cooling fans B- Caution label
C- Radiator cap
D- EV cooling reserve tank cap
*: Front of the vehicle:ARN,NGzBefore performing inspection or mainte-
nance, be sure to disconnect the normal charge connector from the vehicle andconfirm that the operation mode of the
power switch is set to “OFF”.
z Never touch the high-voltage parts in the
engine compartment. Never remove or
disassemble the high-voltage components, cables (orange) or connectors. Also, never
disassemble normal charging cables, nor- mal charge connector, plugs or outlet.
Failure to observe this instruction could
cause an electric shock which can result in a serious injury or death. These parts
have labels that indicate handling precau- tions. Follow the instruction on these la-bels. Contact a MITSUBISHI MOTORS
Authorized Service Point for any necessa-
ry maintenance.
Refer to “High-Voltage components” on page 2-08.
z When checking or servicing the inside of
the engine compartment, make sure the plug-in hybrid EV system is switched offand has had a chance to cool down.
Service precautions
11-022**((Maintenance11
