2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

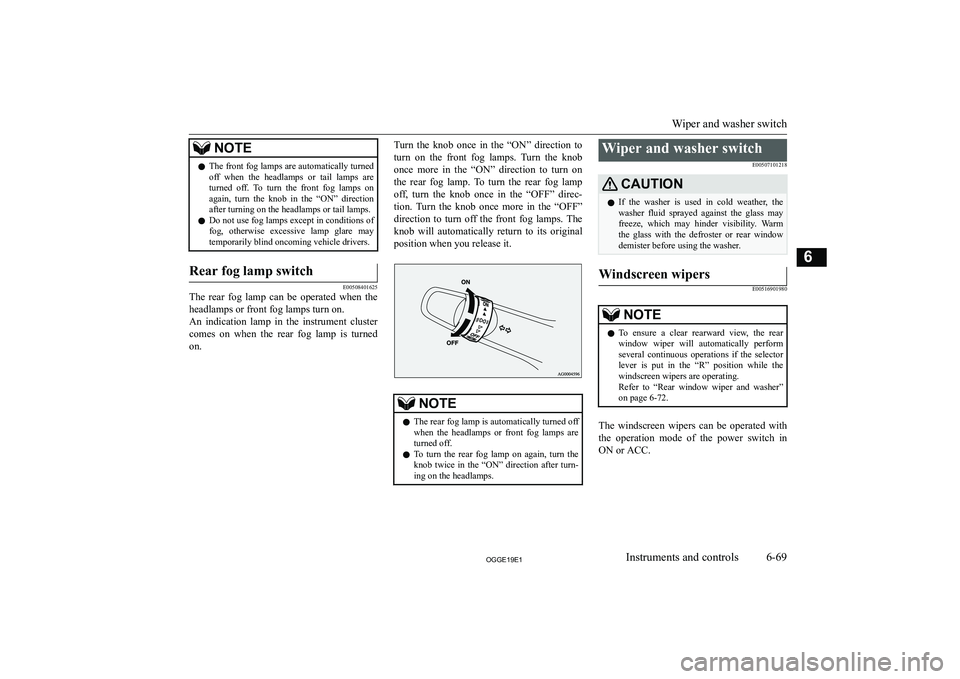

NOTEzThe front fog lamps are automatically turned
off when the headlamps or tail lamps are turned off. To turn the front fog lamps on again, turn the knob in the “ON” directionafter turning on the headlamps or tail lamps.
z Do not use fog lamps except in conditions of
fog, otherwise excessive lamp glare may temporarily blind oncoming vehicle drivers.Rear fog lamp switch
E00508401625
The rear fog lamp can be operated when the
headlamps or front fog lamps turn on.
An indication lamp in the instrument cluster comes on when the rear fog lamp is turned
on.

Turn the knob once in the “ON” direction to
turn on the front fog lamps. Turn the knob once more in the “ON” direction to turn on
the rear fog lamp. To turn the rear fog lamp off, turn the knob once in the “OFF” direc- tion. Turn the knob once more in the “OFF”
direction to turn off the front fog lamps. The
knob will automatically return to its original
position when you release it.NOTEz The rear fog lamp is automatically turned off
when the headlamps or front fog lamps are turned off.
z To turn the rear fog lamp on again, turn the
knob twice in the “ON” direction after turn- ing on the headlamps.Wiper and washer switch
E00507101218CAUT,ONzIf the washer is used in cold weather, the
washer fluid sprayed against the glass may freeze, which may hinder visibility. Warm
the glass with the defroster or rear window demister before using the washer.Windscreen wipers
E00516901980NOTEz To ensure a clear rearward view, the rear
window wiper will automatically perform
several continuous operations if the selector lever is put in the “R” position while the windscreen wipers are operating.
Refer to “Rear window wiper and washer” on page 6-72.
The windscreen wipers can be operated with
the operation mode of the power switch in ON or ACC.
Wiper and washer switch
6-692**((Instruments and controls6

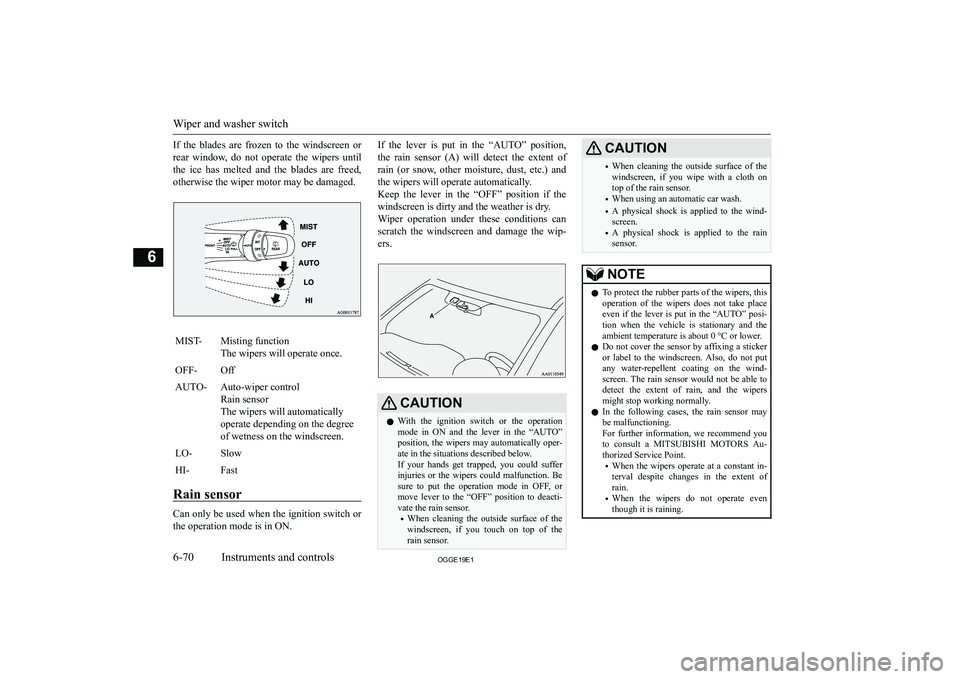

If the blades are frozen to the windscreen or
rear window, do not operate the wipers until the ice has melted and the blades are freed,
otherwise the wiper motor may be damaged.MIST-Misting function
The wipers will operate once.OFF-OffAUTO-Auto-wiper control
Rain sensor
The wipers will automatically
operate depending on the degree
of wetness on the windscreen.LO-SlowHI-Fast
Rain sensor
Can only be used when the ignition switch or
the operation mode is in ON.
If the lever is put in the “AUTO” position,
the rain sensor (A) will detect the extent ofrain (or snow, other moisture, dust, etc.) andthe wipers will operate automatically.
Keep the lever in the “OFF” position if the
windscreen is dirty and the weather is dry.
Wiper operation under these conditions can scratch the windscreen and damage the wip-
ers.CAUT,ONz With the ignition switch or the operation
mode in ON and the lever in the “AUTO”
position, the wipers may automatically oper-
ate in the situations described below.
If your hands get trapped, you could suffer injuries or the wipers could malfunction. Be sure to put the operation mode in OFF, or move lever to the “OFF” position to deacti-
vate the rain sensor.

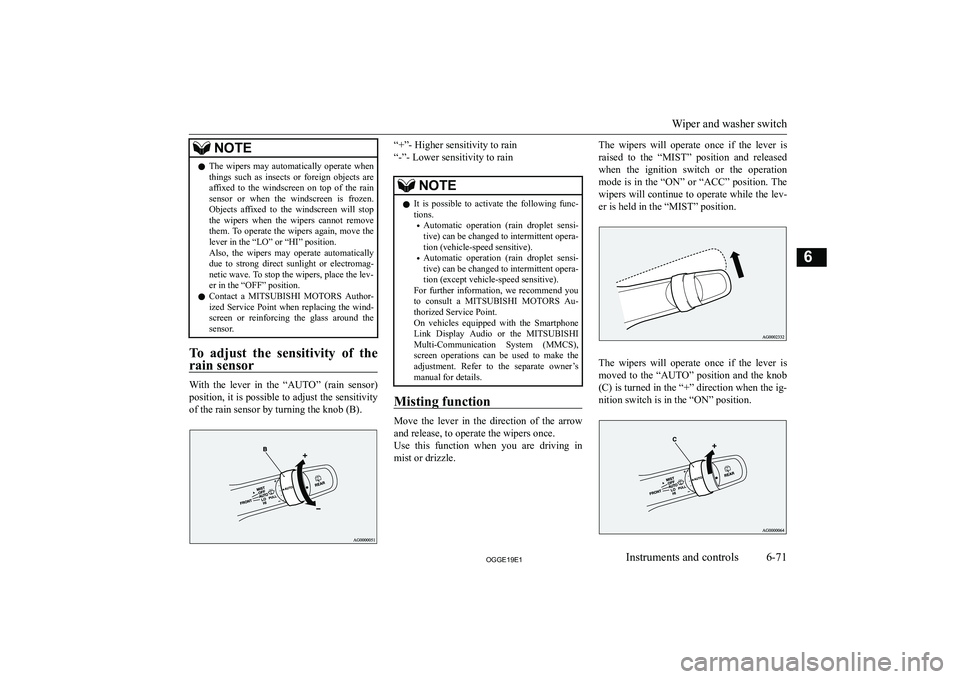

NOTEzThe wipers may automatically operate when
things such as insects or foreign objects are
affixed to the windscreen on top of the rain sensor or when the windscreen is frozen.
Objects affixed to the windscreen will stop
the wipers when the wipers cannot remove them. To operate the wipers again, move the
lever in the “LO” or “HI” position.
Also, the wipers may operate automatically due to strong direct sunlight or electromag-
netic wave. To stop the wipers, place the lev-
er in the “OFF” position.
z Contact a
MITSUBISHI MOTORS Author-
ized Service Point when replacing the wind- screen or reinforcing the glass around the
sensor.
To adjust the sensitivity of the
rain sensor
With the lever in the “AUTO” (rain sensor)
position, it is possible to adjust the sensitivity of the rain sensor by turning the knob (B).
“+”- Higher sensitivity to rain
“-”- Lower sensitivity to rainNOTEz It is possible to activate the following func-
tions.

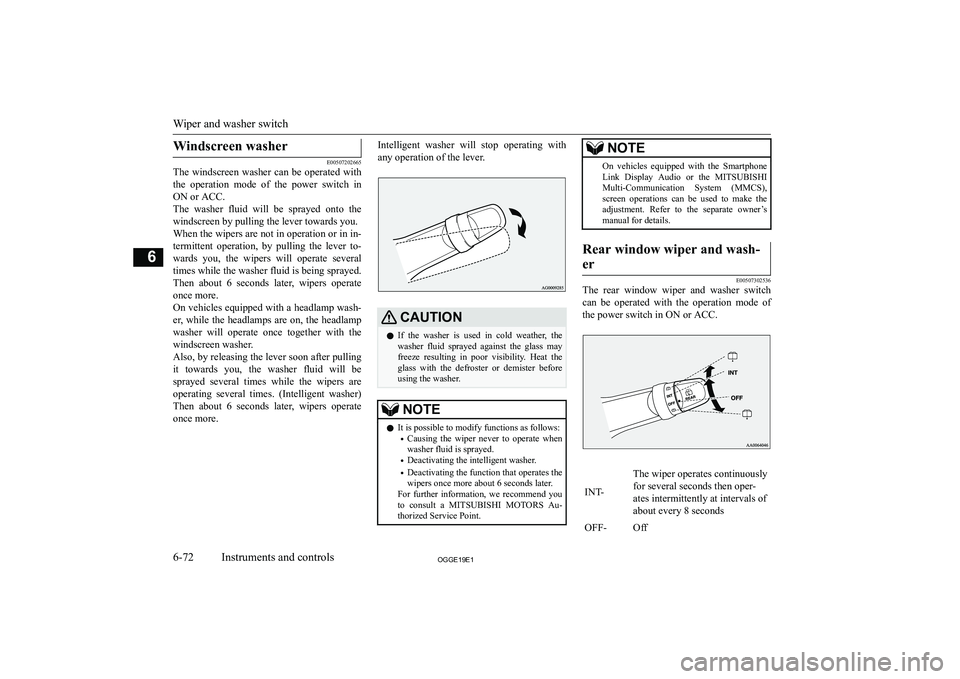

Windscreen washer
E00507202665
The windscreen washer can be operated with
the operation mode of the power switch in
ON or ACC.
The washer fluid will be sprayed onto the windscreen by pulling the lever towards you.When the wipers are not in operation or in in-
termittent operation, by pulling the lever to- wards you, the wipers will operate several
times while the washer fluid is being sprayed. Then about 6 seconds later, wipers operate
once more.
On vehicles equipped with a headlamp wash- er, while the headlamps are on, the headlamp
washer will operate once together with the windscreen washer.
Also, by releasing the lever soon after pulling
it towards you, the washer fluid will be sprayed several times while the wipers are
operating several times. (Intelligent washer) Then about 6 seconds later, wipers operate
once more.
Intelligent washer will stop operating with
any operation of the lever.CAUT,ONz If the washer is used in cold weather, the
washer fluid sprayed against the glass may
freeze resulting in poor visibility. Heat the glass with the defroster or demister before
using the washer.NOTEz It is possible to modify functions as follows:

-

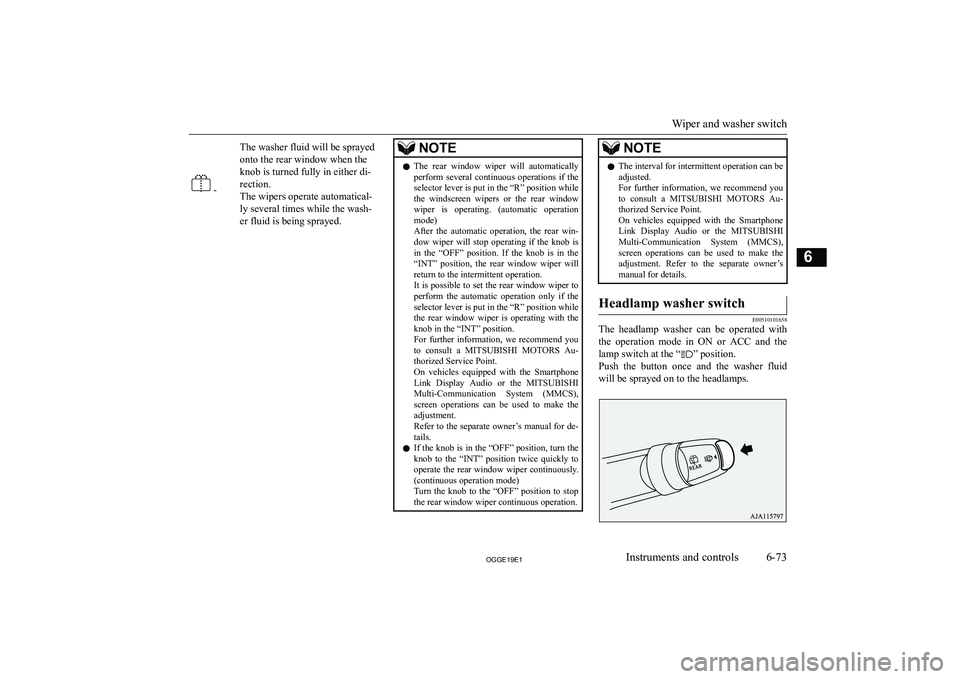

The washer fluid will be sprayed
onto the rear window when the
knob is turned fully in either di-
rection.
The wipers operate automatical-
ly several times while the wash-
er fluid is being sprayed.NOTEz The rear window wiper will automatically
perform several continuous operations if theselector lever is put in the “R” position while
the windscreen wipers or the rear window wiper is operating. (automatic operation
mode)
After the automatic operation, the rear win- dow wiper will stop operating if the knob is
in the “OFF” position. If the knob is in the “INT” position, the rear window wiper will
return to the intermittent operation.
It is possible to set the rear window wiper to perform the automatic operation only if theselector lever is put in the “R” position while
the rear window wiper is operating with the
knob in the “INT” position.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment.
Refer to the separate owner’s manual for de- tails.
z If the knob is in the “OFF” position, turn the
knob to the “INT” position twice quickly to
operate the rear window wiper continuously. (continuous operation mode)
Turn the knob to the “OFF” position to stop
the rear window wiper continuous operation.NOTEz The interval for intermittent operation can be
adjusted.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
On vehicles equipped with the Smartphone Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’smanual for details.Headlamp washer switch
E00510101658
The headlamp washer can be operated with
the operation mode in ON or ACC and the lamp switch at the “
” position.
Push the button once and the washer fluid will be sprayed on to the headlamps.
Wiper and washer switch
6-732**((Instruments and controls6

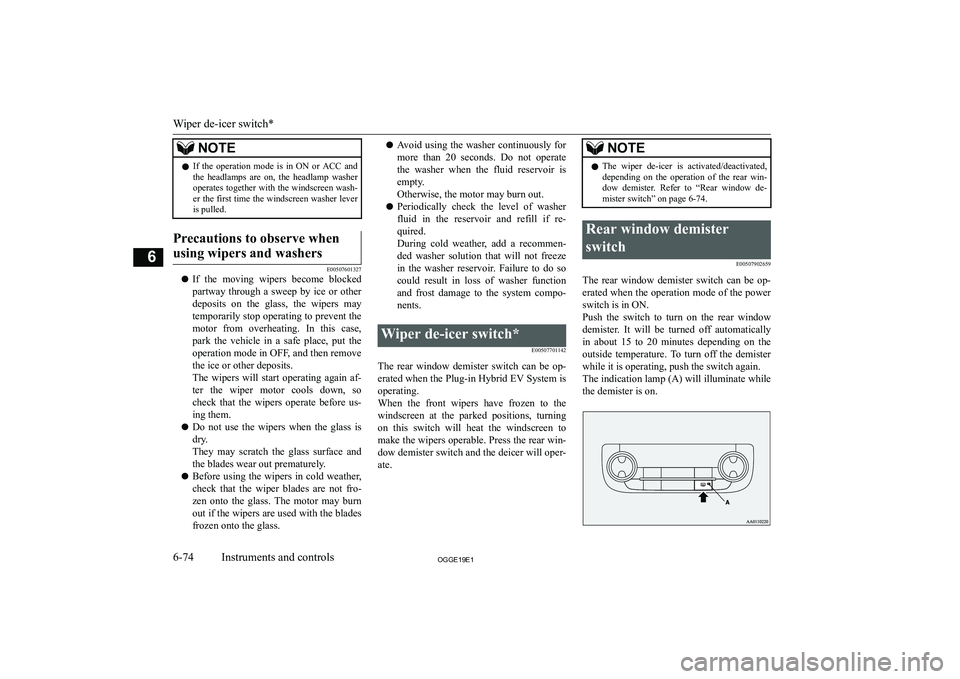

NOTEzIf the operation mode is in ON or ACC and
the headlamps are on, the headlamp washer operates together with the windscreen wash-
er the first time the windscreen washer lever is pulled.Precautions to observe when
using wipers and washers
E00507601327
z If the moving wipers become blocked
partway through a sweep by ice or other deposits on the glass, the wipers maytemporarily stop operating to prevent the
motor from overheating. In this case,
park the vehicle in a safe place, put the operation mode in OFF, and then remove
the ice or other deposits.
The wipers will start operating again af- ter the wiper motor cools down, so
check that the wipers operate before us-
ing them.
z Do not use the wipers when the glass is
dry.
They may scratch the glass surface and
the blades wear out prematurely.
z Before using the wipers in cold weather,
check that the wiper blades are not fro- zen onto the glass. The motor may burn out if the wipers are used with the blades
frozen onto the glass.
z Avoid using the washer continuously for
more than 20 seconds. Do not operate the washer when the fluid reservoir isempty.
Otherwise, the motor may burn out.
z Periodically check the level of washer
fluid in the reservoir and refill if re- quired.
During cold weather, add a recommen-
ded washer solution that will not freeze
in the washer reservoir. Failure to do so could result in loss of washer functionand frost damage to the system compo-
nents.Wiper de-icer switch*
E00507701142
The rear window demister switch can be op-erated when the Plug-in Hybrid EV System is
operating.
When the front wipers have frozen to the
windscreen at the parked positions, turning
on this switch will heat the windscreen to
make the wipers operable. Press the rear win- dow demister switch and the deicer will oper-
ate.
NOTEz The wiper de-icer is activated/deactivated,
depending on the operation of the rear win-
dow demister. Refer to “Rear window de-
mister switch” on page 6-74.Rear window demister
switch E00507902659
The rear window demister switch can be op-erated when the operation mode of the power
switch is in ON.
Push the switch to turn on the rear window
demister. It will be turned off automatically in about 15 to 20 minutes depending on the outside temperature. To turn off the demister
while it is operating, push the switch again. The indication lamp (A) will illuminate while the demister is on.
Wiper de-icer switch*
6-742**((Instruments and controls6

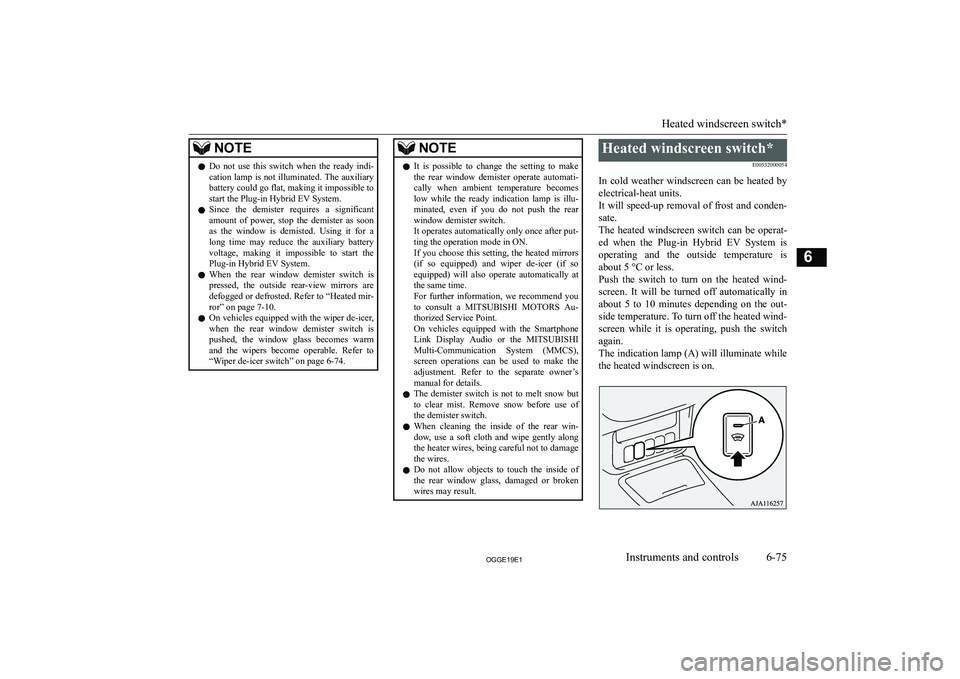

NOTEzDo not use this switch when the ready indi-
cation lamp is not illuminated. The auxiliary battery could go flat, making it impossible to
start the Plug-in Hybrid EV System.
z Since the demister requires a significant
amount of power, stop the demister as soonas the window is demisted. Using it for a
long time may reduce the auxiliary battery voltage, making it impossible to start the
Plug-in Hybrid EV System.
z When the rear window demister switch is
pressed, the outside rear-view mirrors are
defogged or defrosted. Refer to “Heated mir-
ror” on page 7-10.
z On vehicles equipped with the wiper de-icer,
when the rear window demister switch is pushed, the window glass becomes warm
and the wipers become operable. Refer to “Wiper de-icer switch” on page 6-74.NOTEz It is possible to change the setting to make
the rear window demister operate automati-
cally when ambient temperature becomes
low while the ready indication lamp is illu- minated, even if you do not push the rear
window demister switch.
It operates automatically only once after put-
ting the operation mode in ON.
If you choose this setting, the heated mirrors (if so equipped) and wiper de-icer (if so
equipped) will also operate automatically at the same time.
For further information, we recommend you
to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the adjustment. Refer to the separate owner’smanual for details.
z The demister switch is not to melt snow but
to clear mist. Remove snow before use of the demister switch.
z When cleaning the inside of the rear win-
dow, use a soft cloth and wipe gently along
the heater wires, being careful not to damage
the wires.
z Do not allow objects to touch the inside of
the rear window glass, damaged or broken wires may result.Heated windscreen switch*
E00532000054
In cold weather windscreen can be heated by
electrical-heat units.
It will speed-up removal of frost and conden- sate.
The heated windscreen switch can be operat- ed when the Plug-in Hybrid EV System is
operating and the outside temperature is about 5

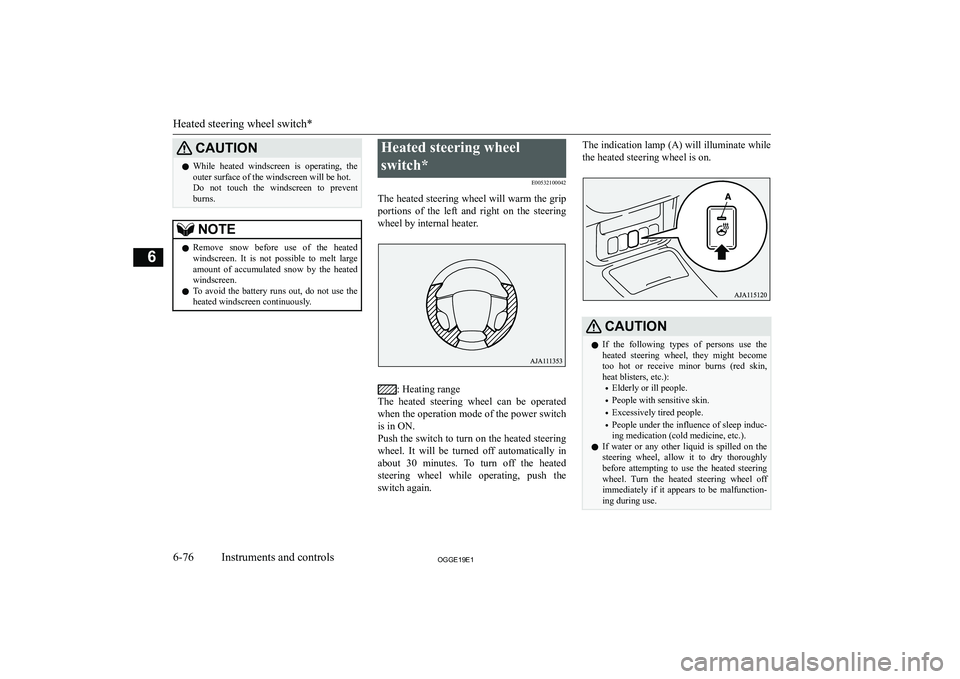

CAUT,ONzWhile heated windscreen is operating, the
outer surface of the windscreen will be hot.
Do not touch the windscreen to prevent
burns.NOTEz Remove snow before use of the heated
windscreen. It is not possible to melt largeamount of accumulated snow by the heated windscreen.
z To avoid the battery runs out, do not use the
heated windscreen continuously.Heated steering wheel
switch* E00532100042
The heated steering wheel will warm the grip portions of the left and right on the steering
wheel by internal heater.
: Heating range
The heated steering wheel can be operated
when the operation mode of the power switch
is in ON.
Push the switch to turn on the heated steering
wheel. It will be turned off automatically in about 30 minutes. To turn off the heated
steering wheel while operating, push the
switch again.
The indication lamp (A) will illuminate while
the heated steering wheel is on.CAUT,ONz If the following types of persons use the
heated steering wheel, they might become too hot or receive minor burns (red skin,
heat blisters, etc.):
