2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

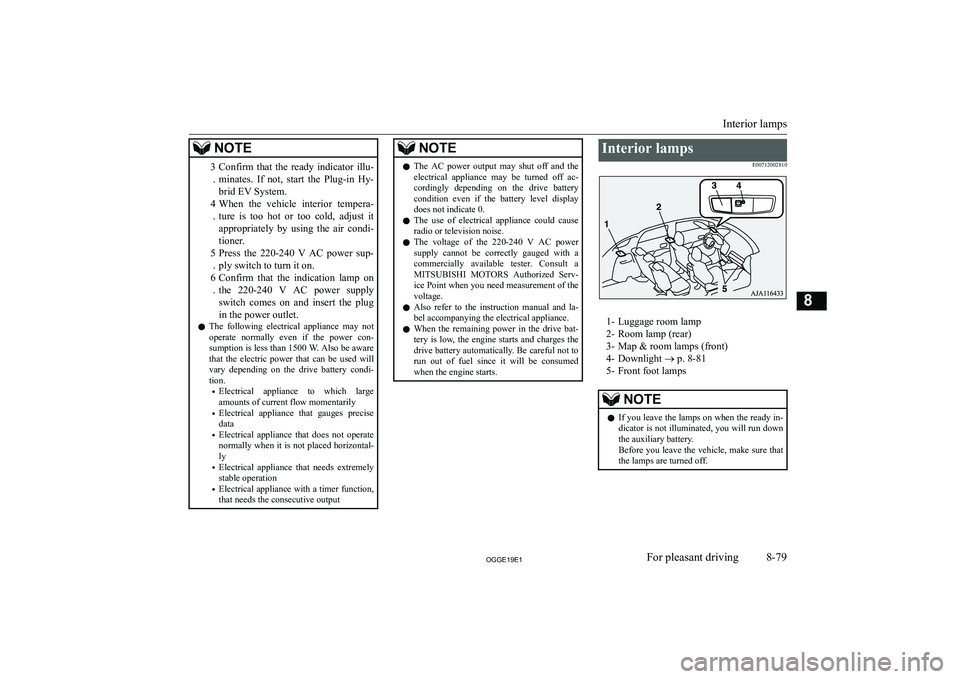

NOTE3. Confirm that the ready indicator illu-
minates. If not, start the Plug-in Hy- brid EV System.
4 . When the vehicle interior tempera-
ture is too hot or too cold, adjust it
appropriately by using the air condi-
tioner.
5 . Press the 220-240 V AC power sup-
ply switch to turn it on.
6 . Confirm that the indication lamp on
the 220-240 V AC power supply
switch comes on and insert the plug in the power outlet.
z The following electrical appliance may not
operate normally even if the power con-
sumption is less than 1500 W. Also be aware that the electric power that can be used will
vary depending on the drive battery condi- tion.

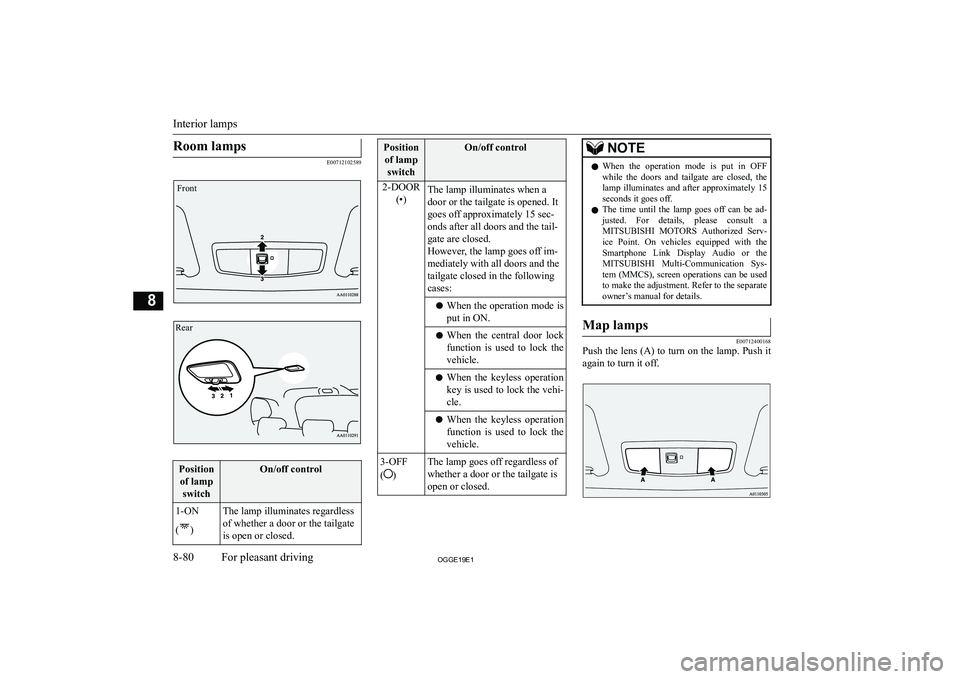

Room lamps
E00712102589
Positionof lamp switchOn/off control1-ON
(
)
The lamp illuminates regardless
of whether a door or the tailgate
is open or closed.Position of lamp switchOn/off control2-DOOR (

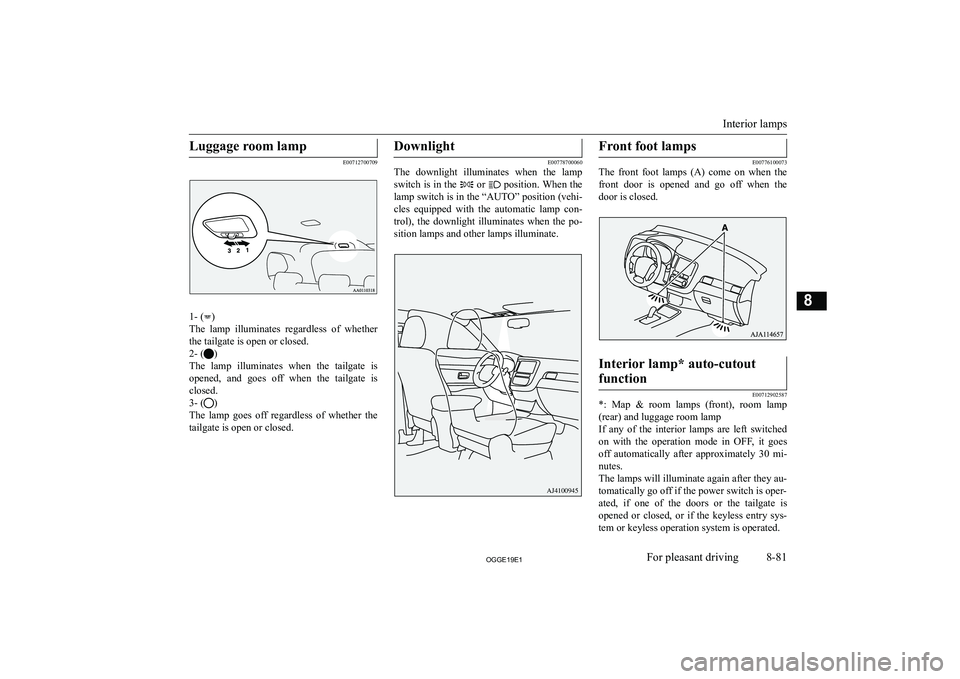

Luggage room lamp
E00712700709
1- ()
The lamp illuminates regardless of whether the tailgate is open or closed.
2- (
)
The lamp illuminates when the tailgate is opened, and goes off when the tailgate is
closed.
3- (
)
The lamp goes off regardless of whether the tailgate is open or closed.
Downlight
E00778700060
The downlight illuminates when the lamp
switch is in the
or position. When the
lamp switch is in the “AUTO” position (vehi-
cles equipped with the automatic lamp con-
trol), the downlight illuminates when the po- sition lamps and other lamps illuminate.
Front foot lamps
E00776100073
The front foot lamps (A) come on when the
front door is opened and go off when the
door is closed.
Interior lamp* auto-cutout
function
E00712902587
*: Map & room lamps (front), room lamp (rear) and luggage room lamp
If any of the interior lamps are left switched
on with the operation mode in OFF, it goes off automatically after approximately 30 mi- nutes.
The lamps will illuminate again after they au- tomatically go off if the power switch is oper-ated, if one of the doors or the tailgate is
opened or closed, or if the keyless entry sys- tem or keyless operation system is operated.
Interior lamps
8-812**((For pleasant driving8 AJ4100945

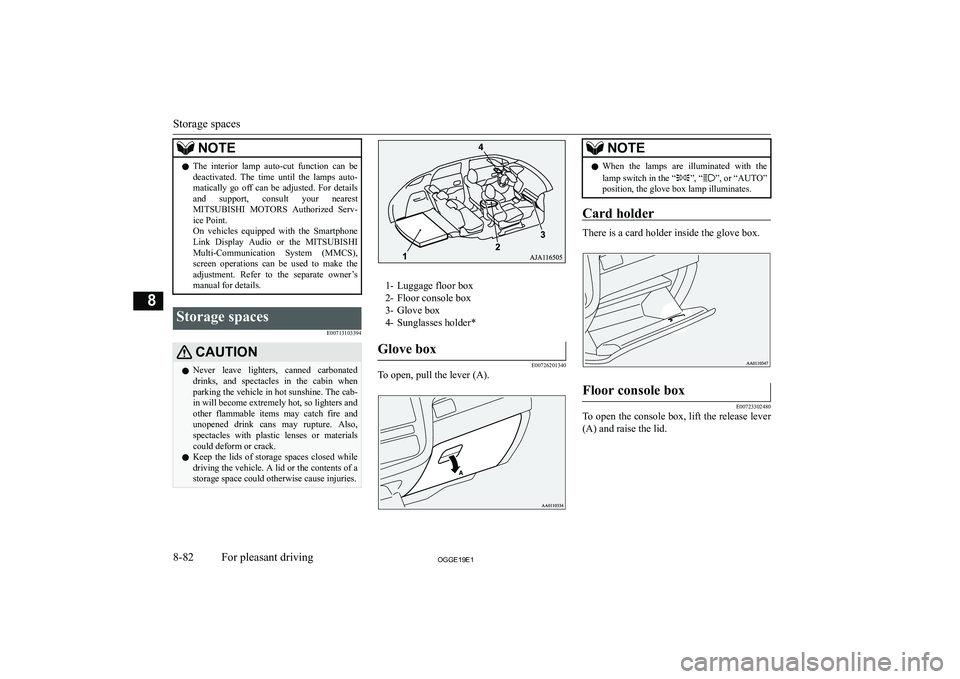

NOTEzThe interior lamp auto-cut function can be
deactivated. The time until the lamps auto- matically go off can be adjusted. For details
and support, consult your nearest
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make the
adjustment. Refer to the separate owner’s manual for details.Storage spaces
E00713103394CAUT,ONzNever leave lighters, canned carbonated
drinks, and spectacles in the cabin when
parking the vehicle in hot sunshine. The cab- in will become extremely hot, so lighters and
other flammable items may catch fire and
unopened drink cans may rupture. Also, spectacles with plastic lenses or materials could deform or crack.
z Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a storage space could otherwise cause injuries.
1- Luggage floor box
2- Floor console box
3- Glove box
4- Sunglasses holder*
Glove box
E00726201340
To open, pull the lever (A).
NOTEz When the lamps are illuminated with the
lamp switch in the “”, “”, or “AUTO”
position, the glove box lamp illuminates.
Card holder
There is a card holder inside the glove box.
Floor console box
E00723302480
To open the console box, lift the release lever
(A) and raise the lid.
Storage spaces
8-822**((For pleasant driving8

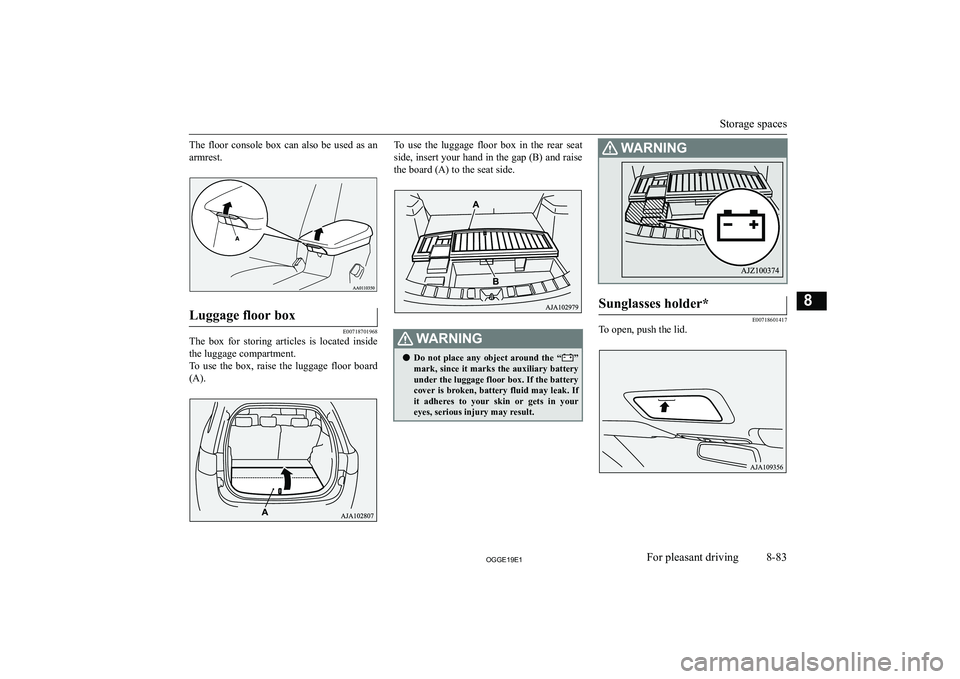

The floor console box can also be used as anarmrest.Luggage floor box
E00718701968
The box for storing articles is located insidethe luggage compartment.
To use the box, raise the luggage floor board (A).
To use the luggage floor box in the rear seat
side, insert your hand in the gap (B) and raise the board (A) to the seat side.:ARN,NGz Do not place any object around the “”
mark, since it marks the auxiliary battery
under the luggage floor box. If the battery cover is broken, battery fluid may leak. If it adheres to your skin or gets in youreyes, serious injury may result.:ARN,NGSunglasses holder*
E00718601417
To open, push the lid.
Storage spaces
8-832**((For pleasant driving8

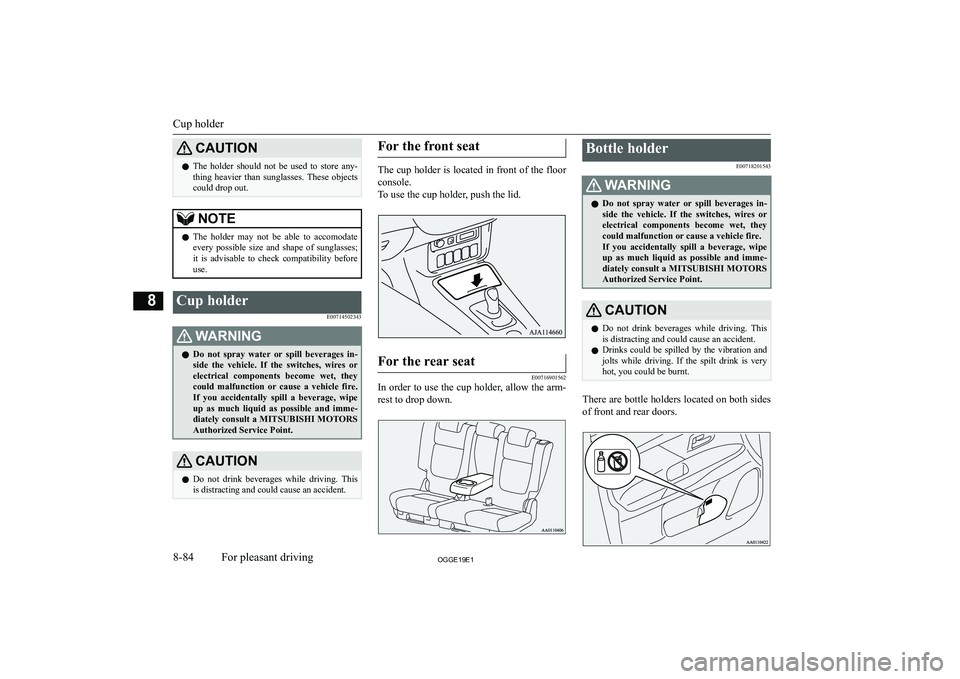

CAUT,ONzThe holder should not be used to store any-
thing heavier than sunglasses. These objects
could drop out.NOTEz The holder may not be able to accomodate
every possible size and shape of sunglasses;
it is advisable to check compatibility before use.Cup holder
E00714502343:ARN,NGzDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or electrical components become wet, they
could malfunction or cause a vehicle fire. If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz Do not drink beverages while driving. This
is distracting and could cause an accident.For the front seat
The cup holder is located in front of the floor
console.
To use the cup holder, push the lid.
For the rear seat
E00716901562
In order to use the cup holder, allow the arm-
rest to drop down.
Bottle holder
E00718201543:ARN,NGzDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or
electrical components become wet, they could malfunction or cause a vehicle fire.If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz Do not drink beverages while driving. This
is distracting and could cause an accident.
z Drinks could be spilled by the vibration and
jolts while driving. If the spilt drink is very
hot, you could be burnt.
There are bottle holders located on both sides
of front and rear doors.
Cup holder
8-842**((For pleasant driving8

NOTEzDo not store cups or drink cans in the bottle
holder.
z Tightly close the cap on drink bottles before
storing them.
z Some bottles may be too big or the wrong
shape to fit in the holder.Cargo area cover
E00733601160
To use
1.Draw out the cover retracted by spring
and insert it in the mounting grooves
(A).
2. Remove the cover from the mounting
grooves, and the cover will roll back into
the retracted position.NOTEz Do not put luggage on the cover.
To change position
There are two installation holes (B) for the
cover.
1. Move one of the sliders (C) towards the
inside of the vehicle, and fit the tab (D) into the installation hole that is to be
used. Move the opposite slider in the
same fashion.
2. After changing the position, gently
shake the entire cover to make sure it is securely retained.
NOTEz If the rear seatback touches the cover, move
the cover rearward.
The cover could break if it supports the seat- back of the rear seat.
To remove
1. Roll the cover into the retracted position.
Cargo area cover
8-852**((For pleasant driving8

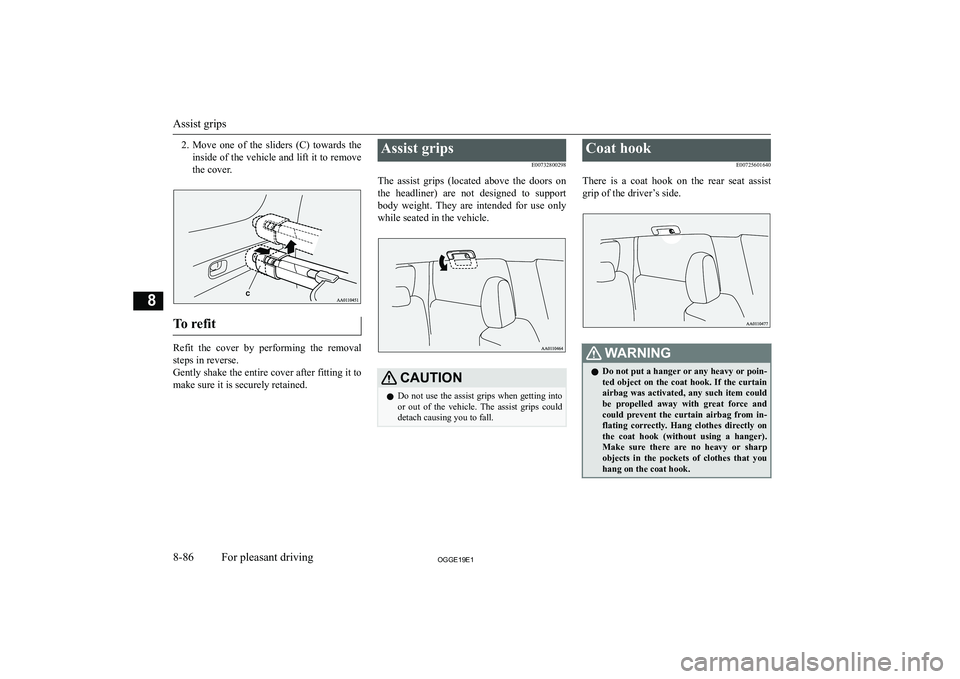

2.Move one of the sliders (C) towards the
inside of the vehicle and lift it to remove
the cover.
To refit
Refit the cover by performing the removal
steps in reverse.
Gently shake the entire cover after fitting it to make sure it is securely retained.
Assist grips
E00732800298
The assist grips (located above the doors on the headliner) are not designed to support
body weight. They are intended for use only while seated in the vehicle.CAUT,ONz Do not use the assist grips when getting into
or out of the vehicle. The assist grips could
detach causing you to fall.Coat hook
E00725601640
There is a coat hook on the rear seat assist
grip of the driver’s side.:ARN,NGz Do not put a hanger or any heavy or poin-
ted object on the coat hook. If the curtain
airbag was activated, any such item could
be propelled away with great force and could prevent the curtain airbag from in-
flating correctly. Hang clothes directly on the coat hook (without using a hanger). Make sure there are no heavy or sharp
objects in the pockets of clothes that you hang on the coat hook.
Assist grips
8-862**((For pleasant driving8
