2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

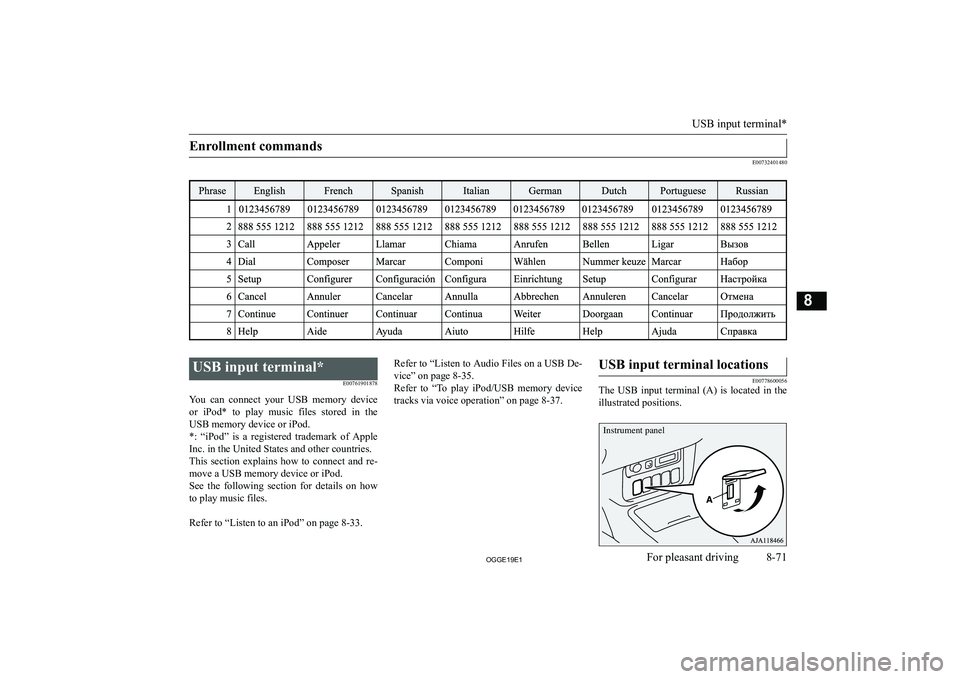

Enrollment commands
E00732401480

USB input terminal*E00761901878
You can connect your USB memory device or iPod* to play music files stored in the
USB memory device or iPod.
*: “iPod” is a registered trademark of Apple Inc. in the United States and other countries.This section explains how to connect and re-
move a USB memory device or iPod.
See the following section for details on how
to play music files.

Refer to “Listen to an iPod” on page 8-33.Refer to “Listen to Audio Files on a USB De-
vice” on page 8-35.
Refer to “To play iPod/USB memory device
tracks via voice operation” on page 8-37.USB input terminal locations
E00778600056
The USB input terminal (A) is located in the
illustrated positions.
USB input terminal*
8-712**((For pleasant driving8 Instrument panel

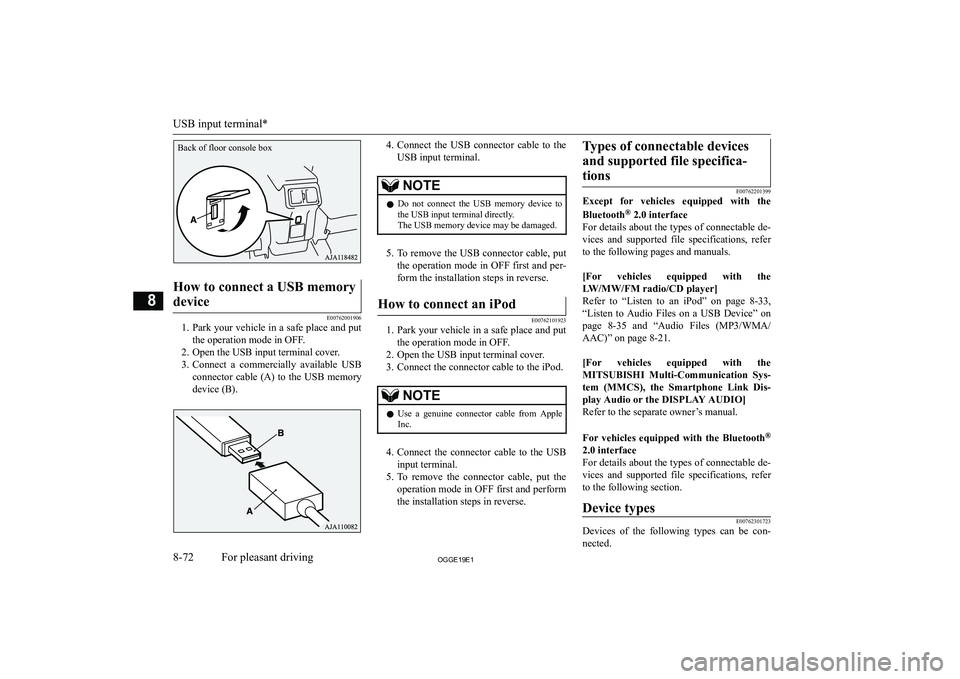

How to connect a USB memorydevice
E00762001906
1. Park your vehicle in a safe place and put
the operation mode in OFF.
2. Open the USB input terminal cover.
3. Connect a commercially available USB
connector cable (A) to the USB memory
device (B).
4. Connect the USB connector cable to the
USB input terminal.NOTEz Do not connect the USB memory device to
the USB input terminal directly.
The USB memory device may be damaged.
5. To remove the USB connector cable, put
the operation mode in OFF first and per- form the installation steps in reverse.
How to connect an iPod
E00762101923
1. Park your vehicle in a safe place and put
the operation mode in OFF.
2. Open the USB input terminal cover.
3. Connect the connector cable to the iPod.
NOTEz Use a genuine connector cable from Apple
Inc.
4. Connect the connector cable to the USB
input terminal.
5. To remove the connector cable, put the
operation mode in OFF first and perform the installation steps in reverse.

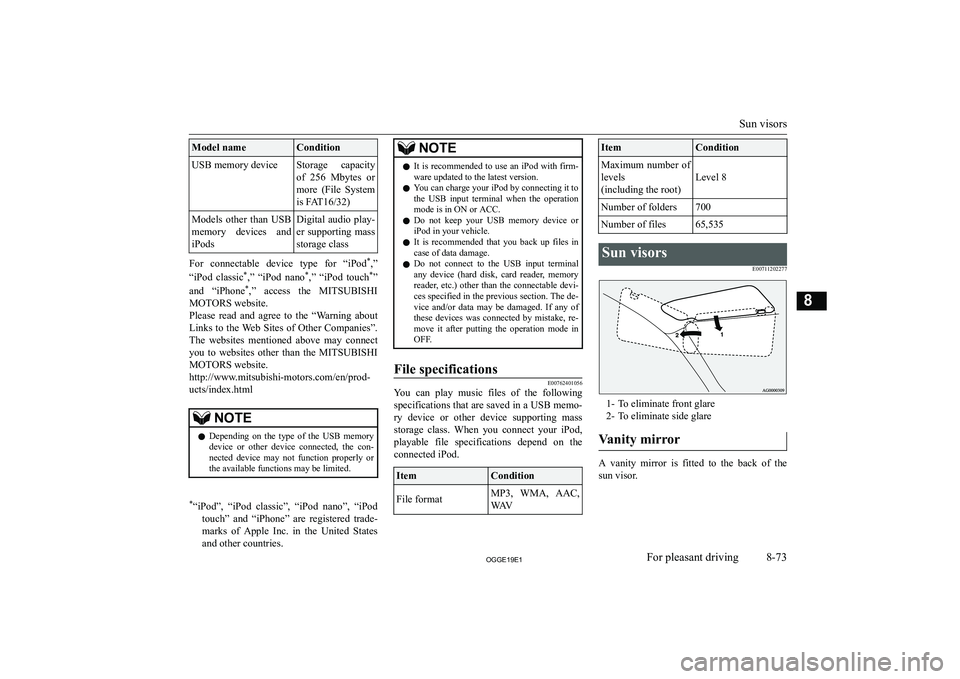

Types of connectable devices
and supported file specifica- tions
E00762201399
Except for vehicles equipped with the
Bluetooth

Model nameConditionUSB memory deviceStorage capacity
of 256 Mbytes or
more (File System is FAT16/32)Models other than USBmemory devices and
iPodsDigital audio play- er supporting mass
storage class
For connectable device type for “iPod *
,”
“iPod classic *
,” “iPod nano *
,” “iPod touch *
”
and “iPhone *
,” access the MITSUBISHI
MOTORS website.
Please read and agree to the “Warning about Links to the Web Sites of Other Companies”.
The websites mentioned above may connect you to websites other than the MITSUBISHI
MOTORS website.
http://www.mitsubishi-motors.com/en/prod- ucts/index.html
NOTEz Depending on the type of the USB memory
device or other device connected, the con-
nected device may not function properly or the available functions may be limited.* “iPod”, “iPod classic”, “iPod nano”, “iPod
touch” and “iPhone” are registered trade-marks of Apple Inc. in the United States and other countries.NOTEz It is recommended to use an iPod with firm-
ware updated to the latest version.
z You can charge your iPod by connecting it to
the USB input terminal when the operation mode is in ON or ACC.
z Do not keep your USB memory device or
iPod in your vehicle.
z It is recommended that you back up files in
case of data damage.
z Do not connect to the USB input terminal
any device (hard disk, card reader, memory
reader, etc.) other than the connectable devi- ces specified in the previous section. The de- vice and/or data may be damaged. If any of
these devices was connected by mistake, re- move it after putting the operation mode inOFF.File specifications
E00762401056
You can play music files of the following
specifications that are saved in a USB memo-
ry device or other device supporting mass storage class. When you connect your iPod,playable file specifications depend on the
connected iPod.
ItemConditionFile formatMP3, WMA, AAC,
WAVItemConditionMaximum number of levels
(including the root)
Level 8
Number of folders700Number of files65,535Sun visors
E00711202277
1- To eliminate front glare
2- To eliminate side glare
Vanity mirror
A vanity mirror is fitted to the back of the sun visor.
Sun visors
8-732**((For pleasant driving8

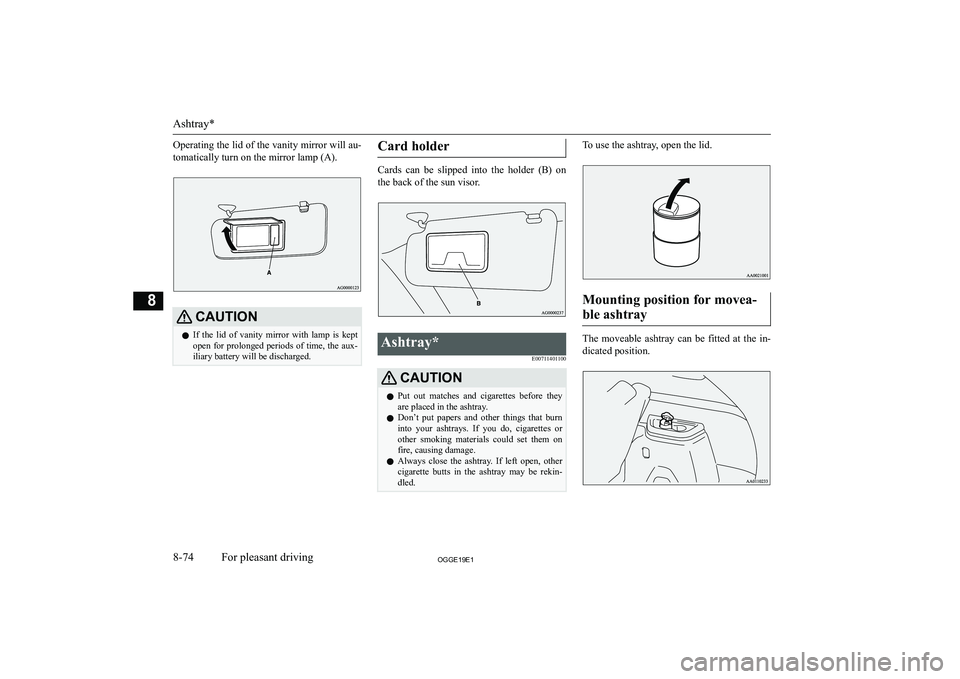

Operating the lid of the vanity mirror will au-tomatically turn on the mirror lamp (A).CAUT,ONz If the lid of vanity mirror with lamp is kept
open for prolonged periods of time, the aux-
iliary battery will be discharged.Card holder
Cards can be slipped into the holder (B) on
the back of the sun visor.
Ashtray*
E00711401100CAUT,ONzPut out matches and cigarettes before they
are placed in the ashtray.
z Don’t put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire, causing damage.
z Always close the ashtray. If left open, other
cigarette butts in the ashtray may be rekin-
dled.To use the ashtray, open the lid.
Mounting position for movea-
ble ashtray
The moveable ashtray can be fitted at the in- dicated position.
Ashtray*
8-742**((For pleasant driving8

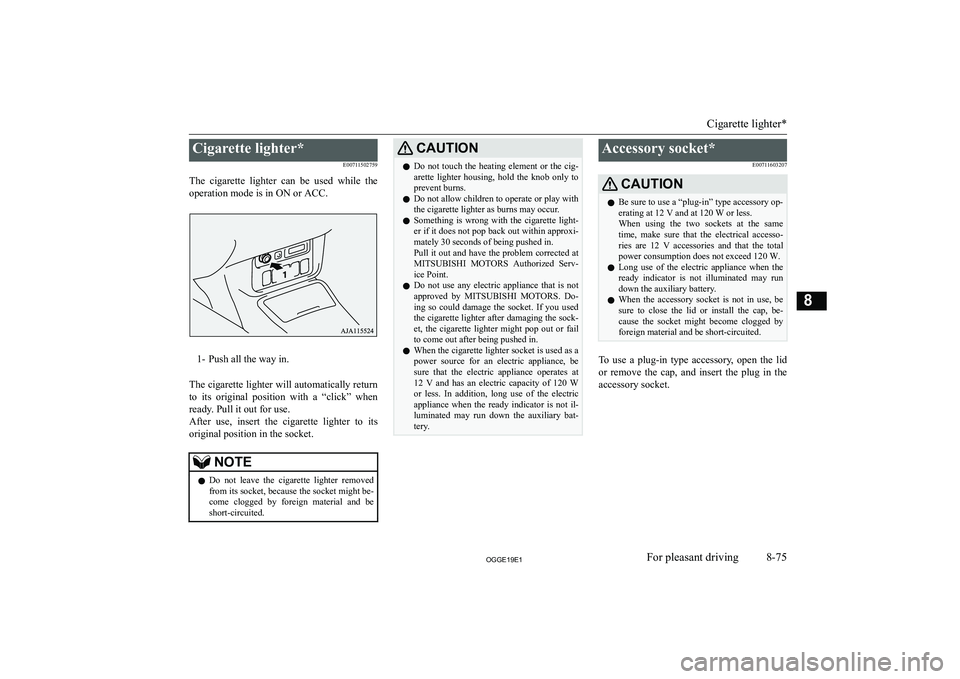

Cigarette lighter*E00711502759
The cigarette lighter can be used while the operation mode is in ON or ACC.
1- Push all the way in.
The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use.
After use, insert the cigarette lighter to its
original position in the socket.
NOTEz Do not leave the cigarette lighter removed
from its socket, because the socket might be- come clogged by foreign material and be
short-circuited.CAUT,ONz Do not touch the heating element or the cig-
arette lighter housing, hold the knob only to prevent burns.
z Do not allow children to operate or play with
the cigarette lighter as burns may occur.
z Something is wrong with the cigarette light-
er if it does not pop back out within approxi-
mately 30 seconds of being pushed in.
Pull it out and have the problem corrected at MITSUBISHI MOTORS Authorized Serv-
ice Point.
z Do not use any electric appliance that is not
approved by MITSUBISHI MOTORS . Do-
ing so could damage the socket. If you used the cigarette lighter after damaging the sock-
et, the cigarette lighter might pop out or fail to come out after being pushed in.
z When the cigarette lighter socket is used as a
power source for an electric appliance, be sure that the electric appliance operates at
12 V and has an electric capacity of 120 W or less. In addition, long use of the electricappliance when the ready indicator is not il-
luminated may run down the auxiliary bat-
tery.Accessory socket*
E00711603207CAUT,ONzBe sure to use a “plug-in” type accessory op-
erating at 12 V and at 120 W or less.
When using the two sockets at the same time, make sure that the electrical accesso-
ries are 12 V accessories and that the total power consumption does not exceed 120 W.
z Long use of the electric appliance when the
ready indicator is not illuminated may run
down the auxiliary battery.
z When the accessory socket is not in use, be
sure to close the lid or install the cap, be- cause the socket might become clogged by
foreign material and be short-circuited.
To use a plug-in type accessory, open the lid
or remove the cap, and insert the plug in the accessory socket.
Cigarette lighter*
8-752**((For pleasant driving8

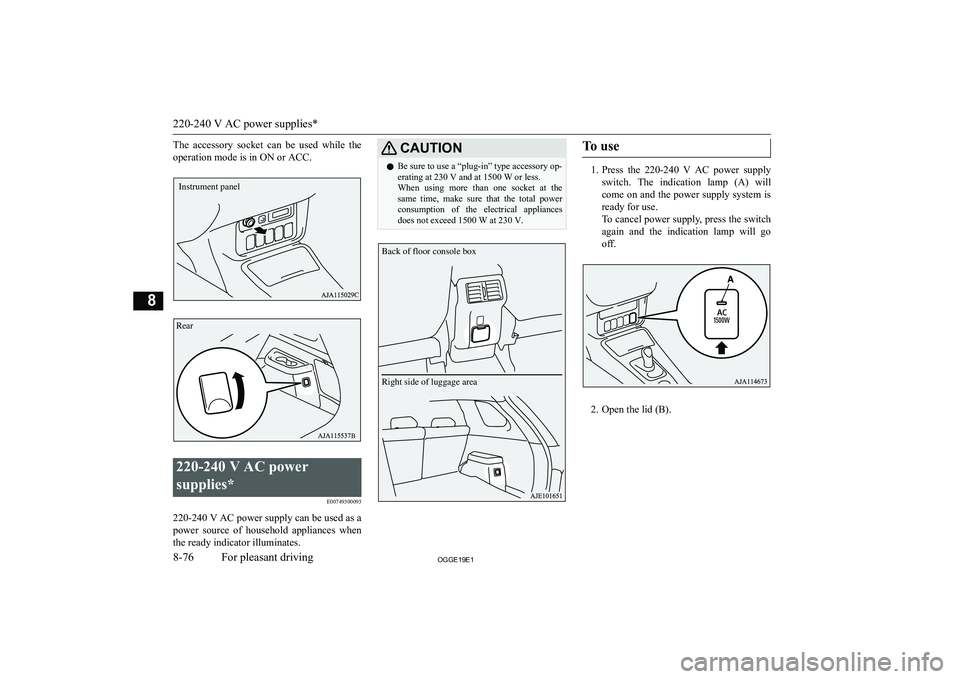

The accessory socket can be used while the
operation mode is in ON or ACC.220-240 V AC power
supplies* E00749300093
220-240 V AC power supply can be used as a
power source of household appliances when
the ready indicator illuminates.
CAUT,ONz Be sure to use a “plug-in” type accessory op-
erating at 230 V and at 1500 W or less.
When using more than one socket at the same time, make sure that the total power
consumption of the electrical appliances
does not exceed 1500 W at 230 V.To use
1. Press the 220-240 V AC power supply
switch. The indication lamp (A) will
come on and the power supply system is ready for use.
To cancel power supply, press the switch again and the indication lamp will go
off.
2. Open the lid (B).
220-240 V AC power supplies*
8-762**((For pleasant driving8Instrument panelC RearB Right side of luggage area
Back of floor console box

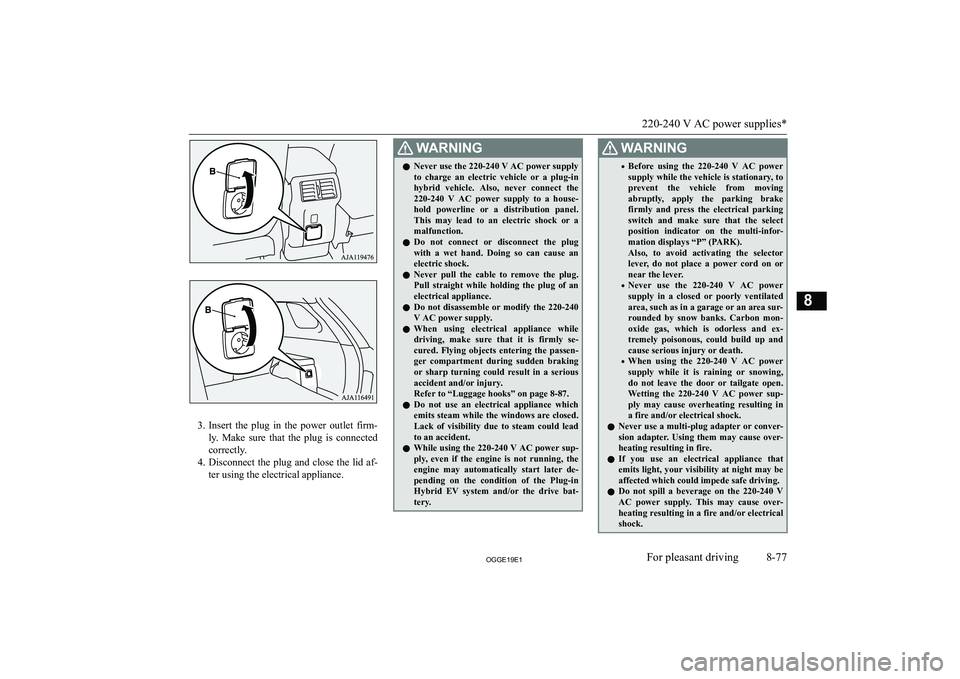

3.Insert the plug in the power outlet firm-
ly. Make sure that the plug is connected
correctly.
4. Disconnect the plug and close the lid af-
ter using the electrical appliance.
:ARN,NGz Never use the 220-240 V AC power supply
to charge an electric vehicle or a plug-in
hybrid vehicle. Also, never connect the 220-240 V AC power supply to a house-
hold powerline or a distribution panel. This may lead to an electric shock or a
malfunction.
z Do not connect or disconnect the plug
with a wet hand. Doing so can cause an
electric shock.
z Never pull the cable to remove the plug.
Pull straight while holding the plug of an electrical appliance.
z Do not disassemble or modify the 220-240
V AC power supply.
z When using electrical appliance while
driving, make sure that it is firmly se-
cured. Flying objects entering the passen- ger compartment during sudden braking or sharp turning could result in a serious
accident and/or injury.
Refer to “Luggage hooks” on page 8-87.
z Do not use an electrical appliance which
emits steam while the windows are closed. Lack of visibility due to steam could lead to an accident.
z While using the 220-240 V AC power sup-
ply, even if the engine is not running, the engine may automatically start later de-pending on the condition of the Plug-in
Hybrid EV system and/or the drive bat-
tery.:ARN,NG

:ARN,NGzDo not let children touch the 220-240 V
AC power supply.
z The cooling fan in the engine compart-
ment may automatically operate when us-ing the 220-240 V AC power supply. Keep
your hands and clothes away from the cooling fan.
z Never use the 220-240 V AC power supply
when lightning or thunder is observed or
expected.
z Never use the 220-240 V AC power supply
for electromedical apparatus.CAUT,ONz When the 220-240 V AC power supply is
not in use, be sure to cancel power supply by pressing the 220-240 V AC power supply
switch, disconnect the plug and close the lid.
This will prevent the 220-240 V AC power
supply from becoming clogged and short cir-
cuiting.
z Do not stand behind the exhaust pipe as the
engine may automatically start depending on the condition. Heat from the exhaust could
lead to burns.
z Make sure that the plug is inserted all the
way into the 220-240 V AC power supplybefore using an electrical appliance.
z Do not use an electrical appliance in the ve-
hicle which emits heat such as a heater. Heat
damage to interior parts could result.CAUT,ONz Do not connect a malfunctioning electrical
appliance to the 220-240 V AC power sup-
ply. Doing so could damage the 220-240 V AC power supply.NOTEz The accessory socket and 220-240 V AC
power supplies can be used simultaneously.
Refer to “Accessory socket*” on page 8-75.
z If the plug of the electrical appliance was
loose or wobbled when inserted in the outlet, have the 220-240 V AC power supply re-
placed at a MITSUBISHI MOTORS Author-
ized Service Point.
z Never leave the vehicle, perform refueling
or washing the vehicle while using the 220-240 V AC power supply.
z You may hear operating sounds such as
sounds from the cooling fan near the lug-
gage area when using the 220-240 V AC
power supply. This is normal.
z Never use electrical appliance that is vulner-
able to vibration or heat in the cabin. When
exposed to strong direct sunlight, the cabin will become extremely hot. It could cause
product failure.
z Do not use the 220-240 V AC power supply
with the vehicle covered by a car cover.
z When closing the window, door or tailgate,
be careful not to trap the power supply cord.
z 220-240 V AC power supply cannot be used
in the following cases.NOTE
