2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

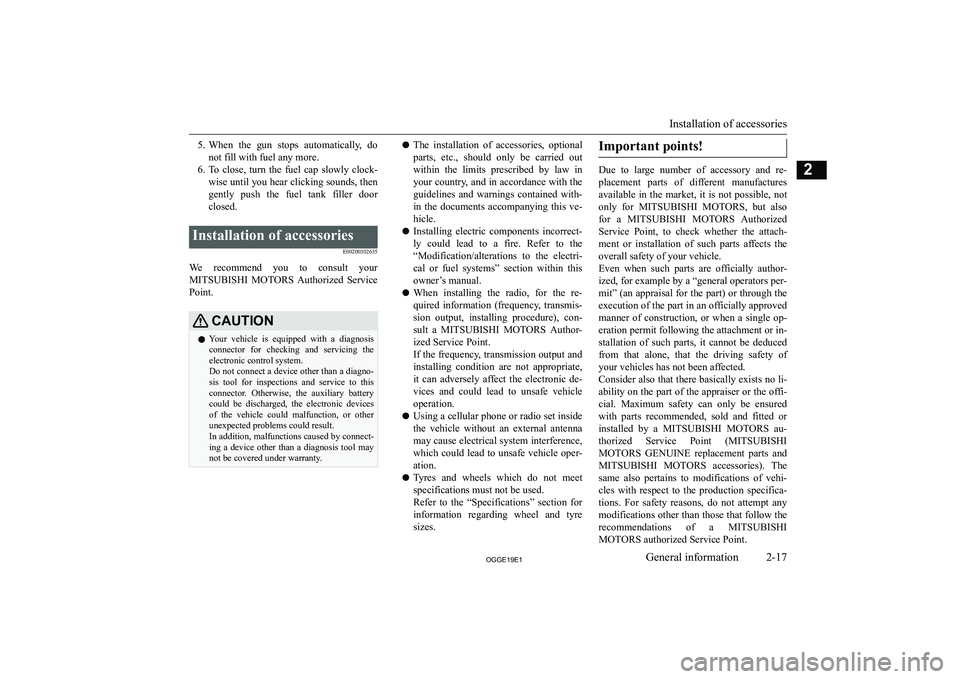

5.When the gun stops automatically, do
not fill with fuel any more.
6. To close, turn the fuel cap slowly clock-
wise until you hear clicking sounds, then
gently push the fuel tank filler door closed.Installation of accessories
E00200302635
We recommend you to consult yourMITSUBISHI MOTORS Authorized Service
Point.
CAUT,ONz Your vehicle is equipped with a diagnosis
connector for checking and servicing the
electronic control system.
Do not connect a device other than a diagno- sis tool for inspections and service to this
connector. Otherwise, the auxiliary battery could be discharged, the electronic devices
of the vehicle could malfunction, or other
unexpected problems could result.
In addition, malfunctions caused by connect- ing a device other than a diagnosis tool may
not be covered under warranty.z The installation of accessories, optional
parts, etc., should only be carried out
within the limits prescribed by law in your country, and in accordance with the
guidelines and warnings contained with-
in the documents accompanying this ve- hicle.
z Installing electric components incorrect-
ly could lead to a fire. Refer to the “Modification/alterations to the electri-
cal or fuel systems” section within this
owner’s manual.
z When installing the radio, for the re-
quired information (frequency, transmis- sion output, installing procedure), con-
sult a MITSUBISHI MOTORS Author-
ized Service Point.
If the frequency, transmission output and
installing condition are not appropriate, it can adversely affect the electronic de-
vices and could lead to unsafe vehicle operation.
z Using a cellular phone or radio set inside
the vehicle without an external antenna
may cause electrical system interference, which could lead to unsafe vehicle oper-ation.
z Tyres and wheels which do not meet
specifications must not be used.
Refer to the “Specifications” section for information regarding wheel and tyre
sizes.Important points!
Due to large number of accessory and re-
placement parts of different manufactures available in the market, it is not possible, not
only for MITSUBISHI MOTORS , but also
for a MITSUBISHI MOTORS Authorized
Service Point, to check whether the attach- ment or installation of such parts affects the
overall safety of your vehicle.
Even when such parts are officially author-
ized, for example by a “general operators per-
mit” (an appraisal for the part) or through the execution of the part in an officially approved
manner of construction, or when a single op- eration permit following the attachment or in-stallation of such parts, it cannot be deduced from that alone, that the driving safety of your vehicles has not been affected.
Consider also that there basically exists no li-
ability on the part of the appraiser or the offi- cial. Maximum safety can only be ensured
with parts recommended, sold and fitted or
installed by a MITSUBISHI MOTORS au-
thorized Service Point ( MITSUBISHI
MOTORS GENUINE replacement parts and
MITSUBISHI MOTORS accessories). The
same also pertains to modifications of vehi- cles with respect to the production specifica- tions. For safety reasons, do not attempt anymodifications other than those that follow the
recommendations of a MITSUBISHI
MOTORS authorized Service Point.Installation of accessories
2-172**((General information2

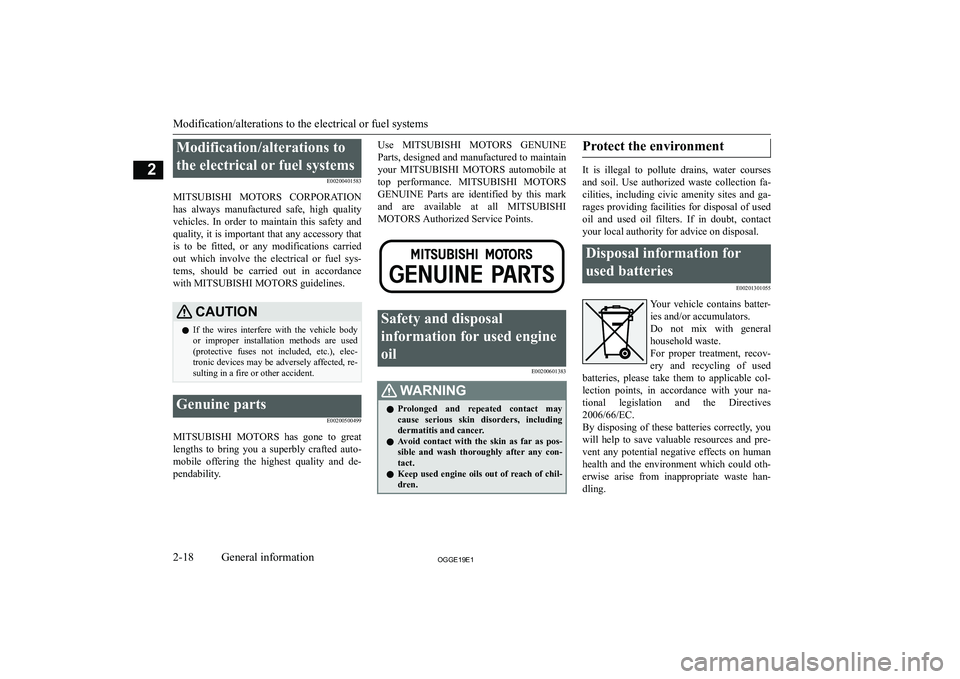

Modification/alterations tothe electrical or fuel systems E00200401583
MITSUBISHI MOTORS CORPORATION
has always manufactured safe, high quality
vehicles. In order to maintain this safety and quality, it is important that any accessory that
is to be fitted, or any modifications carried
out which involve the electrical or fuel sys- tems, should be carried out in accordancewith MITSUBISHI MOTORS guidelines.CAUT,ONz If the wires interfere with the vehicle body
or improper installation methods are used(protective fuses not included, etc.), elec-
tronic devices may be adversely affected, re-
sulting in a fire or other accident.Genuine parts
E00200500499
MITSUBISHI MOTORS has gone to great
lengths to bring you a superbly crafted auto-
mobile offering the highest quality and de- pendability.
Use MITSUBISHI MOTORS GENUINE
Parts, designed and manufactured to maintain
your MITSUBISHI MOTORS automobile at
top performance. MITSUBISHI MOTORS
GENUINE Parts are identified by this mark and are available at all MITSUBISHI
MOTORS Authorized Service Points.Safety and disposal
information for used engine
oil E00200601383:ARN,NGzProlonged and repeated contact may
cause serious skin disorders, including
dermatitis and cancer.
z Avoid contact with the skin as far as pos-
sible and wash thoroughly after any con-
tact.
z Keep used engine oils out of reach of chil-
dren.Protect the environment
It is illegal to pollute drains, water courses
and soil. Use authorized waste collection fa-cilities, including civic amenity sites and ga- rages providing facilities for disposal of used
oil and used oil filters. If in doubt, contact your local authority for advice on disposal.
Disposal information for
used batteries E00201301055
Your vehicle contains batter-ies and/or accumulators.
Do not mix with general
household waste. For proper treatment, recov-
ery and recycling of used
batteries, please take them to applicable col- lection points, in accordance with your na-tional legislation and the Directives
2006/66/EC.
By disposing of these batteries correctly, you
will help to save valuable resources and pre-
vent any potential negative effects on human
health and the environment which could oth- erwise arise from inappropriate waste han-
dling.
Modification/alterations to the electrical or fuel systems
2-182**((General information2

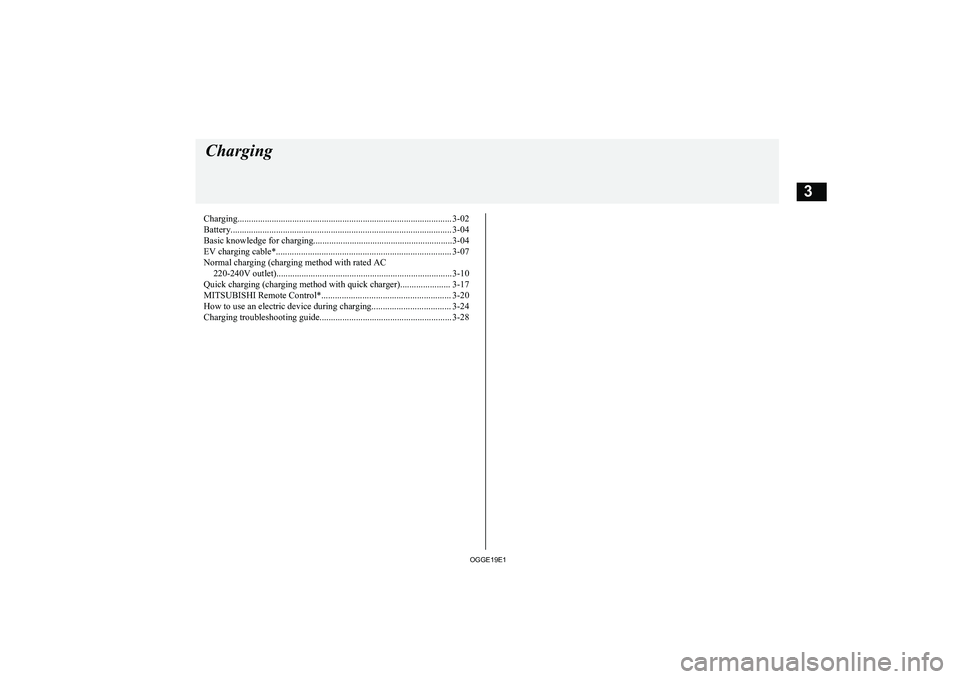

Charging.............................................................................................. 3-02Battery................................................................................................. 3-04Basic knowledge for charging.............................................................3-04EV charging cable*............................................................................. 3-07Normal charging (charging method with rated AC 220-240V outlet).............................................................................3-10
Quick charging (charging method with quick charger)...................... 3-17
MITSUBISHI Remote Control*......................................................... 3-20
How to use an electric device during charging................................... 3-24
Charging troubleshooting guide.......................................................... 3-28&harging
2**((3

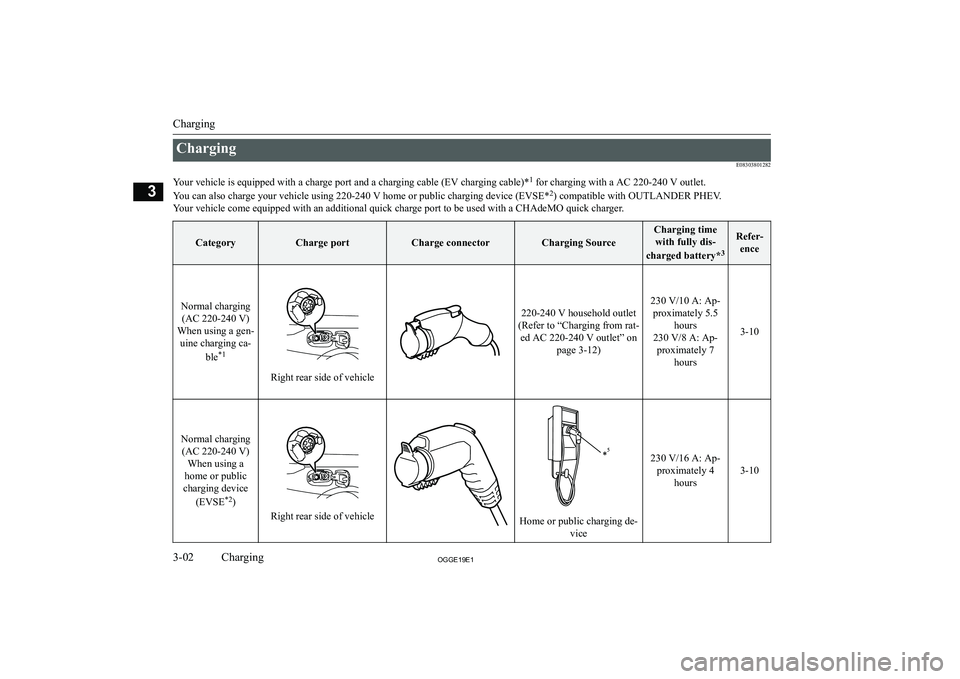

ChargingE08303801282
Your vehicle is equipped with a charge port and a charging cable (EV charging cable)* 1
for charging with a AC 220-240 V outlet.
You can also charge your vehicle using 220-240 V home or public charging device (EVSE* 2
) compatible with OUTLANDER PHEV.
Your vehicle come equipped with an additional quick charge port to be used with a CHAdeMO quick charger.CategoryCharge portCharge connectorCharging Source
Charging time with fully dis-
charged battery* 3Refer-
ence
Normal charging(AC 220-240 V)
When using a gen- uine charging ca-
ble*1
Right rear side of vehicle
220-240 V household outlet
(Refer to “Charging from rat- ed AC 220-240 V outlet” on page 3-12)
230 V/10 A: Ap-proximately 5.5 hours
230 V/8 A: Ap- proximately 7 hours
3-10
Normal charging(AC 220-240 V) When using a
home or public
charging device
(EVSE *2
)
Right rear side of vehicleHome or public charging de-
vice
230 V/16 A: Ap-proximately 4 hours
3-10
Charging
3-022**((Charging3

CategoryCharge portCharge connectorCharging Source
Charging timewith fully dis-
charged battery* 3Refer-
ence

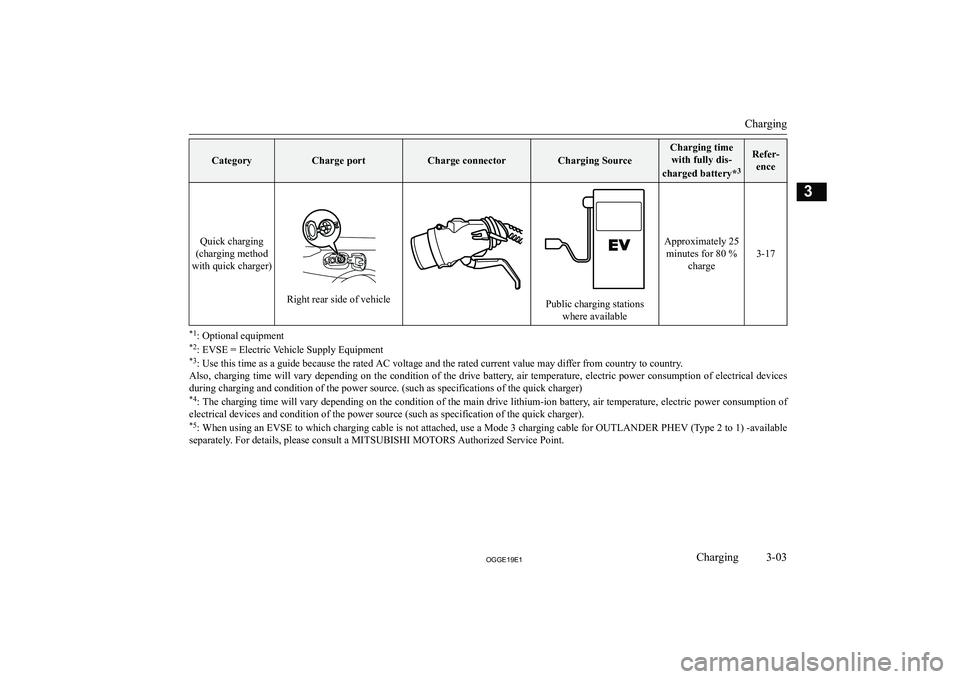

Quick charging
(charging method
with quick charger)
Right rear side of vehiclePublic charging stations where available
Approximately 25minutes for 80 % charge
3-17
*1: Optional equipment
*2 : EVSE = Electric Vehicle Supply Equipment
*3 : Use this time as a guide because the rated AC voltage and the rated current value may differ from country to country.
Also, charging time will vary depending on the condition of the drive battery, air temperature, electric power consumption of electrical devices
during charging and condition of the power source. (such as specifications of the quick charger) *4 : The charging time will vary depending on the condition of the main drive lithium-ion battery, air temperature, electric power consumption of
electrical devices and condition of the power source (such as specification of the quick charger).
*5 : When using an EVSE to which charging cable is not attached, use a Mode 3 charging cable for OUTLANDER PHEV (Type 2 to 1) -available
separately. For details, please consult a MITSUBISHI MOTORS Authorized Service Point.
Charging
3-032**((Charging3

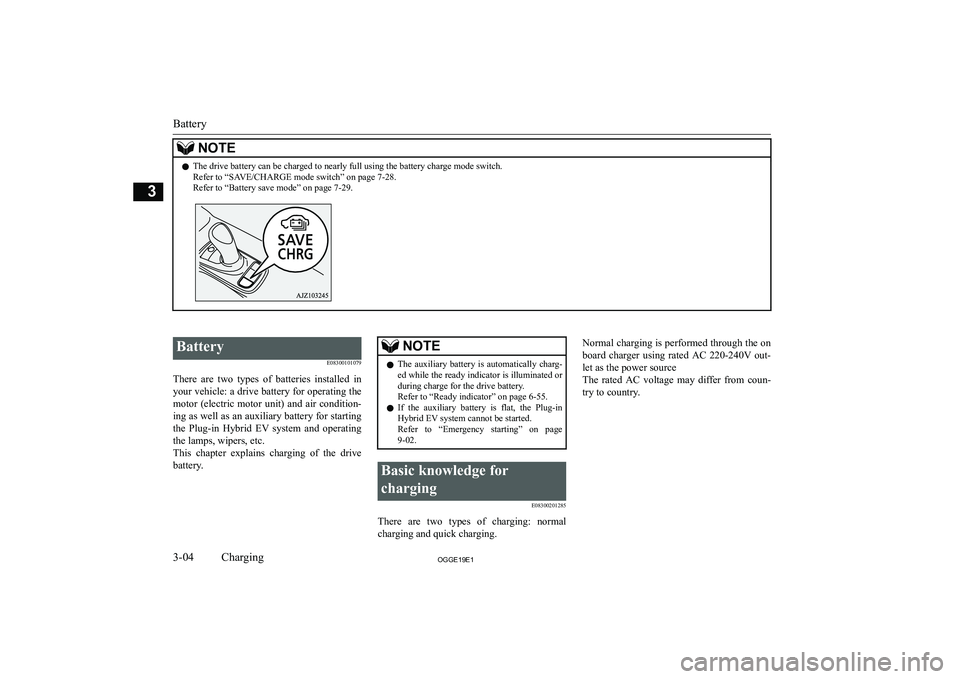

NOTEzThe drive battery can be charged to nearly full using the battery charge mode switch.
Refer to “SAVE/CHARGE mode switch” on page 7-28. Refer to “Battery save mode” on page 7-29.

Battery
E08300101079
There are two types of batteries installed in your vehicle: a drive battery for operating the
motor (electric motor unit) and air condition-
ing as well as an auxiliary battery for starting the Plug-in Hybrid EV system and operatingthe lamps, wipers, etc.
This chapter explains charging of the drive battery.NOTEz The auxiliary battery is automatically charg-
ed while the ready indicator is illuminated orduring charge for the drive battery.
Refer to “Ready indicator” on page 6-55.
z If the auxiliary battery is flat, the Plug-in
Hybrid EV system cannot be started.
Refer to “Emergency starting” on page
9-02.Basic knowledge for
charging E08300201285
There are two types of charging: normalcharging and quick charging.
Normal charging is performed through the on
board charger using rated AC 220-240V out-
let as the power source
The rated AC voltage may differ from coun-
try to country.
Battery
3-042**((Charging3

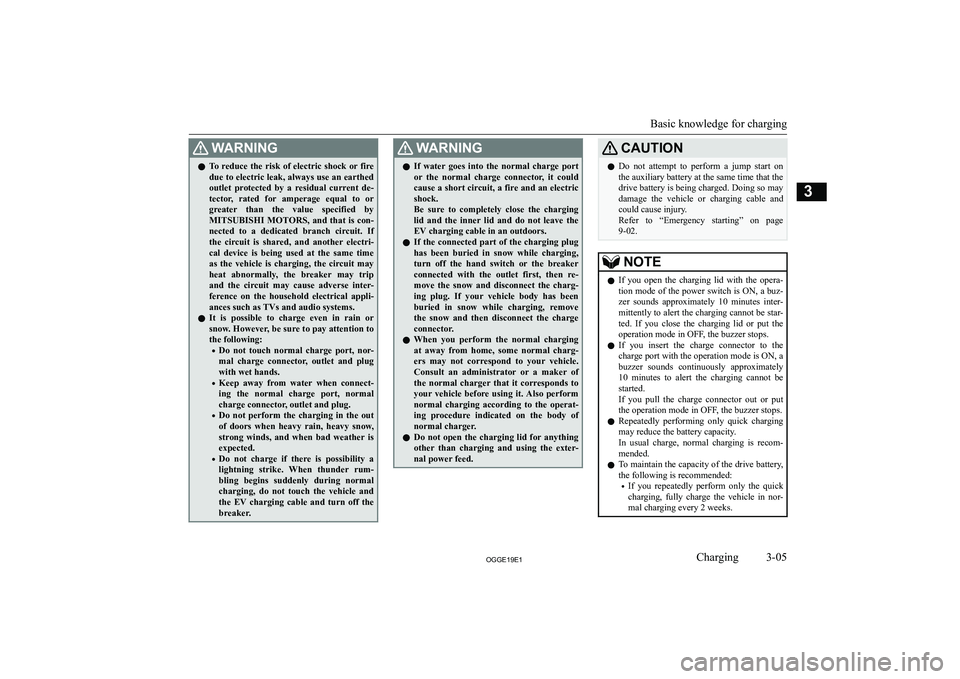

:ARN,NGzTo reduce the risk of electric shock or fire
due to electric leak, always use an earthed
outlet protected by a residual current de-
tector, rated for amperage equal to or
greater than the value specified by MITSUBISHI MOTORS , and that is con-
nected to a dedicated branch circuit. If the circuit is shared, and another electri-cal device is being used at the same time
as the vehicle is charging, the circuit may heat abnormally, the breaker may trip
and the circuit may cause adverse inter-
ference on the household electrical appli-
ances such as TVs and audio systems.
z It is possible to charge even in rain or
snow. However, be sure to pay attention to the following:

NOTE
