2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

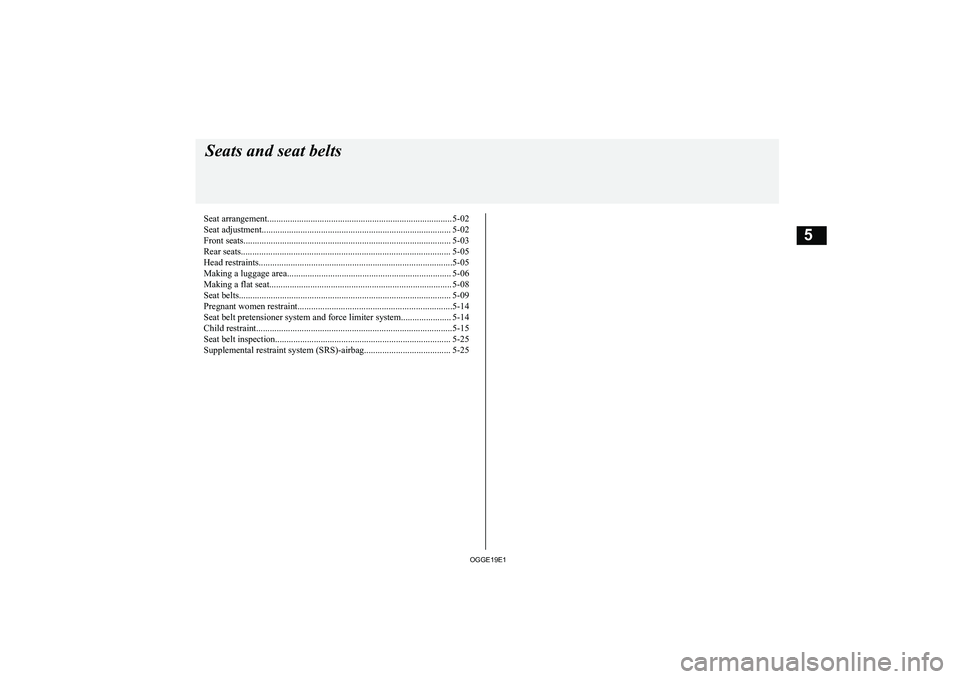

Seat arrangement................................................................................. 5-02
Seat adjustment................................................................................... 5-02 Front seats........................................................................................... 5-03
Rear seats............................................................................................ 5-05
Head restraints.....................................................................................5-05
Making a luggage area........................................................................ 5-06
Making a flat seat................................................................................ 5-08
Seat belts............................................................................................. 5-09 Pregnant women restraint....................................................................5-14
Seat belt pretensioner system and force limiter system...................... 5-14
Child restraint......................................................................................5-15 Seat belt inspection............................................................................. 5-25Supplemental restraint system (SRS)-airbag...................................... 5-256eatsandseatbelts
2**((5

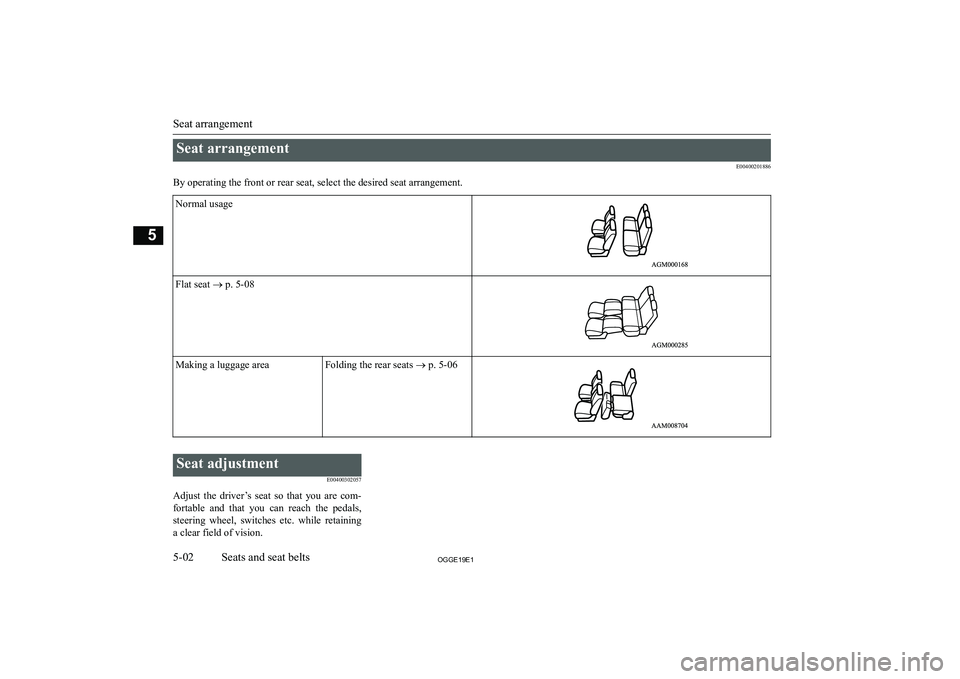

Seat arrangementE00400201886
By operating the front or rear seat, select the desired seat arrangement.Normal usageFlat seat o p. 5-08Making a luggage areaFolding the rear seats o p. 5-06

Seat adjustment
E00400302057
Adjust the driver’s seat so that you are com- fortable and that you can reach the pedals,
steering wheel, switches etc. while retaining a clear field of vision.
Seat arrangement
5-022**((Seats and seat belts5

:ARN,NGzDo not attempt to adjust the seat while
driving. This can cause loss of vehicle con- trol and result in an accident. After ad-
justments are made, ensure the seating is
locked in position by attempting to move
the seat forward and rearward without using the adjusting mechanism.
z Do not allow people or children to ride in
any area of your vehicle that is not equip- ped with seats and seat belts, and make
sure that everyone travelling in your vehi- cle is in a seat and wearing a seat belt, or
in the case of a child is strapped in a child restraint.
z To minimize the risk of personal injury in
the event of a collision or sudden braking,the seatbacks should always be in the al- most upright position while the vehicle is
in motion. The protection provided by the seat belts may be reduced significantly
when the seatback is reclined. There is greater risk that the passenger will slide
under the seat belt, resulting in serious in- jury, when the seatback is reclined.
z Do not place objects under the seats. This
could prevent the seat from locking se-
curely, and it could lead to an accident. It may also cause damage to the seat or oth-
er parts.CAUT,ONz Make sure the seat is adjusted by an adult or
with adult supervision for correct and safe operation.
z Do not place a cushion or the like between
your back and the seatback while driving.The effectiveness of the head restraints will
be reduced in the event of an accident.
z The reclining mechanism of the front seat’s
seatback is spring loaded, causing it to return
to the vertical position when the lock lever is
operated. When using the lever, sit close to the seatback or hold it with your hand to
control its return motion.
z When sliding the seats, be careful not to
catch your hand or foot.
z When adjusting the front seat while the rear
seat is folded, be careful not to apply strongforce to the flipped rear seat cushion.
Doing so could cause damage to the cover of
the front seat and the fitting of the rear seat

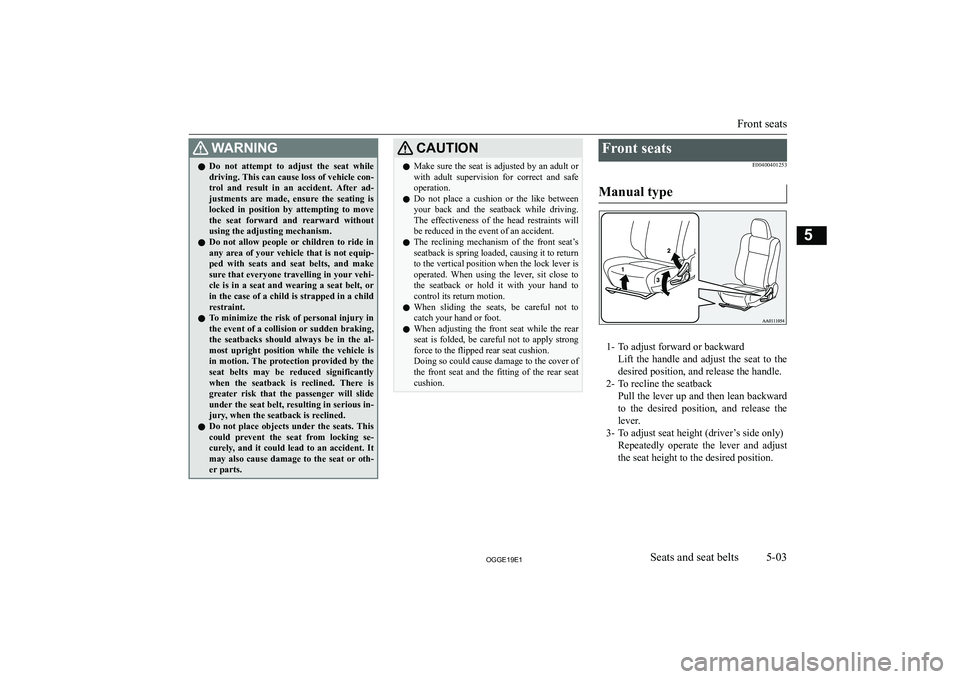

cushion.Front seats
E00400401253
Manual type
1- To adjust forward or backward Lift the handle and adjust the seat to thedesired position, and release the handle.
2- To recline the seatback Pull the lever up and then lean backward
to the desired position, and release the lever.
3- To adjust seat height (driver’s side only)
Repeatedly operate the lever and adjustthe seat height to the desired position.
Front seats
5-032**((Seats and seat belts5

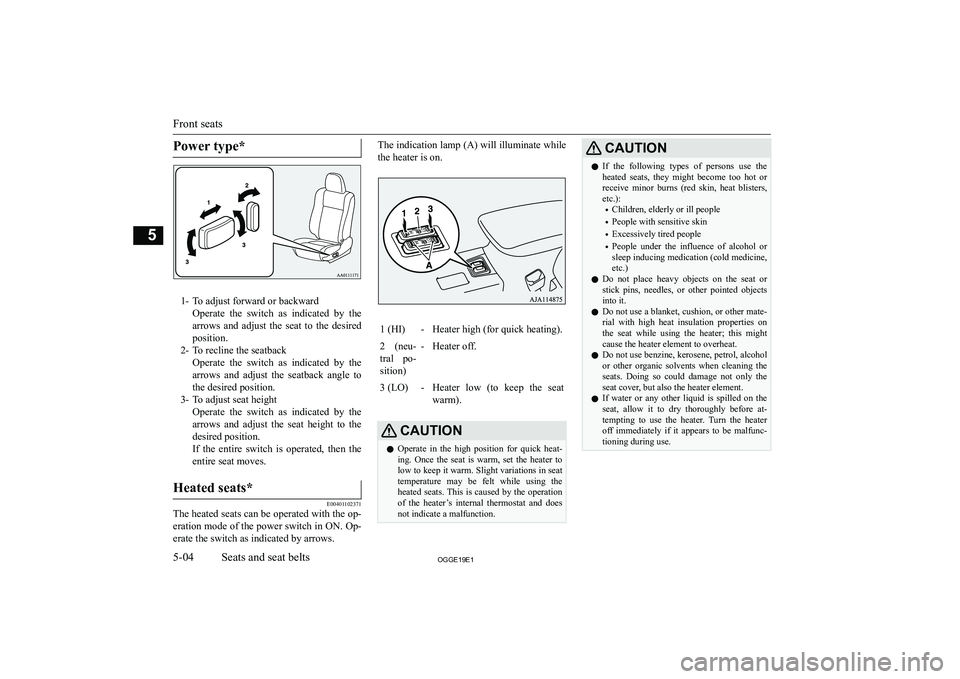

Power type*
1- To adjust forward or backwardOperate the switch as indicated by thearrows and adjust the seat to the desired
position.
2- To recline the seatback Operate the switch as indicated by thearrows and adjust the seatback angle to
the desired position.
3- To adjust seat height Operate the switch as indicated by thearrows and adjust the seat height to the
desired position.
If the entire switch is operated, then the entire seat moves.
Heated seats*
E00401102371
The heated seats can be operated with the op-
eration mode of the power switch in ON. Op-
erate the switch as indicated by arrows.
The indication lamp (A) will illuminate while
the heater is on.1 (HI)-Heater high (for quick heating).2 (neu-
tral po- sition)-Heater off.3 (LO)-Heater low (to keep the seat warm).CAUT,ONz Operate in the high position for quick heat-
ing. Once the seat is warm, set the heater to low to keep it warm. Slight variations in seat
temperature may be felt while using the heated seats. This is caused by the operation
of the heater’s internal thermostat and does not indicate a malfunction.CAUT,ONz If the following types of persons use the
heated seats, they might become too hot or receive minor burns (red skin, heat blisters,
etc.):

Rear seatsE00401301549
To adjust the seatback, pull the lever up andadjust the seatback by hand to the desired po-
sition, and release the lever.
Armrest
E00401701732
To use the armrest, fold it down.
To return to the original position, push it
backward level with the seat.NOTEz Do not climb or sit on the armrest.
Doing so could damage the armrest.
z The top surface of the armrest contains a cup
holder for rear seat occupants.
Refer to “Cup holder” on page 8-84.Head restraints
E00403302654:ARN,NGzDriving without the head restraints in
place can cause you and your passengers
serious injury or death in an accident. To
reduce the risk of injury in an accident, always make sure the head restraints are
installed and properly positioned when the seat is occupied.:ARN,NGz Never place a cushion or similar device on
the seatback. This can adversely affect head restraint performance by increasing
the distance between your head and the restraint.
z When a person sits in the rear seats, pull
up the head restraint to a height at which it locks in position. Be sure to make this
adjustment before starting to drive. Seri- ous injuries could otherwise be suffered as
the result of an impact.
To adjust height
Adjust the head restraint height so that the
centre of the head restraint is as close as pos-
sible to ear level to reduce the chances of in- jury in the event of collision. Any person too
tall for the head restraint to reach their seated ear level, should adjust the restraint as highas possible.
Rear seats
5-052**((Seats and seat belts5

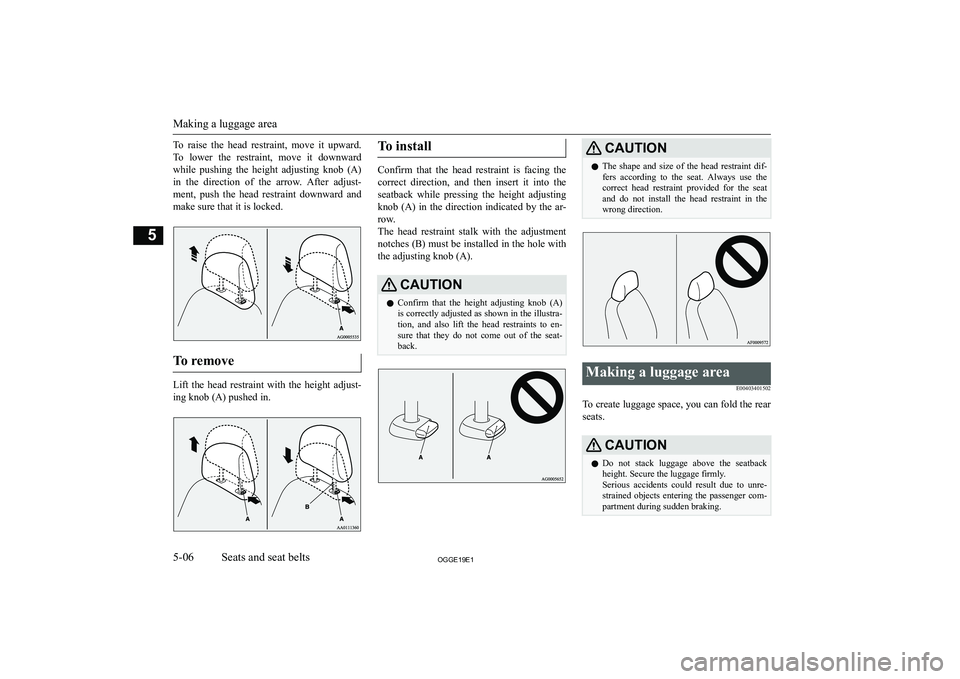

To raise the head restraint, move it upward.
To lower the restraint, move it downward while pushing the height adjusting knob (A)in the direction of the arrow. After adjust-
ment, push the head restraint downward and make sure that it is locked.
To remove
Lift the head restraint with the height adjust- ing knob (A) pushed in.
To install
Confirm that the head restraint is facing the
correct direction, and then insert it into the
seatback while pressing the height adjusting
knob (A) in the direction indicated by the ar- row.
The head restraint stalk with the adjustment
notches (B) must be installed in the hole with the adjusting knob (A).
CAUT,ONz Confirm that the height adjusting knob (A)
is correctly adjusted as shown in the illustra-
tion, and also lift the head restraints to en- sure that they do not come out of the seat-back.CAUT,ONz The shape and size of the head restraint dif-
fers according to the seat. Always use the
correct head restraint provided for the seat and do not install the head restraint in the
wrong direction.Making a luggage area
E00403401502
To create luggage space, you can fold the rearseats.
CAUT,ONz Do not stack luggage above the seatback
height. Secure the luggage firmly.
Serious accidents could result due to unre- strained objects entering the passenger com-
partment during sudden braking.
Making a luggage area
5-062**((Seats and seat belts5

CAUT,ONzWhen folding the seat, be sure not to catch
your hand or leg.NOTEz It is possible to fold the seat independently
on each side.
To fold
1. Lower the head restraints of the rear seat
to the lowest position.
Refer to “Head restraints” on page 5-05.
2. Store the seat belt for the rear centre
seating position.
Refer to “Rear-centre 3-point type seat
belt” on page 5-13.
3. Lift the front end of the seat cushion.
4. Flip the seat cushion forward.
5. Fold the seat belt buckles forward.
CAUT,ONz Do not allow any person to get on the plastic
cover (A), and do not place luggage on it.
Doing so could damage cover.6. Pull up the lever, then fold the seatback
forward.CAUT,ONz Do not allow any person to sit on the flipped
seat cushion, and do not place luggage on it.
The seat’s mounting fittings could bend un- der the weight, making it impossible for the
seat to be retained on the vehicle.
To return
1. Raise the seatback until it locks securely
into place.
Making a luggage area
5-072**((Seats and seat belts5

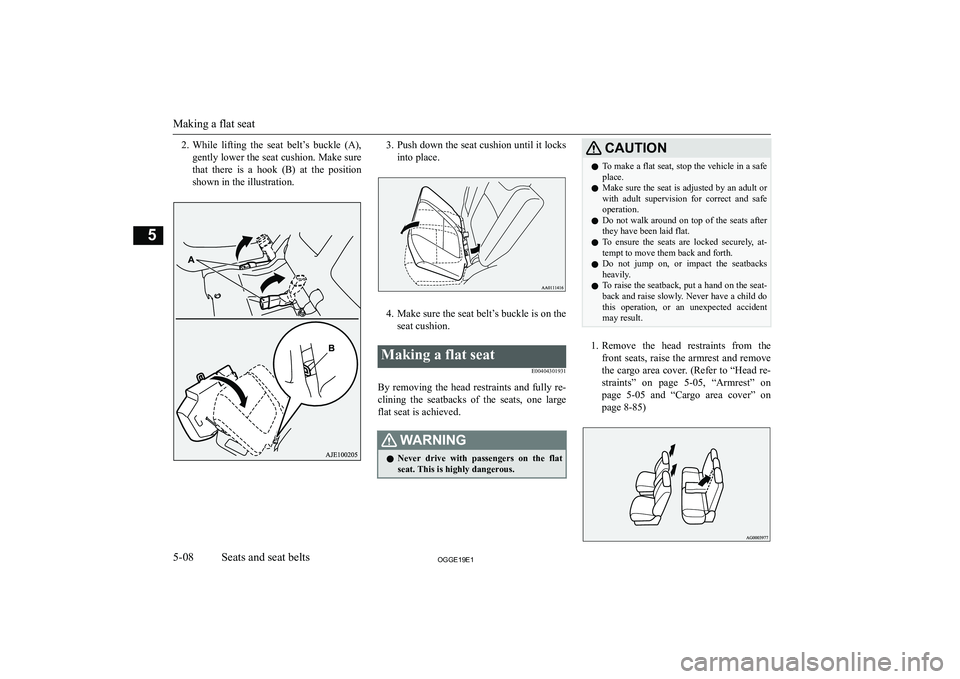

2.While lifting the seat belt’s buckle (A),
gently lower the seat cushion. Make sure that there is a hook (B) at the positionshown in the illustration.3. Push down the seat cushion until it locks
into place.
4. Make sure the seat belt’s buckle is on the
seat cushion.
Making a flat seat
E00404301931
By removing the head restraints and fully re-
clining the seatbacks of the seats, one large flat seat is achieved.
:ARN,NGz Never drive with passengers on the flat
seat. This is highly dangerous.CAUT,ONz To make a flat seat, stop the vehicle in a safe
place.
z Make sure the seat is adjusted by an adult or
with adult supervision for correct and safe
operation.
z Do not walk around on top of the seats after
they have been laid flat.
z To ensure the seats are locked securely, at-
tempt to move them back and forth.
z Do not jump on, or impact the seatbacks
heavily.
z To raise the seatback, put a hand on the seat-
back and raise slowly. Never have a child do
this operation, or an unexpected accident may result.
1. Remove the head restraints from the
front seats, raise the armrest and remove
the cargo area cover. (Refer to “Head re-
straints” on page 5-05, “Armrest” on
page 5-05 and “Cargo area cover” on
page 8-85)
Making a flat seat
5-082**((Seats and seat belts5
