2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

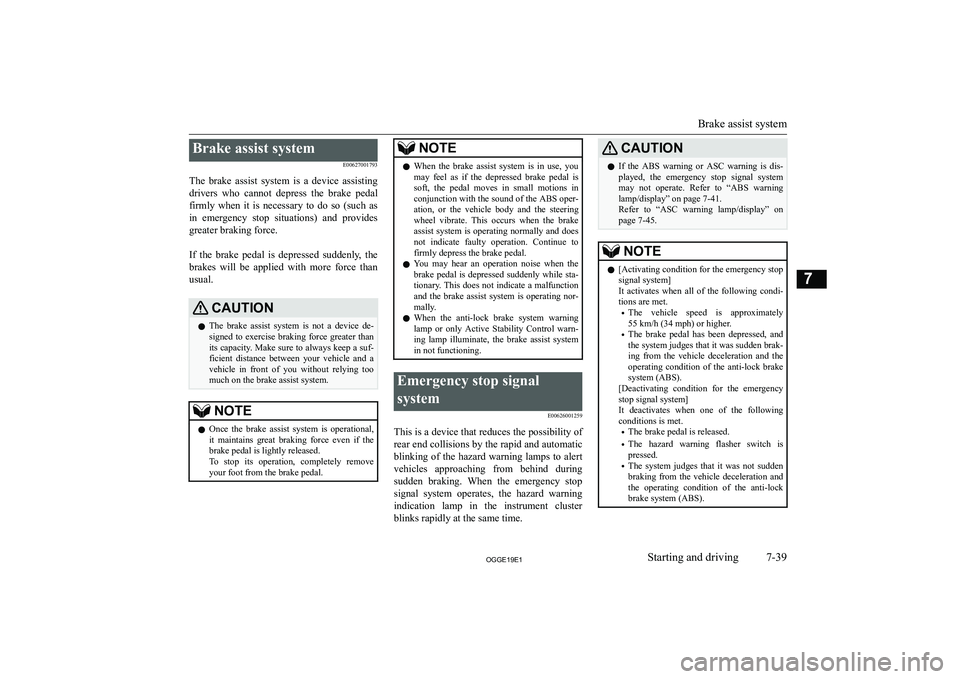

Brake assist systemE00627001793
The brake assist system is a device assisting drivers who cannot depress the brake pedalfirmly when it is necessary to do so (such as
in emergency stop situations) and provides
greater braking force.

If the brake pedal is depressed suddenly, the brakes will be applied with more force thanusual.CAUT,ONz The brake assist system is not a device de-
signed to exercise braking force greater than its capacity. Make sure to always keep a suf-
ficient distance between your vehicle and a
vehicle in front of you without relying too much on the brake assist system.NOTEz Once the brake assist system is operational,
it maintains great braking force even if the
brake pedal is lightly released.
To stop its operation, completely remove
your foot from the brake pedal.NOTEz When the brake assist system is in use, you
may feel as if the depressed brake pedal issoft, the pedal moves in small motions inconjunction with the sound of the ABS oper- ation, or the vehicle body and the steering
wheel vibrate. This occurs when the brake
assist system is operating normally and does not indicate faulty operation. Continue to
firmly depress the brake pedal.
z You may hear an operation noise when the
brake pedal is depressed suddenly while sta-
tionary. This does not indicate a malfunction
and the brake assist system is operating nor- mally.
z When the anti-lock brake system warning
lamp or only Active Stability Control warn- ing lamp illuminate, the brake assist system
in not functioning.Emergency stop signal
system E00626001259
This is a device that reduces the possibility ofrear end collisions by the rapid and automatic blinking of the hazard warning lamps to alert
vehicles approaching from behind during sudden braking. When the emergency stop
signal system operates, the hazard warning indication lamp in the instrument cluster
blinks rapidly at the same time.
CAUT,ONz If the ABS warning or ASC warning is dis-
played, the emergency stop signal system may not operate. Refer to “ABS warning lamp/display” on page 7-41.
Refer to “ASC warning lamp/display” on
page 7-45.NOTEz [Activating condition for the emergency stop
signal system@
It activates when all of the following condi-
tions are met.

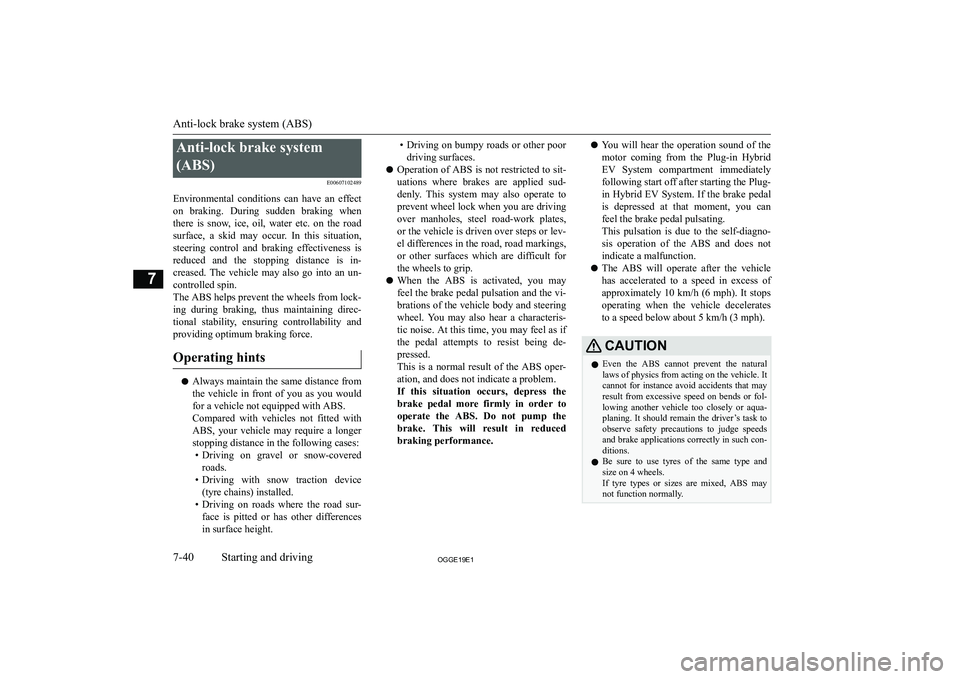

Anti-lock brake system(ABS) E00607102489
Environmental conditions can have an effect
on braking. During sudden braking when there is snow, ice, oil, water etc. on the road
surface, a skid may occur. In this situation,
steering control and braking effectiveness is
reduced and the stopping distance is in- creased. The vehicle may also go into an un-controlled spin.
The ABS helps prevent the wheels from lock-
ing during braking, thus maintaining direc-
tional stability, ensuring controllability and
providing optimum braking force.
Operating hints
z Always maintain the same distance from
the vehicle in front of you as you would for a vehicle not equipped with ABS.
Compared with vehicles not fitted with ABS, your vehicle may require a longer
stopping distance in the following cases:

CAUT,ONzNever install a limited-slip differential,
which is not MITSUBISHI MOTORS GEN-
UINE parts, as the ABS may not function
normally.
We recommend you to consult a
MITSUBISHI MOTORS Authorized Serv-

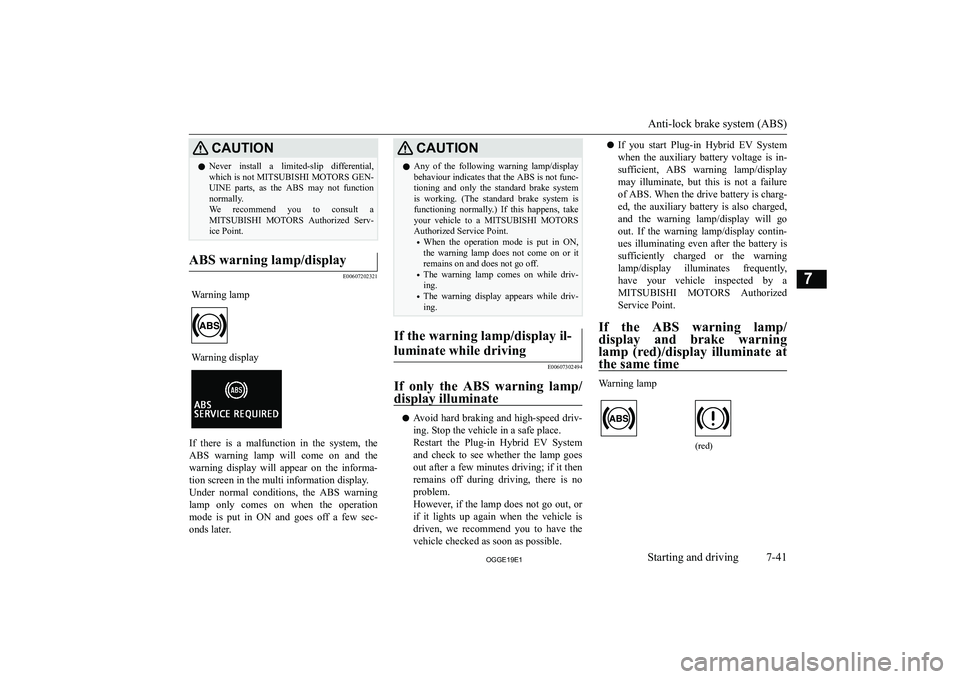

ice Point.ABS warning lamp/display
E00607202321
Warning lampWarning display
If there is a malfunction in the system, the
ABS warning lamp will come on and the
warning display will appear on the informa- tion screen in the multi information display.
Under normal conditions, the ABS warning
lamp only comes on when the operation
mode is put in ON and goes off a few sec- onds later.
CAUT,ONz Any of the following warning lamp/display
behaviour indicates that the ABS is not func-tioning and only the standard brake system
is working. (The standard brake system is functioning normally.) If this happens, take
your vehicle to a MITSUBISHI MOTORS
Authorized Service Point.

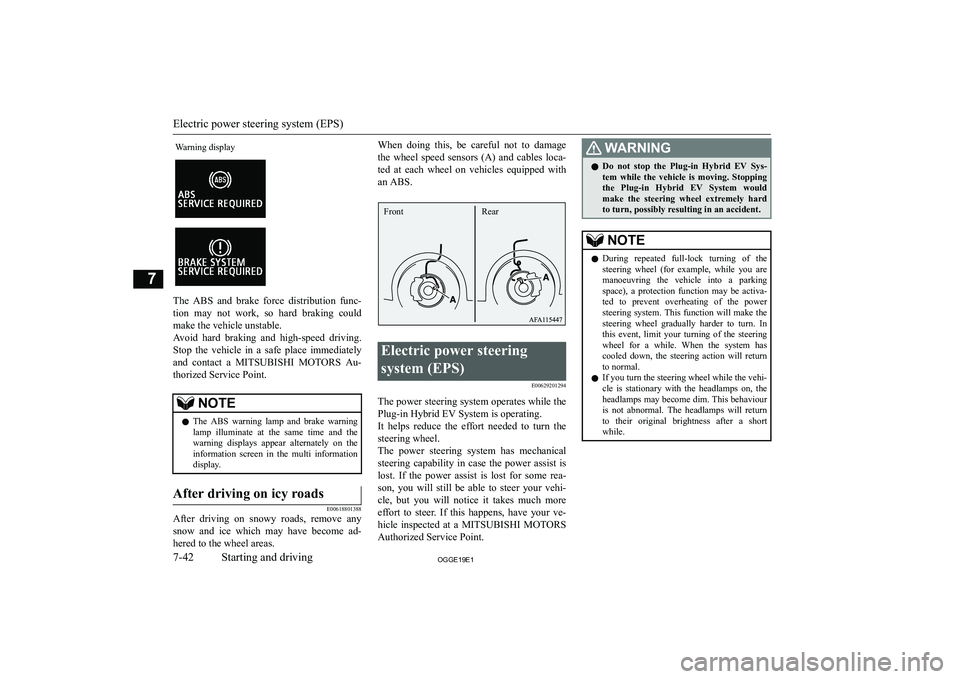

Warning display
The ABS and brake force distribution func-tion may not work, so hard braking could
make the vehicle unstable.
Avoid hard braking and high-speed driving. Stop the vehicle in a safe place immediately
and contact a MITSUBISHI MOTORS Au-
thorized Service Point.
NOTEz The ABS warning lamp and brake warning
lamp illuminate at the same time and the
warning displays appear alternately on the information screen in the multi informationdisplay.After driving on icy roads
E00618801388
After driving on snowy roads, remove any
snow and ice which may have become ad-
hered to the wheel areas.
When doing this, be careful not to damage
the wheel speed sensors (A) and cables loca-ted at each wheel on vehicles equipped with an ABS.Electric power steering
system (EPS) E00629201294
The power steering system operates while thePlug-in Hybrid EV System is operating.
It helps reduce the effort needed to turn the
steering wheel.
The power steering system has mechanical steering capability in case the power assist is
lost. If the power assist is lost for some rea- son, you will still be able to steer your vehi-
cle, but you will notice it takes much more
effort to steer. If this happens, have your ve- hicle inspected at a MITSUBISHI MOTORS
Authorized Service Point.
:ARN,NGz Do not stop the Plug-in Hybrid EV Sys-
tem while the vehicle is moving. Stopping the Plug-in Hybrid EV System would
make the steering wheel extremely hard to turn, possibly resulting in an accident.NOTEz During repeated full-lock turning of the
steering wheel (for example, while you are manoeuvring the vehicle into a parking space), a protection function may be activa-
ted to prevent overheating of the power steering system. This function will make the
steering wheel gradually harder to turn. In
this event, limit your turning of the steering wheel for a while. When the system has
cooled down, the steering action will return to normal.
z If you turn the steering wheel while the vehi-
cle is stationary with the headlamps on, the
headlamps may become dim. This behaviour is not abnormal. The headlamps will returnto their original brightness after a shortwhile.
Electric power steering system (EPS)
7-422**((Starting and driving7 Front Rear

Electric power steering systemwarning display
If there is a malfunction in the system, the warning display will appear on the informa-
tion screen in the multi information display.
CAUT,ONz If the warning display appears while the
Plug-in Hybrid EV System is operating,
have the vehicle inspected by a MITSUBISHI MOTORS Authorized Serv-
ice Point as soon as possible.
It may become harder to turn the steering
wheel.Active stability control
(ASC) E00616701468
The Active Stability Control (ASC) takes
overall control of the anti-lock brake system, traction control function and stability control
function to help maintain the vehicle’s con-
trol and traction. Please read this section in conjunction with the page on the anti-lock
brake system, traction control function and stability control function.

Anti-lock brake system (ABS) o p. 7-40
Traction control function o p. 7-44
Stability control function o p. 7-44CAUT,ONz Do not over-rely on the ASC. Even the ASC
cannot prevent the natural laws of physics
from acting on the vehicle.
This system, like any other system, has lim-
its and cannot help you to maintain traction and control of the vehicle in all circumstan- ces. Reckless driving may lead to accidents.
It is the driver’s responsibility to drive care- fully. This means taking into account the traffic, road and environmental conditions.
z Be sure to use the same specified type and
size of tyre on all 4 wheels. Otherwise, the ASC may not work properly.CAUT,ONz Do not install any aftermarket limited-slip
differential (LSD) on your vehicle. The ASC
may stop functioning properly.NOTEz An operation noise may be emitted from the
Plug-in Hybrid EV System compartment in
the following situations. The sound is asso- ciated with checking the operations of the ASC. At this time, you may feel a shock
from the brake pedal if you depress it. These
do not indicate a malfunction.

Traction control function
E00619000087
On slippery surfaces, the traction control
function prevents the drive wheels from ex- cessive spinning, thus helping the vehicle to
start moving from a stopped condition. It also
provides sufficient driving force and steering
performance as the vehicle turns while press- ing the acceleration pedal.
CAUT,ONz When driving a vehicle on a snowy or icy
road, be sure to install snow tyres and drive the vehicle at moderate speeds.Stability control function
E00619101098
The stability control function is designed to
help the driver maintain control of the vehicle
on slippery roads or during rapid steering ma-
noeuvres. It works by controlling the Plugin
Hybrid EV System output and the brake on
each wheel.
NOTEz The stability control function operates at
speeds of about 15 km/h (9 mph) or higher.ASC OFF switch
E00619201871
The ASC is automatically activated when the
operation mode is put in ON. You can deacti-
vate the system by pressing down the ASC
OFF switch for 3 seconds or longer.
When the ASC is deactivated, the
display/
indicator will turn on. To reactivate the ASC, momentarily press the ASC OFF switch; the
indicator is turned off.
CAUT,ONz For safety reasons, the ASC OFF switch
should be operated when your vehicle is stopped.
z Be sure to keep the ASC on while driving in
normal circumstances.CAUT,ONz In case you turn off the ASC to move out
from mud or sand etc., press the ASC OFFswitch to activate the ASC quickly after moving out, and do not turn off the ASC un-less it is necessary.
z If you continue to race the tyre by depress-
ing the accelerator pedal too much while
ASC is turned off, parts such as the transaxle
may be damaged and this could lead to an accident.NOTEz When moving out of mud, sand or fresh
snow, pressing the accelerator pedal may not
allow the Plug-in Hybrid EV System output to increase. In such situations, switching to
“LOCK” with the Drive mode switch and temporarily turning off the Active Stability
Control (ASC) with the ASC OFF switch
will make it easier to move out your vehicle.
Refer to “Operation under adverse driving
conditions: If your vehicle becomes stuck in sand, mud or snow” on page 9-21.
z By pressing the “ASC OFF” switch, both the
stability control function and the traction
control function are turned OFF.
z If you continue to press the ASC OFF switch
after the ASC is turned off, the “mistaken
operation protection function” will activate and the ASC will turn back on.
Active stability control (ASC)
7-442**((Starting and driving7

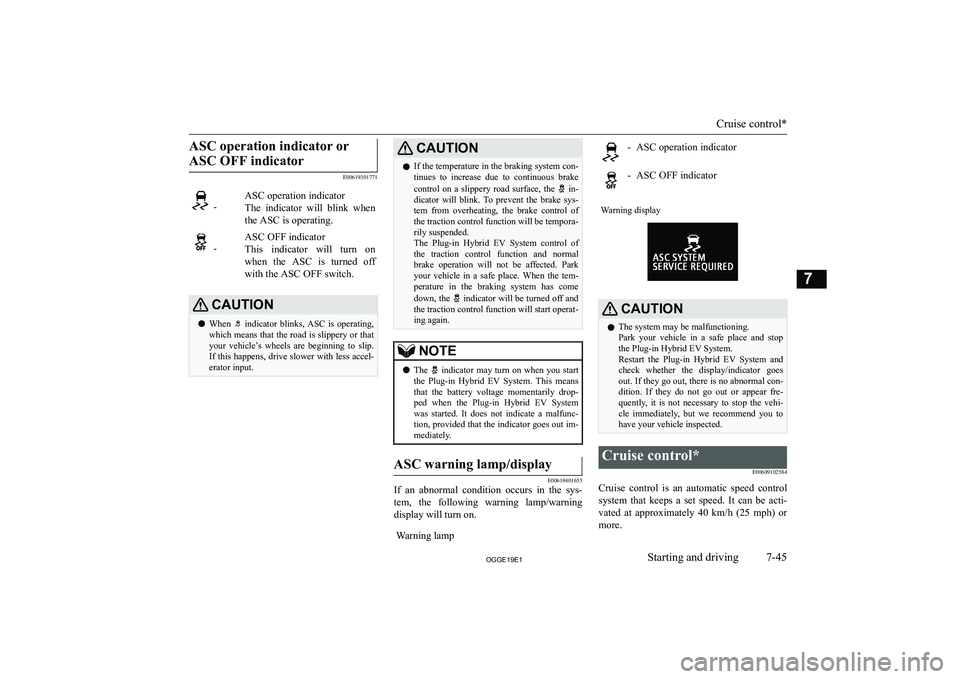

ASC operation indicator orASC OFF indicator
E00619301771
-ASC operation indicator
The indicator will blink when the ASC is operating. -ASC OFF indicator
This indicator will turn on
when the ASC is turned off with the ASC OFF switch.CAUT,ONz When indicator blinks, ASC is operating,
which means that the road is slippery or that your vehicle’s wheels are beginning to slip.If this happens, drive slower with less accel- erator input.CAUT,ONz If the temperature in the braking system con-
tinues to increase due to continuous brake
control on a slippery road surface, the
in-
dicator will blink. To prevent the brake sys- tem from overheating, the brake control of the traction control function will be tempora-
rily suspended.
The Plug-in Hybrid EV System control of the traction control function and normal
brake operation will not be affected. Park your vehicle in a safe place. When the tem-
perature in the braking system has come
down, the
indicator will be turned off and
the traction control function will start operat-
ing again.
NOTEz The indicator may turn on when you start
the Plug-in Hybrid EV System. This means that the battery voltage momentarily drop- ped when the Plug-in Hybrid EV System
was started. It does not indicate a malfunc- tion, provided that the indicator goes out im-
mediately.ASC warning lamp/display
E00619401655
If an abnormal condition occurs in the sys-
tem, the following warning lamp/warning
display will turn on.
Warning lamp-ASC operation indicator-ASC OFF indicatorWarning displayCAUT,ONz The system may be malfunctioning.
Park your vehicle in a safe place and stop
the Plug-in Hybrid EV System.
Restart the Plug-in Hybrid EV System and check whether the display/indicator goes out. If they go out, there is no abnormal con-
dition. If they do not go out or appear fre-
quently, it is not necessary to stop the vehi- cle immediately, but we recommend you to
have your vehicle inspected.Cruise control*
E00609102584
Cruise control is an automatic speed controlsystem that keeps a set speed. It can be acti-vated at approximately 40 km/h (25 mph) or
more.
Cruise control*
7-452**((Starting and driving7

CAUT,ONzWhen you do not wish to drive at a set
speed, turn off the cruise control for safety.
z Do not use cruise control when driving con-
ditions will not allow you to stay at the same speed, such as in heavy traffic or on roads
that are winding, icy, snow-covered, wet, slippery, on a steep downhill slope.NOTEz Cruise control may not be able to keep your
speed on uphills or downhills.
z Your speed may decrease on a steep uphill.
You may use the accelerator pedal if you
want to stay at your set speed.
z Your speed may increase to more than the
set speed on a steep downhill. You must use the brake to control your speed. As a result,
the set speed driving is deactivated.
z The regenerative level B0 or B1 cannot be
selected under the cruise control. The buzzer sounds if you try to select these levels.Cruise control switches
A- CRUISE CONTROL ON/OFF switch
Used to turn on and off the cruise con- trol.
B- "SET -" switch
Used to reduce the set speed and to set the desired speed.
C- "RES +" switch
Used to increase the set speed and to re-
turn to the original set speed.
D- “CANCEL” switch
Used to deactivate the set speed driving.
NOTEz When operating the cruise control switches,
press the cruise control switches correctly. The set speed driving may be deactivated
automatically if two or more switches of the
cruise control are pressed at the same time.To activate
E00609302690
1. With the operation mode in ON, press
the CRUISE CONTROL ON/OFF
switch (A) to turn on the cruise control. The indicator display in the meter cluster
will come on.
Cruise control*
7-462**((Starting and driving7
