2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

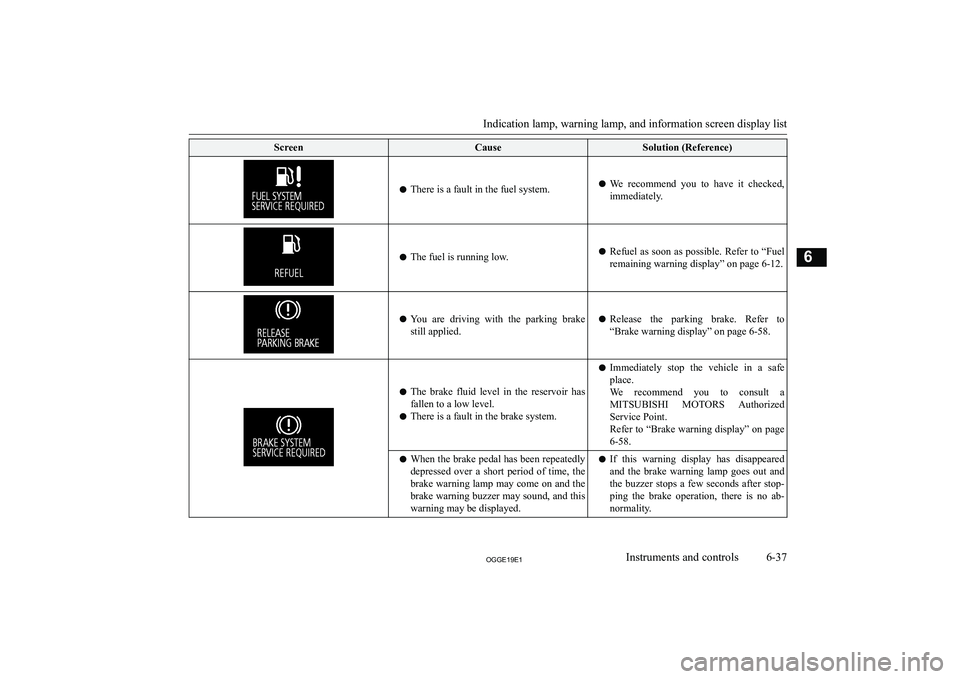

ScreenCauseSolution (Reference)
zThere is a fault in the fuel system.z We recommend you to have it checked,
immediately.z The fuel is running low.z Refuel as soon as possible. Refer to
“Fuel
remaining warning display” on page 6-12.z You are driving with the parking brake
still applied.z Release the parking brake. Refer to
“Brake warning display” on page 6-58.z The brake fluid level in the reservoir has
fallen to a low level.
z There is a fault in the brake system.
zImmediately stop the vehicle in a safe
place.
We recommend you to consult a MITSUBISHI MOTORS Authorized
Service Point.
Refer to “Brake warning display” on page 6-58.z When the brake pedal has been repeatedly
depressed over a short period of time, the
brake warning lamp may come on and the brake warning buzzer may sound, and this warning may be displayed.z If this warning display has disappeared
and the brake warning lamp goes out and the buzzer stops a few seconds after stop-
ping the brake operation, there is no ab-
normality.
Indication lamp, warning lamp, and information screen display list
6-372**((Instruments and controls6

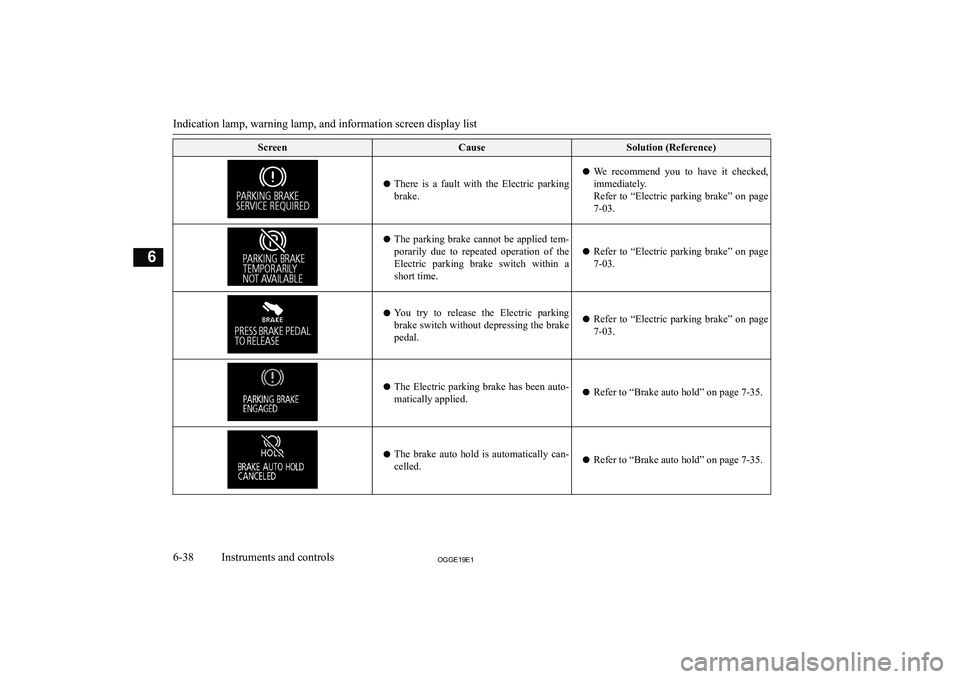

ScreenCauseSolution (Reference)
zThere is a fault with the Electric parking
brake.
z We recommend you to have it checked,
immediately.
Refer to “Electric parking brake” on page
7-03.z The parking brake cannot be applied tem-
porarily due to repeated operation of the
Electric parking brake switch within a short time.
z Refer to “Electric parking brake” on page
7-03.z You try to release the Electric parking
brake switch without depressing the brake
pedal.z Refer to “Electric parking brake” on page
7-03.z The Electric parking brake has been auto-
matically applied.z Refer to “Brake auto hold” on page 7-35.zThe brake auto hold is automatically can-
celled.z Refer to “Brake auto hold” on page 7-35.Indication lamp, warning lamp, and information screen display list
6-382**((Instruments and controls6

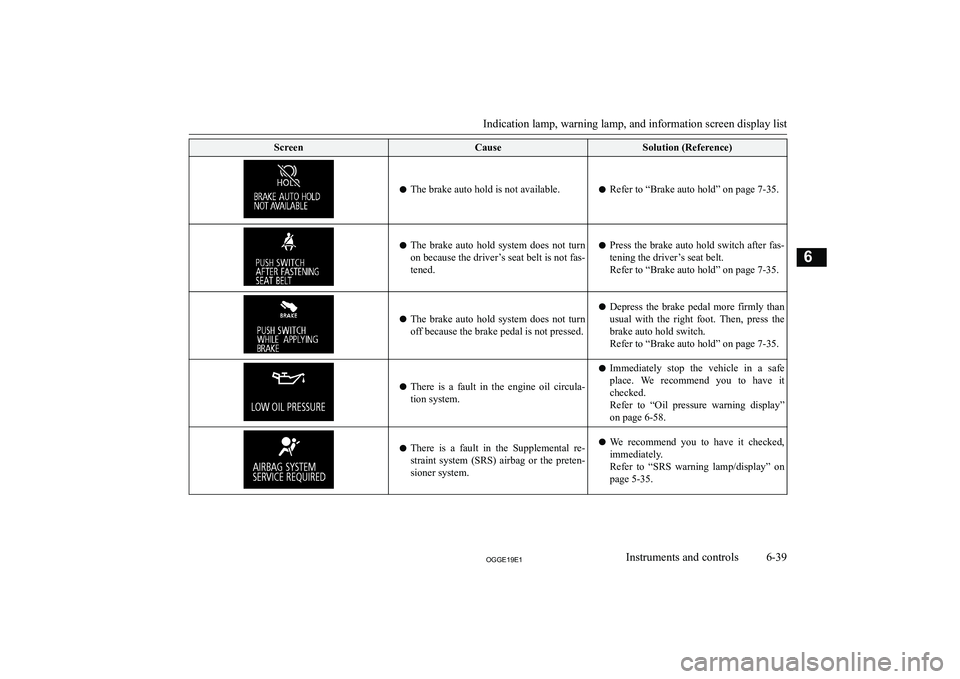

ScreenCauseSolution (Reference)
zThe brake auto hold is not available.z Refer to “Brake auto hold” on page 7-35.
zThe brake auto hold system does not turn
on because the driver’s seat belt is not fas-
tened.z Press the brake auto hold switch after fas-
tening the driver’s seat belt.
Refer to “Brake auto hold” on page 7-35.z The brake auto hold system does not turn
off because the brake pedal is not pressed.
z Depress the brake pedal more firmly than
usual with the right foot. Then, press the brake auto hold switch.
Refer to “Brake auto hold” on page 7-35.
z There is a fault in the engine oil circula-
tion system.
z Immediately stop the vehicle in a safe
place. We recommend you to have it checked.
Refer to “Oil pressure warning display” on page 6-58.
z There is a fault in the Supplemental re-
straint system (SRS) airbag or the preten-
sioner system.z We recommend you to have it checked,
immediately.
Refer to “SRS warning lamp/display” on
page 5-35.
Indication lamp, warning lamp, and information screen display list
6-392**((Instruments and controls6

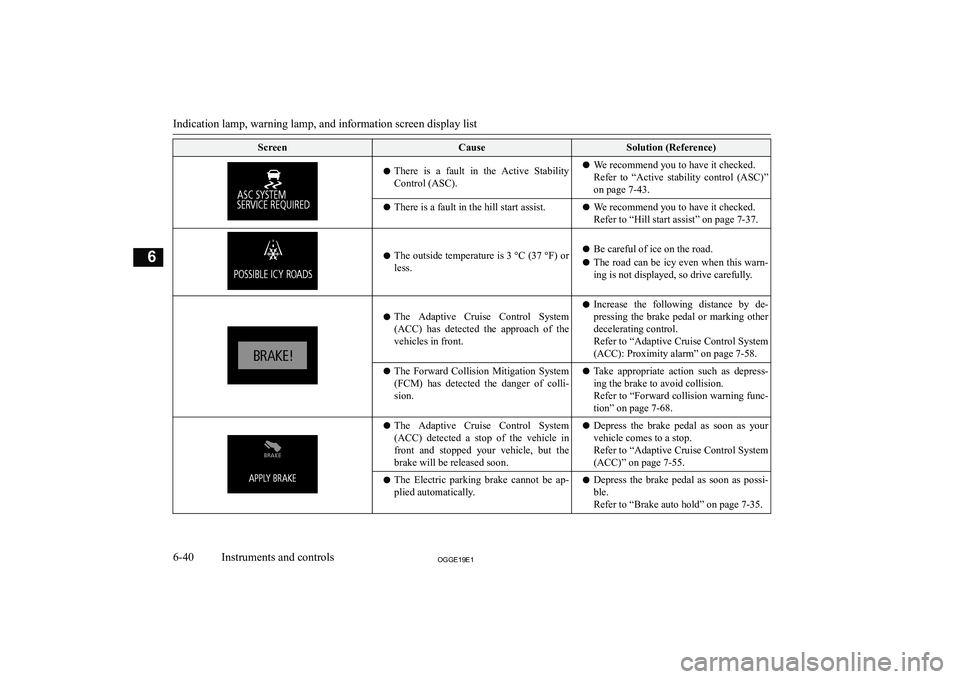

ScreenCauseSolution (Reference)zThere is a fault in the Active Stability
Control (ASC).z We recommend you to have it checked.
Refer to “Active stability control (ASC)” on page 7-43.z There is a fault in the hill start assist.zWe recommend you to have it checked.
Refer to “Hill start assist” on page 7-37.
z The outside temperature is
3

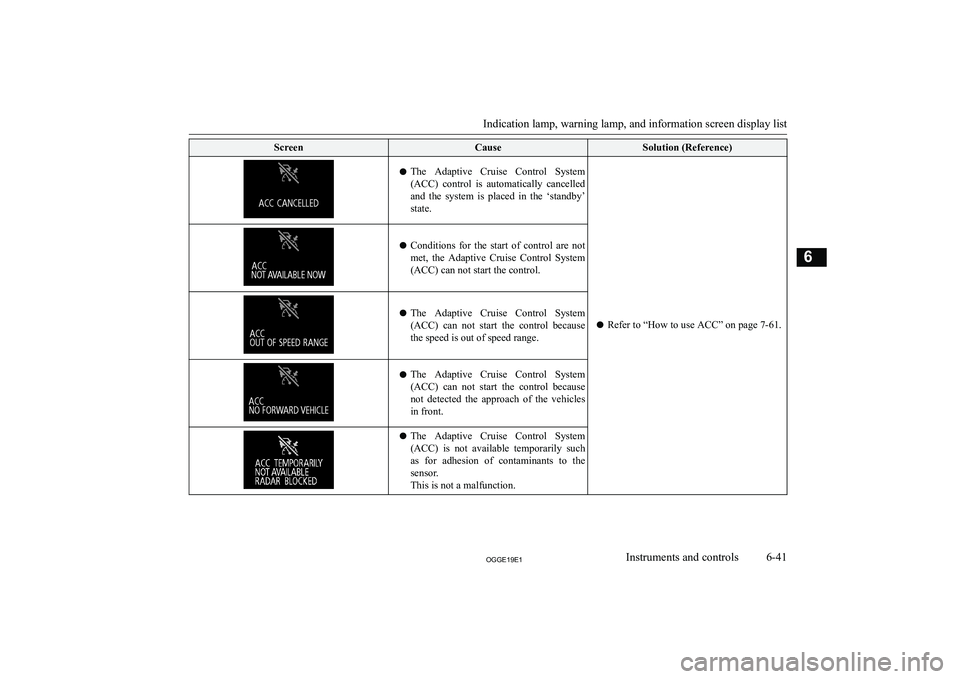

ScreenCauseSolution (Reference)zThe Adaptive Cruise Control System
(ACC) control is automatically cancelled
and the system is placed in the ‘standby’
state.
z Refer to “How to use ACC” on page 7-61.
zConditions for the start of control are not
met, the Adaptive Cruise Control System (ACC) can not start the control.z The Adaptive Cruise Control System
(ACC) can not start the control because
the speed is out of speed range.z The Adaptive Cruise Control System
(ACC) can not start the control because
not detected the approach of the vehicles in front.z The Adaptive Cruise Control System
(ACC) is not available temporarily such
as for adhesion of contaminants to the sensor.
This is not a malfunction.
Indication lamp, warning lamp, and information screen display list
6-412**((Instruments and controls6

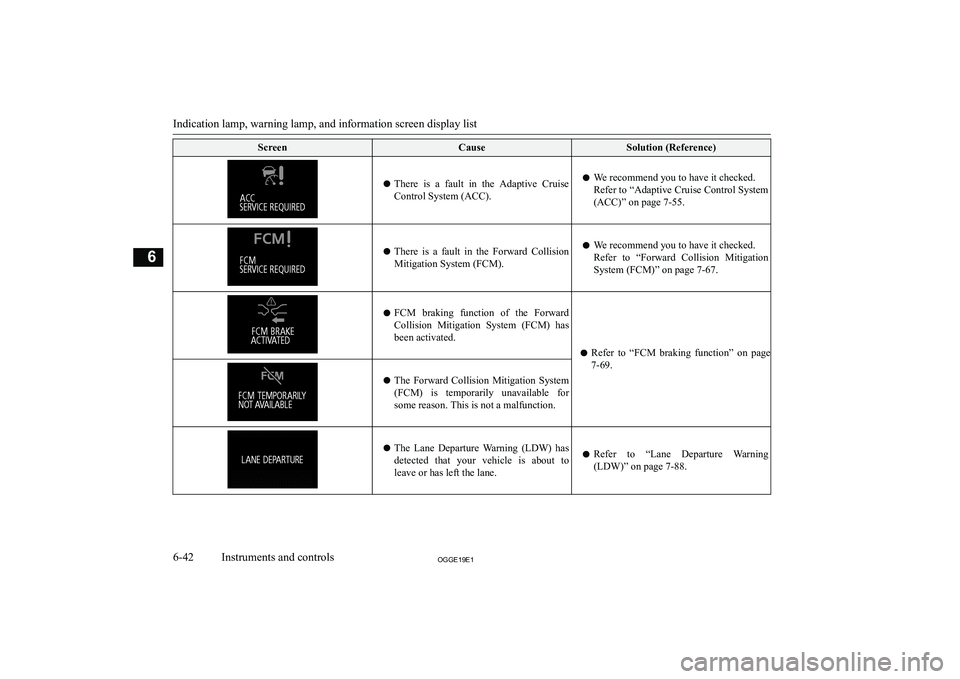

ScreenCauseSolution (Reference)
zThere is a fault in the Adaptive Cruise
Control System (ACC).z We recommend you to have it checked.
Refer to “Adaptive Cruise Control System
(ACC)” on page 7-55.z There is a fault in the Forward Collision
Mitigation System (FCM).z We recommend you to have it checked.
Refer to “Forward Collision Mitigation System (FCM)” on page 7-67.z FCM braking function of the Forward
Collision Mitigation System (FCM) hasbeen activated.
z Refer to “FCM braking function” on page
7-69.
z The Forward Collision Mitigation System
(FCM) is temporarily unavailable for
some reason. This is not a malfunction.z The Lane Departure Warning (LDW) has
detected that your vehicle is about to
leave or has left the lane.z Refer to “Lane Departure Warning
(LDW)” on page 7-88.Indication lamp, warning lamp, and information screen display list
6-422**((Instruments and controls6

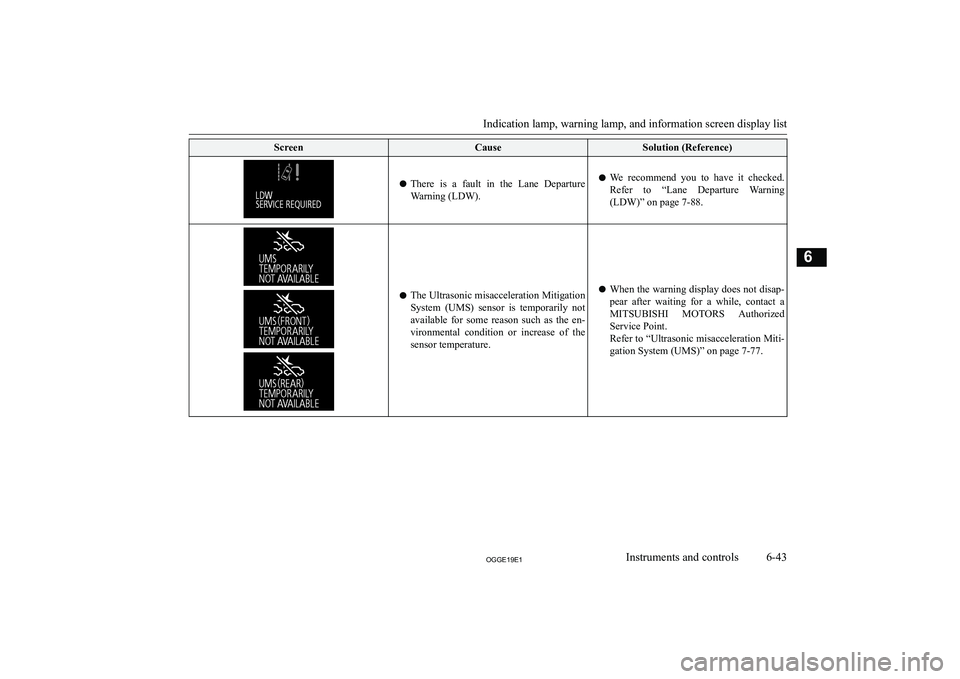

ScreenCauseSolution (Reference)
zThere is a fault in the Lane Departure
Warning (LDW).z We recommend you to have it checked.
Refer to “Lane Departure Warning
(LDW)” on page 7-88.
z The Ultrasonic misacceleration Mitigation
System (UMS) sensor is temporarily not available for some reason such as the en-
vironmental condition or increase of the sensor temperature.z When the warning display does not disap-
pear after waiting for a while, contact a MITSUBISHI MOTORS Authorized
Service Point.
Refer to “Ultrasonic misacceleration Miti- gation System (UMS)” on page 7-77.
Indication lamp, warning lamp, and information screen display list
6-432**((Instruments and controls6

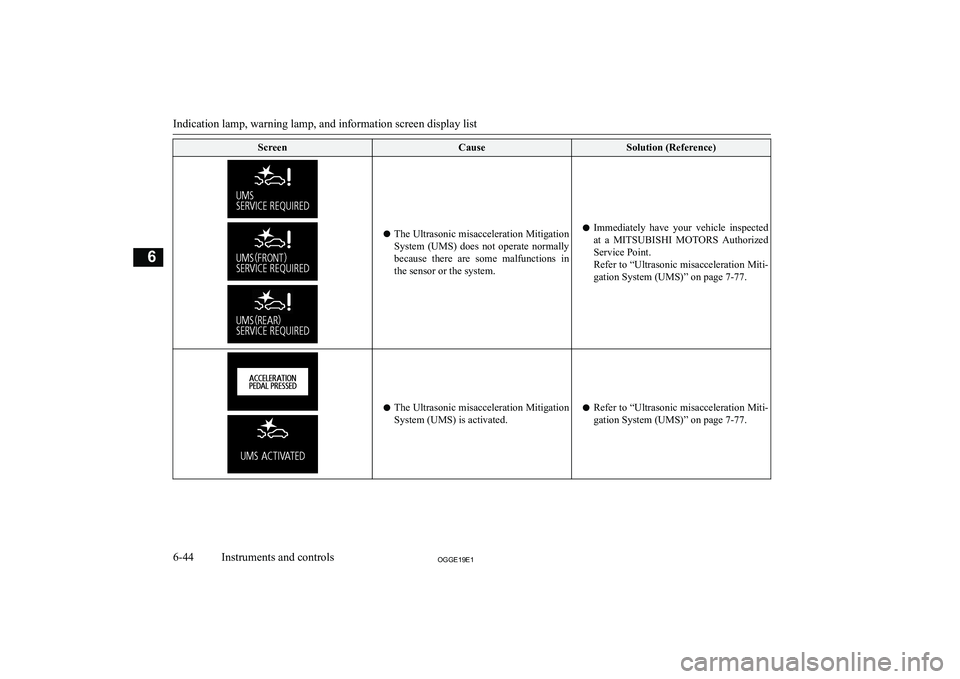

ScreenCauseSolution (Reference)
zThe Ultrasonic misacceleration Mitigation
System (UMS) does not operate normally
because there are some malfunctions in the sensor or the system.z Immediately have your vehicle inspected
at a MITSUBISHI MOTORS Authorized
Service Point.
Refer to “Ultrasonic misacceleration Miti-
gation System (UMS)” on page 7-77.
z The Ultrasonic misacceleration Mitigation
System (UMS) is activated.z Refer to “Ultrasonic misacceleration Miti-
gation System (UMS)” on page 7-77.
Indication lamp, warning lamp, and information screen display list
6-442**((Instruments and controls6
