2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

(Refer to page “Vehicle weight” on page
12-05.)
If you tow a trailer at an altitude of more than
1,000 m above sea-level, reduce your weight by 10 % of the gross combination weight for
every increase of 1,000 m above sea-level, as
the engine output is lowered owing to de-
crease in atmospheric pressure.

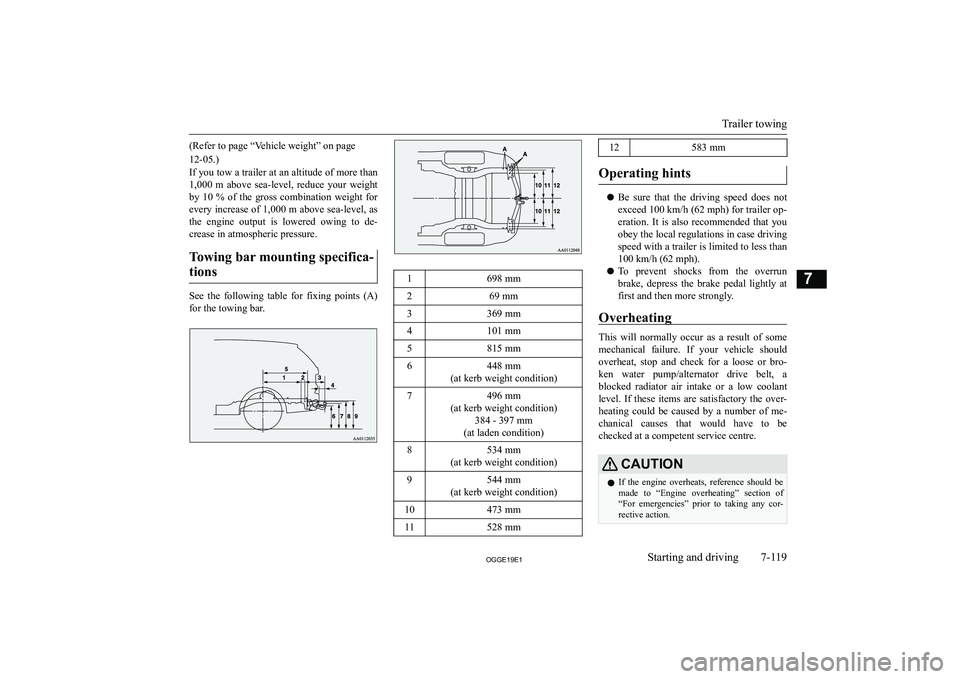

Towing bar mounting specifica- tions
See the following table for fixing points (A) for the towing bar.
1698 mm269 mm3369 mm4101 mm5815 mm6448 mm
(at kerb weight condition)7496 mm
(at kerb weight condition) 384 - 397 mm
(at laden condition)8534 mm
(at kerb weight condition)9544 mm
(at kerb weight condition)10473 mm11528 mm12583 mm
Operating hints
z Be sure that the driving speed does not
exceed 100 km/h (62 mph) for trailer op-
eration. It is also recommended that you obey the local regulations in case driving speed with a trailer is limited to less than
100 km/h (62 mph).
z To prevent shocks from the overrun
brake, depress the brake pedal lightly at first and then more strongly.
Overheating
This will normally occur as a result of some
mechanical failure. If your vehicle should overheat, stop and check for a loose or bro-
ken water pump/alternator drive belt, a blocked radiator air intake or a low coolant
level. If these items are satisfactory the over- heating could be caused by a number of me-
chanical causes that would have to be
checked at a competent service centre.
CAUT,ONz If the engine overheats, reference should be
made to “Engine overheating” section of
“For emergencies” prior to taking any cor- rective action.
Trailer towing
7-1192**((Starting and driving7

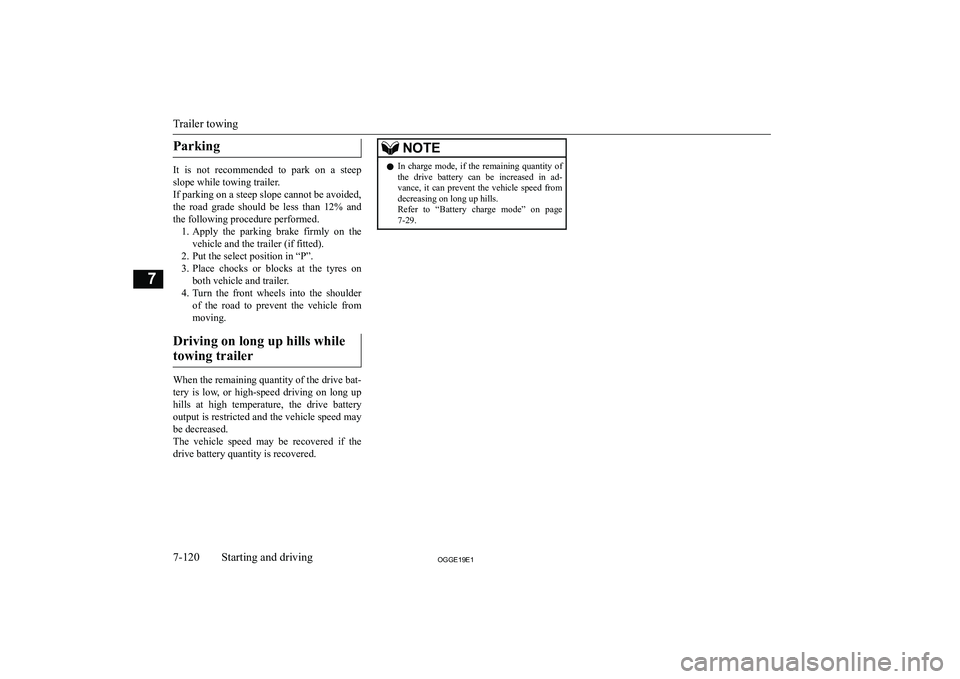

Parking
It is not recommended to park on a steep
slope while towing trailer.
If parking on a steep slope cannot be avoided,
the road grade should be less than 12% and
the following procedure performed. 1. Apply the parking brake firmly on the
vehicle and the trailer (if fitted).
2. Put the select position in “P”.
3. Place chocks or blocks at the tyres on
both vehicle and trailer.
4. Turn the front wheels into the shoulder
of the road to prevent the vehicle from
moving.
Driving on long up hills while towing trailer
When the remaining quantity of the drive bat-
tery is low, or high-speed driving on long up hills at high temperature, the drive battery
output is restricted and the vehicle speed may
be decreased.
The vehicle speed may be recovered if the drive battery quantity is recovered.
NOTEz In charge mode, if the remaining quantity of
the drive battery can be increased in ad-
vance, it can prevent the vehicle speed from
decreasing on long up hills.
Refer to “Battery charge mode” on page 7-29.
Trailer towing
7-1202**((Starting and driving7

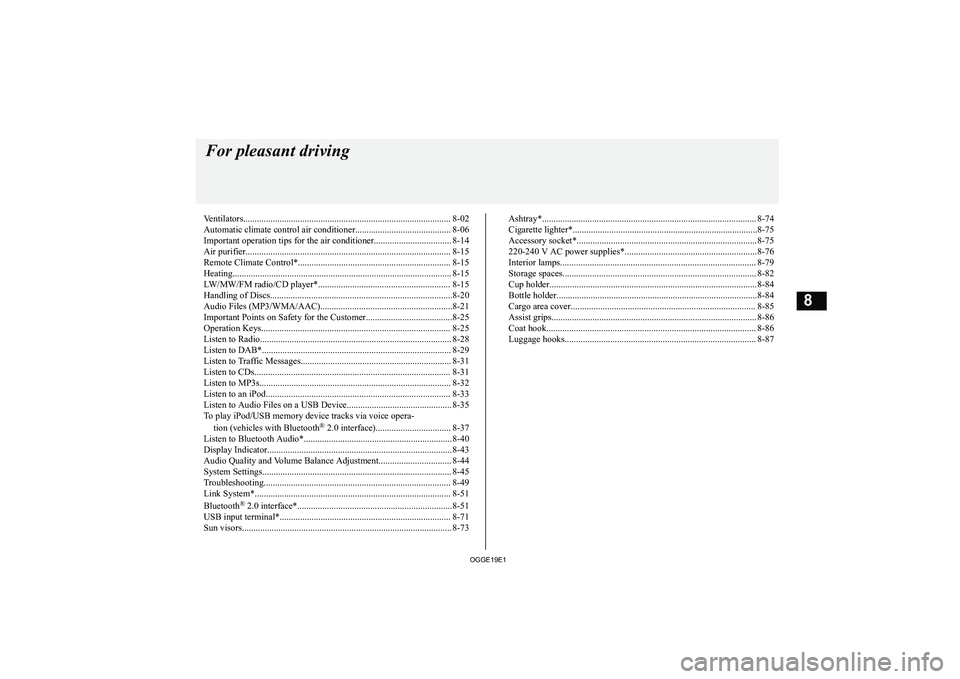

Ventilators........................................................................................... 8-02
Automatic climate control air conditioner.......................................... 8-06
Important operation tips for the air conditioner.................................. 8-14
Air purifier.......................................................................................... 8-15 Remote Climate Control*................................................................... 8-15
Heating................................................................................................ 8-15 LW/MW/FM radio/CD player*.......................................................... 8-15
Handling of Discs................................................................................8-20 Audio Files (MP3/WMA/AAC)..........................................................8-21
Important Points on Safety for the Customer......................................8-25
Operation Keys................................................................................... 8-25
Listen to Radio.................................................................................... 8-28 Listen to DAB*................................................................................... 8-29
Listen to Traffic Messages.................................................................. 8-31 Listen to CDs...................................................................................... 8-31
Listen to MP3s.................................................................................... 8-32
Listen to an iPod................................................................................. 8-33 Listen to Audio Files on a USB Device.............................................. 8-35To play iPod/USB memory device tracks via voice opera-
tion (vehicles with Bluetooth

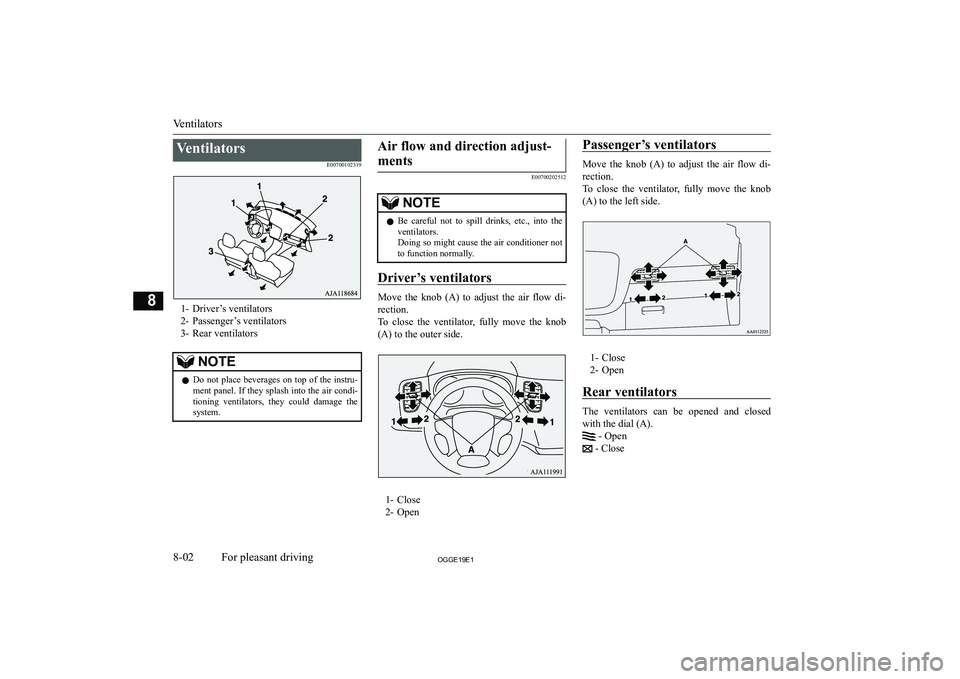

VentilatorsE00700102319
1- Driver’s ventilators
2- Passenger’s ventilators
3- Rear ventilators
NOTEz Do not place beverages on top of the instru-
ment panel. If they splash into the air condi-
tioning ventilators, they could damage the
system.Air flow and direction adjust-
ments
E00700202512
NOTEz Be careful not to spill drinks, etc., into the
ventilators.
Doing so might cause the air conditioner not to function normally.
Driver’s ventilators
Move the knob (A) to adjust the air flow di-
rection.
To close the ventilator, fully move the knob (A) to the outer side.
1- Close
2- Open
Passenger’s ventilators
Move the knob (A) to adjust the air flow di-
rection.
To close the ventilator, fully move the knob (A) to the left side.
1- Close
2- Open
Rear ventilators
The ventilators can be opened and closed with the dial (A).
- Open
- Close
Ventilators
8-022**((For pleasant driving8

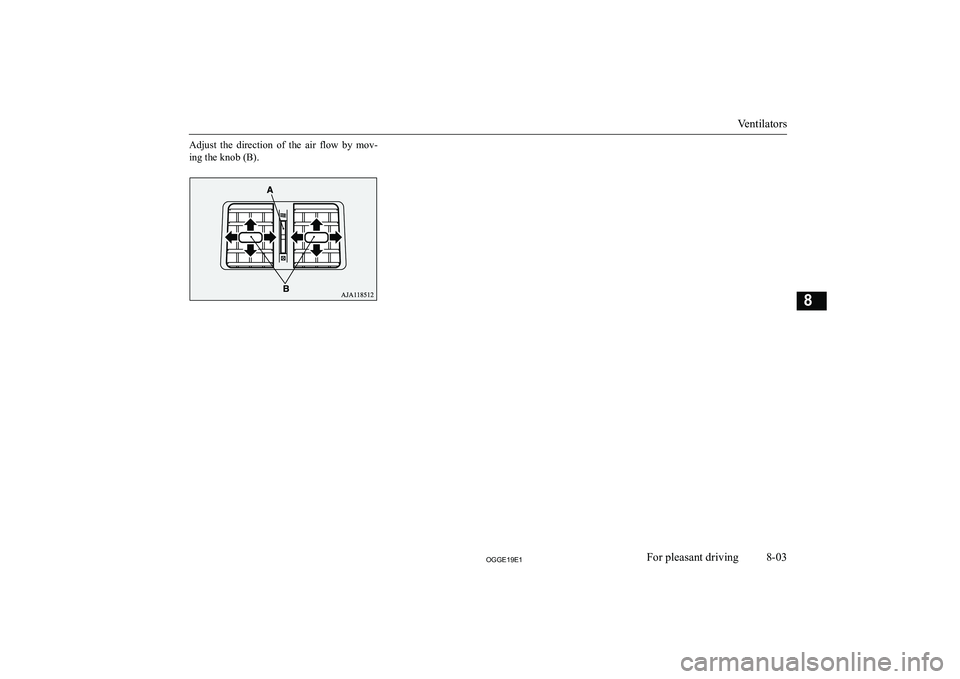

Adjust the direction of the air flow by mov-
ing the knob (B).
Ventilators
8-032**((For pleasant driving8

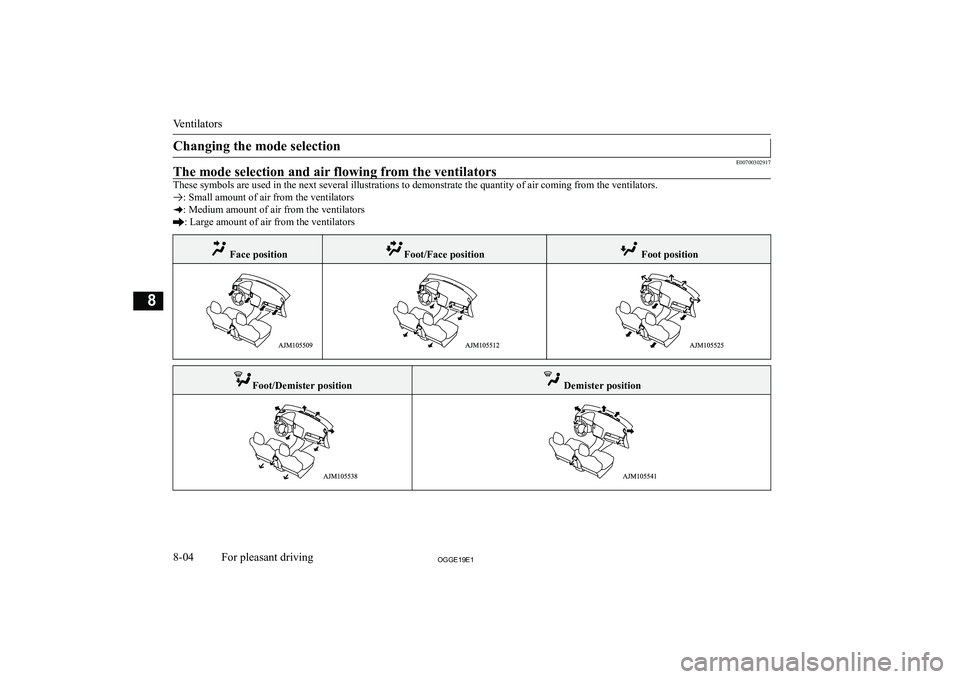

Changing the mode selection
E00700302917
The mode selection and air flowing from the ventilators
These symbols are used in the next several illustrations to demonstrate the quantity of air coming from the ventilators.
: Small amount of air from the ventilators
: Medium amount of air from the ventilators
: Large amount of air from the ventilators
Face positionFoot/Face position Foot positionFoot/Demister position Demister position
Ventilators
8-042**((For pleasant driving8

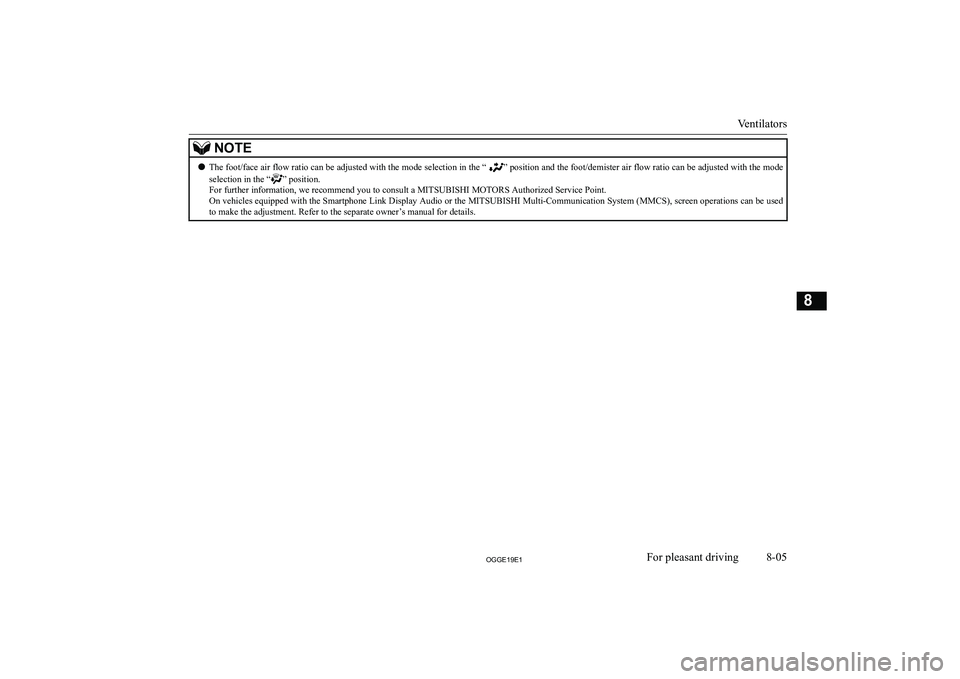

NOTEzThe foot/face air flow ratio can be adjusted with the mode selection in the “” position and the foot/demister air flow ratio can be adjusted with the mode
selection in the “
” position.
For further information, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.
On vehicles equipped with the Smartphone Link Display Audio or the MITSUBISHI Multi-Communication System (MMCS), screen operations can be used
to make the adjustment. Refer to the separate owner’s manual for details.

Ventilators
8-052**((For pleasant driving8

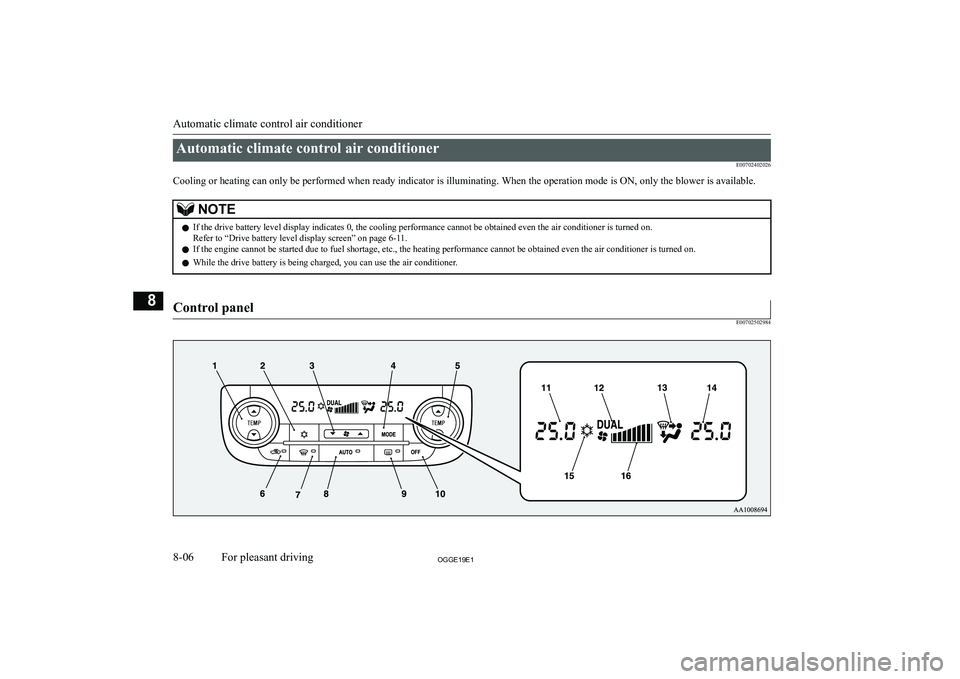

Automatic climate control air conditionerE00702402026
Cooling or heating can only be performed when ready indicator is illuminating. When the operation mode is ON, only the blower is available.NOTEz If the drive battery level display indicates 0, the cooling performance cannot be obtained even the air conditioner is turned on.
Refer to “Drive battery level display screen” on page 6-11.
z If the engine cannot be started due to fuel shortage, etc., the heating performance cannot be obtained even the air conditioner is turned on.
z While the drive battery is being charged, you can use the air conditioner.

Control panel
E00702502984
Automatic climate control air conditioner
8-062**((For pleasant driving8
