2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

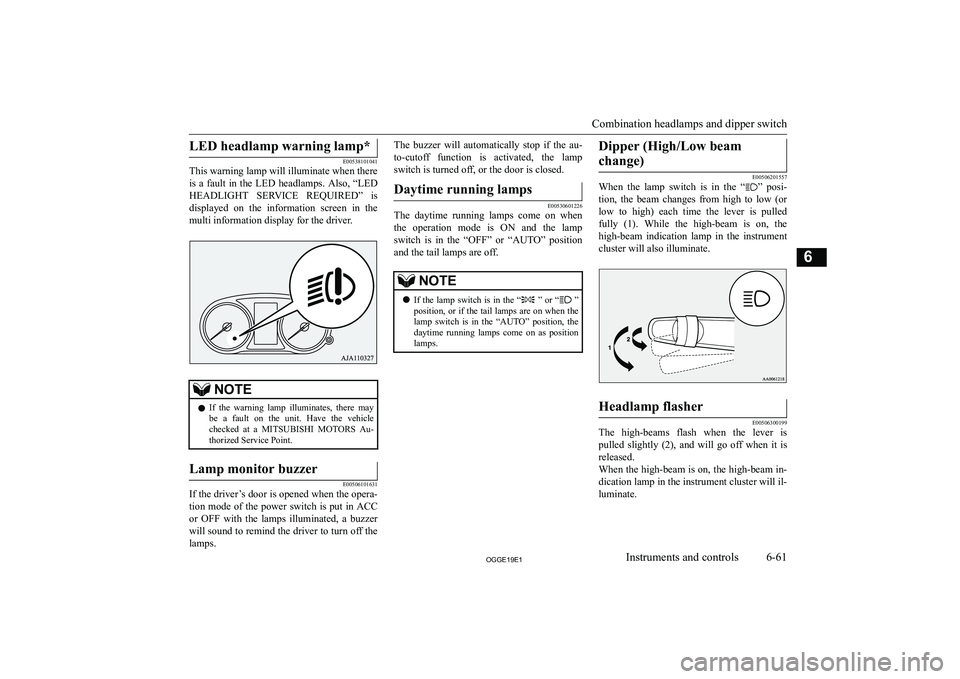

LED headlamp warning lamp*
E00538101041
This warning lamp will illuminate when there
is a fault in the LED headlamps. Also, “LED
HEADLIGHT SERVICE REQUIRED” is displayed on the information screen in the
multi information display for the driver.NOTEz If the warning lamp illuminates, there may
be a fault on the unit. Have the vehicle
checked at a MITSUBISHI MOTORS Au-
thorized Service Point.Lamp monitor buzzer
E00506101631
If the driver’s door is opened when the opera-
tion mode of the power switch is put in ACCor OFF with the lamps illuminated, a buzzer
will sound to remind the driver to turn off the
lamps.
The buzzer will automatically stop if the au-
to-cutoff function is activated, the lamp
switch is turned off, or the door is closed.Daytime running lamps
E00530601226
The daytime running lamps come on when
the operation mode is ON and the lamp switch is in the “OFF” or “AUTO” position
and the tail lamps are off.
NOTEz If the lamp switch is in the “ ” or “
”
position, or if the tail lamps are on when the
lamp switch is in the “AUTO” position, the daytime running lamps come on as positionlamps.Dipper (High/Low beam
change)
E00506201557
When the lamp switch is in the “” posi-
tion, the beam changes from high to low (or
low to high) each time the lever is pulled fully (1). While the high-beam is on, the
high-beam indication lamp in the instrument
cluster will also illuminate.
Headlamp flasher
E00506300199
The high-beams flash when the lever is pulled slightly (2), and will go off when it is
released.
When the high-beam is on, the high-beam in- dication lamp in the instrument cluster will il-
luminate.
Combination headlamps and dipper switch
6-612**((Instruments and controls6

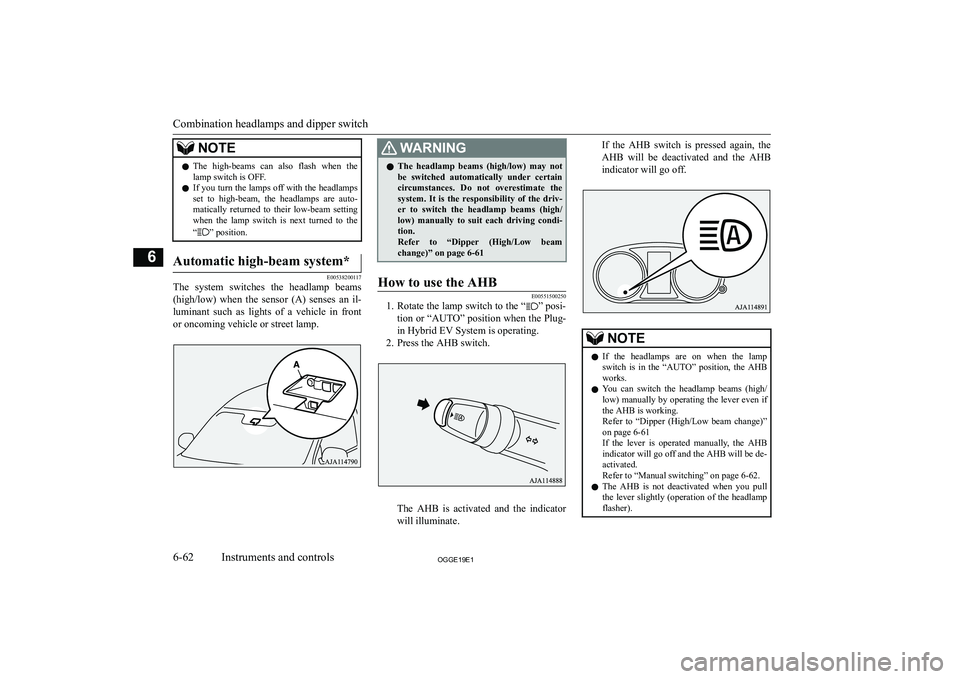

NOTEzThe high-beams can also flash when the
lamp switch is OFF.
z If you turn the lamps off with the headlamps
set to high-beam, the headlamps are auto- matically returned to their low-beam setting
when the lamp switch is next turned to the
“
” position.
Automatic high-beam system*
E00538200117
The system switches the headlamp beams
(high/low) when the sensor (A) senses an il- luminant such as lights of a vehicle in frontor oncoming vehicle or street lamp.
:ARN,NGz The headlamp beams (high/low) may not
be switched automatically under certain
circumstances. Do not overestimate the system. It is the responsibility of the driv-er to switch the headlamp beams (high/
low) manually to suit each driving condi- tion.
Refer to “Dipper (High/Low beam
change)” on page 6-61How to use the AHB
E00551500250
1. Rotate the lamp switch to the “” posi-
tion or “AUTO” position when the Plug-
in Hybrid EV System is operating.
2. Press the AHB switch.
The AHB is activated and the indicator
will illuminate.
If the AHB switch is pressed again, the
AHB will be deactivated and the AHB
indicator will go off.NOTEz If the headlamps are on when the lamp
switch is in the “AUTO” position, the AHB
works.
z You can switch the headlamp beams (high/
low) manually by operating the lever even if
the AHB is working.
Refer to “Dipper (High/Low beam change)”
on page 6-61
If the lever is operated manually, the AHB indicator will go off and the AHB will be de-
activated.
Refer to “Manual switching” on page 6-62.
z The AHB is not deactivated when you pull
the lever slightly (operation of the headlamp flasher).
Combination headlamps and dipper switch
6-622**((Instruments and controls6

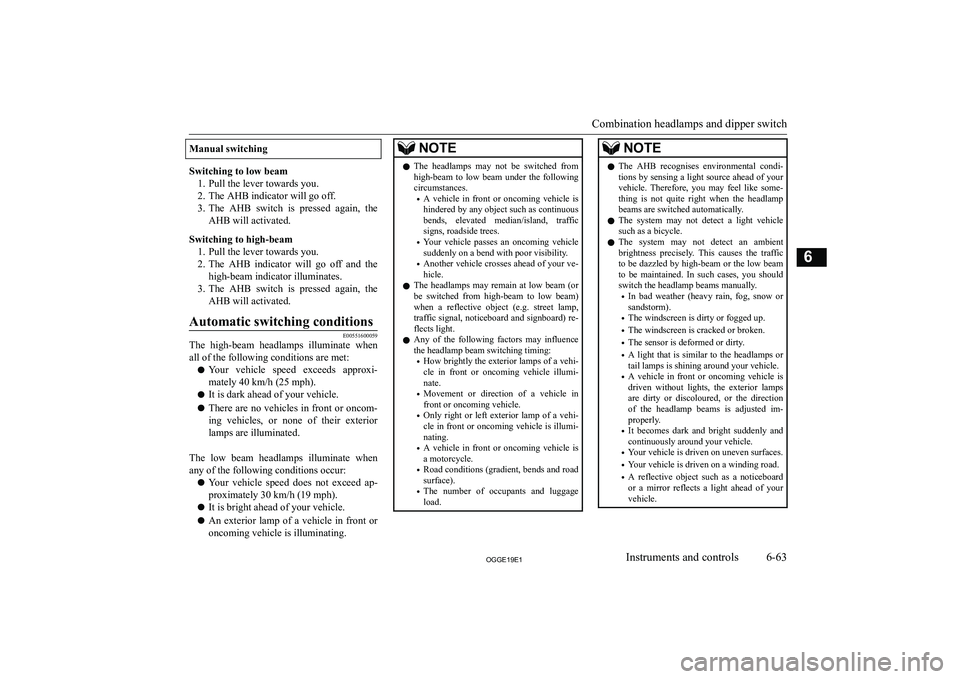

Manual switching
Switching to low beam1. Pull the lever towards you.
2. The AHB indicator will go off.
3. The AHB switch is pressed again, the
AHB will activated.
Switching to high-beam 1. Pull the lever towards you.
2. The AHB indicator will go off and the
high-beam indicator illuminates.
3. The AHB switch is pressed again, the
AHB will activated.
Automatic switching conditions
E00551600059
The high-beam headlamps illuminate when all of the following conditions are met:
z Your vehicle speed exceeds approxi-
mately 40 km/h (25 mph).
z It is dark ahead of your vehicle.
z There are no vehicles in front or oncom-
ing vehicles, or none of their exterior
lamps are illuminated.
The low beam headlamps illuminate when
any of the following conditions occur:
z Your vehicle speed does not exceed ap-
proximately 30 km/h (19 mph).
z It is bright ahead of your vehicle.
z An exterior lamp of a vehicle in front or
oncoming vehicle is illuminating.
NOTEz The headlamps may not be switched from
high-beam to low beam under the following circumstances.

NOTE

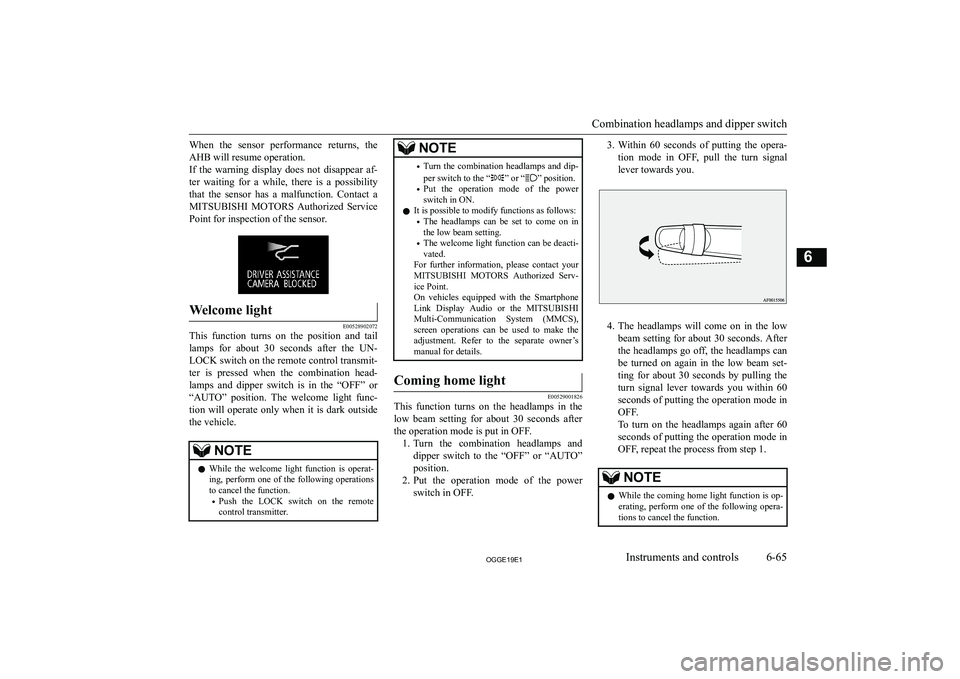

When the sensor performance returns, theAHB will resume operation.
If the warning display does not disappear af-
ter waiting for a while, there is a possibility that the sensor has a malfunction. Contact a MITSUBISHI MOTORS Authorized Service
Point for inspection of the sensor.Welcome light
E00528902072
This function turns on the position and tail
lamps for about 30 seconds after the UN- LOCK switch on the remote control transmit-
ter is pressed when the combination head-
lamps and dipper switch is in the “OFF” or
“AUTO” position. The welcome light func- tion will operate only when it is dark outside
the vehicle.
NOTEz While the welcome light function is operat-
ing, perform one of the following operations to cancel the function.

NOTE

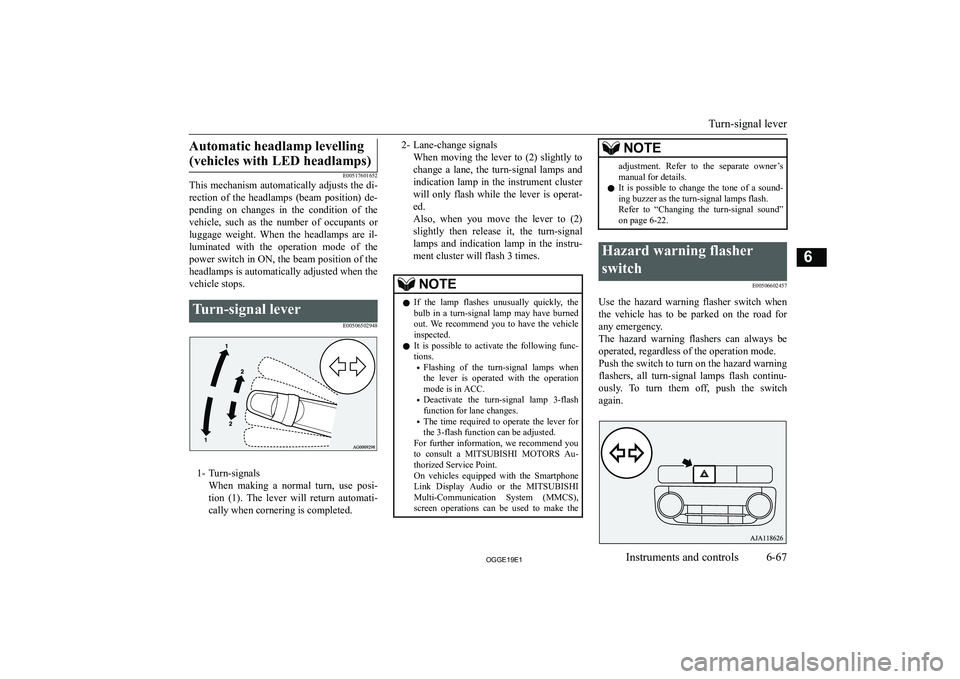

Automatic headlamp levelling(vehicles with LED headlamps)
E00517601652
This mechanism automatically adjusts the di-
rection of the headlamps (beam position) de- pending on changes in the condition of the
vehicle, such as the number of occupants or
luggage weight. When the headlamps are il- luminated with the operation mode of the power switch in ON, the beam position of theheadlamps is automatically adjusted when the
vehicle stops.
Turn-signal lever
E00506502948
1- Turn-signalsWhen making a normal turn, use posi-
tion (1). The lever will return automati- cally when cornering is completed.
2- Lane-change signals
When moving the lever to (2) slightly to
change a lane, the turn-signal lamps and indication lamp in the instrument clusterwill only flash while the lever is operat- ed.
Also, when you move the lever to (2) slightly then release it, the turn-signal
lamps and indication lamp in the instru- ment cluster will flash 3 times.NOTEz If the lamp flashes unusually quickly, the
bulb in a turn-signal lamp may have burned out. We recommend you to have the vehicle
inspected.
z It is possible to activate the following func-
tions.

NOTEzIf the switch is used for a long period while
the ready indicator is not illuminated, theauxiliary battery could go flat and the Plugin
Hybrid EV System could be impossible to start.
z While the hazard warning lamps are blinking
due to having manually pushed the switch,
the emergency stop signal system does not
operate.

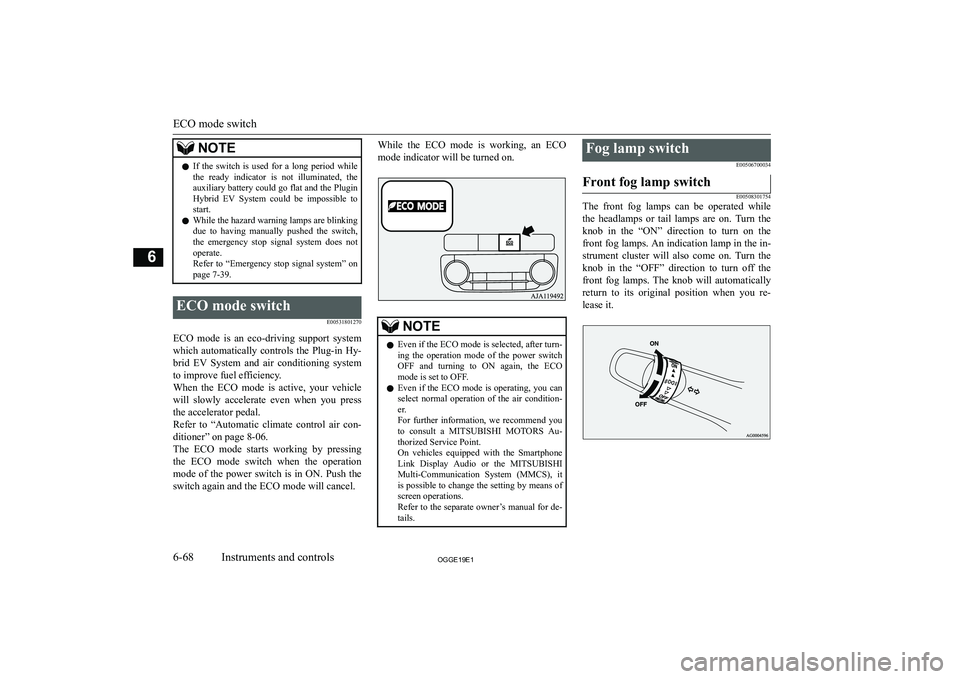

Refer to “Emergency stop signal system” on page 7-39.ECO mode switch
E00531801270
ECO mode is an eco-driving support system
which automatically controls the Plug-in Hy- brid EV System and air conditioning system to improve fuel efficiency.
When the ECO mode is active, your vehicle
will slowly accelerate even when you press the accelerator pedal.
Refer to “Automatic climate control air con-
ditioner” on page 8-06.
The ECO mode starts working by pressing
the ECO mode switch when the operation mode of the power switch is in ON. Push the
switch again and the ECO mode will cancel.
While the ECO mode is working, an ECO
mode indicator will be turned on.NOTEz Even if the ECO mode is selected, after turn-
ing the operation mode of the power switch
OFF and turning to ON again, the ECO mode is set to OFF.
z Even if the ECO mode is operating, you can
select normal operation of the air condition-
er.
For further information, we recommend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.
On vehicles equipped with the Smartphone Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), it is possible to change the setting by means of
screen operations.
Refer to the separate owner’s manual for de- tails.Fog lamp switch
E00506700034Front fog lamp switch
E00508301754
The front fog lamps can be operated while
the headlamps or tail lamps are on. Turn the knob in the “ON” direction to turn on the
front fog lamps. An indication lamp in the in- strument cluster will also come on. Turn the knob in the “OFF” direction to turn off the
front fog lamps. The knob will automatically return to its original position when you re-
lease it.
