2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

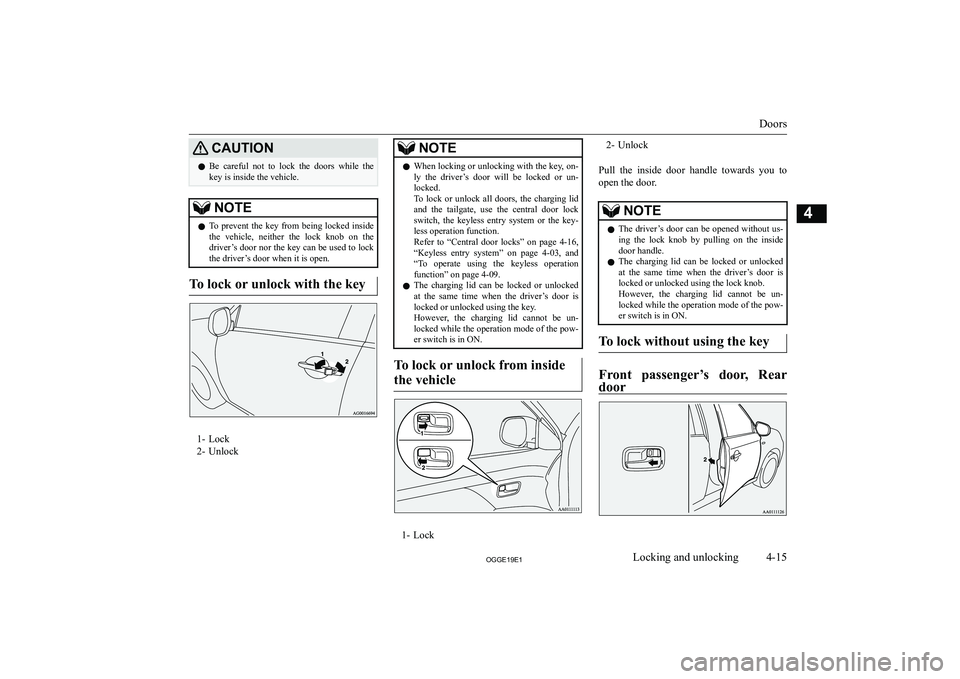

CAUT,ONzBe careful not to lock the doors while the
key is inside the vehicle.NOTEz To prevent the key from being locked inside
the vehicle, neither the lock knob on the driver’s door nor the key can be used to lock
the driver’s door when it is open.
To lock or unlock with the key
1- Lock
2- Unlock
NOTEz When locking or unlocking with the key, on-
ly the driver’s door will be locked or un-
locked.
To lock or unlock all doors, the charging lid and the tailgate, use the central door lock
switch, the keyless entry system or the key-
less operation function.
Refer to “Central door locks” on page 4-16,
“Keyless entry system” on page 4-03, and
“To operate using the keyless operation function” on page 4-09.
z The charging lid can be locked or unlocked
at the same time when the driver’s door is locked or unlocked using the key.
However, the charging lid cannot be un-
locked while the operation mode of the pow- er switch is in ON.
To lock or unlock from inside
the vehicle
1- Lock
2- Unlock
Pull the inside door handle towards you to open the door.NOTEz The driver’s door can be opened without us-
ing the lock knob by pulling on the inside
door handle.
z The charging lid can be locked or unlocked
at the same time when the driver’s door is locked or unlocked using the lock knob.
However, the charging lid cannot be un-
locked while the operation mode of the pow- er switch is in ON.
To lock without using the key
Front passenger’s door, Rear
door
Doors
4-152**((Locking and unlocking4

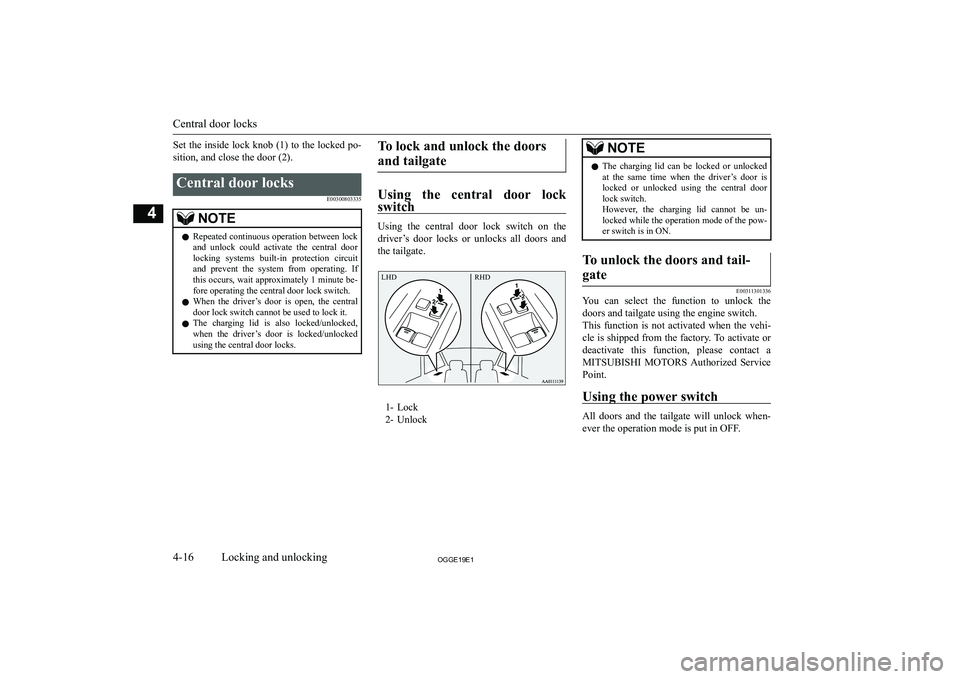

Set the inside lock knob (1) to the locked po-
sition, and close the door (2).Central door locks
E00300803335NOTEzRepeated continuous operation between lock
and unlock could activate the central door
locking systems built-in protection circuit
and prevent the system from operating. If
this occurs, wait approximately 1 minute be- fore operating the central door lock switch.
z When the driver’s door is open, the central
door lock switch cannot be used to lock it.
z The charging lid is also locked/unlocked,
when the driver’s door is locked/unlocked using the central door locks.To lock and unlock the doors
and tailgate
Using the central door lock
switch
Using the central door lock switch on the
driver’s door locks or unlocks all doors and the tailgate.
1- Lock
2- Unlock
NOTEz The charging lid can be locked or unlocked
at the same time when the driver’s door islocked or unlocked using the central doorlock switch.
However, the charging lid cannot be un-
locked while the operation mode of the pow- er switch is in ON.To unlock the doors and tail-
gate
E00311301336
You can select the function to unlock the doors and tailgate using the engine switch.
This function is not activated when the vehi- cle is shipped from the factory. To activate or deactivate this function, please contact aMITSUBISHI MOTORS Authorized Service
Point.
Using the power switch
All doors and the tailgate will unlock when-
ever the operation mode is put in OFF.
Central door locks
4-162**((Locking and unlocking4 LHD RHD

Dead Lock System*E00305100198
The Dead Lock System helps prevent theft.
When the keyless entry system or the keyless operation system has been used to lock all of
the doors and the tailgate, the Dead Lock System makes it impossible to unlock the
doors using the inside lock knobs.CAUT,ONz Do not set the Dead Lock System when
someone is inside the vehicle. With the Dead
Lock System set, it is not possible to unlock
the doors using the inside lock knobs. If you
erroneously set the Dead Lock System, un- lock the doors using the UNLOCK switch on the remote control switch or using the
keyless operation function.Setting the system
E00305201330
1. Put the operation mode in OFF.
2. Get out of the vehicle. Close all of the
doors and the tailgate.
3. Press the LOCK switch (A) on the re-
mote control switch, the driver’s or front
passenger’s door lock/unlock switch (C), or the tailgate LOCK switch (D) to lock
all of the doors and the tailgate. The
turn-signal lamps will blink once.
4. Press the switch again within 2 seconds.
The turn-signal lamps will blink threetimes to show that the Dead Lock Sys- tem has been set.NOTEz Pressing the LOCK switch (A) on the re-
mote control switch once while the DeadLock System is set causes the turn-signal
lamps to blink three times, so it is possible to
confirm that the Dead Lock System is set.Cancelling the system
E00305301432
When the following operation is performed,
the doors and tailgate will unlock and the
Dead Lock System will be simultaneously cancelled.
z The UNLOCK switch (B) on the remote
control switch is pressed.
z The drive’s or front passenger’s door
lock/unlock switch (C) or the tailgate open switch (E) is pressed while you are
carrying the keyless operation key.
Dead Lock System*

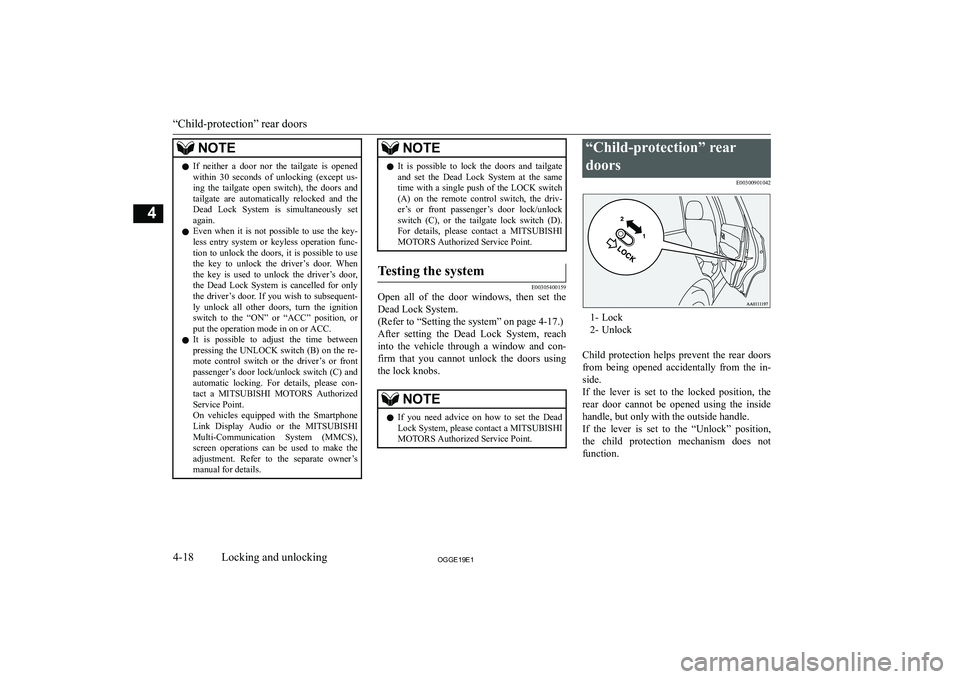

4-172**((Locking and unlocking4 Driver’s and front passenger’s door lock/unlock
switches* Tailgate switches*

NOTEzIf neither a door nor the tailgate is opened
within 30 seconds of unlocking (except us-ing the tailgate open switch), the doors andtailgate are automatically relocked and the
Dead Lock System is simultaneously set again.
z Even when it is not possible to use the key-
less entry system or keyless operation func- tion to unlock the doors, it is possible to use
the key to unlock the driver’s door. When
the key is used to unlock the driver’s door, the Dead Lock System is cancelled for onlythe driver’s door. If you wish to subsequent-
ly unlock all other doors, turn the ignition switch to the “ON” or “ACC” position, orput the operation mode in on or ACC.
z It is possible to adjust the time between
pressing the UNLOCK switch (B) on the re- mote control switch or the driver’s or front
passenger’s door lock/unlock switch (C) and automatic locking. For details, please con-
tact a MITSUBISHI MOTORS Authorized
Service Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’smanual for details.NOTEz It is possible to lock the doors and tailgate
and set the Dead Lock System at the sametime with a single push of the LOCK switch (A) on the remote control switch, the driv-
er’s or front passenger’s door lock/unlock
switch (C), or the tailgate lock switch (D).
For details, please contact a MITSUBISHI
MOTORS Authorized Service Point.Testing the system
E00305400159
Open all of the door windows, then set the
Dead Lock System.
(Refer to “Setting the system” on page 4-17.)
After setting the Dead Lock System, reach
into the vehicle through a window and con- firm that you cannot unlock the doors using
the lock knobs.
NOTEz If you need advice on how to set the Dead
Lock System, please contact a MITSUBISHIMOTORS Authorized Service Point.“Child-protection” rear
doors E00300901042
1- Lock
2- Unlock
Child protection helps prevent the rear doors
from being opened accidentally from the in- side.
If the lever is set to the locked position, the
rear door cannot be opened using the inside handle, but only with the outside handle.
If the lever is set to the “Unlock” position,
the child protection mechanism does not
function.
“Child-protection” rear doors
4-182**((Locking and unlocking4

CAUT,ONzWhen driving with a child in the rear seat,
please use the child protection to prevent ac-

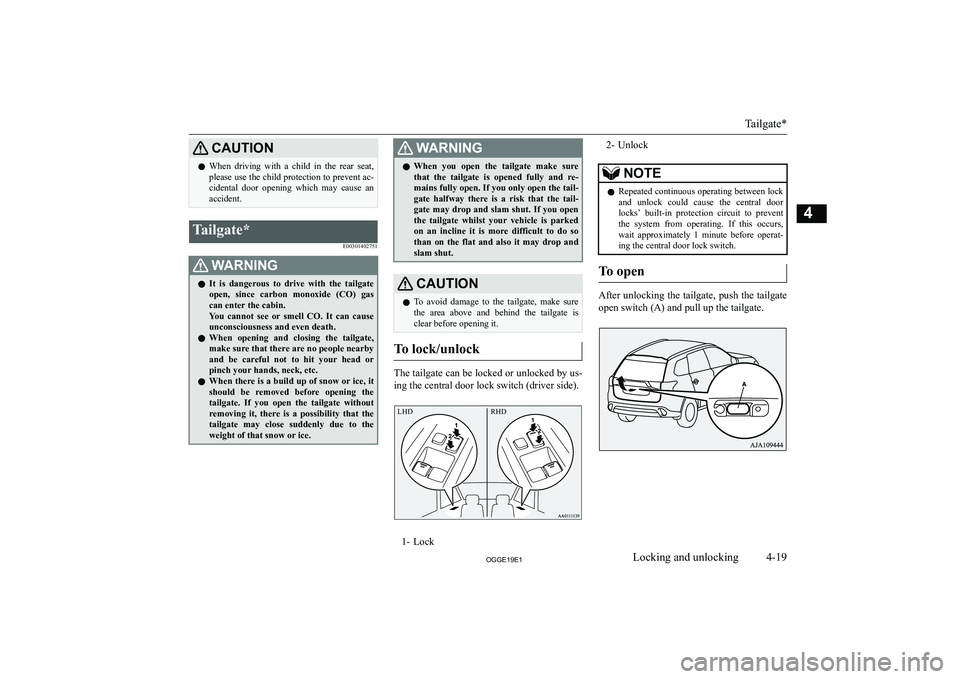

cidental door opening which may cause an accident.Tailgate*
E00301402751:ARN,NGzIt is dangerous to drive with the tailgate
open, since carbon monoxide (CO) gas
can enter the cabin.
You cannot see or smell CO. It can cause unconsciousness and even death.
z When opening and closing the tailgate,
make sure that there are no people nearby
and be careful not to hit your head or pinch your hands, neck, etc.
z When there is a build up of snow or ice, it
should be removed before opening the tailgate. If you open the tailgate without removing it, there is a possibility that the
tailgate may close suddenly due to the weight of that snow or ice.:ARN,NGz When you open the tailgate make sure
that the tailgate is opened fully and re- mains fully open. If you only open the tail-
gate halfway there is a risk that the tail- gate may drop and slam shut. If you open
the tailgate whilst your vehicle is parked
on an incline it is more difficult to do so than on the flat and also it may drop and
slam shut.CAUT,ONz To avoid damage to the tailgate, make sure
the area above and behind the tailgate is
clear before opening it.
To lock/unlock
The tailgate can be locked or unlocked by us-
ing the central door lock switch (driver side).
1- Lock
2- UnlockNOTEz Repeated continuous operating between lock
and unlock could cause the central doorlocks’ built-in protection circuit to preventthe system from operating. If this occurs,
wait approximately 1 minute before operat-
ing the central door lock switch.
To open
After unlocking the tailgate, push the tailgate
open switch (A) and pull up the tailgate.
Tailgate*
4-192**((Locking and unlocking4 LHD RHD

NOTEzThe tailgate cannot be opened when the aux-
iliary battery is flat or disconnected.If you want to open the tailgate, it can be
opened by using the inside tailgate release.
Refer to “Inside tailgate release” on page
4-27.

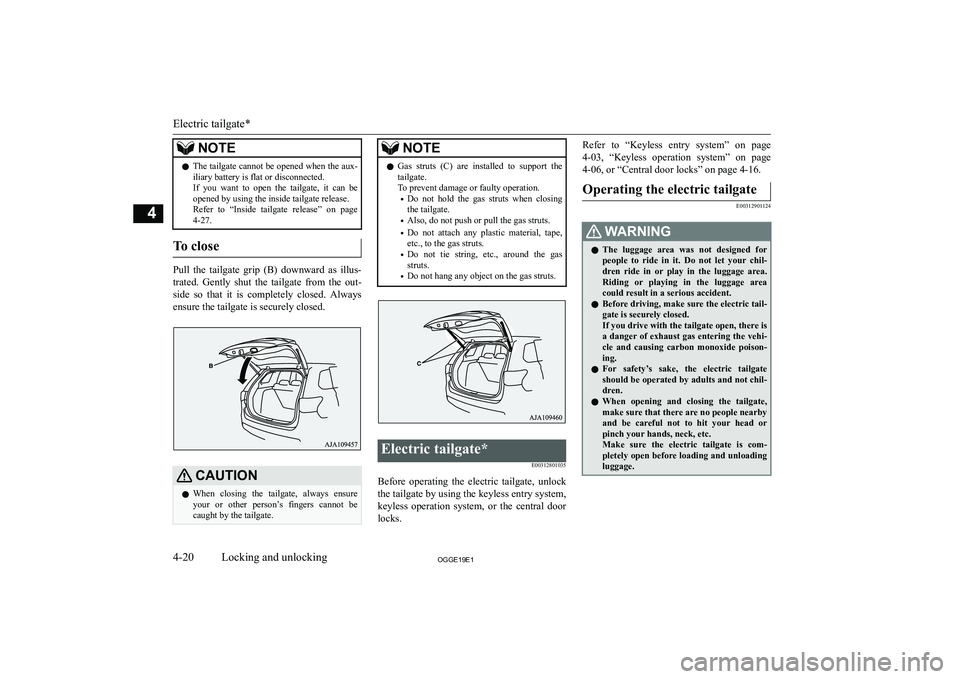

To close
Pull the tailgate grip (B) downward as illus-
trated. Gently shut the tailgate from the out-
side so that it is completely closed. Always
ensure the tailgate is securely closed.
CAUT,ONz When closing the tailgate, always ensure
your or other person’s fingers cannot becaught by the tailgate.NOTEz Gas struts (C) are installed to support the
tailgate.
To prevent damage or faulty operation.

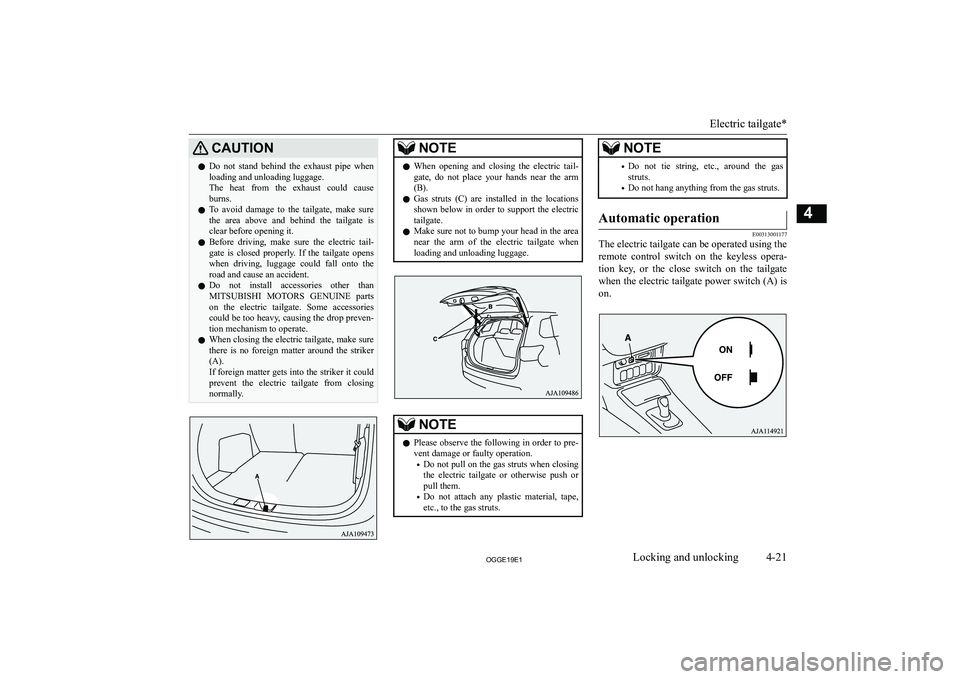

CAUT,ONzDo not stand behind the exhaust pipe when
loading and unloading luggage.
The heat from the exhaust could cause burns.
z To avoid damage to the tailgate, make sure
the area above and behind the tailgate is
clear before opening it.
z Before driving, make sure the electric tail-
gate is closed properly. If the tailgate opens
when driving, luggage could fall onto the road and cause an accident.
z Do not install accessories other than
MITSUBISHI MOTORS GENUINE parts
on the electric tailgate. Some accessories could be too heavy, causing the drop preven-
tion mechanism to operate.
z When closing the electric tailgate, make sure
there is no foreign matter around the striker
(A).
If foreign matter gets into the striker it could
prevent the electric tailgate from closing normally.NOTEz When opening and closing the electric tail-
gate, do not place your hands near the arm(B).
z Gas struts (C) are installed in the locations
shown below in order to support the electric tailgate.
z Make sure not to bump your head in the area
near the arm of the electric tailgate when
loading and unloading luggage.NOTEz Please observe the following in order to pre-
vent damage or faulty operation.

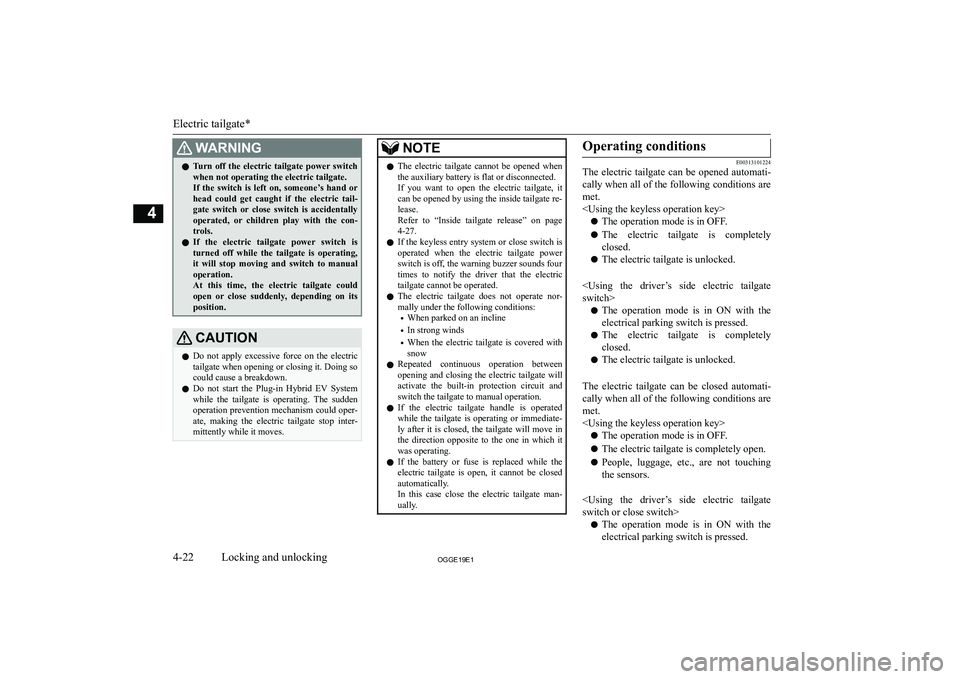

:ARN,NGzTurn off the electric tailgate power switch
when not operating the electric tailgate.
If the switch is left on, someone’s hand or head could get caught if the electric tail-gate switch or close switch is accidentally
operated, or children play with the con-
trols.
z If the electric tailgate power switch is
turned off while the tailgate is operating,
it will stop moving and switch to manual operation.
At this time, the electric tailgate could
open or close suddenly, depending on its position.CAUT,ONz Do not apply excessive force on the electric
tailgate when opening or closing it. Doing so
could cause a breakdown.
z Do not start the Plug-in Hybrid EV System
while the tailgate is operating. The sudden
operation prevention mechanism could oper-
ate, making the electric tailgate stop inter-
mittently while it moves.NOTEz The electric tailgate cannot be opened when
the auxiliary battery is flat or disconnected.
If you want to open the electric tailgate, it can be opened by using the inside tailgate re-
lease.
Refer to “Inside tailgate release” on page
4-27.
z If the keyless entry system or close switch is
operated when the electric tailgate powerswitch is off, the warning buzzer sounds fourtimes to notify the driver that the electric
tailgate cannot be operated.
z The electric tailgate does not operate nor-
mally under the following conditions:
