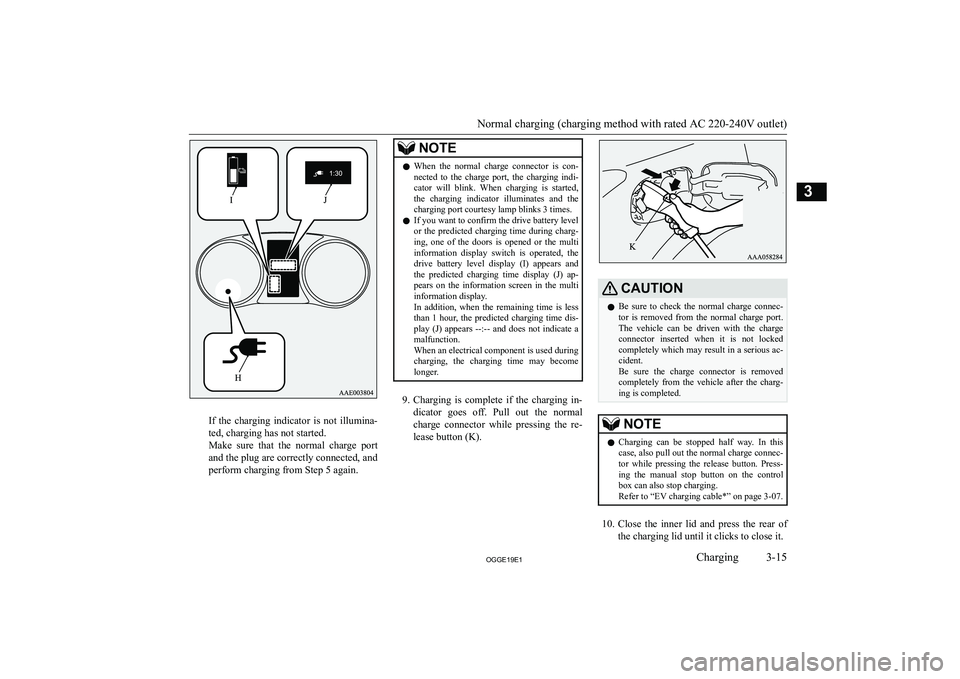

If the charging indicator is not illumina-
ted, charging has not started.
Make sure that the normal charge port and the plug are correctly connected, and
perform charging from Step 5 again.
NOTEz When the normal charge connector is con-
nected to the charge port, the charging indi-
cator will blink. When charging is started, the charging indicator illuminates and the
charging port courtesy lamp blinks 3 times.
z If you want to confirm the drive battery level
or the predicted charging time during charg- ing, one of the doors is opened or the multi
information display switch is operated, the drive battery level display (I) appears and
the predicted charging time display (J) ap- pears on the information screen in the multi
information display.
In addition, when the remaining time is less than 1 hour, the predicted charging time dis-
play (J) appears --:-- and does not indicate a
malfunction.
When an electrical component is used during
charging, the charging time may become
longer.
9. Charging is complete if the charging in-
dicator goes off. Pull out the normal charge connector while pressing the re-
lease button (K).
CAUT,ONz Be sure to check the normal charge connec-
tor is removed from the normal charge port.
The vehicle can be driven with the charge connector inserted when it is not lockedcompletely which may result in a serious ac-
cident.
Be sure the charge connector is removed completely from the vehicle after the charg- ing is completed.NOTEz Charging can be stopped half way. In this
case, also pull out the normal charge connec-
tor while pressing the release button. Press- ing the manual stop button on the controlbox can also stop charging.
Refer to “EV charging cable*” on page 3-07.
10. Close the inner lid and press the rear of
the charging lid until it clicks to close it.
Normal charging (charging method with rated AC 220-240V outlet)
3-152**((Charging3

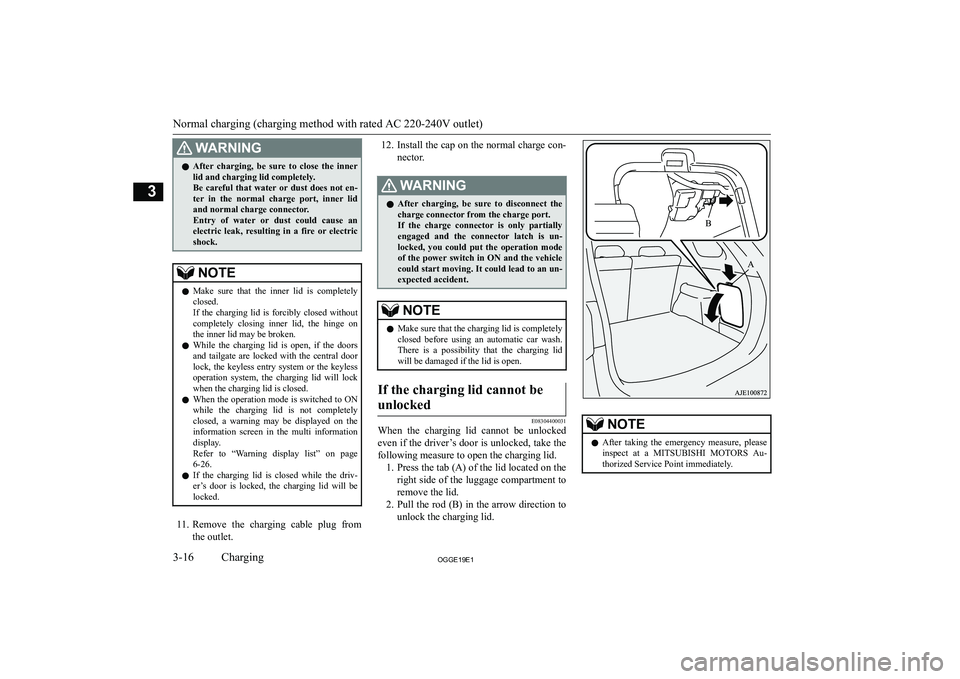

:ARN,NGzAfter charging, be sure to close the inner
lid and charging lid completely.
Be careful that water or dust does not en-
ter in the normal charge port, inner lid and normal charge connector.
Entry of water or dust could cause an
electric leak, resulting in a fire or electric shock.NOTEz Make sure that the inner lid is completely
closed.
If the charging lid is forcibly closed without completely closing inner lid, the hinge on
the inner lid may be broken.
z While the charging lid is open, if the doors
and tailgate are locked with the central door
lock, the keyless entry system or the keyless
operation system, the charging lid will lock when the charging lid is closed.
z When the operation mode is switched to ON
while the charging lid is not completely closed, a warning may be displayed on the
information screen in the multi information display.
Refer to “Warning display list” on page
6-26.
z If the charging lid is closed while the driv-
er’s door is locked, the charging lid will be locked.
11. Remove the charging cable plug from
the outlet.
12. Install the cap on the normal charge con-
nector.:ARN,NGz After charging, be sure to disconnect the
charge connector from the charge port.
If the charge connector is only partially
engaged and the connector latch is un-
locked, you could put the operation mode of the power switch in ON and the vehiclecould start moving. It could lead to an un-
expected accident.NOTEz Make sure that the charging lid is completely
closed before using an automatic car wash.
There is a possibility that the charging lid will be damaged if the lid is open.If the charging lid cannot be
unlocked
E08304400031
When the charging lid cannot be unlocked even if the driver’s door is unlocked, take the
following measure to open the charging lid. 1. Press the tab (A) of the lid located on the
right side of the luggage compartment to
remove the lid.
2. Pull the rod (B) in the arrow direction to
unlock the charging lid.
NOTEz After taking the emergency measure, please
inspect at a MITSUBISHI MOTORS Au-
thorized Service Point immediately.
Normal charging (charging method with rated AC 220-240V outlet)
3-162**((Charging3

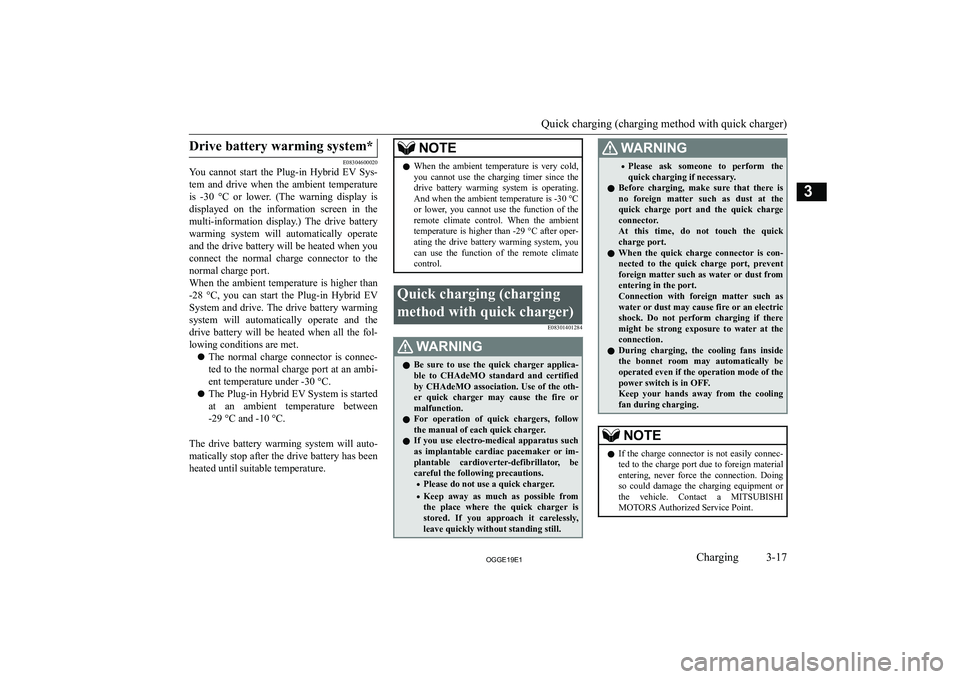

Drive battery warming system*
E08304600020
You cannot start the Plug-in Hybrid EV Sys-
tem and drive when the ambient temperature
is -30

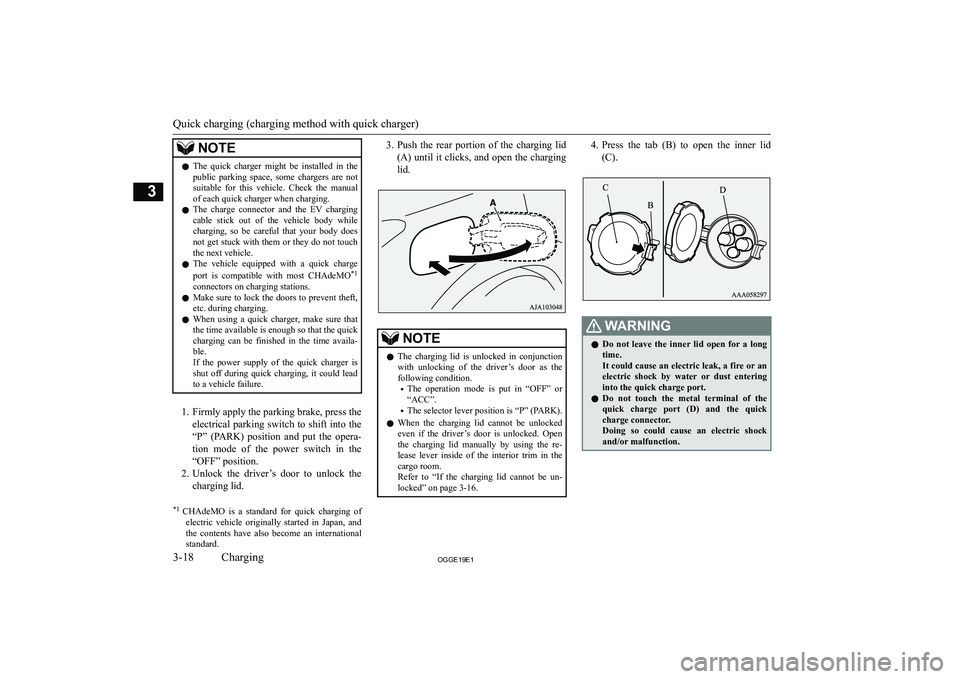

NOTEzThe quick charger might be installed in the
public parking space, some chargers are notsuitable for this vehicle. Check the manual of each quick charger when charging.
z The charge connector and the EV charging
cable stick out of the vehicle body while
charging, so be careful that your body does
not get stuck with them or they do not touch the next vehicle.
z The vehicle equipped with a quick charge
port is compatible with most CHAdeMO *1
connectors on charging stations.
z Make sure to lock the doors to prevent theft,
etc. during charging.
z When using a quick charger, make sure that
the time available is enough so that the quickcharging can be finished in the time availa- ble.
If the power supply of the quick charger is
shut off during quick charging, it could lead to a vehicle failure.
1. Firmly apply the parking brake, press the
electrical parking switch to shift into the
“P” (PARK) position and put the opera-
tion mode of the power switch in the “OFF” position.
2. Unlock the driver’s door to unlock the
charging lid.
*1 CHAdeMO is a standard for quick charging of
electric vehicle originally started in Japan, andthe contents have also become an internationalstandard.3. Push the rear portion of the charging lid
(A) until it clicks, and open the charging lid.NOTEz The charging lid is unlocked in conjunction
with unlocking of the driver’s door as the
following condition.

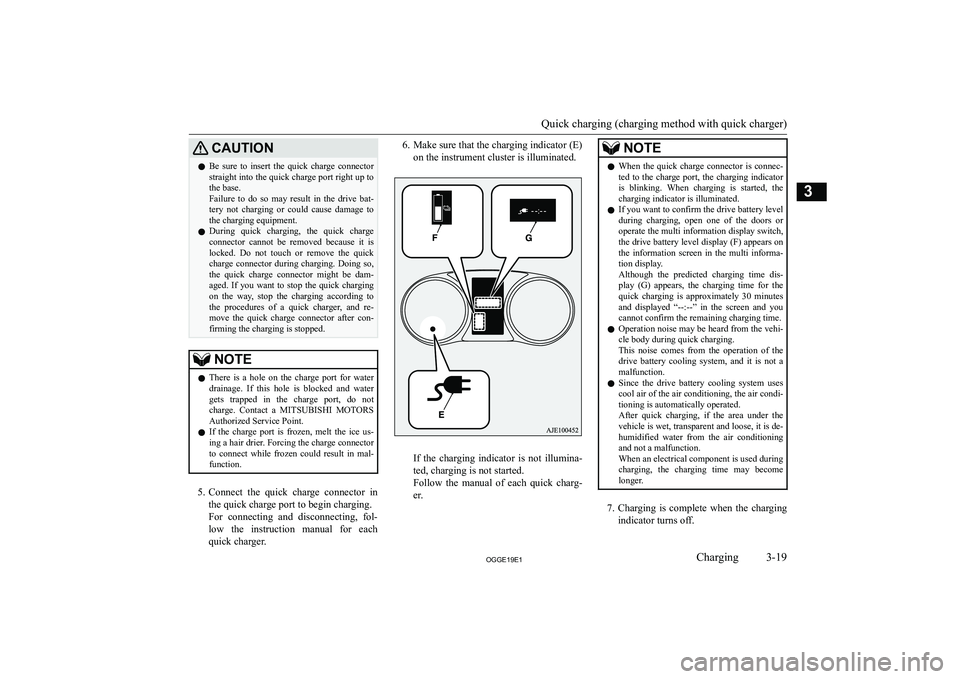

CAUT,ONzBe sure to insert the quick charge connector
straight into the quick charge port right up to
the base.
Failure to do so may result in the drive bat- tery not charging or could cause damage to the charging equipment.
z During quick charging, the quick charge
connector cannot be removed because it is locked. Do not touch or remove the quick
charge connector during charging. Doing so,
the quick charge connector might be dam- aged. If you want to stop the quick charging
on the way, stop the charging according to
the procedures of a quick charger, and re-
move the quick charge connector after con-
firming the charging is stopped.NOTEz There is a hole on the charge port for water
drainage. If this hole is blocked and watergets trapped in the charge port, do not
charge. Contact a MITSUBISHI MOTORS
Authorized Service Point.
z If the charge port is frozen, melt the ice us-
ing a hair drier. Forcing the charge connector to connect while frozen could result in mal-
function.
5. Connect the quick charge connector in
the quick charge port to begin charging.
For connecting and disconnecting, fol- low the instruction manual for each
quick charger.
6. Make sure that the charging indicator (E)
on the instrument cluster is illuminated.
If the charging indicator is not illumina-
ted, charging is not started.
Follow the manual of each quick charg- er.
NOTEz When the quick charge connector is connec-
ted to the charge port, the charging indicatoris blinking. When charging is started, the charging indicator is illuminated.
z If you want to confirm the drive battery level
during charging, open one of the doors or operate the multi information display switch,
the drive battery level display (F) appears on the information screen in the multi informa-tion display.
Although the predicted charging time dis-
play (G) appears, the charging time for the quick charging is approximately 30 minutes and displayed “--:--” in the screen and you
cannot confirm the remaining charging time.
z Operation noise may be heard from the vehi-
cle body during quick charging.
This noise comes from the operation of the drive battery cooling system, and it is not a malfunction.
z Since the drive battery cooling system uses
cool air of the air conditioning, the air condi-tioning is automatically operated.
After quick charging, if the area under the vehicle is wet, transparent and loose, it is de-
humidified water from the air conditioning and not a malfunction.
When an electrical component is used during
charging, the charging time may become
longer.
7. Charging is complete when the charging
indicator turns off.
Quick charging (charging method with quick charger)
3-192**((Charging3

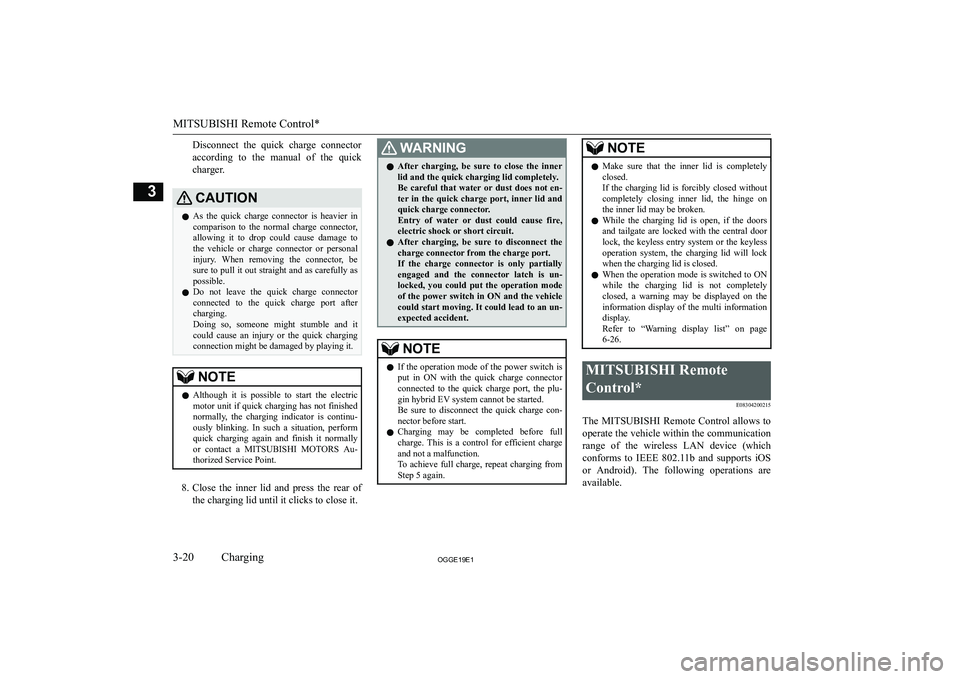

Disconnect the quick charge connectoraccording to the manual of the quick
charger.CAUT,ONz As the quick charge connector is heavier in
comparison to the normal charge connector, allowing it to drop could cause damage to
the vehicle or charge connector or personal injury. When removing the connector, besure to pull it out straight and as carefully as
possible.
z Do not leave the quick charge connector
connected to the quick charge port after charging.
Doing so, someone might stumble and it
could cause an injury or the quick charging connection might be damaged by playing it.NOTEz Although it is possible to start the electric
motor unit if quick charging has not finishednormally, the charging indicator is continu-
ously blinking. In such a situation, perform
quick charging again and finish it normally or contact a MITSUBISHI MOTORS Au-
thorized Service Point.
8. Close the inner lid and press the rear of
the charging lid until it clicks to close it.
:ARN,NGz After charging, be sure to close the inner
lid and the quick charging lid completely.
Be careful that water or dust does not en-
ter in the quick charge port, inner lid and
quick charge connector.
Entry of water or dust could cause fire, electric shock or short circuit.
z After charging, be sure to disconnect the
charge connector from the charge port.
If the charge connector is only partially
engaged and the connector latch is un-
locked, you could put the operation mode of the power switch in ON and the vehicle
could start moving. It could lead to an un- expected accident.NOTEz If the operation mode of the power switch is
put in ON with the quick charge connector
connected to the quick charge port, the plu-
gin hybrid EV system cannot be started.
Be sure to disconnect the quick charge con- nector before start.
z Charging may be completed before full
charge. This is a control for efficient charge
and not a malfunction.
To achieve full charge, repeat charging from Step 5 again.NOTEz Make sure that the inner lid is completely
closed.
If the charging lid is forcibly closed without completely closing inner lid, the hinge on
the inner lid may be broken.
z While the charging lid is open, if the doors
and tailgate are locked with the central door
lock, the keyless entry system or the keyless
operation system, the charging lid will lock when the charging lid is closed.
z When the operation mode is switched to ON
while the charging lid is not completely closed, a warning may be displayed on the
information display of the multi information
display.
Refer to “Warning display list” on page 6-26.MITSUBISHI Remote
Control* E08304200215
The MITSUBISHI Remote Control allows to
operate the vehicle within the communication
range of the wireless LAN device (which conforms to IEEE 802.11b and supports iOS or Android). The following operations areavailable.
MITSUBISHI Remote Control*
3-202**((Charging3

NOTEzThe communication distance differs depend-
ing on the wireless LAN device, due to this
the communication may go down.
1- Wireless LAN device
2- Antenna
z Charging timer
If you specify the charge start and/or
stop time with the normal charge cable connected, charging is started and/orstopped at that time.
z Remote Climate Control
By setting the remote climate control to operate at a predetermined time, cabin comfort can be improved or visibility
can be ensured (defrosting/demisting) before getting in the vehicle.
z Customize (function setting change)
The function setting of the keyless oper-
ation system, outside rear-view mirror, operation mode of the power switch, air
conditioning, lamps and windscreen
wipers can be changed by MITSUBISHI
Remote Control.NOTEz The electric heater is required to activate the
reservation functions of heater, defroster anddemister.
z In a vehicle equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), it is possible to change the setting by means of
screen operations.
Refer to the separate owner’s manual for de- tails.
z If you want to quickly start normal charging
even when the charging timer is already set, you can cancel the charging timer and startthe normal charging by the following meth-
ods.
[How to temporarily cancel the charging timer@
You can temporarily cancel the charging
timer by the following methods.
In addition, the predetermined charging tim- er settings will automatically return after the
charging timer is turned on again or the op- eration mode of the power switch is put in
ON.NOTE

Devices that support wireless LAN are re-
quired to communicate with the vehicle using
the MITSUBISHI Remote Control. Also, an
SSID* (A) and password (B) are required to
connect a wireless LAN device to the vehi-
cle. The SSID and password are described in the registration information card (C) that is
attached to the key at the time of your pur- chase of the vehicle.* The SSID is the identifier of an accesspoint for IEEE 802.11 series wireless LAN. It
is displayed on wireless LAN devices.For the function and the operation method
of the MITSUBISHI Remote Control,
please visit the MITSUBISHI MOTORS
Web site:
http://www.mitsubishi-motors.com/en/prod- ucts/outlanderBphev2/app/remote/
z If you need further information, please
contact a MITSUBISHI MOTORS Au-
thorized Service Point.:ARN,NGz Do not use the
MITSUBISHI Remote
Control if children, persons in need of care, pets, etc. are in the vehicle. Even if
the remote climate control is used, the cabin may become hot or cold due to some
reasons such as automatic stop of the sys-
tem. The cabin temperature may quickly rise in sunshine, which poses a risk of heat
stroke and dehydration. In cold weather,
on the other hand, the cabin temperature may quickly drop. Either of which could lead to death in the worst case.
In addition, children can activate switches and controls, resulting in injury or a fatal accident.:ARN,NGz The cooling fan in the engine compart-
ment may operate automatically whencharging or when operating air condition-
er. Do not bring your hand close to the cooling fan during charging.CAUT,ONz Do not use a car cover except for the
MITSUBISHI MOTORS GENUINE car
cover, when using the charging timer or the remote climate control.NOTEz Keep the following points in mind when us-
ing a wireless LAN device:
