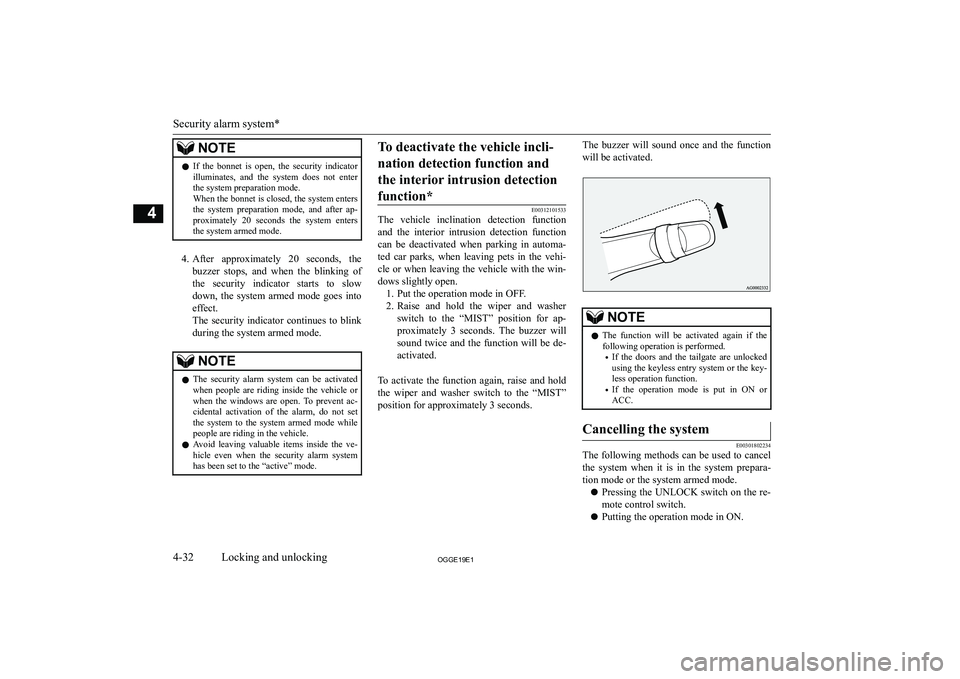

NOTEzIf the bonnet is open, the security indicator
illuminates, and the system does not enter the system preparation mode.
When the bonnet is closed, the system enters the system preparation mode, and after ap-
proximately 20 seconds the system enters the system armed mode.
4. After approximately 20 seconds, the
buzzer stops, and when the blinking of
the security indicator starts to slow
down, the system armed mode goes into effect.
The security indicator continues to blink
during the system armed mode.
NOTEz The security alarm system can be activated
when people are riding inside the vehicle or when the windows are open. To prevent ac-cidental activation of the alarm, do not set
the system to the system armed mode while people are riding in the vehicle.
z Avoid leaving valuable items inside the ve-
hicle even when the security alarm system
has been set to the “active” mode.To deactivate the vehicle incli-
nation detection function and the interior intrusion detectionfunction*
E00312101533
The vehicle inclination detection function
and the interior intrusion detection function
can be deactivated when parking in automa-
ted car parks, when leaving pets in the vehi- cle or when leaving the vehicle with the win-
dows slightly open. 1. Put the operation mode in OFF.
2. Raise and hold the wiper and washer
switch to the “MIST” position for ap- proximately 3 seconds. The buzzer will
sound twice and the function will be de-
activated.
To activate the function again, raise and hold
the wiper and washer switch to the “MIST” position for approximately 3 seconds.
The buzzer will sound once and the function
will be activated.NOTEz The function will be activated again if the
following operation is performed.

zOpening any one of the doors or the tail-
gate, when the system is in the system
preparation mode.
z Holding the keyless operation key and
pressing the driver’s or front passenger’s
door lock/unlock switch, or the tailgate open switch to unlock the doors and the
tailgate.NOTEz If the bonnet is opened during the system
preparation mode, the system preparationmode is suspended.
The system returns to the system preparation mode when the bonnet is closed.
z If the auxiliary battery terminals are discon-
nected while the system is in the system preparation mode, the memory will be erased.
z It is possible to register up to four remote
control switches for keyless operation sys-tem.
As long as they are registered, any of the re-
mote control switches, other than the one used to activate the system, can be used to
cancel the system.
If you want to register additional remote control switches, please contact aMITSUBISHI MOTORS Authorized Serv-
ice Point.NOTEz The activation distance for keyless entry sys-
tem is approximately 4 m.
If it is not possible to lock or unlock the ve- hicle by pressing the switch at the correct
distance or the security alarm system cannot be set or cancelled using the switch, the bat-
tery may need to be replaced.
Replace the battery at a MITSUBISHI
MOTORS Authorized Service Point.
z If the UNLOCK switch on the remote con-
trol switch, or the driver’s or front passeng- er’s door lock/unlock switch is pressed and no door or the tailgate is opened within 30seconds, the doors and the tailgate will auto- matically relock. In this case as well, the
system preparation mode will go into effect.
z The time between pressing the UNLOCK
switch on the remote control switch, or thedriver’s or front passenger’s door lock/
unlock switch and automatic locking can be
adjusted. Please consult a MITSUBISHI
MOTORS Authorized Service Point.
On vehicles equipped with the Smartphone
Link Display Audio or the MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’smanual for details.Alarm activation

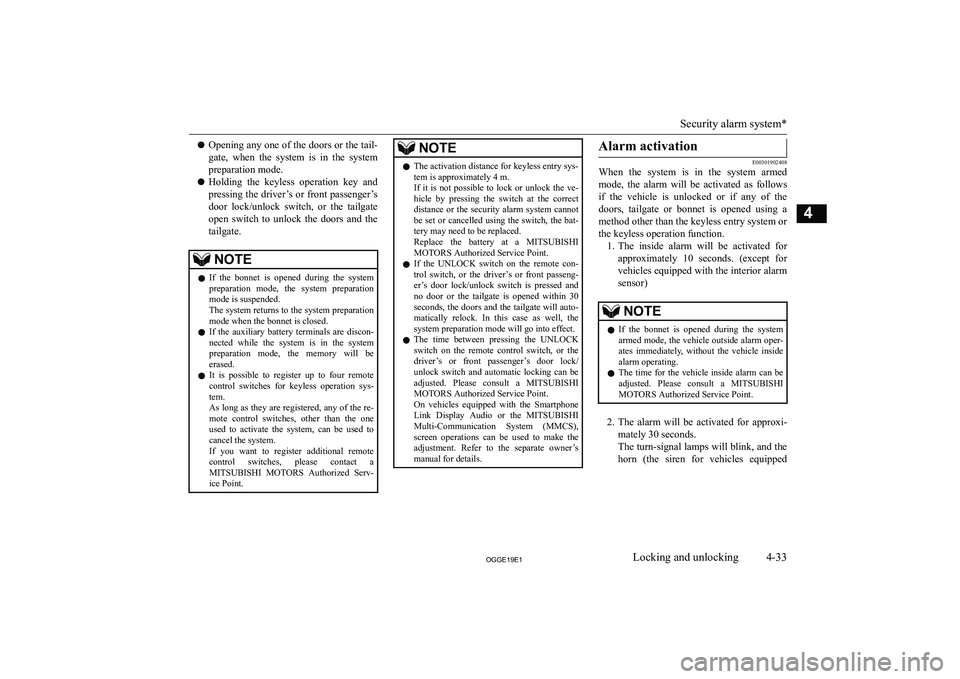

E00301902408
When the system is in the system armed
mode, the alarm will be activated as follows
if the vehicle is unlocked or if any of the doors, tailgate or bonnet is opened using a method other than the keyless entry system or
the keyless operation function. 1. The inside alarm will be activated for
approximately 10 seconds. (except for
vehicles equipped with the interior alarm
sensor)
NOTEz If the bonnet is opened during the system
armed mode, the vehicle outside alarm oper-
ates immediately, without the vehicle inside
alarm operating.
z The time for the vehicle inside alarm can be
adjusted. Please consult a MITSUBISHI
MOTORS Authorized Service Point.
2. The alarm will be activated for approxi-
mately 30 seconds.
The turn-signal lamps will blink, and the horn (the siren for vehicles equipped
Security alarm system*
4-332**((Locking and unlocking4

with the interior alarm sensor) will
sound intermittently.
3. The alarm will resume if unlawful ac-
tions are taken again, even if the alarm has stopped.
Cancelling the alarm
E00302001890
It is possible to halt the activation of an alarm using the following methods:
z Pressing the LOCK or UNLOCK switch
on the remote control switch.
(After pressing the LOCK switch, the
vehicle will lock if all the doors and the
tailgate are closed, after which the sys- tem preparation mode will once again go
into effect.)
z Putting the operation mode in ON.
zHolding the keyless operation key and
locking or unlocking the doors and the
tailgate using the keyless operation func- tion.NOTEz Even if a door or the tailgate is closed while
the inside alarm is activating, this will notcancel the alarm activation. (except for vehi-
cles equipped with the interior alarm sensor)
z When the operation mode is put in ON, the
buzzer sounds four times. This operation in-
dicates that the alarm was activated while the vehicle was parked.
Please check the inside of the vehicle to con-
firm that nothing was stolen.
z Even if the auxiliary battery is disconnected,
the alarm activation memory will not be erased.Electric window control
E00302201632
The electric windows can only be operatedwith the operation mode in ON.
Electric window control switch
E00302303507
Each door window opens or closes while the
corresponding switch is operated.
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window
4- Rear right door window
5- Lock switch
:ARN,NGz Before operating the electric window con-
trol, make sure that nothing can get trap-ped (head, hand, finger, etc.).
z Never leave the vehicle without removing
the key.
z Never leave a child (or other person who
might not be capable of safe operation of the electric window control) in the vehicle alone.
Electric window control
4-342**((Locking and unlocking4 Driver’s switch RHDDriver’s switch LHD

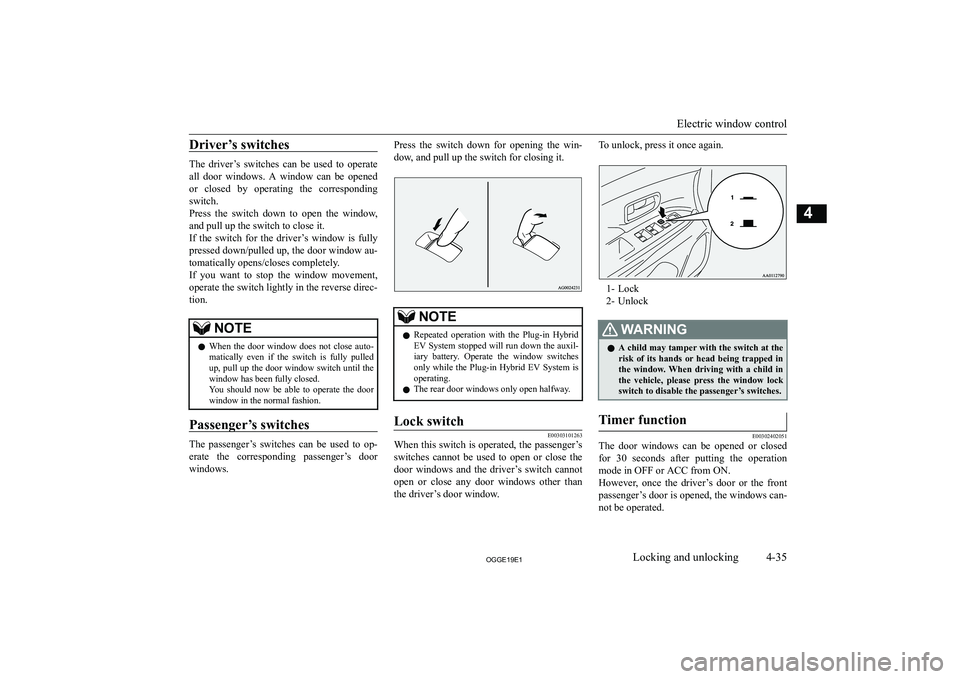

Driver’s switches
The driver’s switches can be used to operateall door windows. A window can be opened
or closed by operating the corresponding switch.
Press the switch down to open the window, and pull up the switch to close it.
If the switch for the driver’s window is fully
pressed down/pulled up, the door window au- tomatically opens/closes completely.
If you want to stop the window movement,
operate the switch lightly in the reverse direc-
tion.
NOTEz When the door window does not close auto-
matically even if the switch is fully pulledup, pull up the door window switch until the window has been fully closed.
You should now be able to operate the door
window in the normal fashion.
Passenger’s switches
The passenger’s switches can be used to op-
erate the corresponding passenger’s door
windows.
Press the switch down for opening the win-
dow, and pull up the switch for closing it.NOTEz Repeated operation with the Plug-in Hybrid
EV System stopped will run down the auxil- iary battery. Operate the window switches only while the Plug-in Hybrid EV System is
operating.
z The rear door windows only open halfway.Lock switch
E00303101263
When this switch is operated, the passenger’s
switches cannot be used to open or close the door windows and the driver’s switch cannot
open or close any door windows other than
the driver’s door window.
To unlock, press it once again.
1- Lock
2- Unlock
:ARN,NGz A child may tamper with the switch at the
risk of its hands or head being trapped in the window. When driving with a child in
the vehicle, please press the window lock switch to disable the passenger’s switches.Timer function
E00302402051
The door windows can be opened or closed
for 30 seconds after putting the operation
mode in OFF or ACC from ON.
However, once the driver’s door or the front
passenger’s door is opened, the windows can- not be operated.
Electric window control
4-352**((Locking and unlocking4

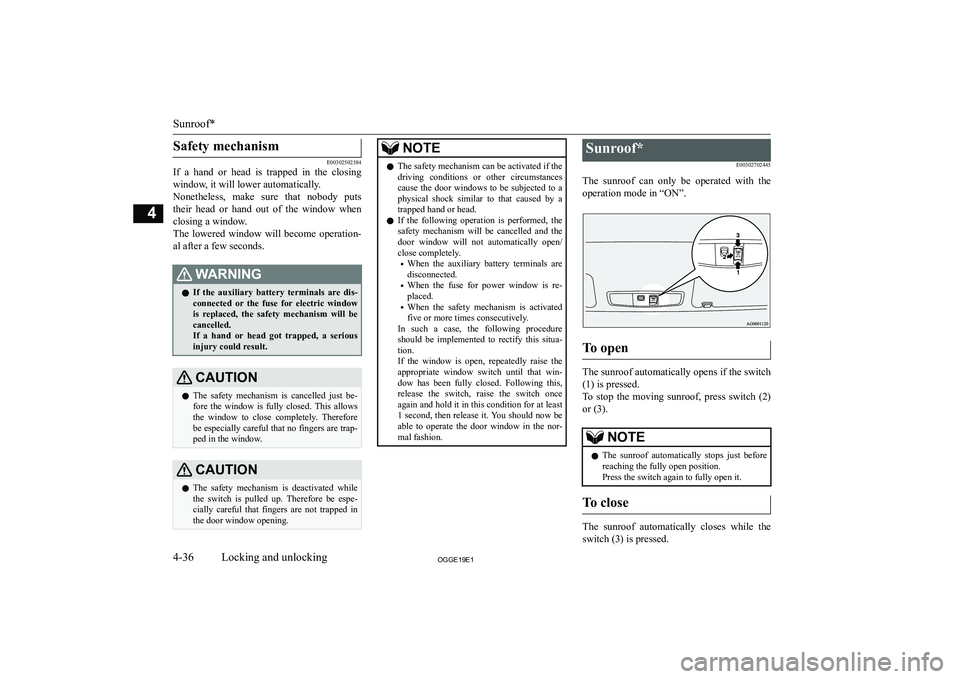

Safety mechanism
E00302502384
If a hand or head is trapped in the closing
window, it will lower automatically.
Nonetheless, make sure that nobody puts
their head or hand out of the window when
closing a window.
The lowered window will become operation-
al after a few seconds.
:ARN,NGz If the auxiliary battery terminals are dis-
connected or the fuse for electric window
is replaced, the safety mechanism will be
cancelled.
If a hand or head got trapped, a serious injury could result.CAUT,ONz The safety mechanism is cancelled just be-
fore the window is fully closed. This allows the window to close completely. Therefore be especially careful that no fingers are trap-
ped in the window.CAUT,ONz The safety mechanism is deactivated while
the switch is pulled up. Therefore be espe-
cially careful that fingers are not trapped in the door window opening.NOTEz The safety mechanism can be activated if the
driving conditions or other circumstancescause the door windows to be subjected to a
physical shock similar to that caused by a trapped hand or head.
z If the following operation is performed, the
safety mechanism will be cancelled and the door window will not automatically open/
close completely.

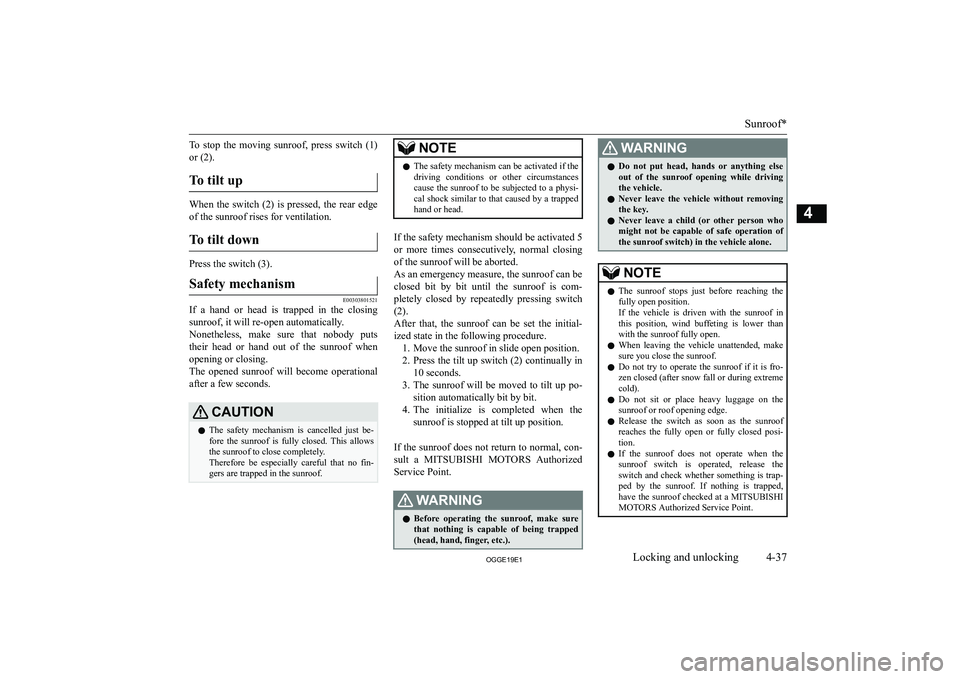

To stop the moving sunroof, press switch (1)or (2).
To tilt up
When the switch (2) is pressed, the rear edge
of the sunroof rises for ventilation.
To tilt down
Press the switch (3).
Safety mechanism
E00303801521
If a hand or head is trapped in the closing sunroof, it will re-open automatically.
Nonetheless, make sure that nobody puts
their head or hand out of the sunroof when
opening or closing.
The opened sunroof will become operational after a few seconds.
CAUT,ONz The safety mechanism is cancelled just be-
fore the sunroof is fully closed. This allows the sunroof to close completely.
Therefore be especially careful that no fin-
gers are trapped in the sunroof.NOTEz The safety mechanism can be activated if the
driving conditions or other circumstancescause the sunroof to be subjected to a physi-
cal shock similar to that caused by a trapped hand or head.
If the safety mechanism should be activated 5
or more times consecutively, normal closing
of the sunroof will be aborted.
As an emergency measure, the sunroof can be
closed bit by bit until the sunroof is com- pletely closed by repeatedly pressing switch
(2).
After that, the sunroof can be set the initial-
ized state in the following procedure. 1. Move the sunroof in slide open position.
2. Press the tilt up switch (2) continually in
10 seconds.
3. The sunroof will be moved to tilt up po-
sition automatically bit by bit.
4. The initialize is completed when the
sunroof is stopped at tilt up position.
If the sunroof does not return to normal, con- sult a MITSUBISHI MOTORS Authorized
Service Point.
:ARN,NGz Before operating the sunroof, make sure
that nothing is capable of being trapped
(head, hand, finger, etc.).:ARN,NGz Do not put head, hands or anything else
out of the sunroof opening while driving
the vehicle.
z Never leave the vehicle without removing
the key.
z Never leave a child (or other person who
might not be capable of safe operation of
the sunroof switch) in the vehicle alone.NOTEz The sunroof stops just before reaching the
fully open position.
If the vehicle is driven with the sunroof in
this position, wind buffeting is lower than with the sunroof fully open.
z When leaving the vehicle unattended, make
sure you close the sunroof.
z Do not try to operate the sunroof if it is fro-
zen closed (after snow fall or during extremecold).
z Do not sit or place heavy luggage on the
sunroof or roof opening edge.
z Release the switch as soon as the sunroof
reaches the fully open or fully closed posi-
tion.
z If the sunroof does not operate when the
sunroof switch is operated, release the switch and check whether something is trap-
ped by the sunroof. If nothing is trapped, have the sunroof checked at a MITSUBISHI
MOTORS Authorized Service Point.
Sunroof*
4-372**((Locking and unlocking4

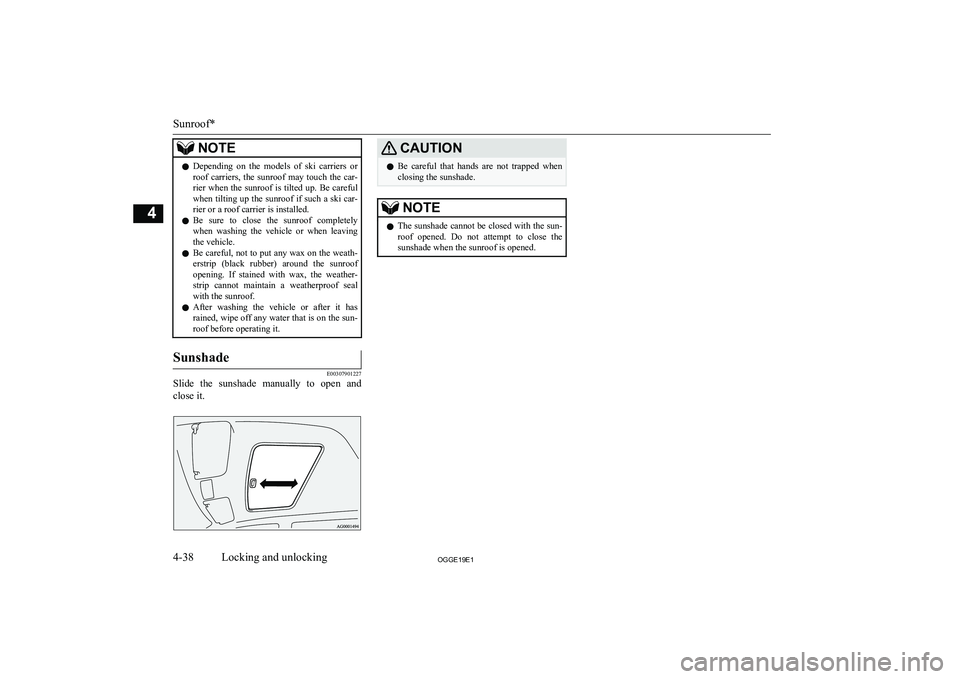

NOTEzDepending on the models of ski carriers or
roof carriers, the sunroof may touch the car-
rier when the sunroof is tilted up. Be careful when tilting up the sunroof if such a ski car- rier or a roof carrier is installed.
z Be sure to close the sunroof completely
when washing the vehicle or when leaving
the vehicle.
z Be careful, not to put any wax on the weath-
erstrip (black rubber) around the sunroof opening. If stained with wax, the weather-
strip cannot maintain a weatherproof seal with the sunroof.
z After washing the vehicle or after it has
rained, wipe off any water that is on the sun- roof before operating it.Sunshade
E00307901227
Slide the sunshade manually to open and
close it.
CAUT,ONz Be careful that hands are not trapped when
closing the sunshade.NOTEz The sunshade cannot be closed with the sun-
roof opened. Do not attempt to close thesunshade when the sunroof is opened.
Sunroof*
4-382**((Locking and unlocking4
