2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

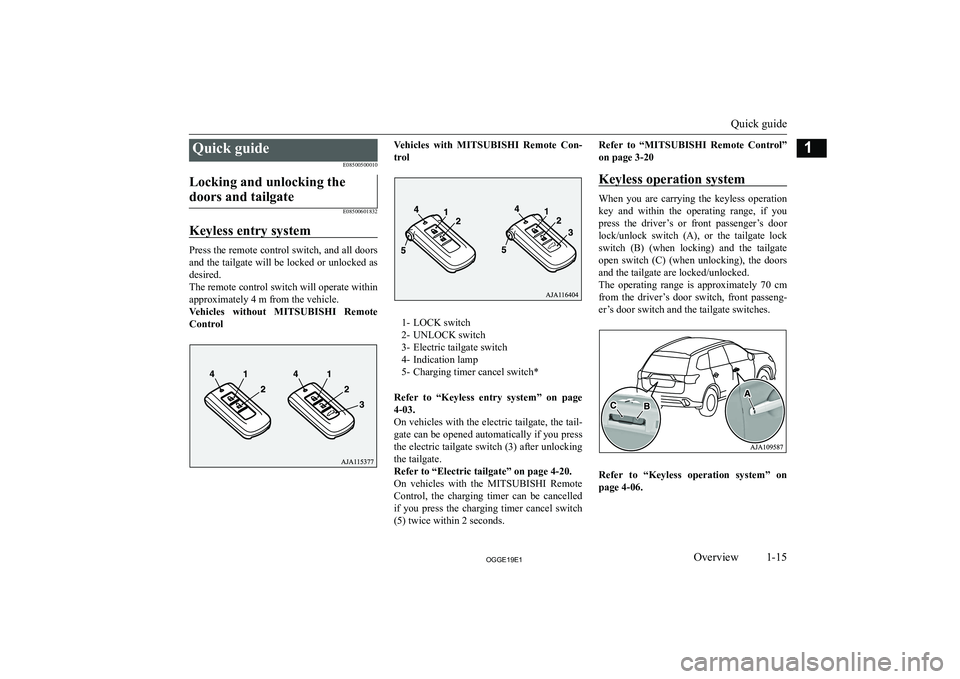

Quick guideE08500500010Locking and unlocking the
doors and tailgate
E08500601832
Keyless entry system
Press the remote control switch, and all doors and the tailgate will be locked or unlocked as
desired.
The remote control switch will operate within
approximately 4 m from the vehicle.
Vehicles without MITSUBISHI Remote
Control
Vehicles with MITSUBISHI Remote Con-
trol
1- LOCK switch
2- UNLOCK switch
3- Electric tailgate switch
4- Indication lamp
5- Charging timer cancel switch*
Refer to “Keyless entry system” on page 4-03.
On vehicles with the electric tailgate, the tail-
gate can be opened automatically if you press
the electric tailgate switch (3) after unlocking the tailgate.
Refer to “Electric tailgate” on page 4-20.
On vehicles with the MITSUBISHI Remote
Control, the charging timer can be cancelled if you press the charging timer cancel switch (5) twice within 2 seconds.
Refer to “MITSUBISHI Remote Control”
on page 3-20
Keyless operation system
When you are carrying the keyless operation key and within the operating range, if you
press the driver’s or front passenger’s door lock/unlock switch (A), or the tailgate lock
switch (B) (when locking) and the tailgate
open switch (C) (when unlocking), the doors and the tailgate are locked/unlocked.
The operating range is approximately 70 cm
from the driver’s door switch, front passeng- er’s door switch and the tailgate switches.
Refer to “Keyless operation system” onpage 4-06.
Quick guide
1-152**((Overview1

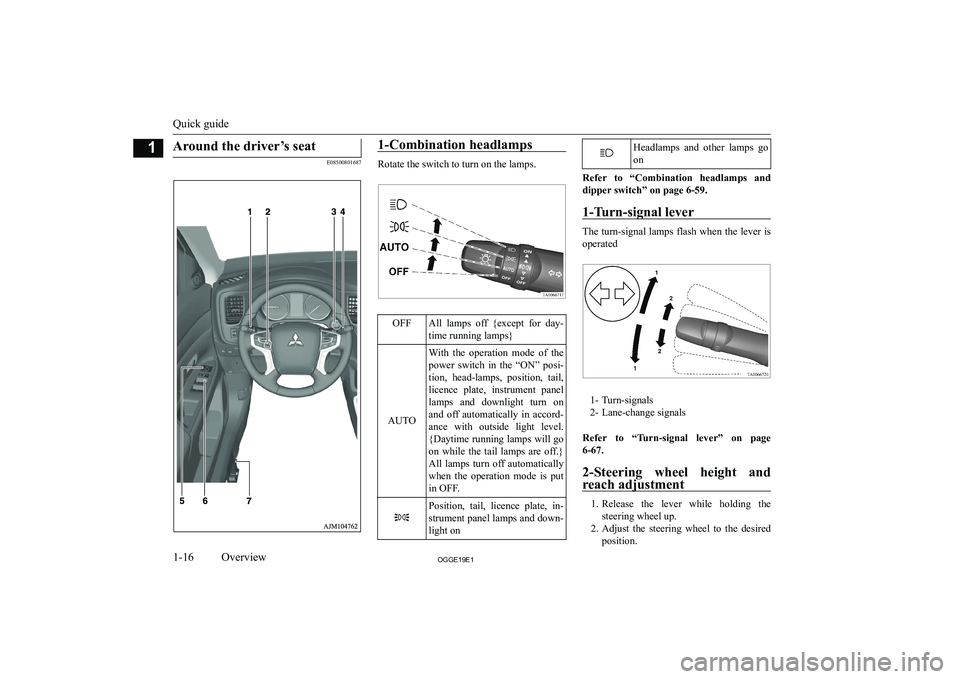

Around the driver’s seat
E08500801687
1-Combination headlamps
Rotate the switch to turn on the lamps.
OFFAll lamps off {except for day-
time running lamps`
AUTO
With the operation mode of the power switch in the “ON” posi-
tion, head-lamps, position, tail, licence plate, instrument panellamps and downlight turn on and off automatically in accord-
ance with outside light level.
{Daytime running lamps will go on while the tail lamps are off.`
All lamps turn off automatically when the operation mode is put
in OFF.Position, tail, licence plate, in-
strument panel lamps and down- light onHeadlamps and other lamps go
on
Refer to “Combination headlamps and dipper switch” on page 6-59.
1-Turn-signal lever
The turn-signal lamps flash when the lever is operated
1- Turn-signals
2- Lane-change signals
Refer to “Turn-signal lever” on page 6-67.
2-Steering wheel height and
reach adjustment
1. Release the lever while holding the
steering wheel up.
2. Adjust the steering wheel to the desired
position.
Quick guide
1-162**((Overview1

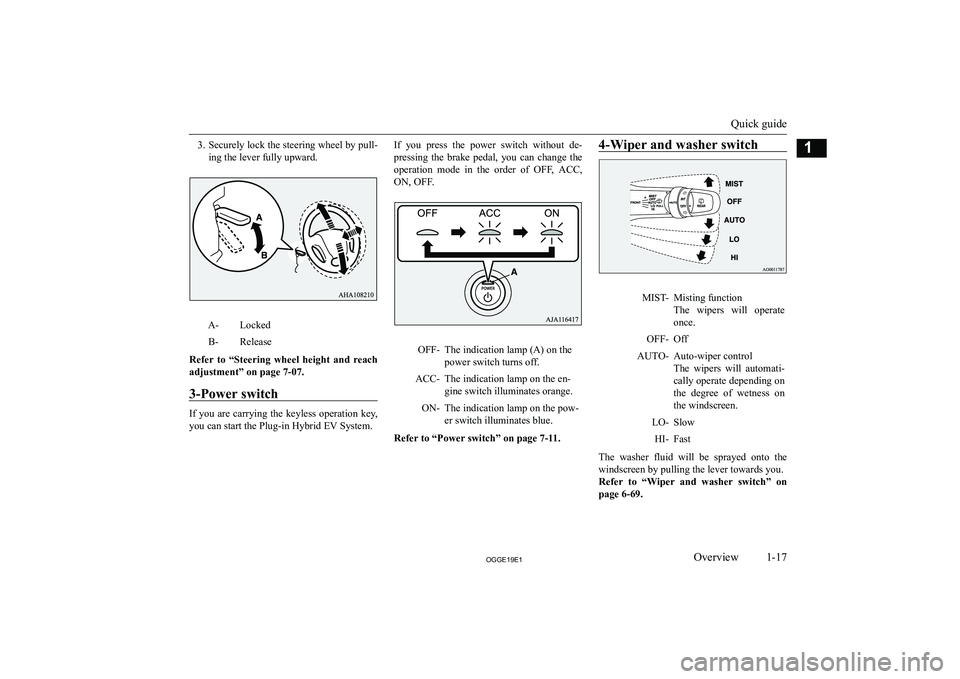

3.Securely lock the steering wheel by pull-
ing the lever fully upward.A-LockedB-Release
Refer to “Steering wheel height and reach
adjustment” on page 7-07.
3-Power switch
If you are carrying the keyless operation key,
you can start the Plug-in Hybrid EV System.
If you press the power switch without de-
pressing the brake pedal, you can change the
operation mode in the order of OFF, ACC,
ON, OFF.OFF-The indication lamp (A) on the
power switch turns off.ACC-The indication lamp on the en-
gine switch illuminates orange.ON-The indication lamp on the pow-
er switch illuminates blue.
Refer to “Power switch” on page 7-11.
4-Wiper and washer switchMIST-Misting function
The wipers will operate
once.OFF-OffAUTO-Auto-wiper control
The wipers will automati-
cally operate depending on
the degree of wetness on the windscreen.LO-SlowHI-Fast
The washer fluid will be sprayed onto the windscreen by pulling the lever towards you.Refer to “Wiper and washer switch” on
page 6-69.
Quick guide
1-172**((Overview1

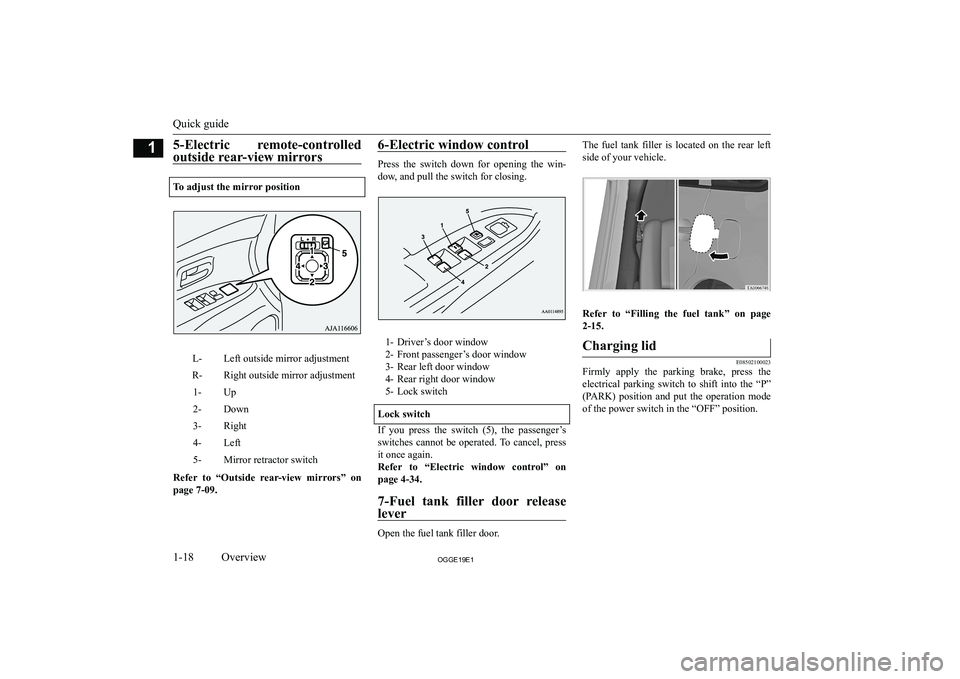

5-Electric remote-controlled
outside rear-view mirrors
To adjust the mirror position
L-Left outside mirror adjustmentR-Right outside mirror adjustment1-Up2-Down3-Right4-Left5-Mirror retractor switch
Refer to “Outside rear-view mirrors” on page 7-09.
6-Electric window control
Press the switch down for opening the win-
dow, and pull the switch for closing.
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window
4- Rear right door window
5- Lock switch
Lock switch
If you press the switch (5), the passenger’s switches cannot be operated. To cancel, press
it once again.
Refer to “Electric window control” on
page 4-34.
7-Fuel tank filler door release lever
Open the fuel tank filler door.
The fuel tank filler is located on the rear left
side of your vehicle.
Refer to “Filling the fuel tank” on page 2-15.
Charging lid
E08502100023
Firmly apply the parking brake, press the electrical parking switch to shift into the “P”
(PARK) position and put the operation mode
of the power switch in the “OFF” position.
Quick guide
1-182**((Overview1

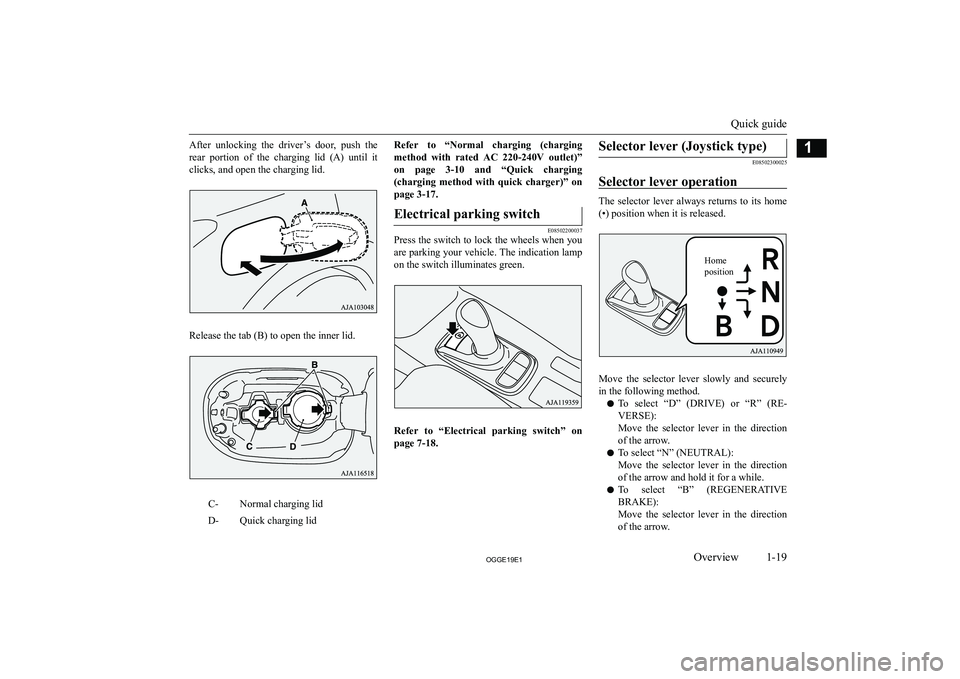

After unlocking the driver’s door, push therear portion of the charging lid (A) until it clicks, and open the charging lid.
Release the tab (B) to open the inner lid.
C-Normal charging lidD-Quick charging lidRefer to “Normal charging (charging method with rated AC 220-240V outlet)”
on page 3-10 and “Quick charging
(charging method with quick charger)” on
page 3-17.Electrical parking switch
E08502200037
Press the switch to lock the wheels when you
are parking your vehicle. The indication lamp on the switch illuminates green.
Refer to “Electrical parking switch” on
page 7-18.
Selector lever (Joystick type)
E08502300025
Selector lever operation
The selector lever always returns to its home (

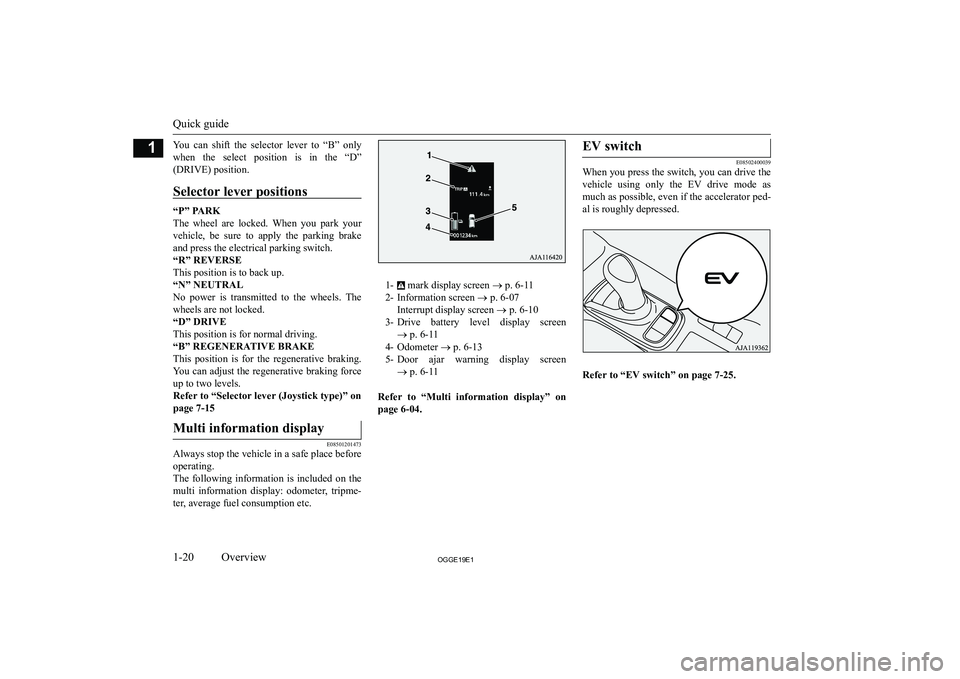

You can shift the selector lever to “B” onlywhen the select position is in the “D”
(DRIVE) position.
Selector lever positions
“P” PARK
The wheel are locked. When you park your
vehicle, be sure to apply the parking brake and press the electrical parking switch.
“R” REVERSE
This position is to back up.
“N” NEUTRAL
No power is transmitted to the wheels. The wheels are not locked.
“D” DRIVE
This position is for normal driving.
“B” REGENERATIVE BRAKE
This position is for the regenerative braking.
You can adjust the regenerative braking force up to two levels.
Refer to “Selector lever (Joystick type)” on page 7-15
Multi information display
E08501201473
Always stop the vehicle in a safe place before operating.
The following information is included on the multi information display: odometer, tripme-
ter, average fuel consumption etc.
1- mark display screen o p. 6-11
2- Information screen o p. 6-07
Interrupt display screen o p. 6-10
3- Drive battery level display screen
o p. 6-11
4- Odometer o p. 6-13
5- Door ajar warning display screen
o p. 6-11
Refer to “Multi information display” on page 6-04.
EV switch
E08502400039
When you press the switch, you can drive the
vehicle using only the EV drive mode as
much as possible, even if the accelerator ped- al is roughly depressed.
Refer to “EV switch” on page 7-25.
Quick guide
1-202**((Overview1

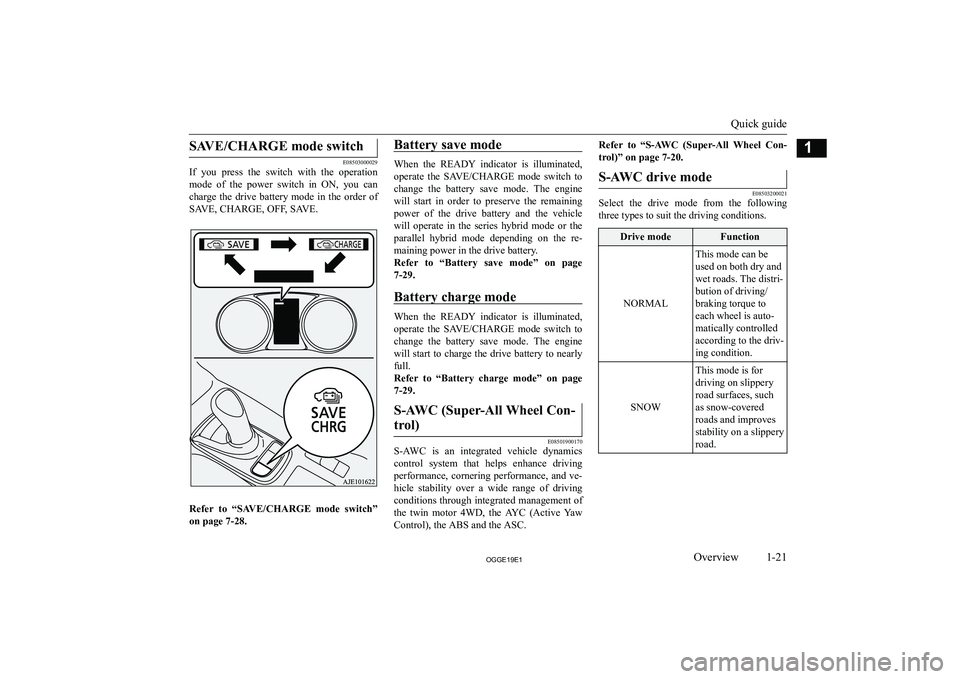

SAVE/CHARGE mode switch
E08503000029
If you press the switch with the operation
mode of the power switch in ON, you can
charge the drive battery mode in the order of SAVE, CHARGE, OFF, SAVE.
Refer to “SAVE/CHARGE mode switch”on page 7-28.
Battery save mode
When the READY indicator is illuminated,
operate the SAVE/CHARGE mode switch to change the battery save mode. The engine
will start in order to preserve the remaining power of the drive battery and the vehiclewill operate in the series hybrid mode or theparallel hybrid mode depending on the re-maining power in the drive battery.
Refer to “Battery save mode” on page 7-29.
Battery charge mode
When the READY indicator is illuminated, operate the SAVE/CHARGE mode switch to
change the battery save mode. The engine will start to charge the drive battery to nearly
full.
Refer to “Battery charge mode” on page
7-29.
S-AWC (Super-All Wheel Con-
trol)
E08501900170
S-AWC is an integrated vehicle dynamicscontrol system that helps enhance driving
performance, cornering performance, and ve-
hicle stability over a wide range of driving conditions through integrated management of the twin motor 4WD, the AYC (Active Yaw
Control), the ABS and the ASC.
Refer to “S-AWC (Super-All Wheel Con-
trol)” on page 7-20.S-AWC drive mode
E08503200021
Select the drive mode from the following
three types to suit the driving conditions.
Drive modeFunction
NORMAL
This mode can be
used on both dry and
wet roads. The distri-
bution of driving/
braking torque to
each wheel is auto-
matically controlled
according to the driv-
ing condition.
SNOW
This mode is for
driving on slippery
road surfaces, such
as snow-covered
roads and improves
stability on a slippery
road.
Quick guide
1-212**((Overview1

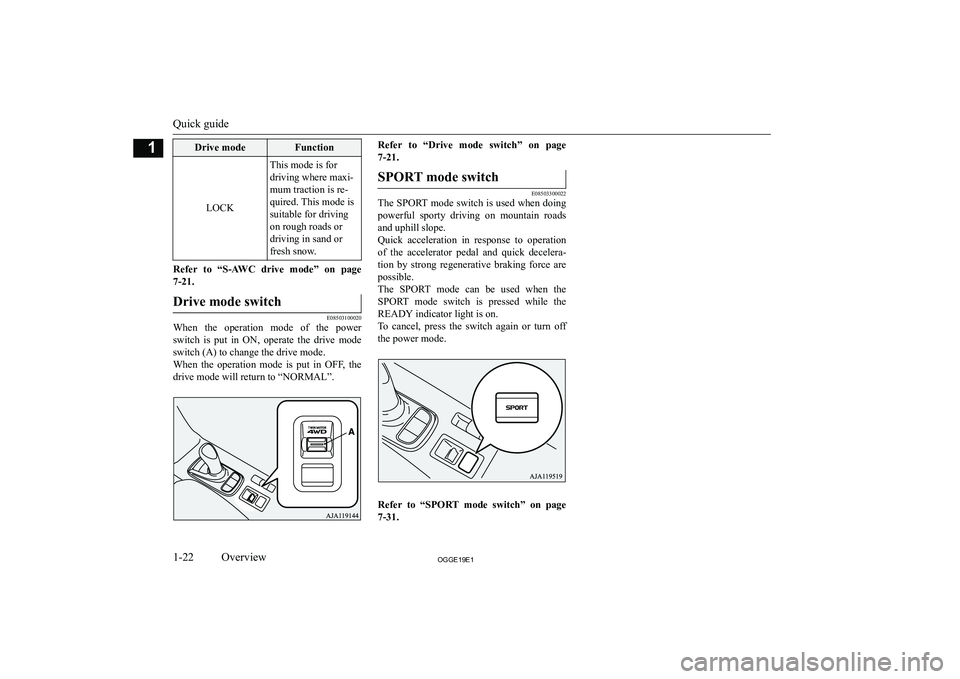

Drive modeFunction
LOCK
This mode is for
driving where maxi-
mum traction is re-
quired. This mode is
suitable for driving
on rough roads or
driving in sand or
fresh snow.
Refer to “S-AWC drive mode” on page 7-21.
Drive mode switch
E08503100020
When the operation mode of the power switch is put in ON, operate the drive mode
switch (A) to change the drive mode.
When the operation mode is put in OFF, the drive mode will return to “NORMAL”.
Refer to “Drive mode switch” on page
7-21.SPORT mode switch
E08503300022
The SPORT mode switch is used when doing
powerful sporty driving on mountain roads
and uphill slope.
Quick acceleration in response to operation of the accelerator pedal and quick decelera-tion by strong regenerative braking force arepossible.
The SPORT mode can be used when the
SPORT mode switch is pressed while the
READY indicator light is on.
To cancel, press the switch again or turn off the power mode.
Refer to “SPORT mode switch” on page
7-31.
Quick guide
1-222**((Overview1
