2019 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

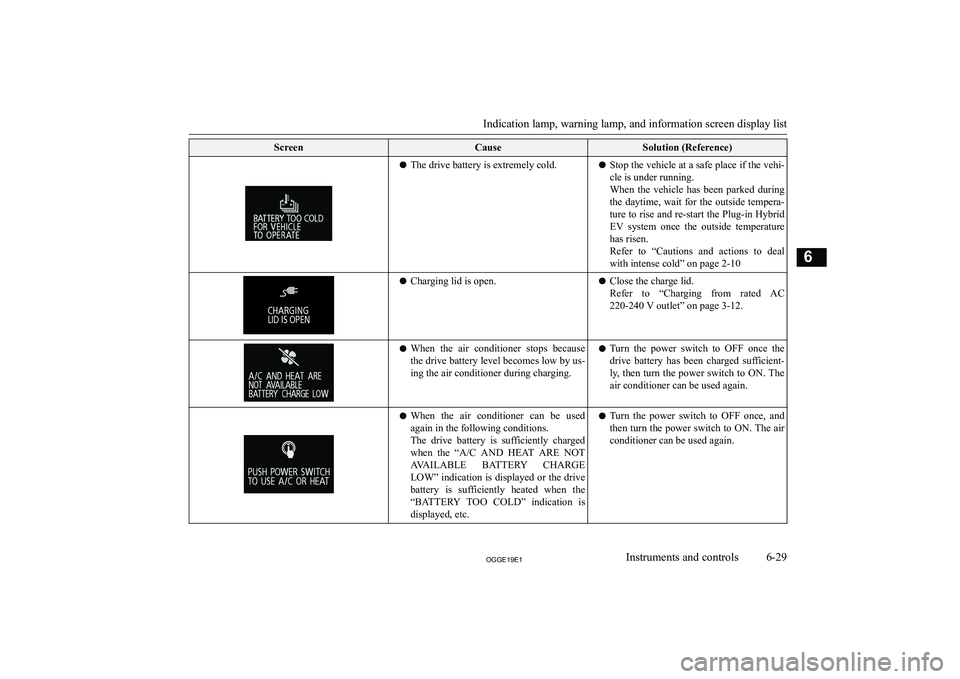

ScreenCauseSolution (Reference)zThe drive battery is extremely cold.zStop the vehicle at a safe place if the vehi-
cle is under running.
When the vehicle has been parked during
the daytime, wait for the outside tempera-
ture to rise and re-start the Plug-in Hybrid EV system once the outside temperaturehas risen.
Refer to “Cautions and actions to deal with intense cold” on page 2-10z Charging lid is open.z Close the charge lid.
Refer to “Charging from rated AC
220-240 V outlet” on page 3-12.z When the air conditioner stops because
the drive battery level becomes low by us- ing the air conditioner during charging.z Turn the power switch to OFF once the
drive battery has been charged sufficient- ly, then turn the power switch to ON. The
air conditioner can be used again.z When the air conditioner can be used
again in the following conditions.
The drive battery is sufficiently charged when the “A/C AND HEAT ARE NOT
AVAILABLE BATTERY CHARGE LOW” indication is displayed or the drivebattery is sufficiently heated when the “BATTERY TOO COLD” indication is
displayed, etc.z Turn the power switch to OFF once, and
then turn the power switch to ON. The air conditioner can be used again.
Indication lamp, warning lamp, and information screen display list
6-292**((Instruments and controls6

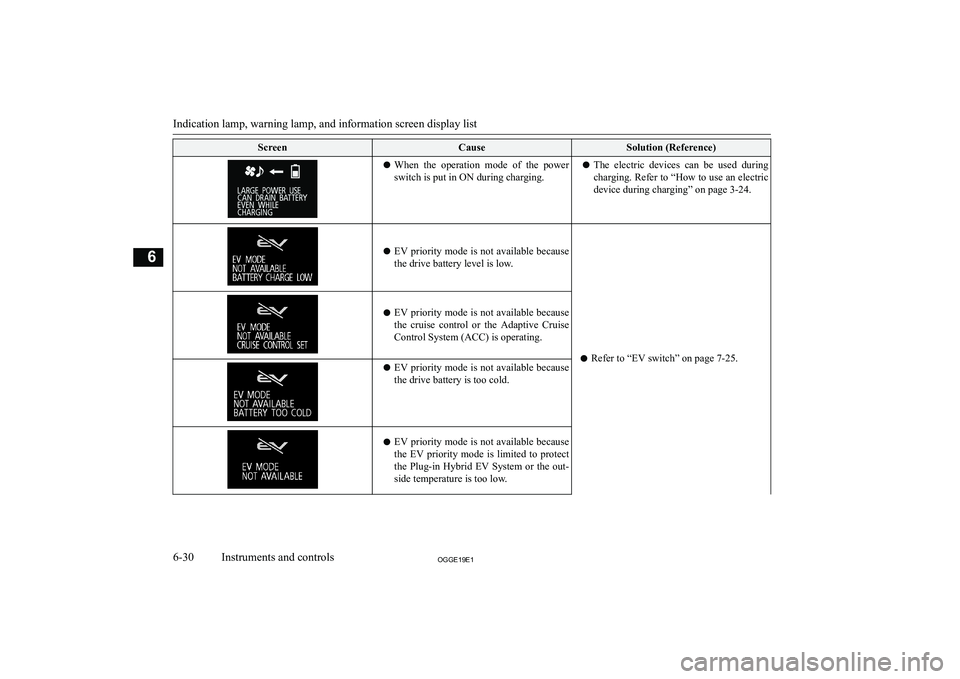

ScreenCauseSolution (Reference)zWhen the operation mode of the power
switch is put in ON during charging.z The electric devices can be used during
charging. Refer to “How to use an electricdevice during charging” on page 3-24.
z EV priority mode is not available because
the drive battery level is low.
z Refer to “EV switch” on page 7-25.
zEV priority mode is not available because
the cruise control or the Adaptive Cruise
Control System (ACC) is operating.
z EV priority mode is not available because
the drive battery is too cold.z EV priority mode is not available because
the EV priority mode is limited to protect
the Plug-in Hybrid EV System or the out-
side temperature is too low.
Indication lamp, warning lamp, and information screen display list
6-302**((Instruments and controls6

ScreenCauseSolution (Reference)

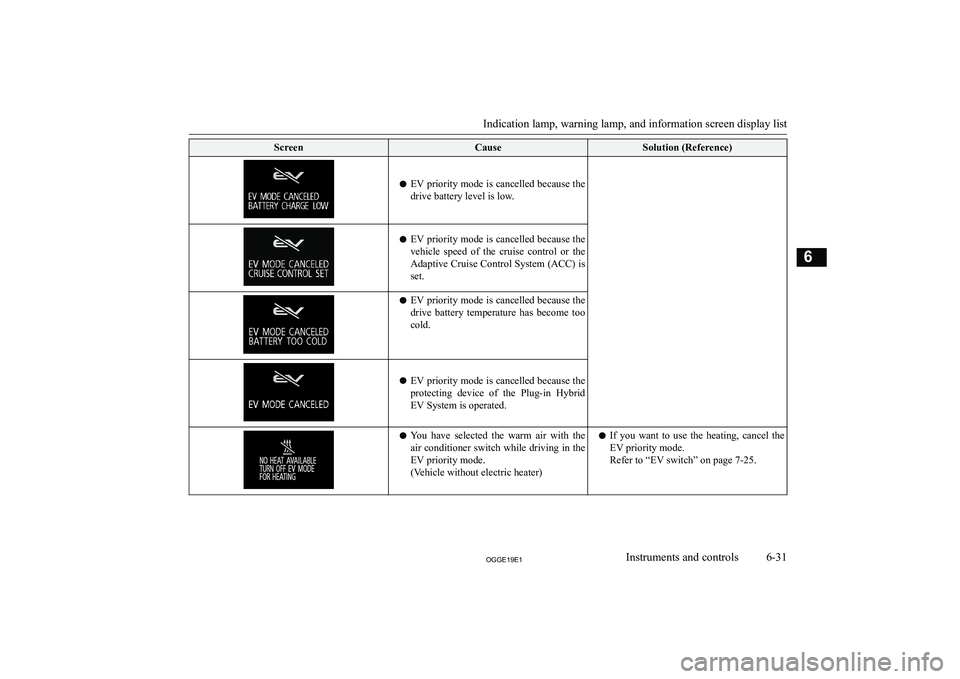

zEV priority mode is cancelled because the
drive battery level is low.
z EV priority mode is cancelled because the
vehicle speed of the cruise control or theAdaptive Cruise Control System (ACC) is
set.z EV priority mode is cancelled because the
drive battery temperature has become too
cold.
z EV priority mode is cancelled because the
protecting device of the Plug-in Hybrid
EV System is operated.
z You have selected the warm air with the
air conditioner switch while driving in the EV priority mode.
(Vehicle without electric heater)z If you want to use the heating, cancel the
EV priority mode.
Refer to “EV switch” on page 7-25.
Indication lamp, warning lamp, and information screen display list
6-312**((Instruments and controls6

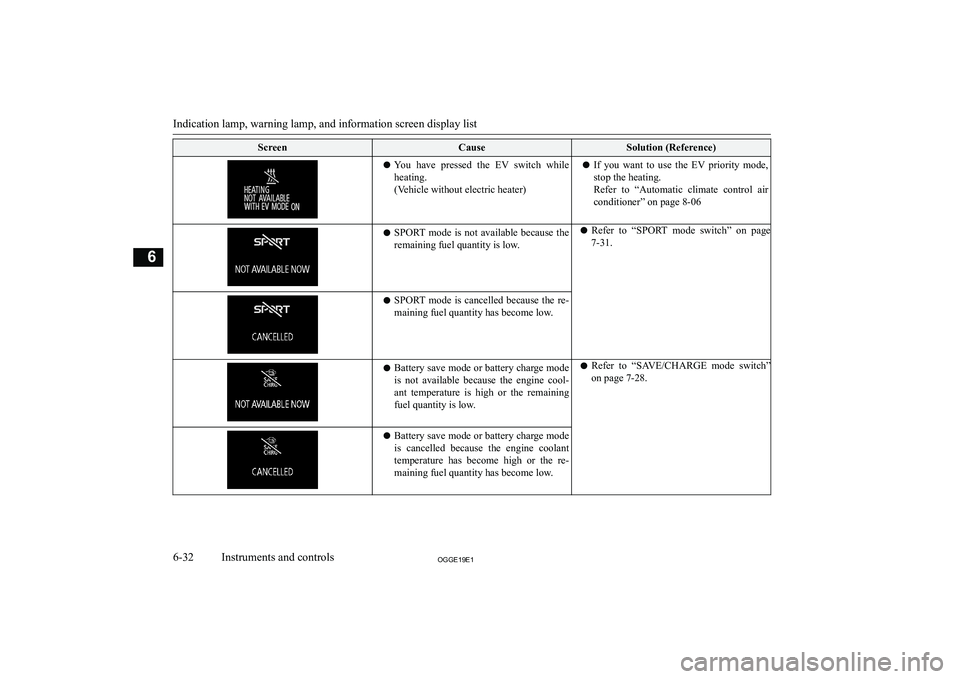

ScreenCauseSolution (Reference)zYou have pressed the EV switch while
heating.
(Vehicle without electric heater)z If you want to use the EV priority mode,
stop the heating.
Refer to “Automatic climate control air conditioner” on page 8-06z SPORT mode is not available because the
remaining fuel quantity is low.z Refer to “SPORT mode switch” on page
7-31.z SPORT mode is cancelled because the re-
maining fuel quantity has become low.z Battery save mode or battery charge mode
is not available because the engine cool-
ant temperature is high or the remaining fuel quantity is low.z Refer to “SAVE/CHARGE mode switch”
on page 7-28.z Battery save mode or battery charge mode
is cancelled because the engine coolant
temperature has become high or the re- maining fuel quantity has become low.
Indication lamp, warning lamp, and information screen display list
6-322**((Instruments and controls6

ScreenCauseSolution (Reference)

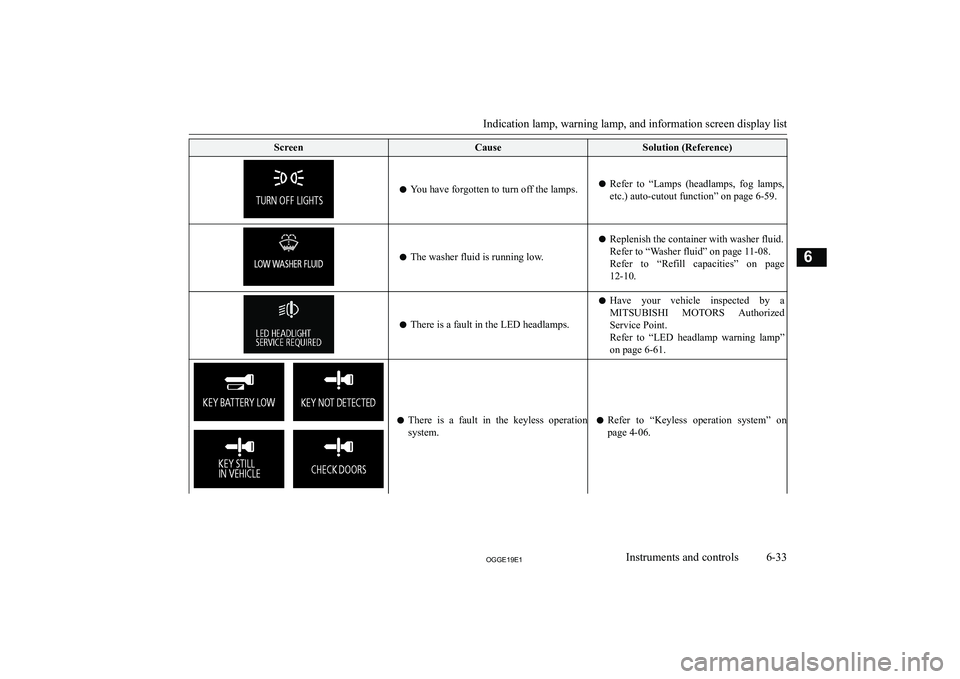

zYou have forgotten to turn off the lamps.zRefer to “Lamps (headlamps, fog lamps,
etc.) auto-cutout function” on page 6-59.z The washer fluid is running low.
z Replenish the container with washer fluid.
Refer to “Washer fluid” on page 11-08.
Refer to “Refill capacities” on page
12-10.
z There is a fault in the LED headlamps.
zHave your vehicle inspected by a
MITSUBISHI MOTORS Authorized
Service Point.
Refer to “LED headlamp warning lamp”
on page 6-61.
z There is a fault in the keyless operation
system.z Refer to “Keyless operation system” on
page 4-06.
Indication lamp, warning lamp, and information screen display list
6-332**((Instruments and controls6

ScreenCauseSolution (Reference)

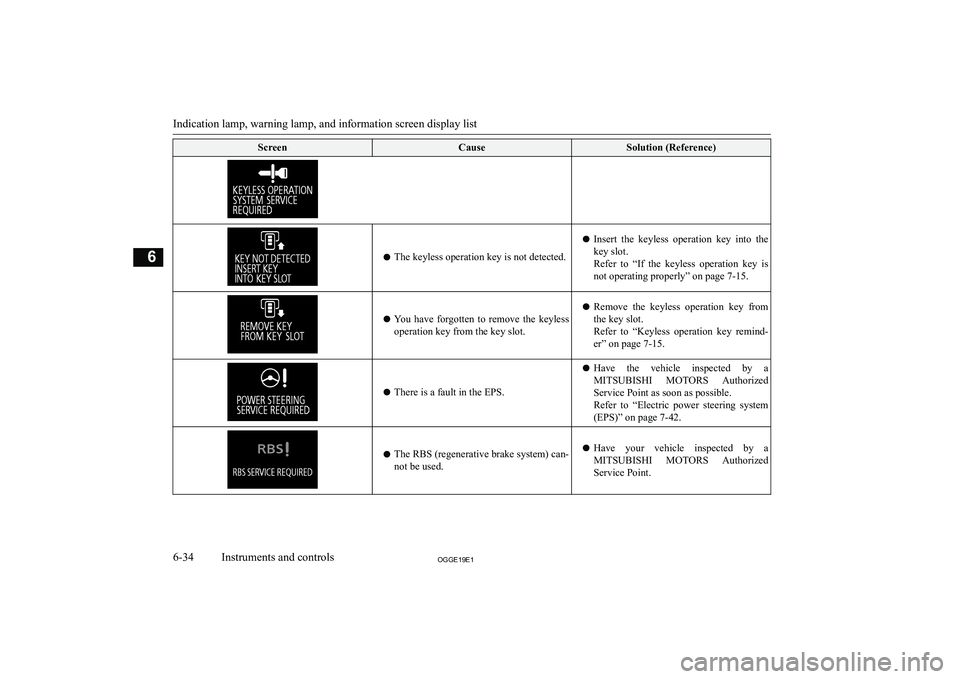

zThe keyless operation key is not detected.
zInsert the keyless operation key into the
key slot.
Refer to “If the keyless operation key is not operating properly” on page 7-15.
z You have forgotten to remove the keyless
operation key from the key slot.
z Remove the keyless operation key from
the key slot.
Refer to “Keyless operation key remind-
er” on page 7-15.
z There is a fault in the EPS.
z Have the vehicle inspected by a
MITSUBISHI MOTORS Authorized
Service Point as soon as possible.
Refer to “Electric power steering system (EPS)” on page 7-42.
z The RBS (regenerative brake system) can-
not be used.z Have your vehicle inspected by a
MITSUBISHI MOTORS Authorized
Service Point.
Indication lamp, warning lamp, and information screen display list
6-342**((Instruments and controls6

ScreenCauseSolution (Reference)

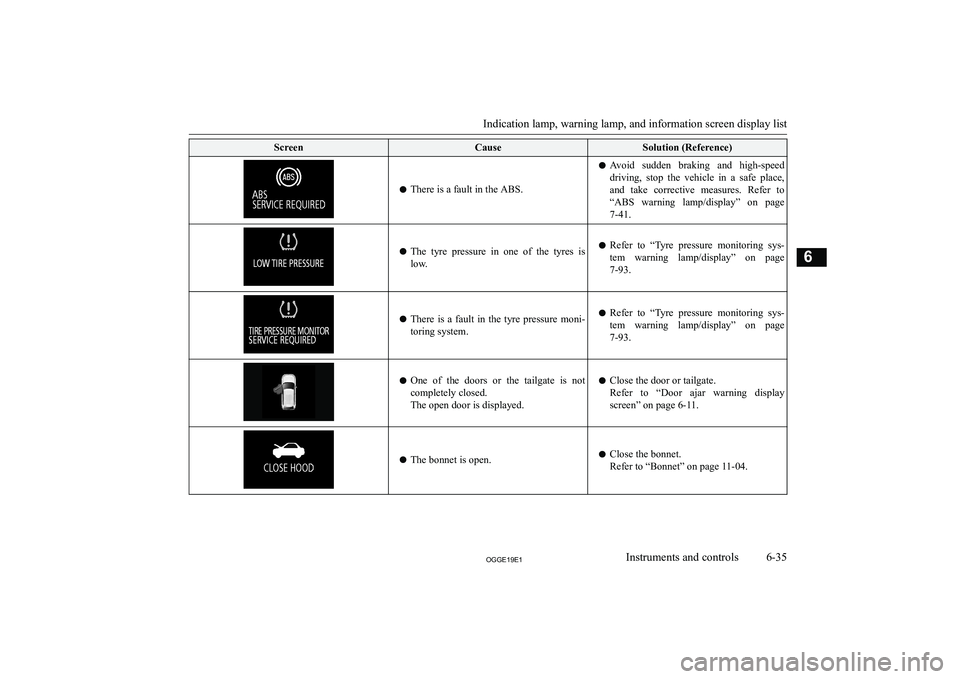

zThere is a fault in the ABS.
z Avoid sudden braking and high-speed
driving, stop the vehicle in a safe place, and take corrective measures. Refer to“ABS warning lamp/display” on page
7-41.
z The tyre pressure in one of the tyres is
low.z Refer to “Tyre pressure monitoring sys-
tem warning lamp/display” on page
7-93.z There is a fault in the tyre pressure moni-
toring system.z Refer to “Tyre pressure monitoring sys-
tem warning lamp/display” on page 7-93.z One of the doors or the tailgate is not
completely closed.
The open door is displayed.z Close the door or tailgate.
Refer to “Door ajar warning display screen” on page 6-11.
z The bonnet is open.zClose the bonnet.
Refer to “Bonnet” on page 11-04.Indication lamp, warning lamp, and information screen display list
6-352**((Instruments and controls6

ScreenCauseSolution (Reference)

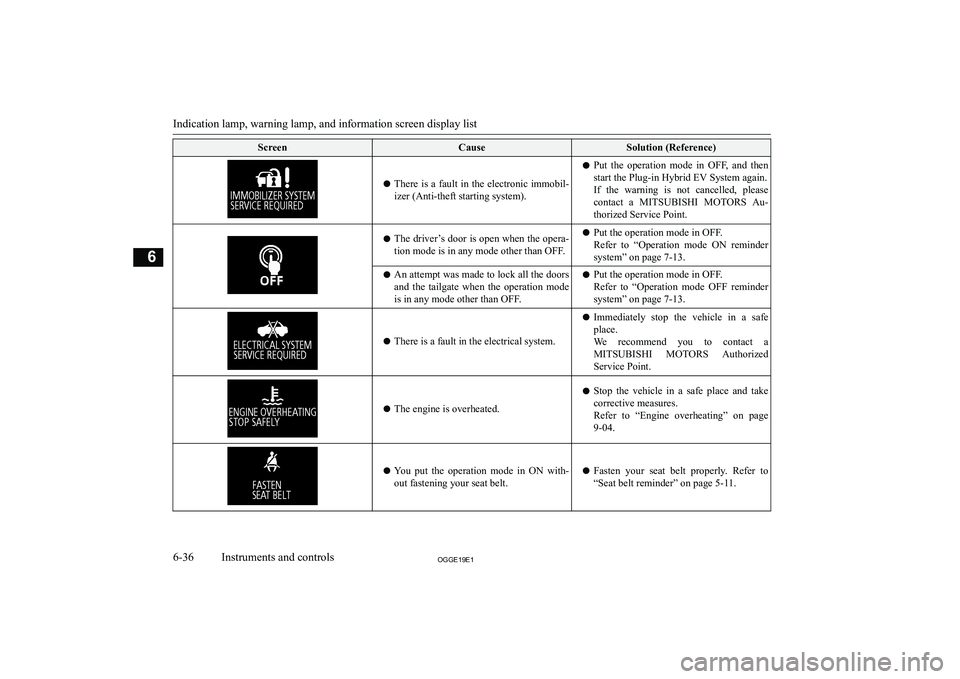

zThere is a fault in the electronic immobil-
izer (Anti-theft starting system).
z Put the operation mode in OFF, and then
start the Plug-in Hybrid EV System again.
If the warning is not cancelled, please
contact a MITSUBISHI MOTORS Au-
thorized Service Point.z The driver’s door is open when the opera-
tion mode is in any mode other than OFF.z Put the operation mode in OFF.
Refer to “Operation mode ON reminder
system” on page 7-13.z An attempt was made to lock all the doors
and the tailgate when the operation mode
is in any mode other than OFF.z Put the operation mode in OFF.
Refer to “Operation mode OFF reminder
system” on page 7-13.
z There is a fault in the electrical system.
z Immediately stop the vehicle in a safe
place.
We recommend you to contact a MITSUBISHI MOTORS Authorized
Service Point.
z The engine is overheated.
zStop the vehicle in a safe place and take
corrective measures.
Refer to “Engine overheating” on page 9-04.
z You put the operation mode in ON with-
out fastening your seat belt.z Fasten your seat belt properly. Refer to
“Seat belt reminder” on page 5-11.Indication lamp, warning lamp, and information screen display list
6-362**((Instruments and controls6
