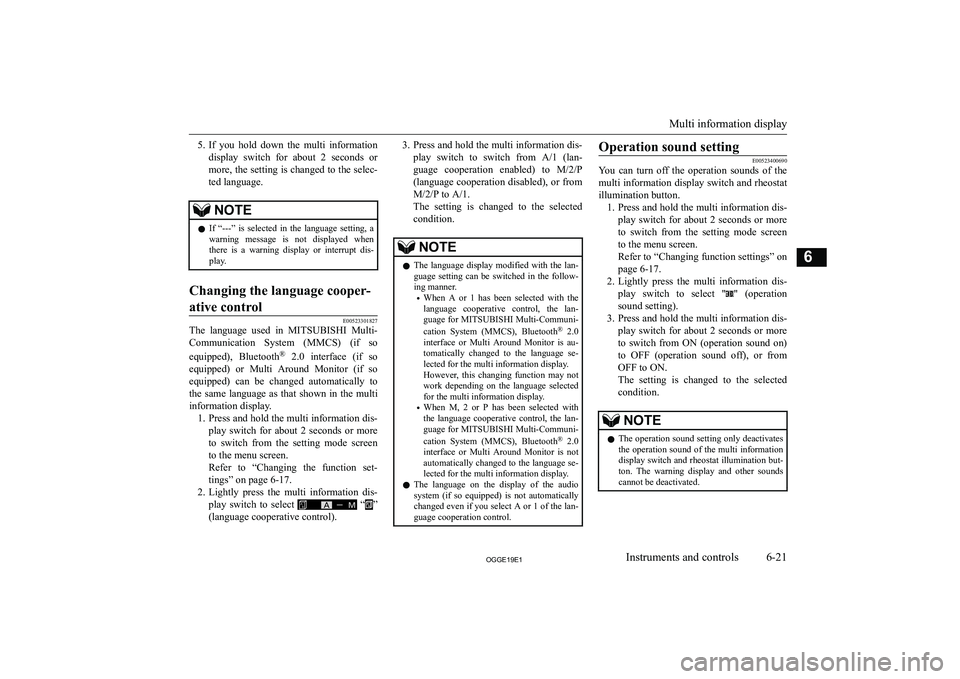

5.If you hold down the multi information
display switch for about 2 seconds or
more, the setting is changed to the selec- ted language.NOTEz If “---” is selected in the language setting, a
warning message is not displayed whenthere is a warning display or interrupt dis-
play.Changing the language cooper-
ative control
E00523301827
The language used in MITSUBISHI Multi-
Communication System (MMCS) (if so
equipped), Bluetooth

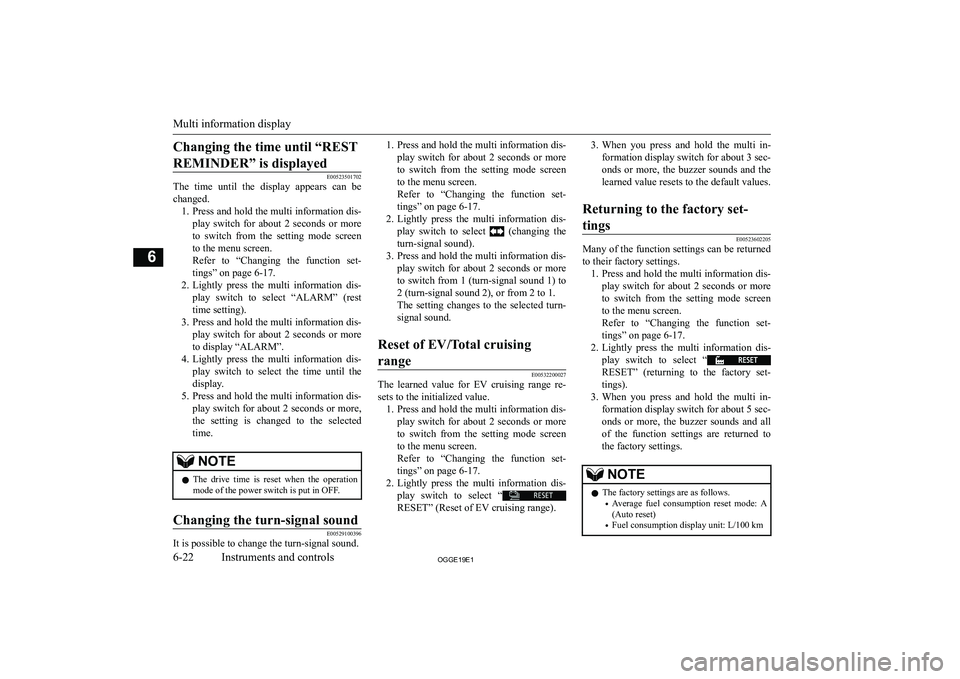

Changing the time until “RESTREMINDER” is displayed
E00523501702
The time until the display appears can be
changed. 1. Press and hold the multi information dis-
play switch for about 2 seconds or more to switch from the setting mode screen
to the menu screen.
Refer to “Changing the function set-
tings” on page 6-17.
2. Lightly press the multi information dis-
play switch to select “ALARM” (rest time setting).
3. Press and hold the multi information dis-
play switch for about 2 seconds or more to display “ALARM”.
4. Lightly press the multi information dis-
play switch to select the time until thedisplay.
5. Press and hold the multi information dis-
play switch for about 2 seconds or more, the setting is changed to the selected
time.
NOTEz The drive time is reset when the operation
mode of the power switch is put in OFF.Changing the turn-signal soundE00529100396
It is possible to change the turn-signal sound.
1. Press and hold the multi information dis-
play switch for about 2 seconds or more to switch from the setting mode screen
to the menu screen.
Refer to “Changing the function set-
tings” on page 6-17.
2. Lightly press the multi information dis-
play switch to select
(changing the
turn-signal sound).
3. Press and hold the multi information dis-
play switch for about 2 seconds or moreto switch from 1 (turn-signal sound 1) to
2 (turn-signal sound 2), or from 2 to 1.
The setting changes to the selected turn-
signal sound.
Reset of EV/Total cruising
range
E00532200027
The learned value for EV cruising range re- sets to the initialized value. 1. Press and hold the multi information dis-
play switch for about 2 seconds or moreto switch from the setting mode screen
to the menu screen.
Refer to “Changing the function set-
tings” on page 6-17.
2. Lightly press the multi information dis-
play switch to select “
RESET” (Reset of EV cruising range).
3. When you press and hold the multi in-
formation display switch for about 3 sec- onds or more, the buzzer sounds and thelearned value resets to the default values.Returning to the factory set-
tings
E00523602205
Many of the function settings can be returned
to their factory settings. 1. Press and hold the multi information dis-
play switch for about 2 seconds or more to switch from the setting mode screen
to the menu screen.
Refer to “Changing the function set- tings” on page 6-17.
2. Lightly press the multi information dis-
play switch to select “
RESET” (returning to the factory set-
tings).
3. When you press and hold the multi in-
formation display switch for about 5 sec- onds or more, the buzzer sounds and allof the function settings are returned to
the factory settings.
NOTEz The factory settings are as follows.

NOTE

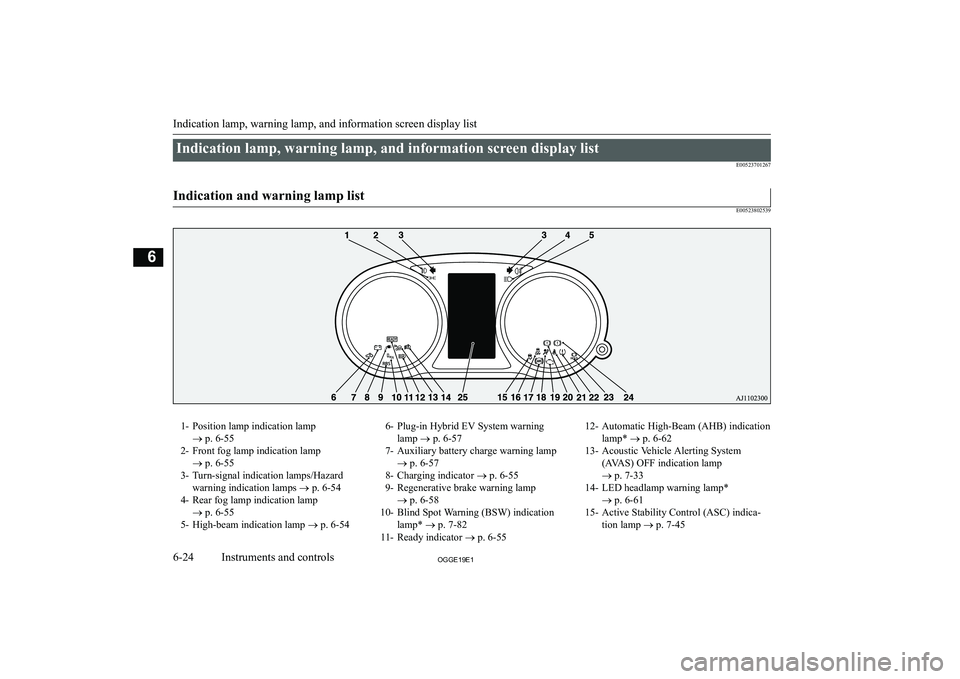

Indication lamp, warning lamp, and information screen display listE00523701267
Indication and warning lamp list
E00523802539
1- Position lamp indication lamp o p. 6-55
2- Front fog lamp indication lamp o p. 6-55
3- Turn-signal indication lamps/Hazard warning indication lamps o p. 6-54
4- Rear fog lamp indication lamp o p. 6-55
5- High-beam indication lamp o p. 6-546- Plug-in Hybrid EV System warning
lamp o p. 6-57
7- Auxiliary battery charge warning lamp o p. 6-57
8- Charging indicator o p. 6-55
9- Regenerative brake warning lamp o p. 6-58
10- Blind Spot Warning (BSW) indication lamp* o p. 7-82
11- Ready indicator o p. 6-5512- Automatic High-Beam (AHB) indication
lamp* o p. 6-62
13- Acoustic Vehicle Alerting System (AVAS) OFF indication lamp
o p. 7-33
14- LED headlamp warning lamp* o p. 6-61
15- Active Stability Control (ASC) indica- tion lamp o p. 7-45
Indication lamp, warning lamp, and information screen display list
6-242**((Instruments and controls6

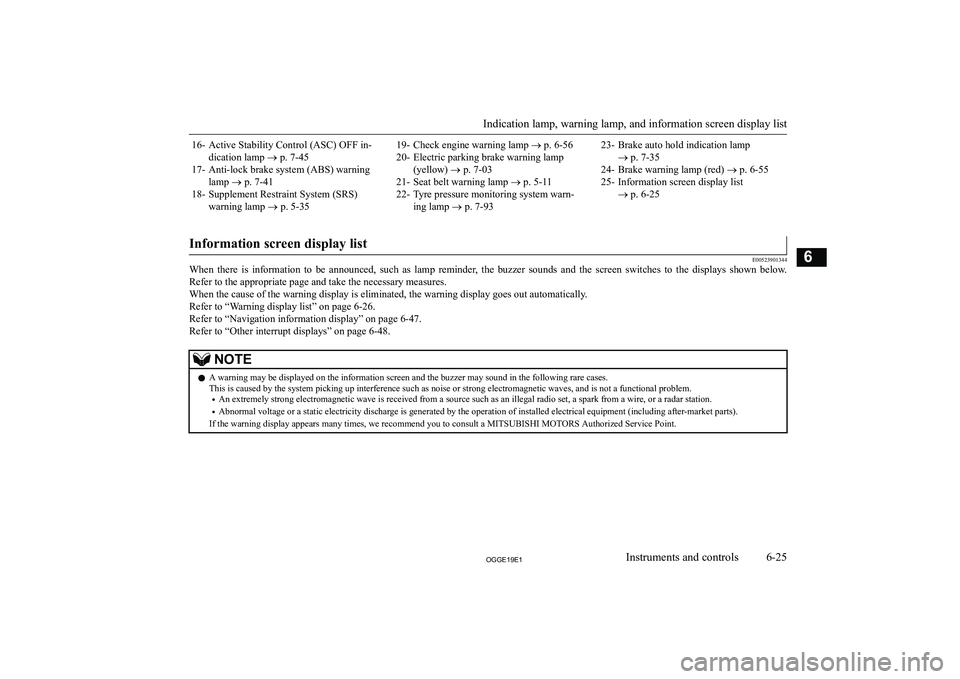

16- Active Stability Control (ASC) OFF in-dication lamp o p. 7-45
17- Anti-lock brake system (ABS) warning lamp o p. 7-41
18- Supplement Restraint System (SRS) warning lamp o p. 5-3519- Check engine warning lamp o p. 6-56
20- Electric parking brake warning lamp (yellow) o p. 7-03
21- Seat belt warning lamp o p. 5-11
22- Tyre pressure monitoring system warn- ing lamp o p. 7-9323- Brake auto hold indication lamp
o p. 7-35
24- Brake warning lamp (red) o p. 6-55
25- Information screen display list o p. 6-25

Information screen display list
E00523901344
When there is information to be announced, such as lamp reminder, the buzzer sounds and the screen switches to the displays shown below.
Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically. Refer to “Warning display list” on page 6-26.
Refer to “Navigation information display” on page 6-47. Refer to “Other interrupt displays” on page 6-48.
NOTEz A warning may be displayed on the information screen and the buzzer may sound in the following rare cases.
This is caused by the system picking up interference such as noise or strong electromagnetic waves, and is not a functional problem.

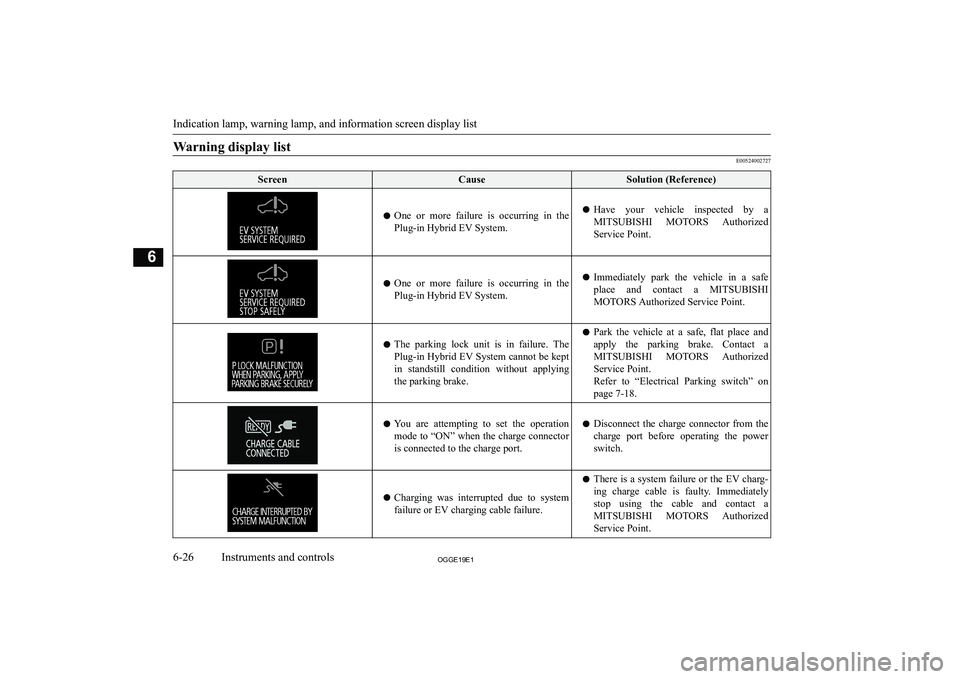

Warning display list
E00524002727
ScreenCauseSolution (Reference)
zOne or more failure is occurring in the
Plug-in Hybrid EV System.z Have your vehicle inspected by a
MITSUBISHI MOTORS Authorized
Service Point.z One or more failure is occurring in the
Plug-in Hybrid EV System.z Immediately park the vehicle in a safe
place and contact a MITSUBISHI
MOTORS Authorized Service Point.z The parking lock unit is in failure. The
Plug-in Hybrid EV System cannot be keptin standstill condition without applying the parking brake.
z Park the vehicle at a safe, flat place and
apply the parking brake. Contact a
MITSUBISHI MOTORS Authorized
Service Point.
Refer to “Electrical Parking switch” on page 7-18.
z You are attempting to set the operation
mode to “ON” when the charge connector
is connected to the charge port.z Disconnect the charge connector from the
charge port before operating the power
switch.z Charging was interrupted due to system
failure or EV charging cable failure.
z There is a system failure or the EV charg-
ing charge cable is faulty. Immediately
stop using the cable and contact a
MITSUBISHI MOTORS Authorized
Service Point.
Indication lamp, warning lamp, and information screen display list
6-262**((Instruments and controls6

ScreenCauseSolution (Reference)
zNormal charging

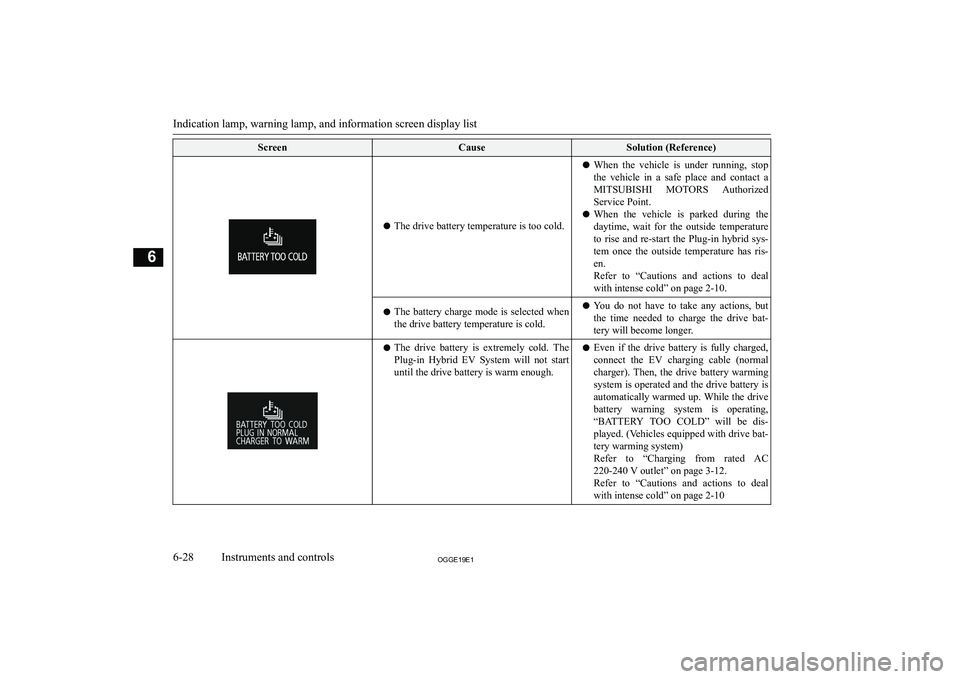

ScreenCauseSolution (Reference)
zThe drive battery temperature is too cold.
z When the vehicle is under running, stop
the vehicle in a safe place and contact a MITSUBISHI MOTORS Authorized
Service Point.
z When the vehicle is parked during the
daytime, wait for the outside temperature to rise and re-start the Plug-in hybrid sys-tem once the outside temperature has ris-
en.
Refer to “Cautions and actions to deal with intense cold” on page 2-10.z The battery charge mode is selected when
the drive battery temperature is cold.z You do not have to take any actions, but
the time needed to charge the drive bat-
tery will become longer.z The drive battery is extremely cold. The
Plug-in Hybrid EV System will not start
until the drive battery is warm enough.z Even if the drive battery is fully charged,
connect the EV charging cable (normal charger). Then, the drive battery warmingsystem is operated and the drive battery isautomatically warmed up. While the drive
battery warning system is operating,
“BATTERY TOO COLD” will be dis- played. (Vehicles equipped with drive bat-
tery warming system)
Refer to “Charging from rated AC 220-240 V outlet” on page 3-12.
Refer to “Cautions and actions to deal with intense cold” on page 2-10
Indication lamp, warning lamp, and information screen display list
6-282**((Instruments and controls6
