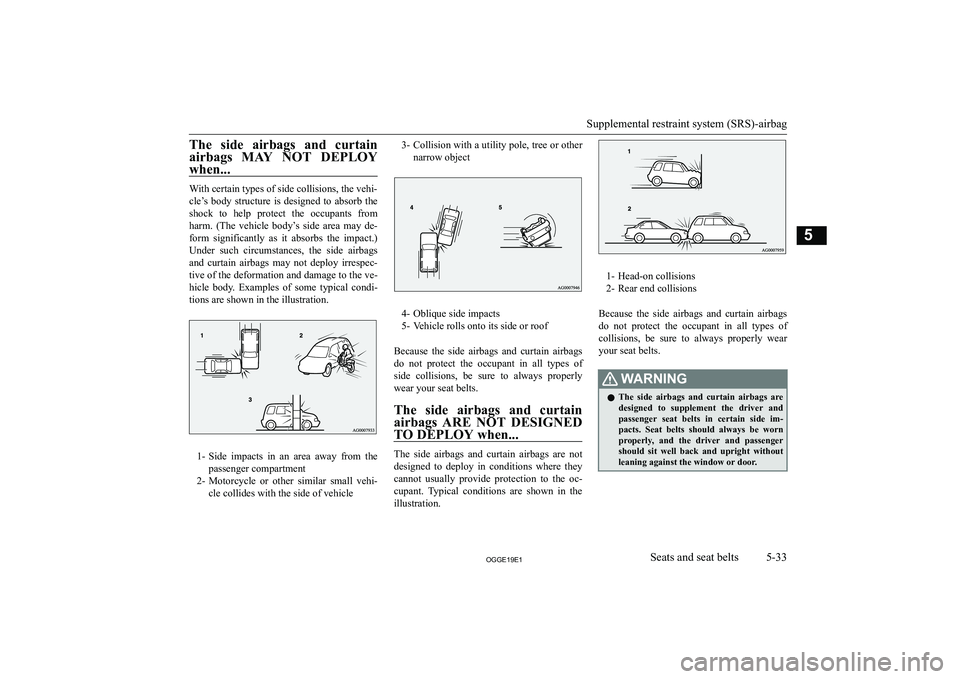

The side airbags and curtainairbags MAY NOT DEPLOY
when...
With certain types of side collisions, the vehi-
cle’s body structure is designed to absorb the
shock to help protect the occupants from
harm. (The vehicle body’s side area may de- form significantly as it absorbs the impact.)Under such circumstances, the side airbags
and curtain airbags may not deploy irrespec- tive of the deformation and damage to the ve- hicle body. Examples of some typical condi-
tions are shown in the illustration.
1- Side impacts in an area away from the
passenger compartment
2- Motorcycle or other similar small vehi-
cle collides with the side of vehicle
3- Collision with a utility pole, tree or other
narrow object
4- Oblique side impacts
5- Vehicle rolls onto its side or roof
Because the side airbags and curtain airbags do not protect the occupant in all types of side collisions, be sure to always properlywear your seat belts.
The side airbags and curtain
airbags ARE NOT DESIGNED TO DEPLOY when...
The side airbags and curtain airbags are notdesigned to deploy in conditions where they
cannot usually provide protection to the oc- cupant. Typical conditions are shown in the
illustration.
1- Head-on collisions
2- Rear end collisions
Because the side airbags and curtain airbags do not protect the occupant in all types of collisions, be sure to always properly wearyour seat belts.
:ARN,NGz The side airbags and curtain airbags are
designed to supplement the driver and
passenger seat belts in certain side im- pacts. Seat belts should always be wornproperly, and the driver and passenger
should sit well back and upright without
leaning against the window or door.
Supplemental restraint system (SRS)-airbag
5-332**((Seats and seat belts5

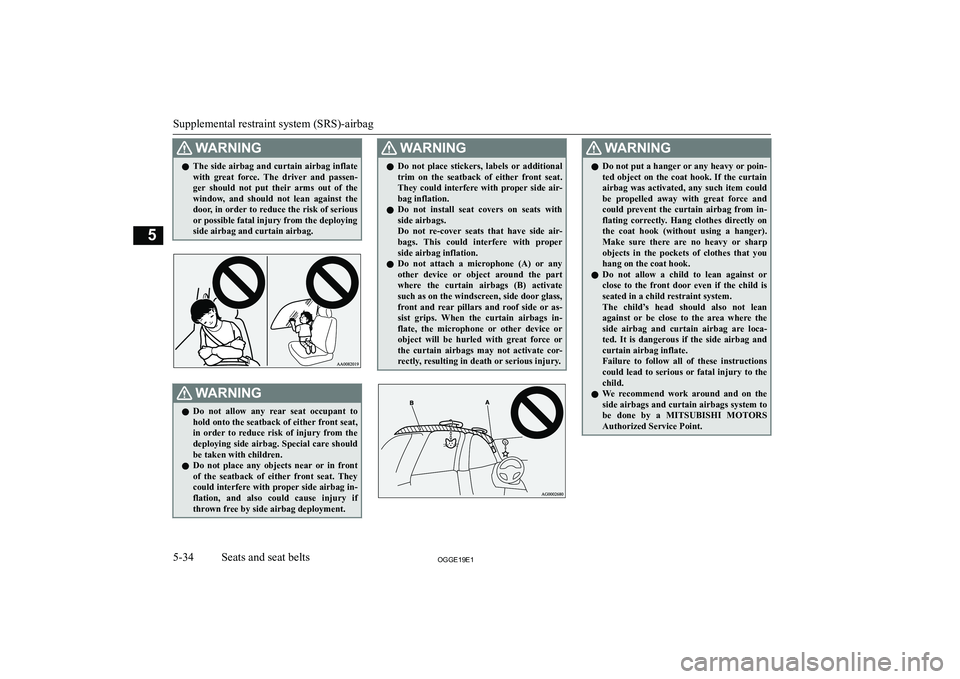

:ARN,NGzThe side airbag and curtain airbag inflate
with great force. The driver and passen-ger should not put their arms out of the
window, and should not lean against the
door, in order to reduce the risk of serious or possible fatal injury from the deploying
side airbag and curtain airbag.:ARN,NGz Do not allow any rear seat occupant to
hold onto the seatback of either front seat,
in order to reduce risk of injury from the deploying side airbag. Special care should
be taken with children.
z Do not place any objects near or in front
of the seatback of either front seat. They could interfere with proper side airbag in-
flation, and also could cause injury if thrown free by side airbag deployment.:ARN,NGz Do not place stickers, labels or additional
trim on the seatback of either front seat.They could interfere with proper side air-
bag inflation.
z Do not install seat covers on seats with
side airbags.
Do not re-cover seats that have side air-
bags. This could interfere with proper side airbag inflation.
z Do not attach a microphone (A) or any
other device or object around the part where the curtain airbags (B) activate
such as on the windscreen, side door glass, front and rear pillars and roof side or as-
sist grips. When the curtain airbags in-
flate, the microphone or other device or object will be hurled with great force orthe curtain airbags may not activate cor-
rectly, resulting in death or serious injury.:ARN,NGz Do not put a hanger or any heavy or poin-
ted object on the coat hook. If the curtain
airbag was activated, any such item could
be propelled away with great force and could prevent the curtain airbag from in-
flating correctly. Hang clothes directly on the coat hook (without using a hanger). Make sure there are no heavy or sharp
objects in the pockets of clothes that you hang on the coat hook.
z Do not allow a child to lean against or
close to the front door even if the child is
seated in a child restraint system.
The child’s head should also not lean against or be close to the area where the
side airbag and curtain airbag are loca-
ted. It is dangerous if the side airbag and curtain airbag inflate.
Failure to follow all of these instructions could lead to serious or fatal injury to the
child.
z We recommend work around and on the
side airbags and curtain airbags system to
be done by a MITSUBISHI MOTORS
Authorized Service Point.
Supplemental restraint system (SRS)-airbag
5-342**((Seats and seat belts5

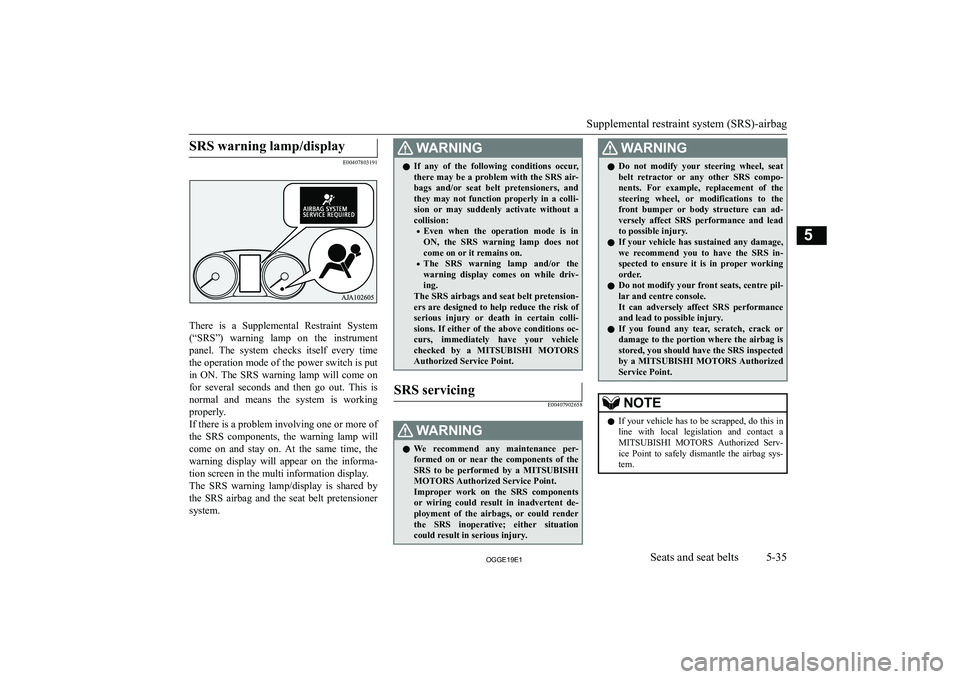

SRS warning lamp/display
E00407803191
There is a Supplemental Restraint System(“SRS”) warning lamp on the instrument panel. The system checks itself every time
the operation mode of the power switch is put in ON. The SRS warning lamp will come on
for several seconds and then go out. This is
normal and means the system is working
properly.
If there is a problem involving one or more of
the SRS components, the warning lamp will come on and stay on. At the same time, thewarning display will appear on the informa-
tion screen in the multi information display.
The SRS warning lamp/display is shared by
the SRS airbag and the seat belt pretensioner system.
:ARN,NGz If any of the following conditions occur,
there may be a problem with the SRS air-
bags and/or seat belt pretensioners, and they may not function properly in a colli-
sion or may suddenly activate without a
collision:

2**((

Instruments.......................................................................................... 6-02
Multi information display................................................................... 6-04
Indication lamp, warning lamp, and information screen display list....................................................................................... 6-24
Indication lamps.................................................................................. 6-54
Warning lamps.................................................................................... 6-55
Information screen display.................................................................. 6-58
Combination headlamps and dipper switch........................................ 6-59
Headlamp levelling............................................................................. 6-66
Turn-signal lever................................................................................. 6-67
Hazard warning flasher switch............................................................6-67 ECO mode switch............................................................................... 6-68
Fog lamp switch.................................................................................. 6-68
Wiper and washer switch.................................................................... 6-69 Wiper de-icer switch*......................................................................... 6-74
Rear window demister switch............................................................. 6-74
Heated windscreen switch*.................................................................6-75 Heated steering wheel switch*............................................................6-76Horn switch......................................................................................... 6-77,nstrumentsandcontrols
2**((6

InstrumentsE00500103079
1- Energy usage indicator o p. 6-02
2- Multi information display o p. 6-04
Information screen display list
o p. 6-25
3- Speedometer (km/h or mph + km/h)
4- Rheostat illumination button o p. 6-03
Energy usage indicator
E00529601037
Ready OFF position
Indicates that the vehicle cannot run
(READY OFF).
When the vehicle is ready for running, the
needle of the energy usage indicator moves to the horizontal position.
EV zone
The EV zone shows the output during EV
drive (driving with the engine stopped).
The EV zone is covered by the numbers 1 and 2 in the illustration.
Zone 1 shows the state that the EV drive can
be maintained, while zone 2 shows the state that the engine starts in high possibility. As
the motor output increases, the movement range of the needle of the energy usage indi-cator increases.
In addition, the needle of the energy usage in-
dicator indicates the horizontal position when the engine is stopped or when there is noelectric energy generated by the motor output
and the regenerative brake.
Instruments
6-022**((Instruments and controls6 EV zoneEngine out- put zone
Charge zone Ready OFF position
Charging power gauge
EV zone details1: Zone that the EV drive can be maintained2: Zone that the engine starts in high possibility

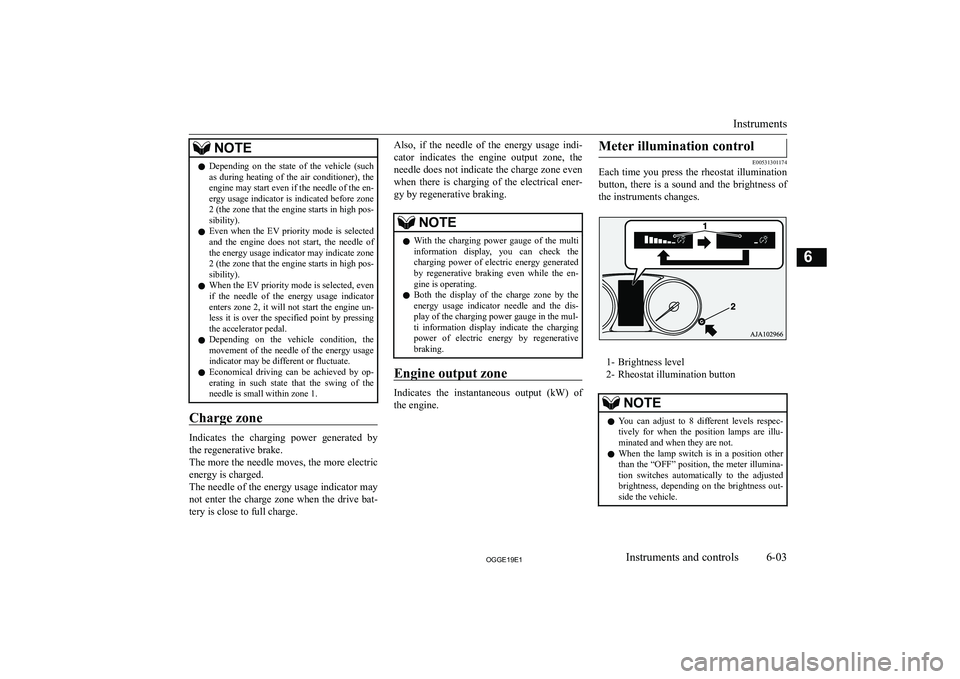

NOTEzDepending on the state of the vehicle (such
as during heating of the air conditioner), the engine may start even if the needle of the en-
ergy usage indicator is indicated before zone
2 (the zone that the engine starts in high pos- sibility).
z Even when the EV priority mode is selected
and the engine does not start, the needle of the energy usage indicator may indicate zone
2 (the zone that the engine starts in high pos- sibility).
z When the EV priority mode is selected, even
if the needle of the energy usage indicator
enters zone 2, it will not start the engine un- less it is over the specified point by pressing
the accelerator pedal.
z Depending on the vehicle condition, the
movement of the needle of the energy usage
indicator may be different or fluctuate.
z Economical driving can be achieved by op-
erating in such state that the swing of the needle is small within zone 1.
Charge zone
Indicates the charging power generated by
the regenerative brake.
The more the needle moves, the more electric energy is charged.
The needle of the energy usage indicator may not enter the charge zone when the drive bat-
tery is close to full charge.
Also, if the needle of the energy usage indi-
cator indicates the engine output zone, the needle does not indicate the charge zone even
when there is charging of the electrical ener-
gy by regenerative braking.NOTEz With the charging power gauge of the multi
information display, you can check thecharging power of electric energy generated
by regenerative braking even while the en- gine is operating.
z Both the display of the charge zone by the
energy usage indicator needle and the dis- play of the charging power gauge in the mul-
ti information display indicate the charging power of electric energy by regenerative
braking.
Engine output zone
Indicates the instantaneous output (kW) of
the engine.
Meter illumination control
E00531301174
Each time you press the rheostat illumination
button, there is a sound and the brightness of
the instruments changes.
1- Brightness level
2- Rheostat illumination button
NOTEz You can adjust to 8 different levels respec-
tively for when the position lamps are illu- minated and when they are not.
z When the lamp switch is in a position other
than the “OFF” position, the meter illumina-
tion switches automatically to the adjusted brightness, depending on the brightness out- side the vehicle.
Instruments
6-032**((Instruments and controls6

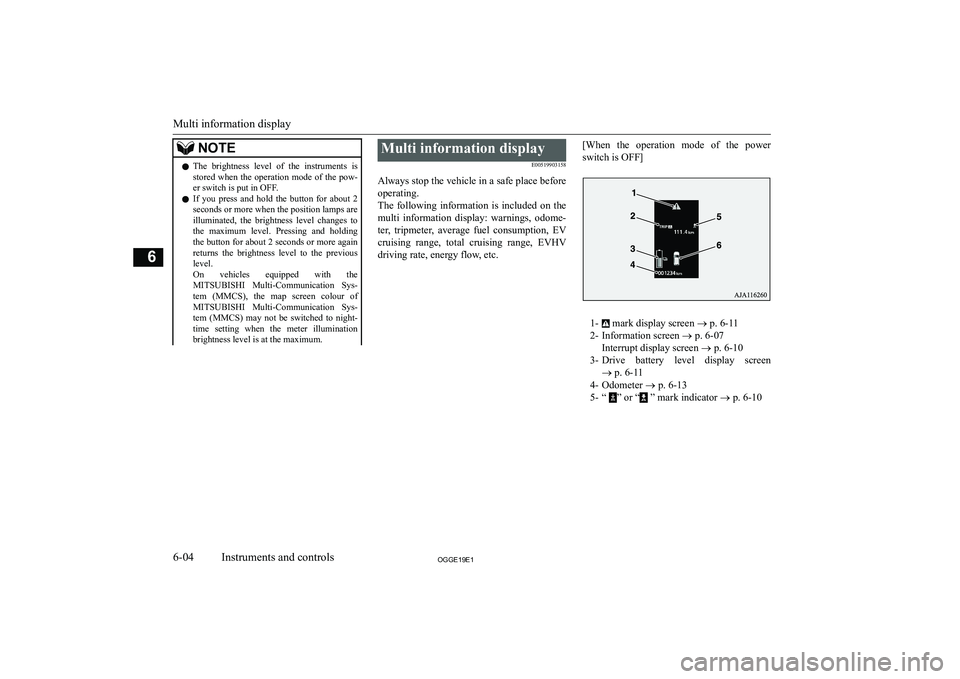

NOTEzThe brightness level of the instruments is
stored when the operation mode of the pow-
er switch is put in OFF.
z If you press and hold the button for about 2
seconds or more when the position lamps are
illuminated, the brightness level changes to
the maximum level. Pressing and holding the button for about 2 seconds or more again returns the brightness level to the previous
level.
On vehicles equipped with the
MITSUBISHI Multi-Communication Sys-
tem (MMCS), the map screen colour of MITSUBISHI Multi-Communication Sys-
tem (MMCS) may not be switched to night- time setting when the meter illumination
brightness level is at the maximum.Multi information display
E00519903158
Always stop the vehicle in a safe place before operating.
The following information is included on the multi information display: warnings, odome-
ter, tripmeter, average fuel consumption, EV cruising range, total cruising range, EVHV
driving rate, energy flow, etc.[When the operation mode of the power switch is OFF@
1- mark display screen o p. 6-11
2- Information screen o p. 6-07
Interrupt display screen o p. 6-10
3- Drive battery level display screen
o p. 6-11
4- Odometer o p. 6-13
5- “
” or “ ” mark indicator o p. 6-10
Multi information display
6-042**((Instruments and controls6
